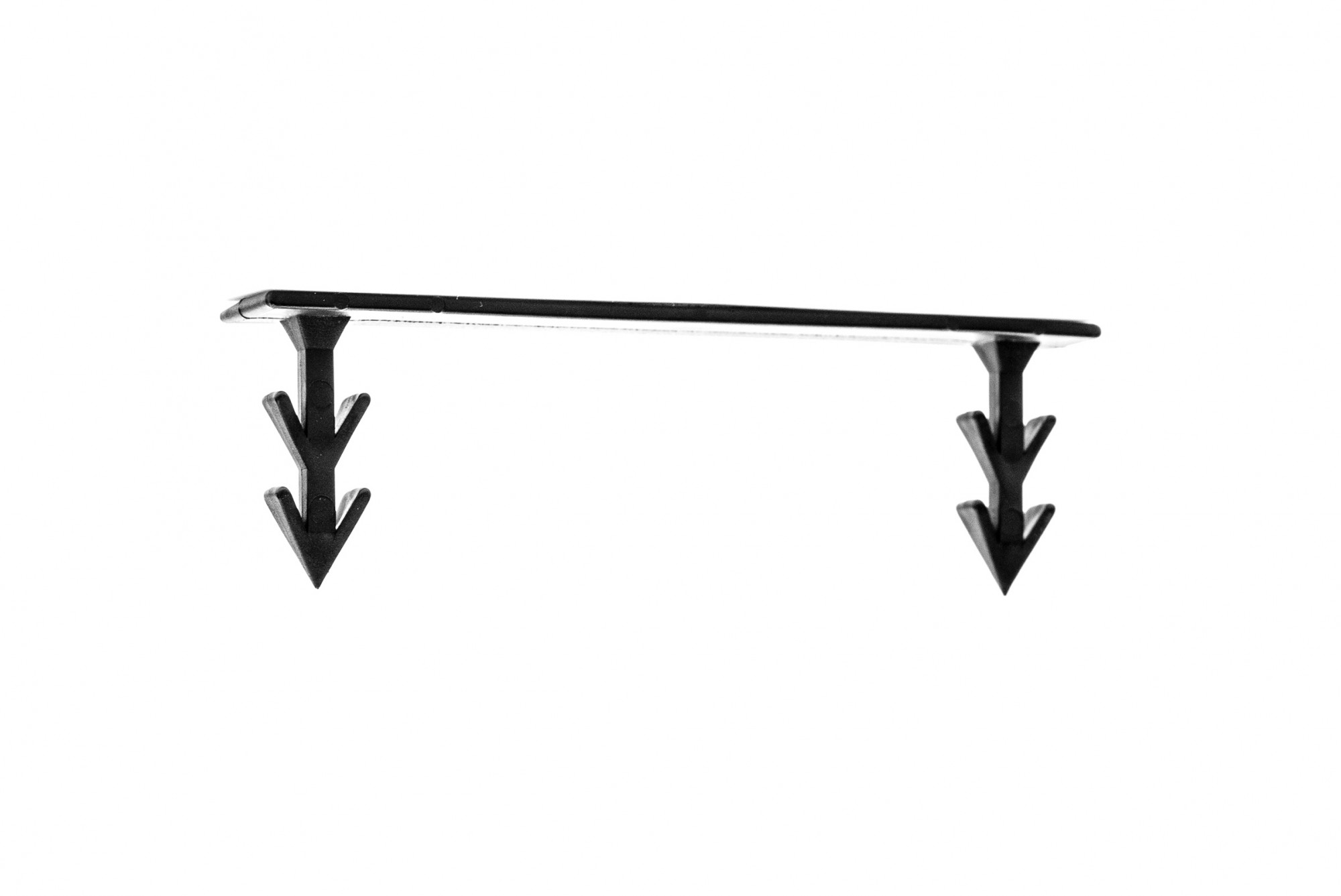

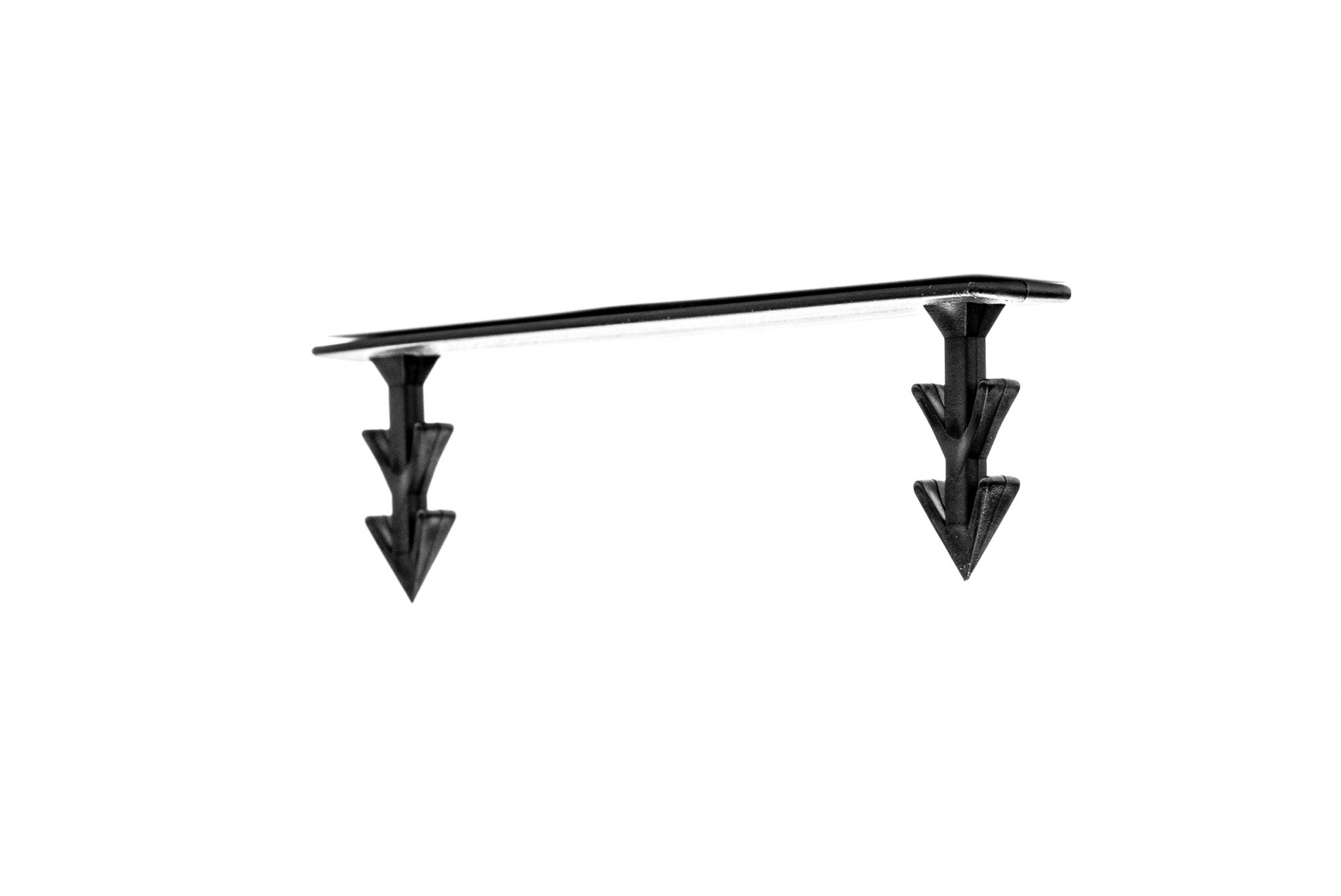

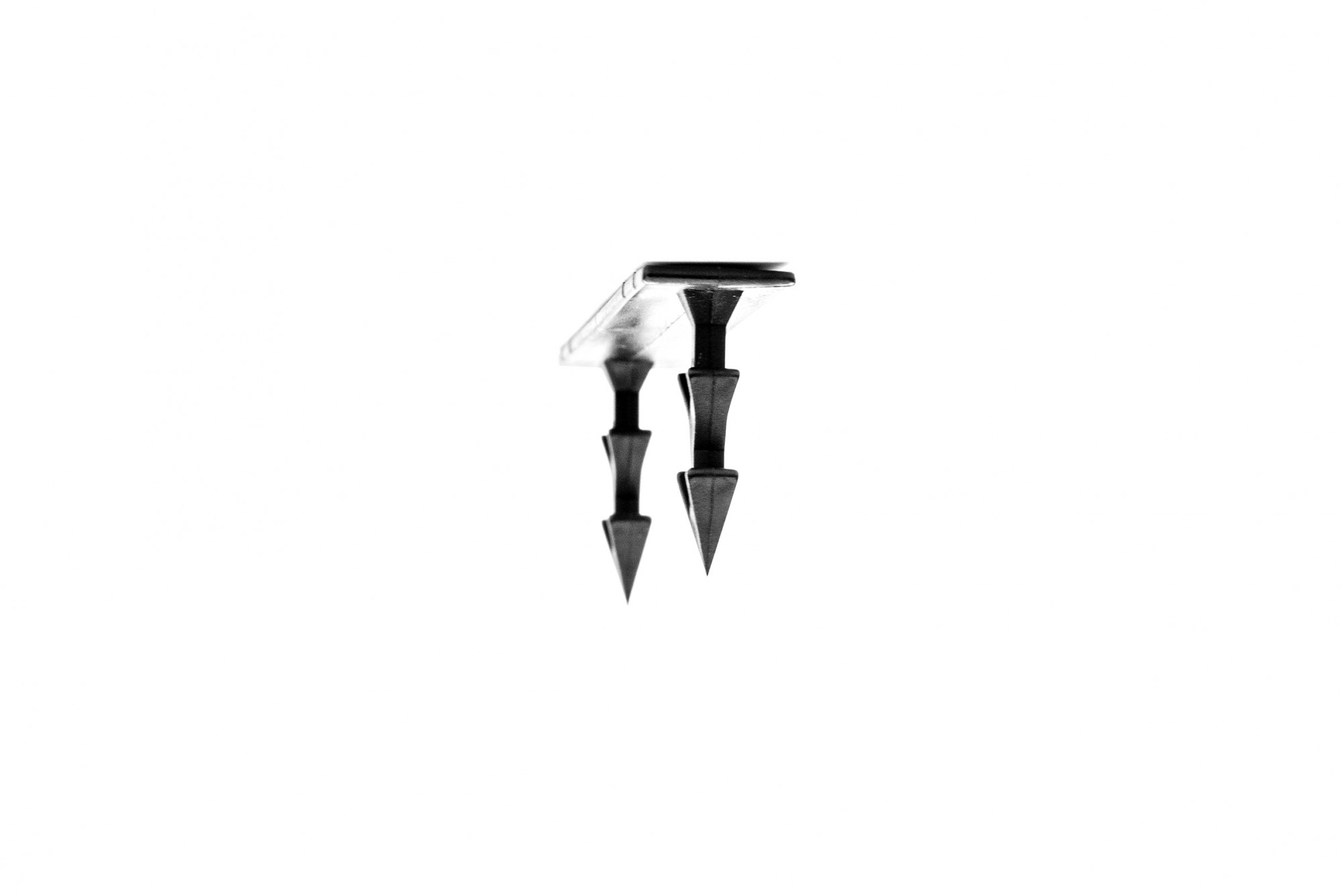

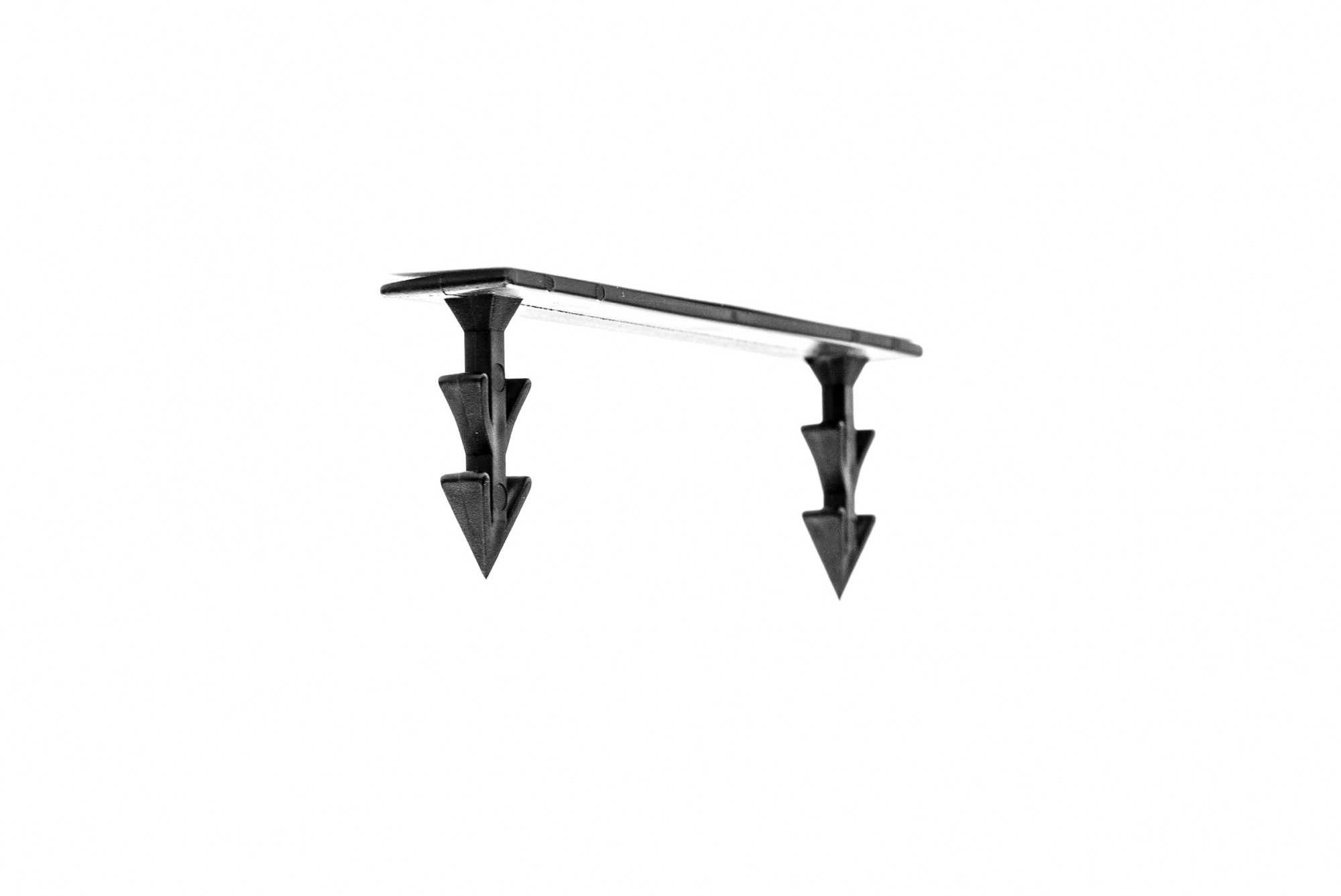

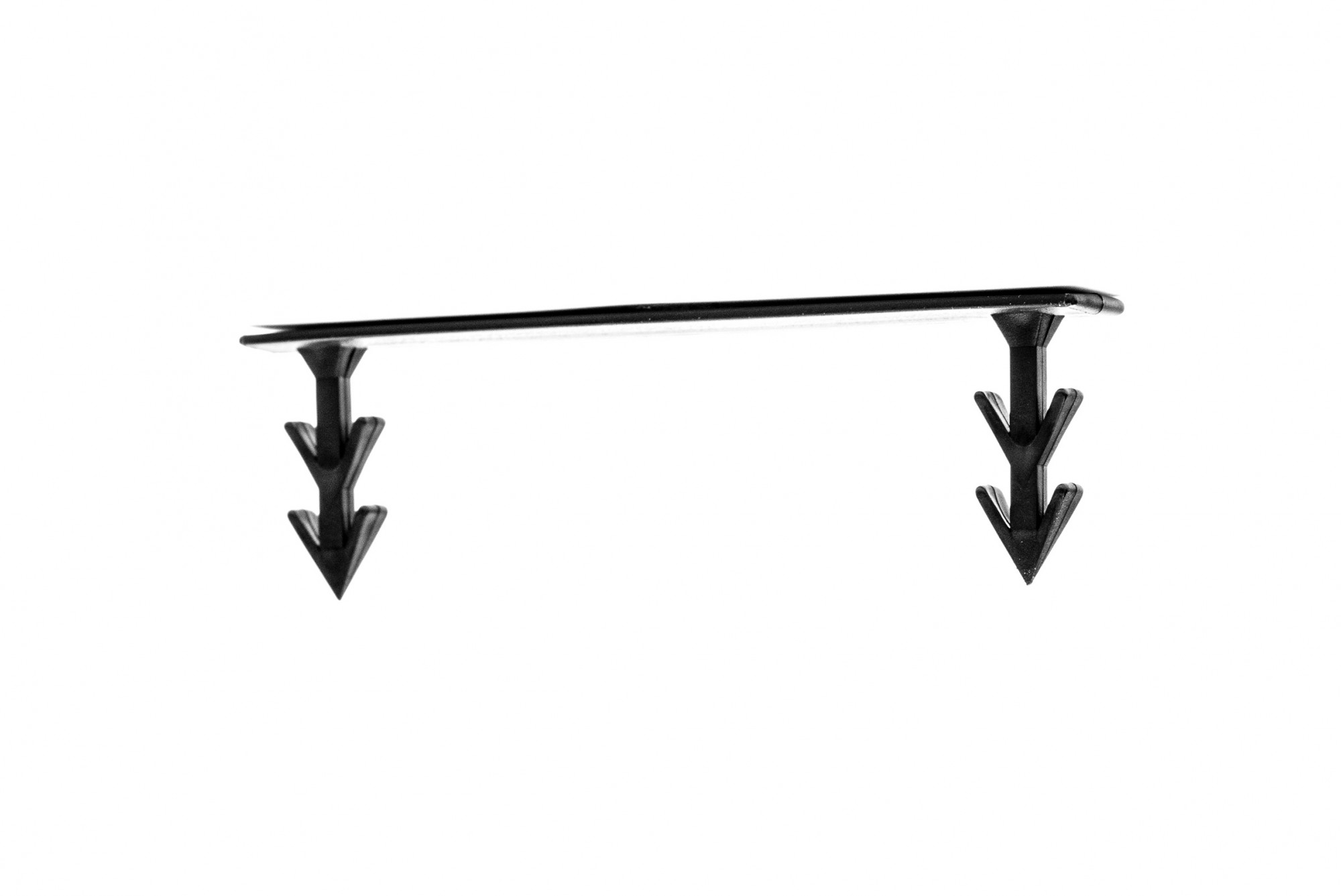

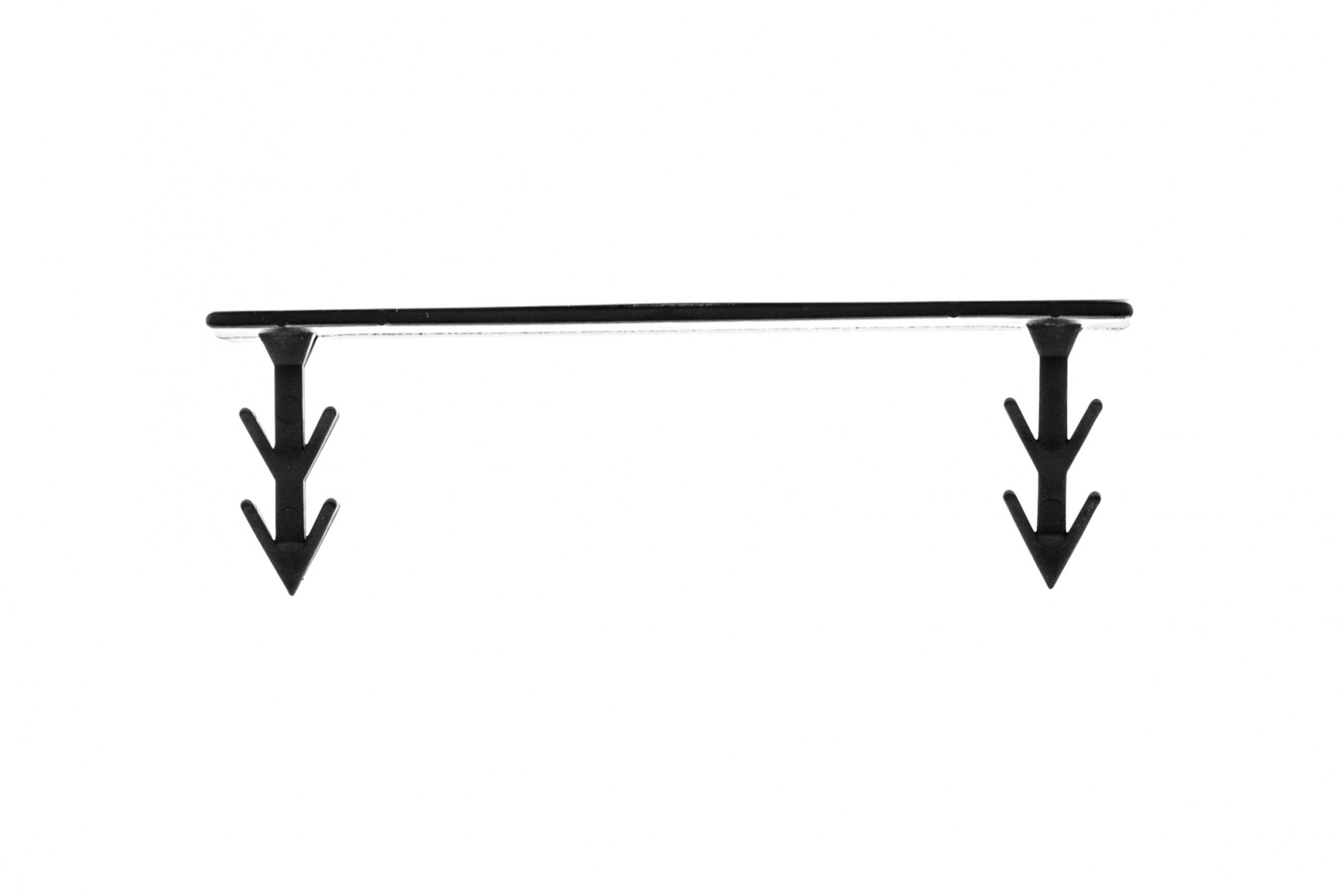

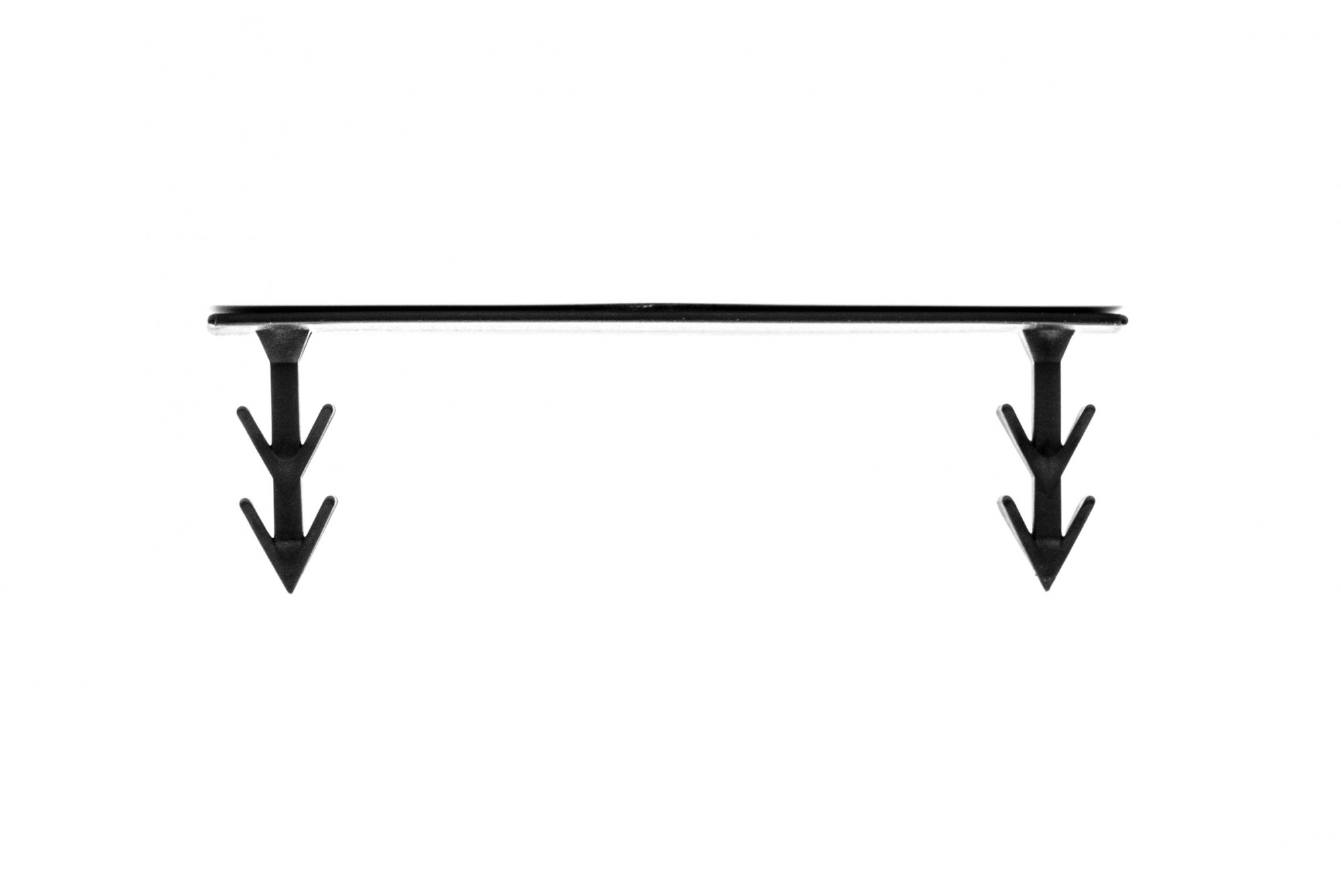

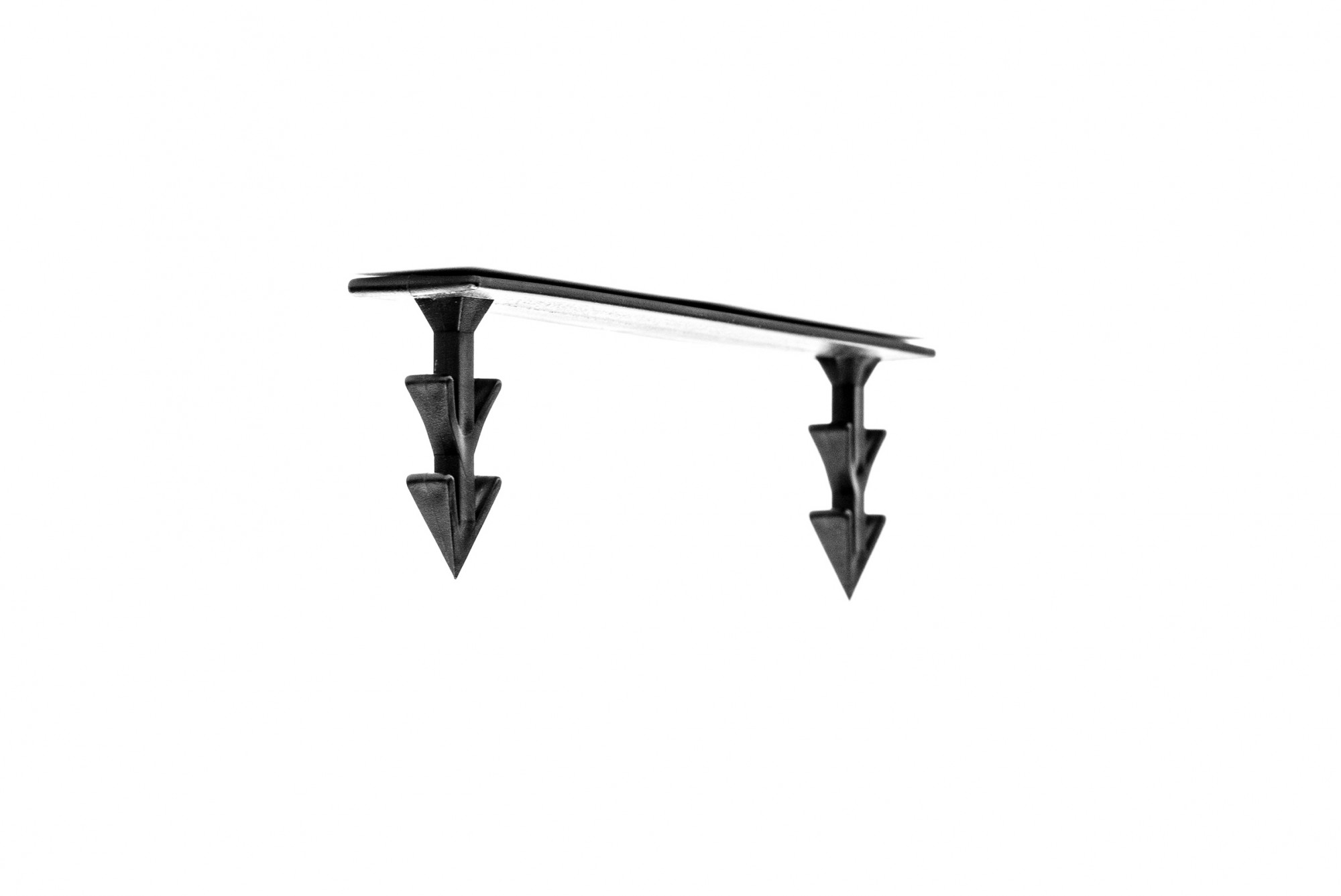

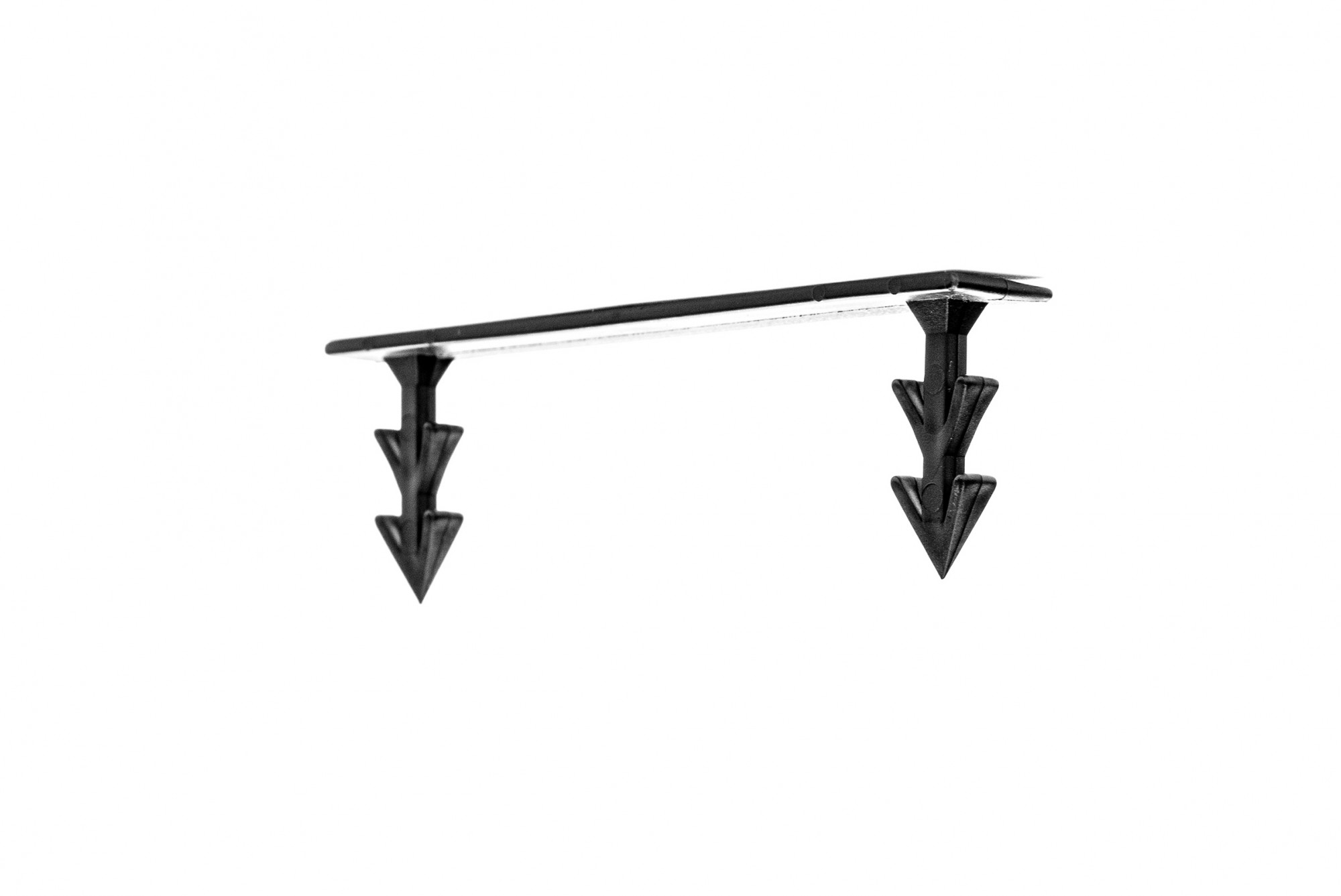

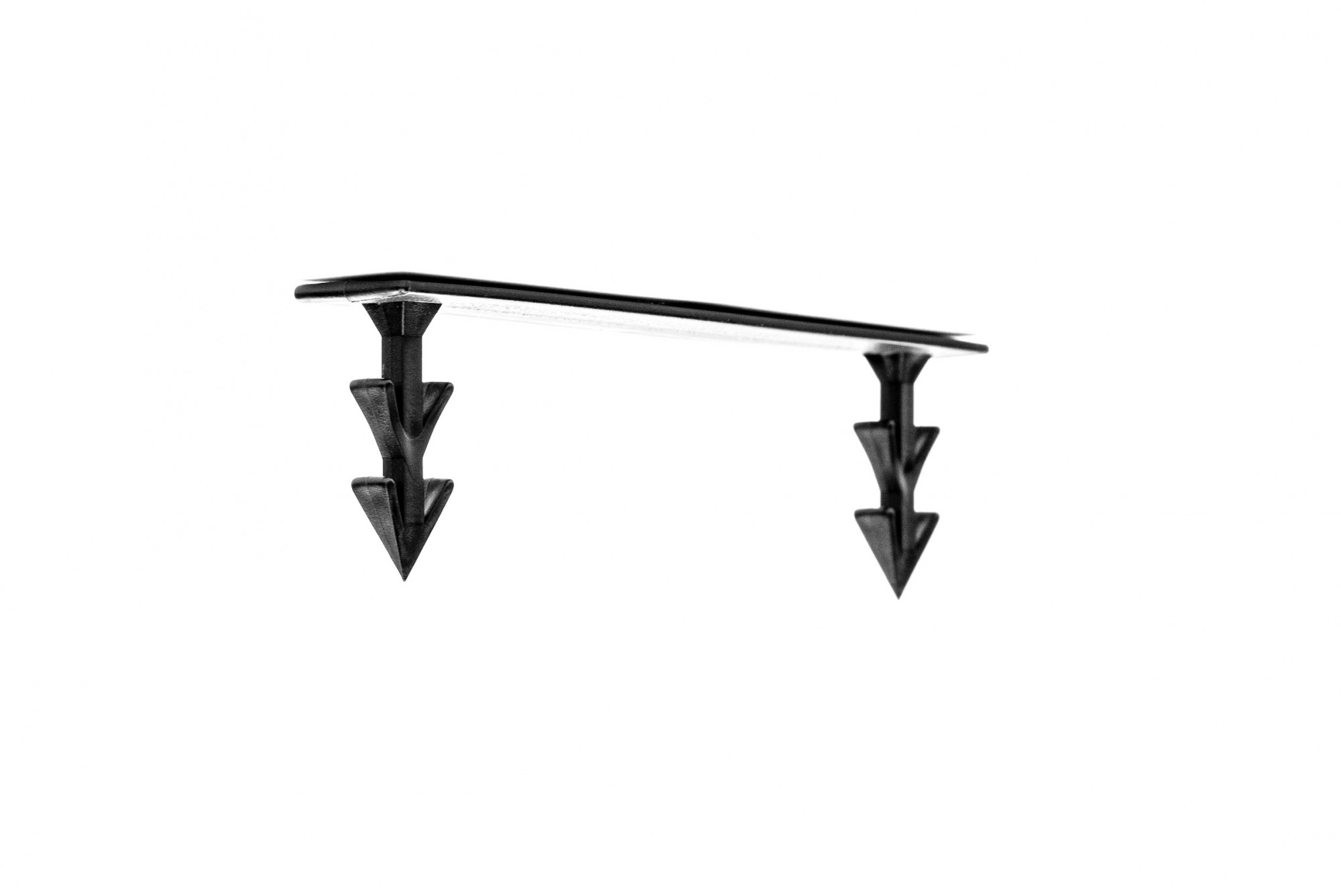

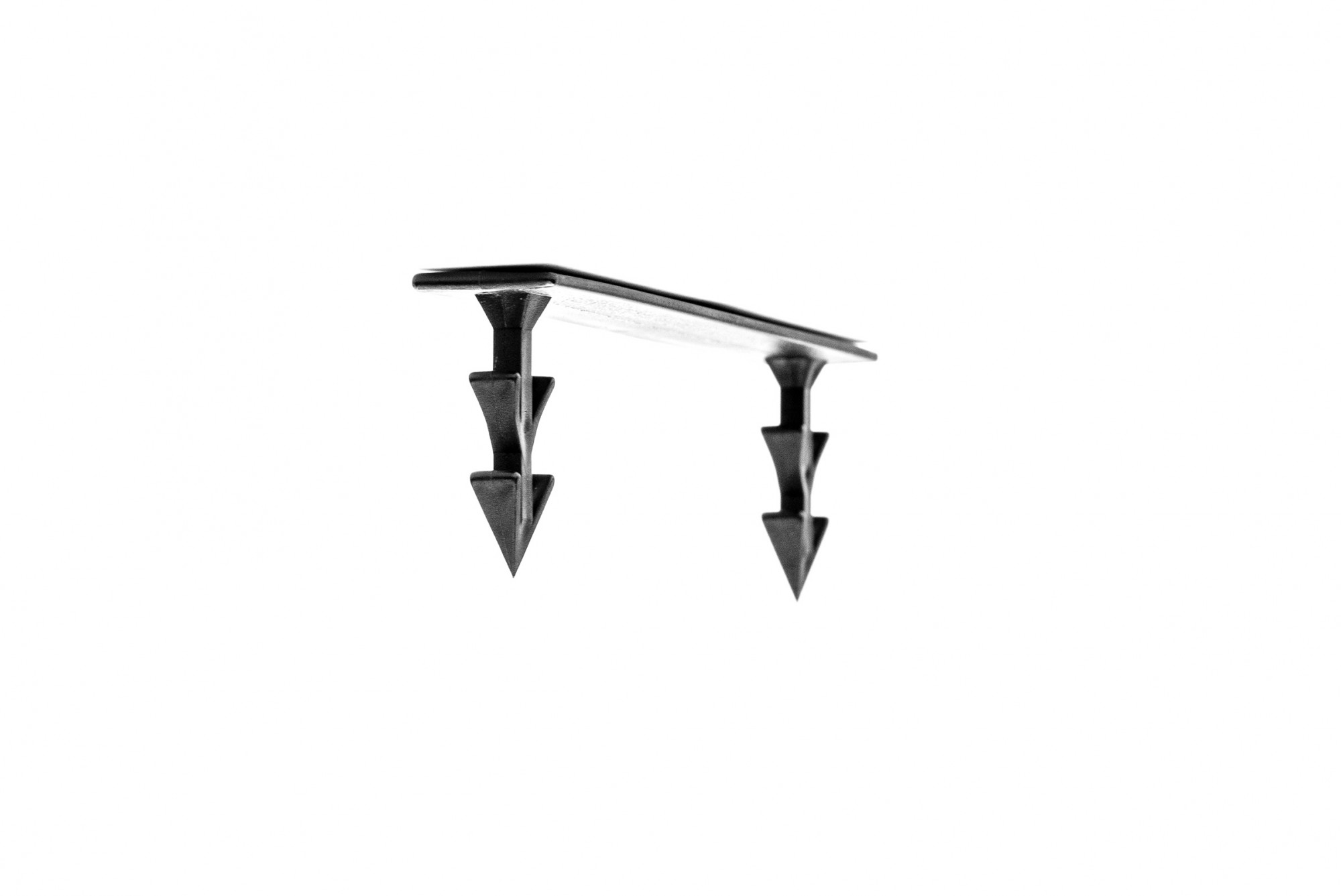

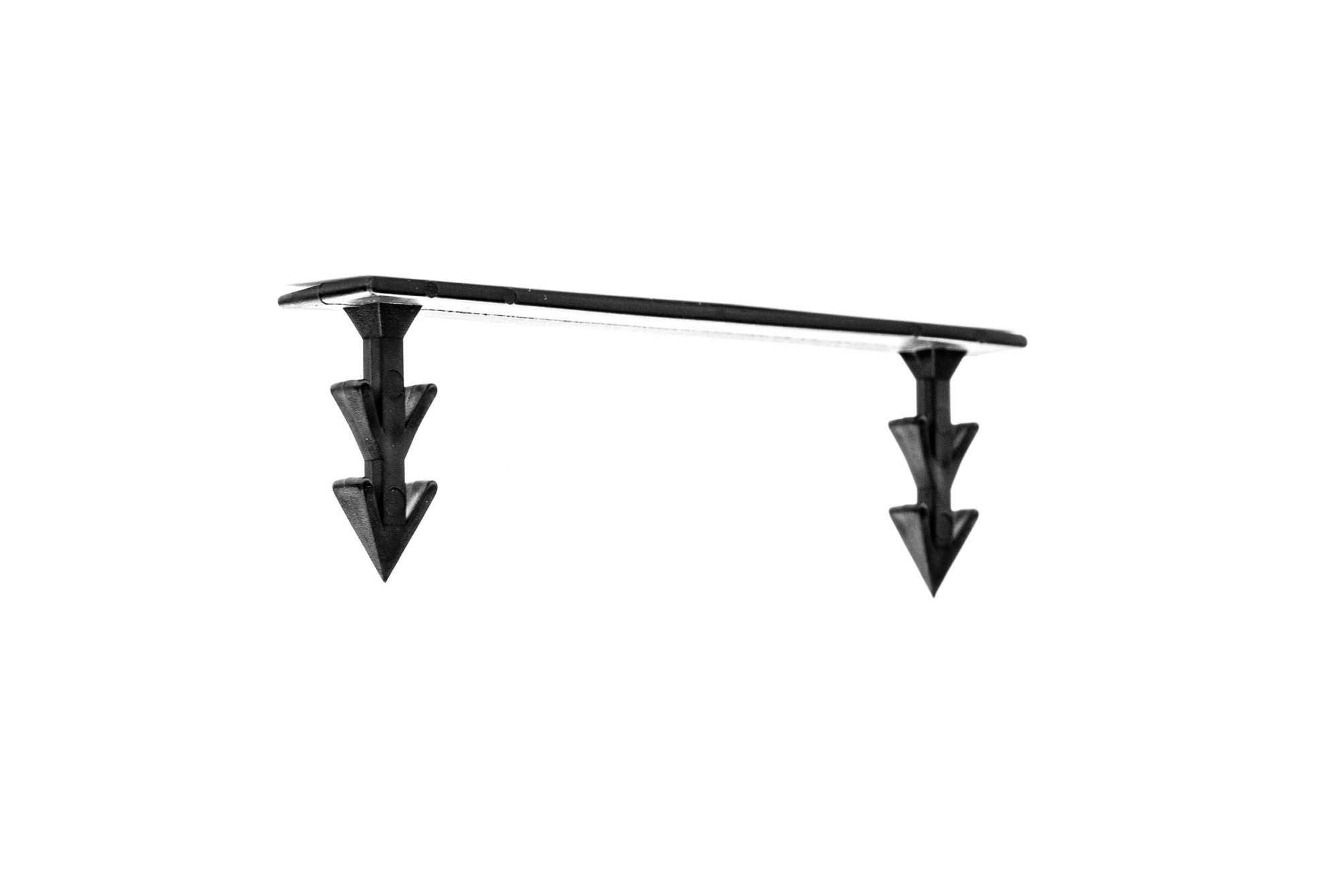

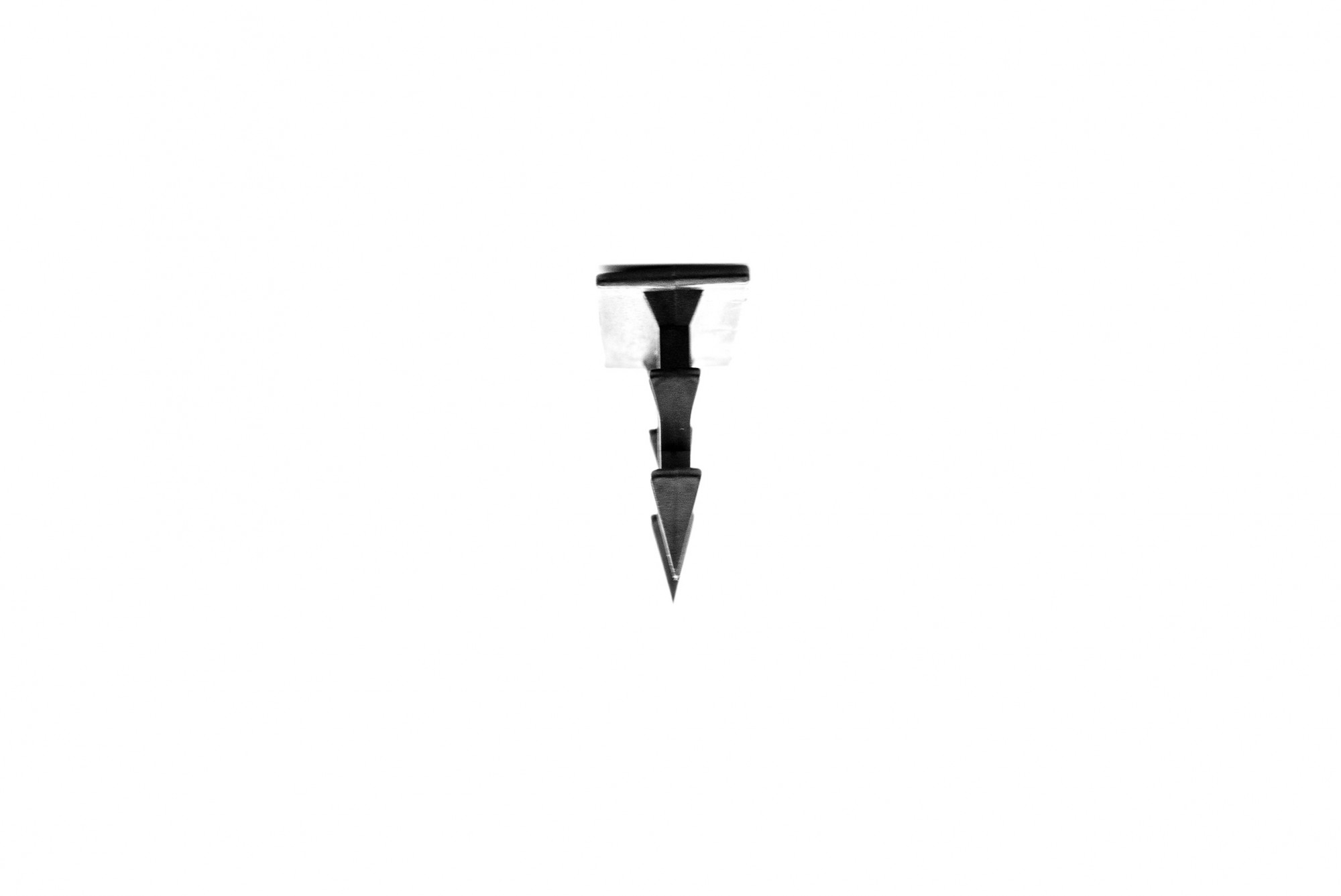

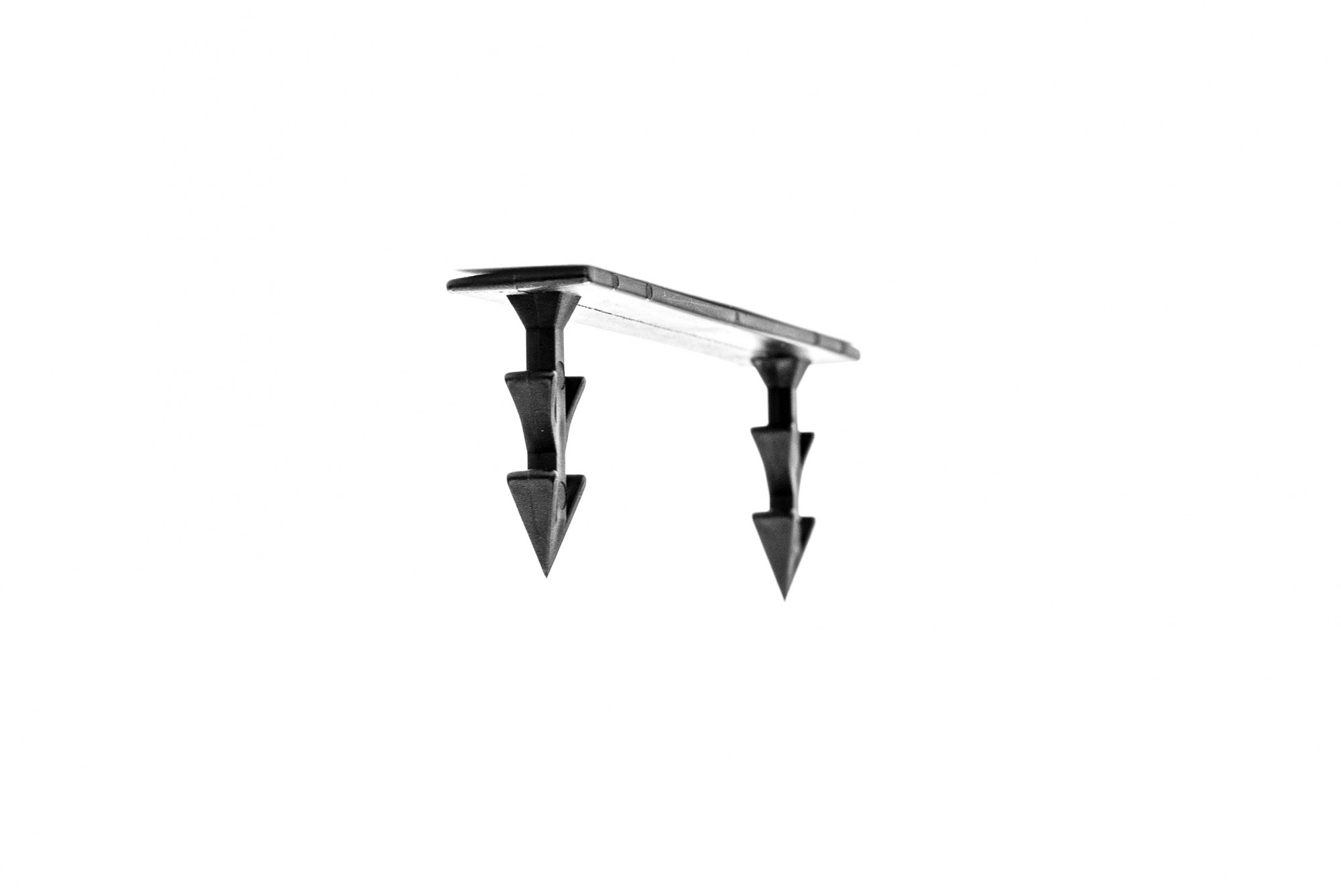

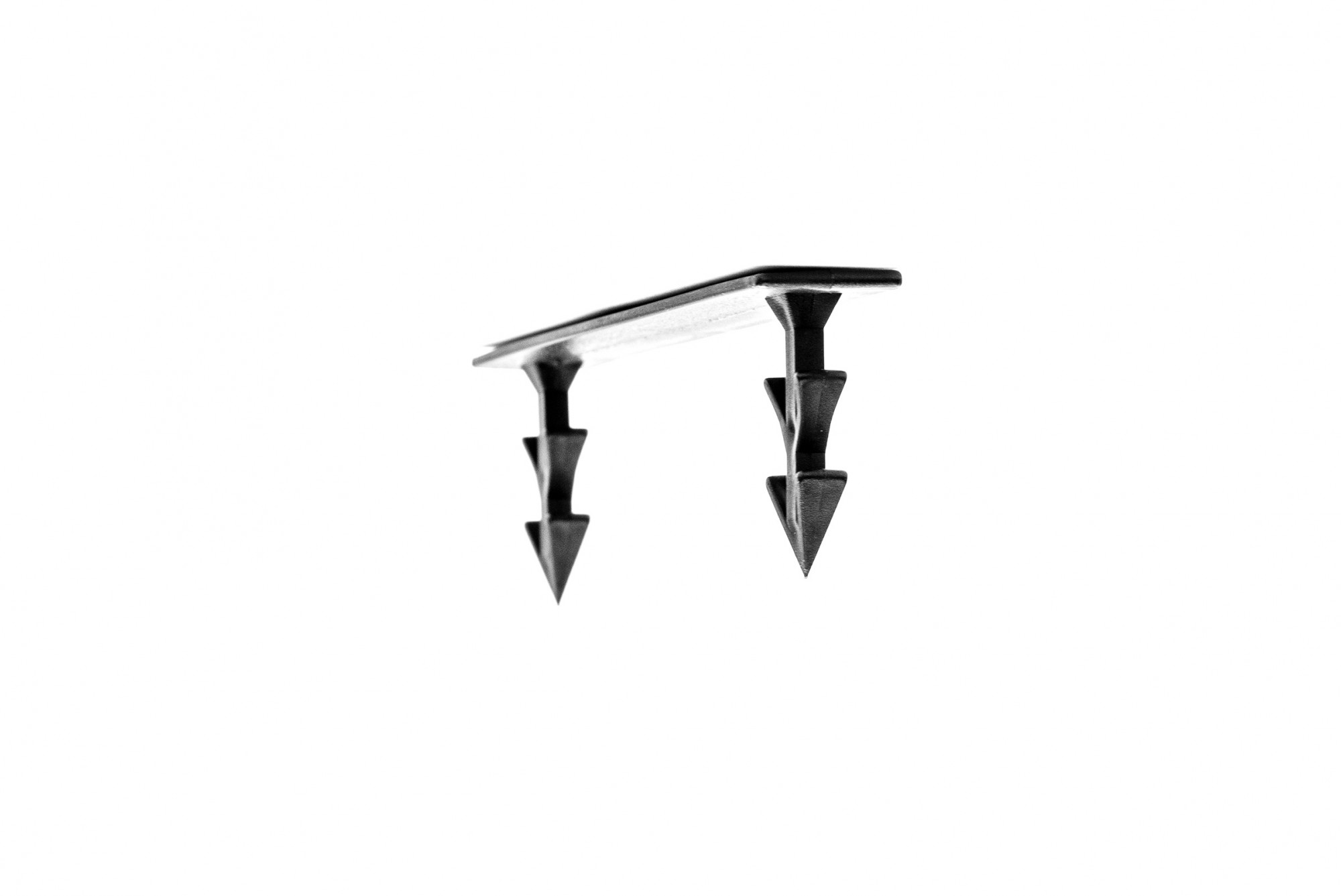

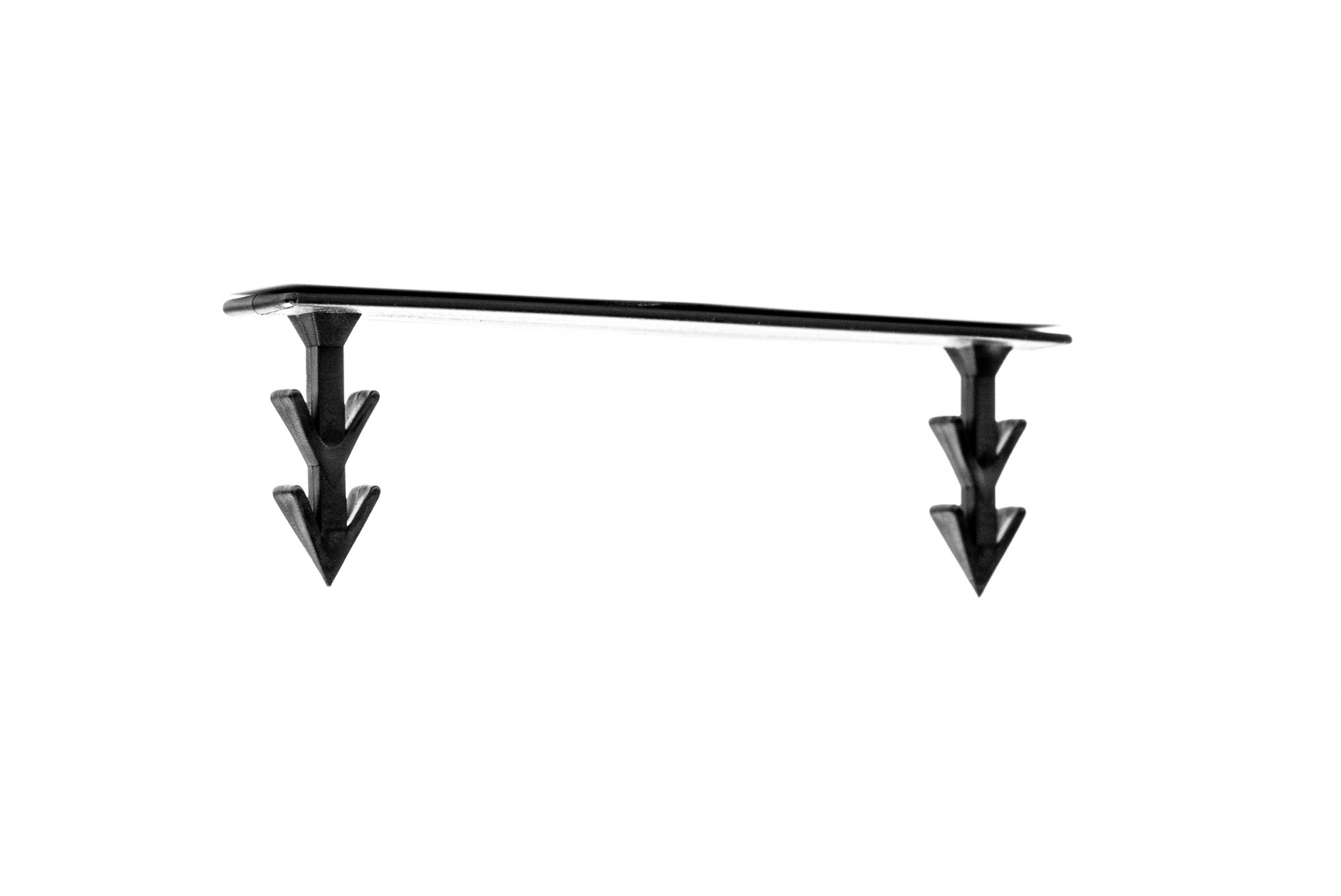

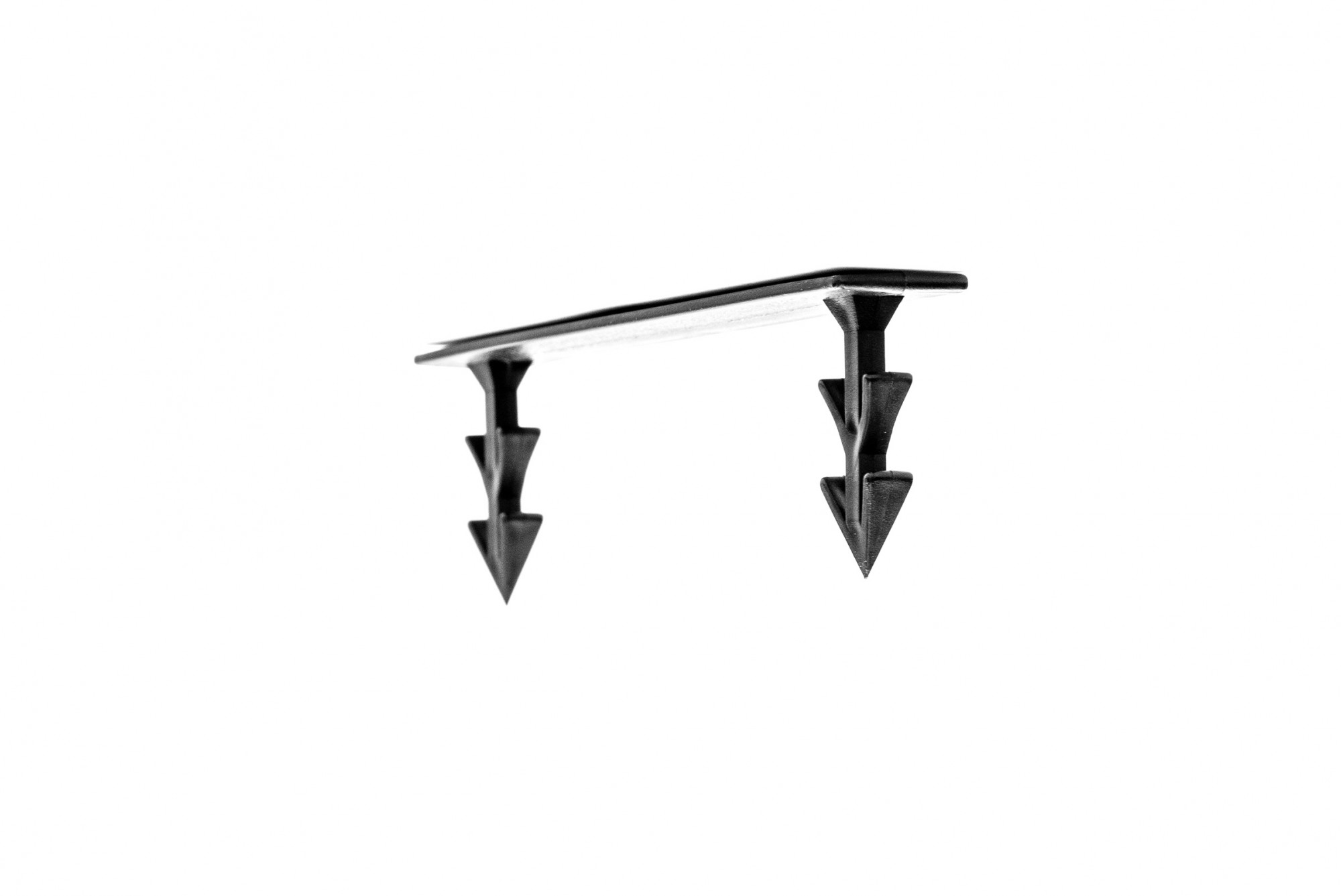

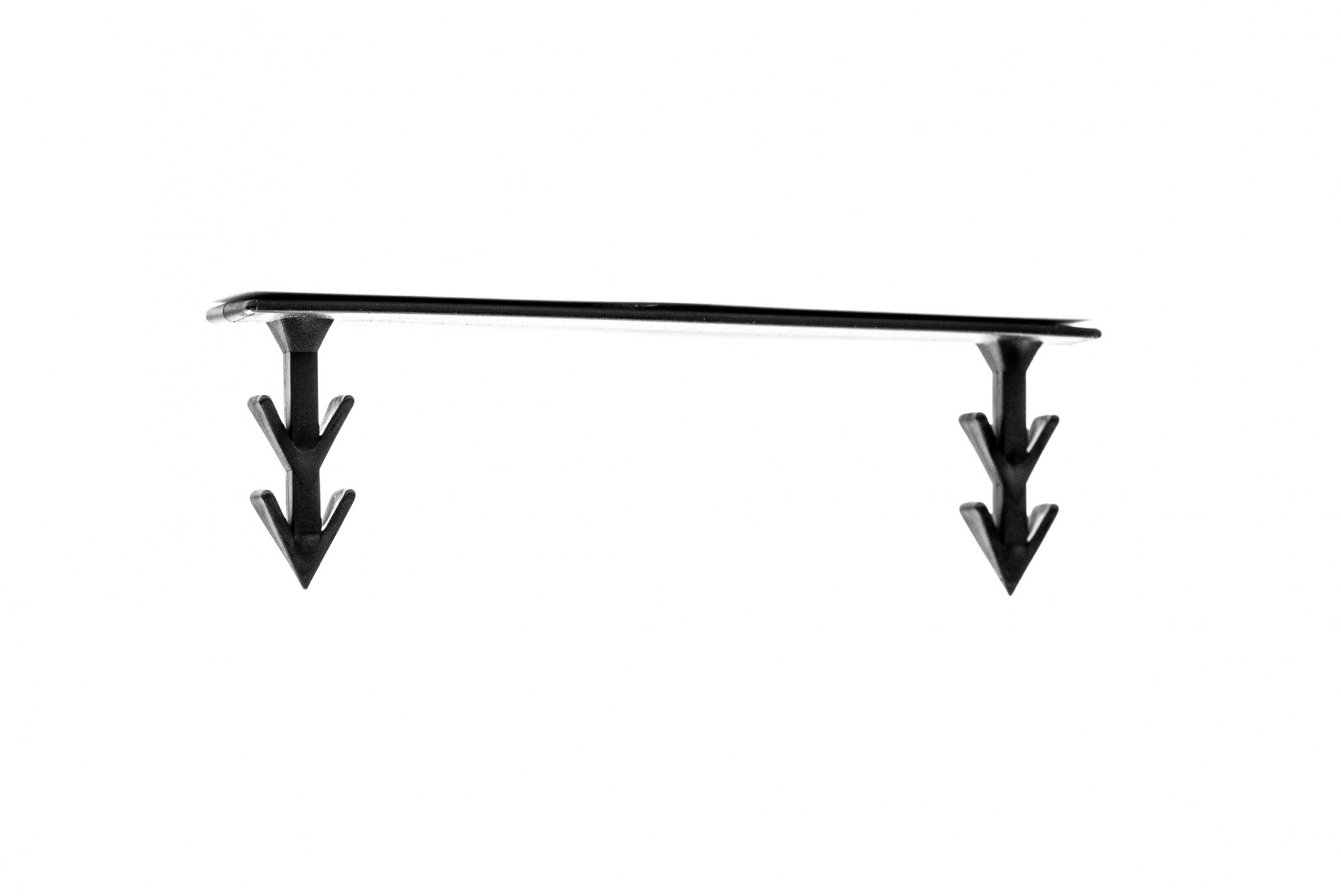

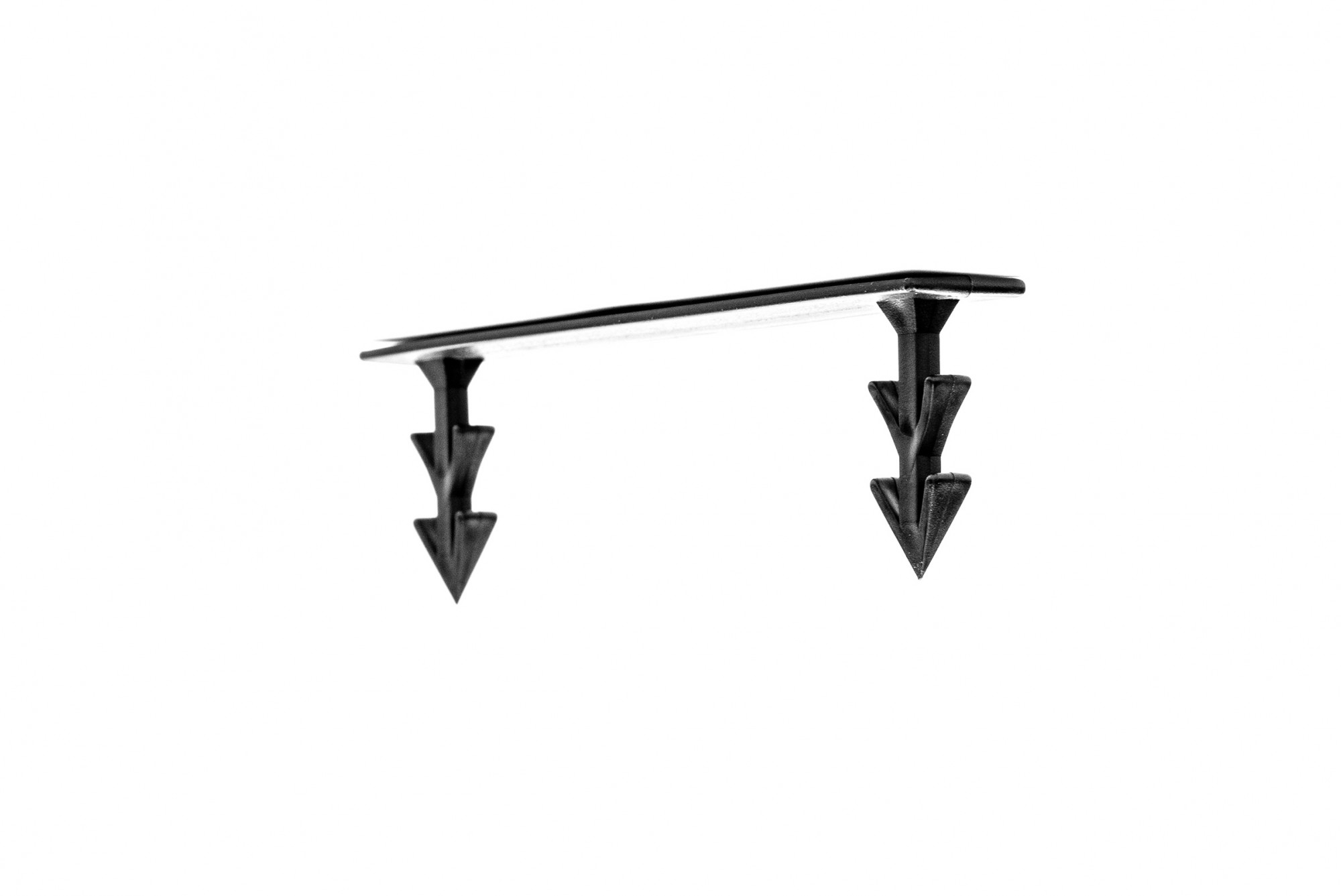

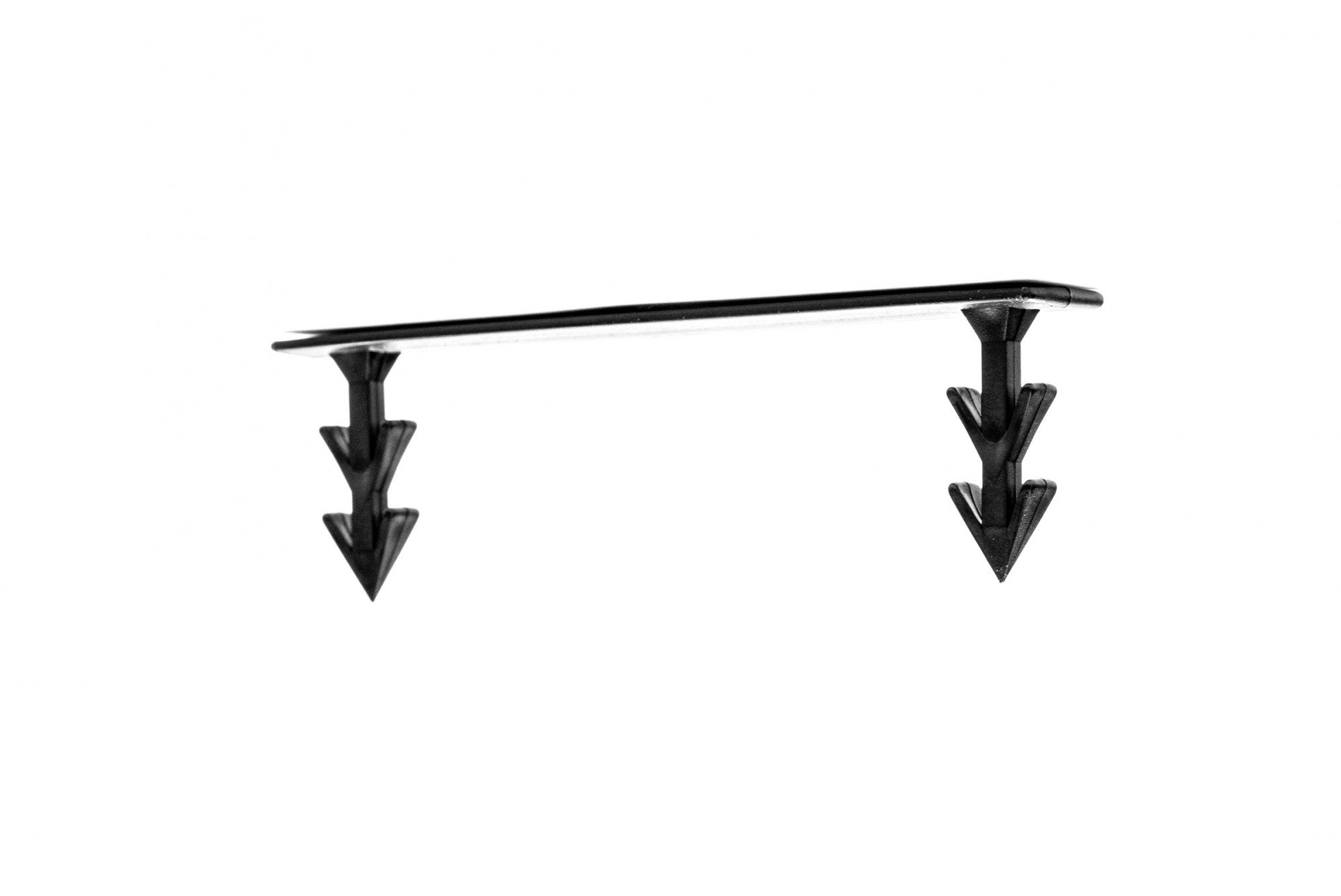

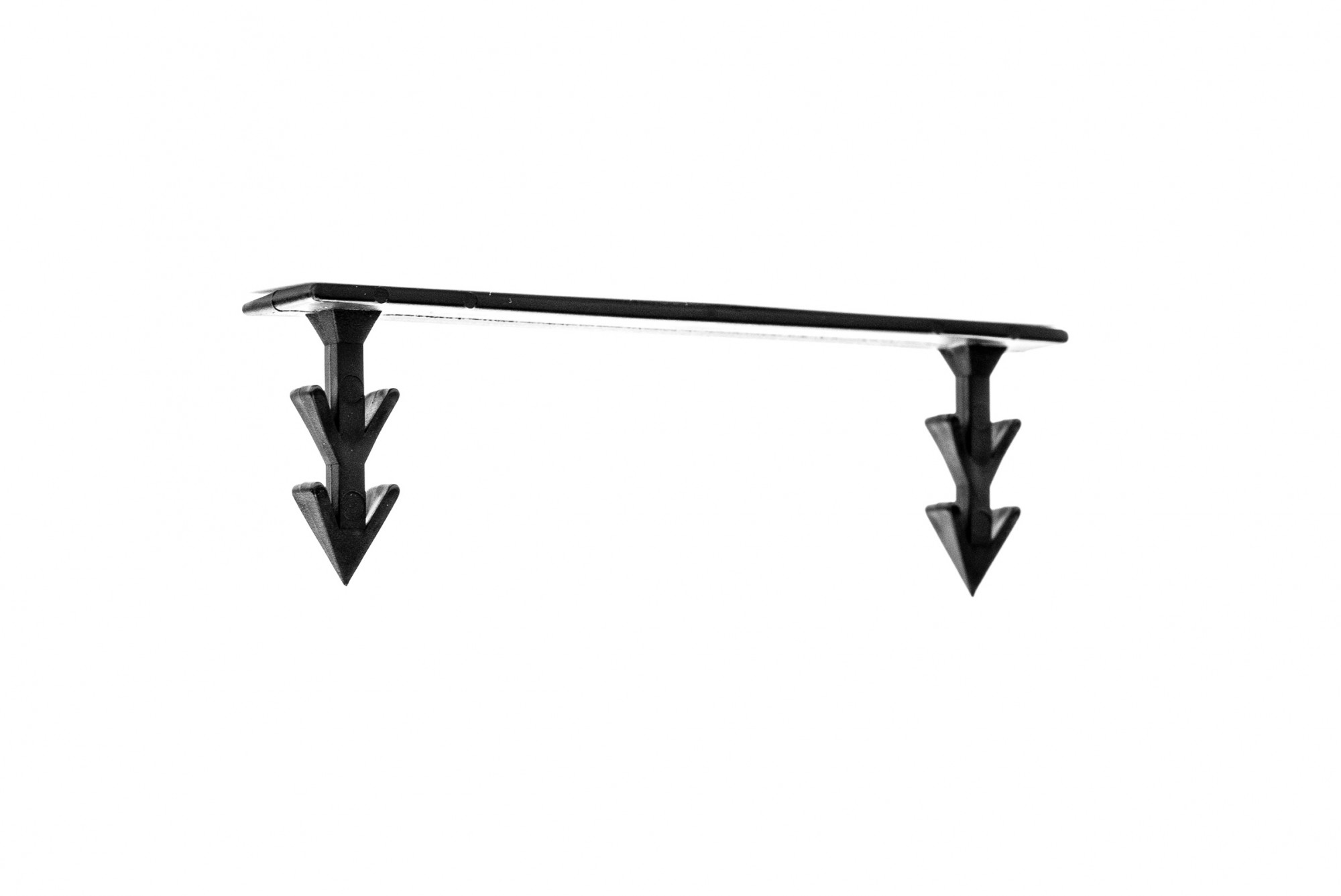

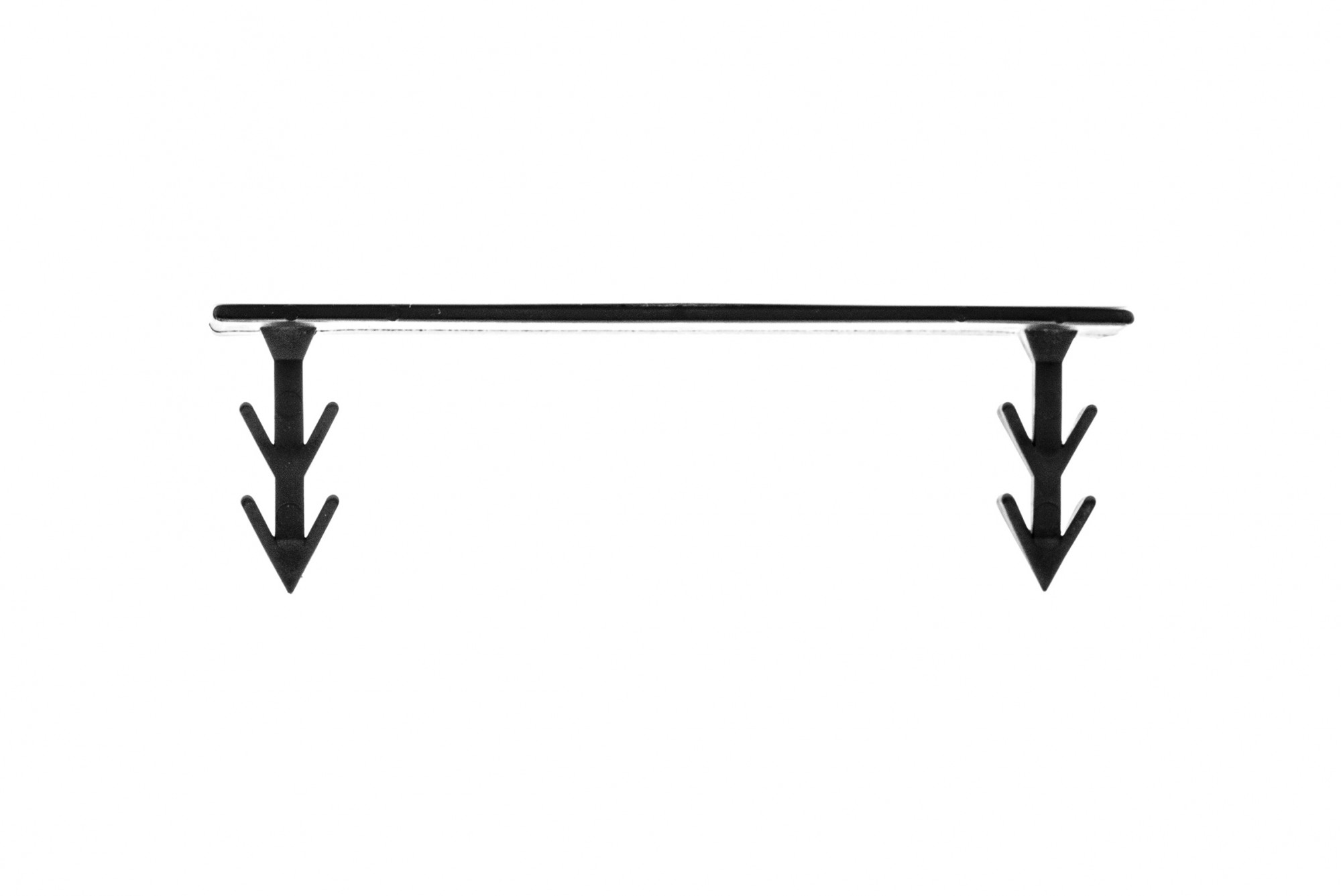

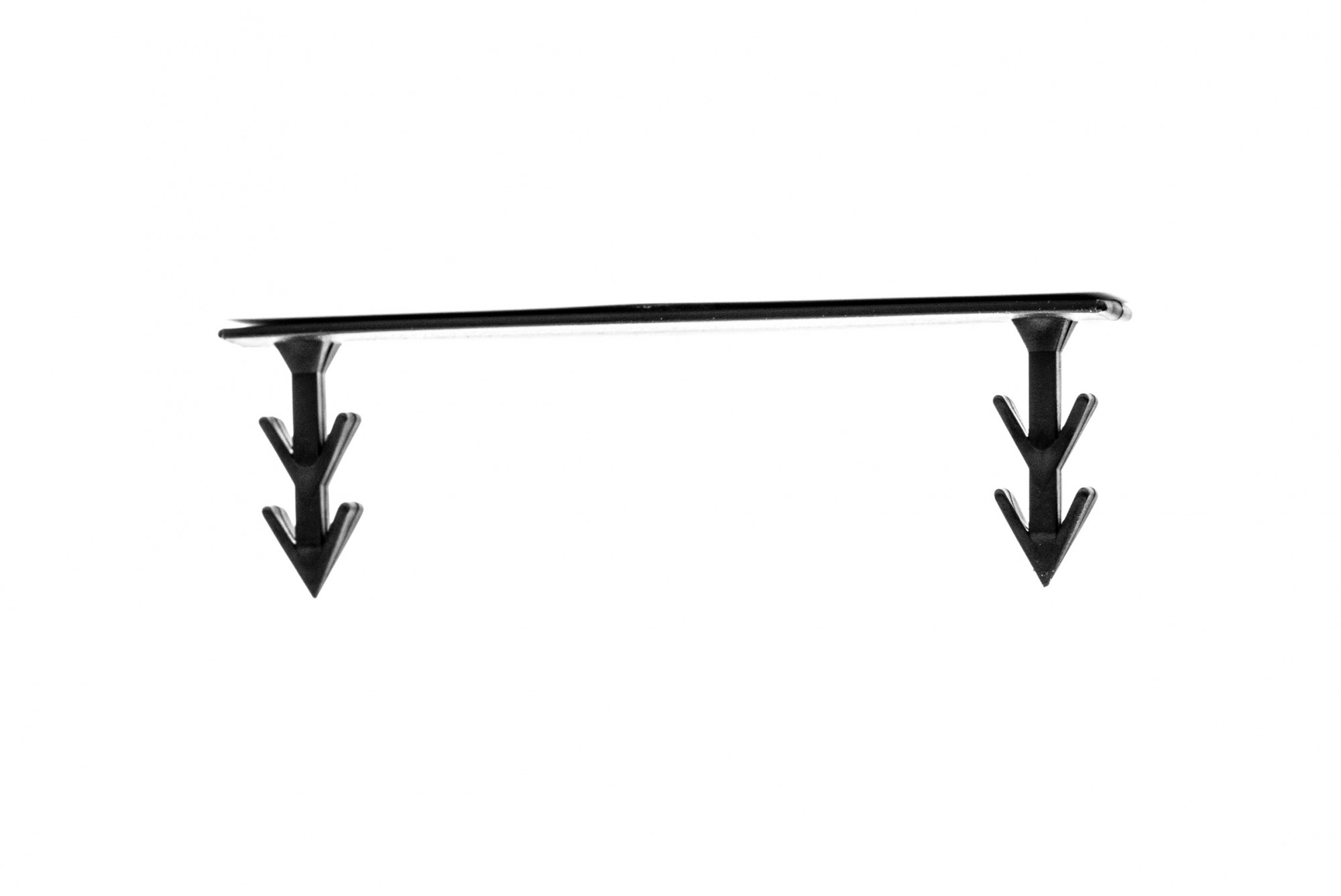

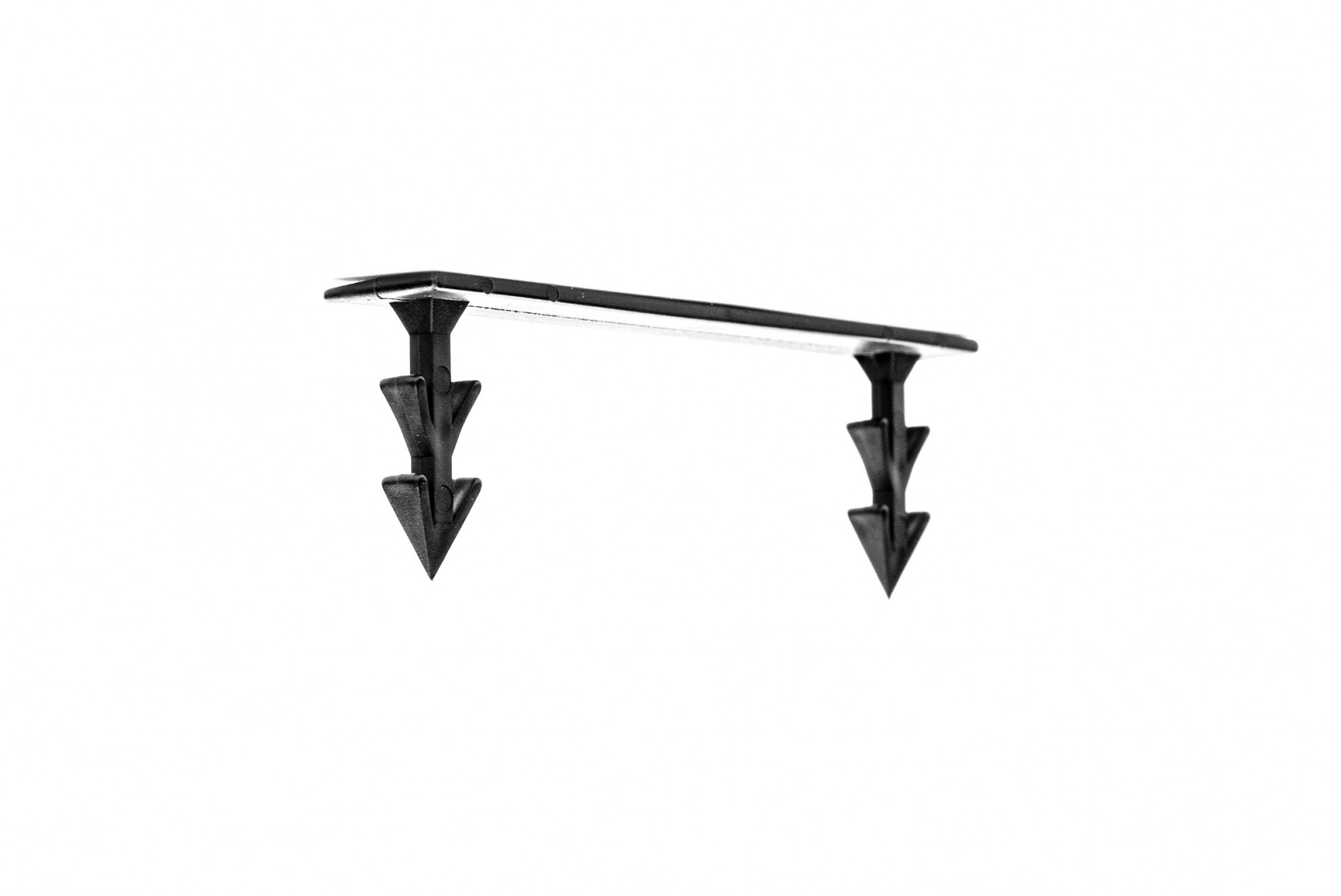

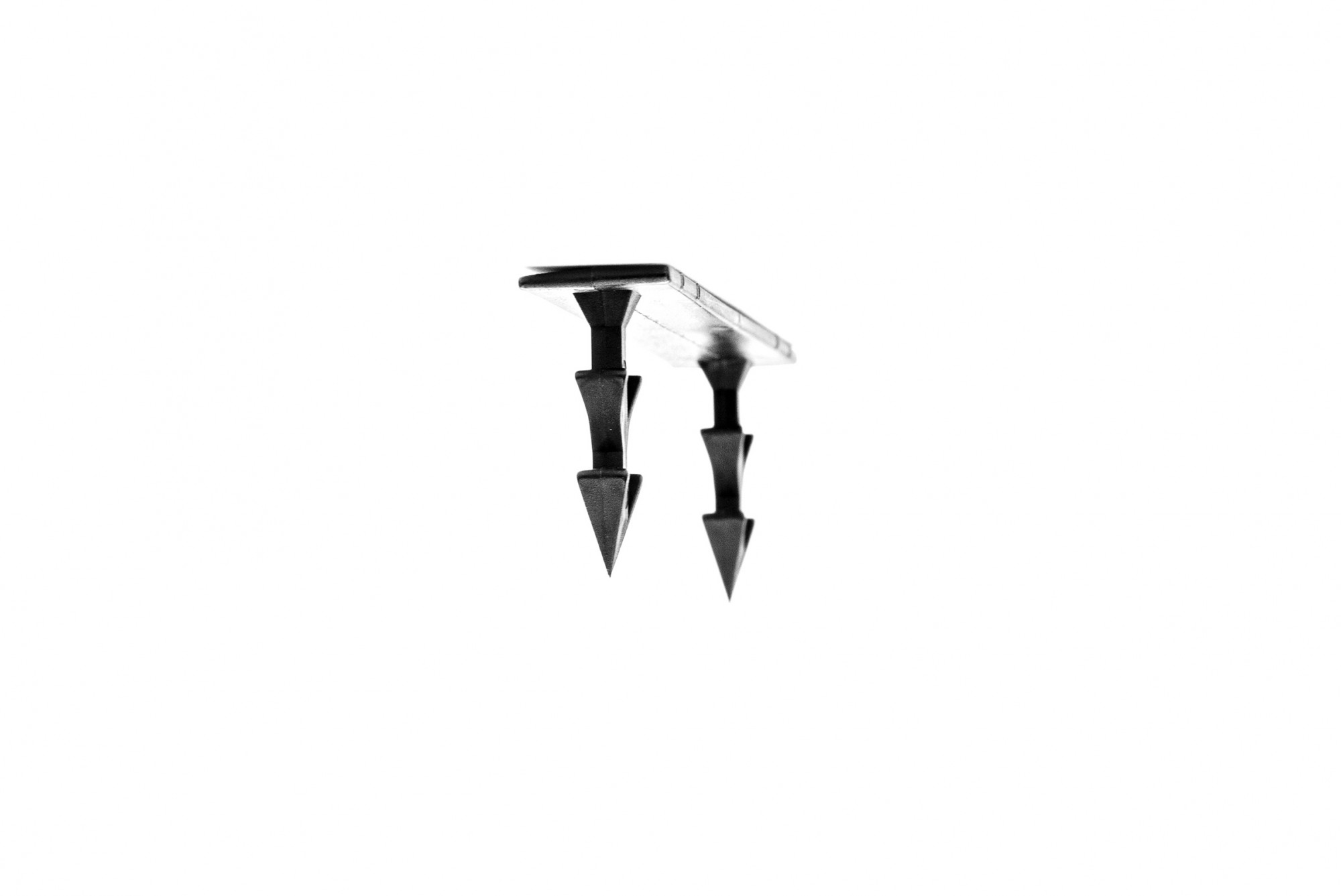

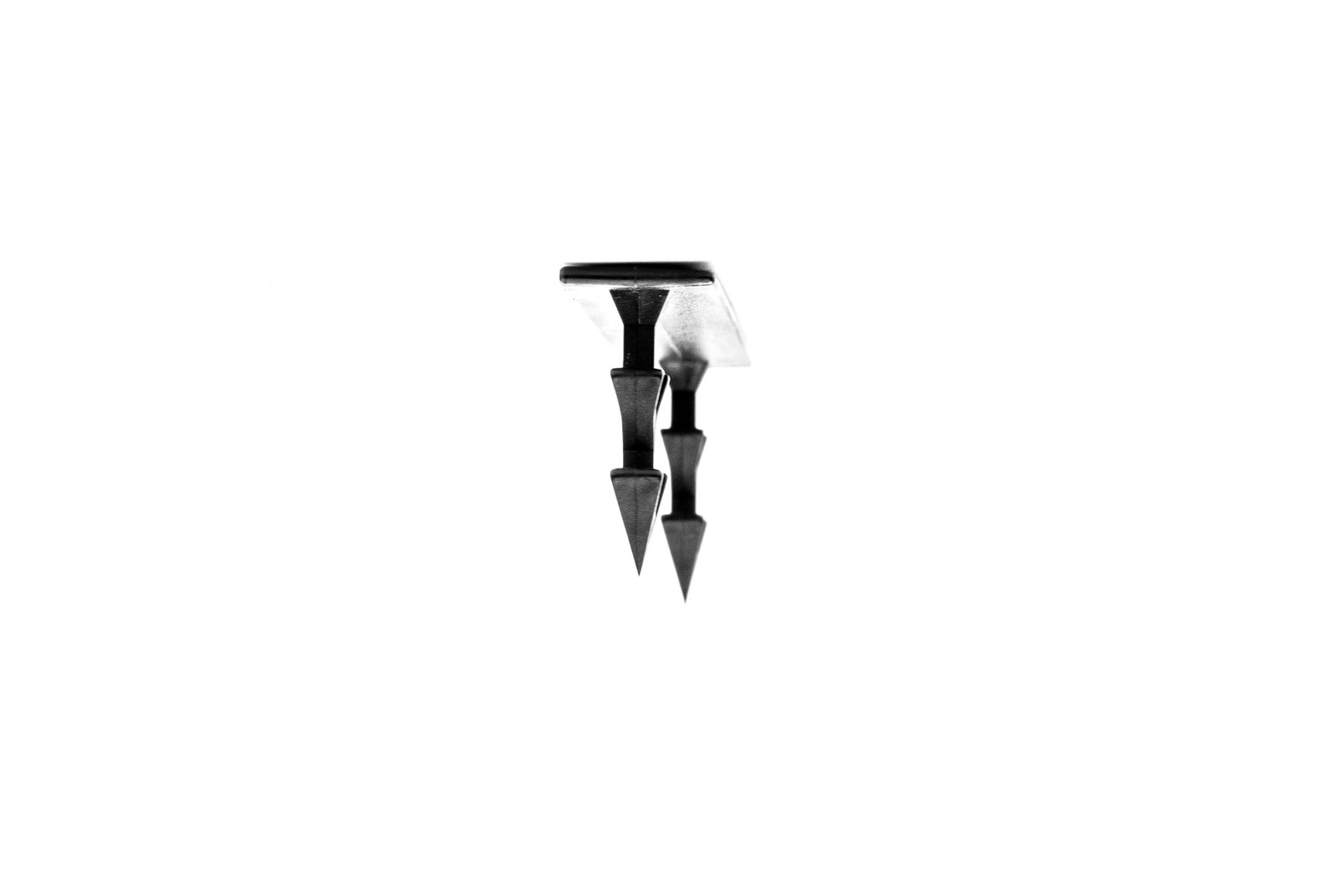

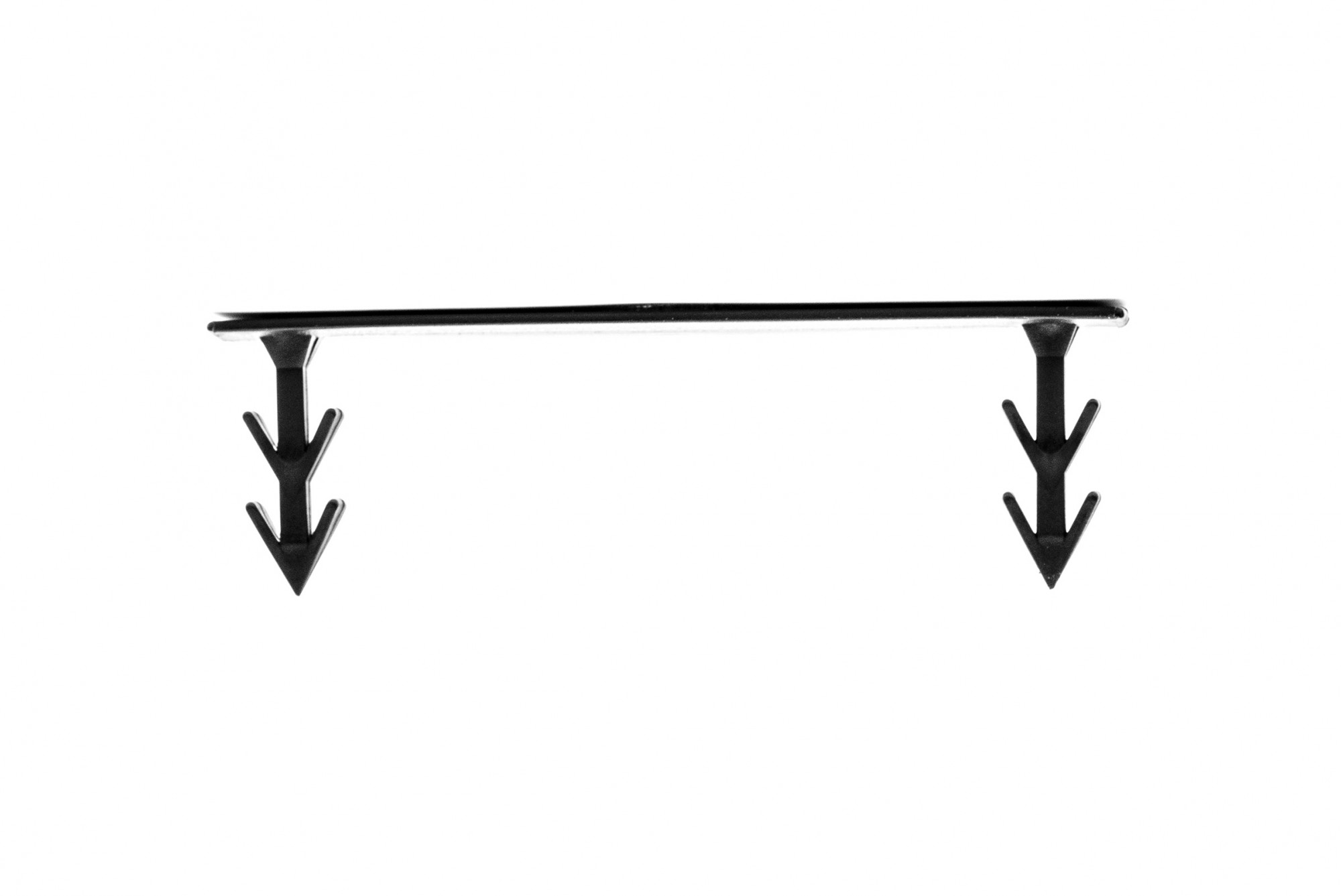

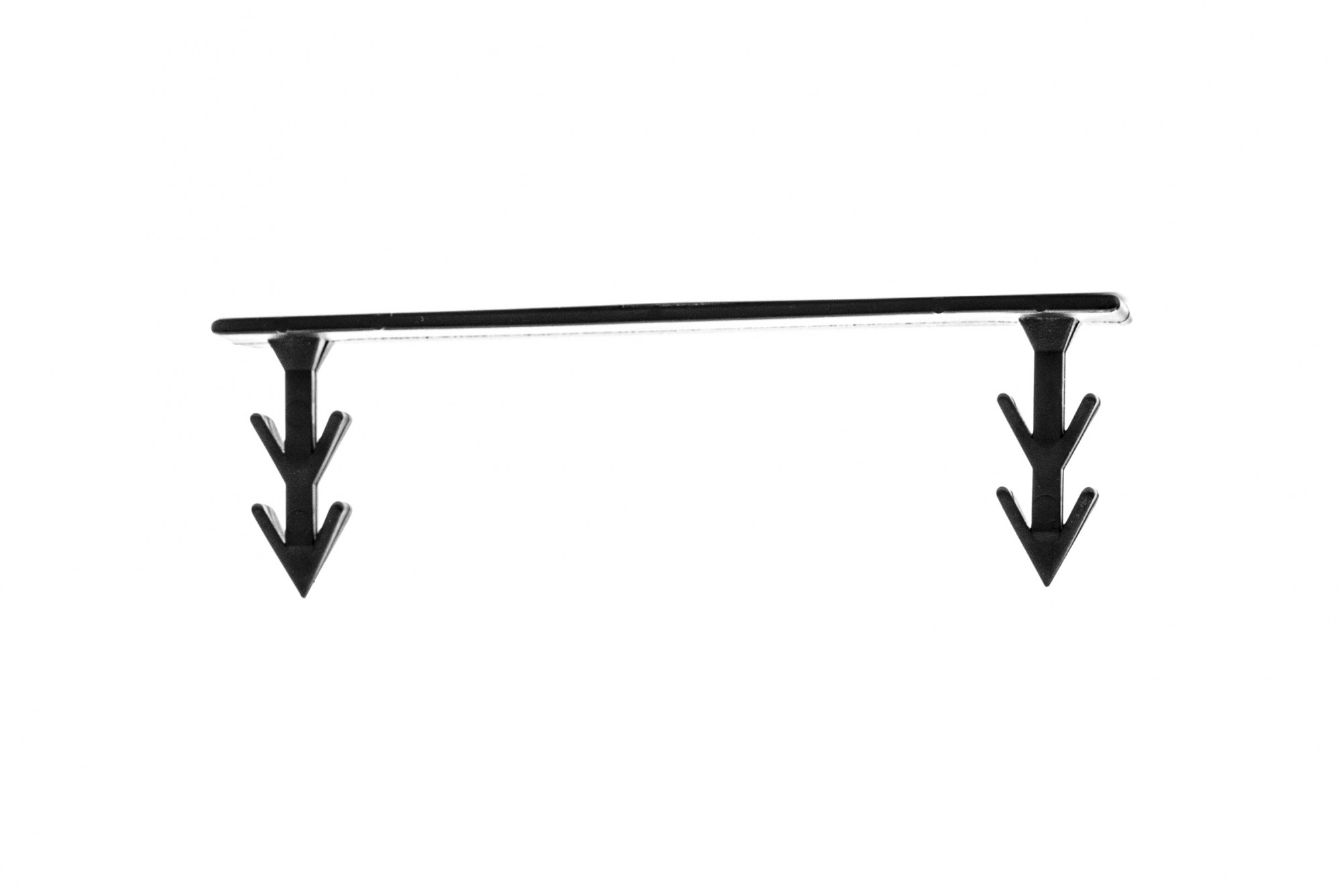

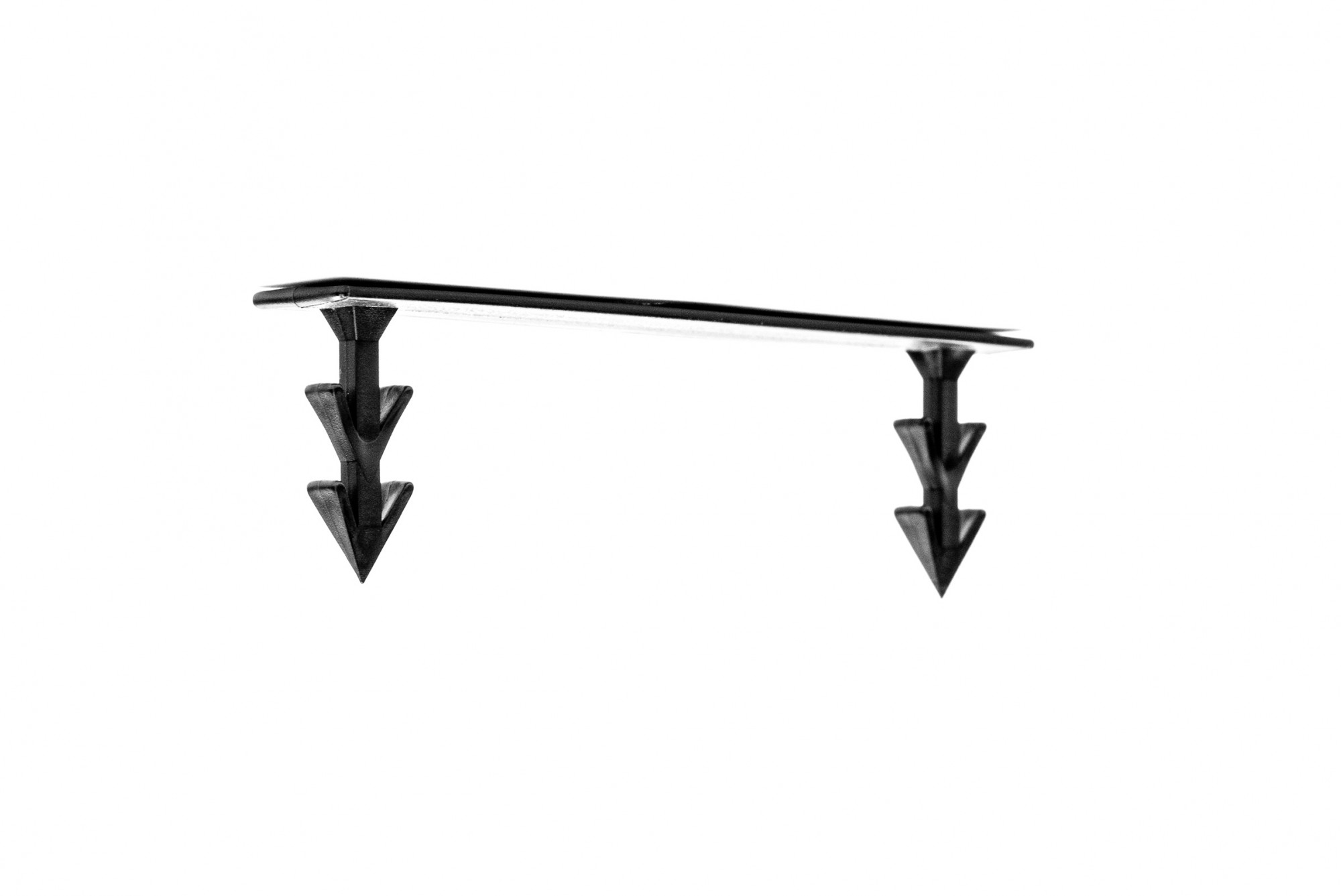

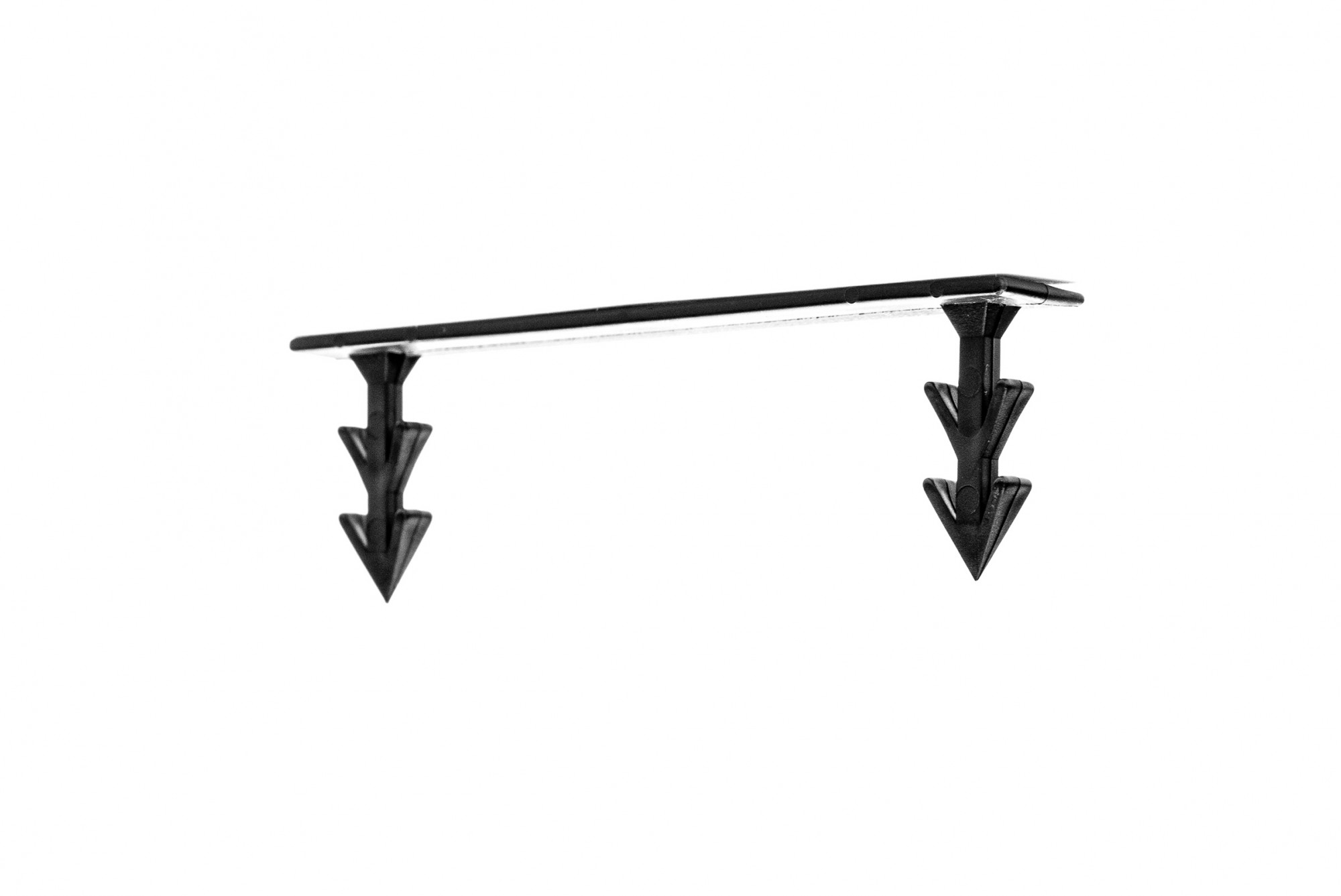

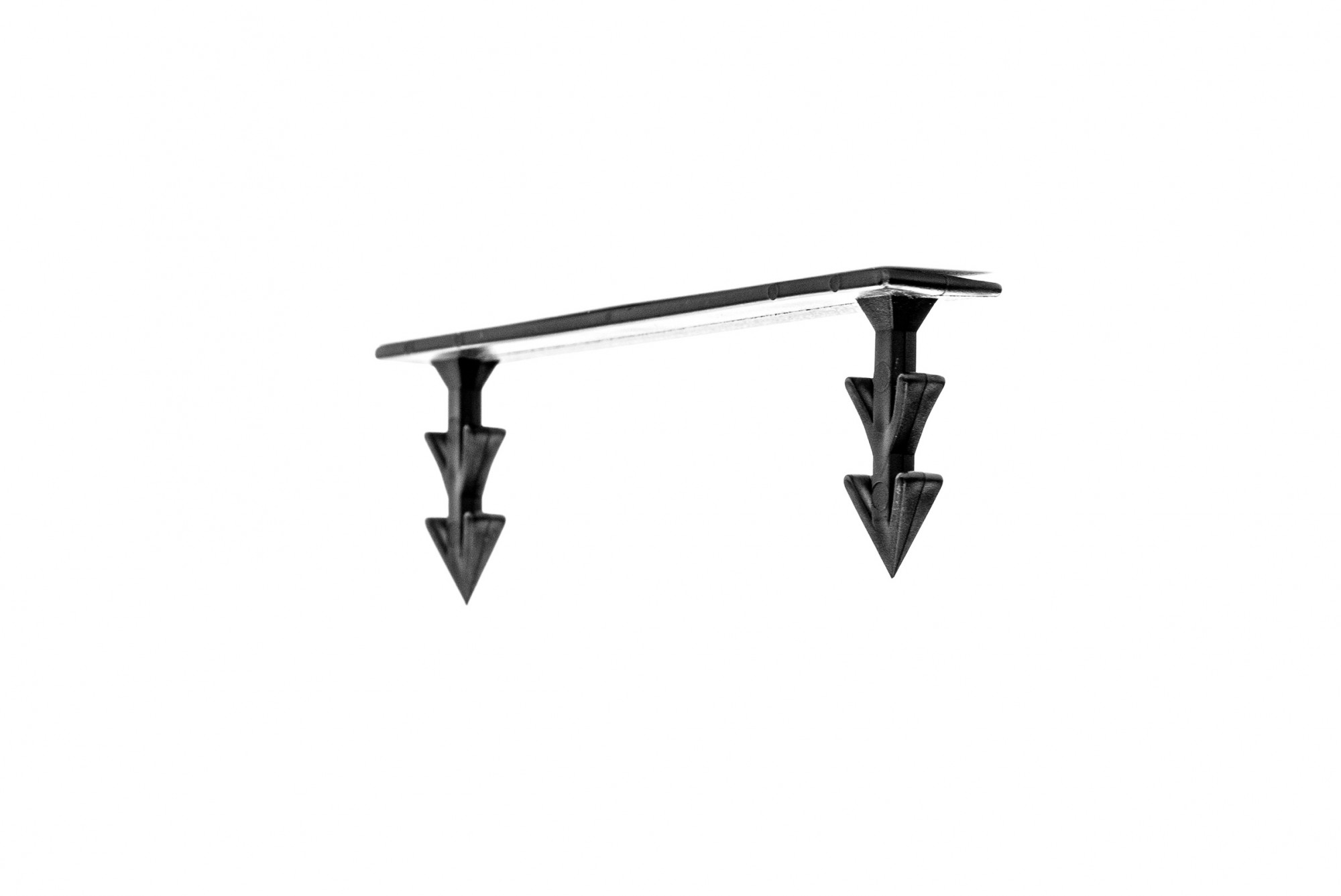

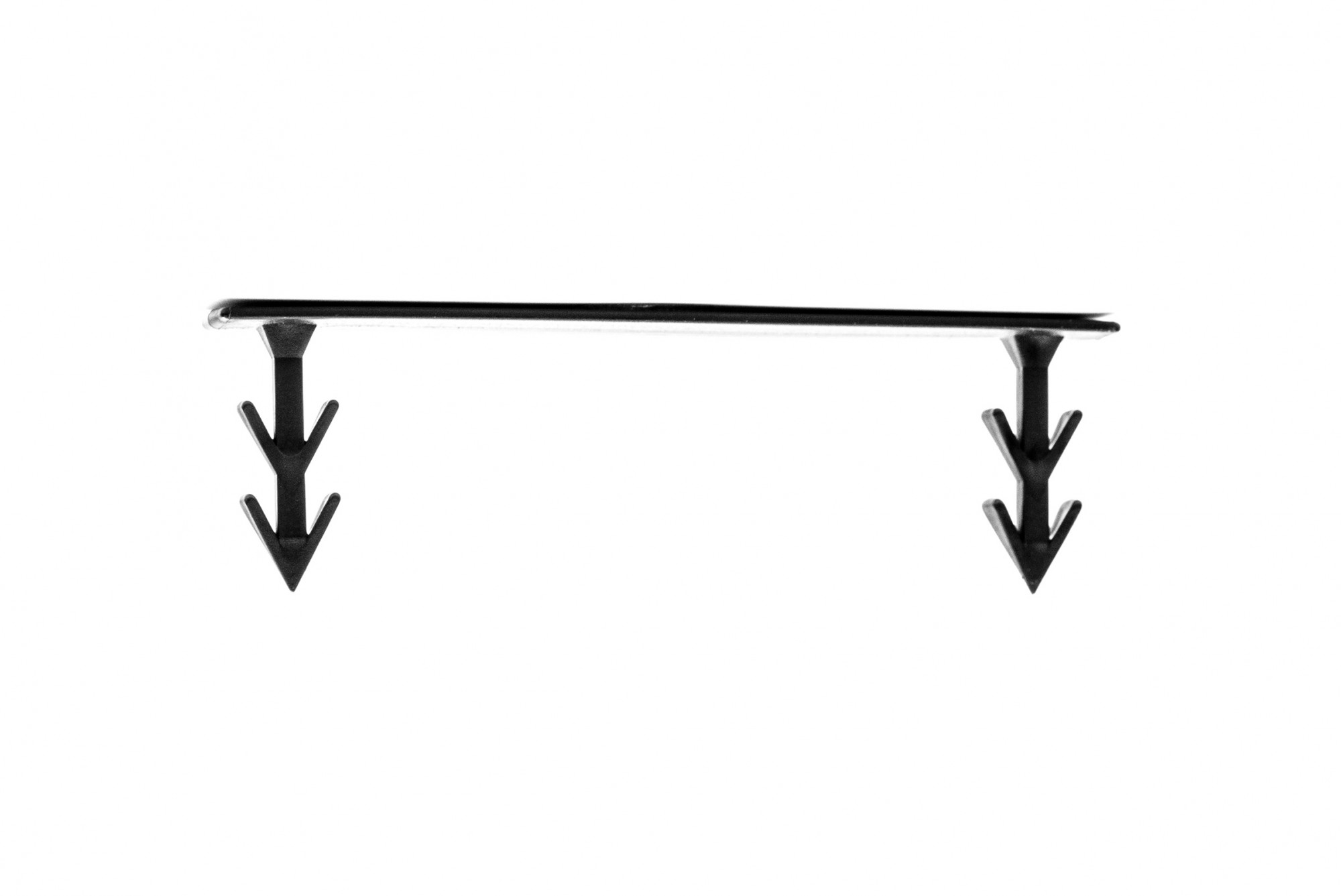

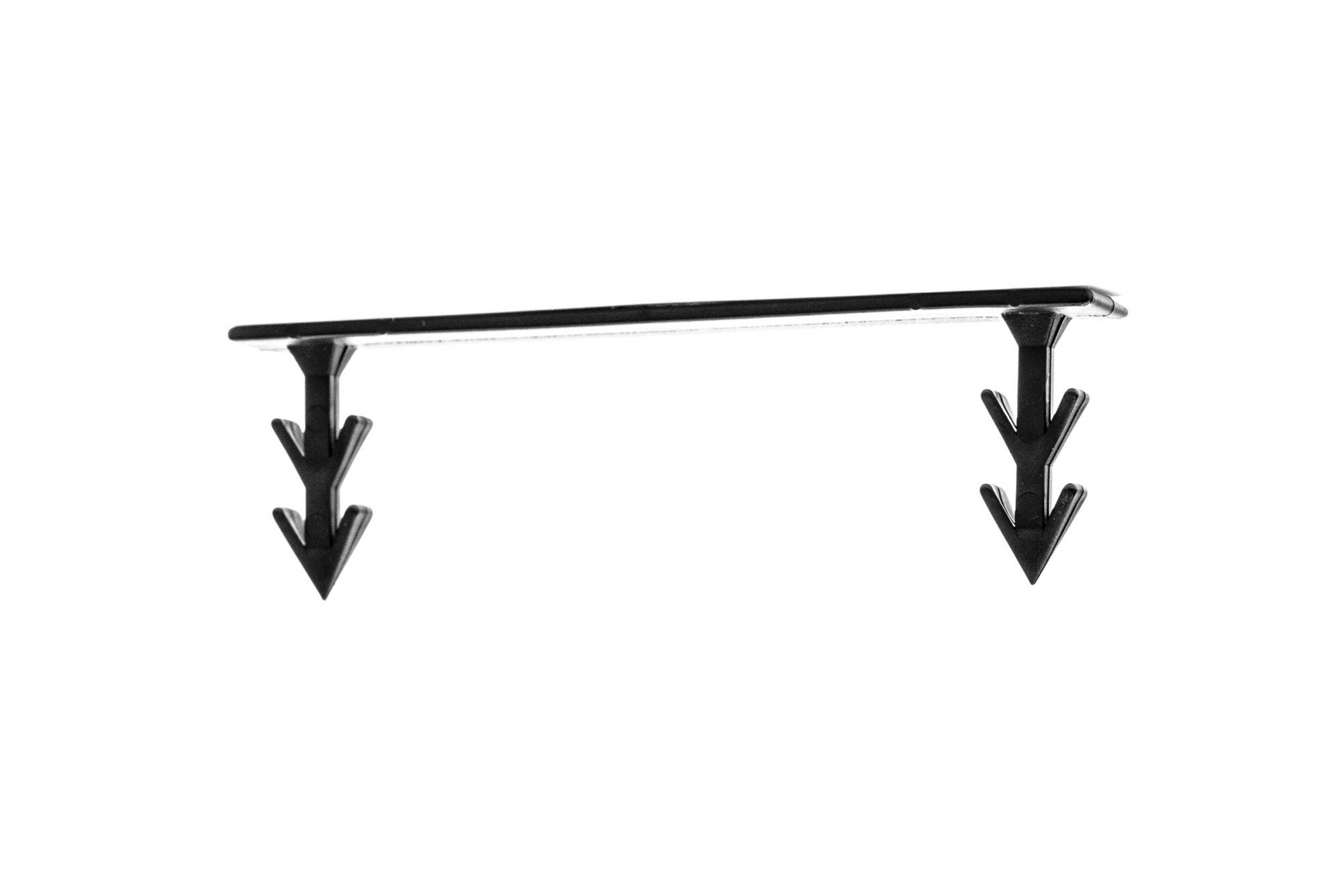

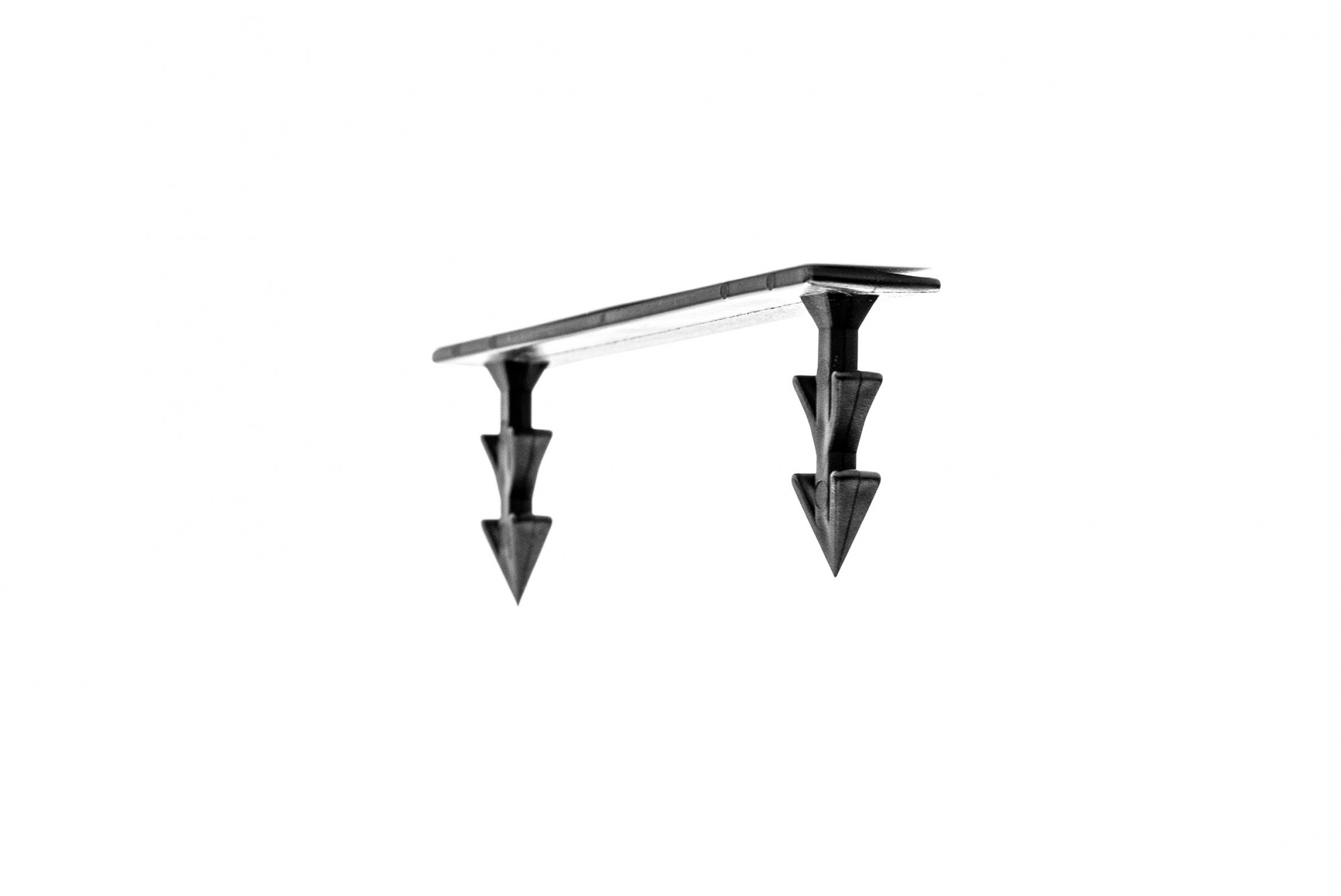

Buckle for castellated boards

product description

Buckles are used for fixing pipes in castellated boards. Buckle connects two opposite pieces of tabs between which the pipe was installed, preventing its release. Buckles are used only when it is needed.

				Single pack			Multipack			Pallet
Index	Model	Product dimensions X/Y/Z (mm)	Net weight (g)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)
F-694645	MT	28 x 90 x 14	2.8	100	23 x 32	0.28	5 000	55 x 39.5 x 53	14.9	60 000	120 x 80 x 179	198

Ask about the product
