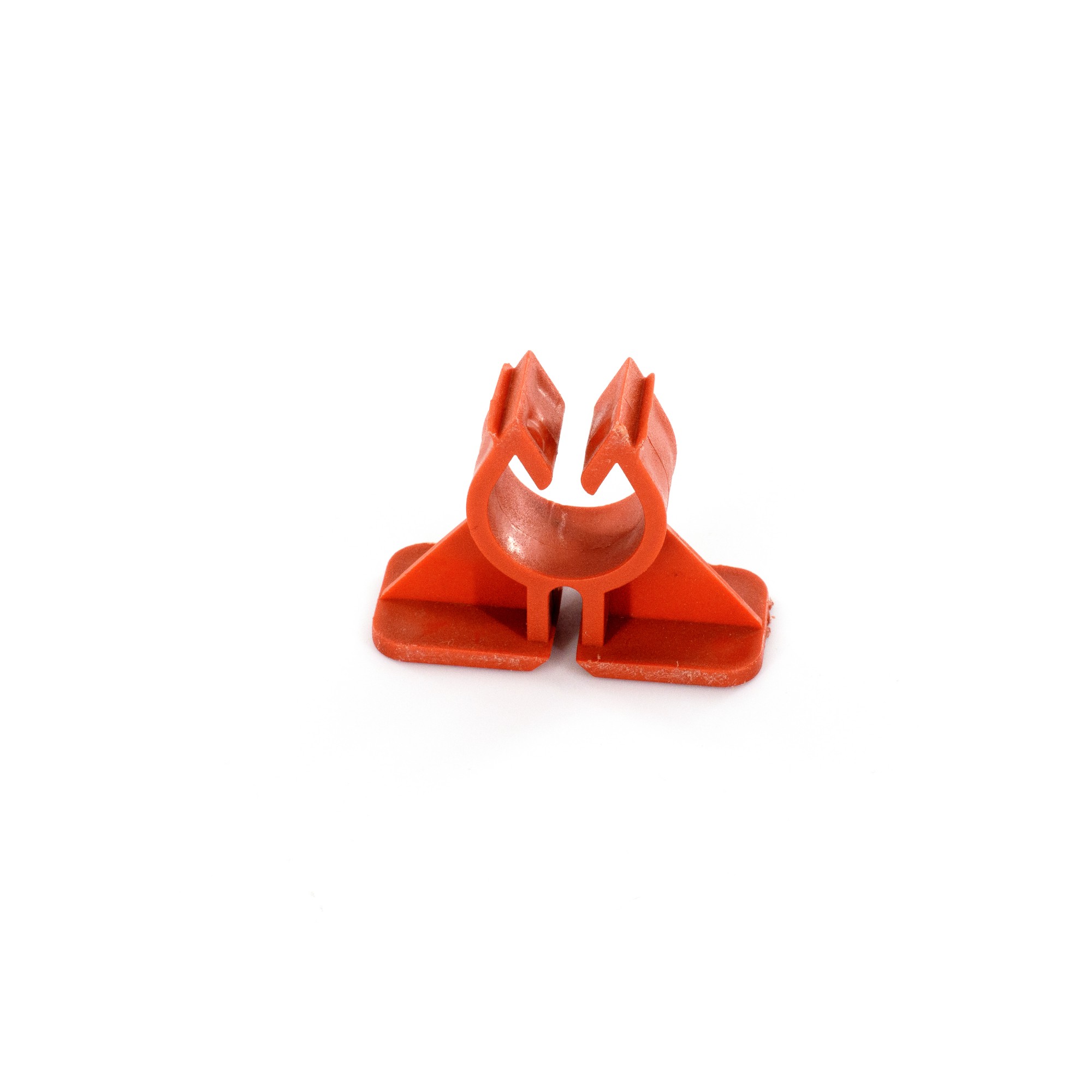

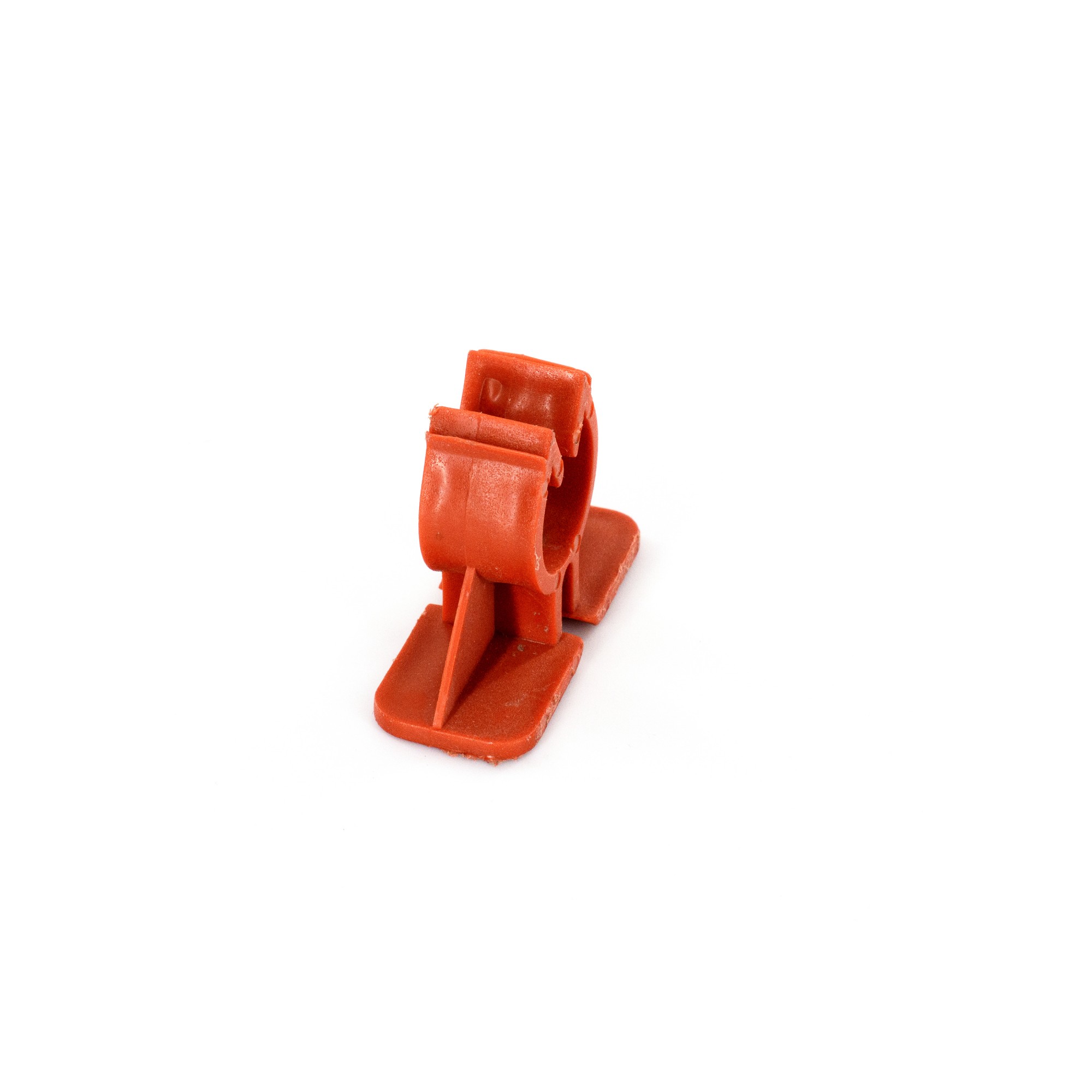

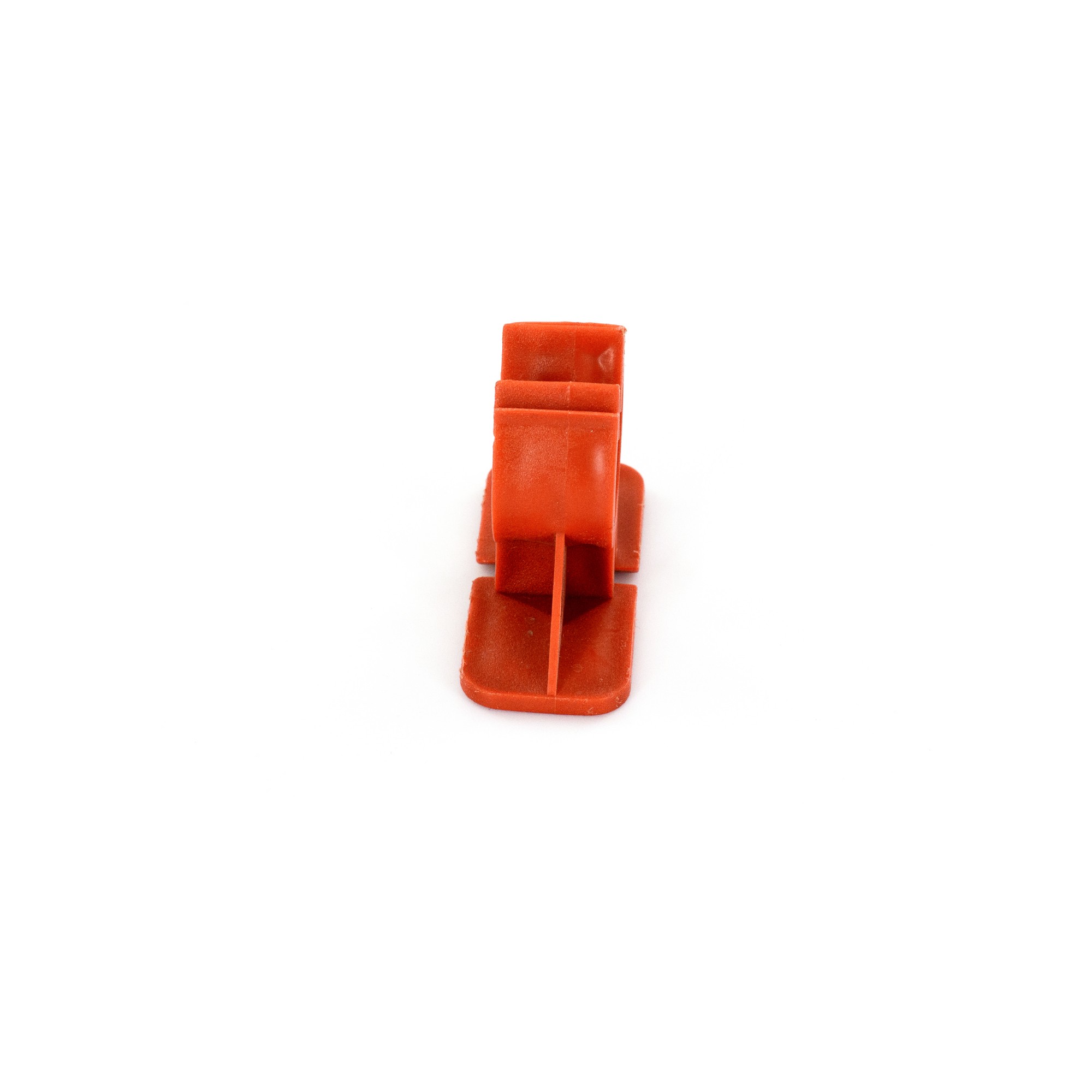

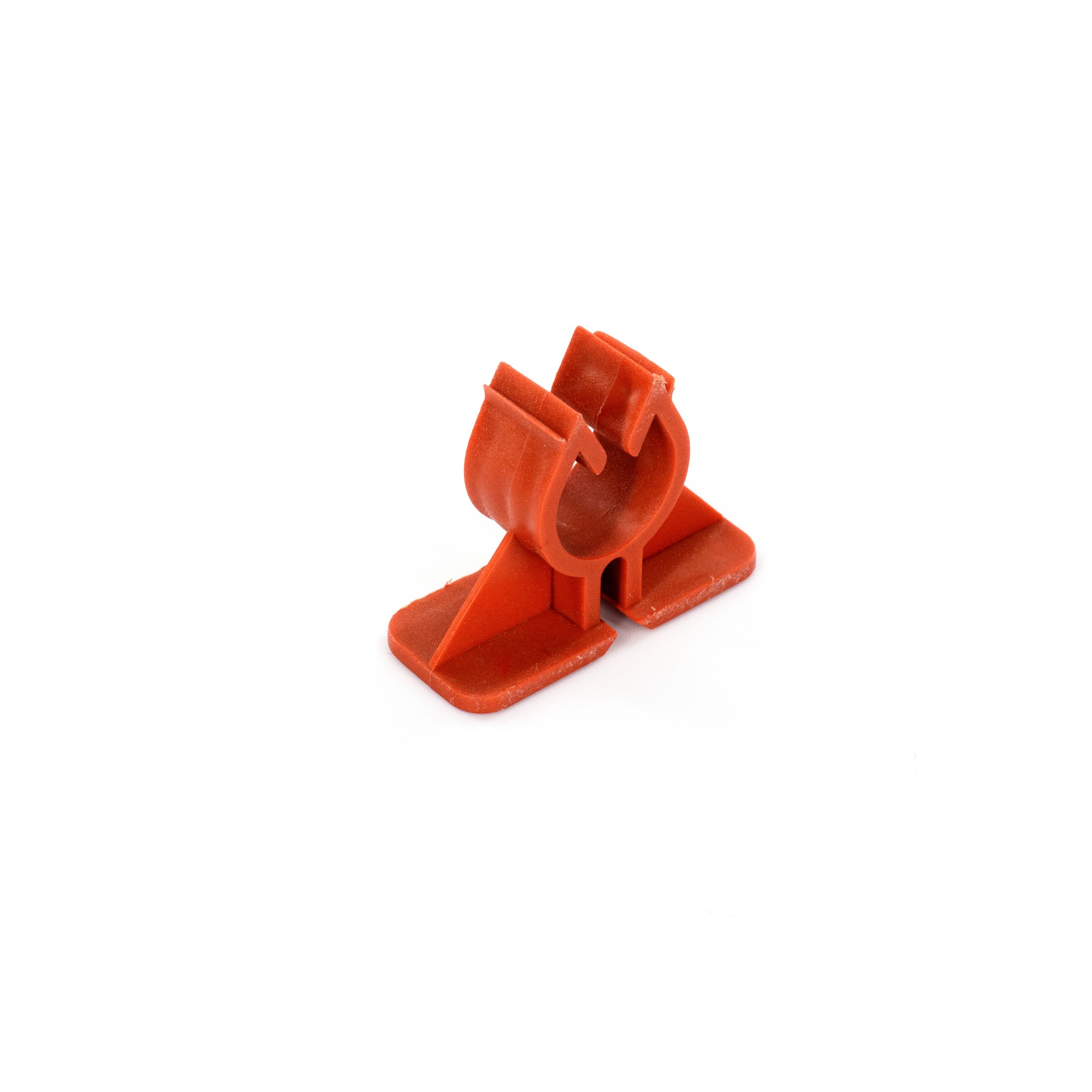

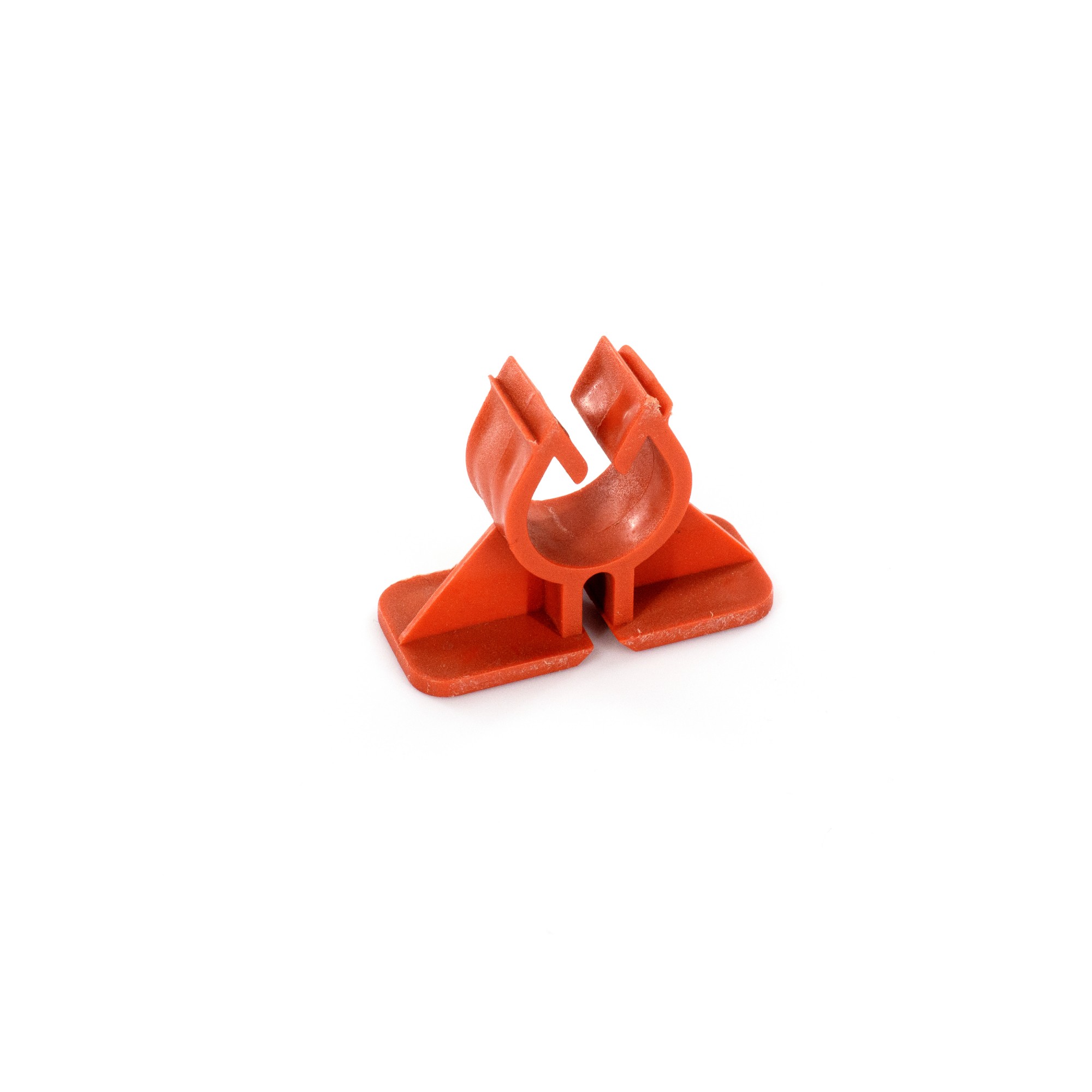

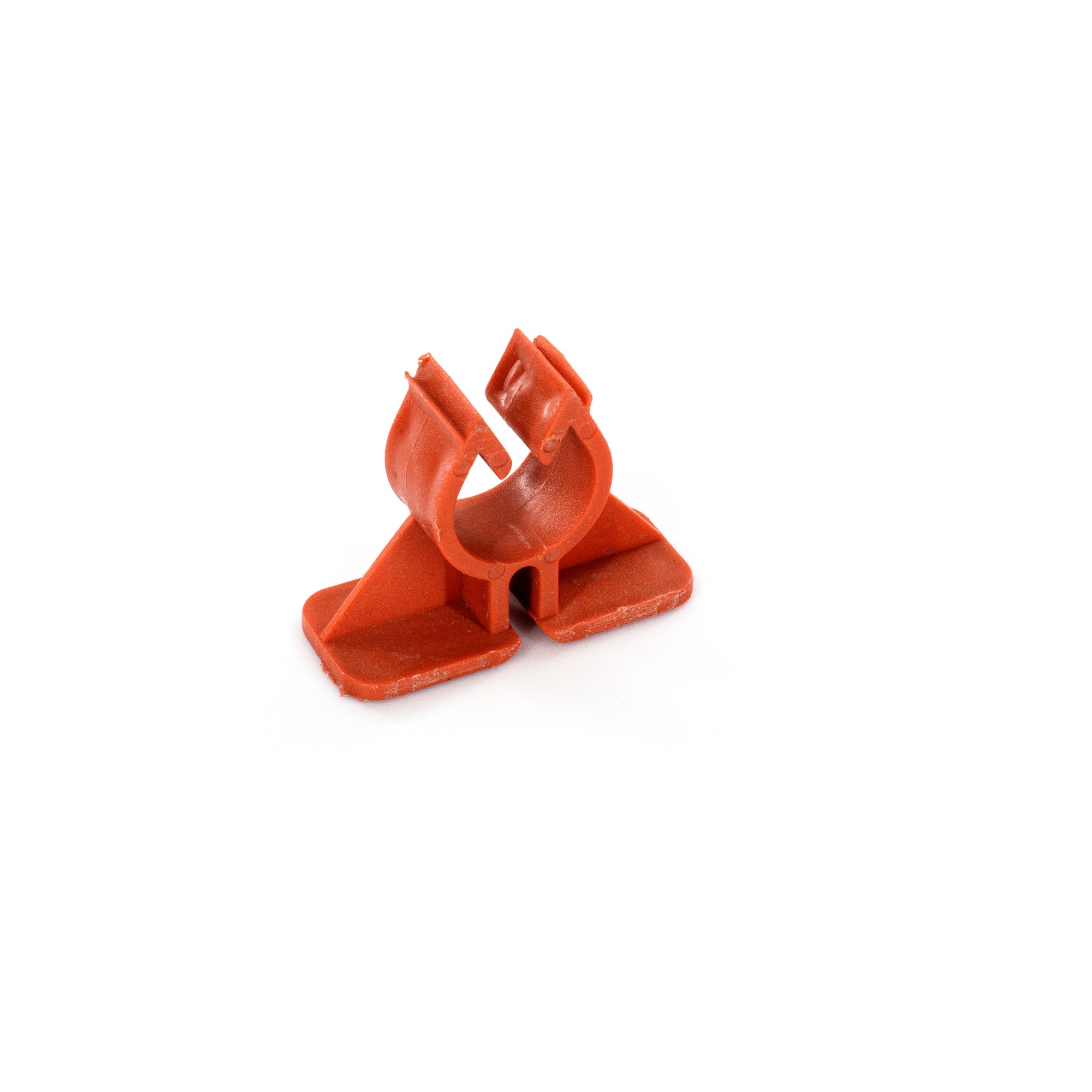

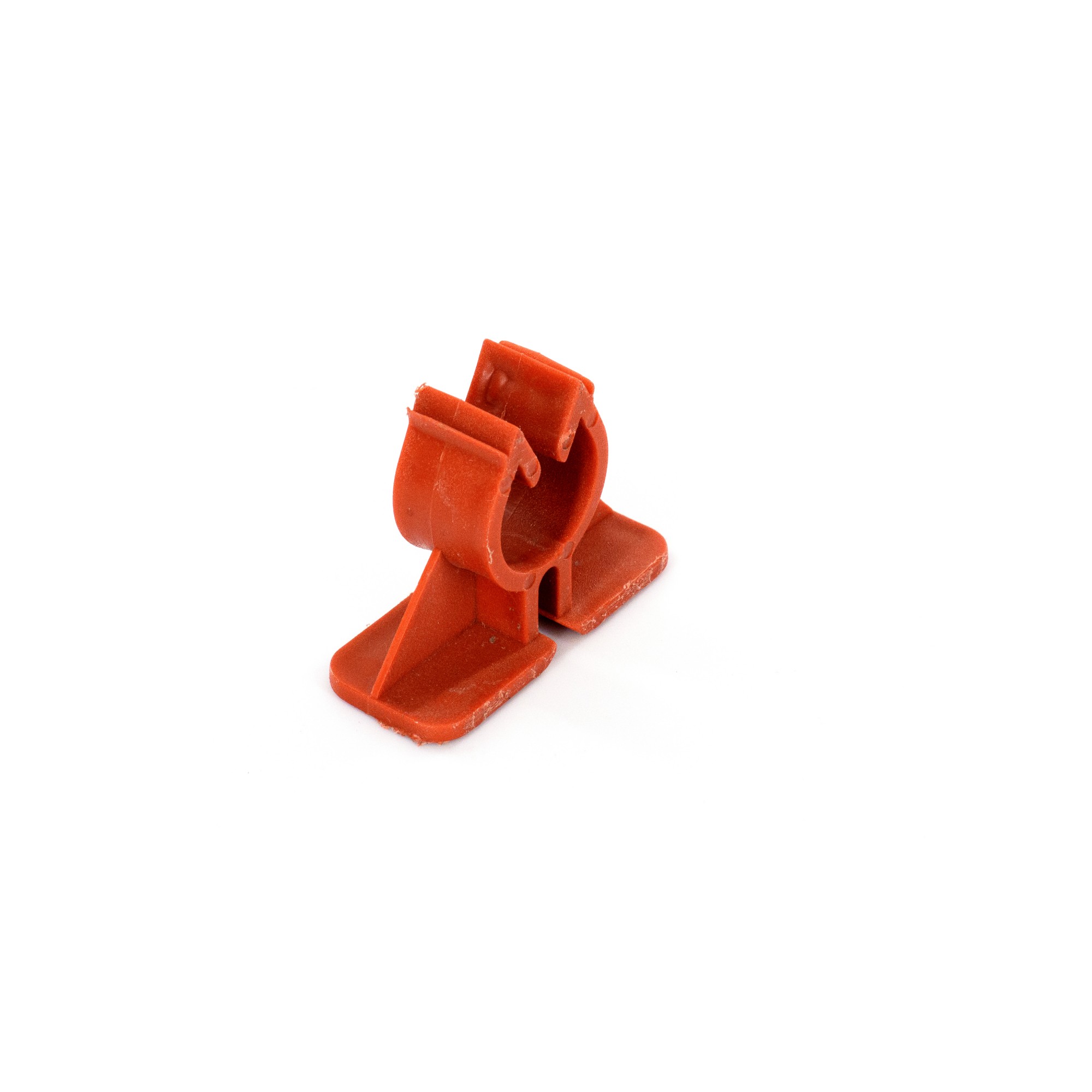

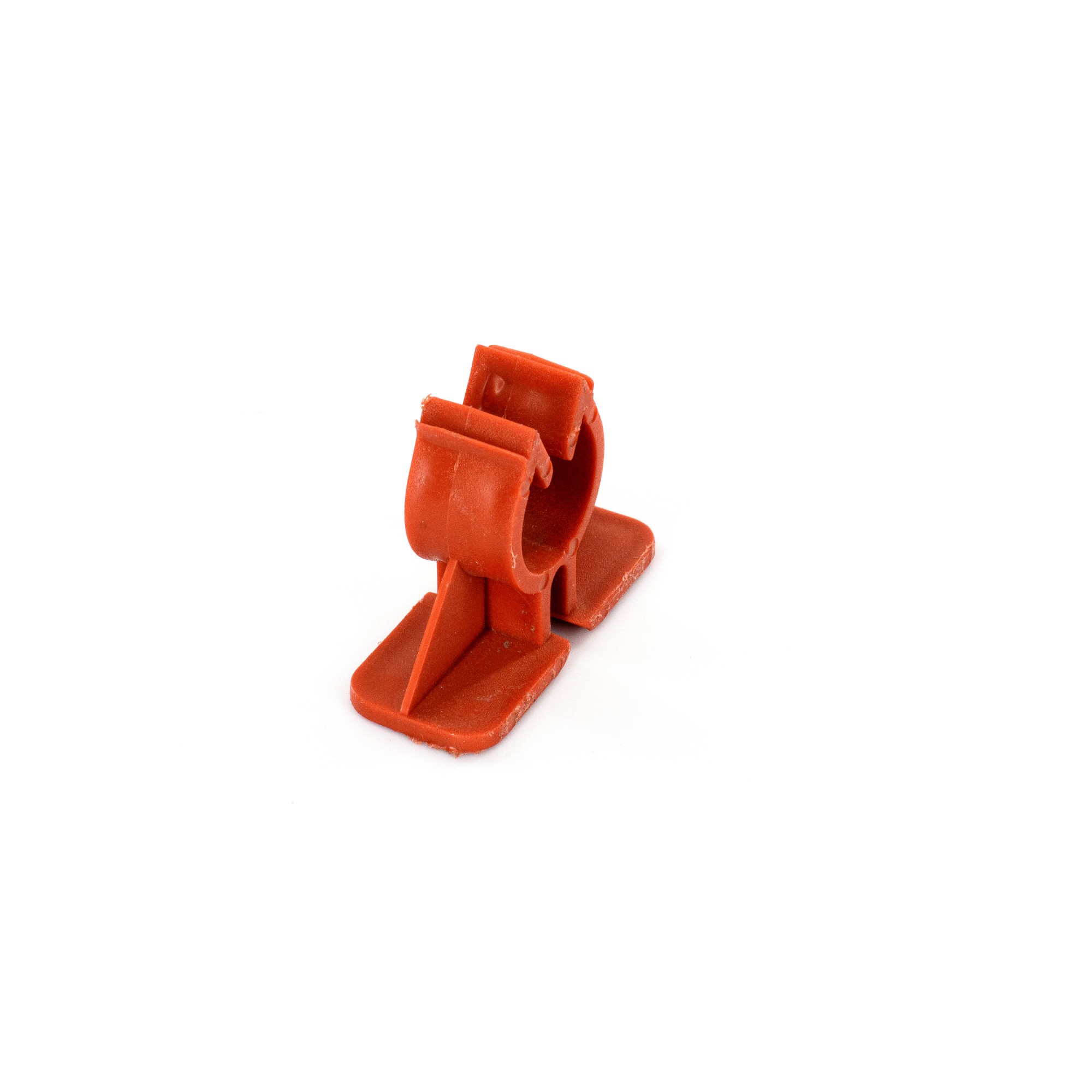

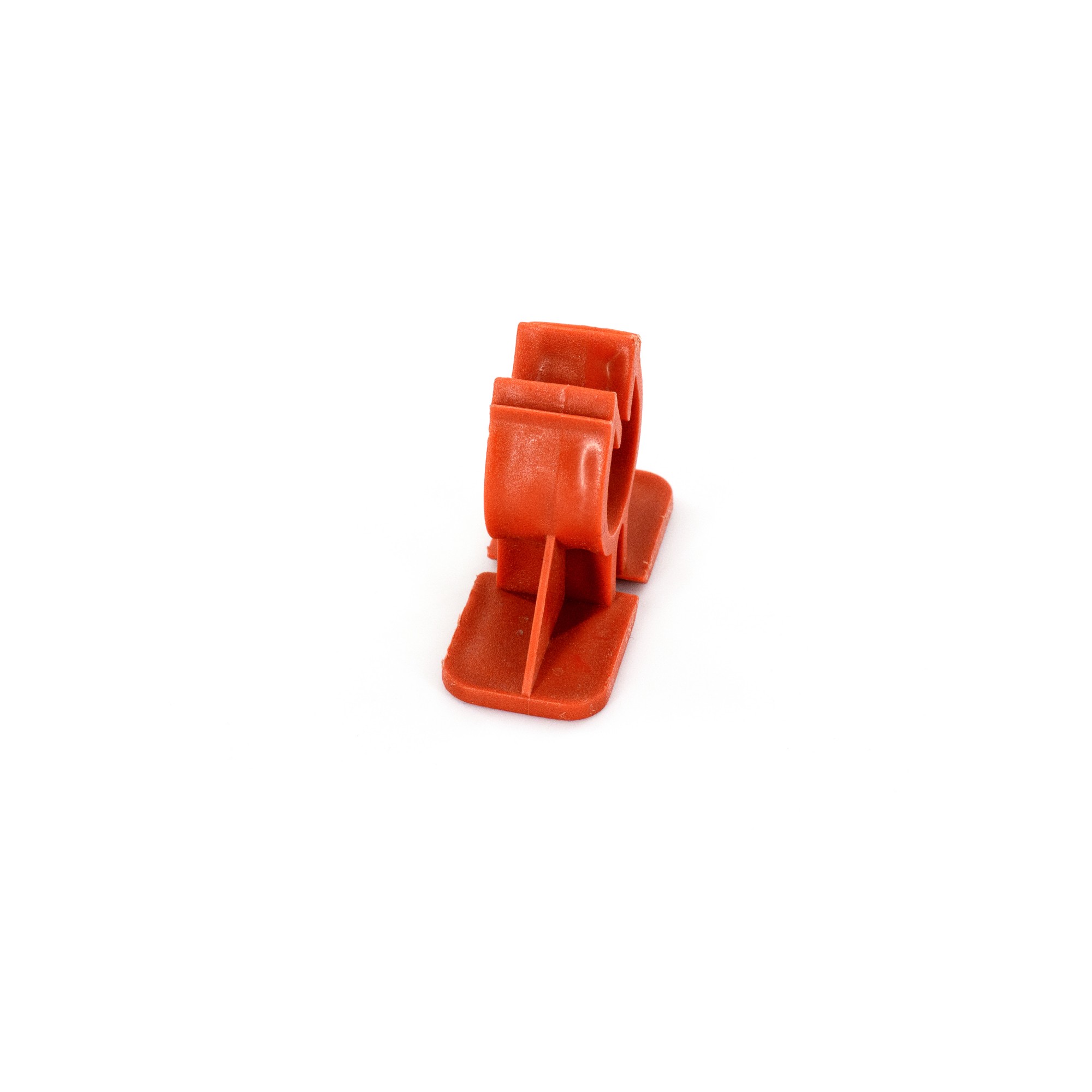

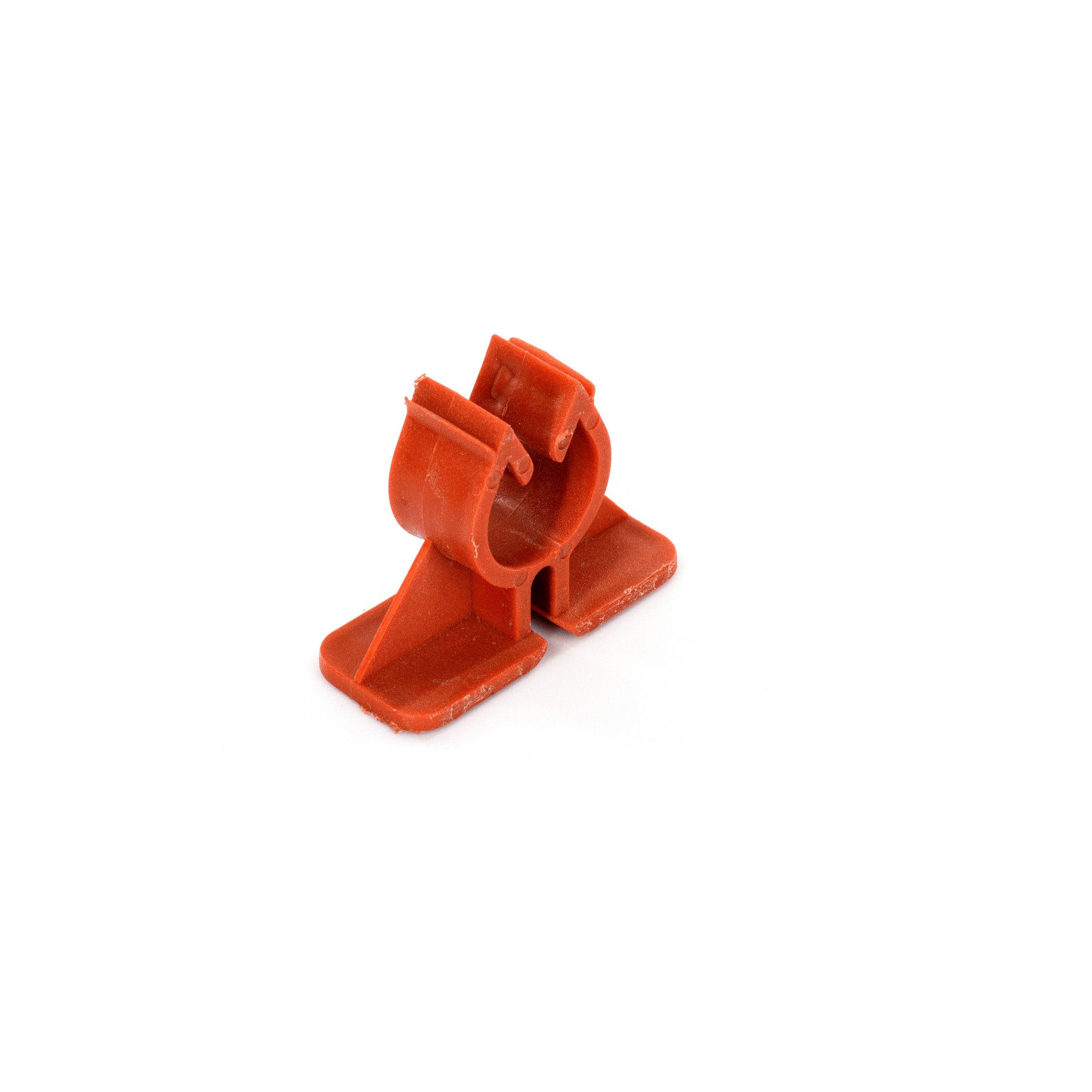

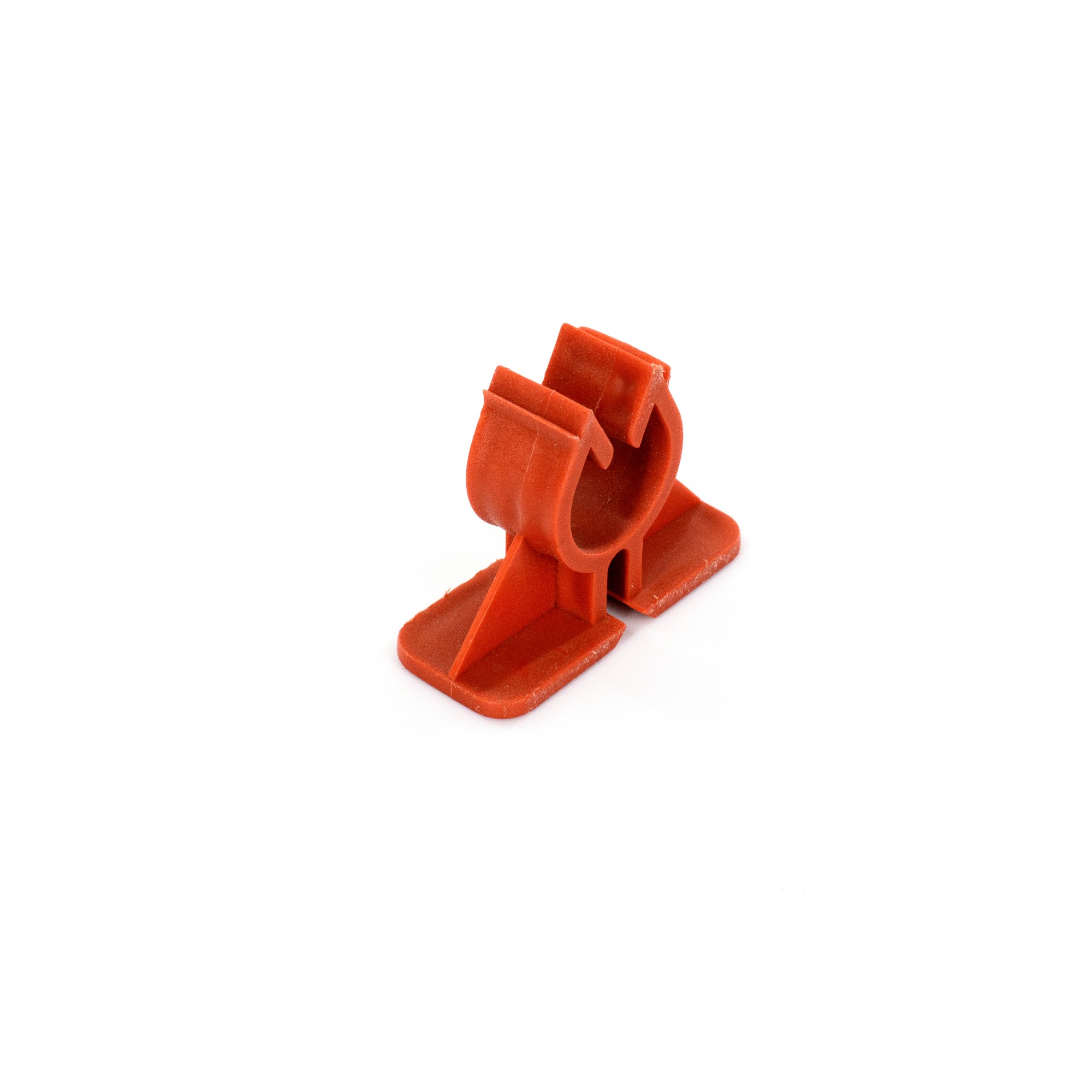

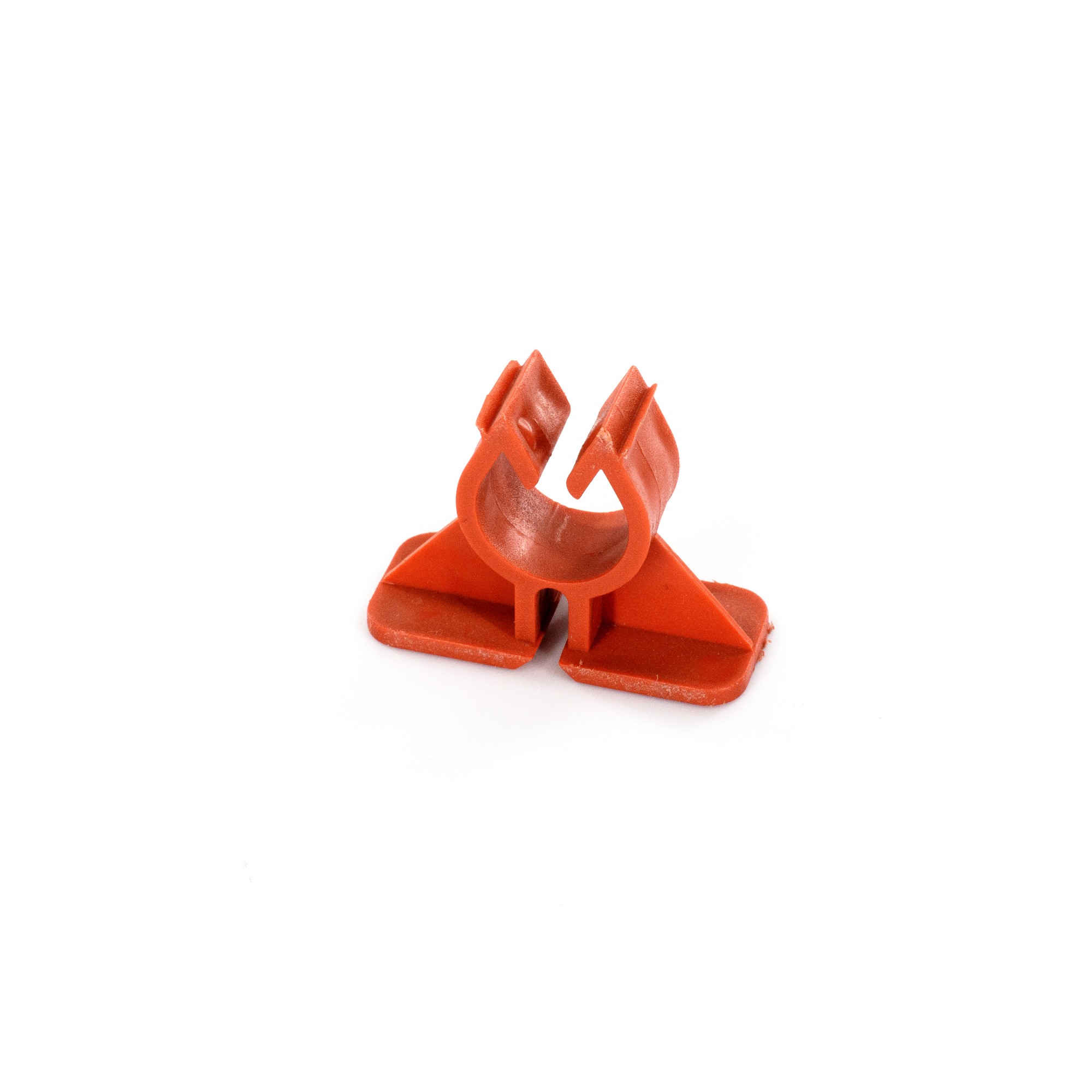

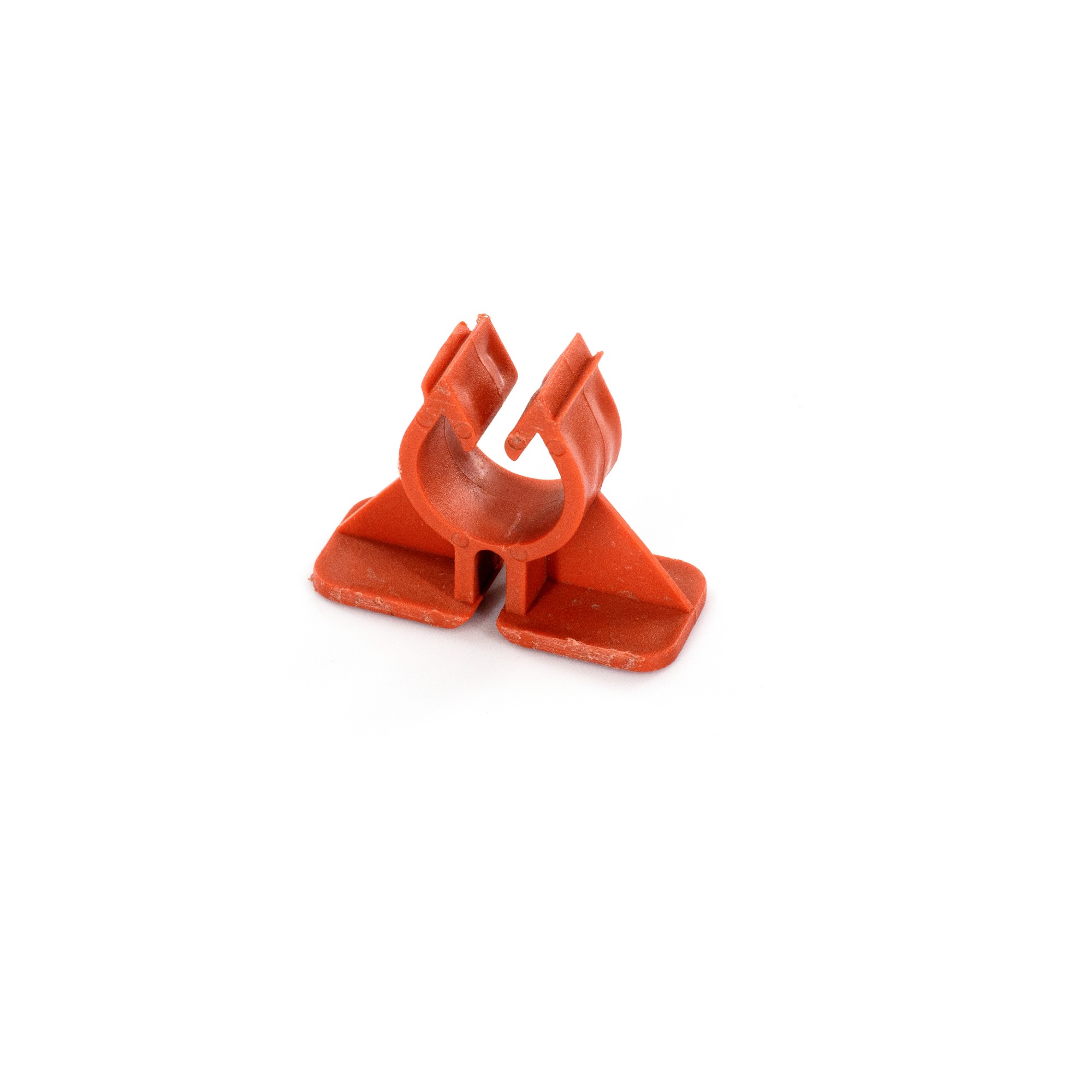

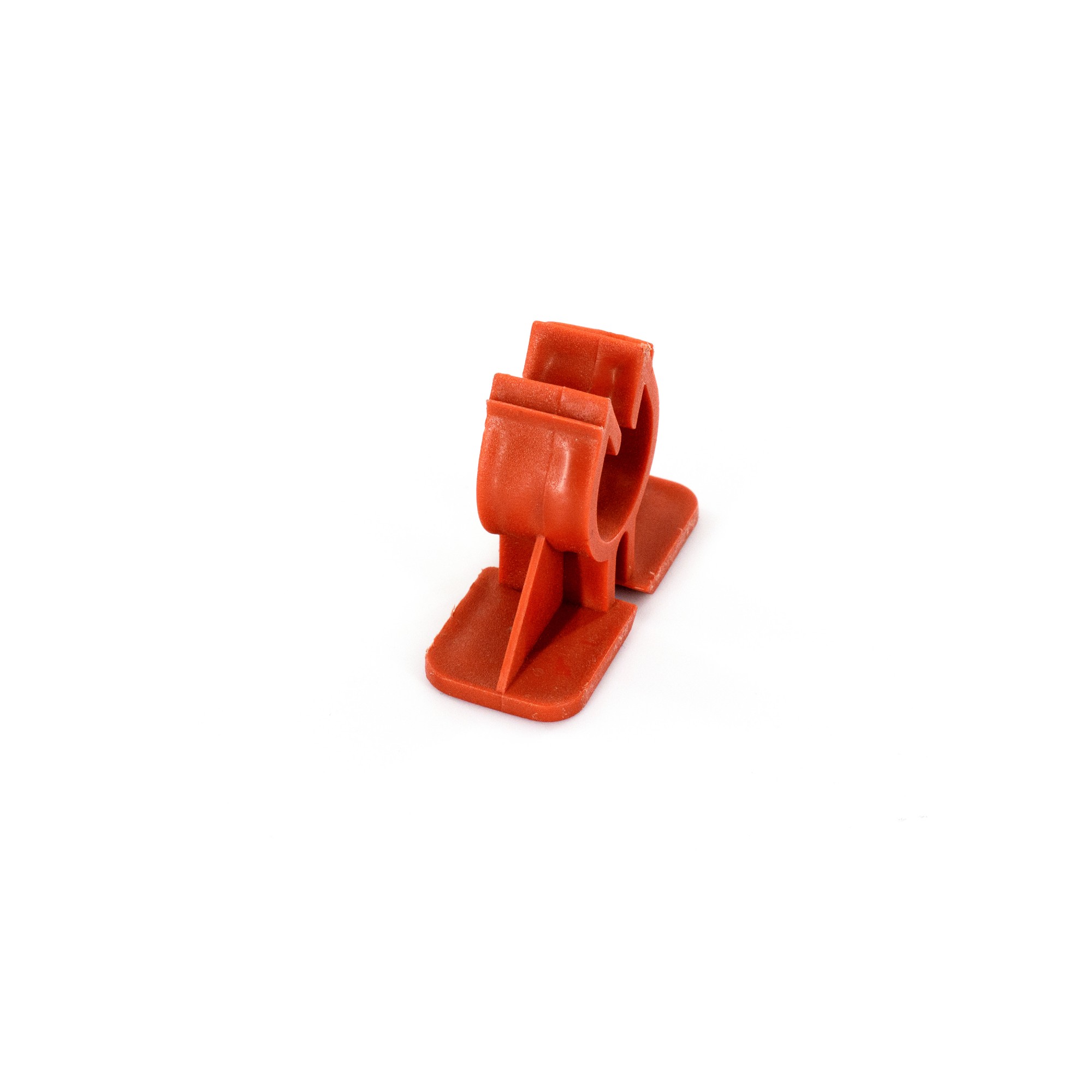

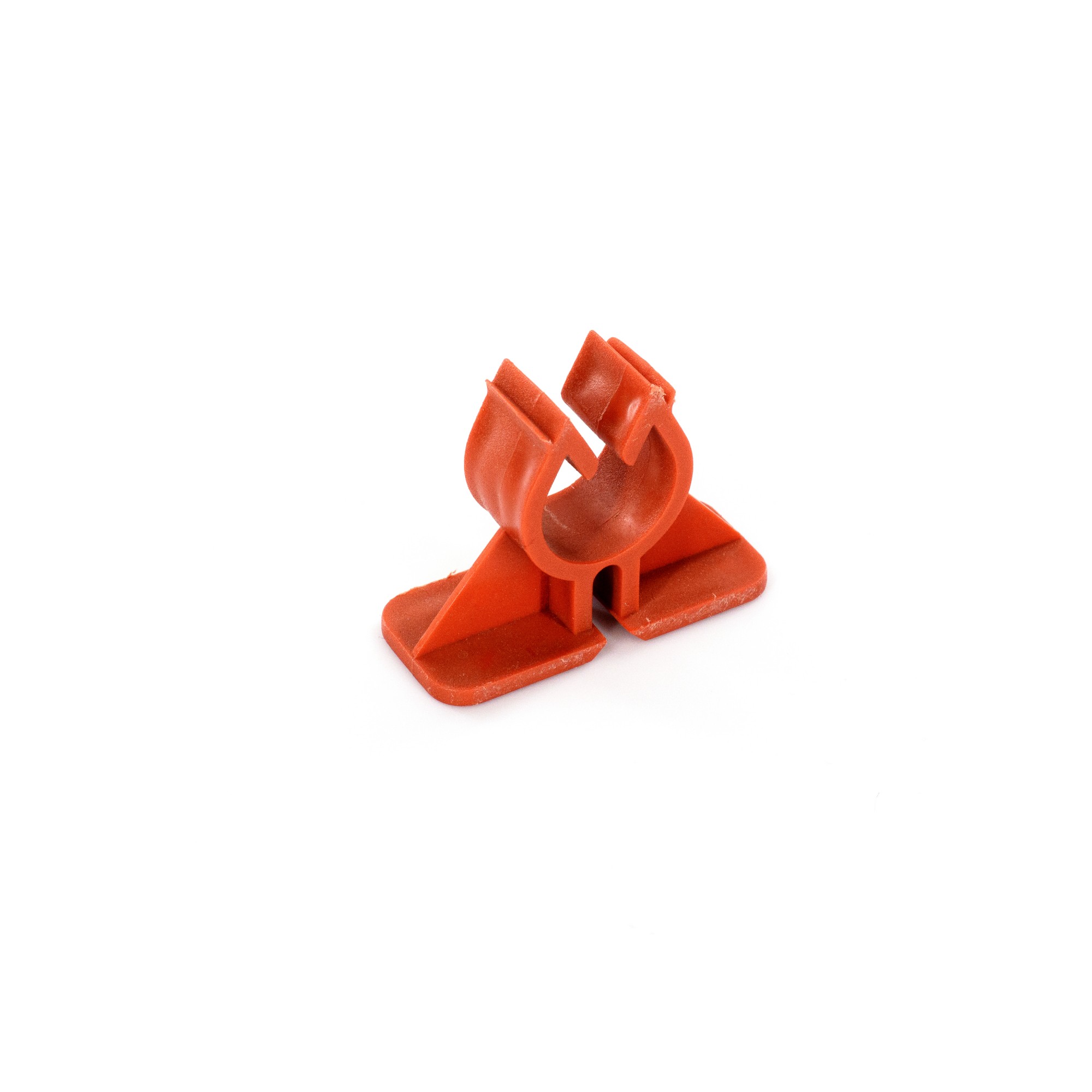

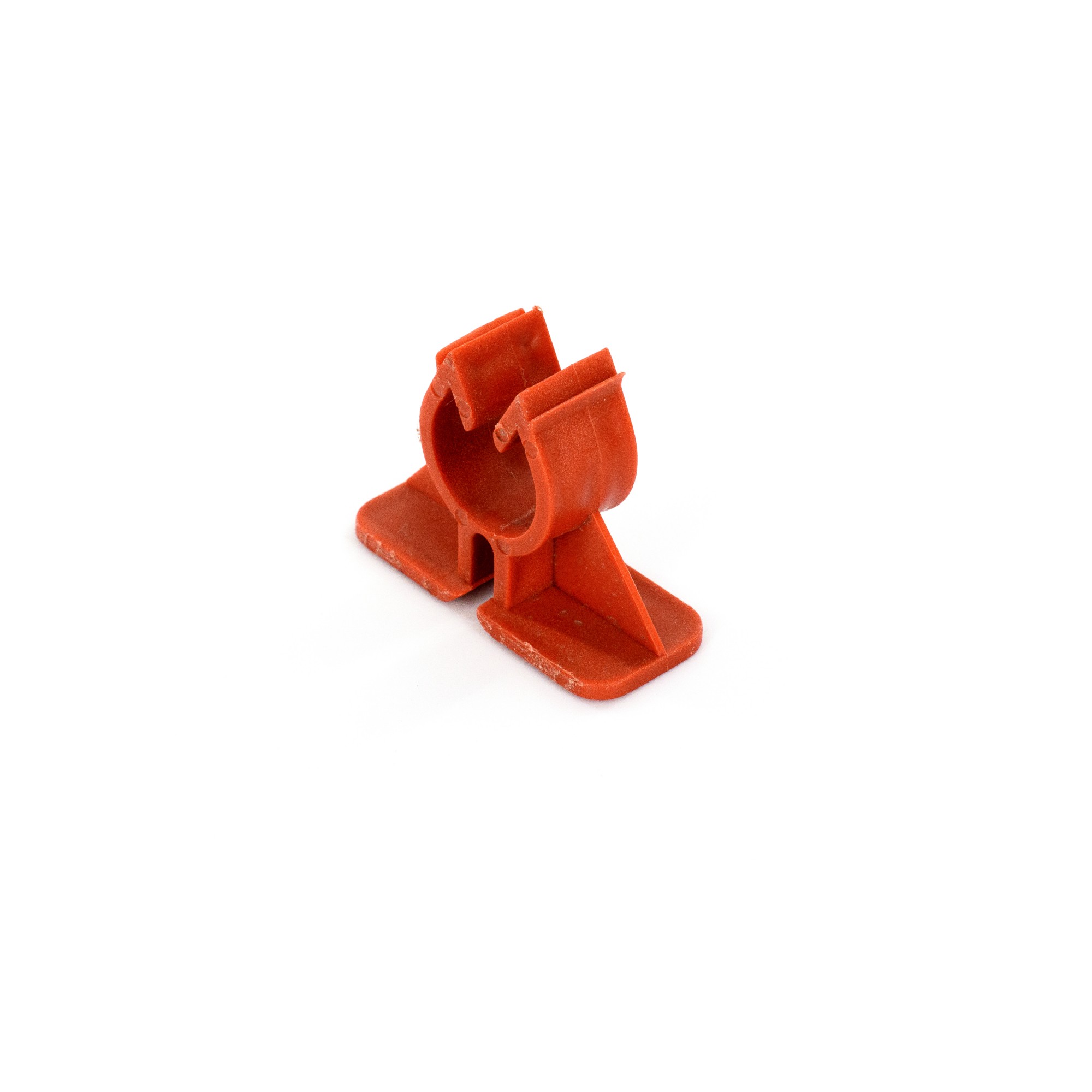

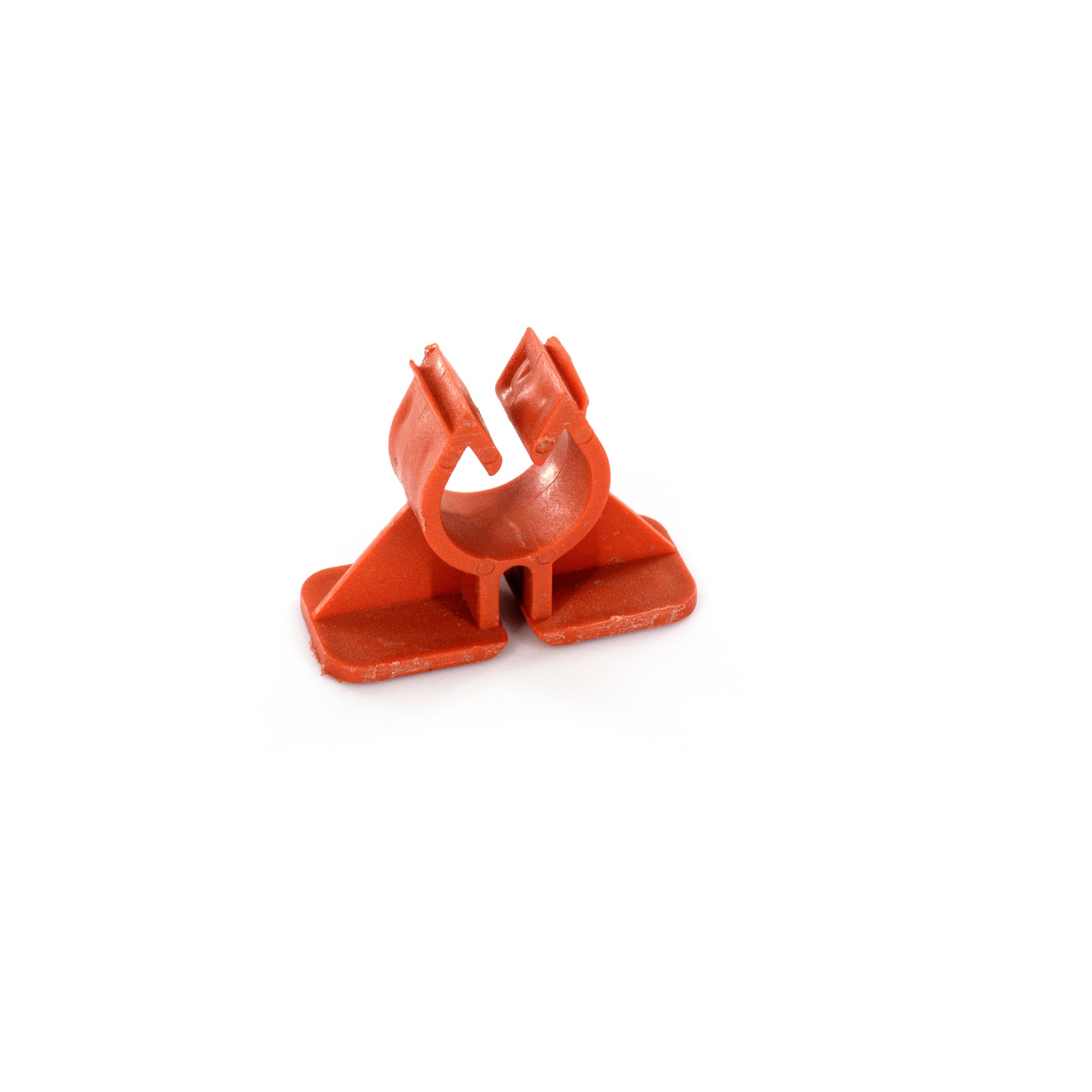

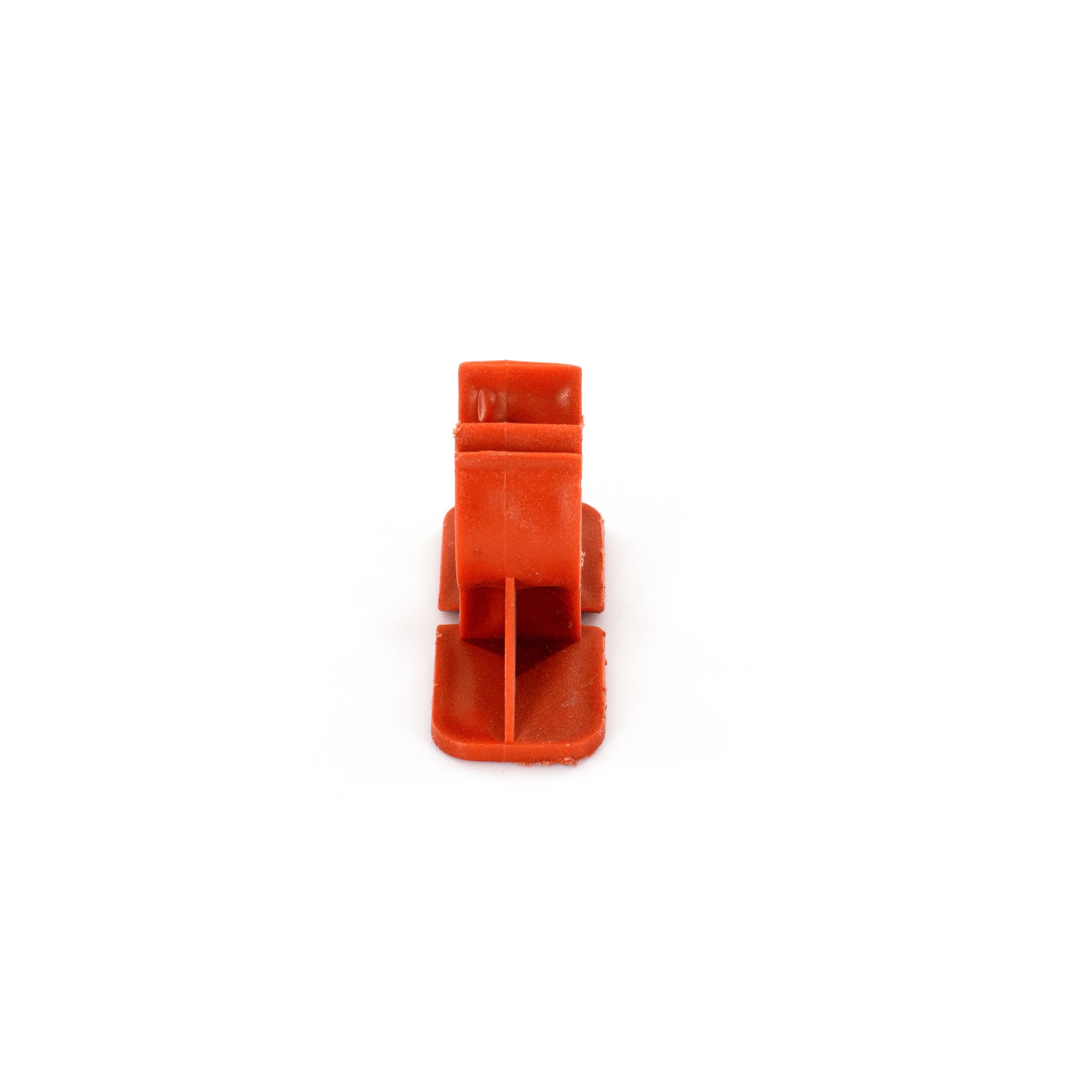

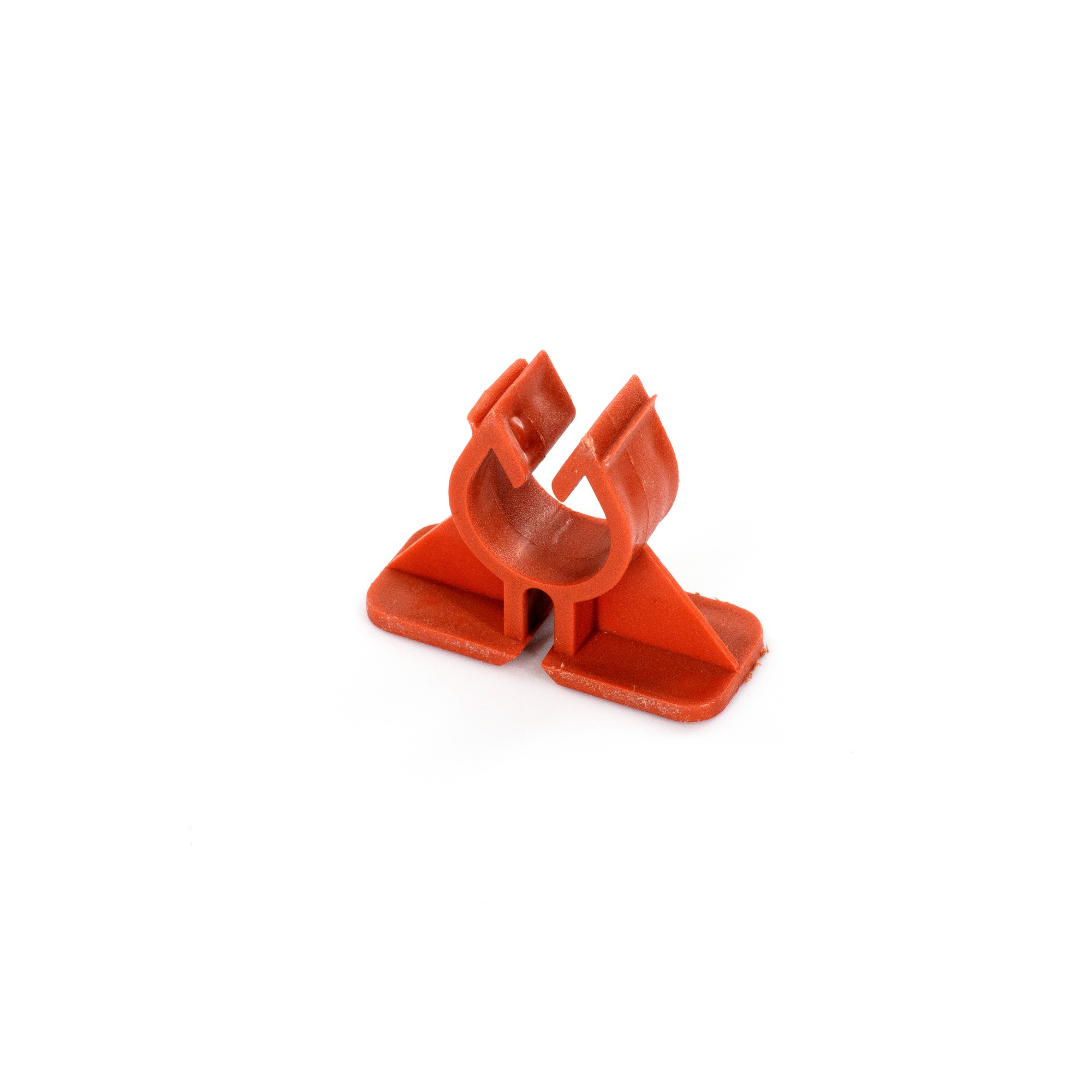

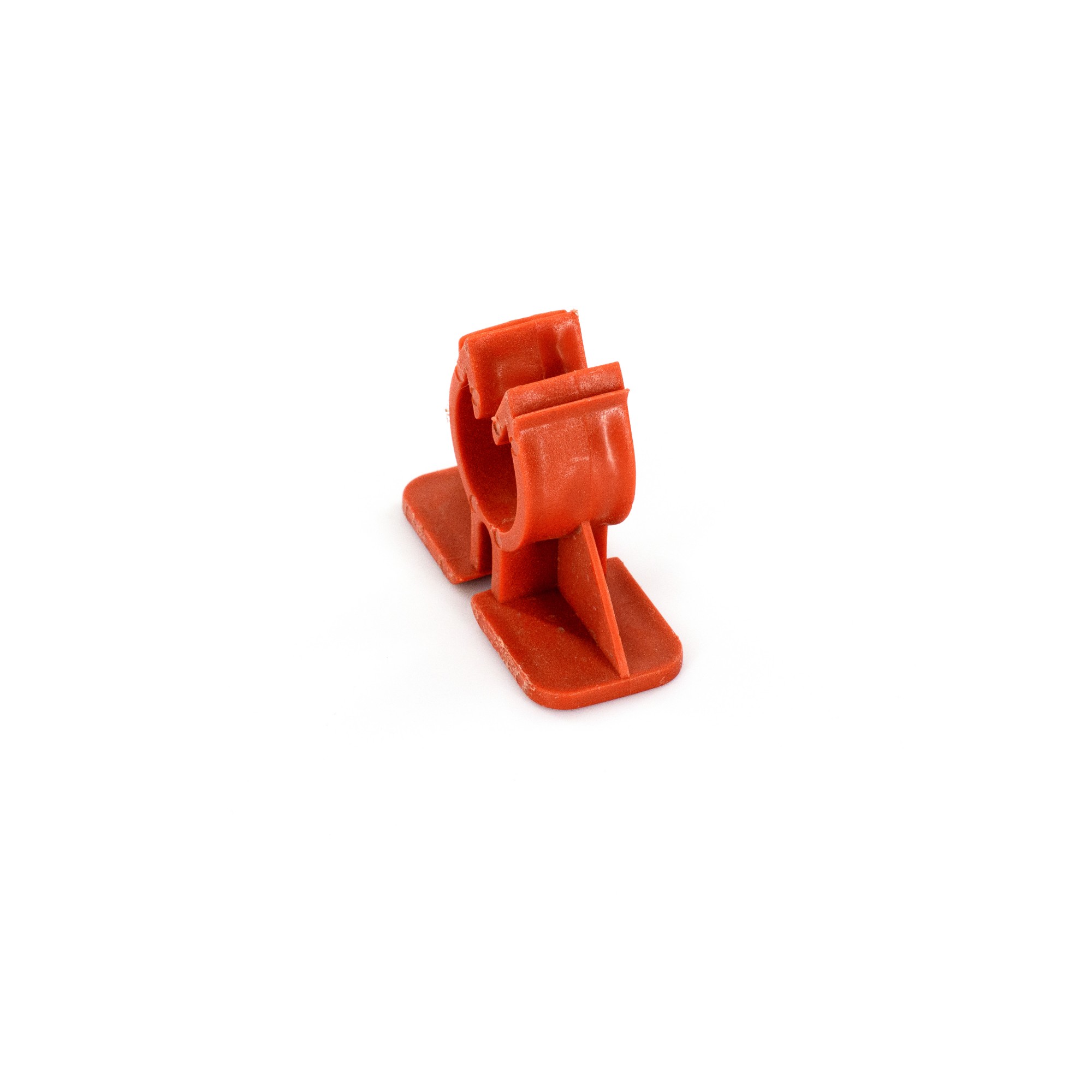

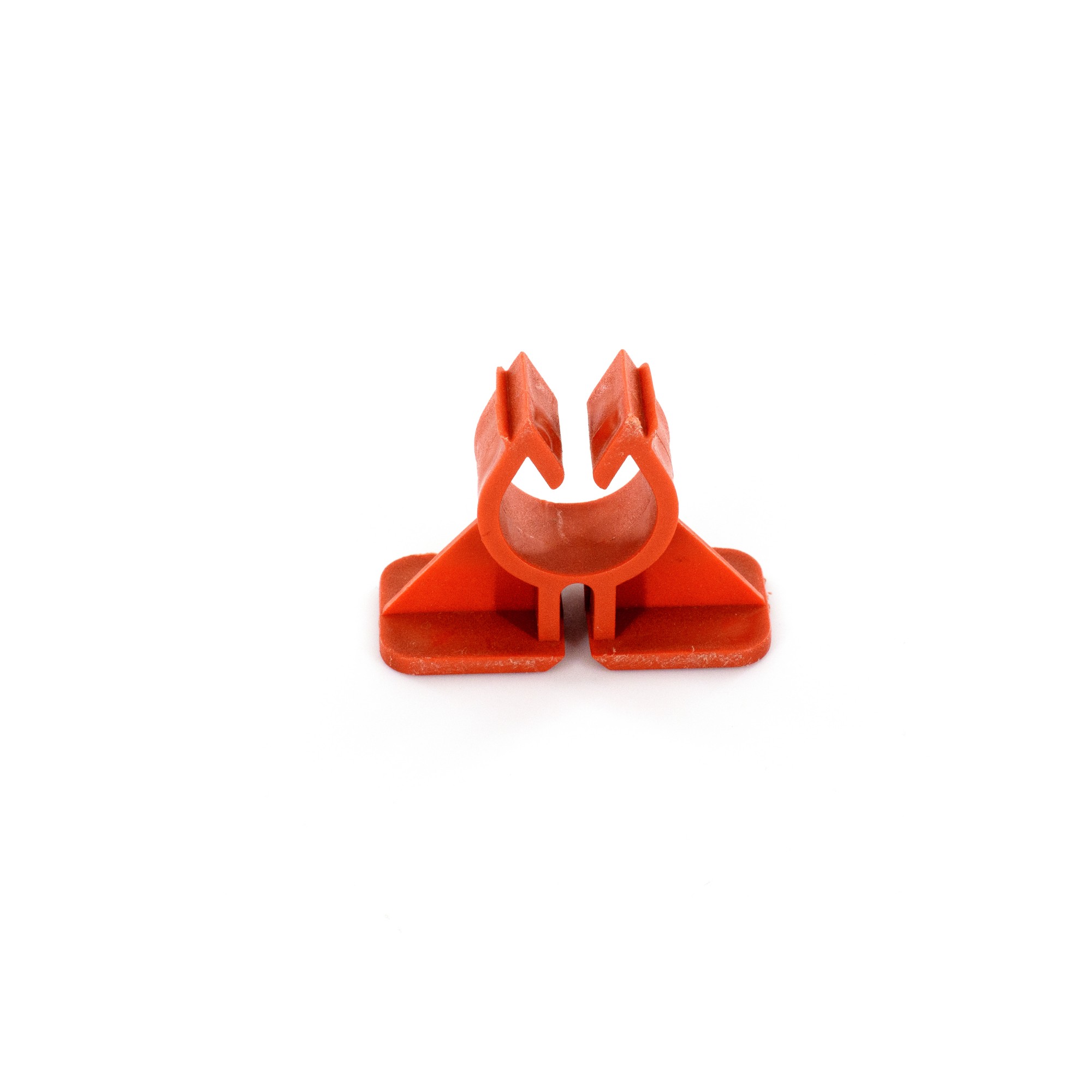

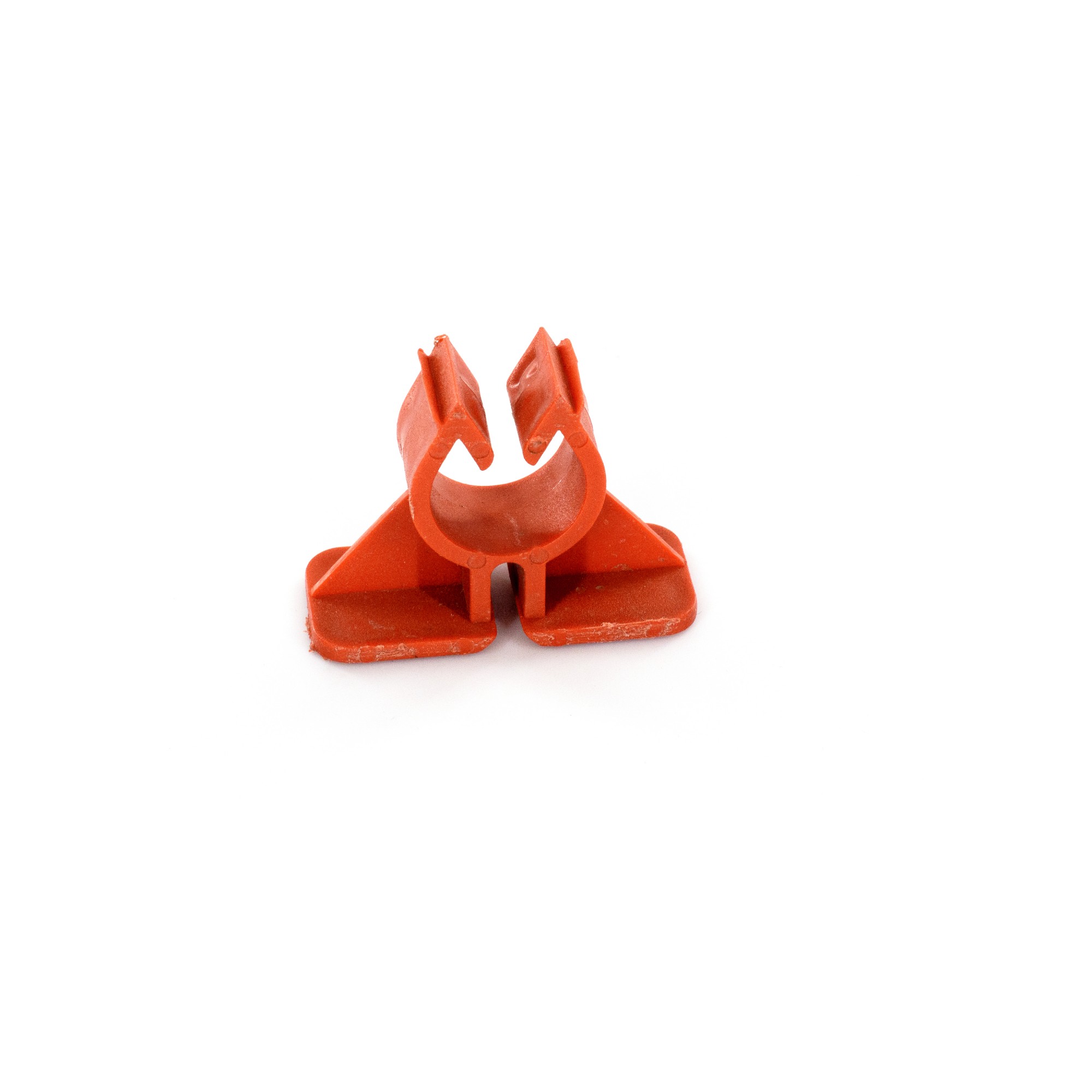

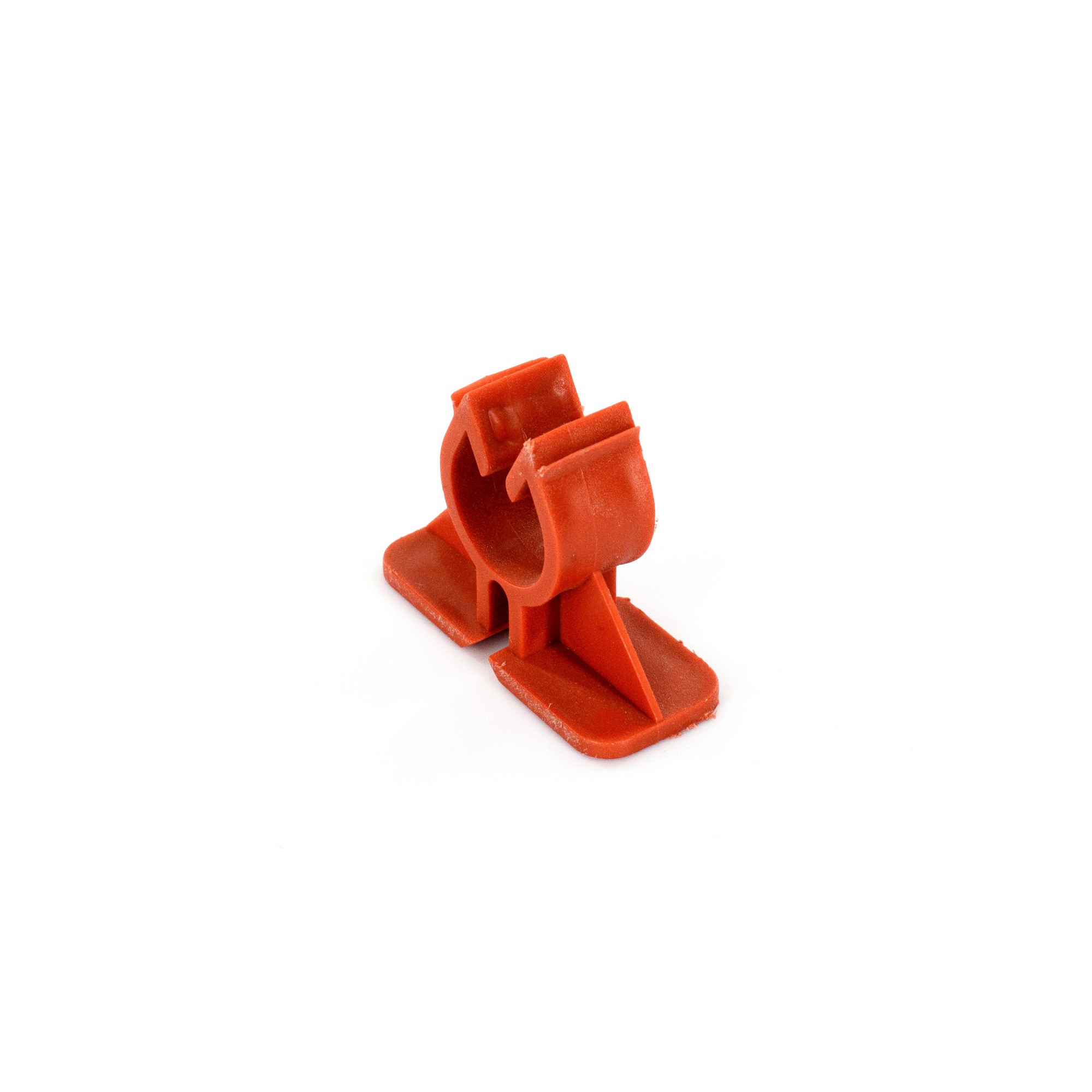

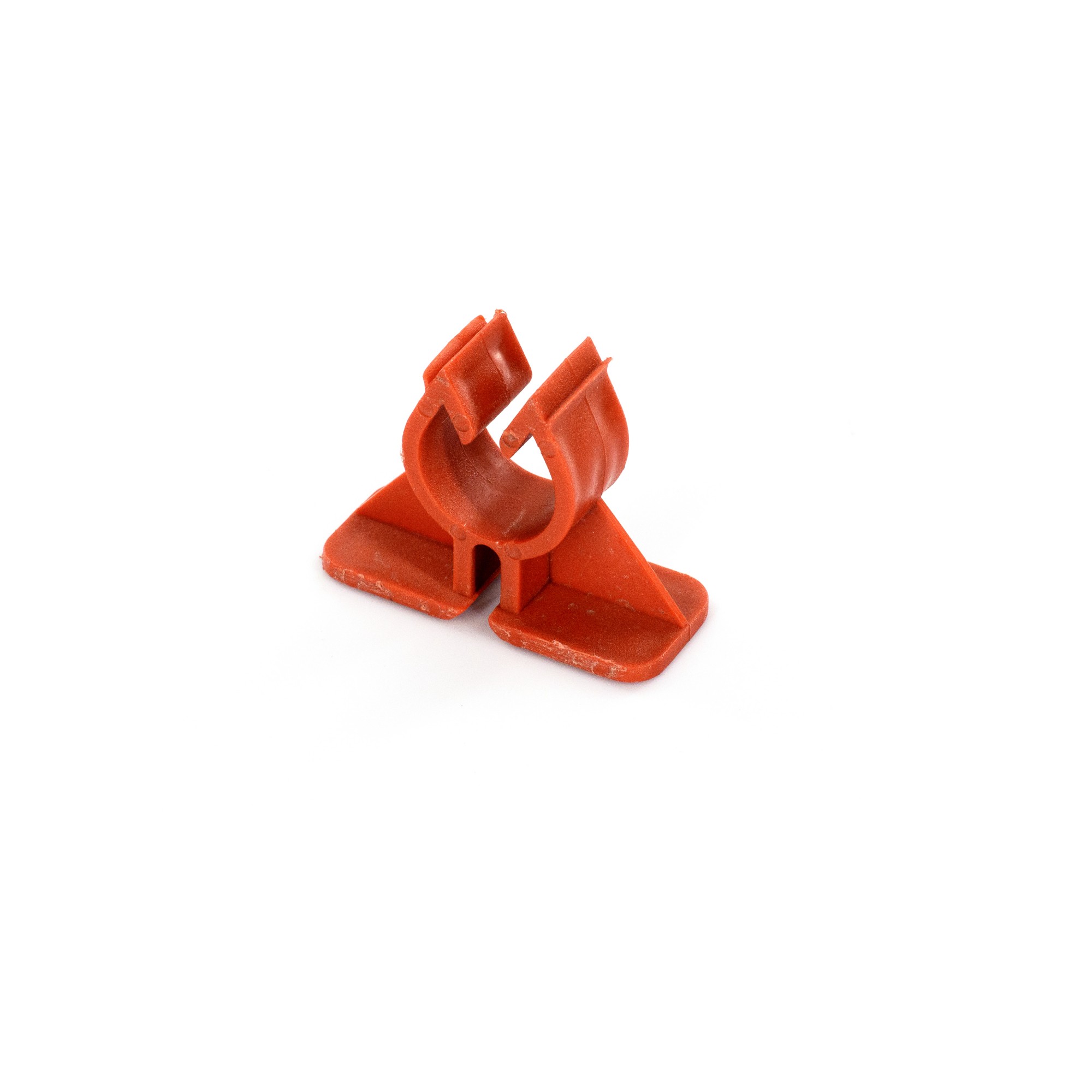

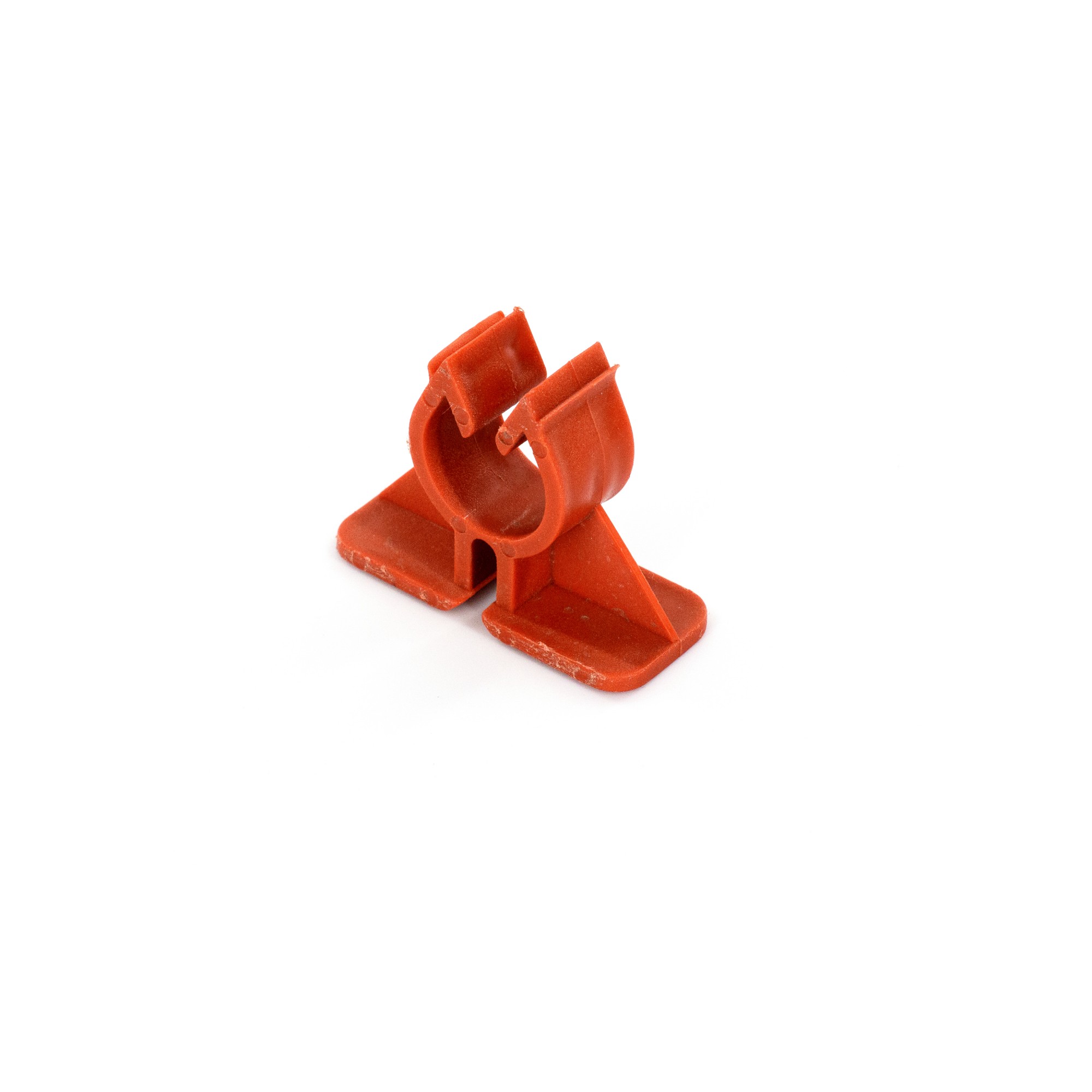

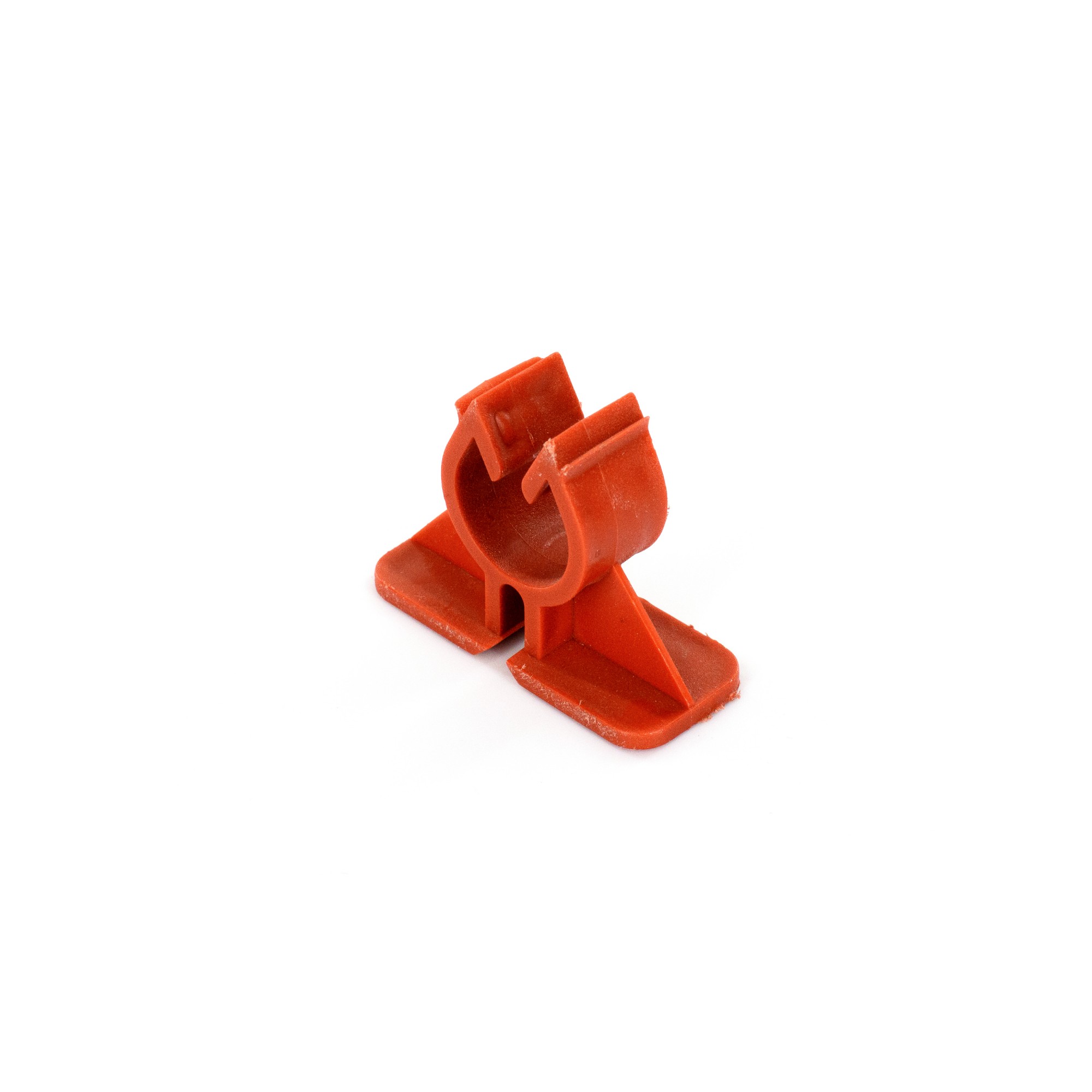

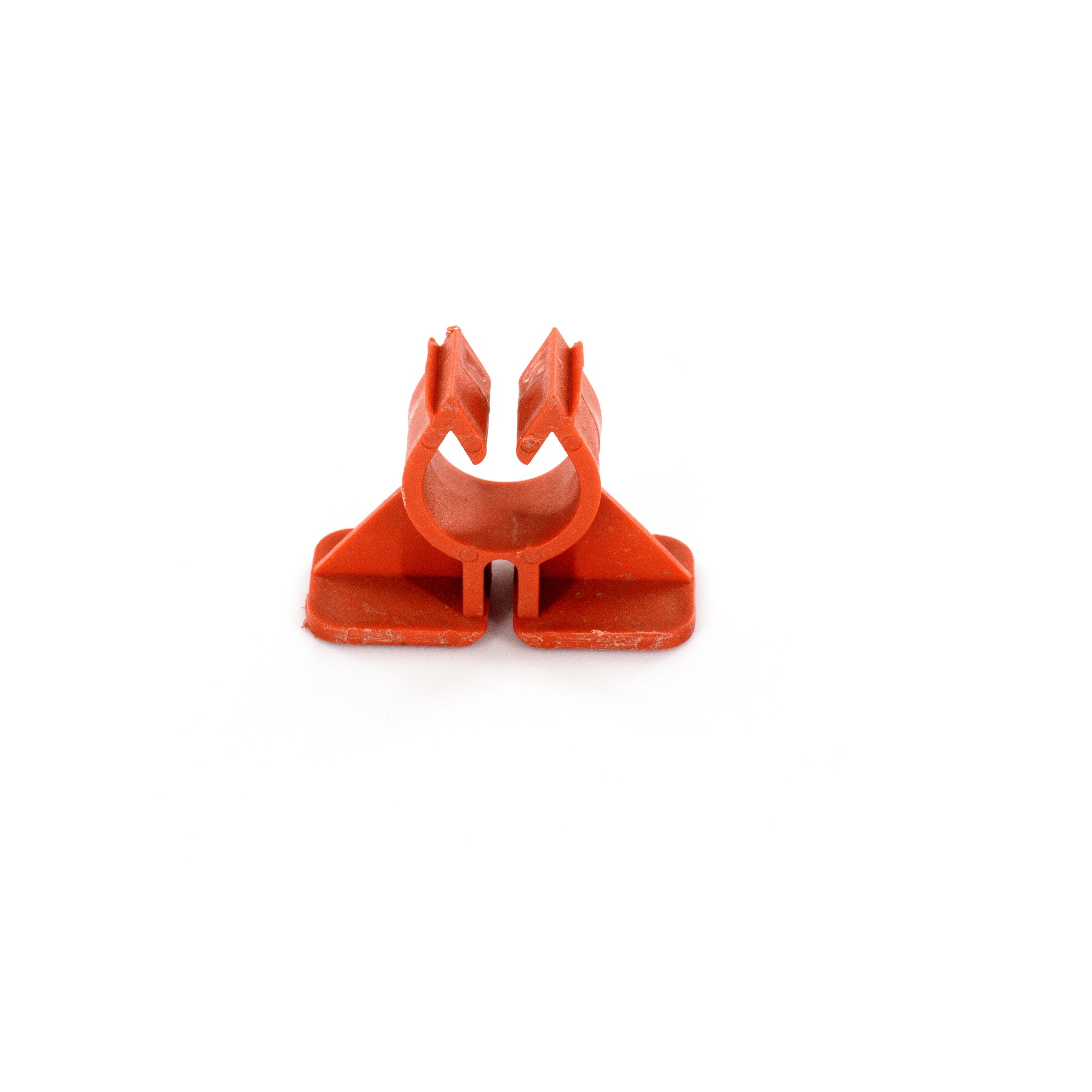

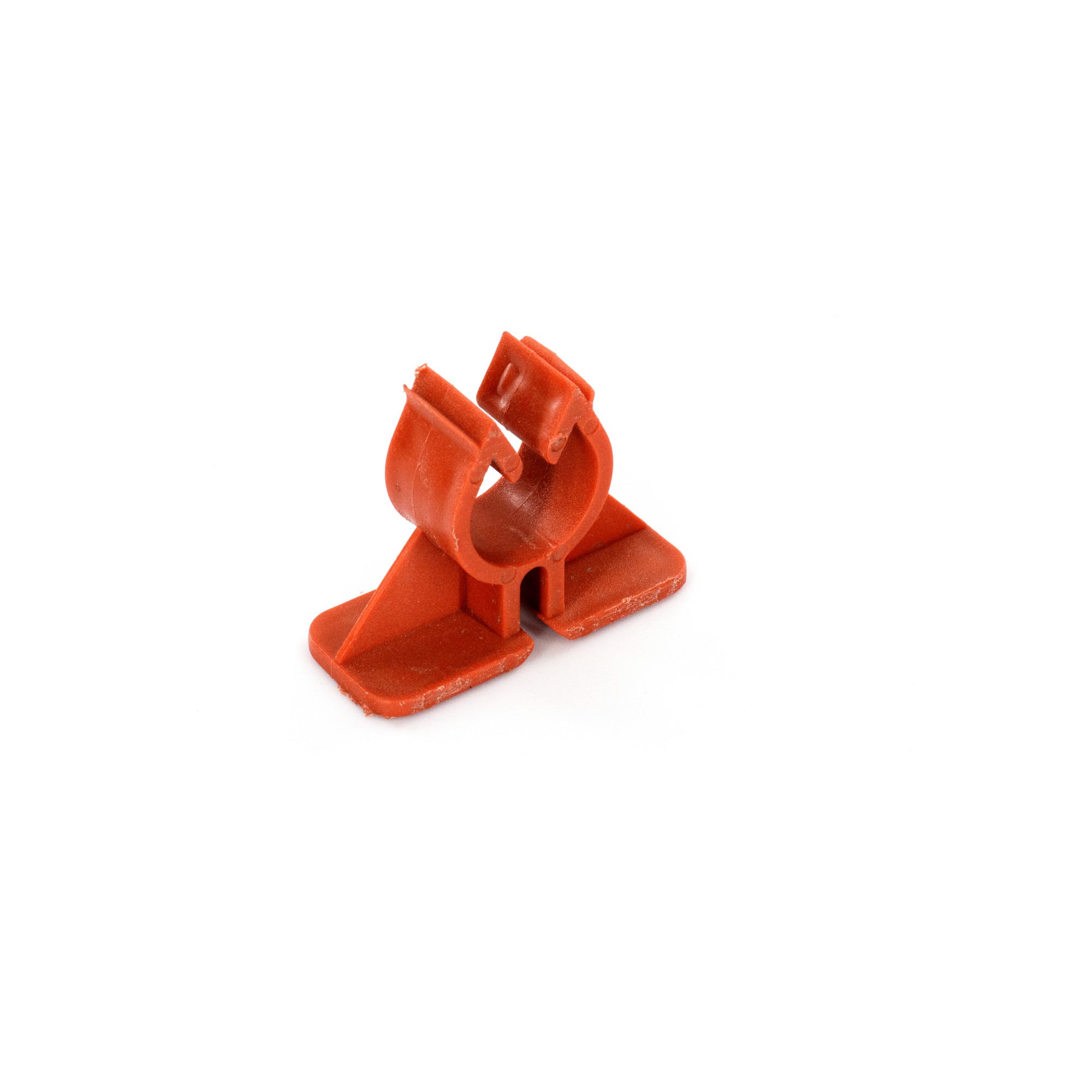

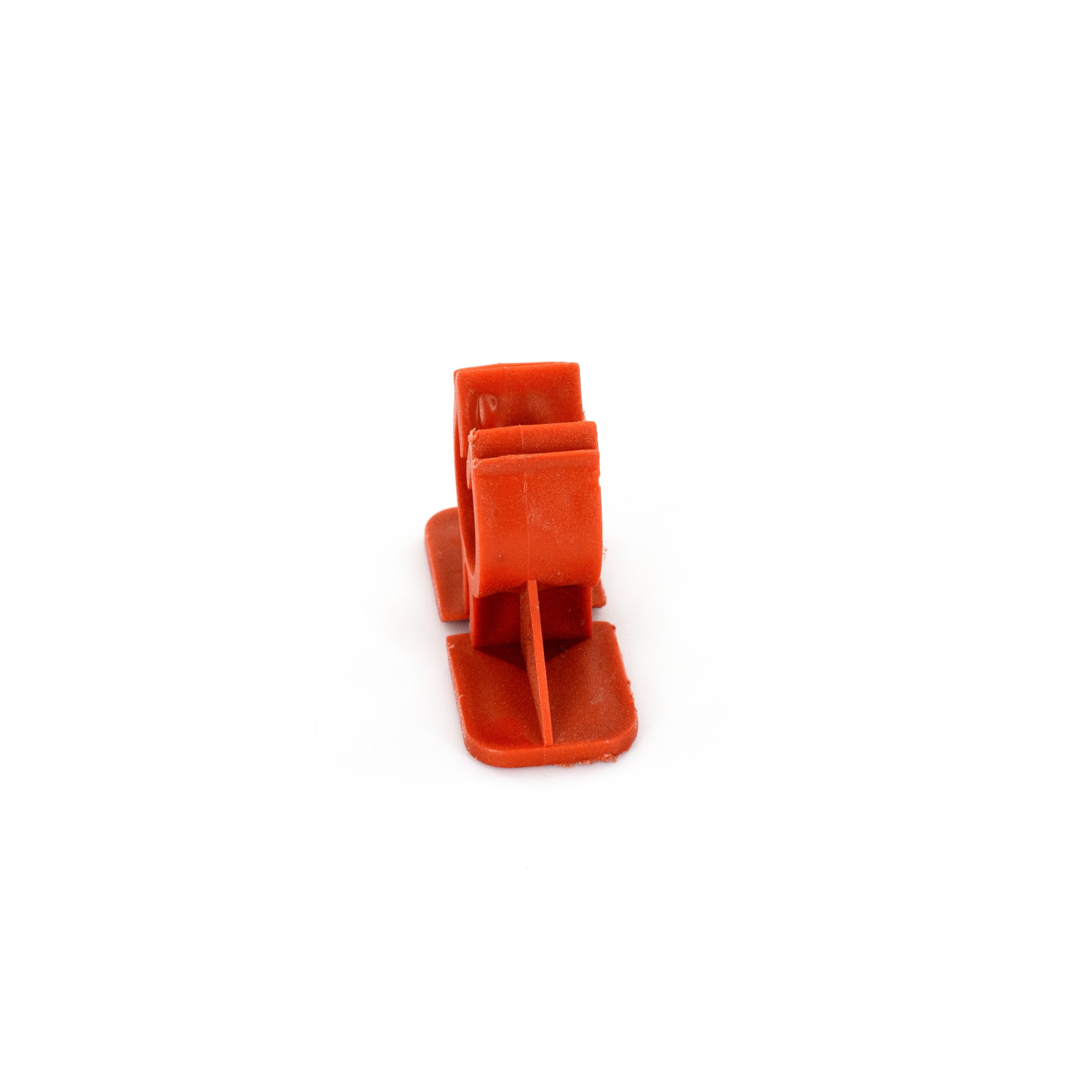

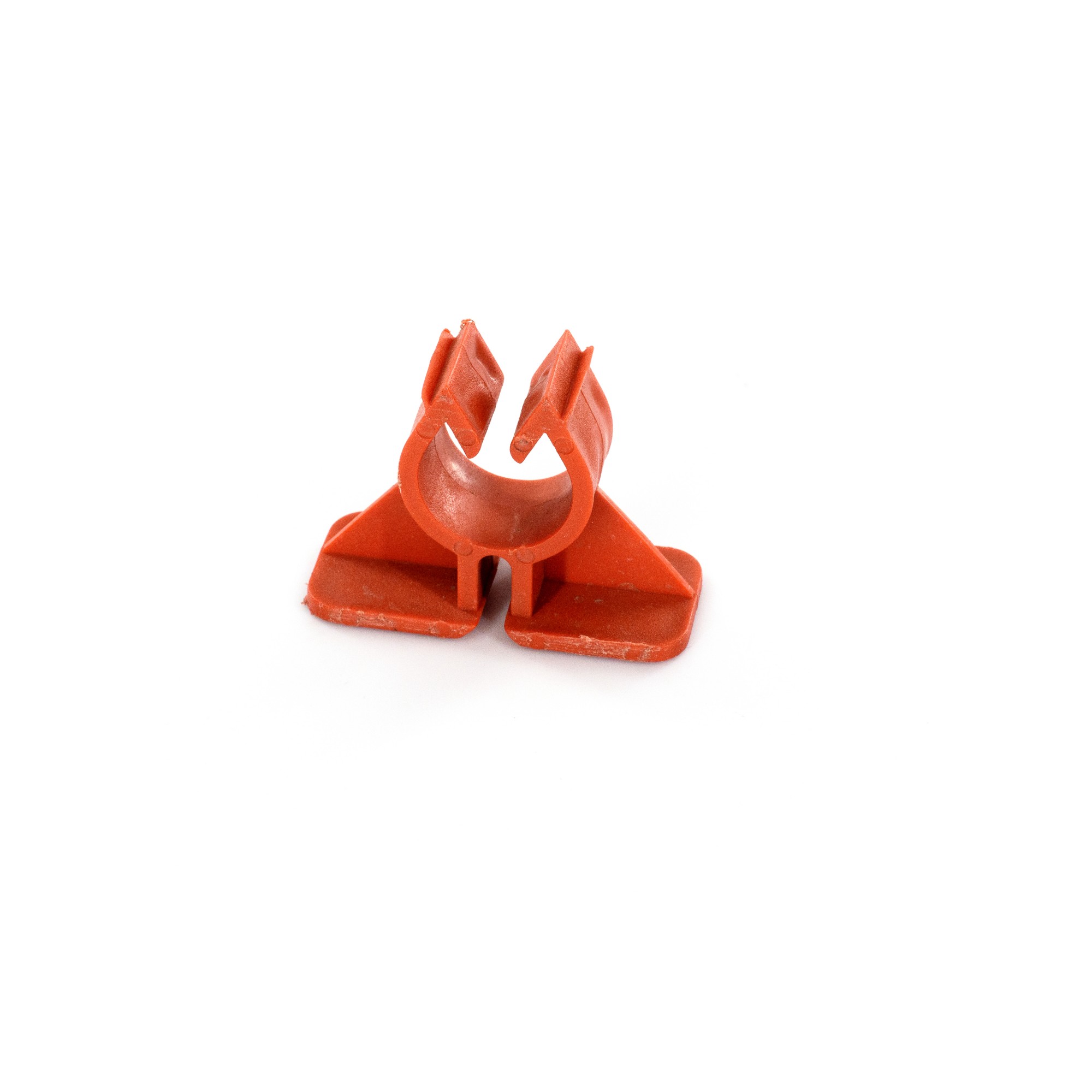

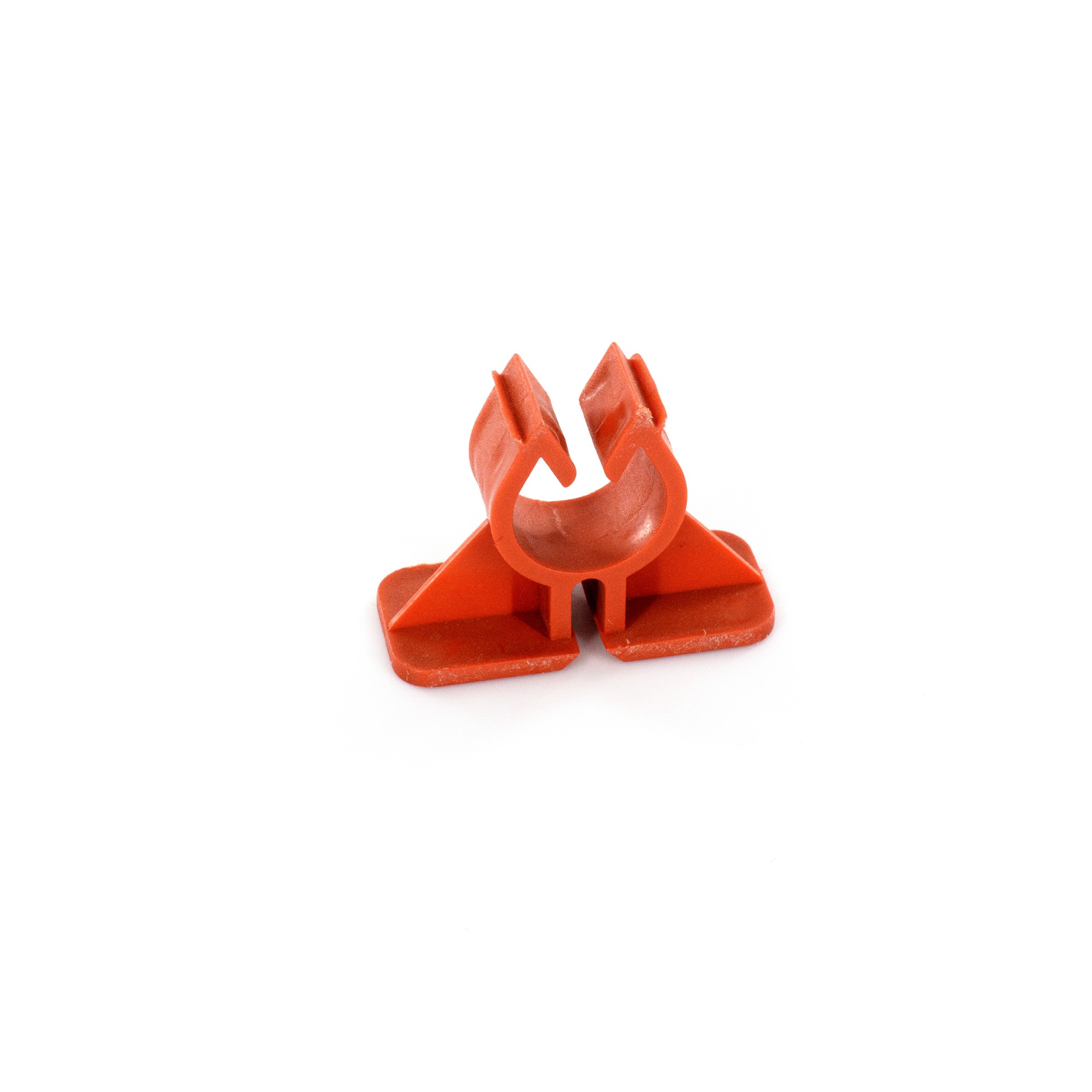

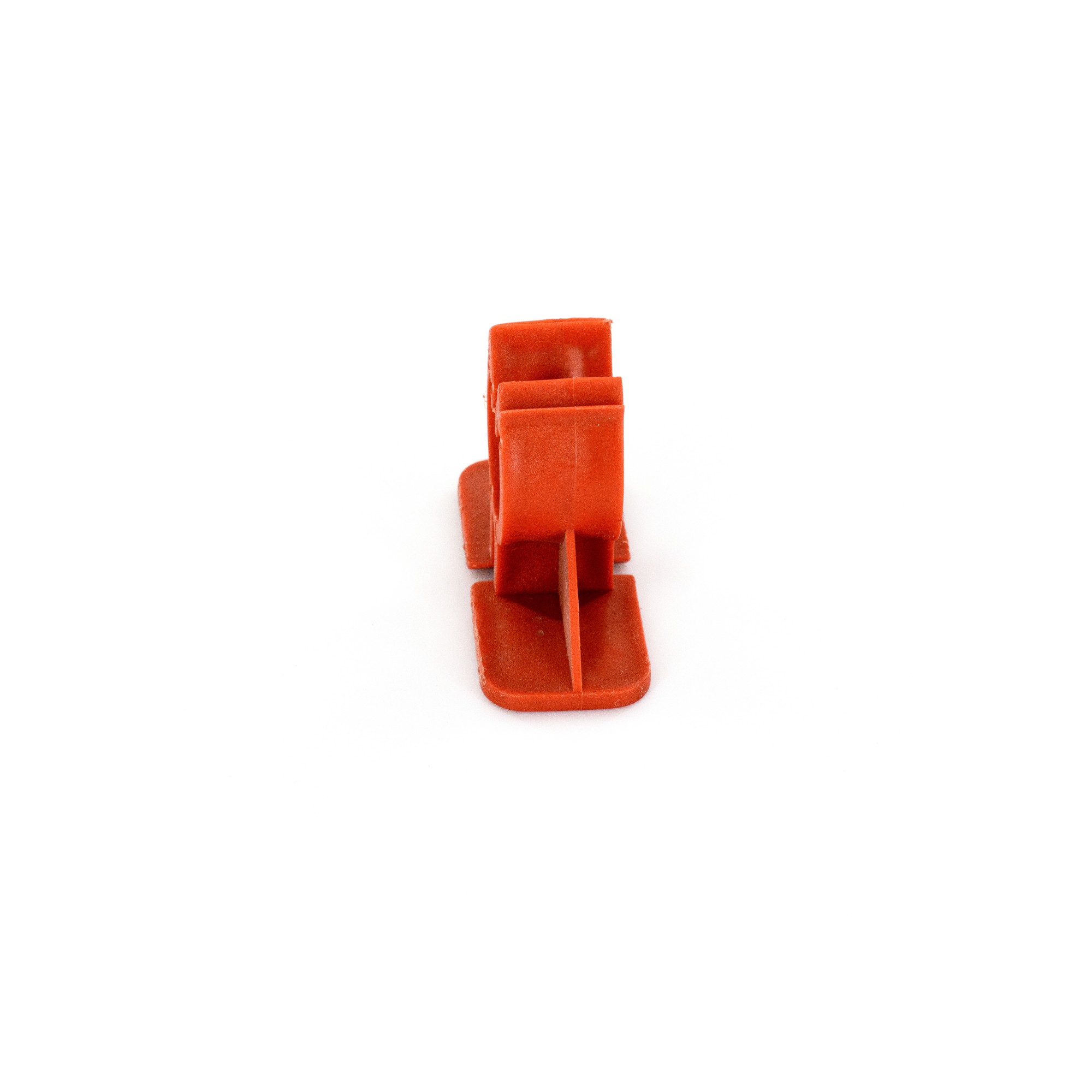

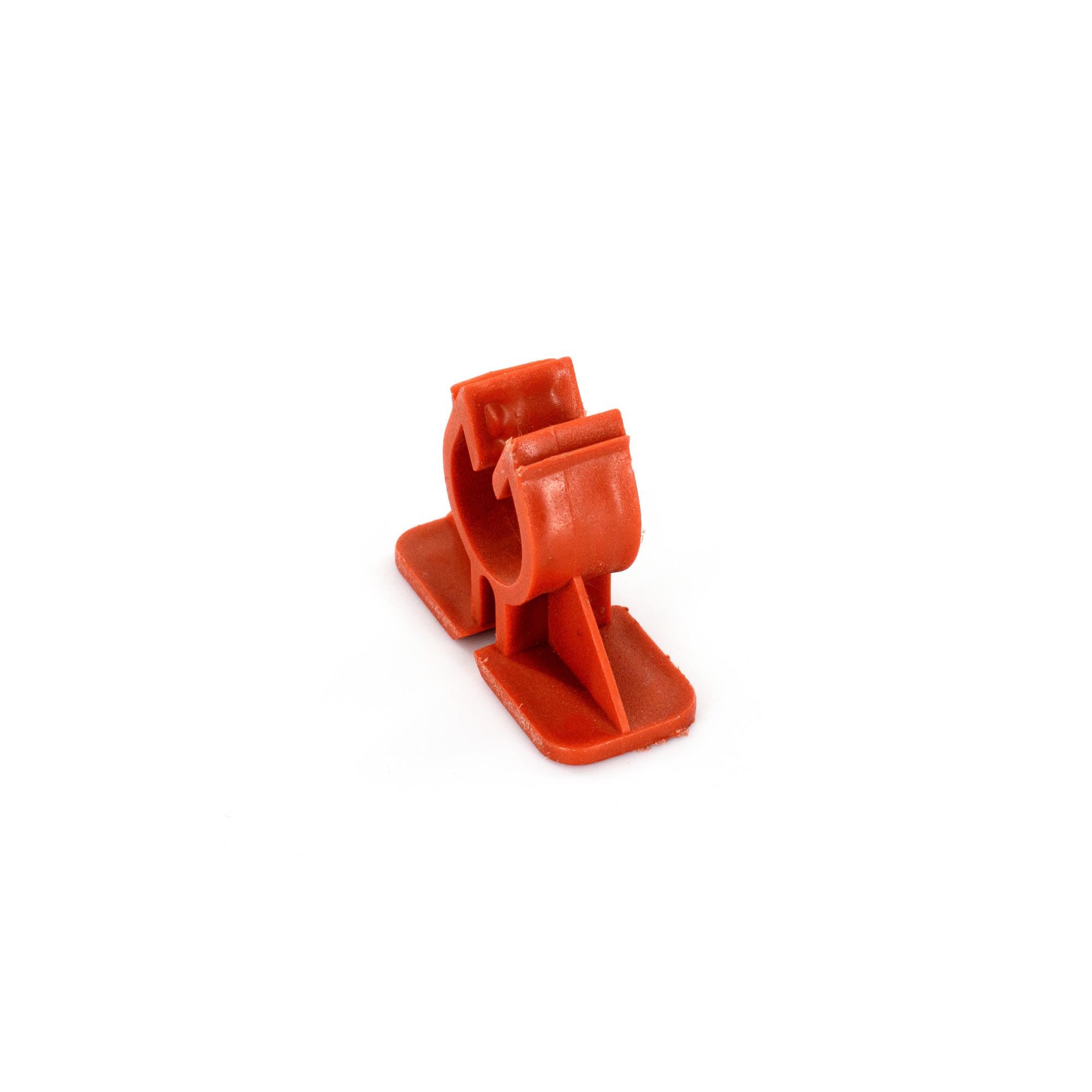

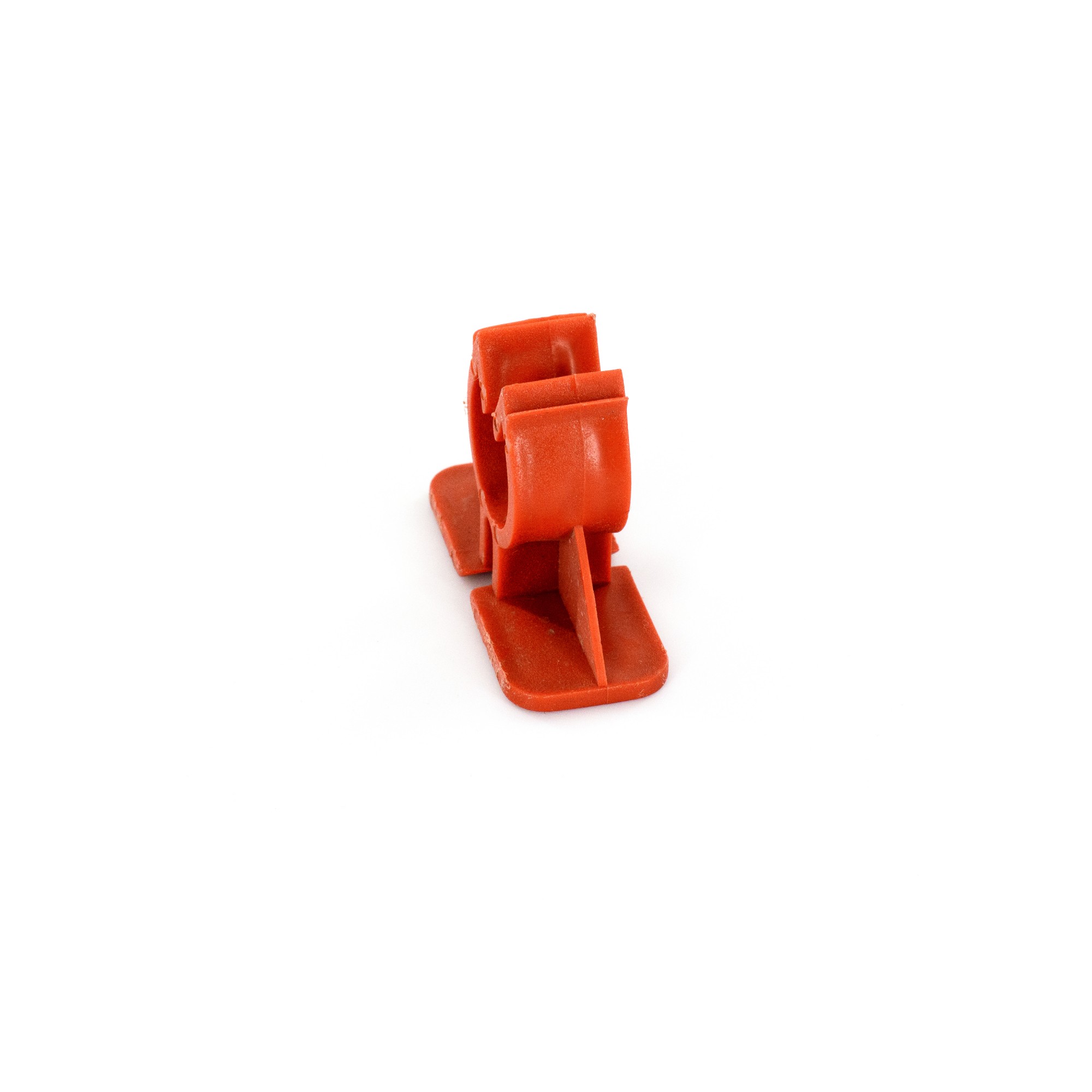

Mesh System - pipe mounting clip

product description

Clips are used to fix floor heating pipes directly to the reinforcement mesh. This solution provides quick and simple installation of floor heating system. Clips are applicable for reinforcement meshes with a thickness of 4-6 mm.

				Single pack			Multipack			Pallet
Index	Model	Product dimensions X/Y/Z (mm)	Net weight (g)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)
F-694638	14-22	48 x 21 x 36	5.2	100	35 x 22 x 6	0.54	300	55 x 42 x 38.5	16.6	60 000	120 x 80 x 212	352
