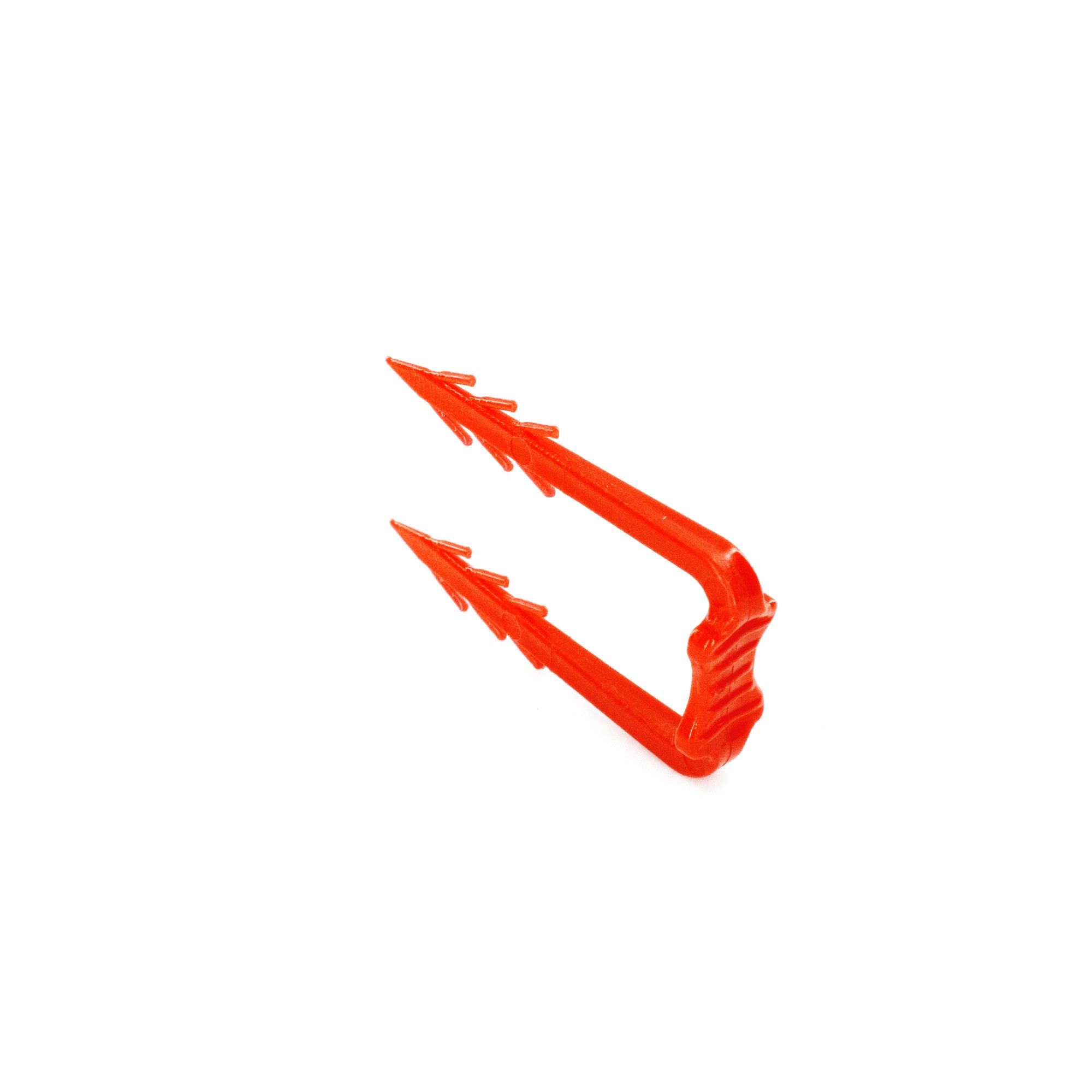

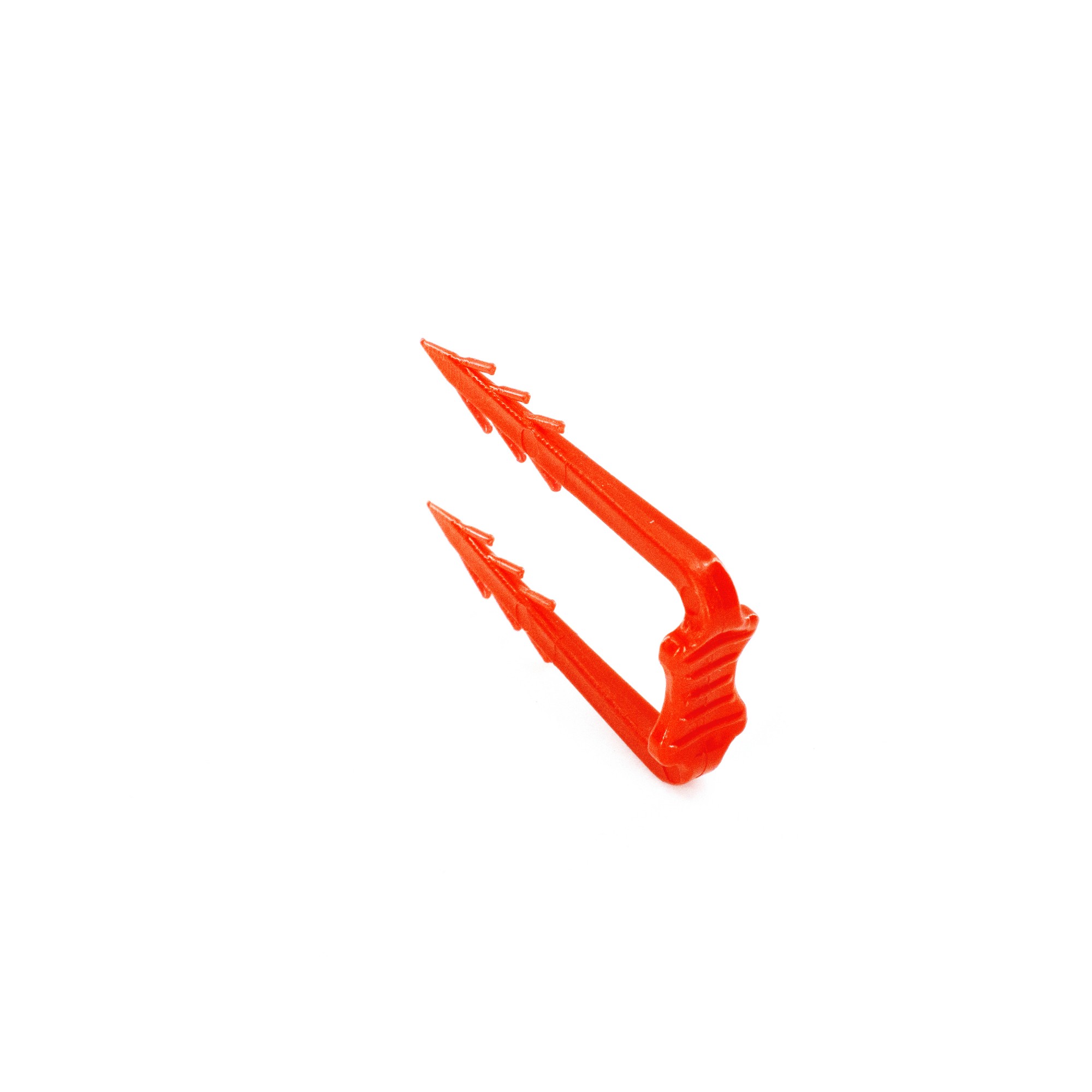

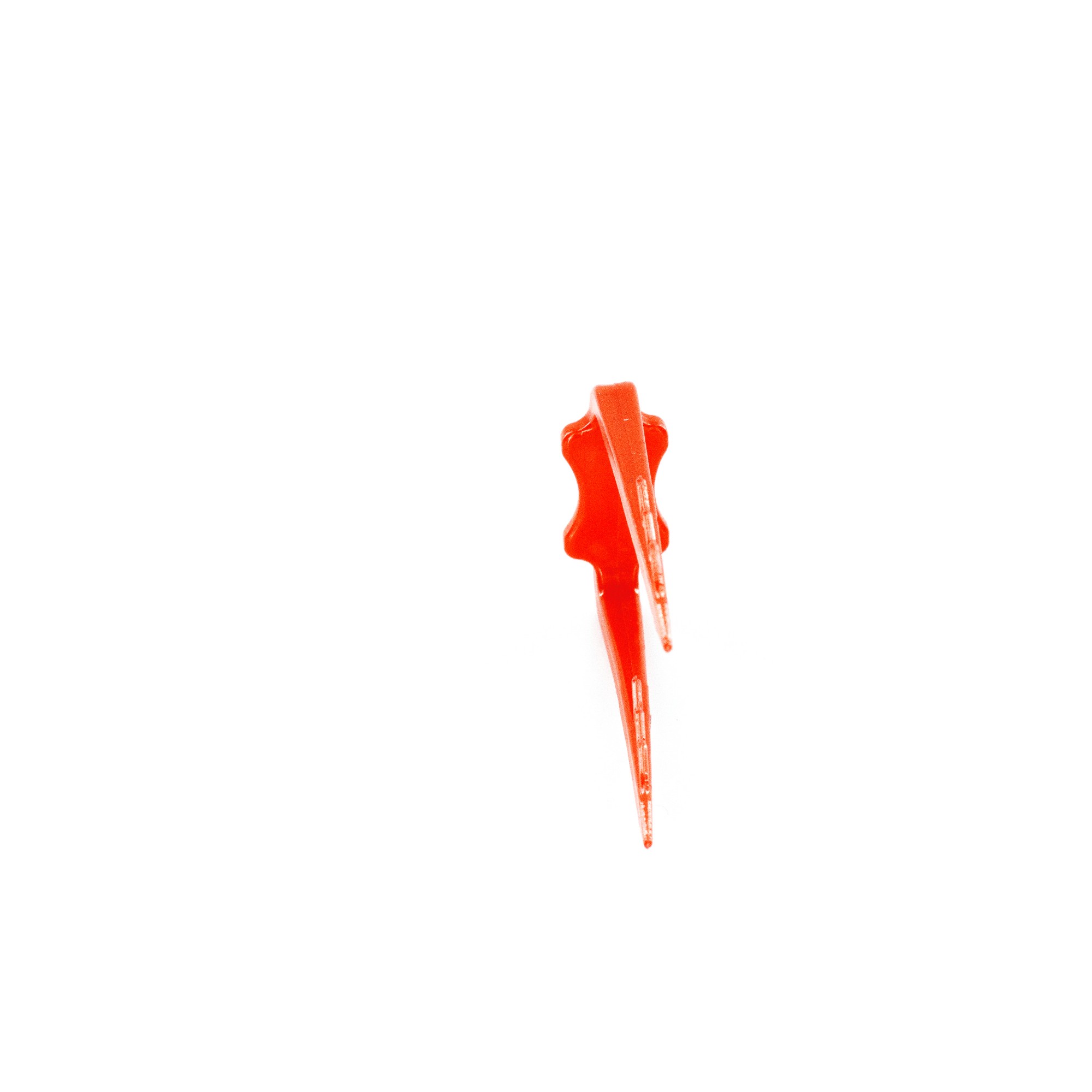

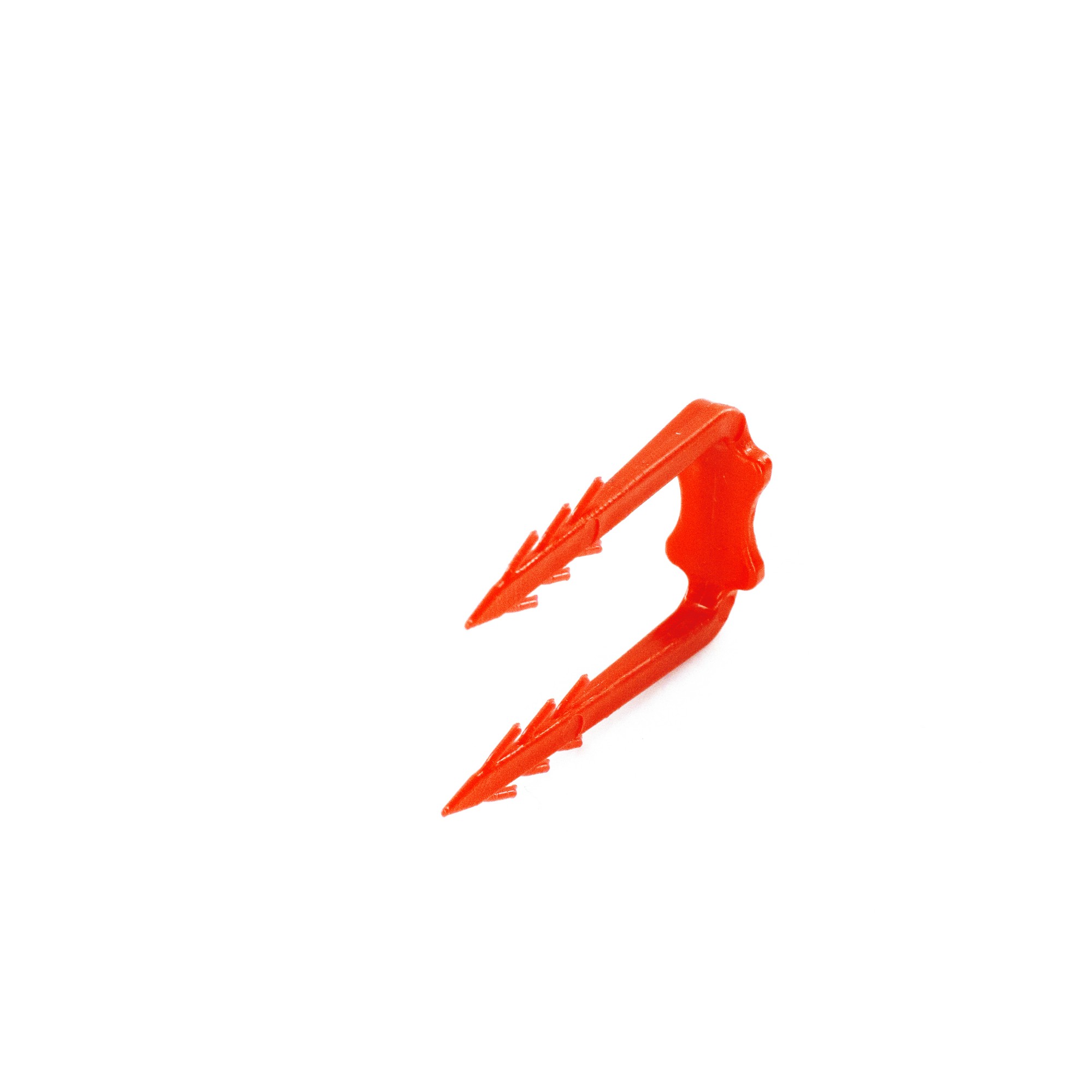

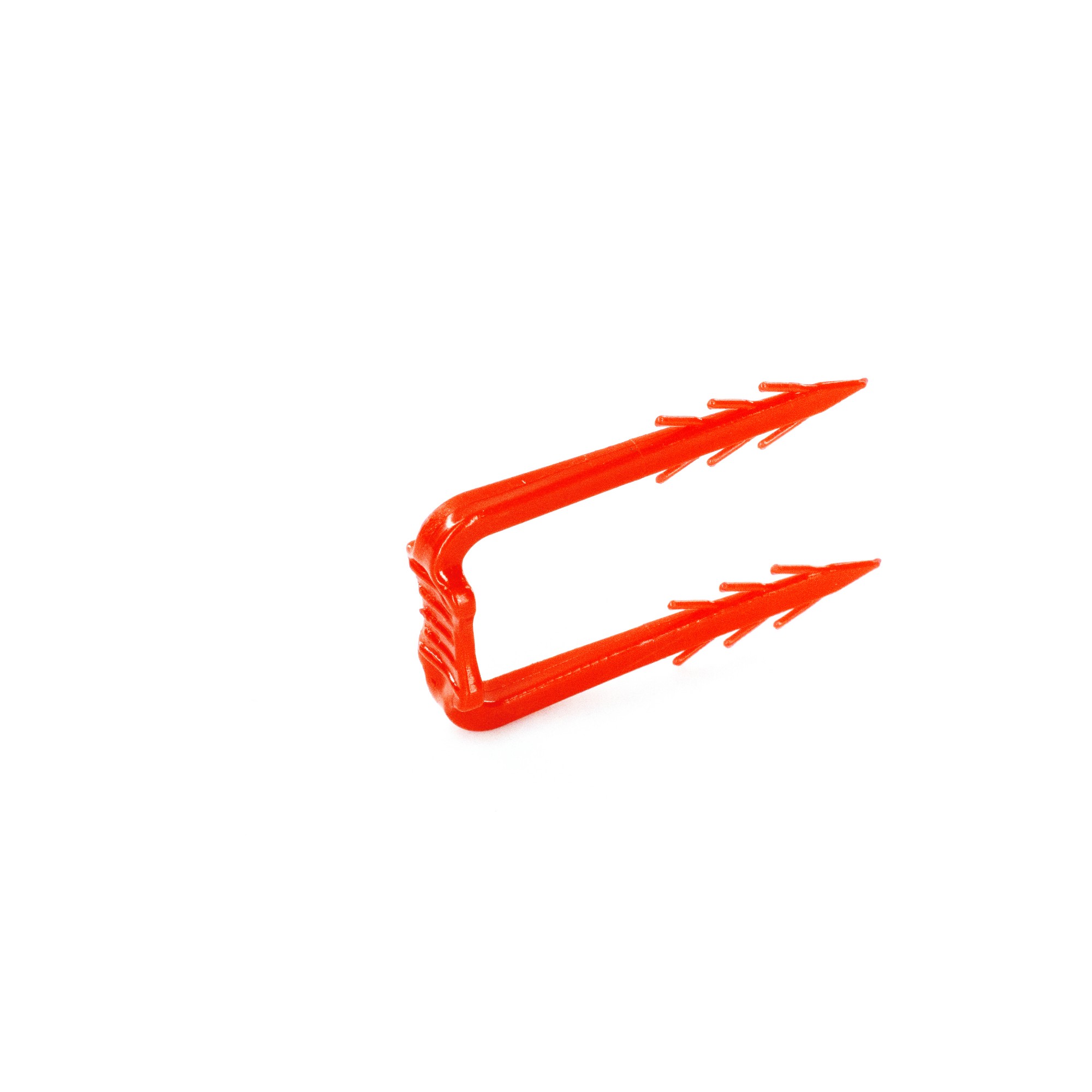

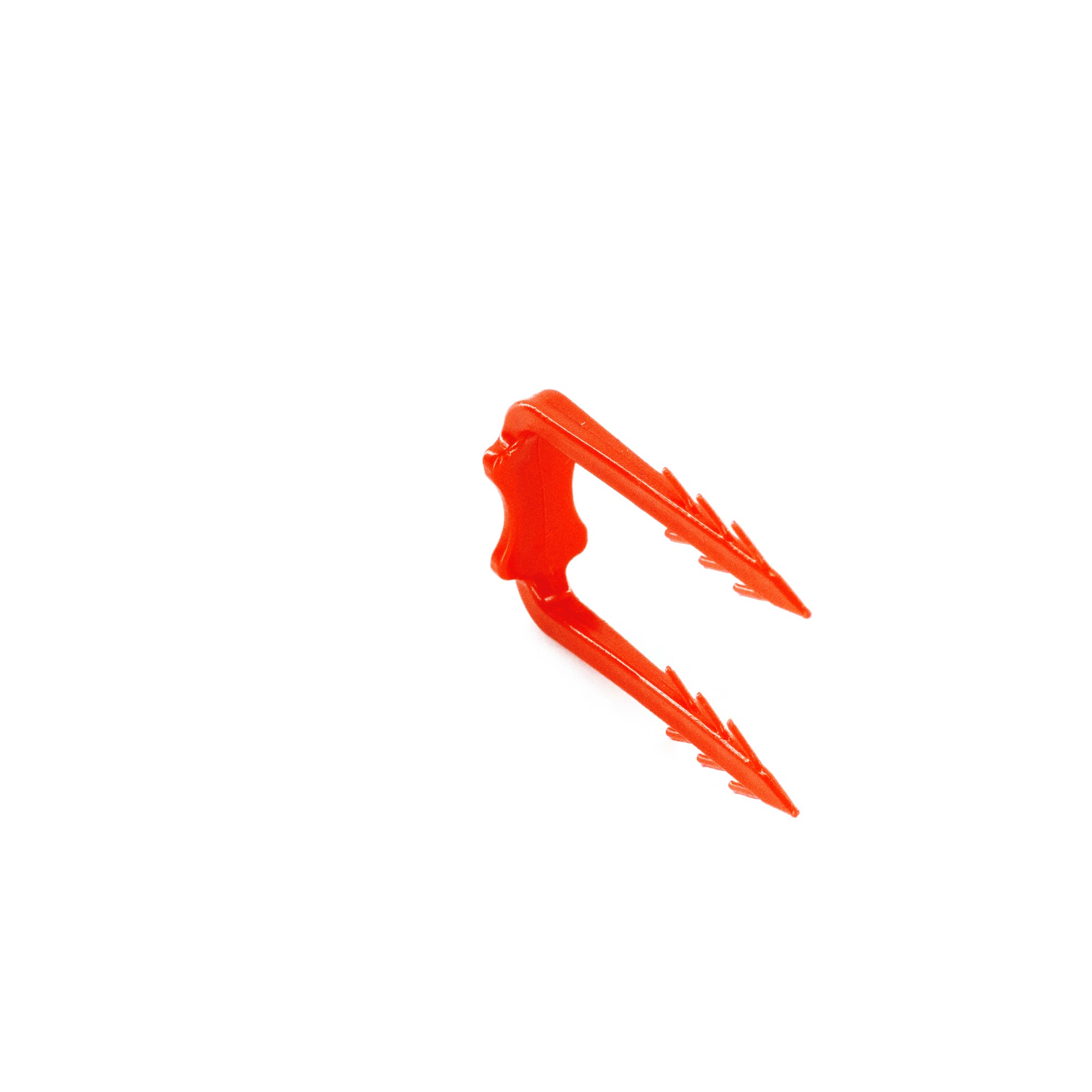

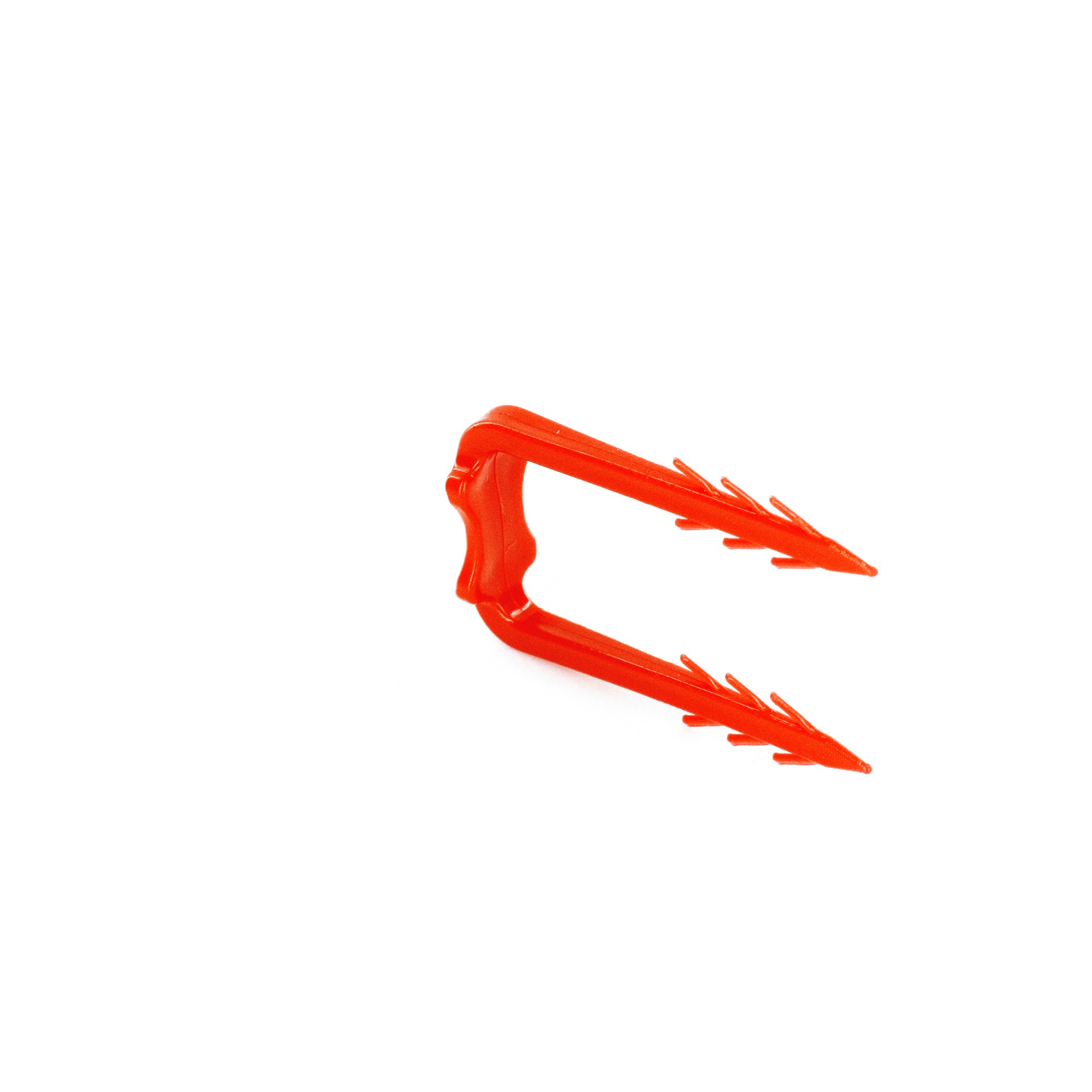

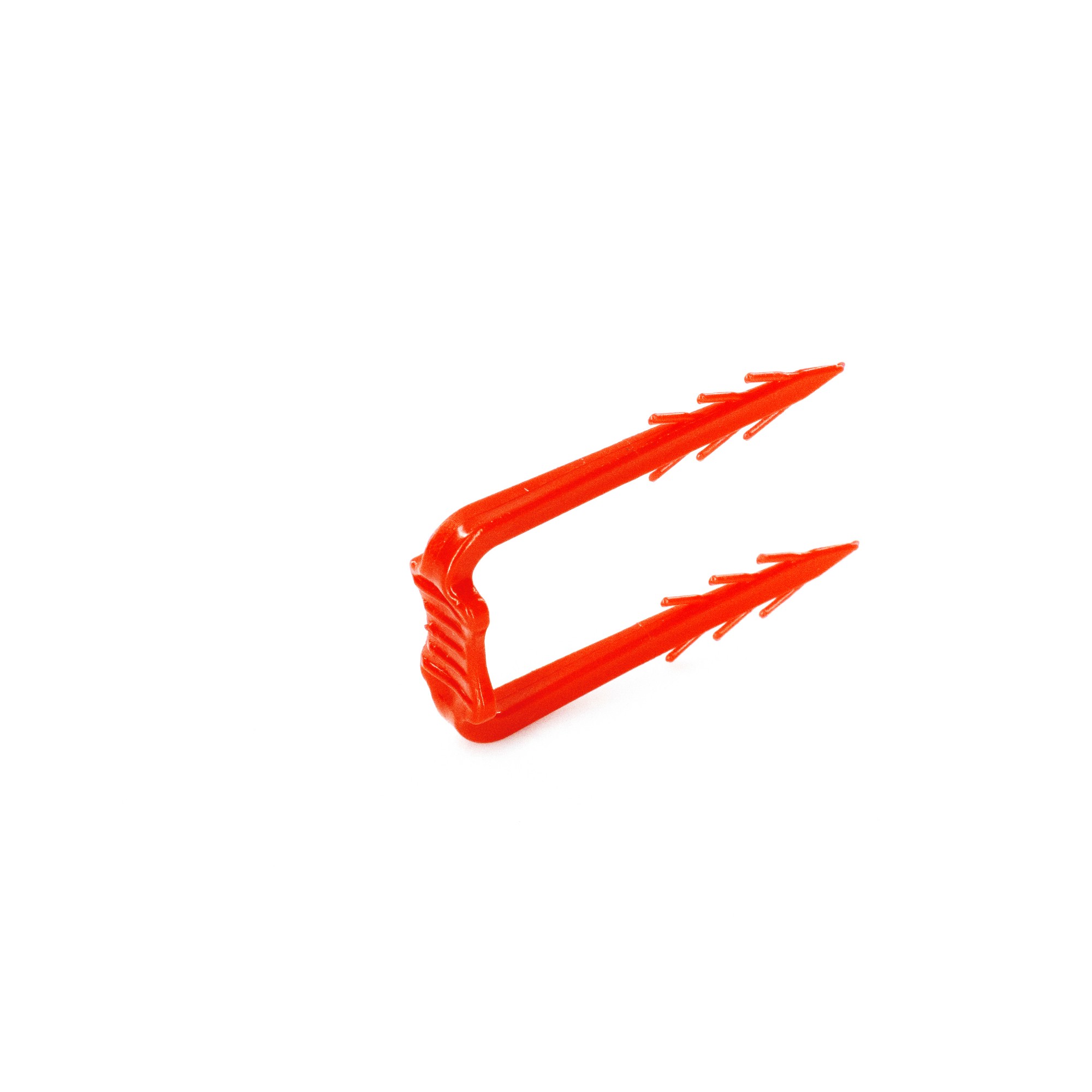

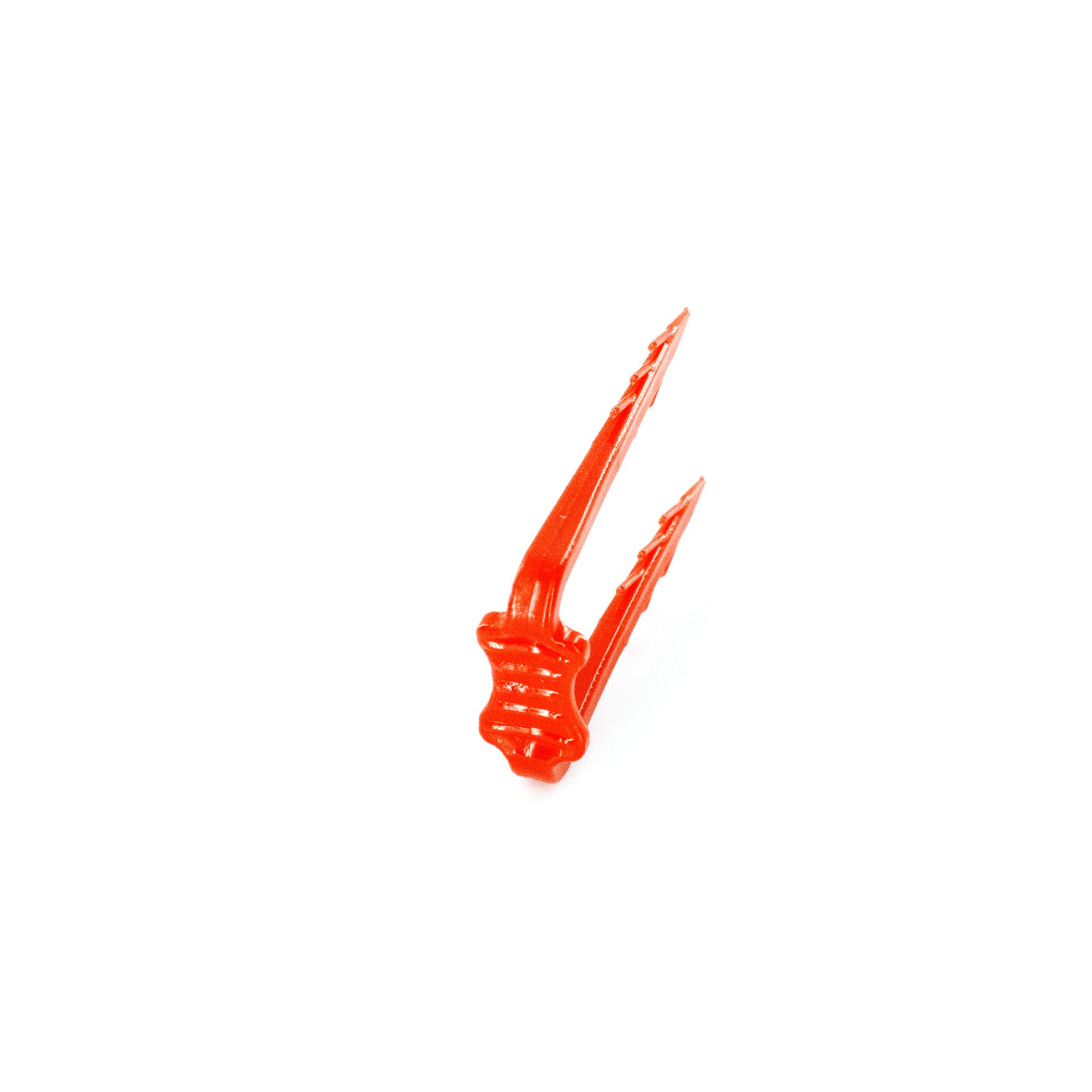

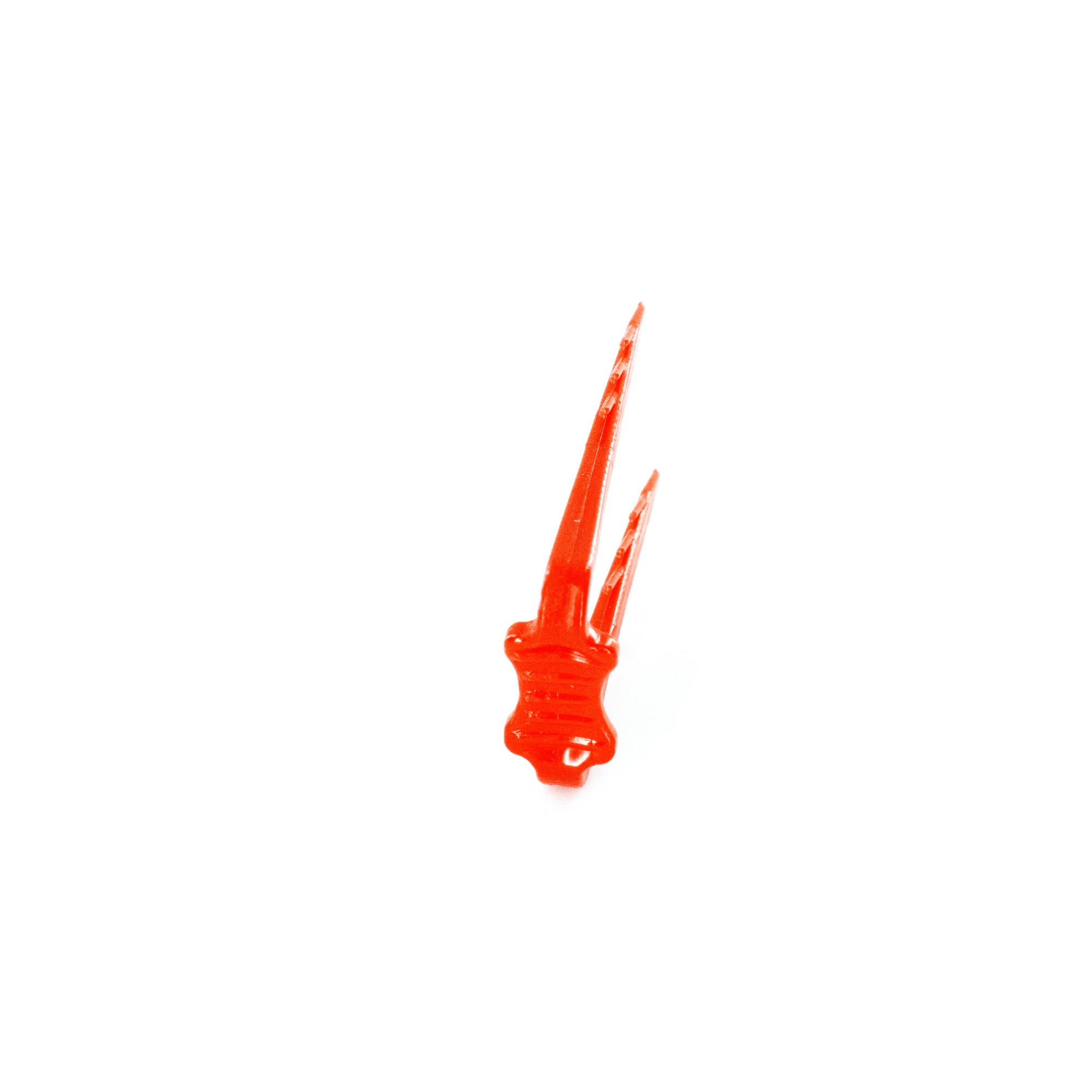

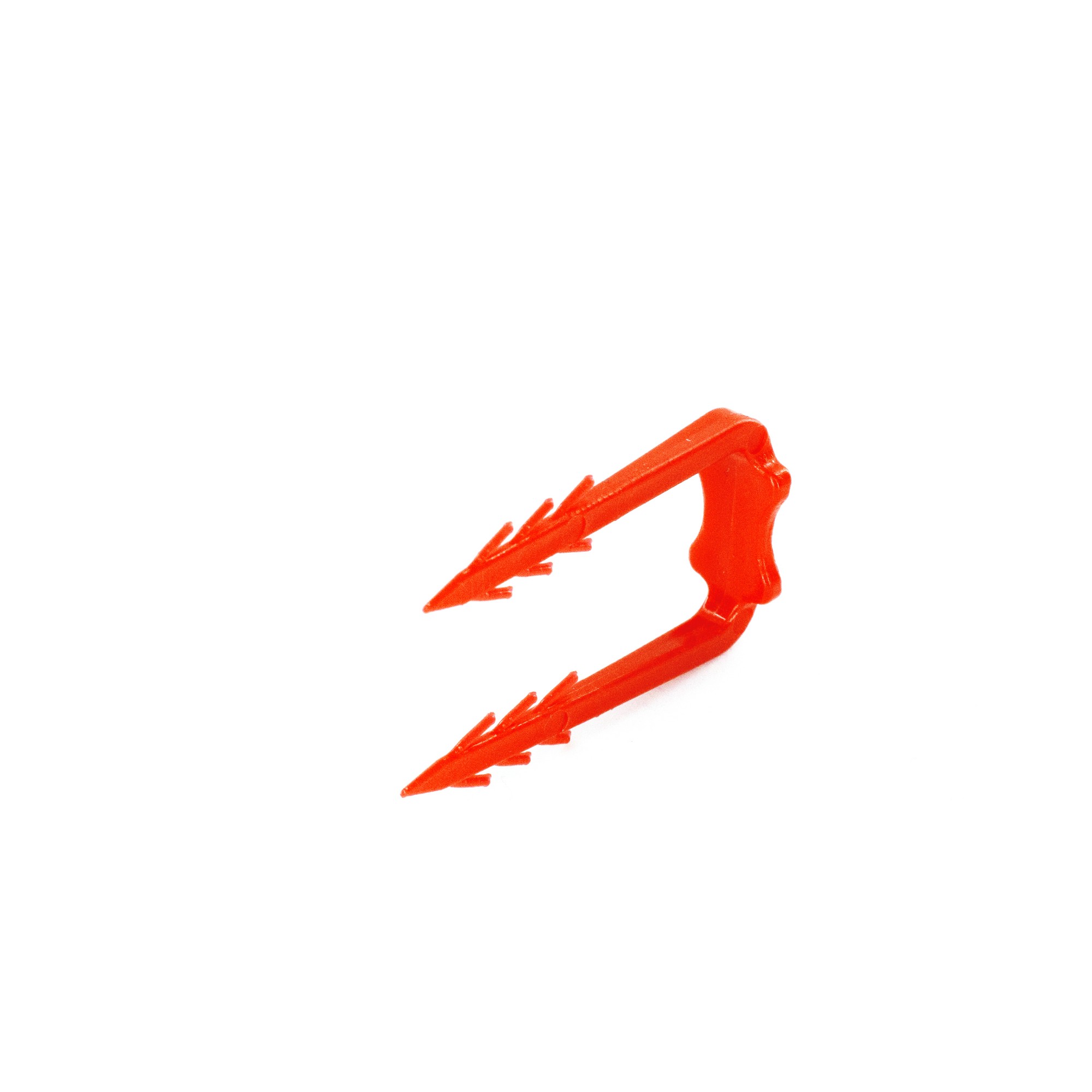

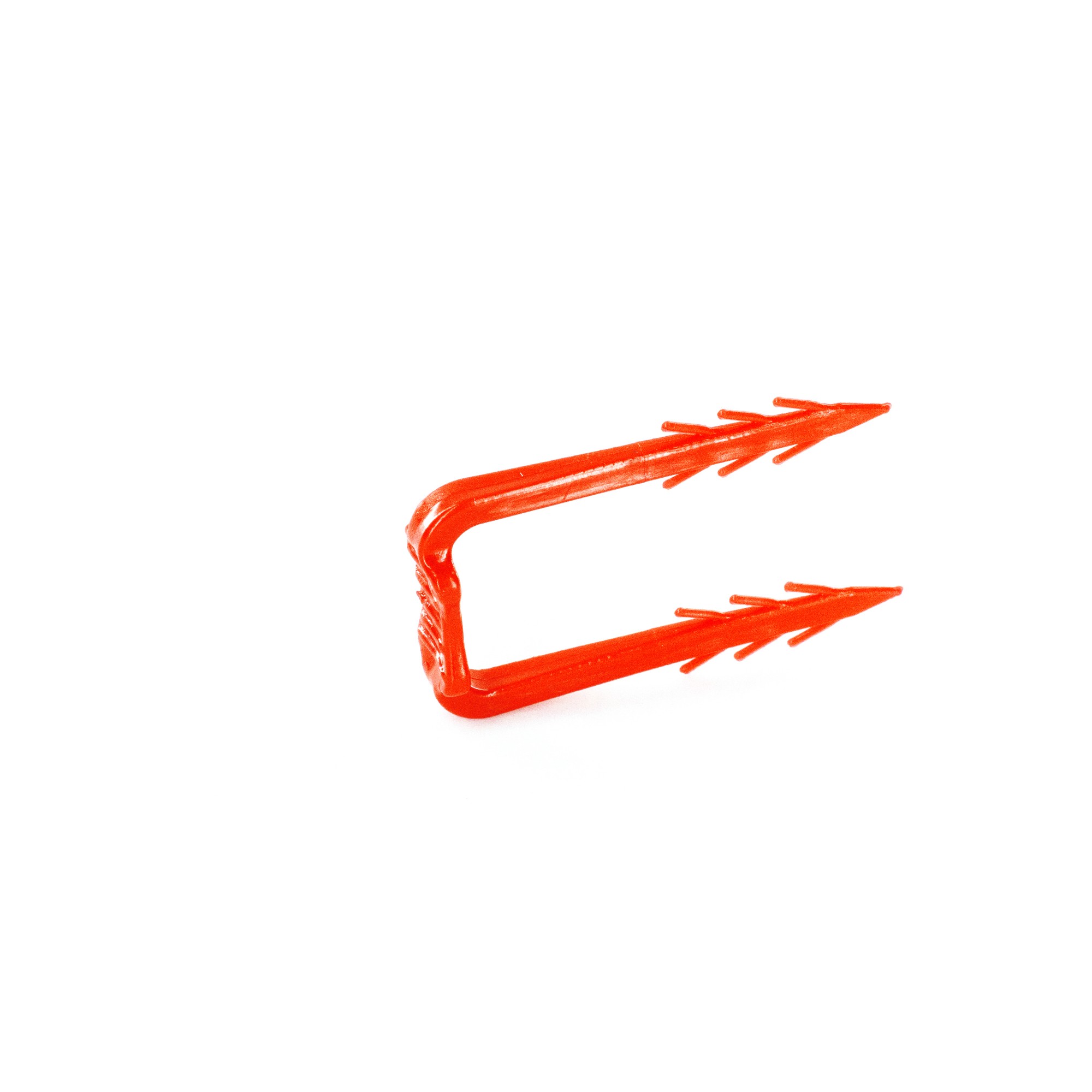

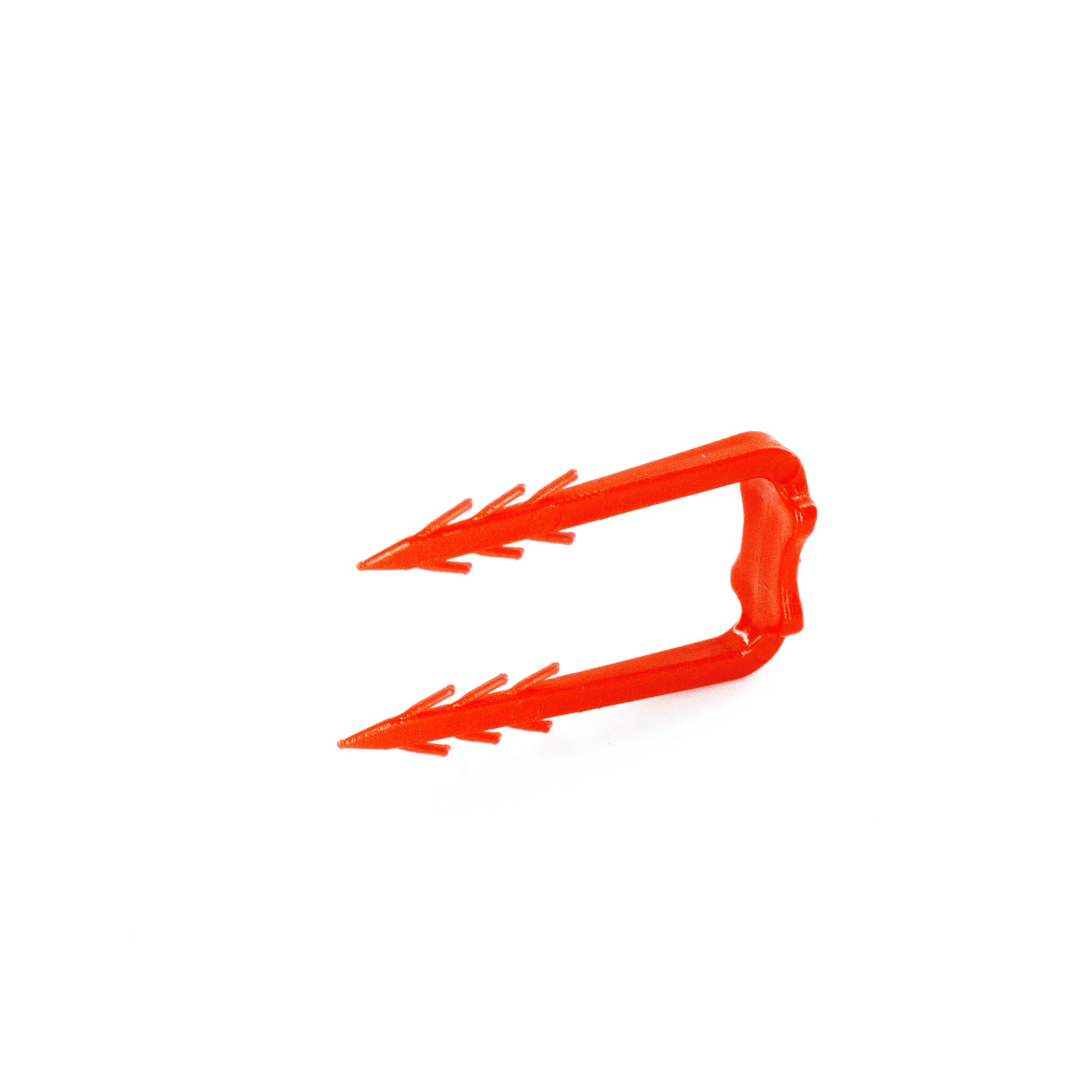

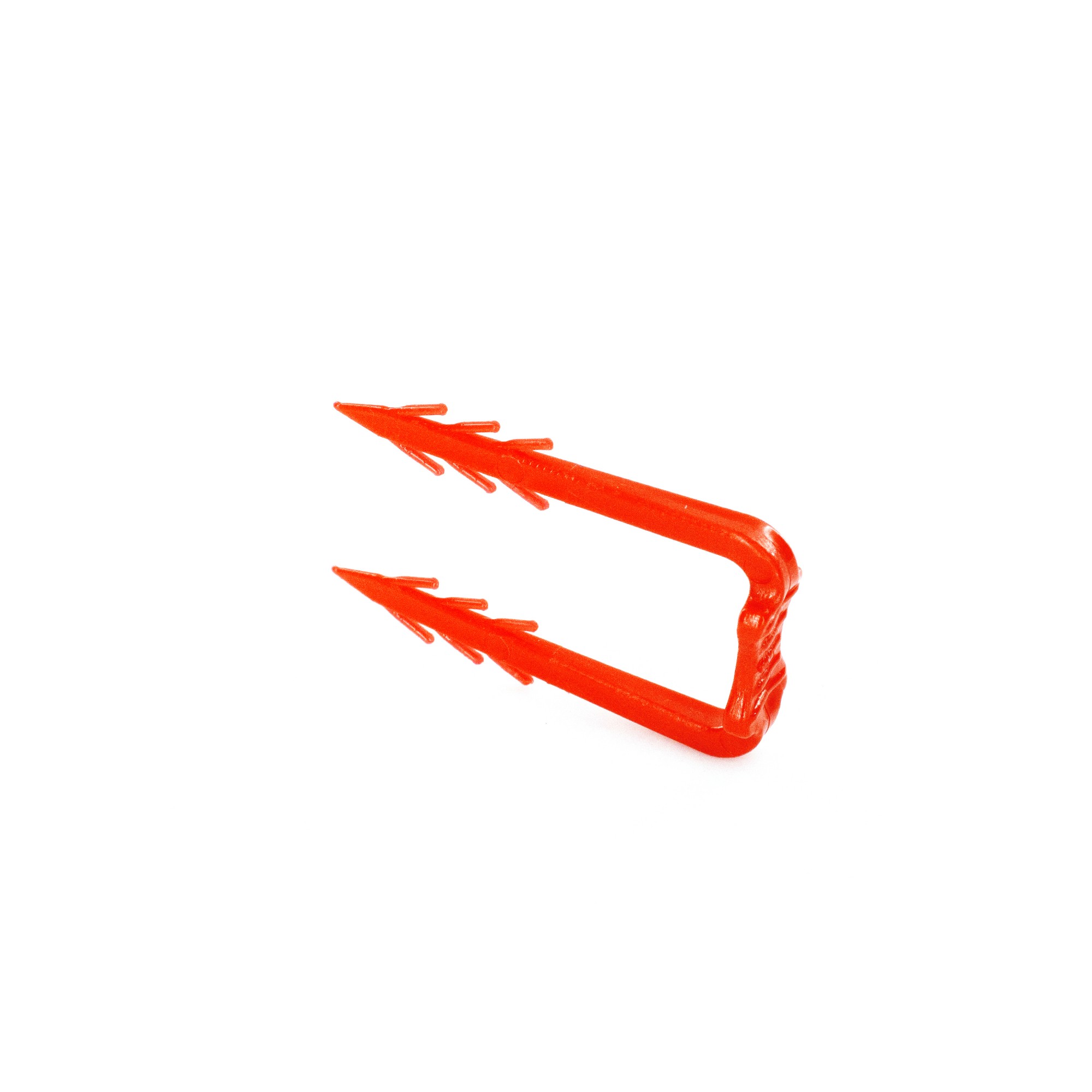

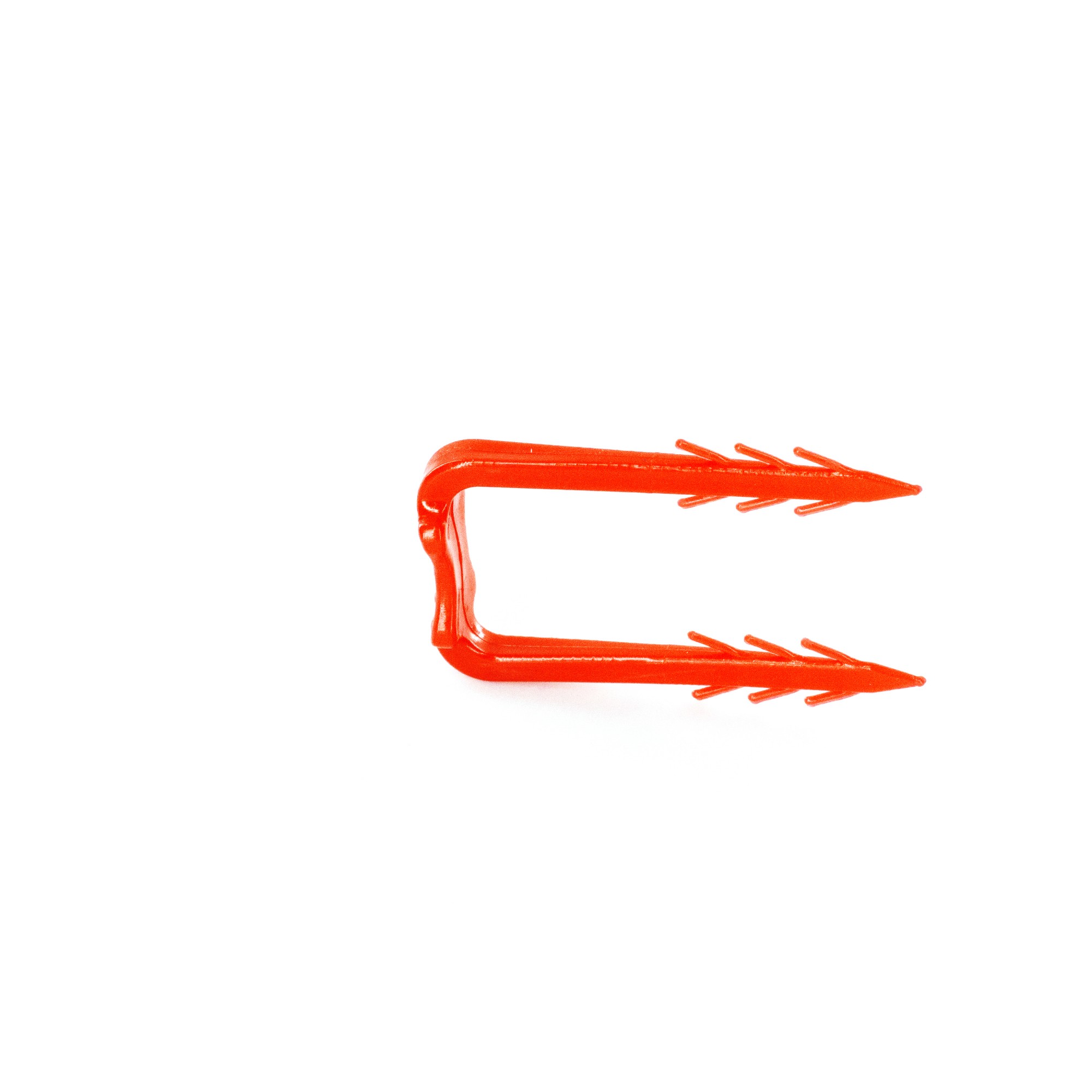

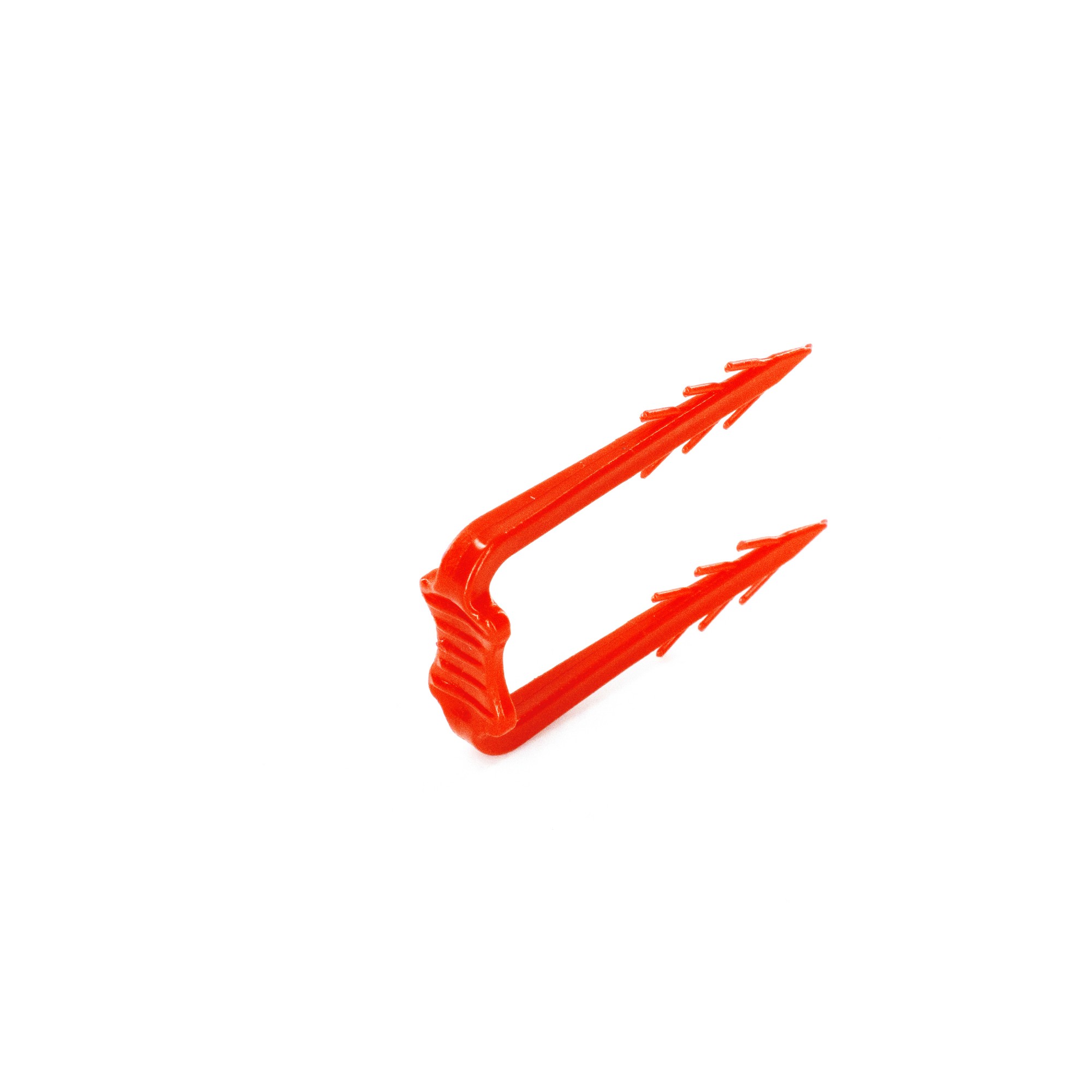

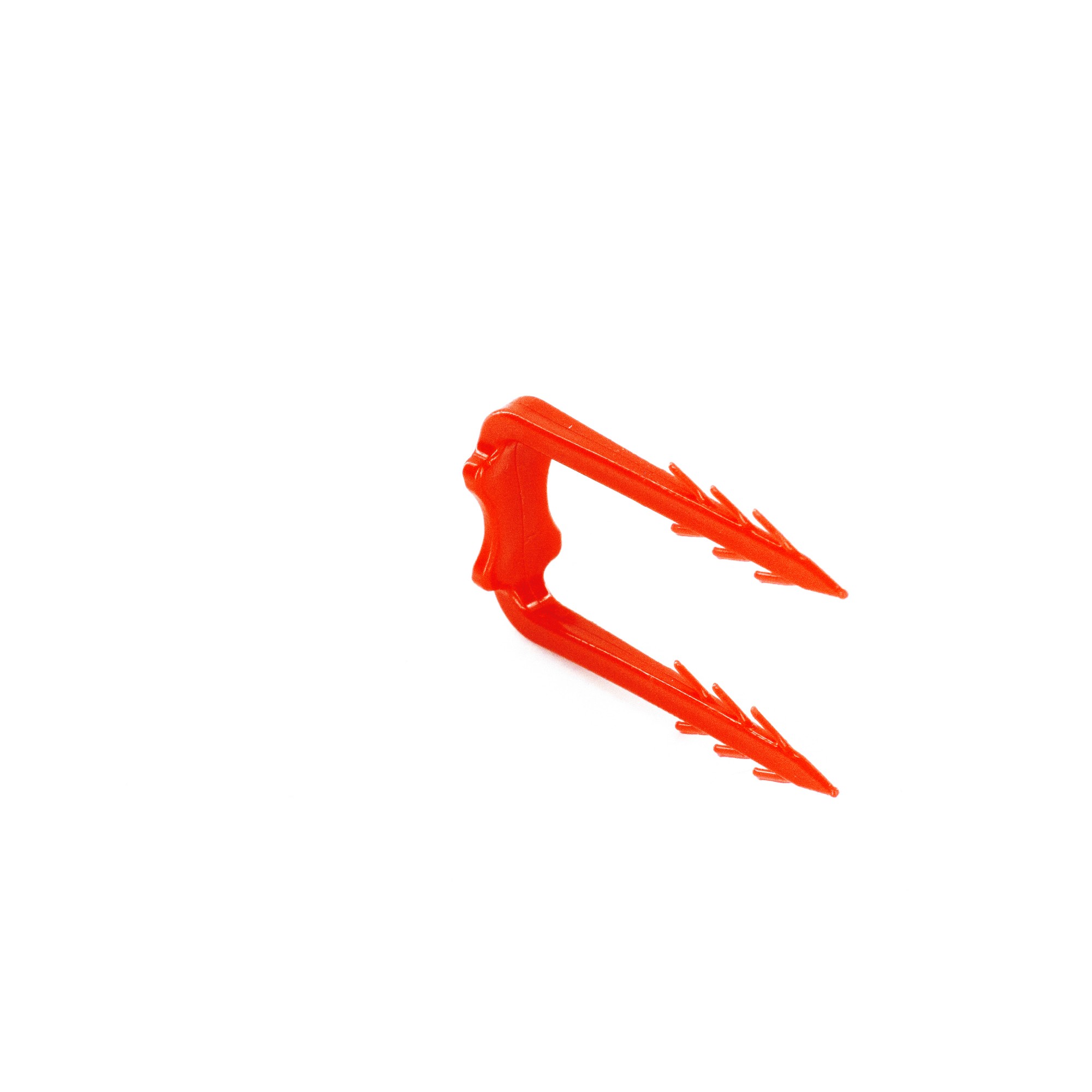

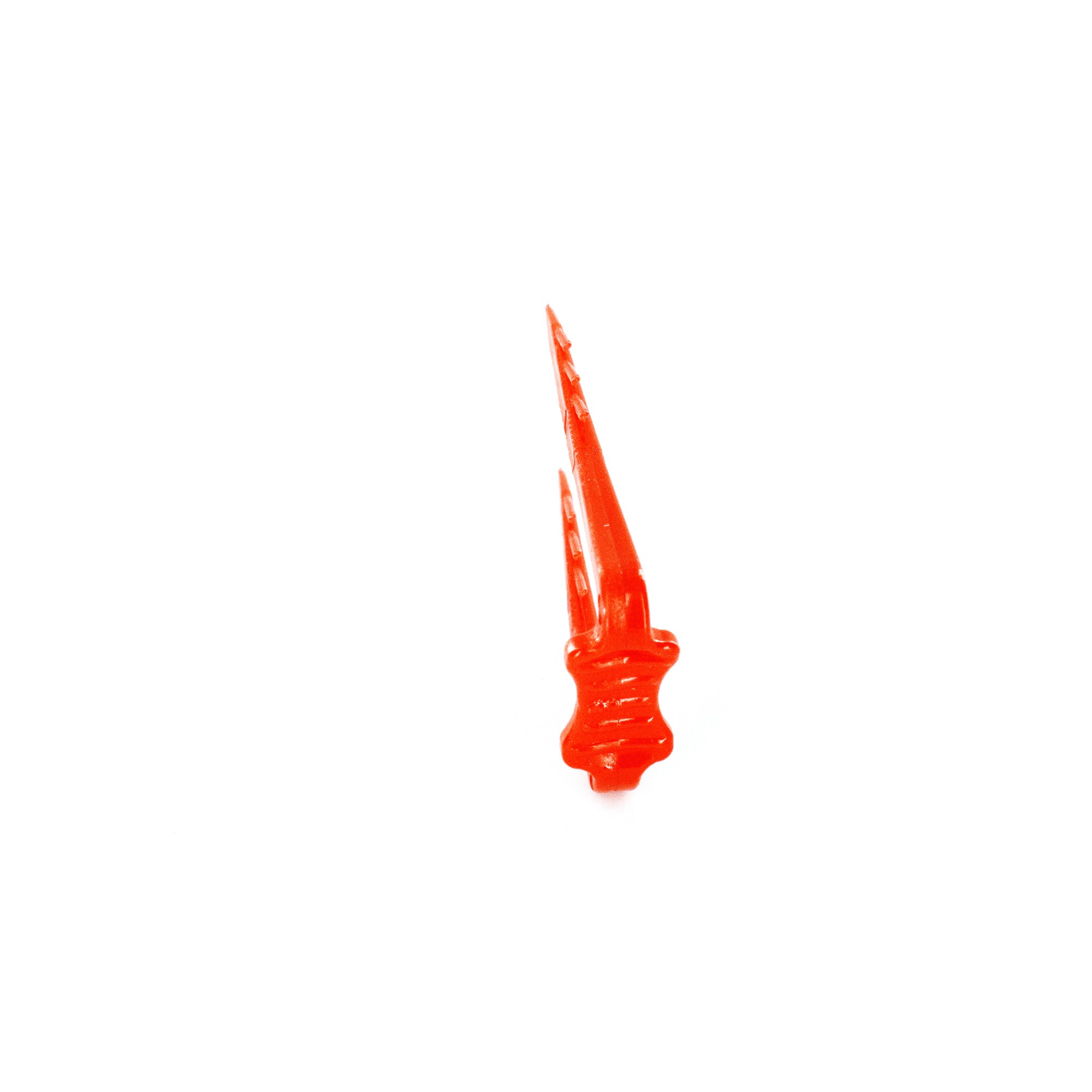

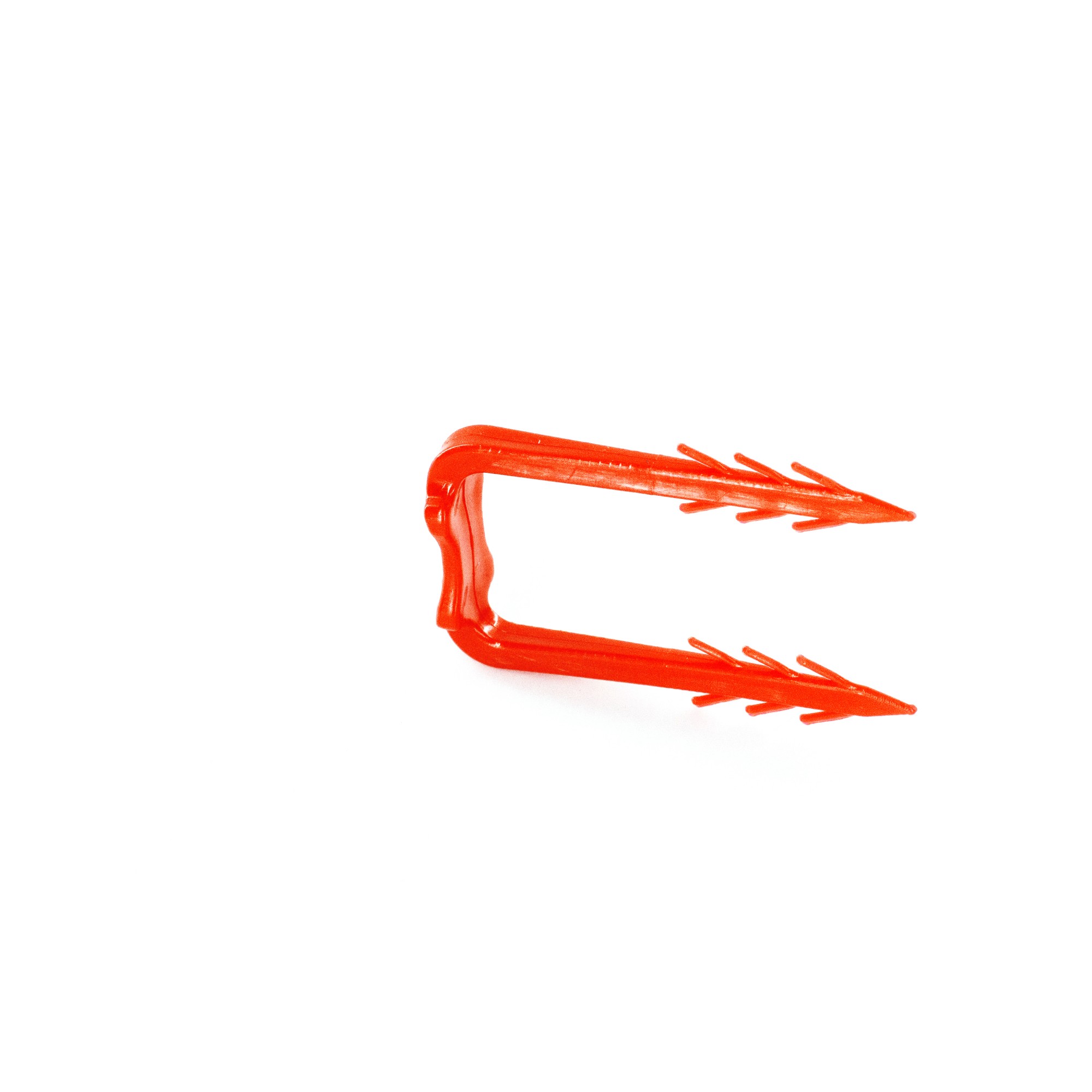

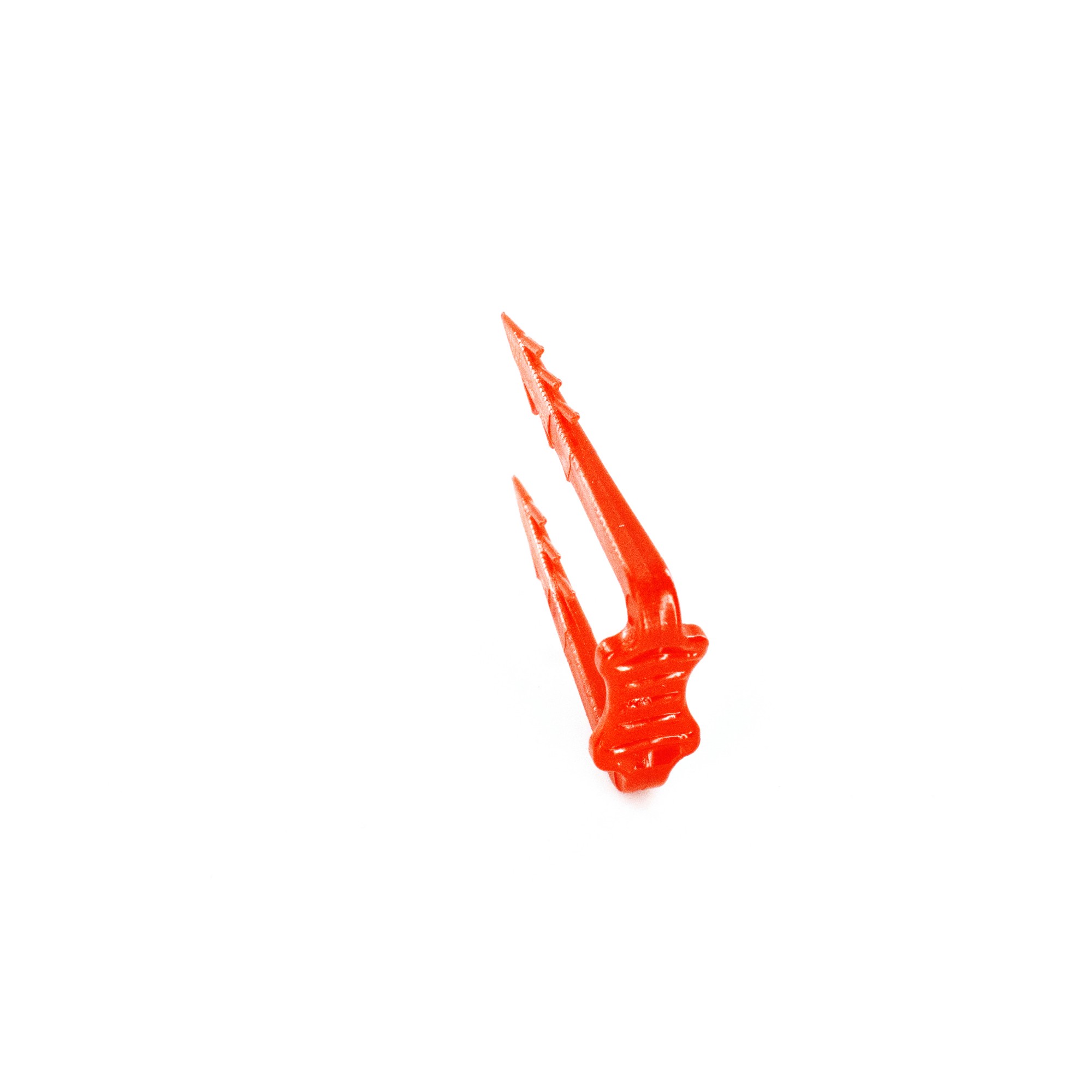

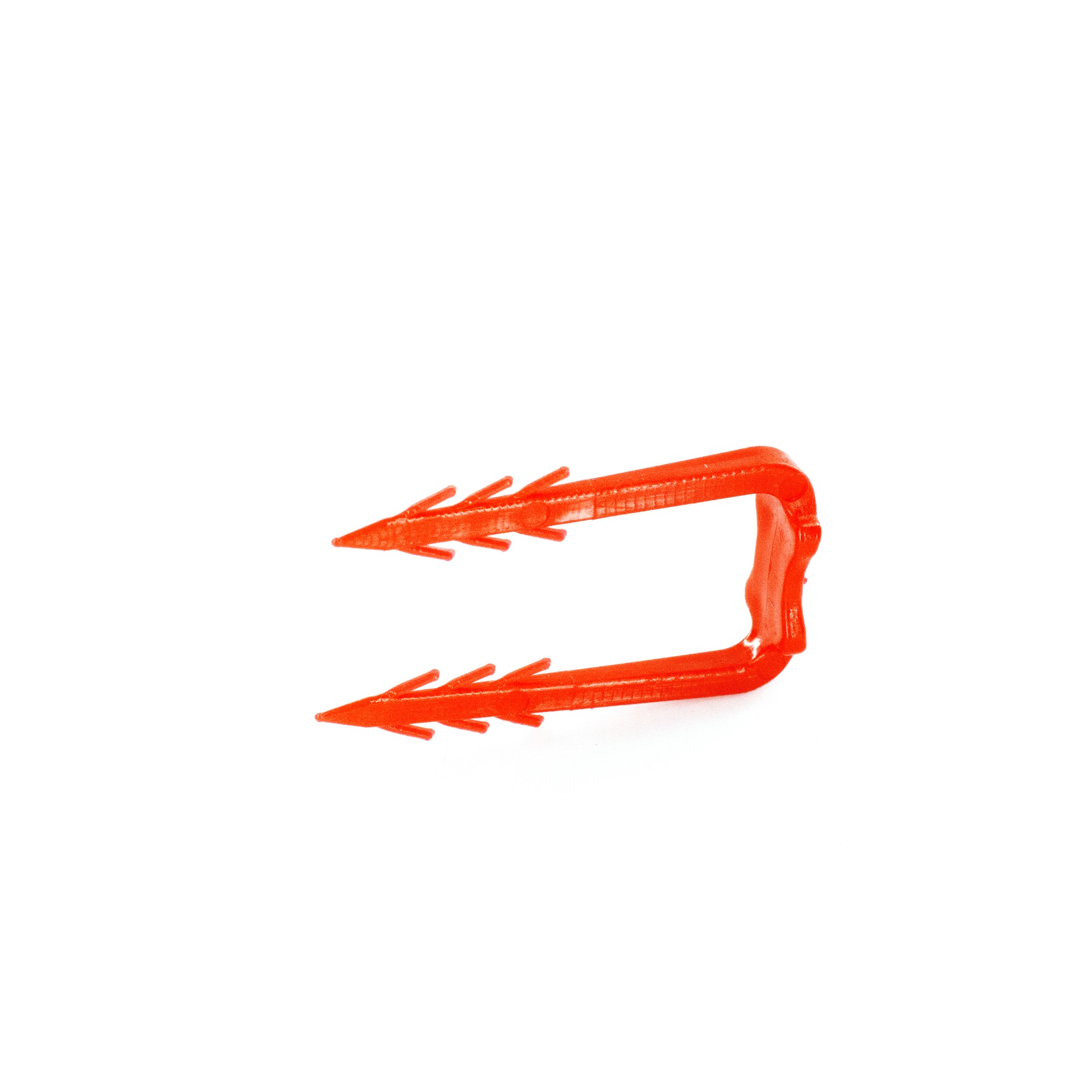

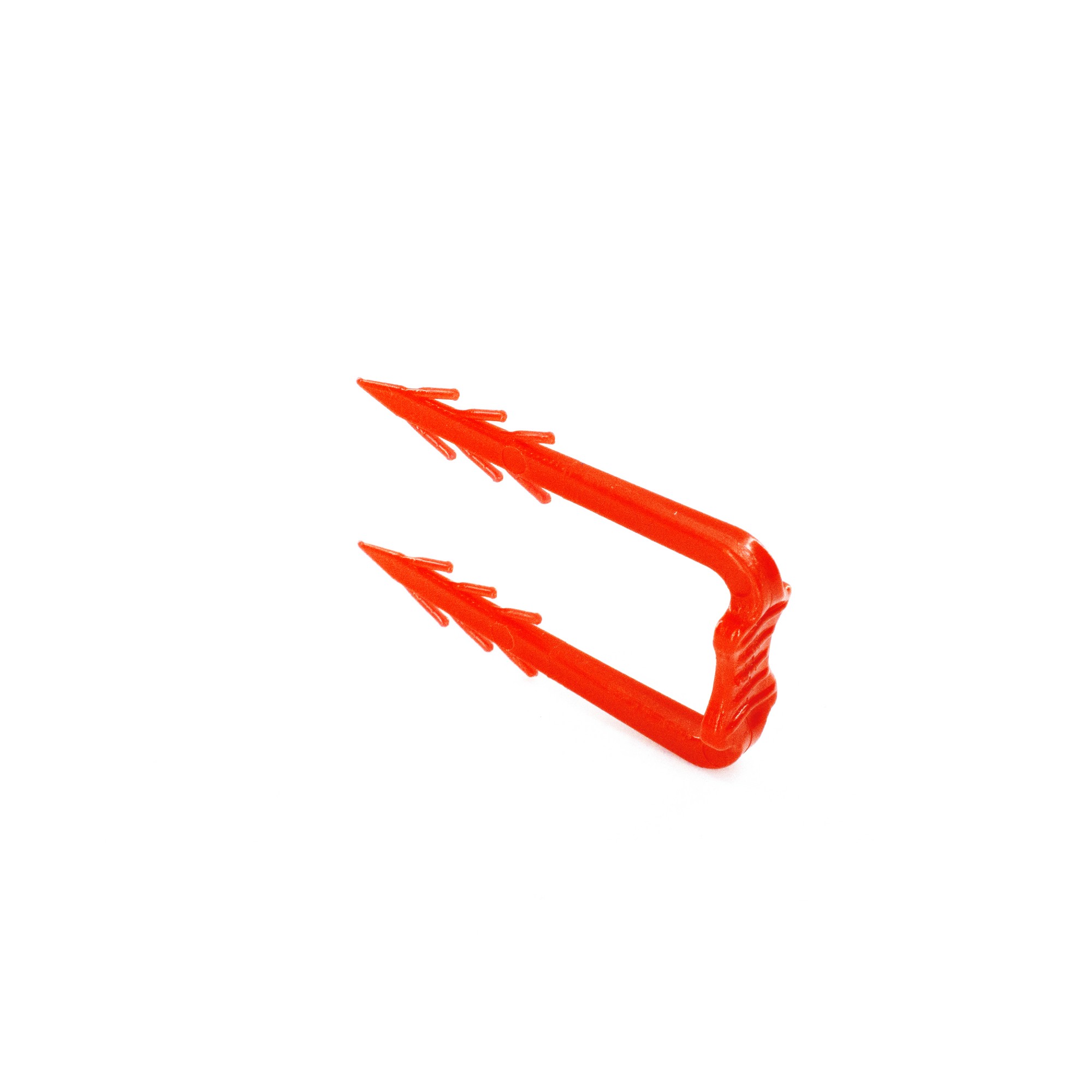

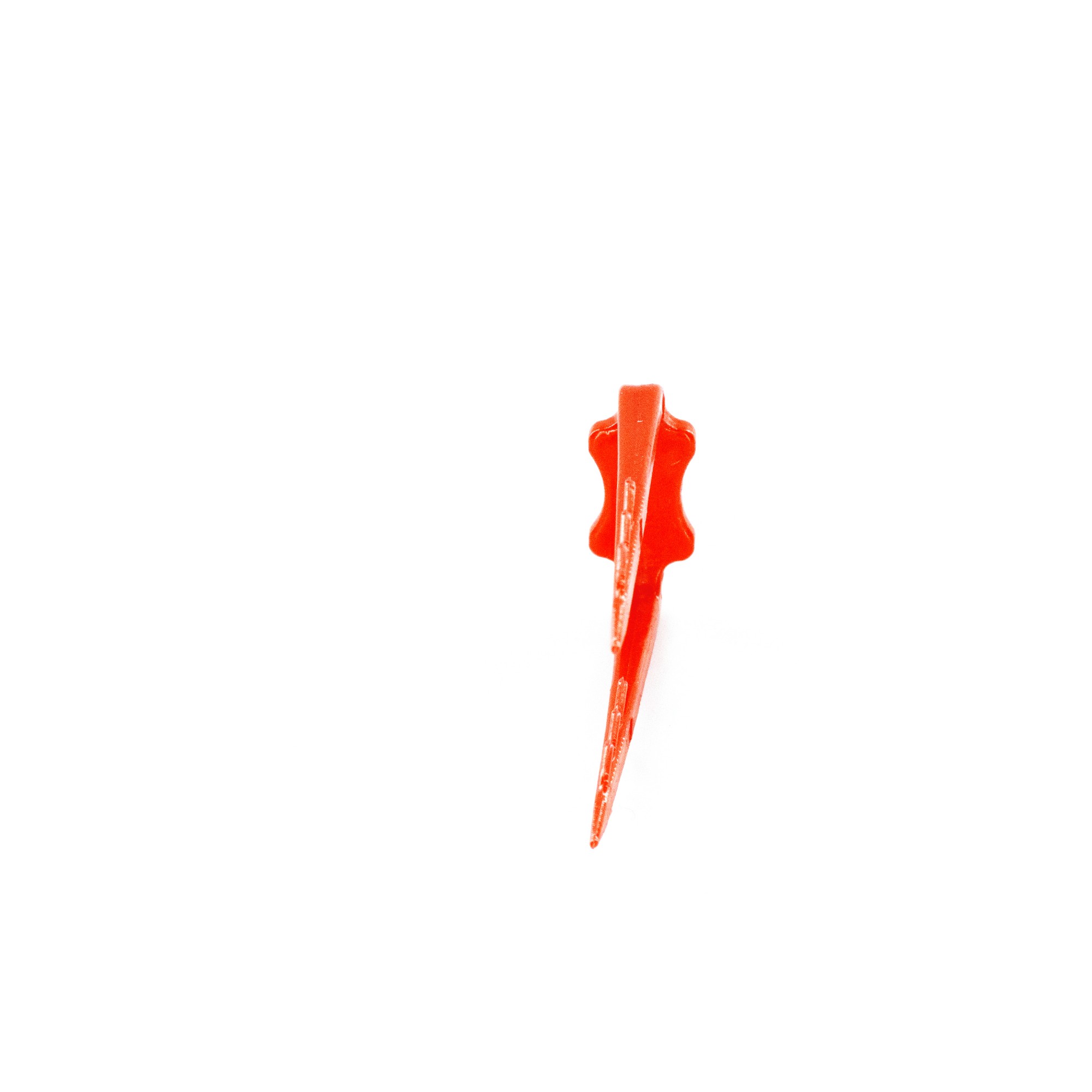

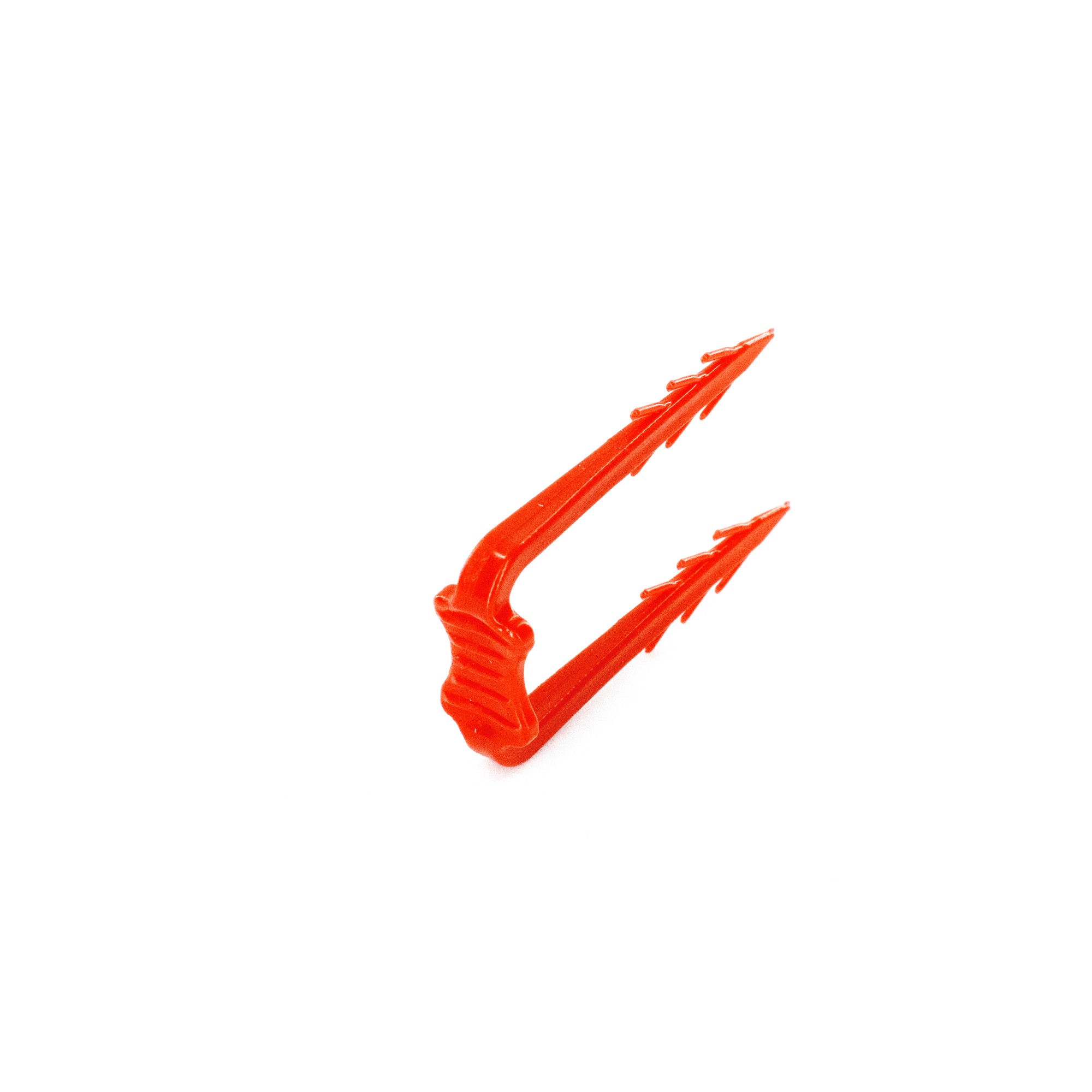

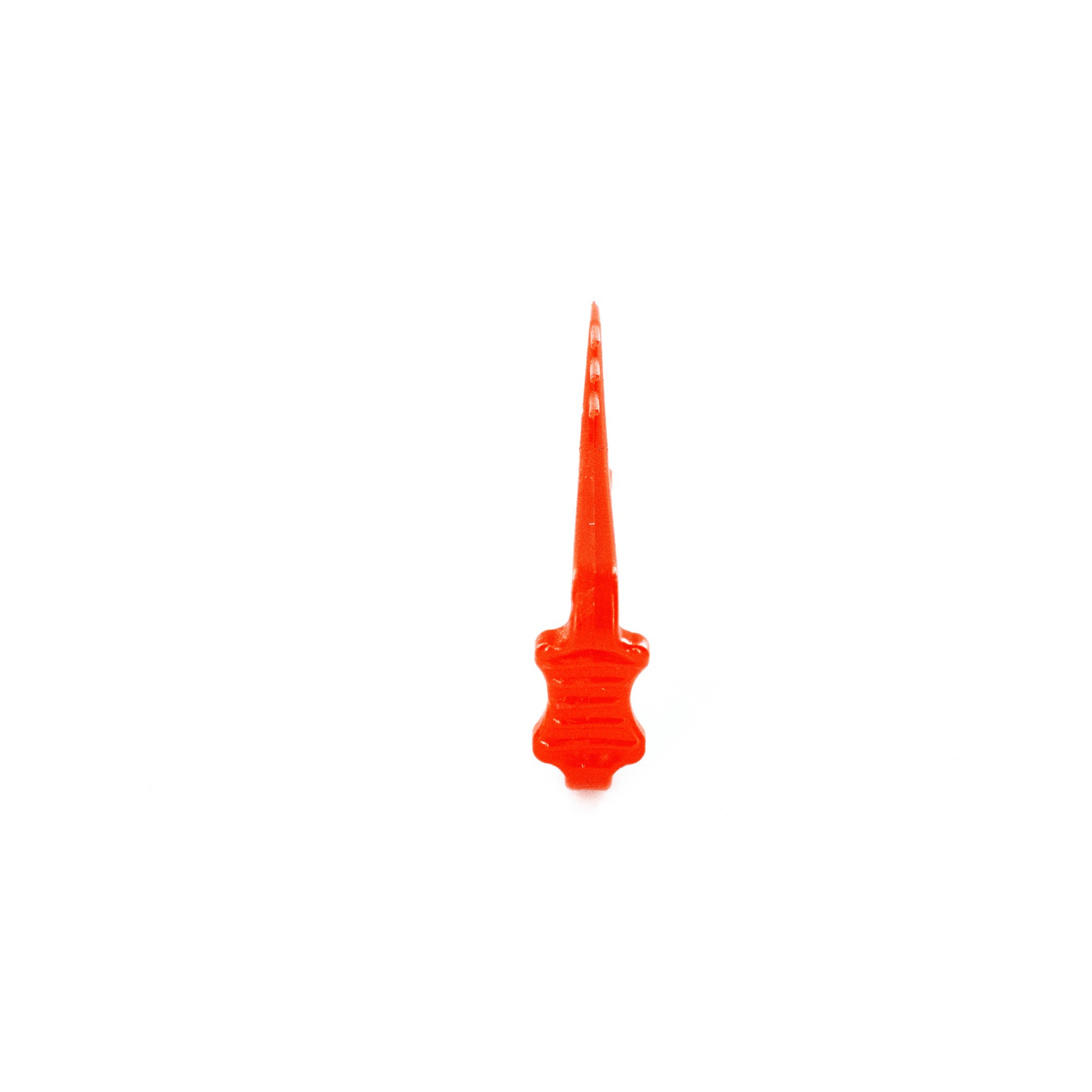

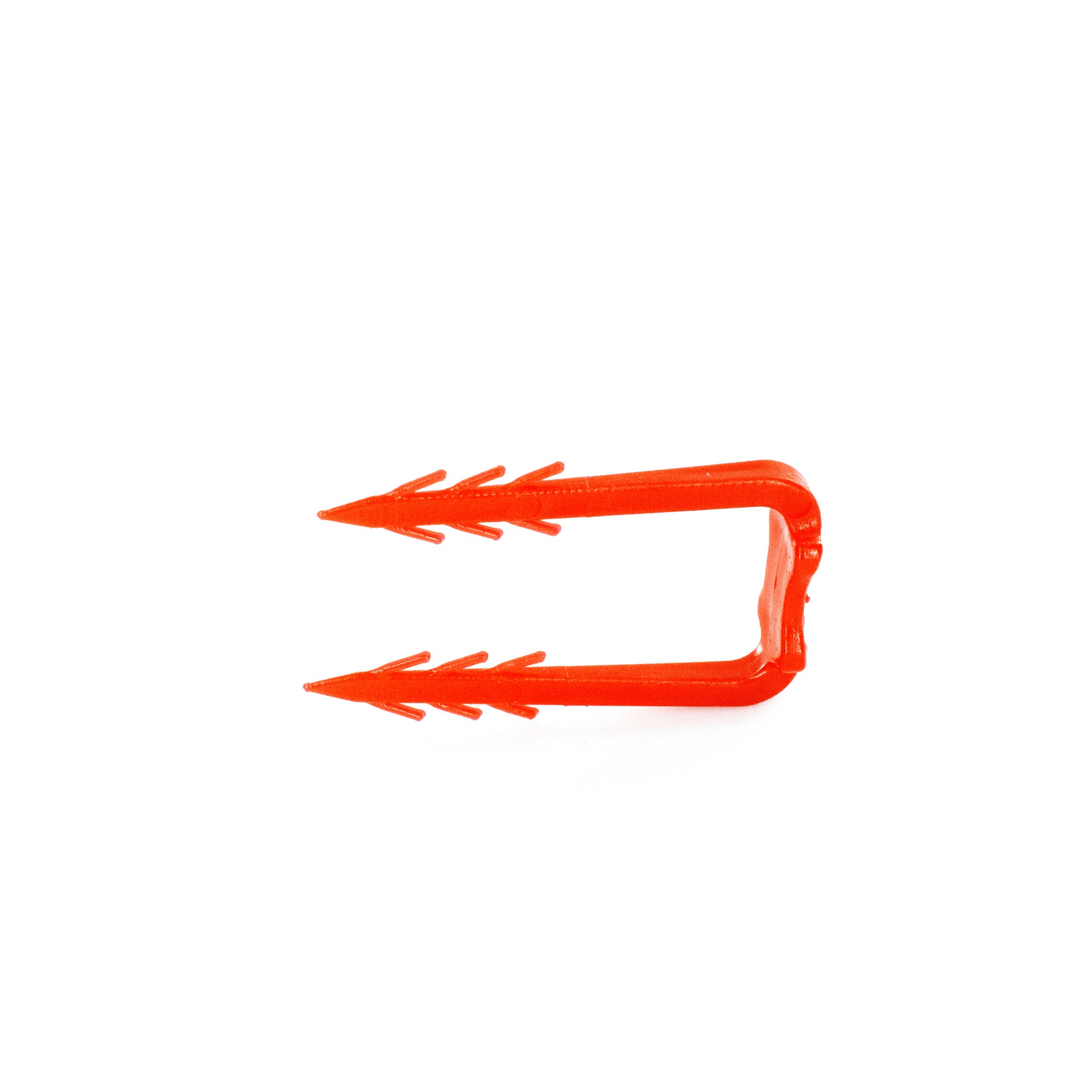

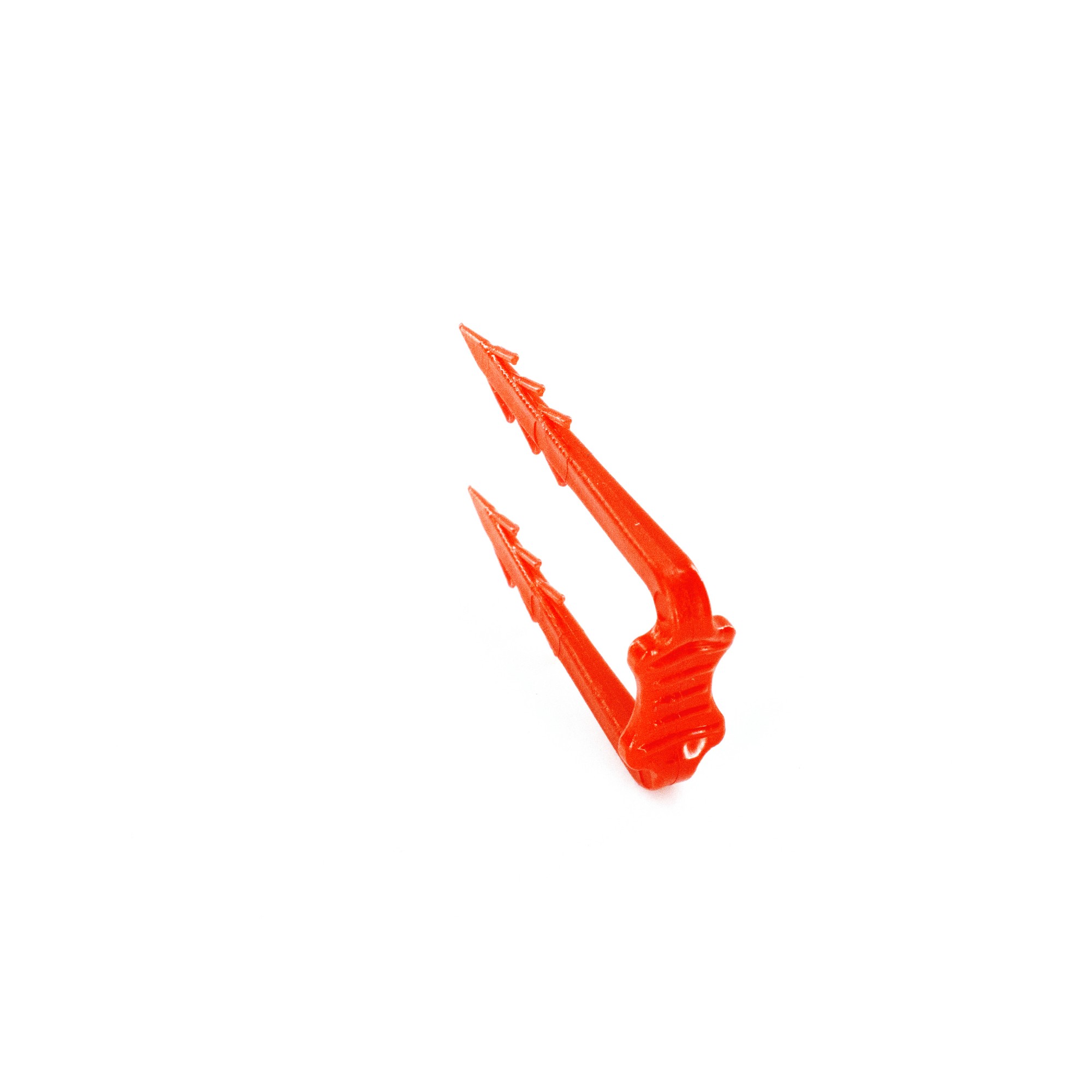

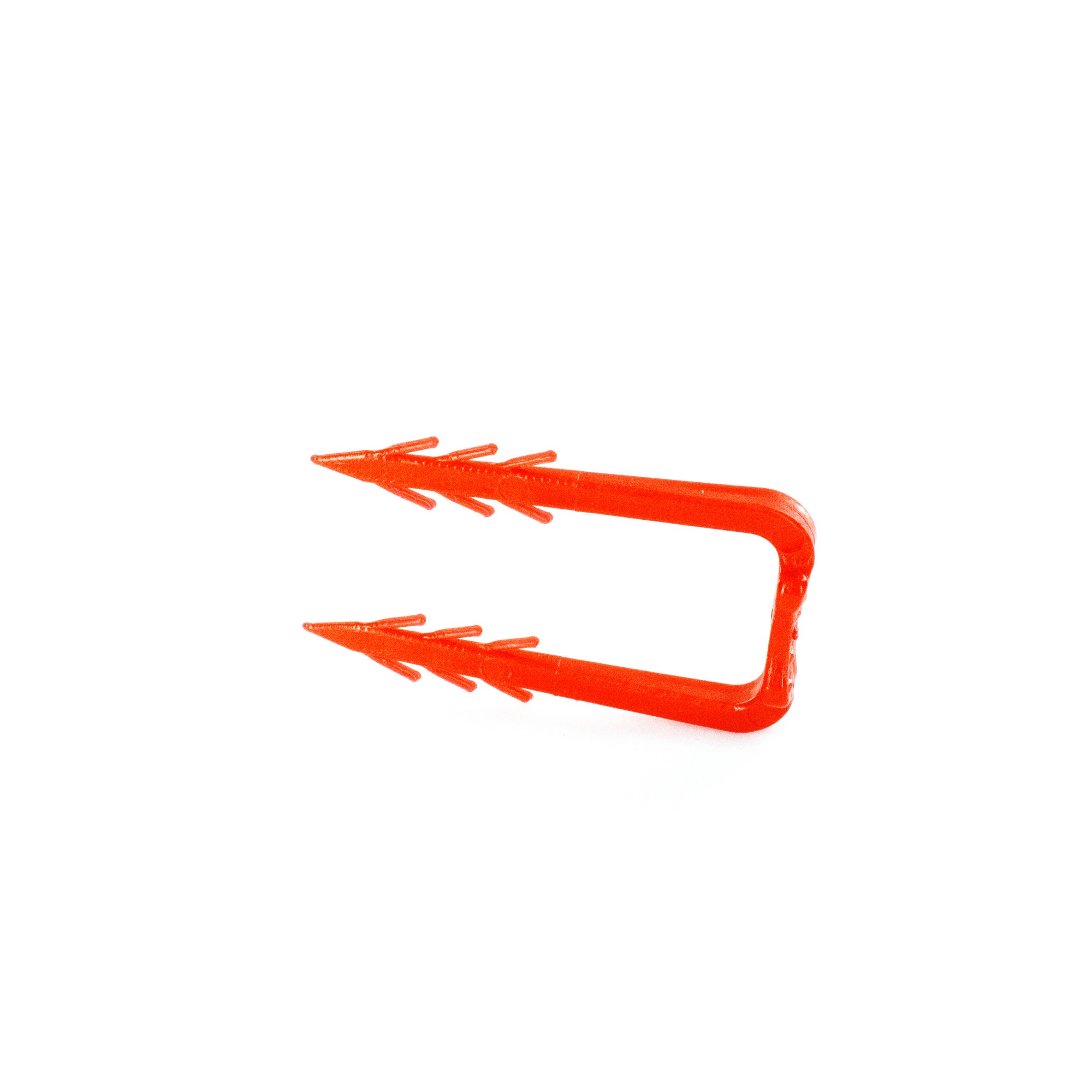

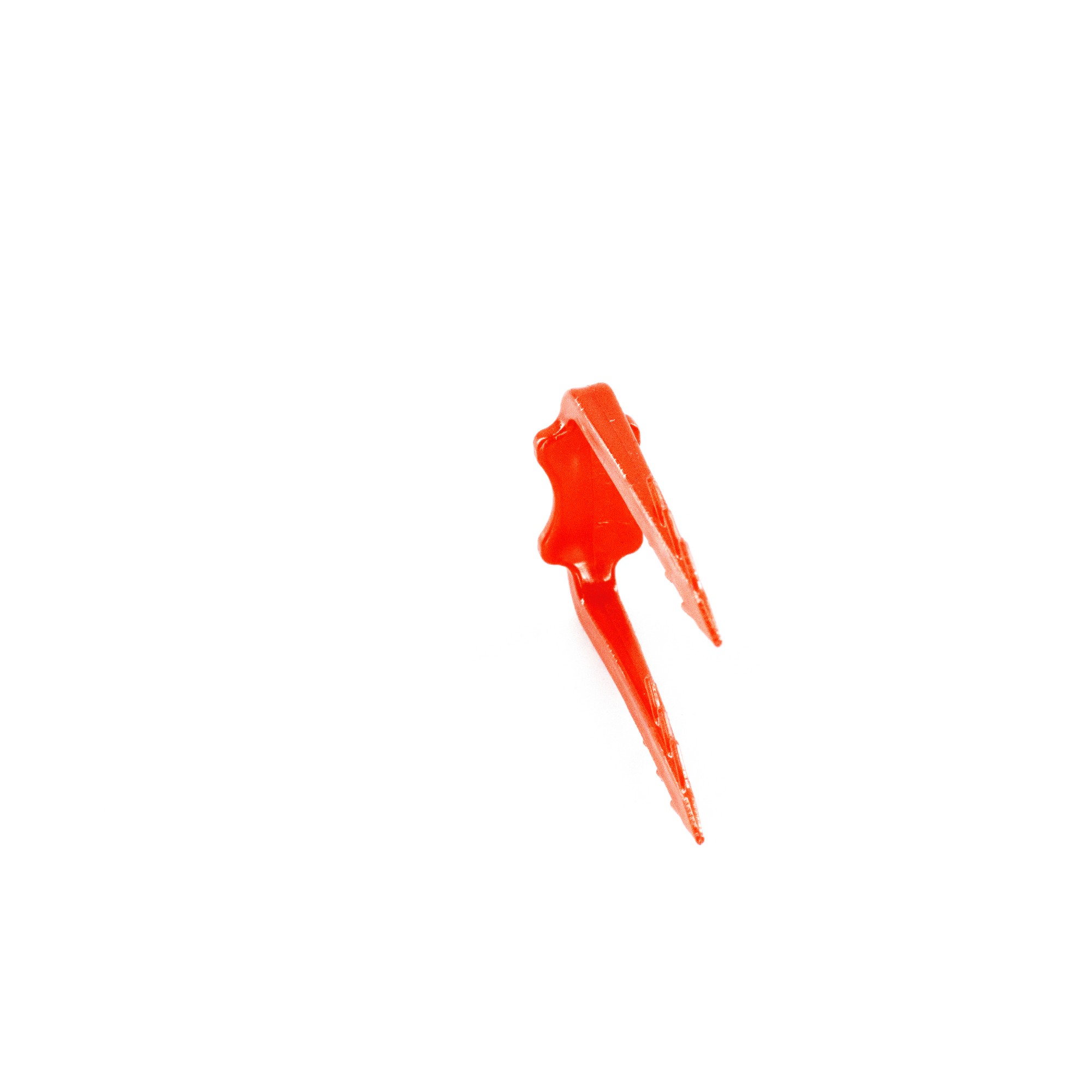

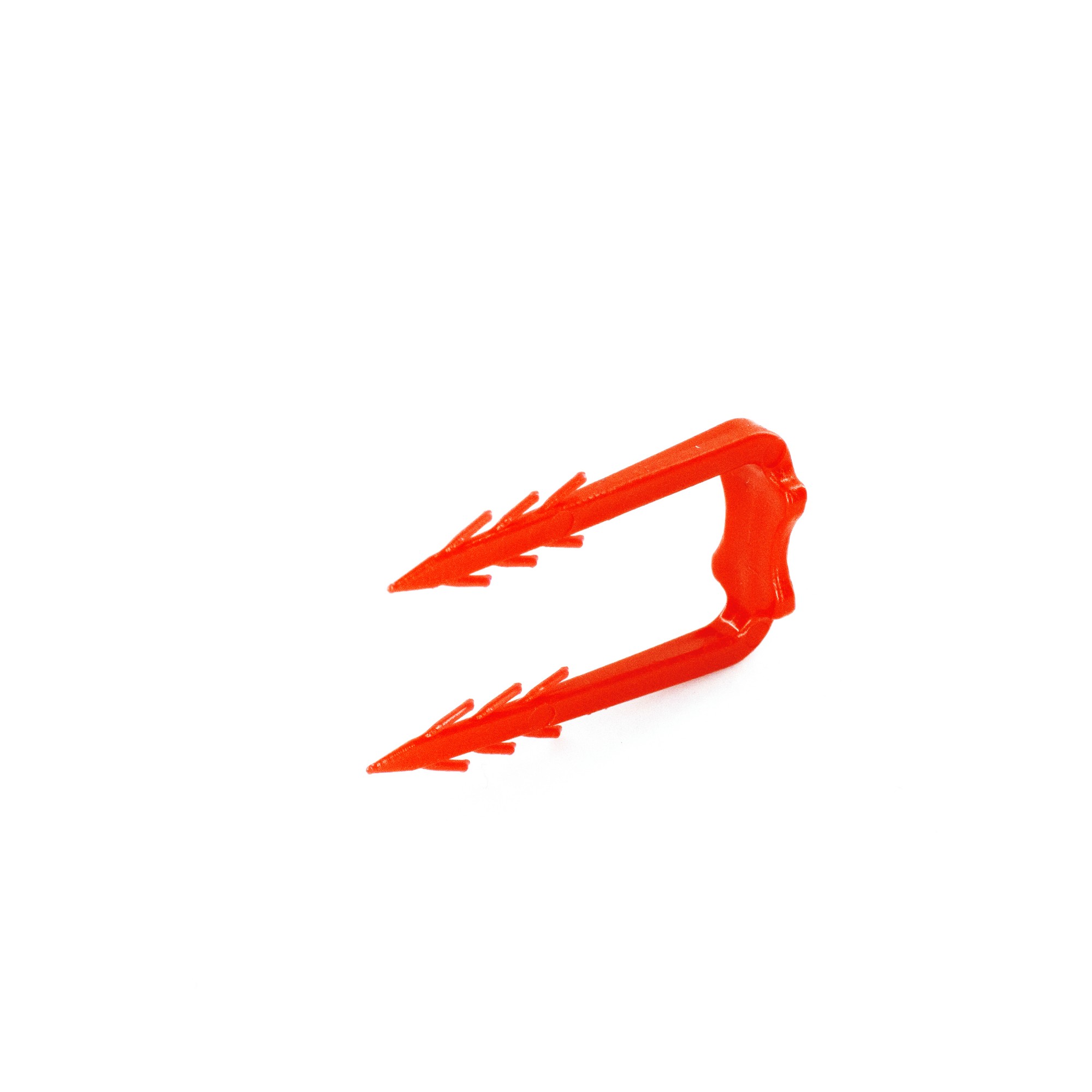

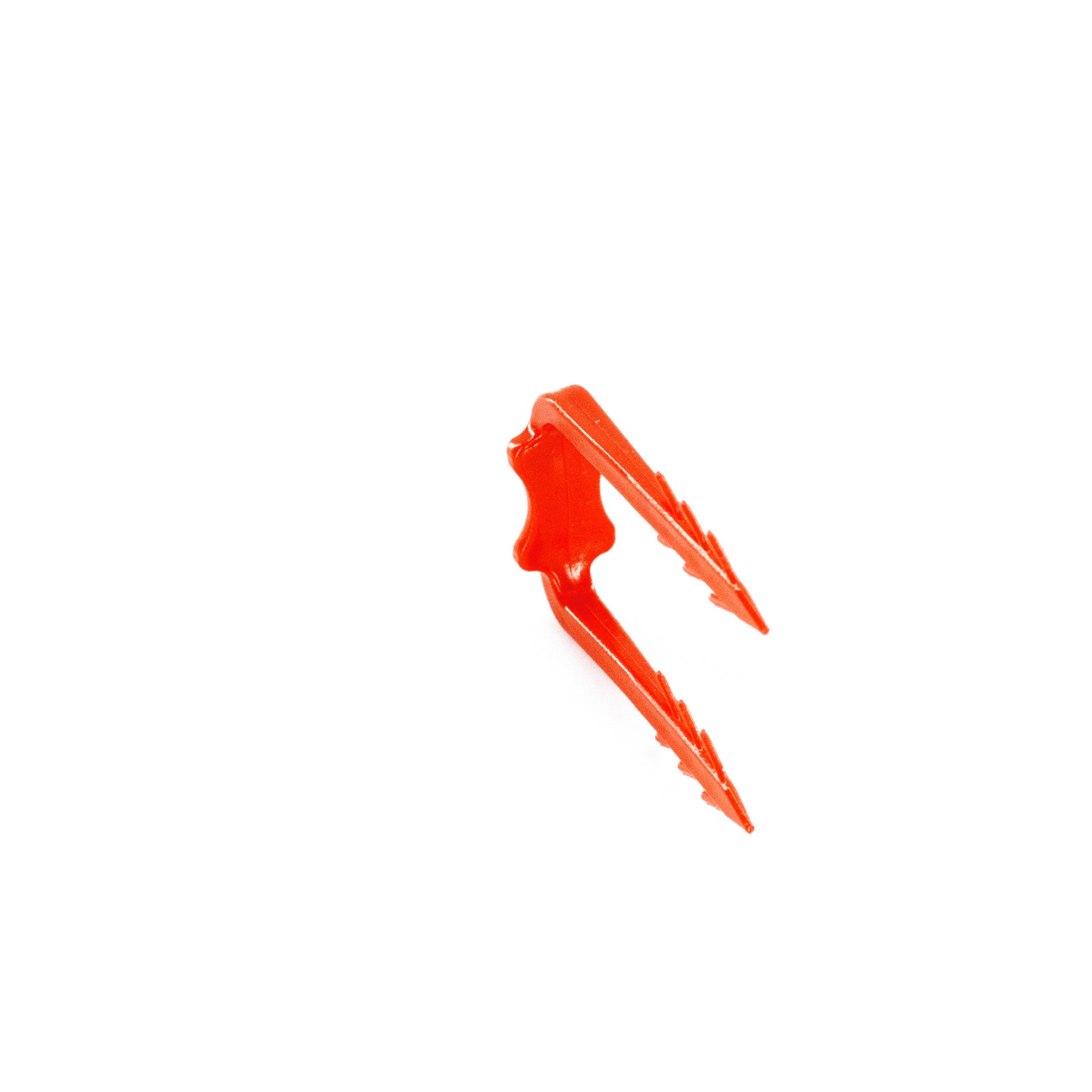

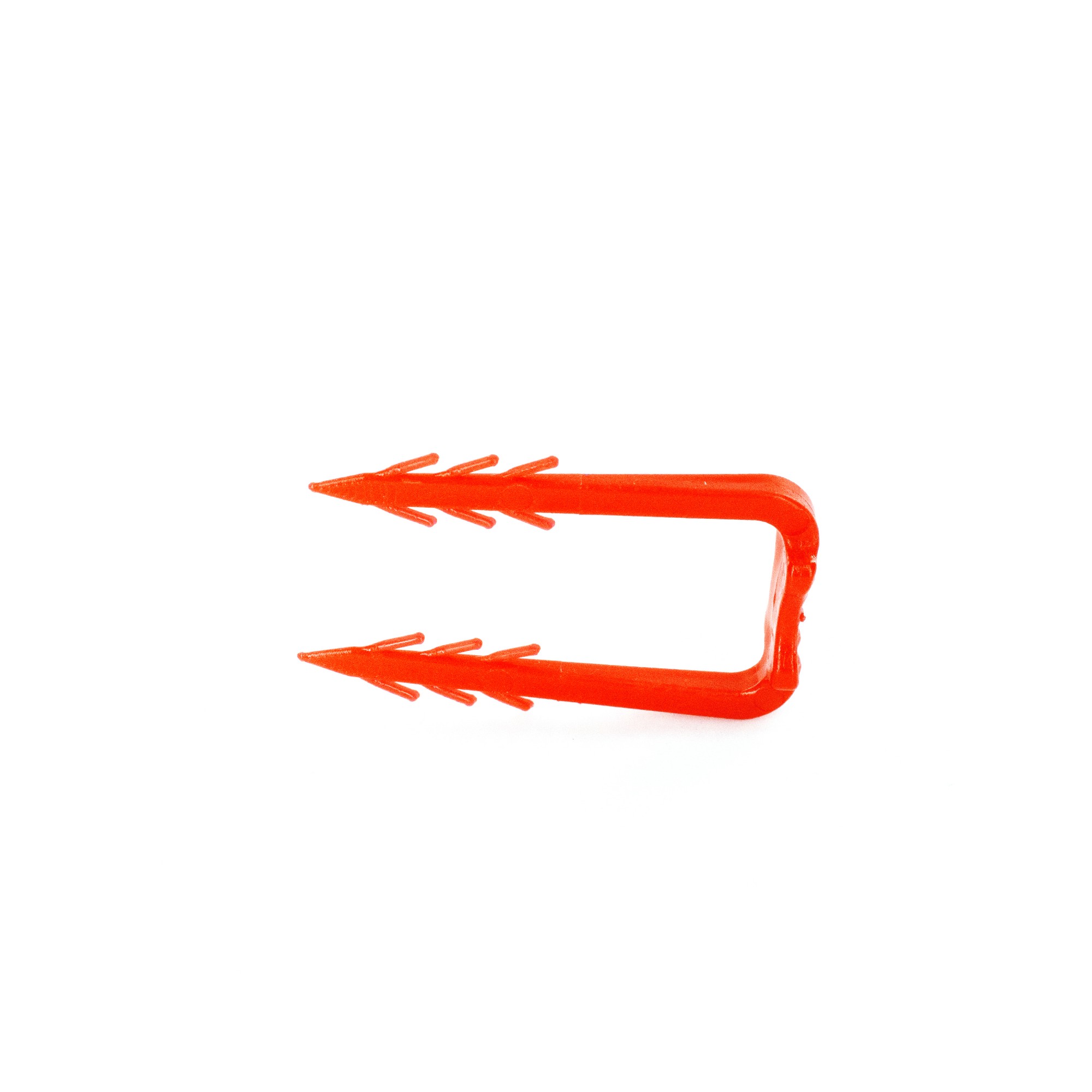

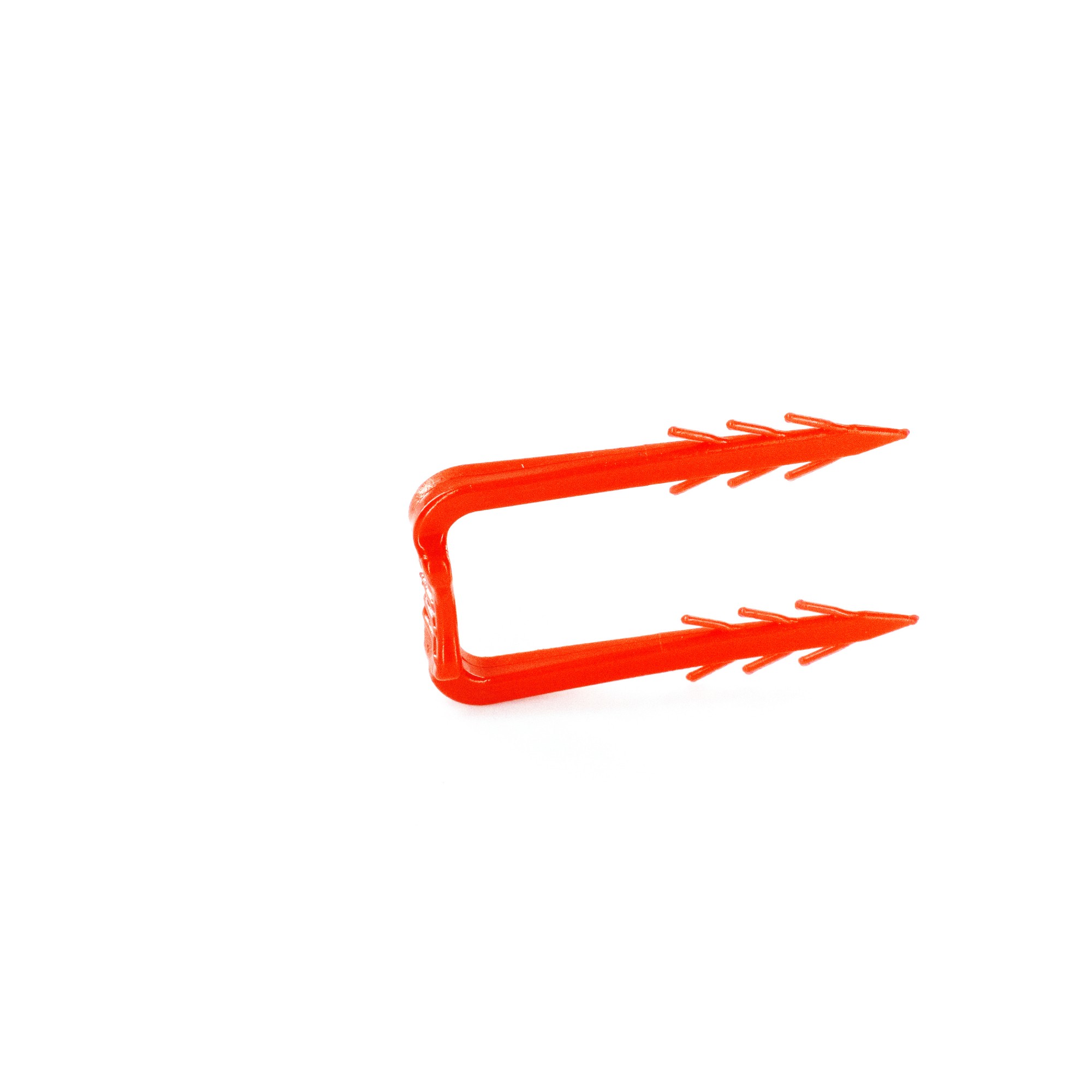

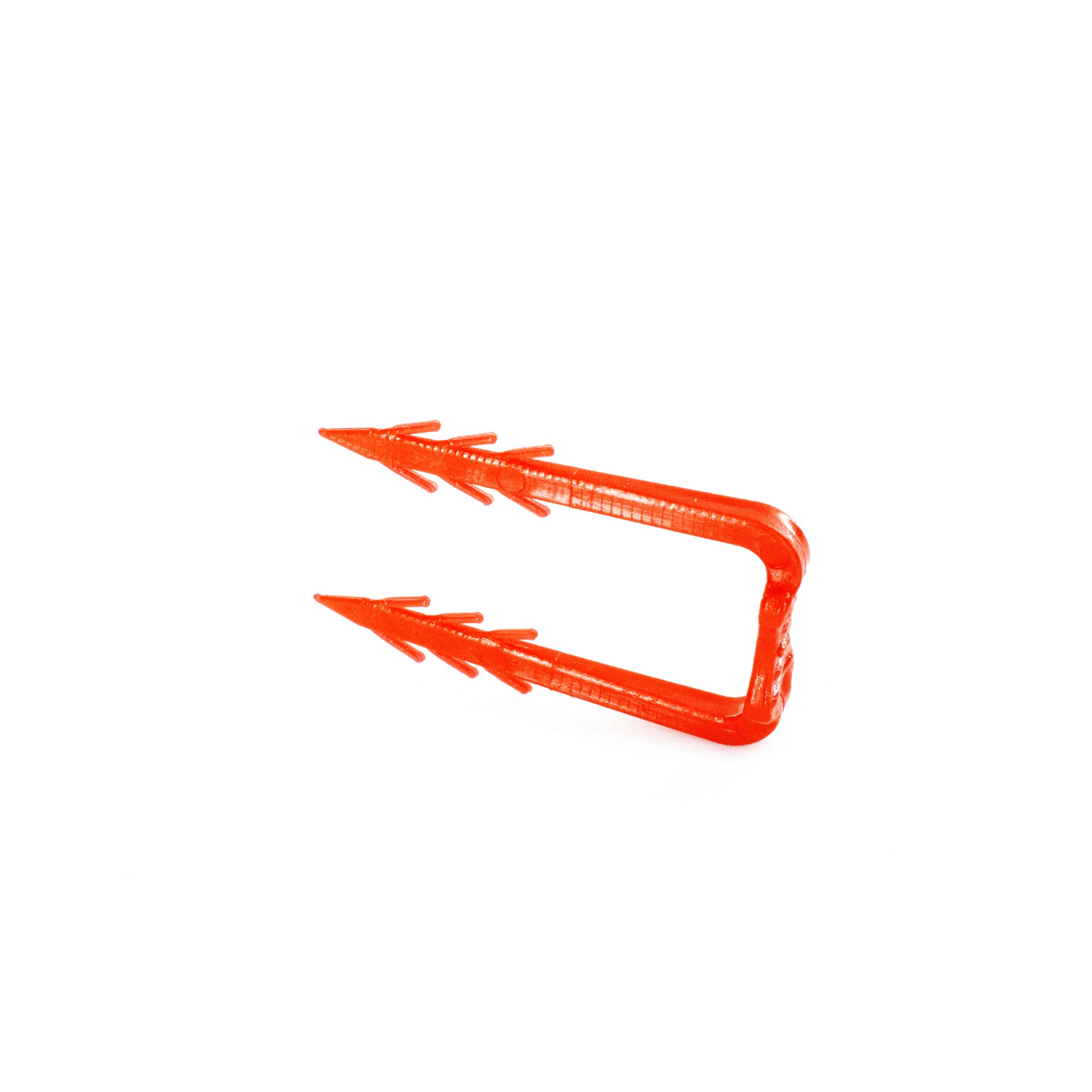

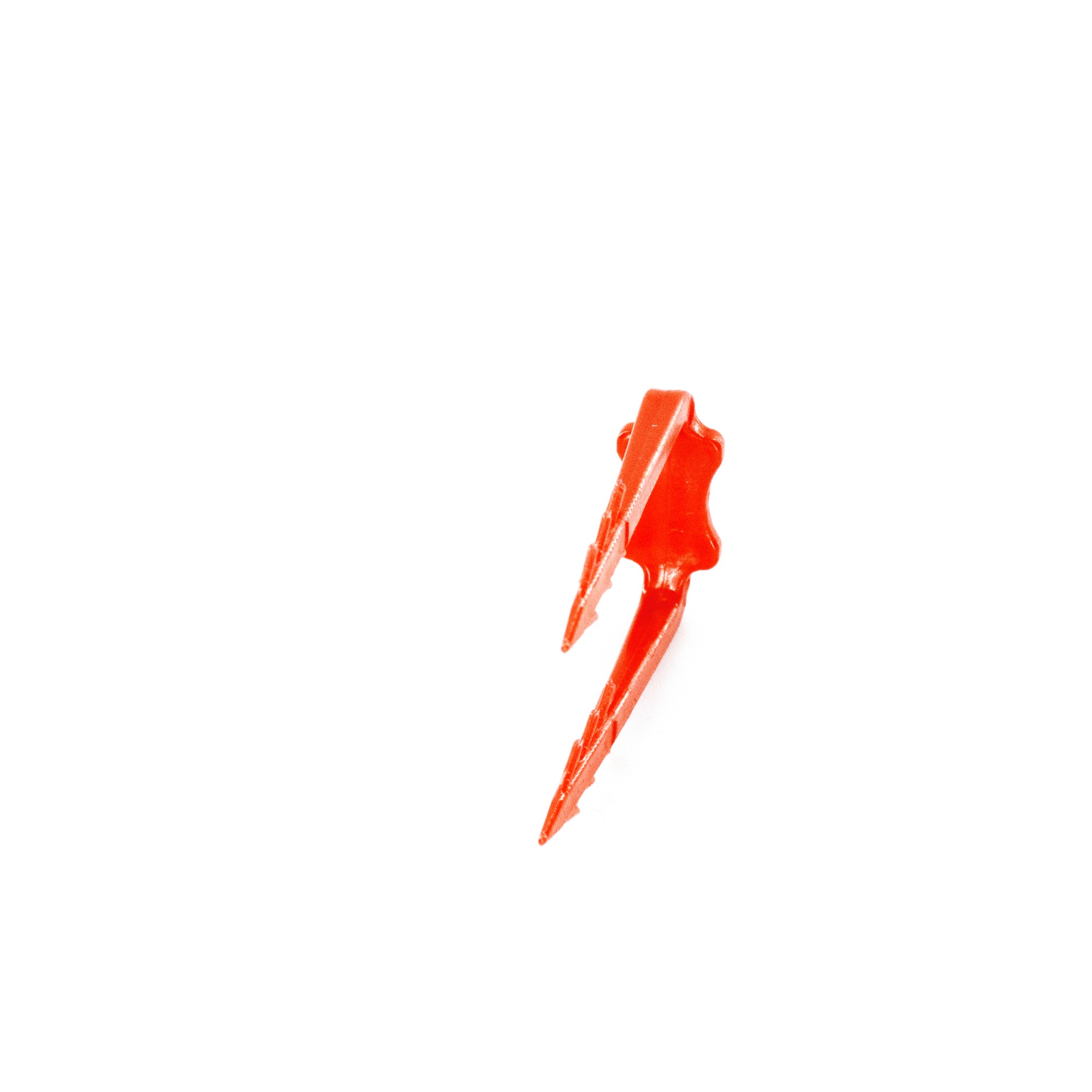

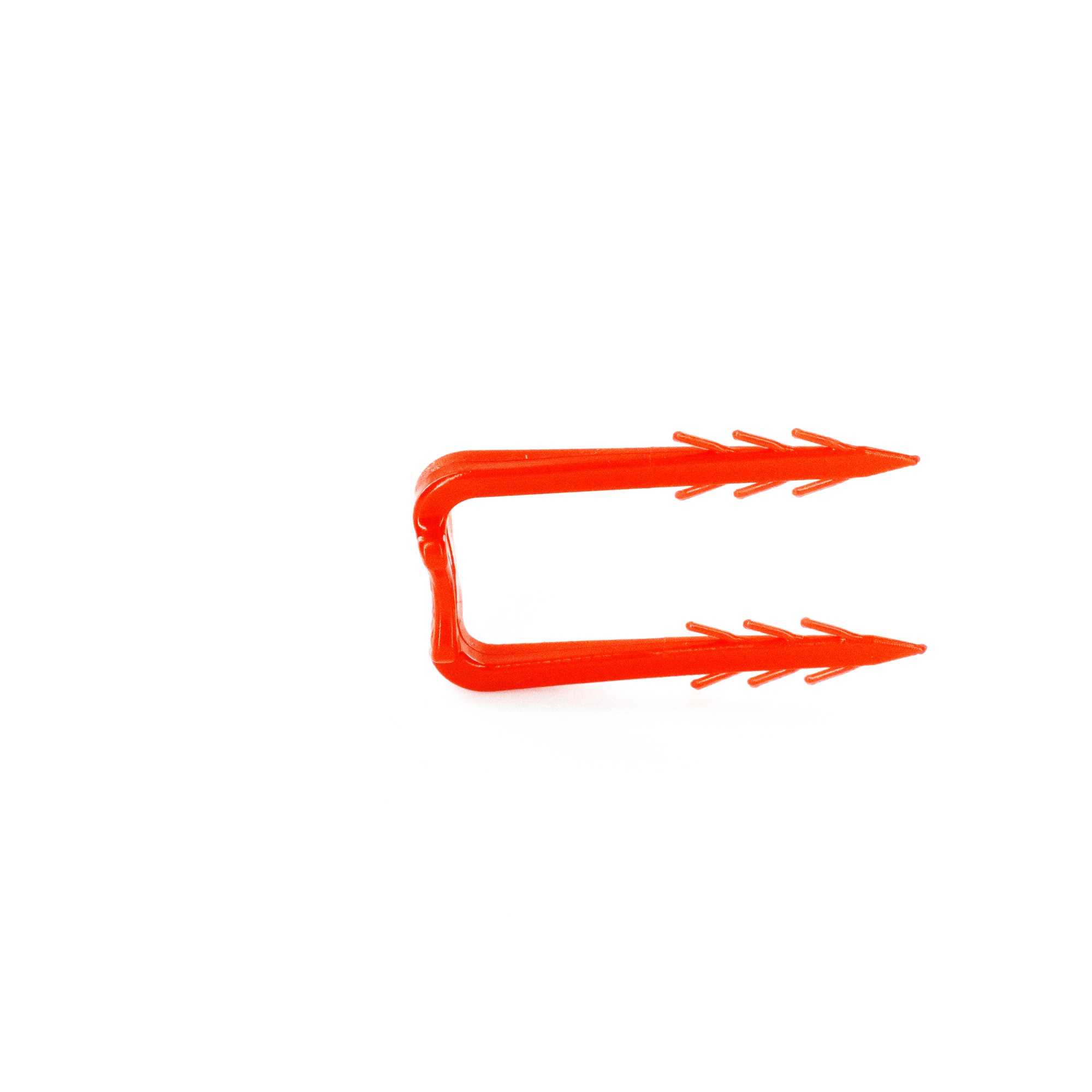

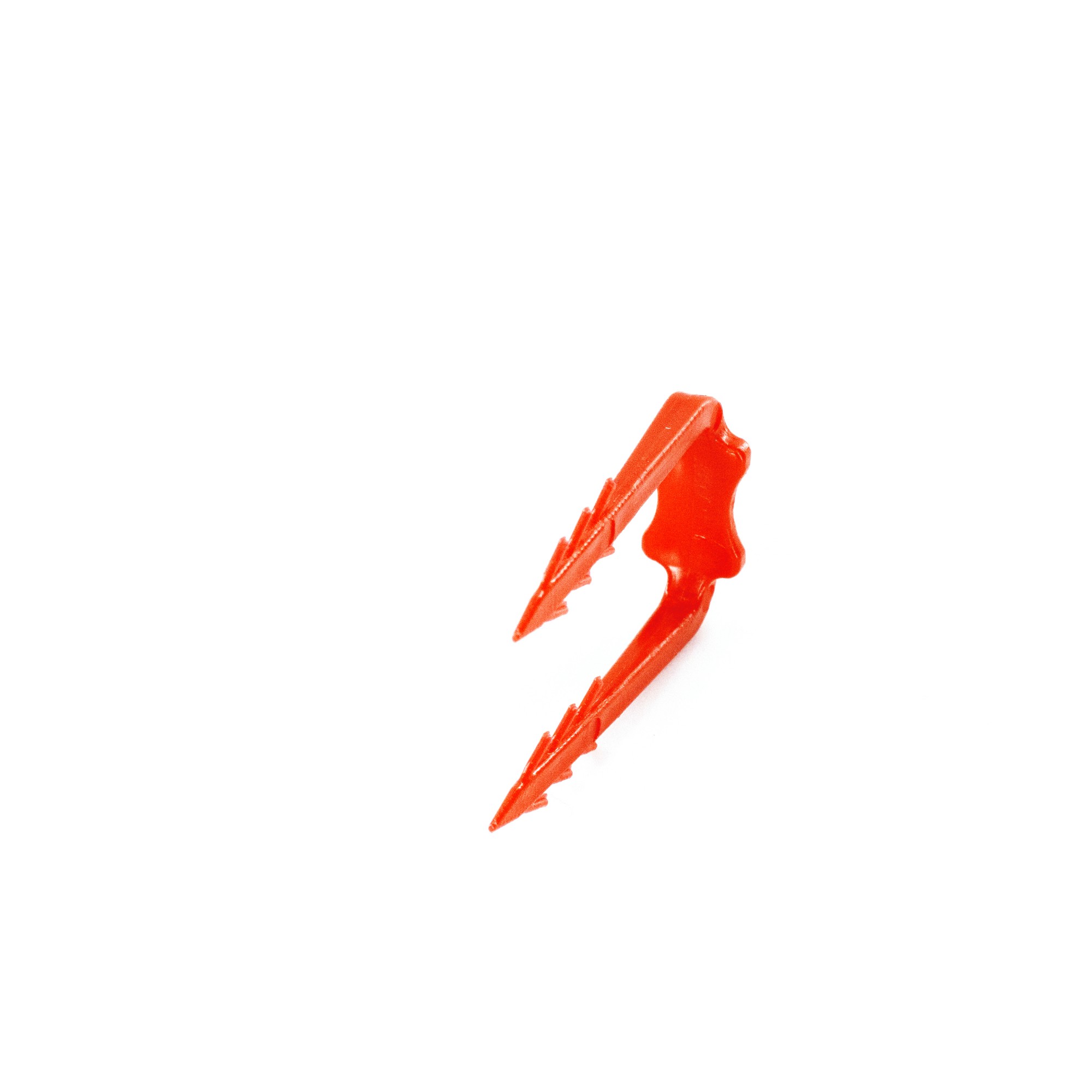

Rail mounting clip for underfloor heating

product description

Clip is used to fix the rails for underfloor heating to styrofoam insulating layer. Available sizes: 45 and 60 mm. Lenght of staples that should be used for fixing depends on the thickness of an insulation layer applied.

				Single pack			Multipack			Pallet
Index	Model	Product dimensions X/Y/Z (mm)	Net weight (g)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)
F-697905	OBT/R	45 x 20 x 5	1.1	100	15 x 22	0.11	10 000	54.5 x 41.5 x 36.5	11.7	200 000	120 x 80 x 180	254
F-698544	OBT/R	60 x 20 x 5	1.4	100	16 x 25	0.14	6 000	54.5 x 41.5 x 36.5	9.1	120 000	120 x 80 x 180	202
