product description

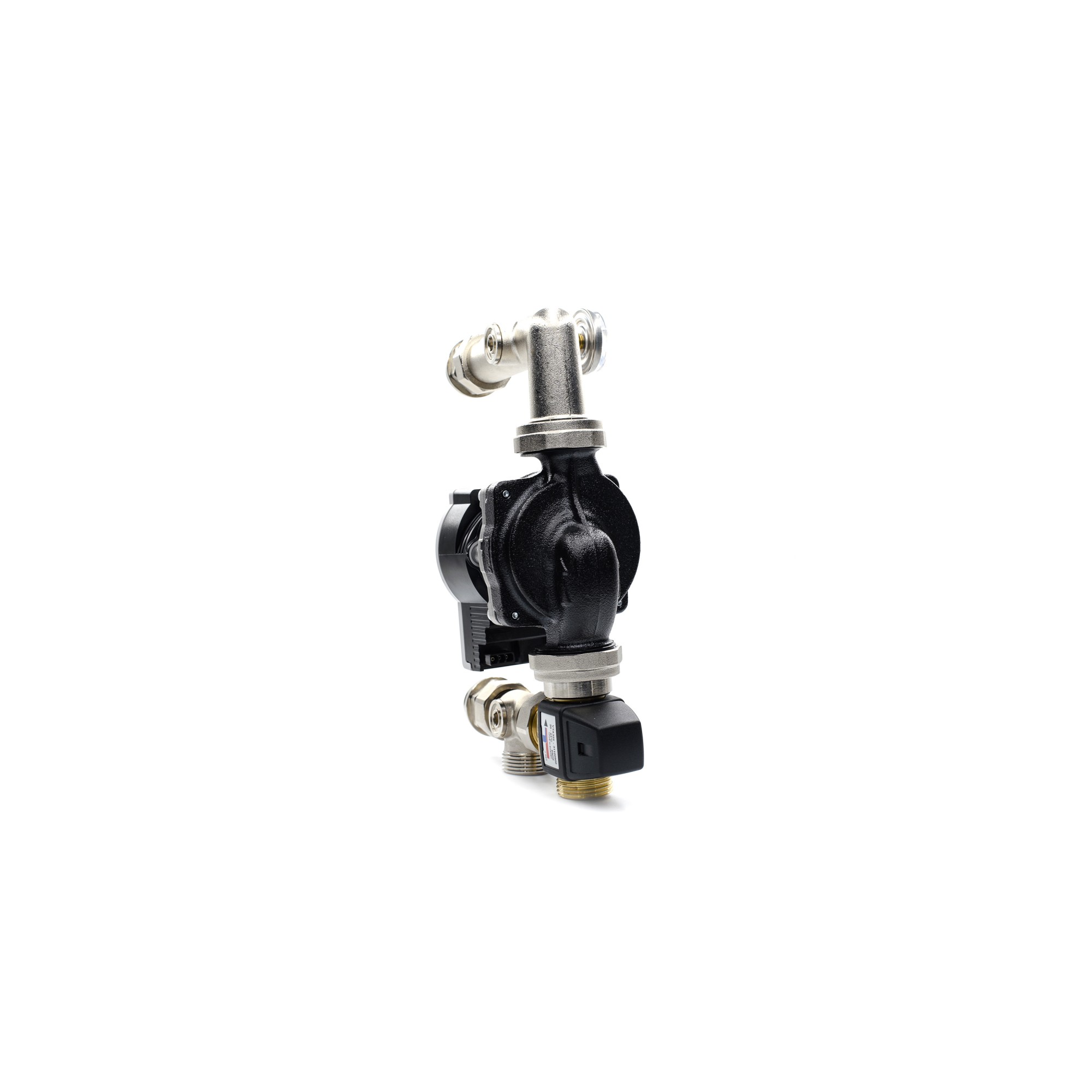

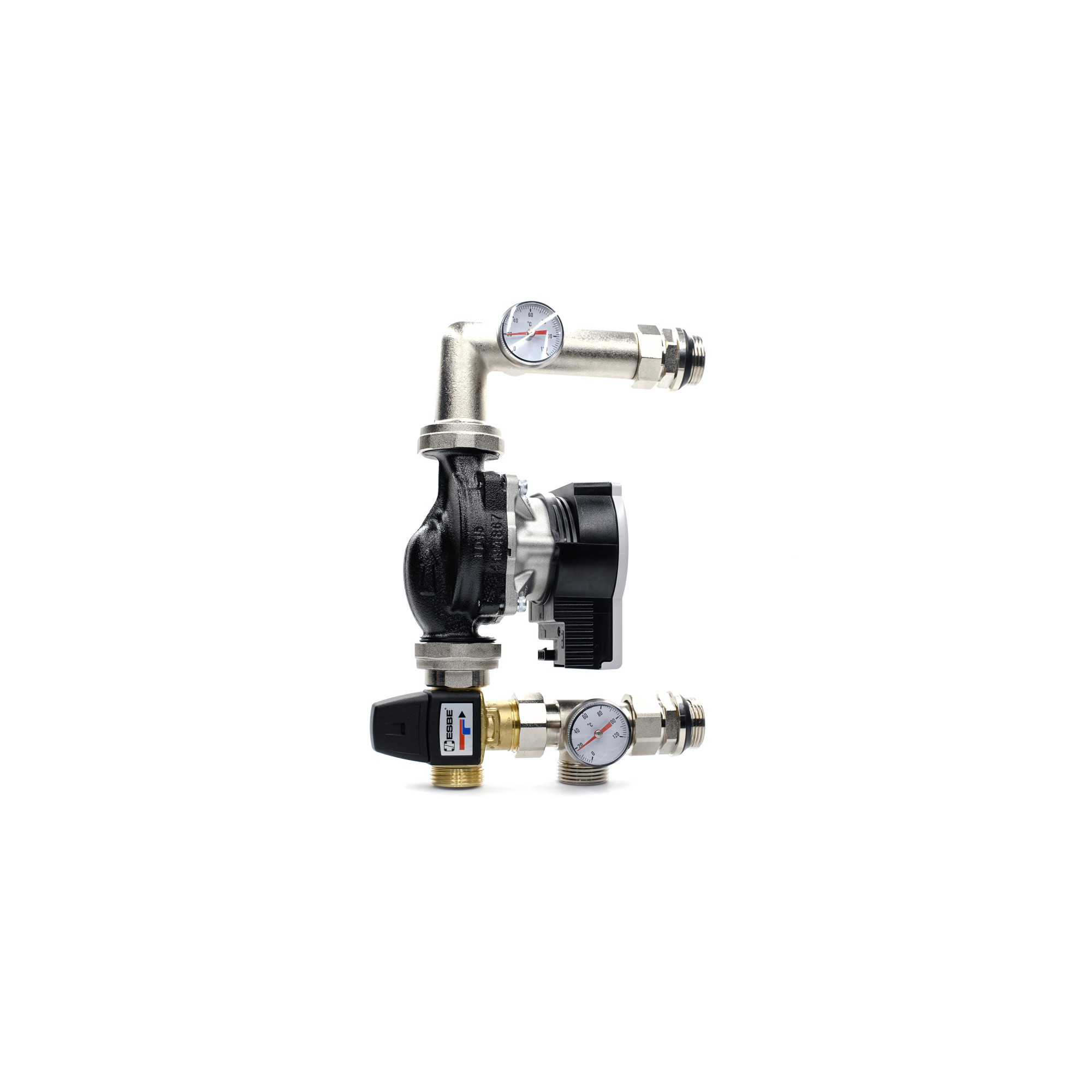

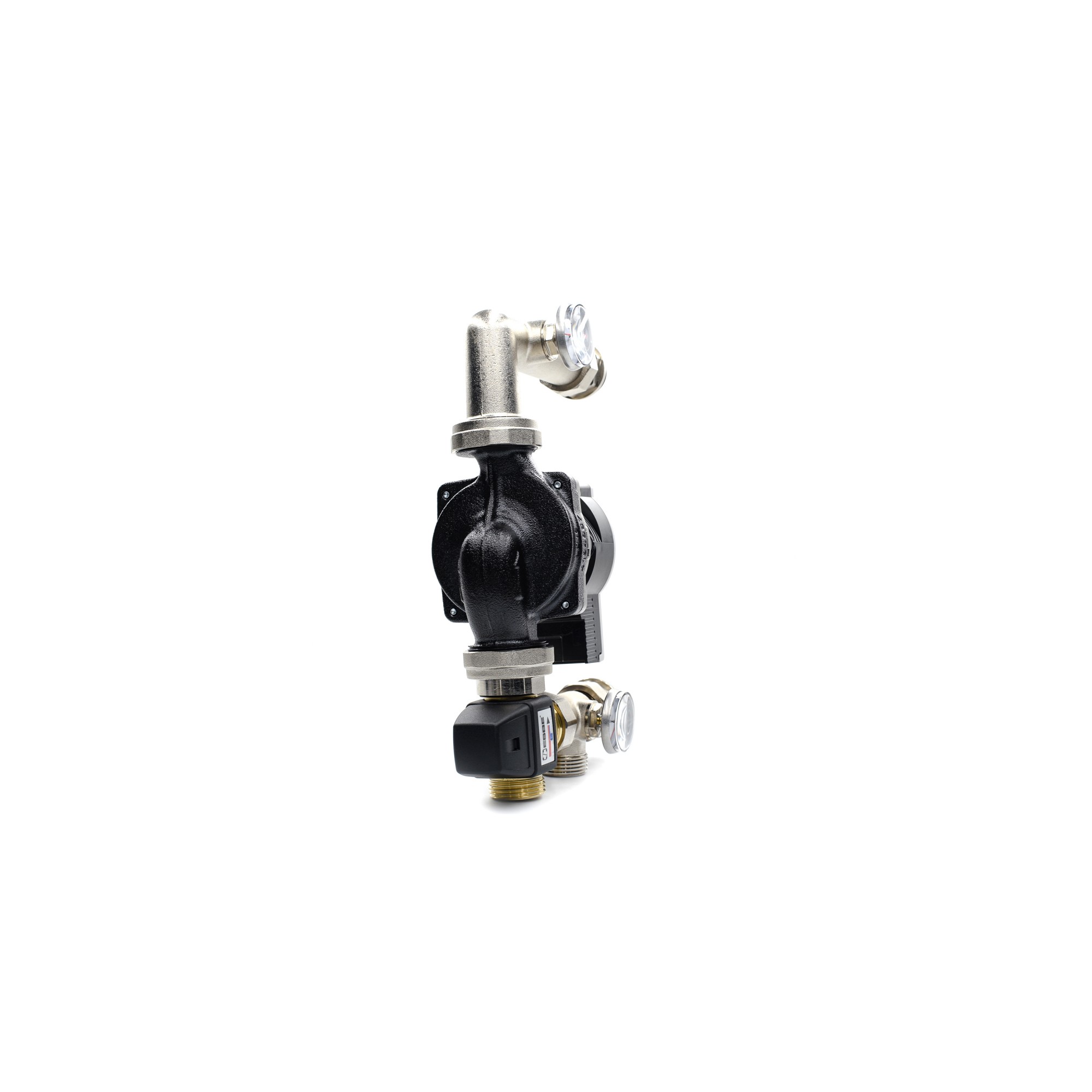

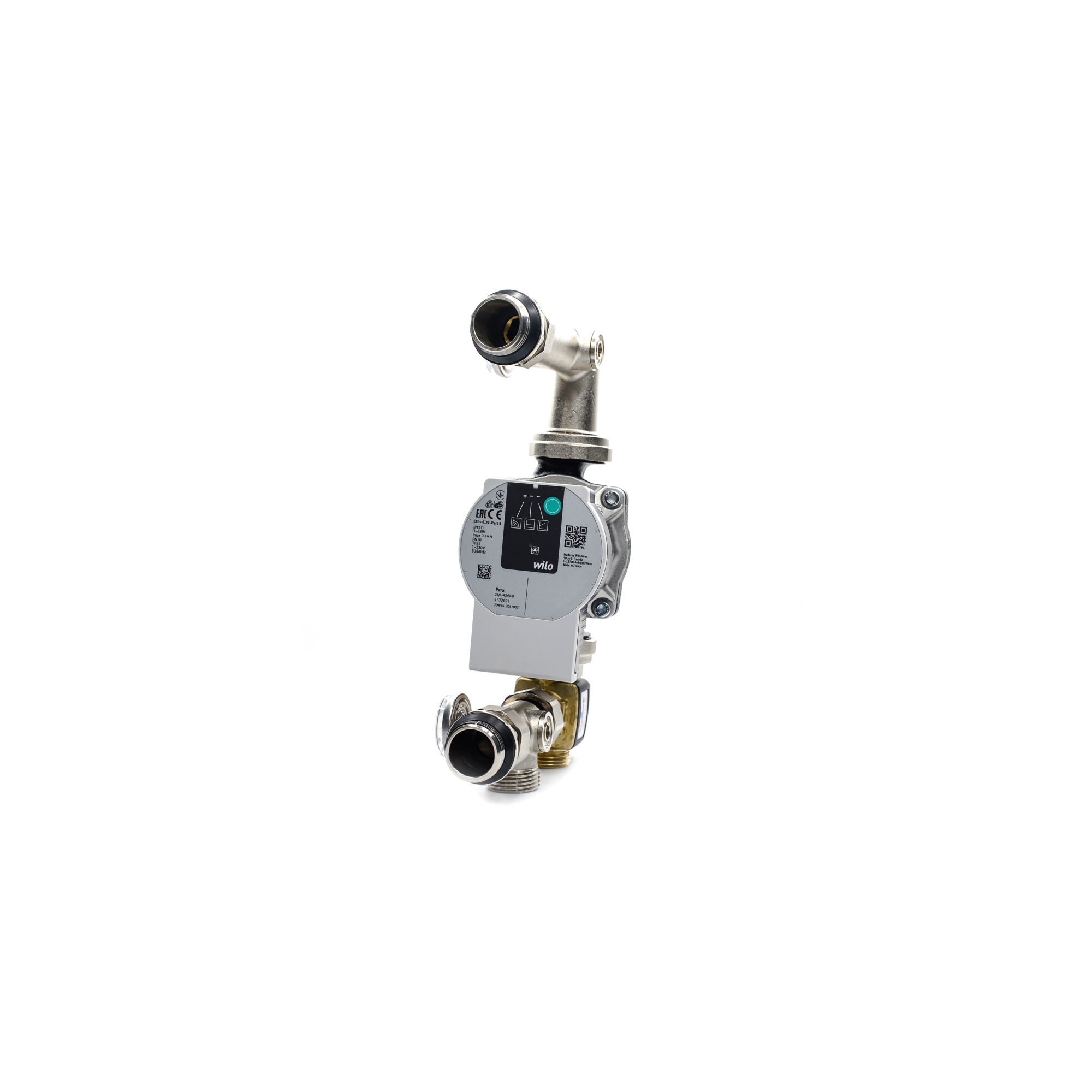

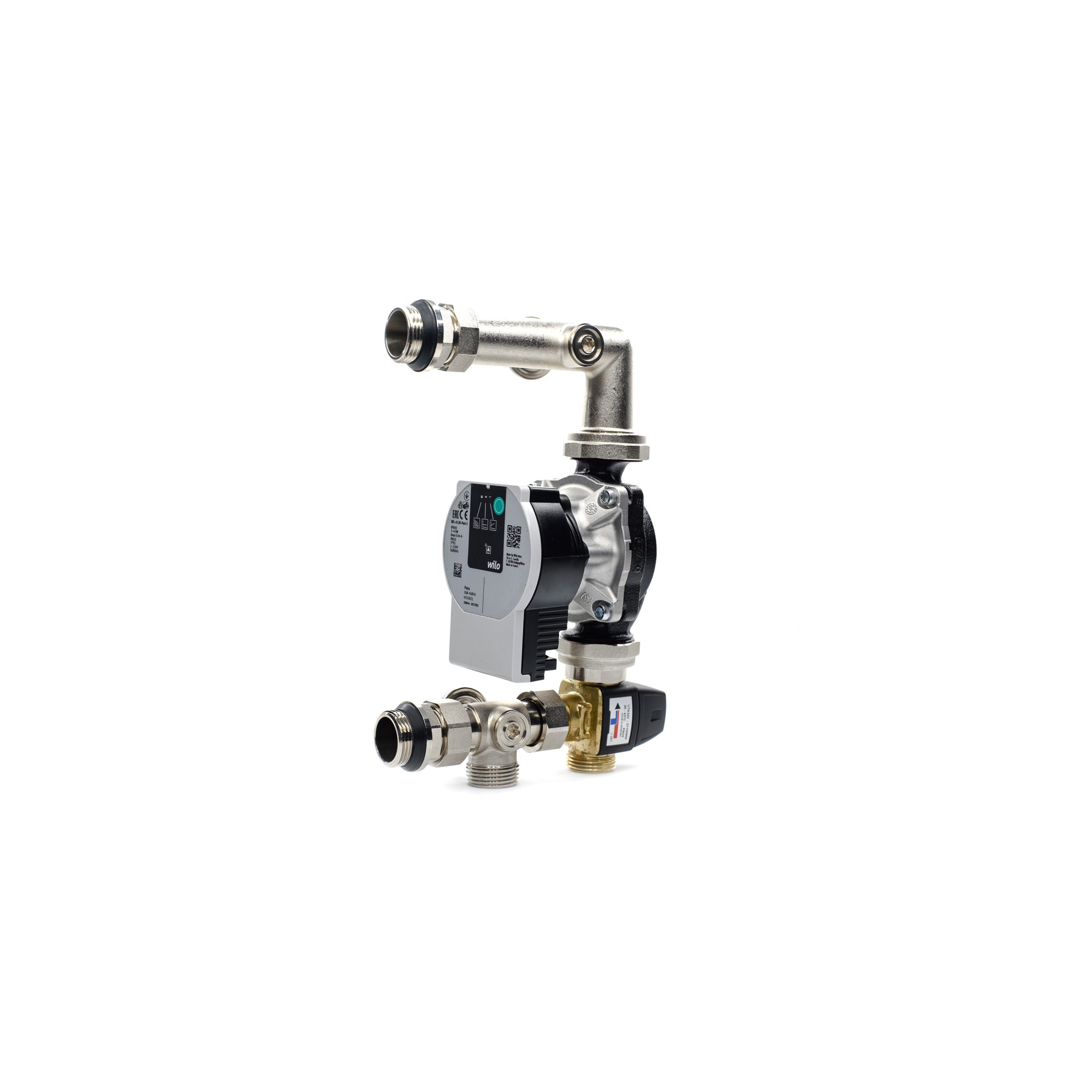

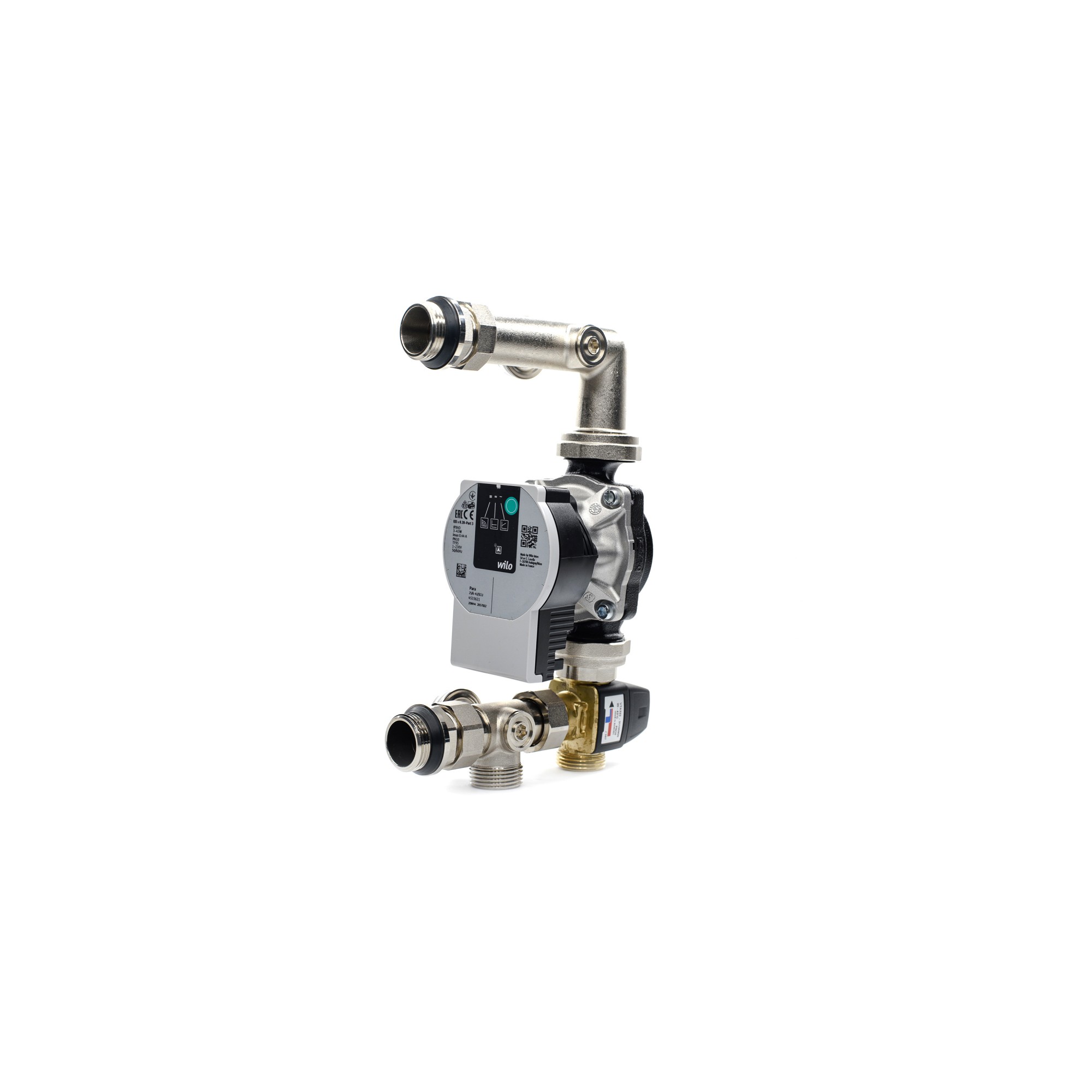

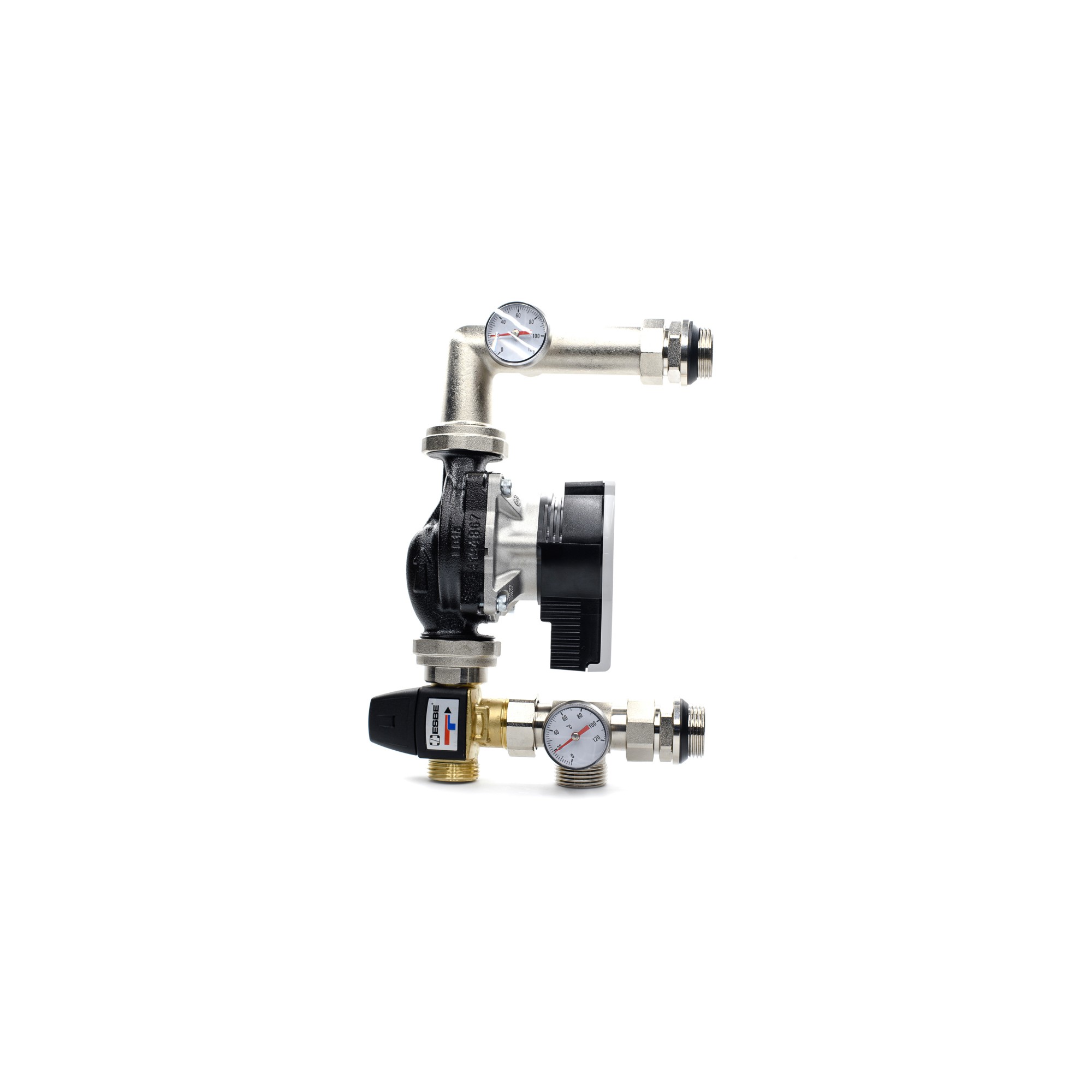

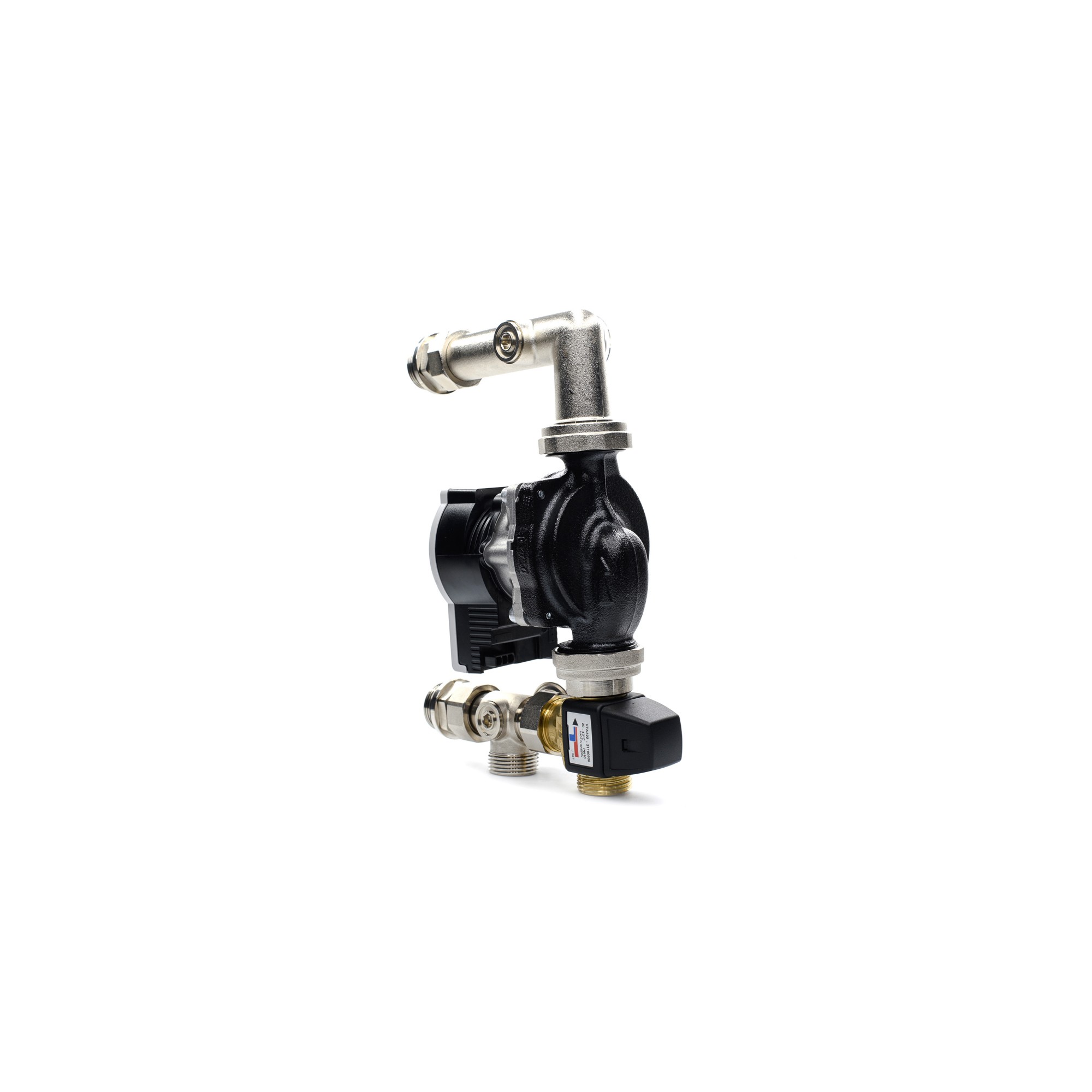

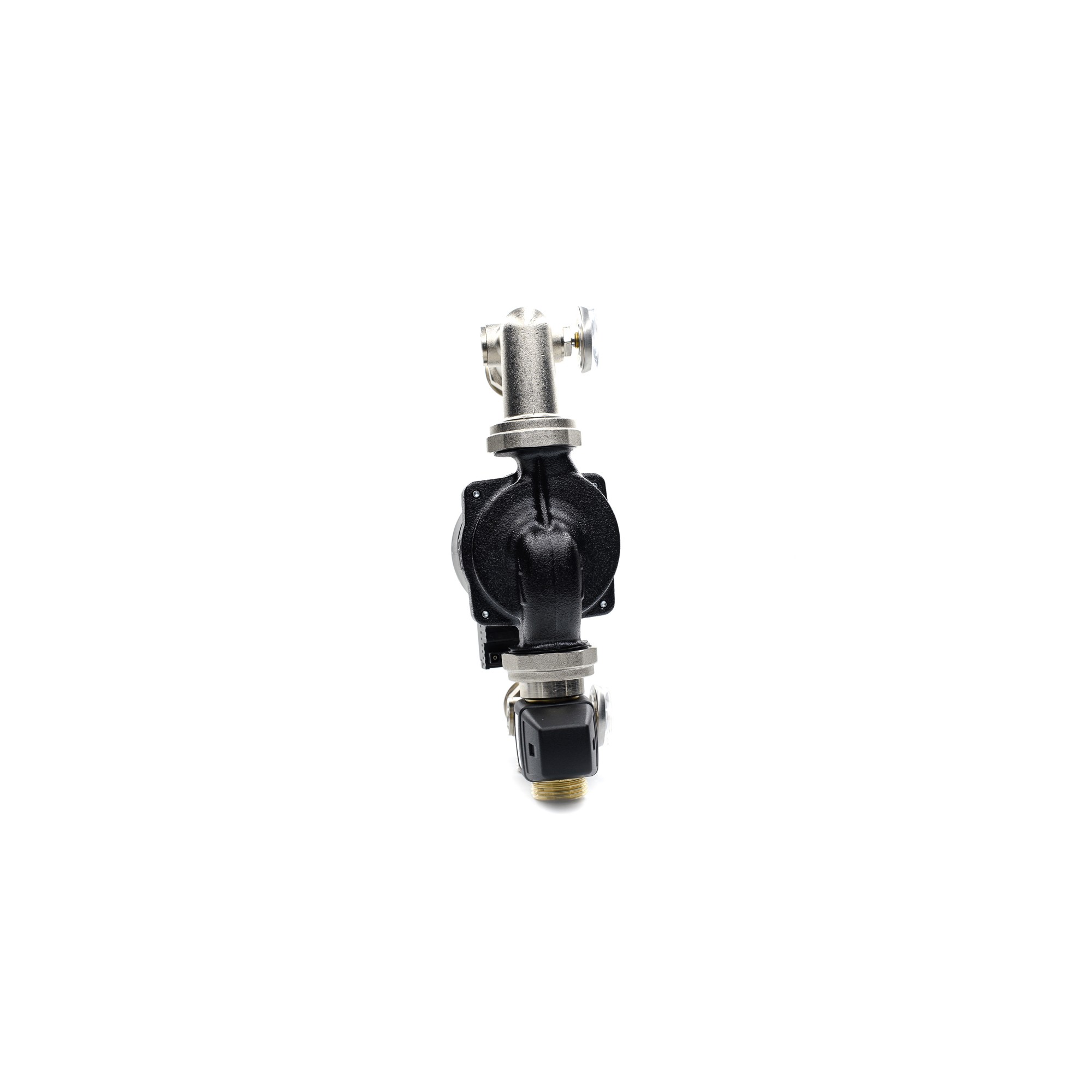

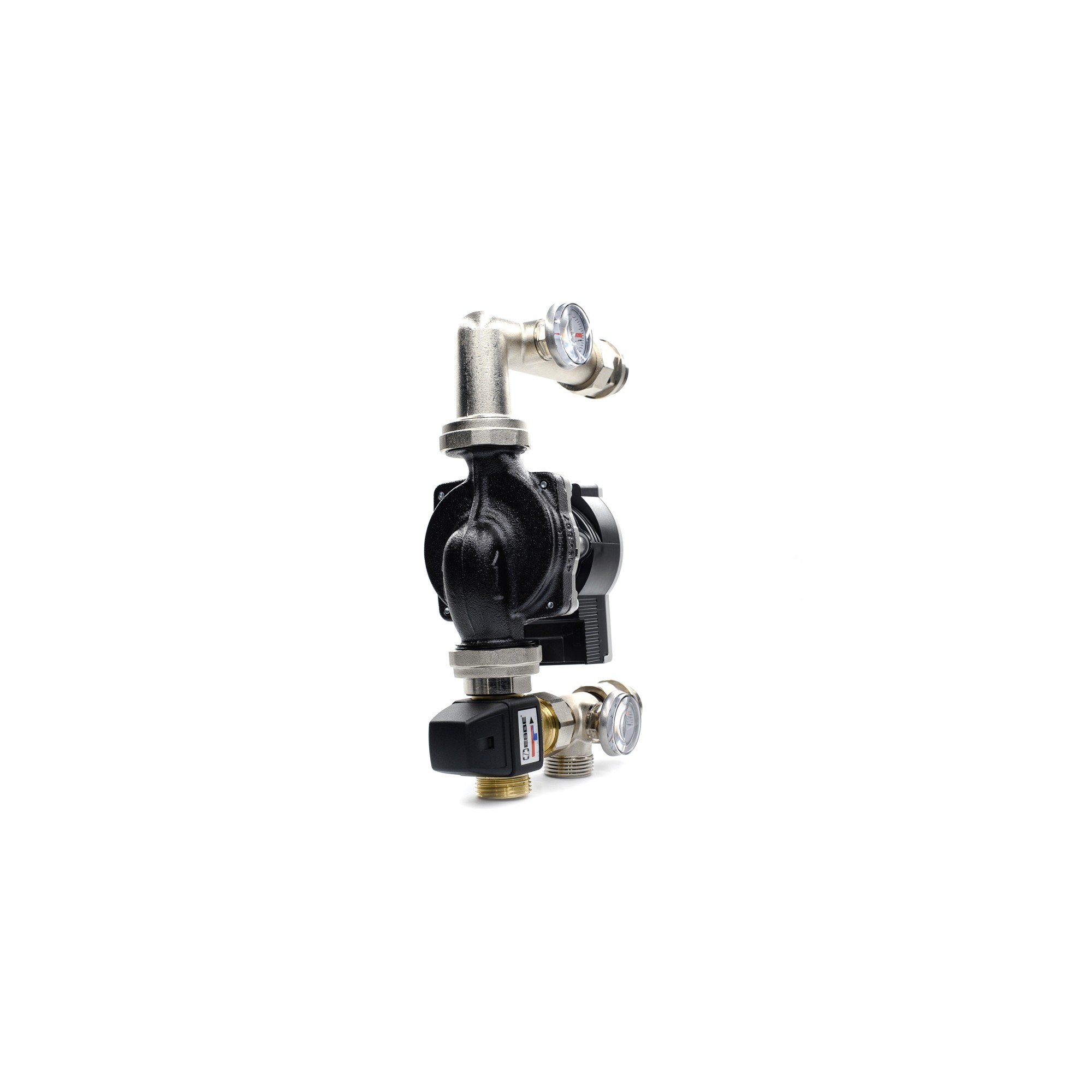

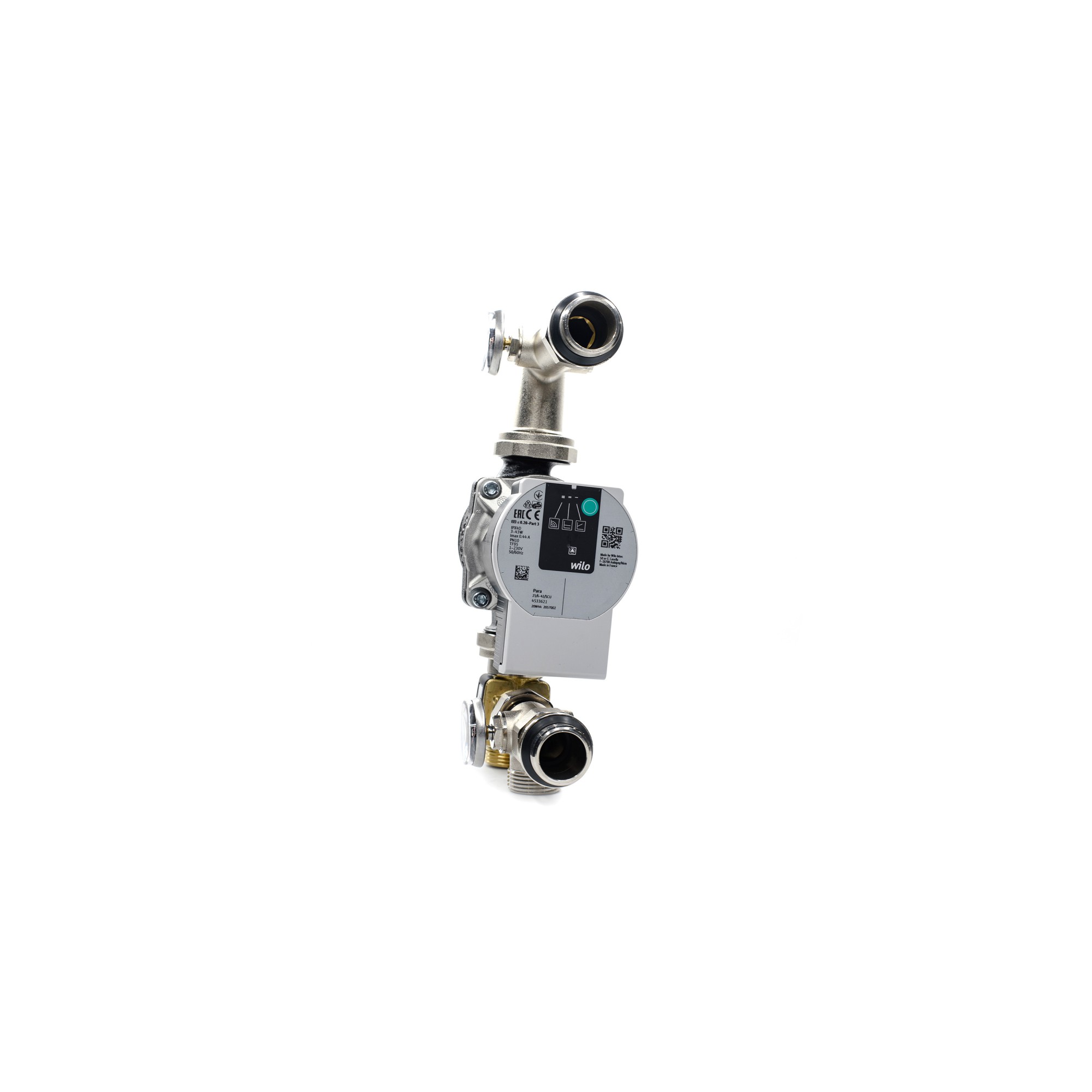

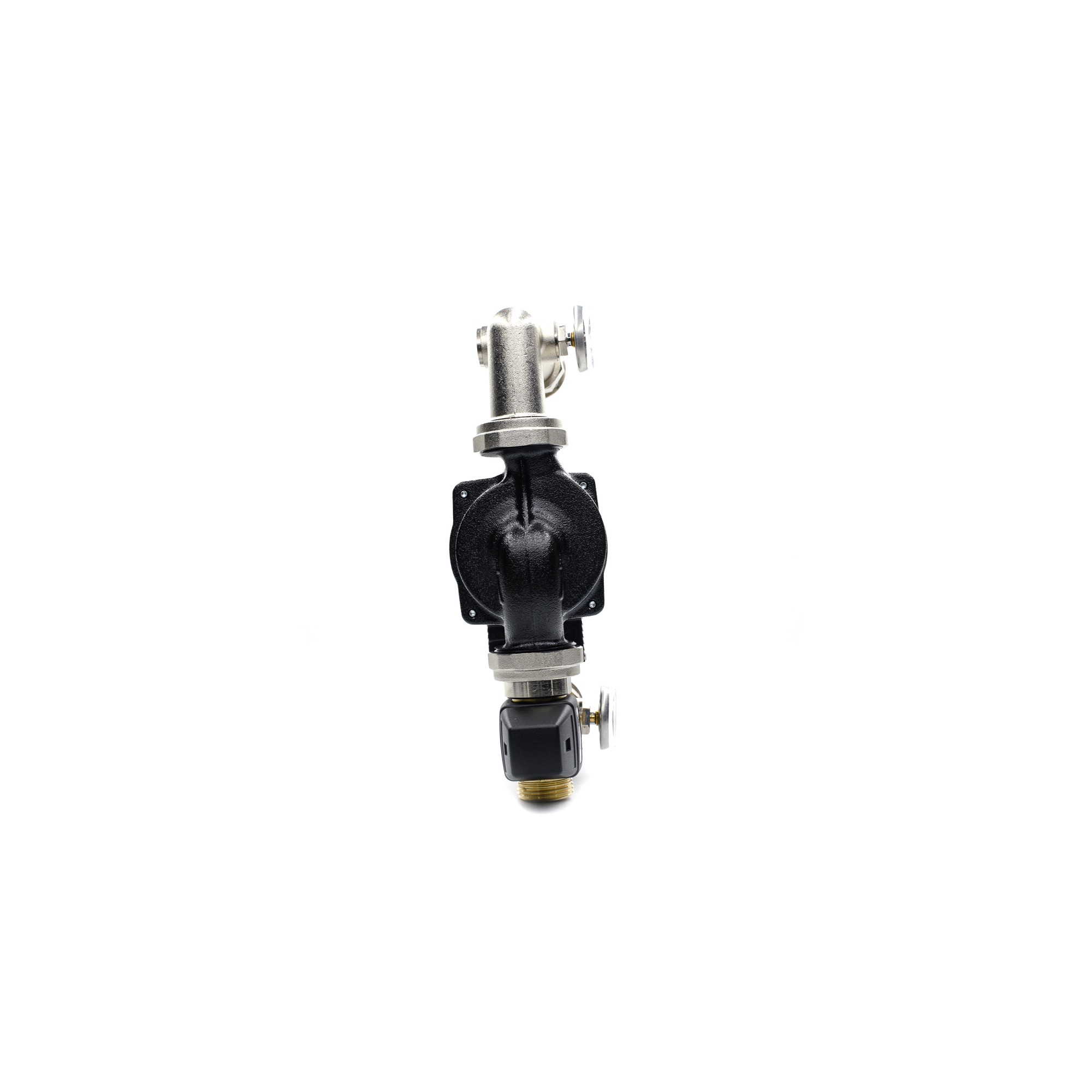

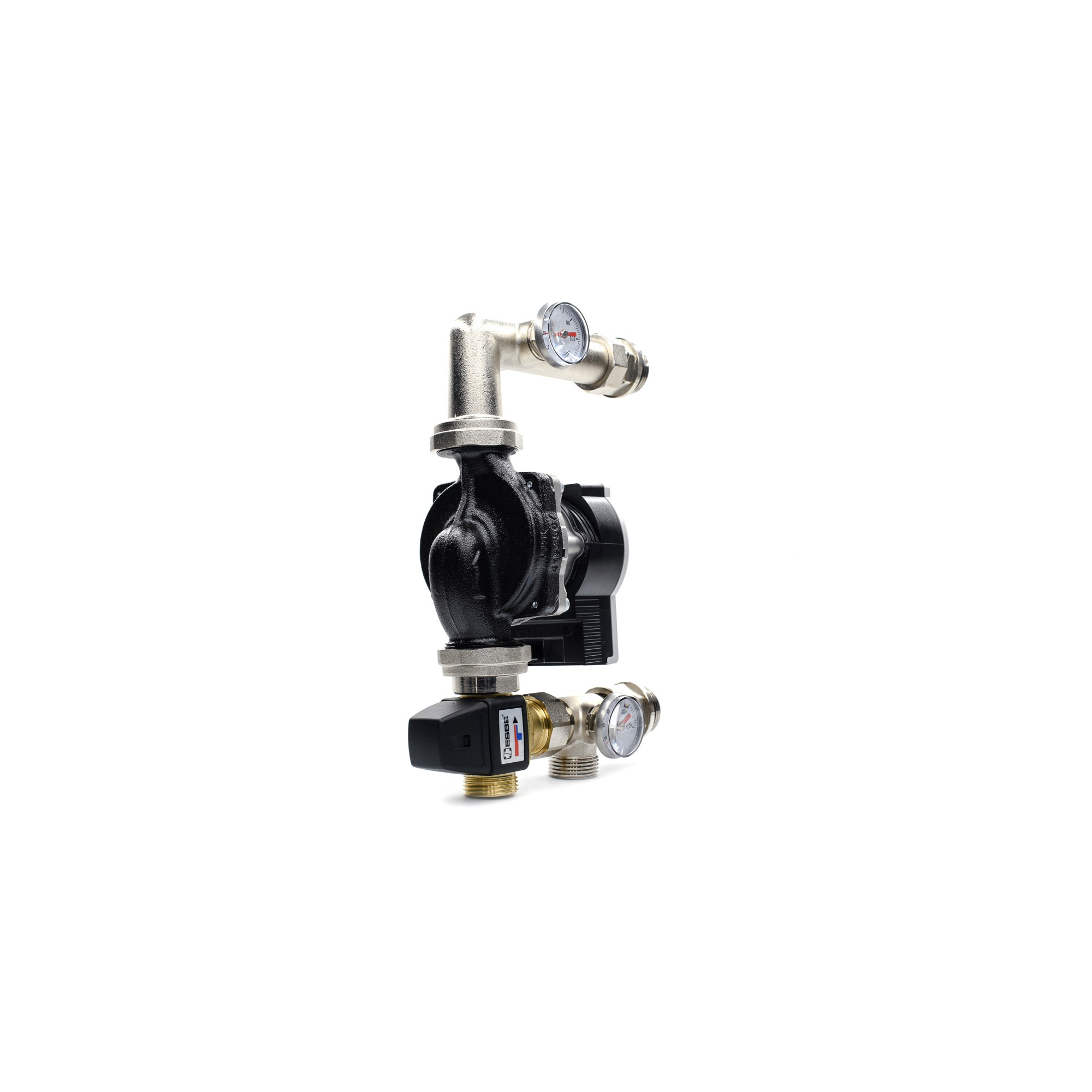

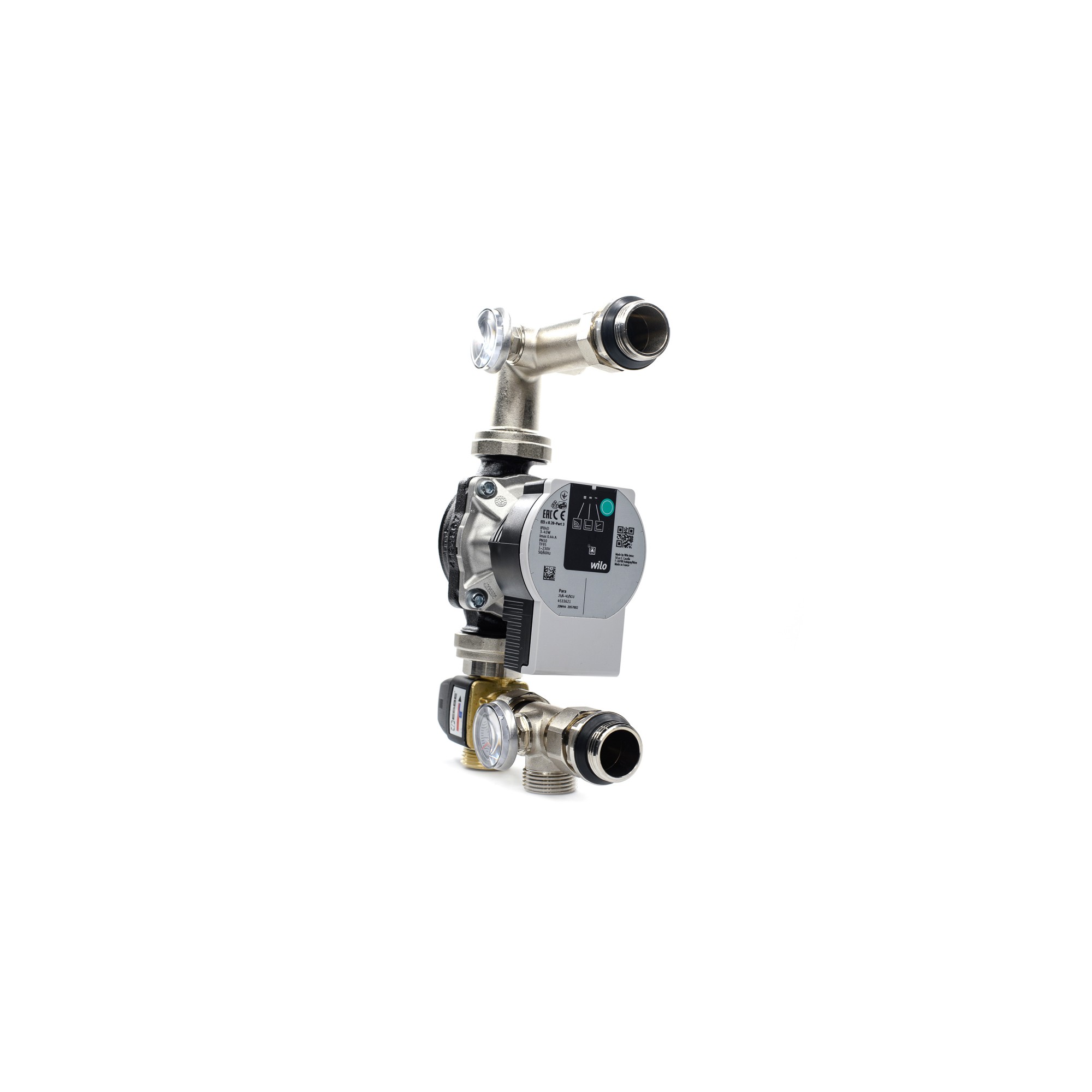

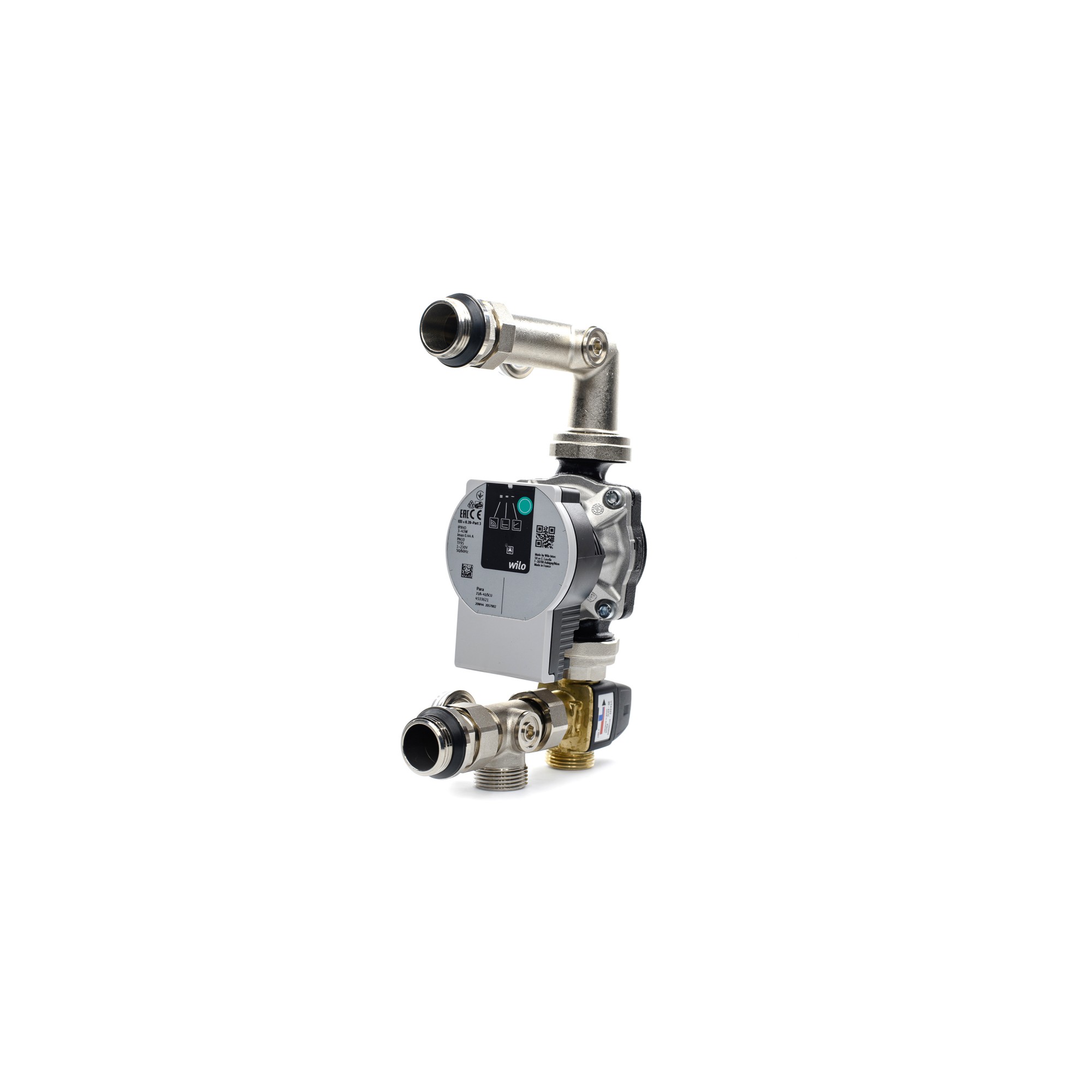

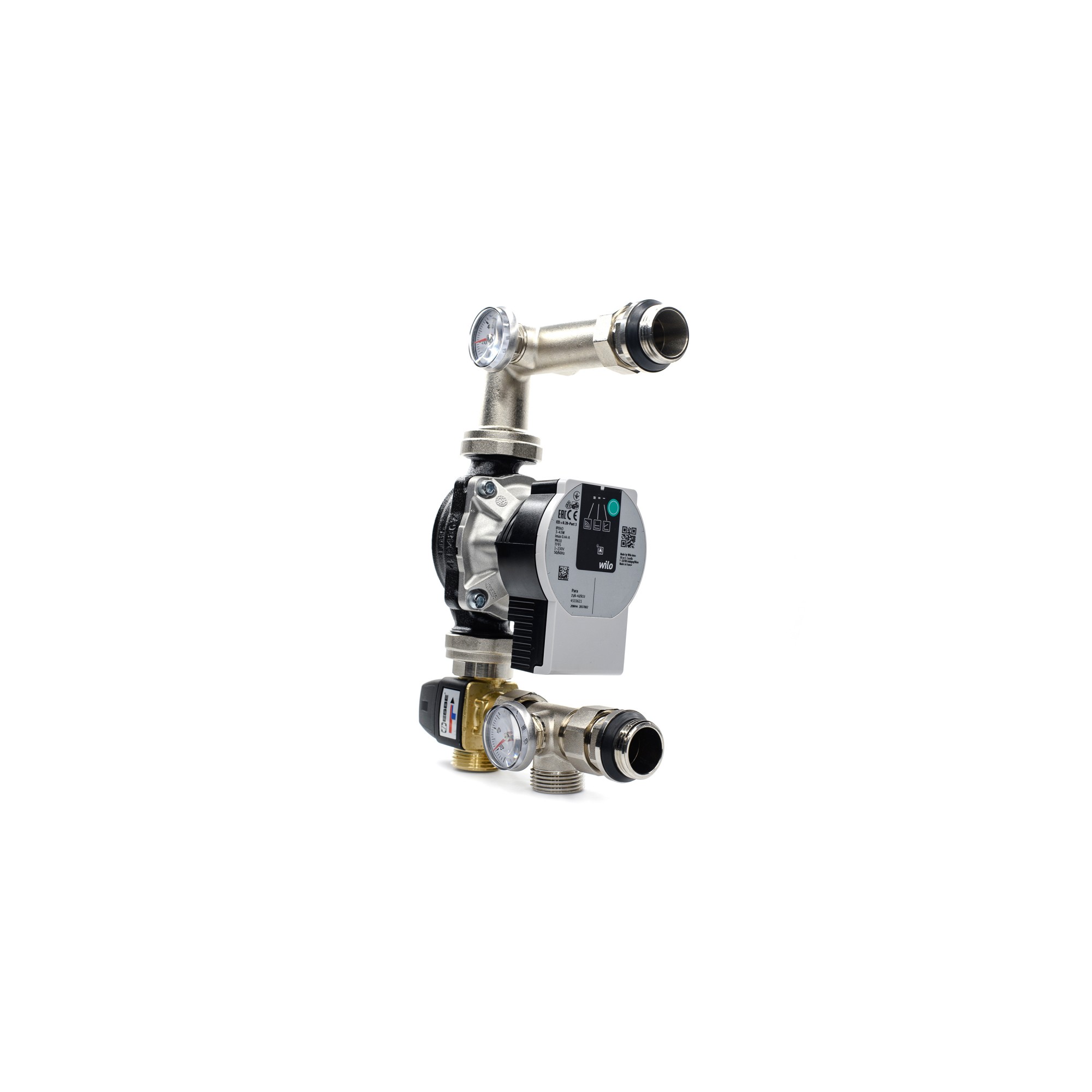

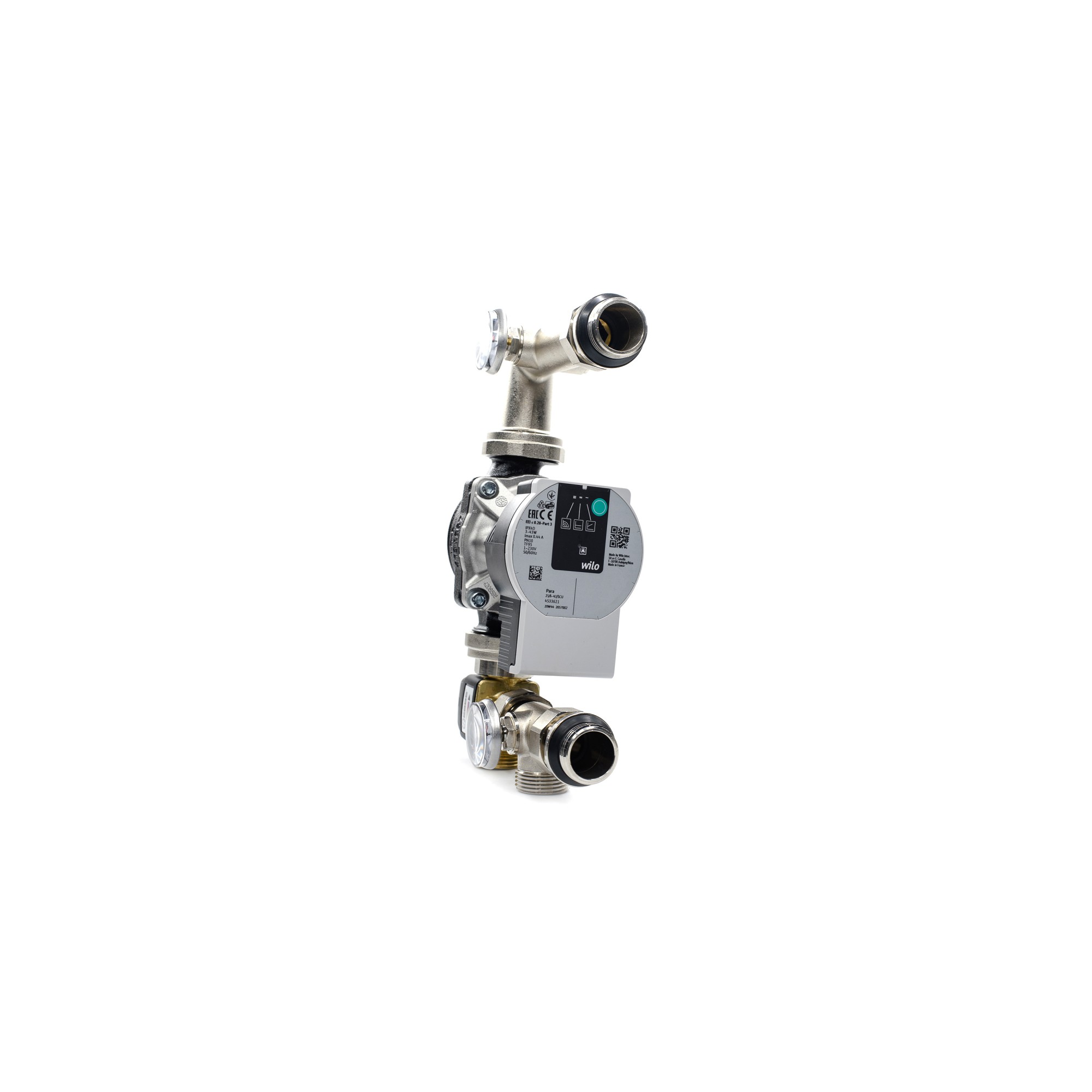

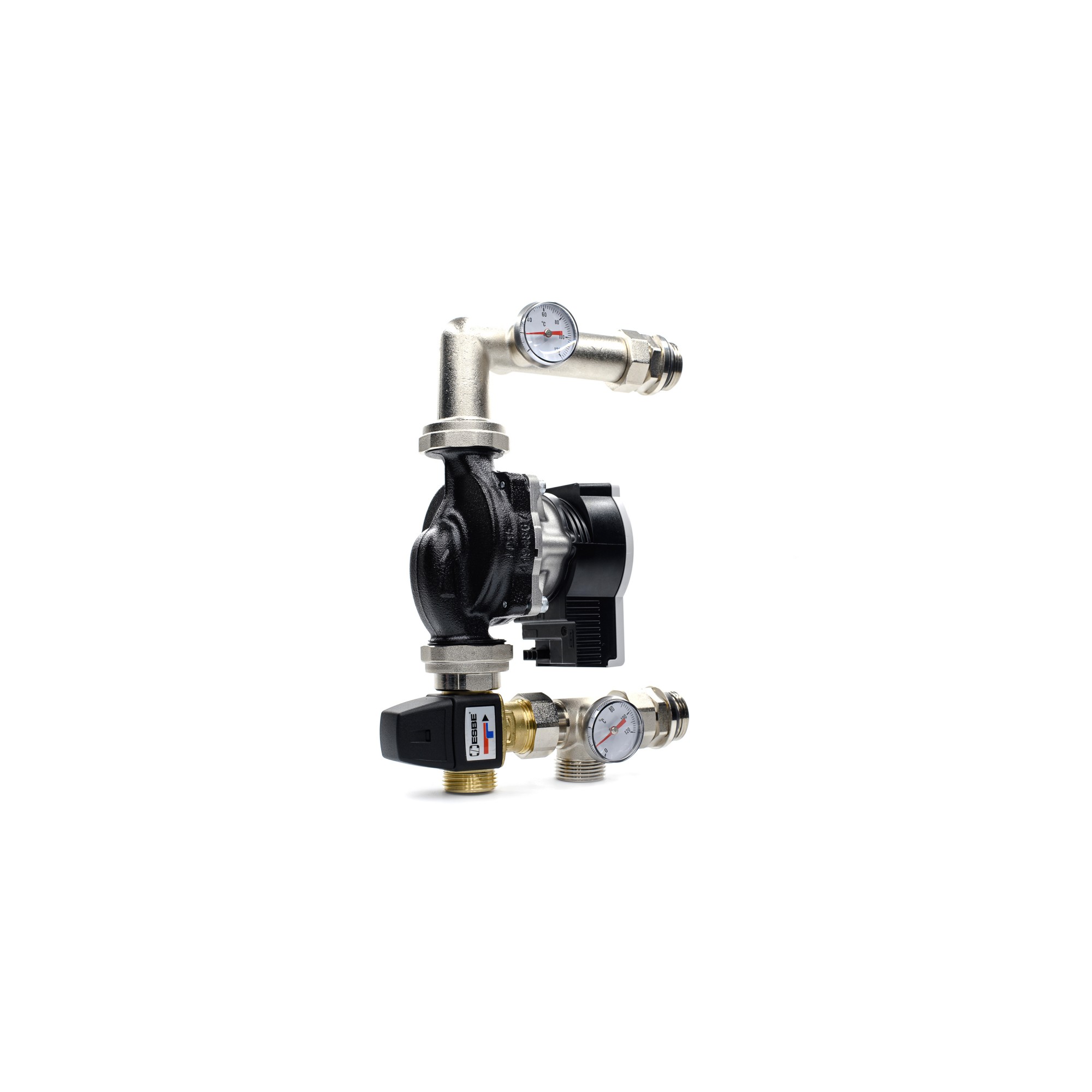

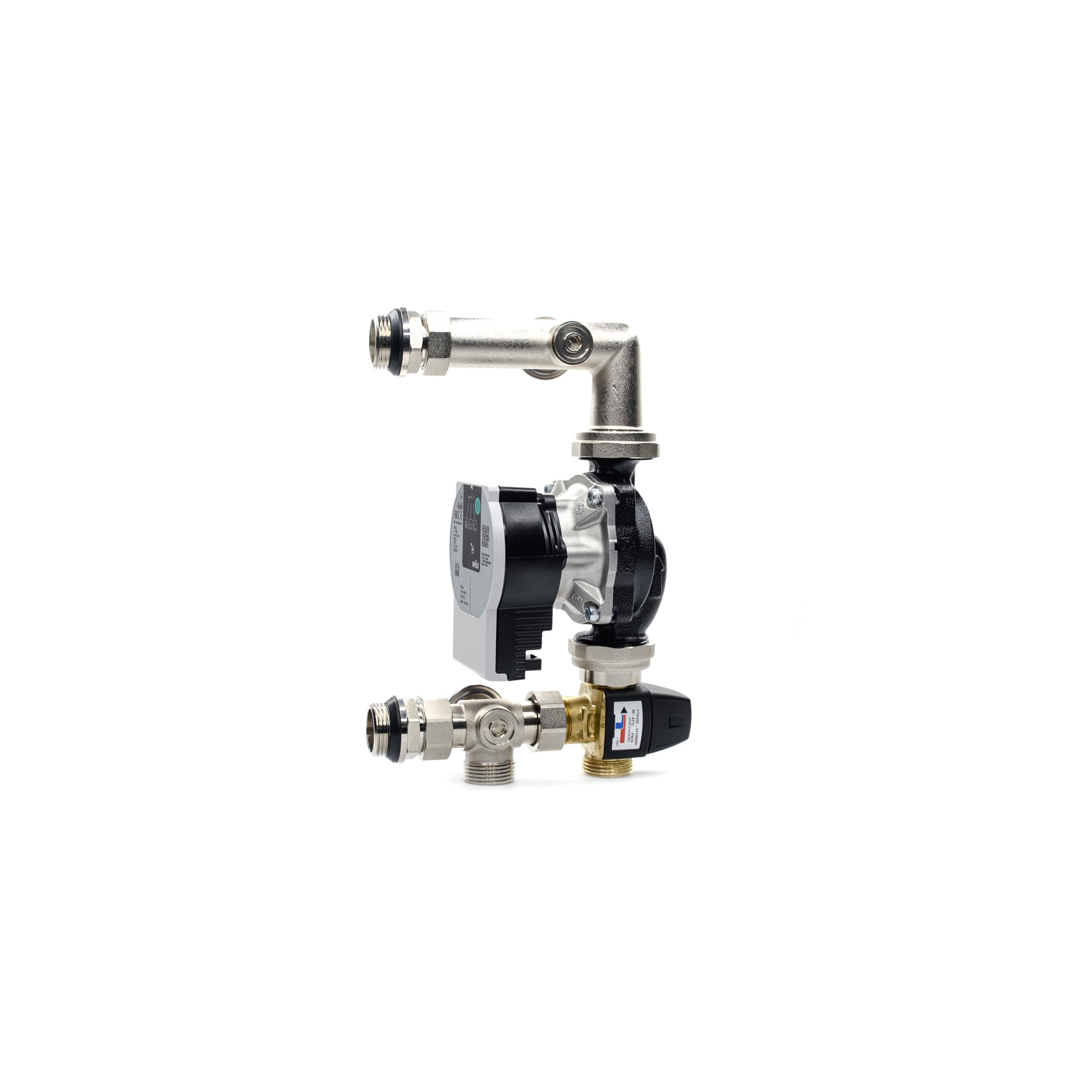

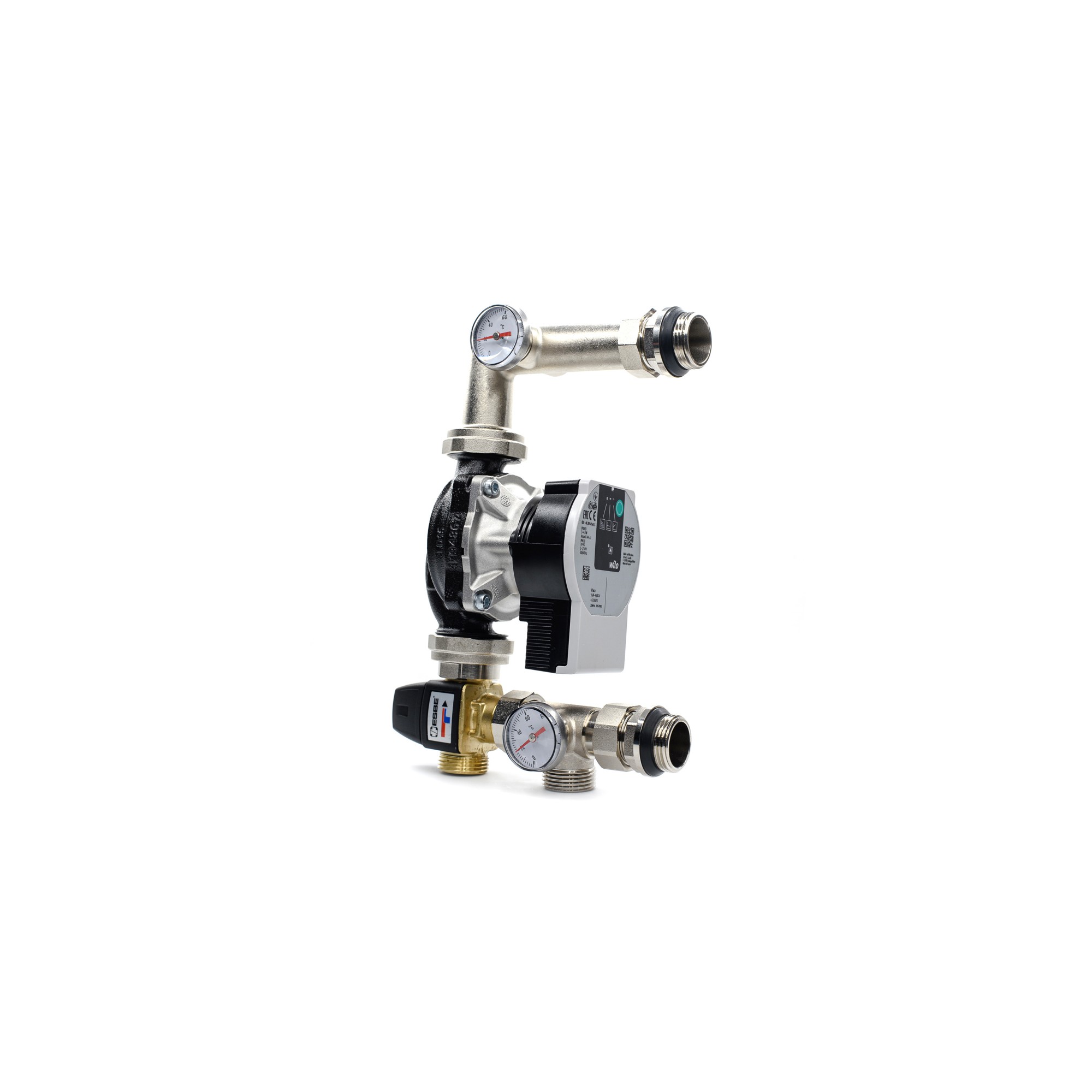

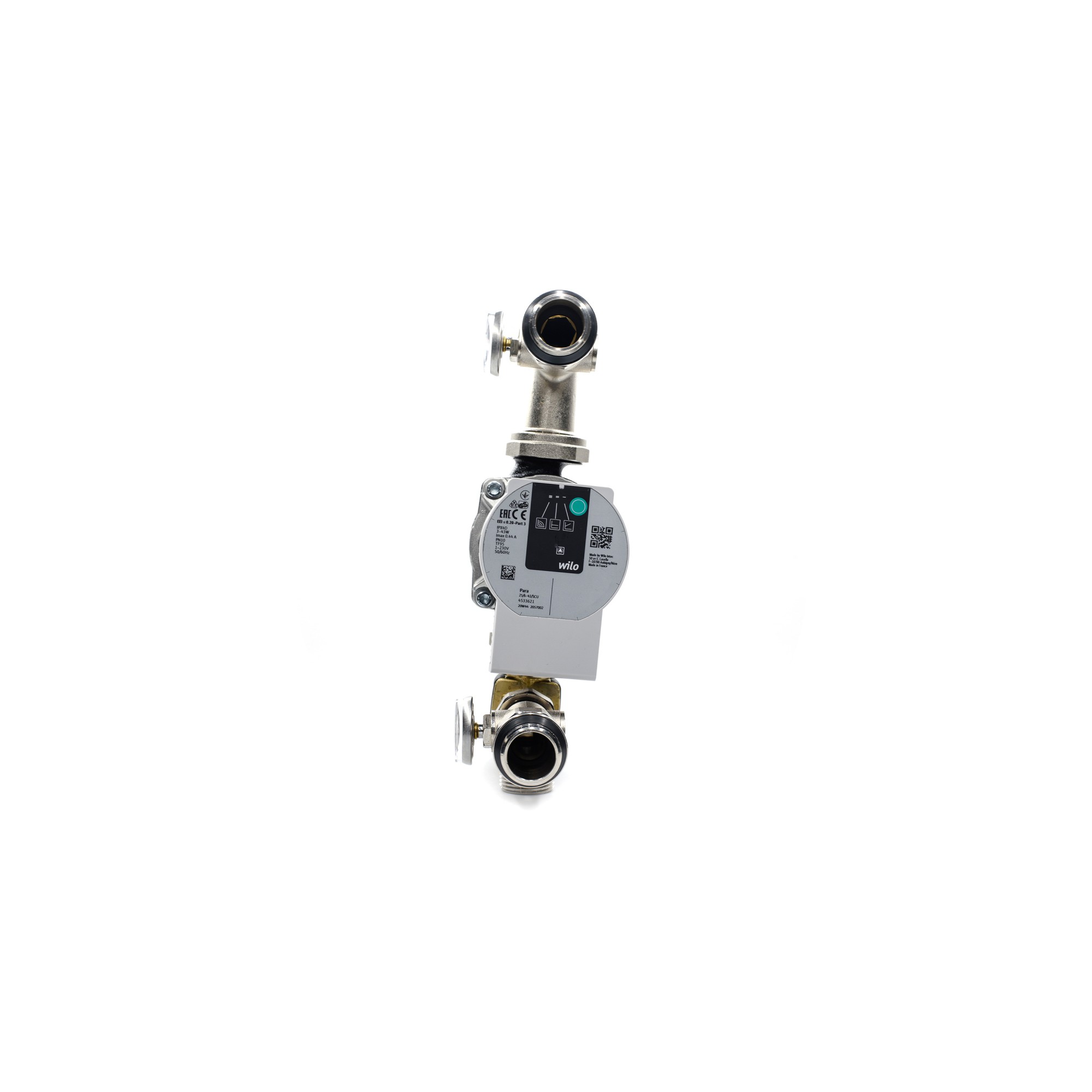

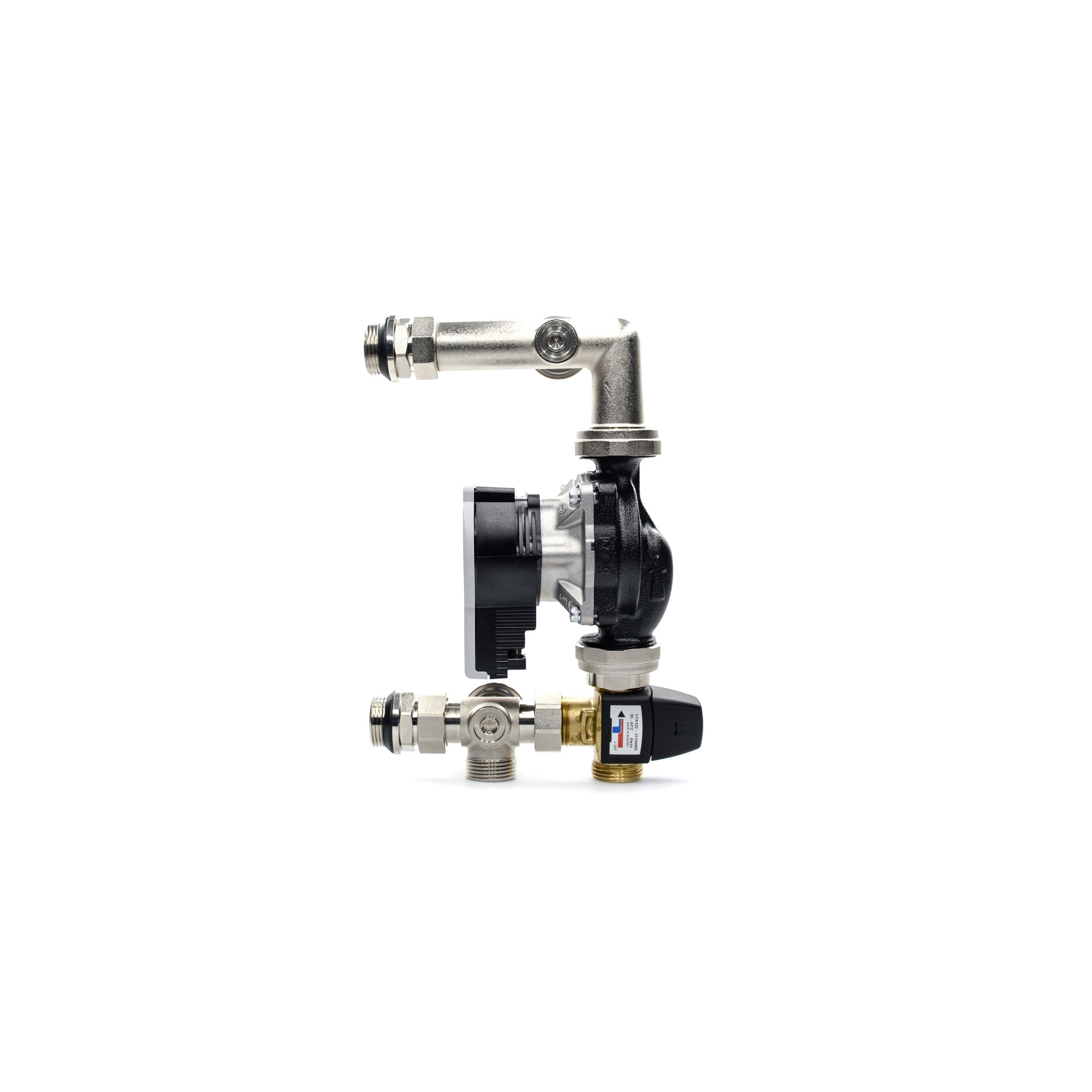

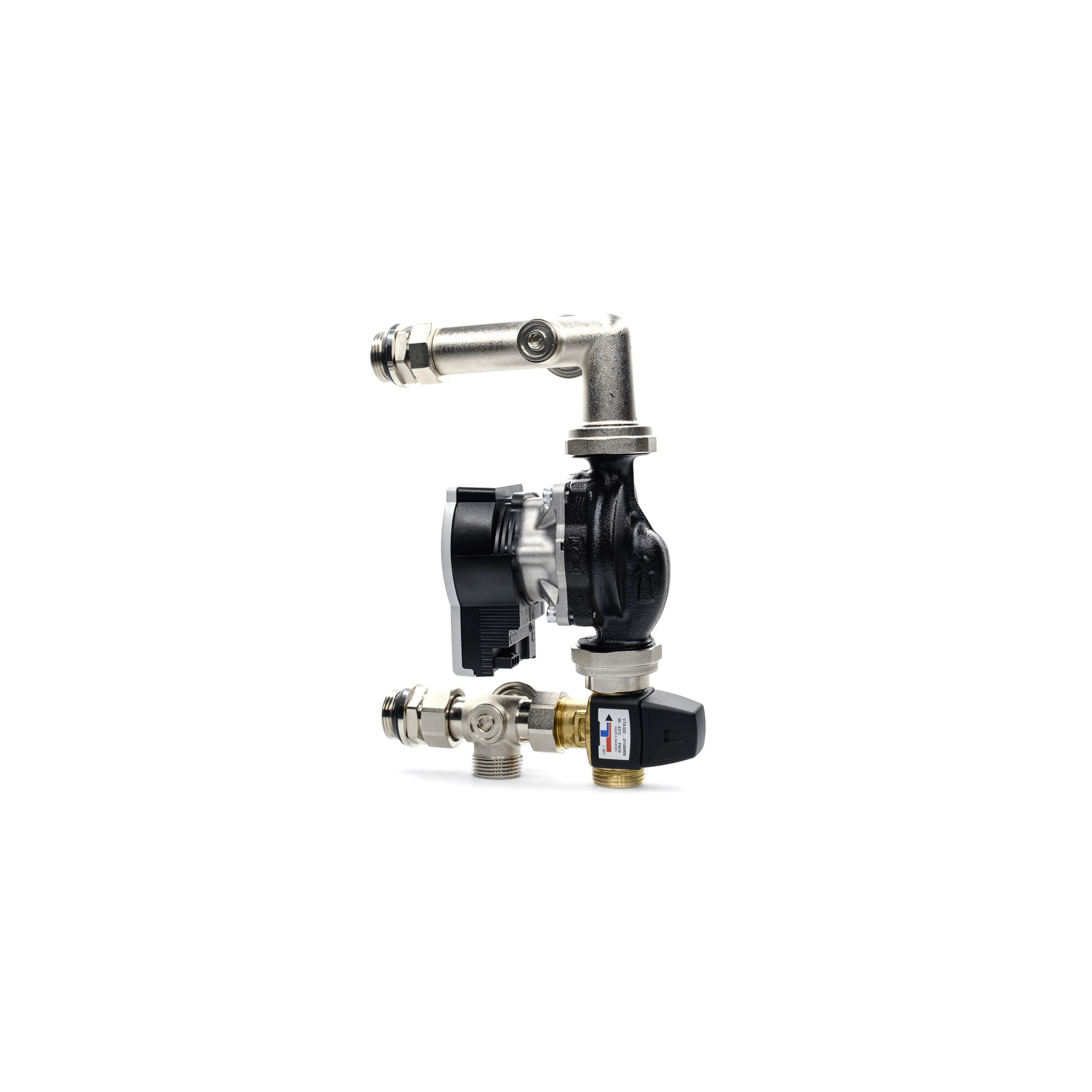

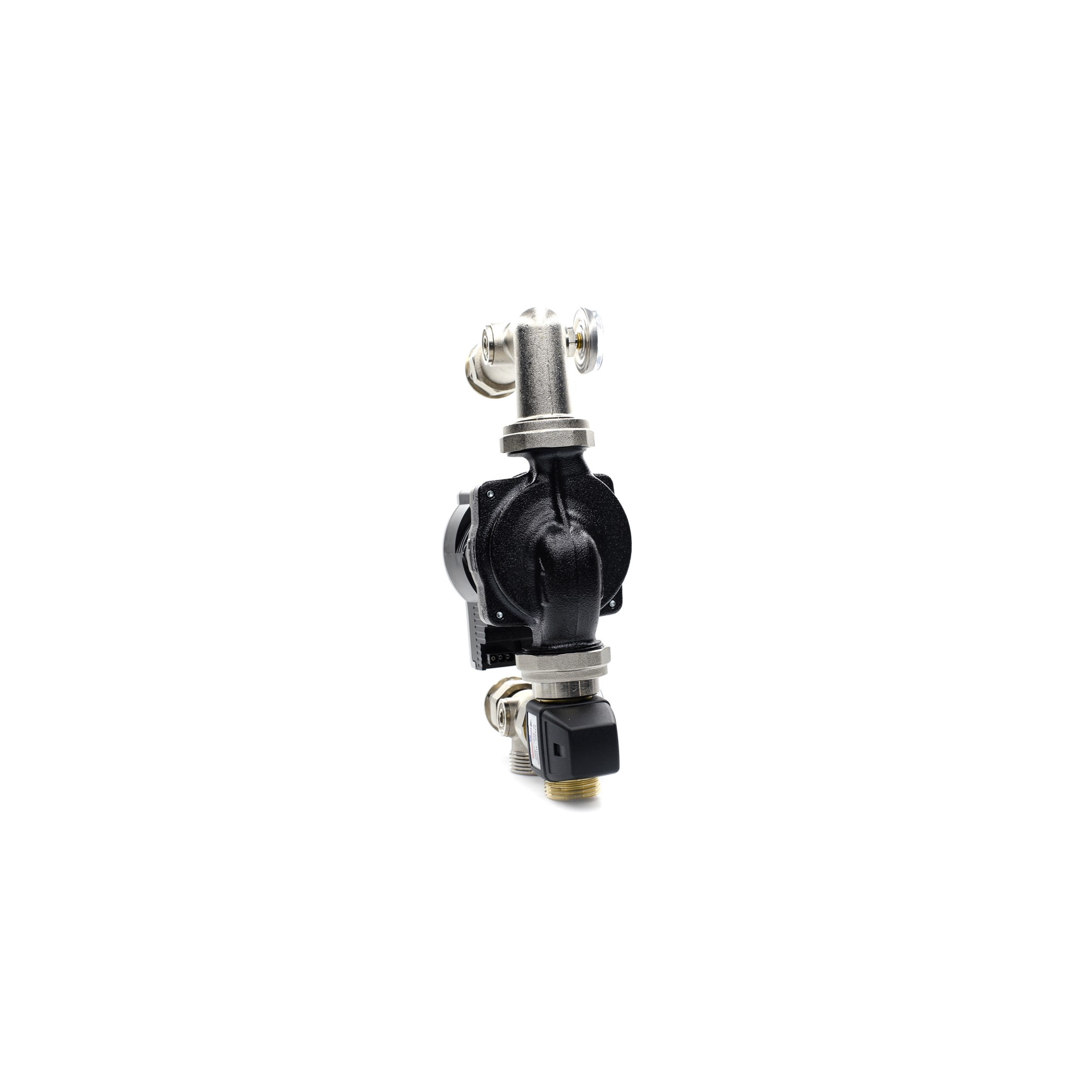

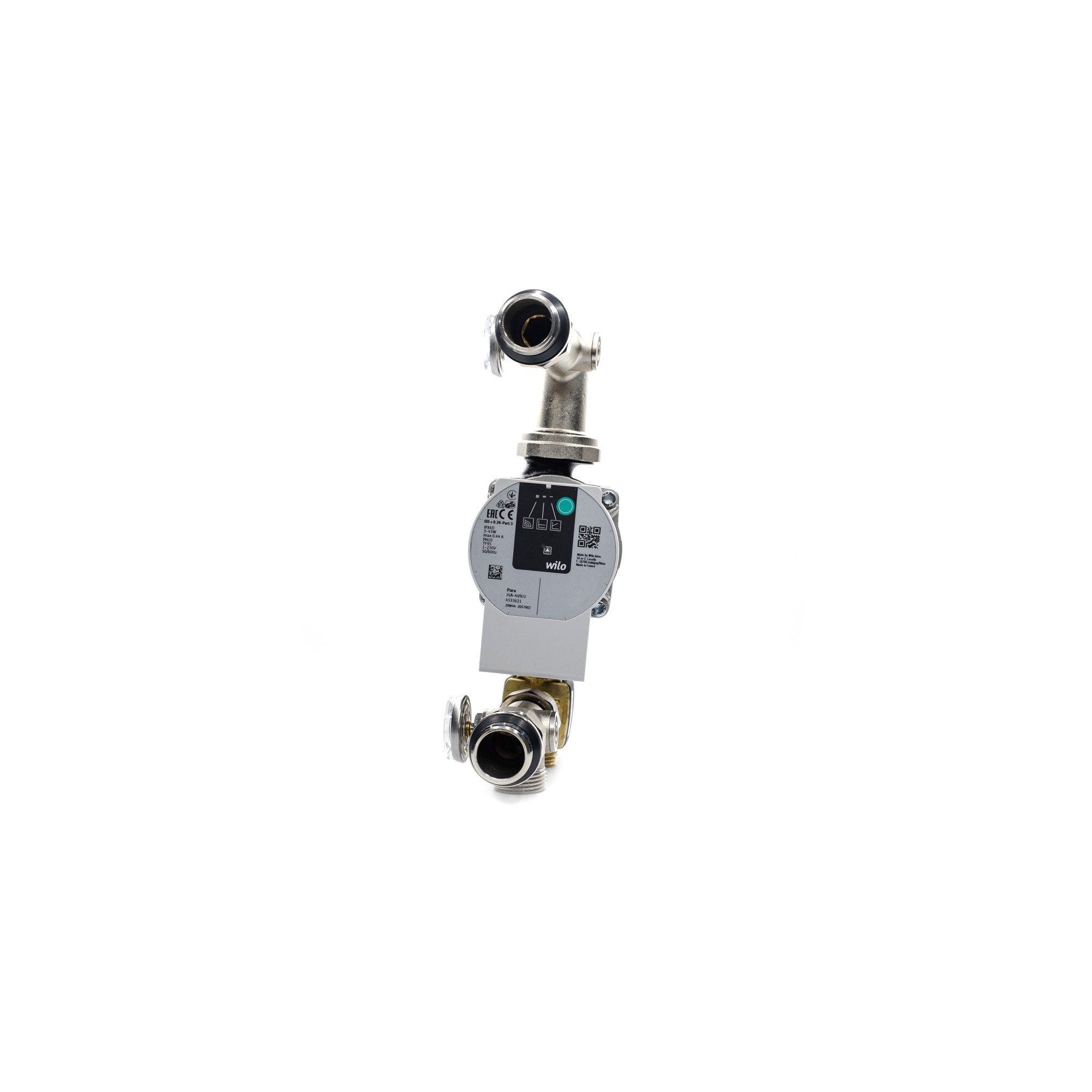

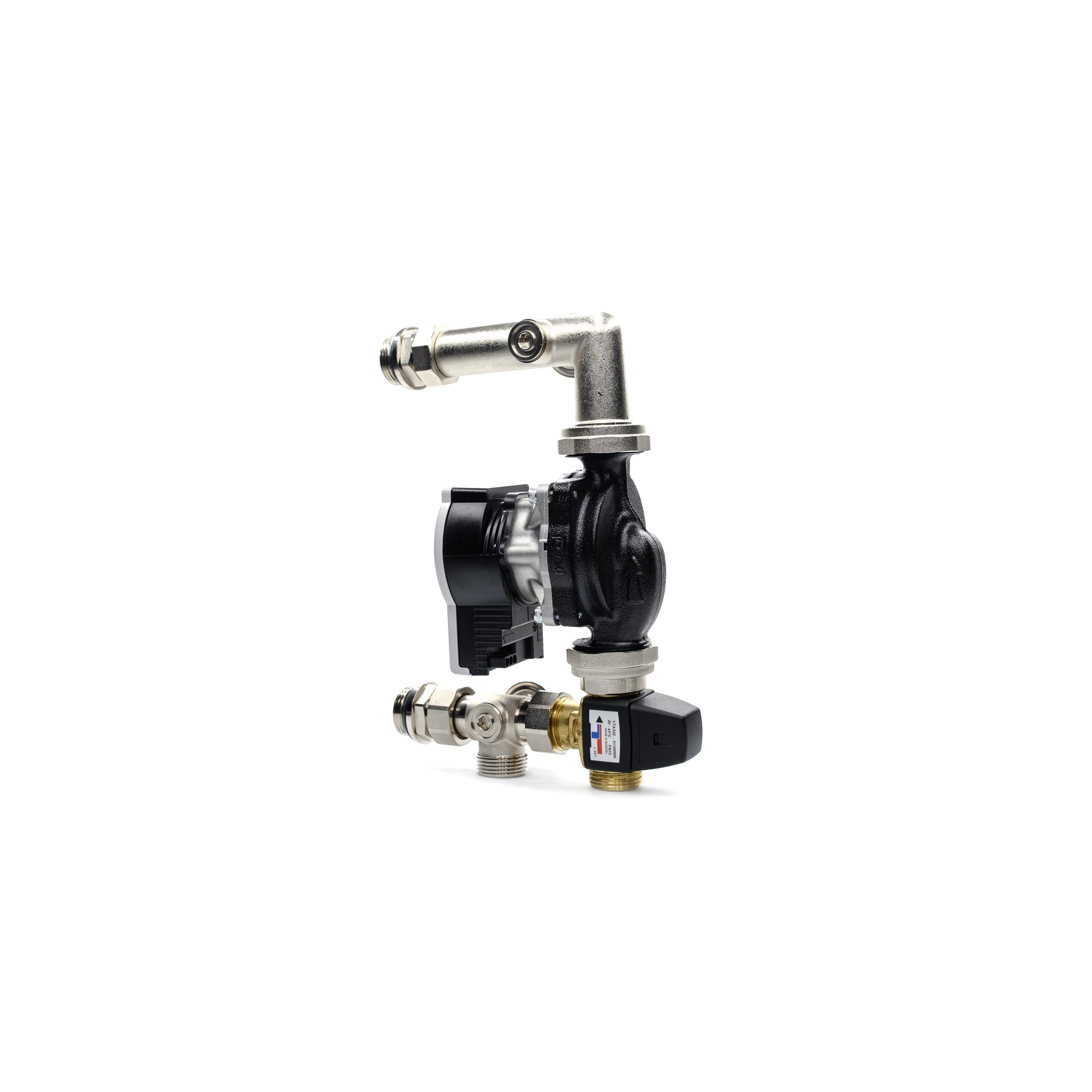

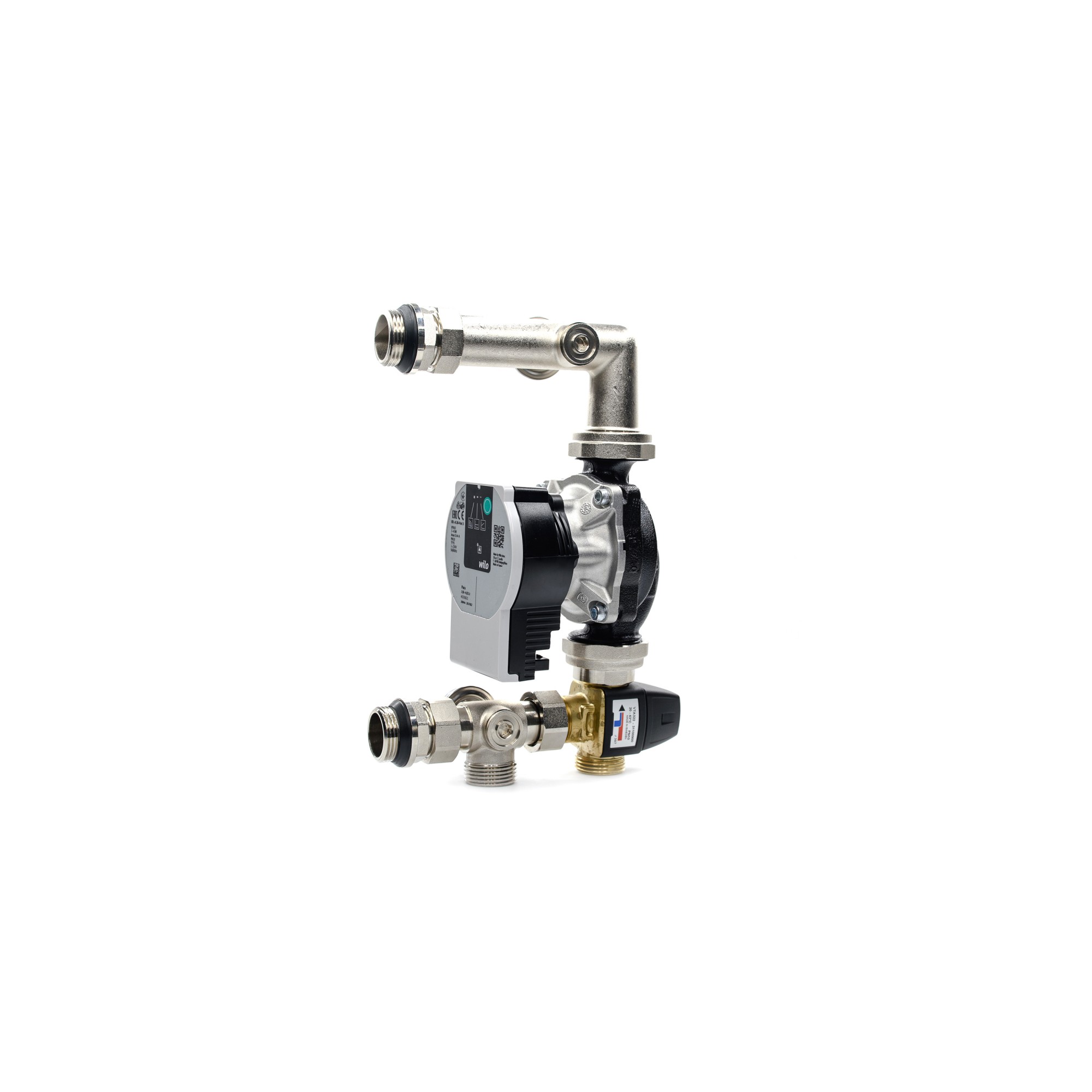

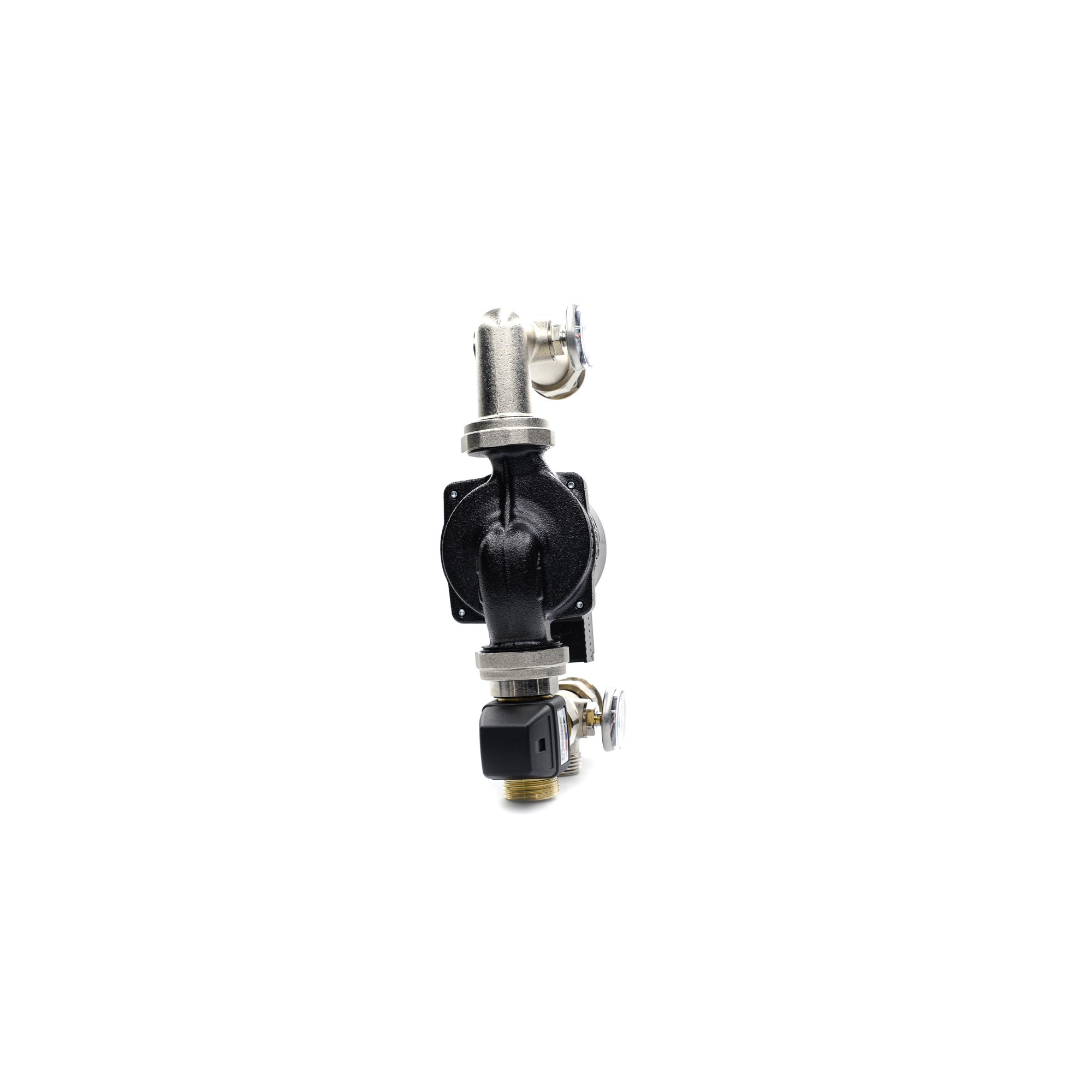

Mixing pump set for manifolds consists of:
- three-way thermostatic mixing valve ESBE VTA322 or VTA372
- Wilo YONOS Para RS25/7 pump
- thermometers on supply and return beam
- 1" pump gauge port for manifold and heat source
Single pack | Pallet | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
Index | Type | Valve | Spacing of manifold connections (mm) |
Net weight (kg) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
F-3400018 | EV 210 | 3D ESBE VTA 322 | 210 | 4 | 1 | 34 x 23 x 16.5 | 4.3 | 60 | 120 x 80 x 115 | 278 |
F-3400020 | EV 210 PL | 3D ESBE VTA 372 | 210 | 3.9 | 1 | 34 x 23 x 16.5 | 4.2 | 60 | 120 x 80 x 115 | 272 |
F-3400022 | EV 235 | 3D ESBE VTA 322 | 235 | 4.1 | 1 | 34 x 23 x 16.5 | 4.4 | 60 | 120 x 80 x 115 | 284 |
F-3400024 | EV 235 PL | 3D ESBE VTA 372 | 235 | 3.9 | 1 | 34 x 23 x 16.5 | 4.2 | 60 | 120 x 80 x 115 | 272 |
Technical drawing
