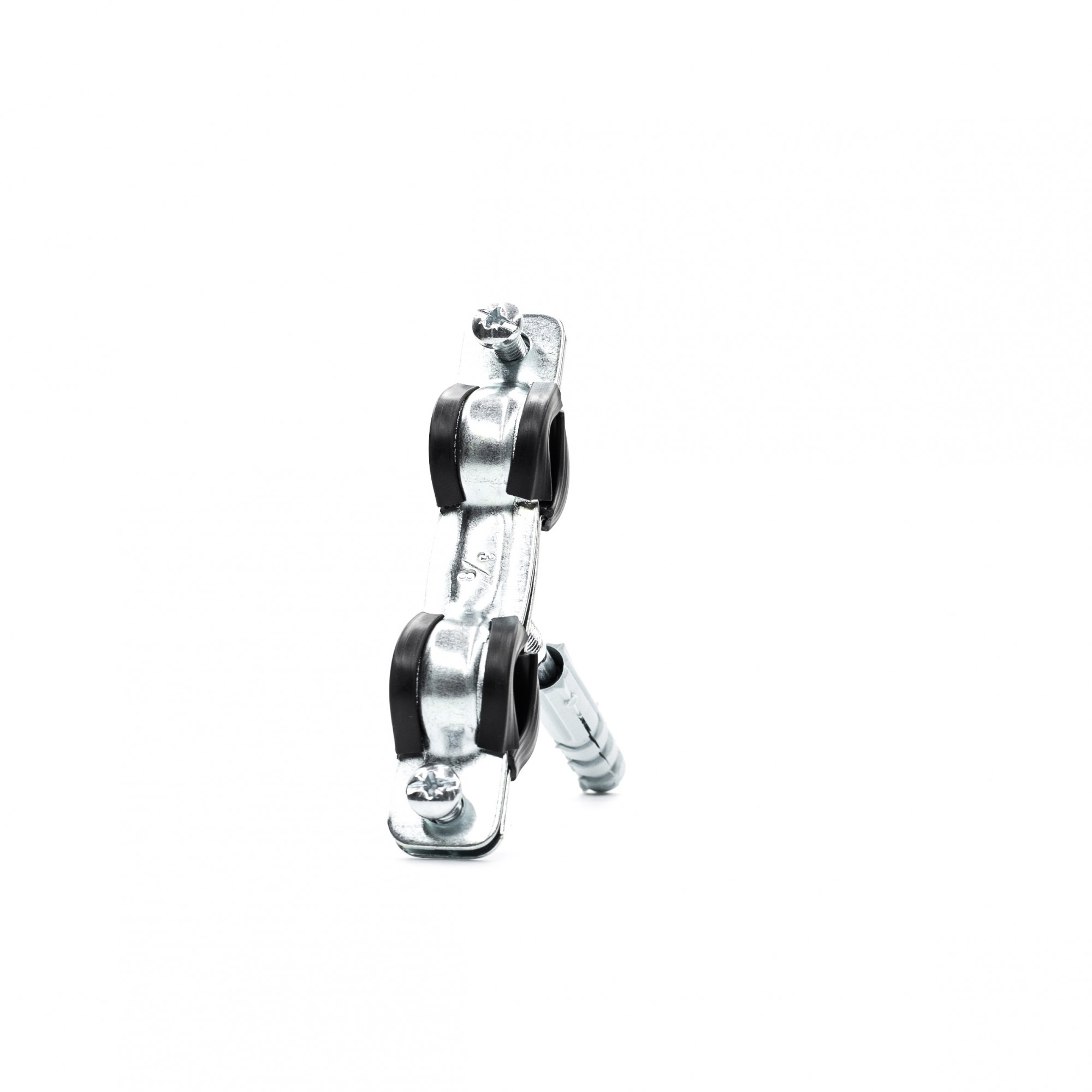

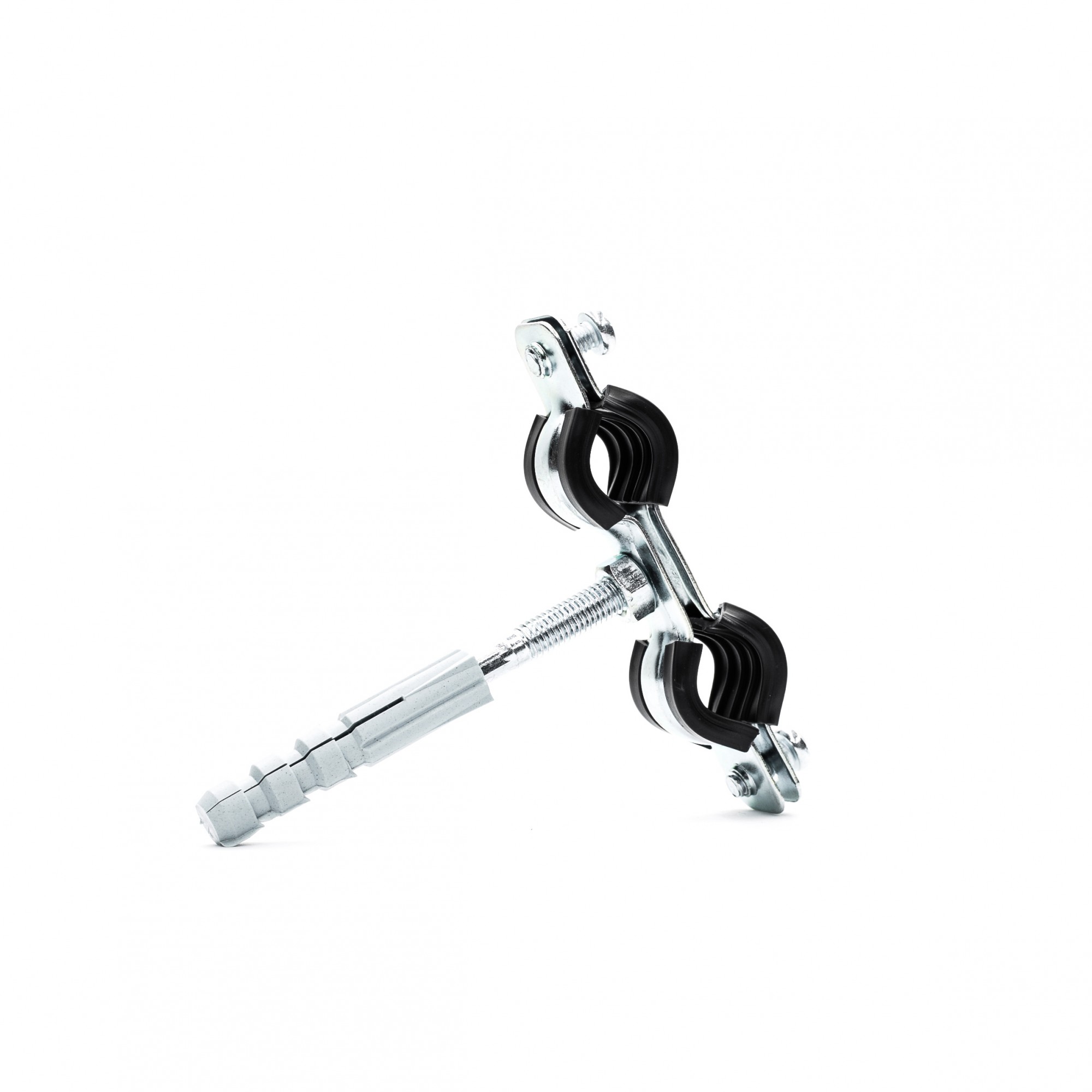

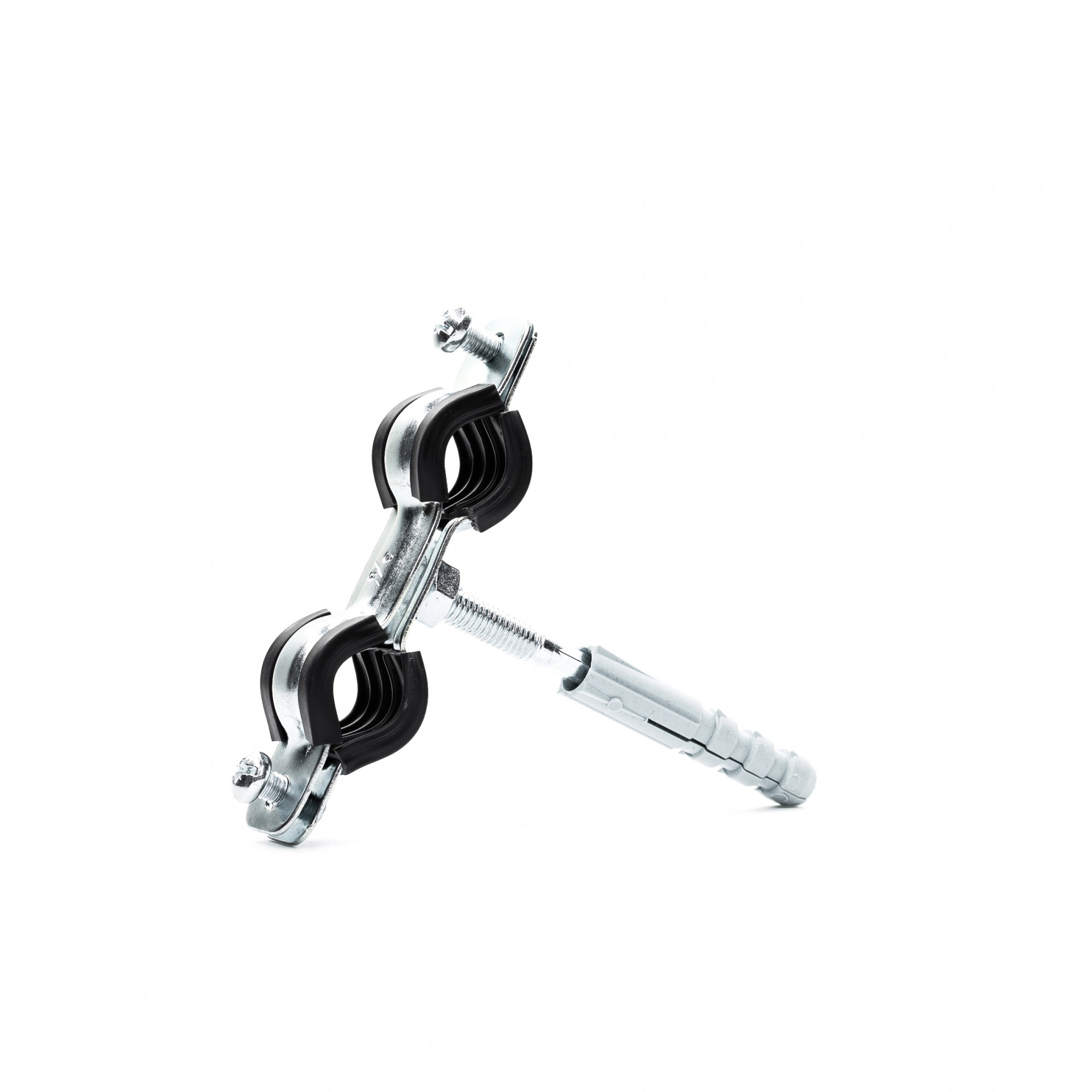

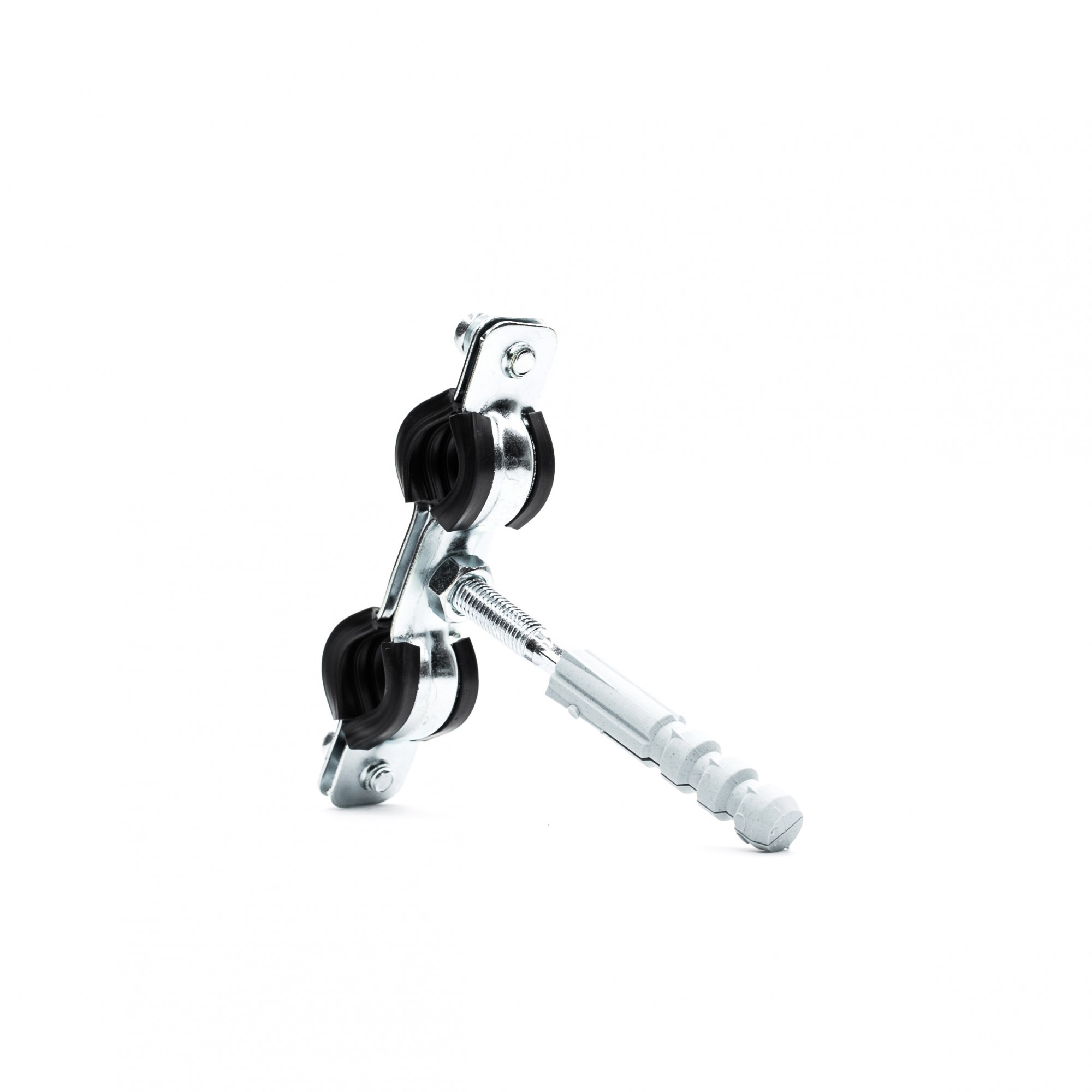

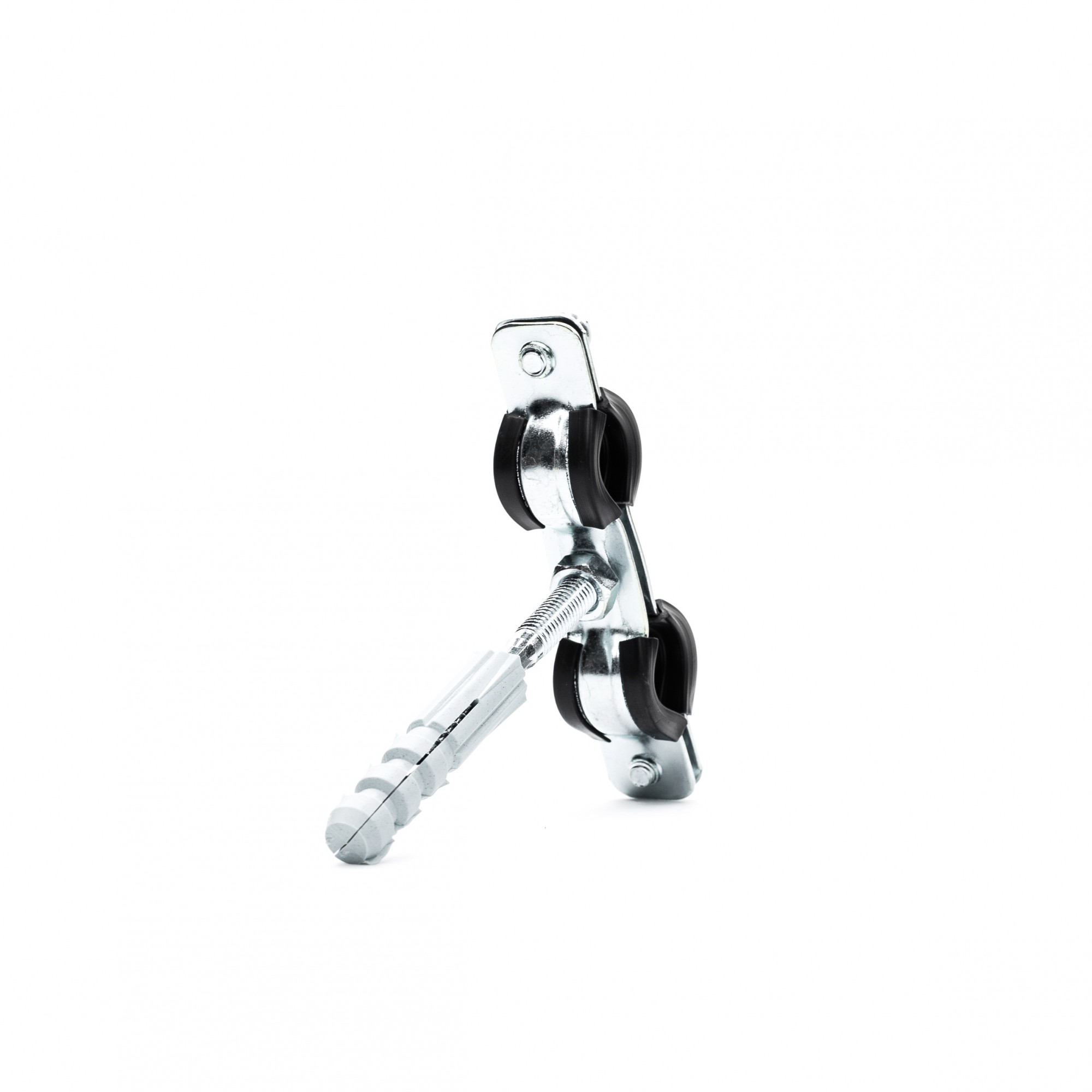

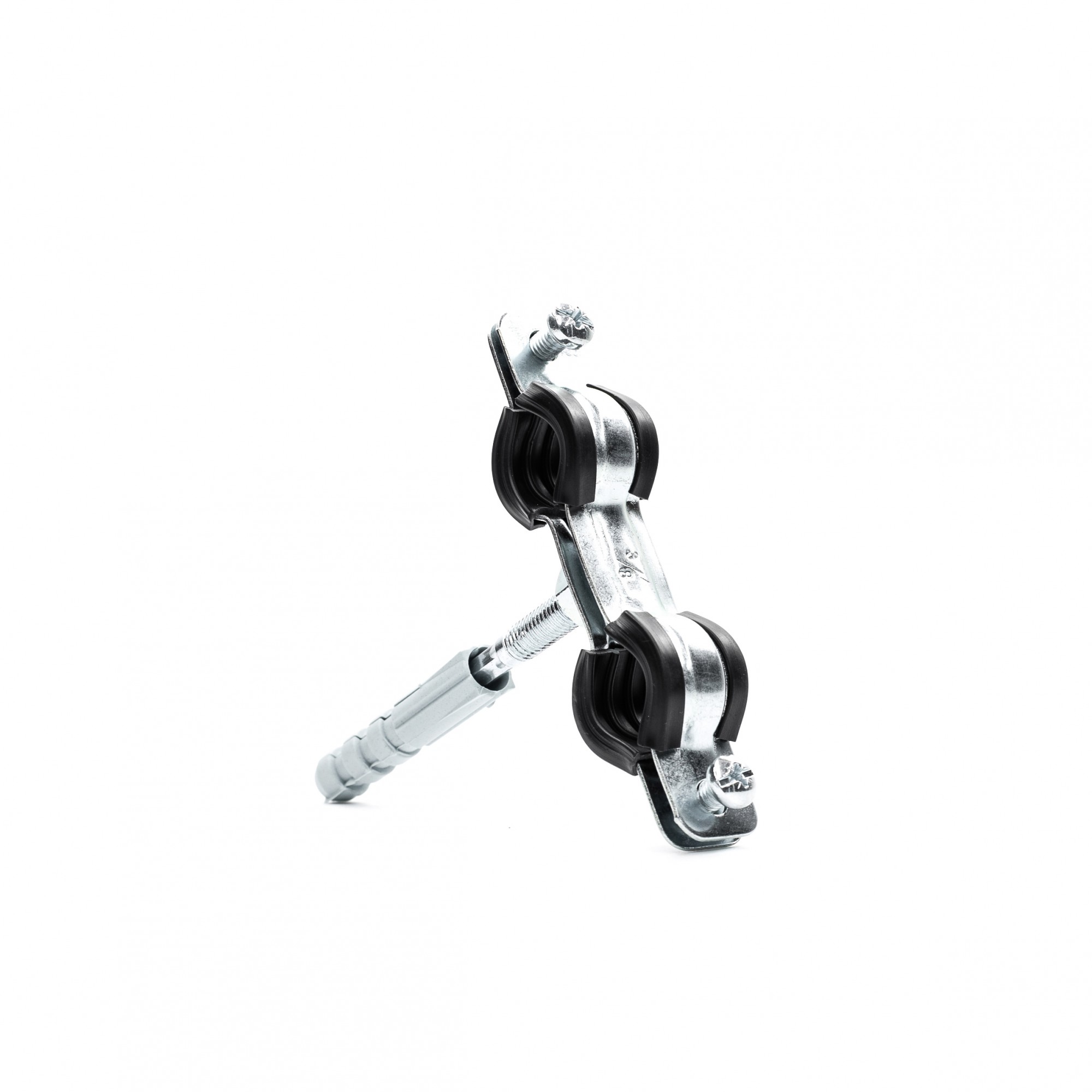

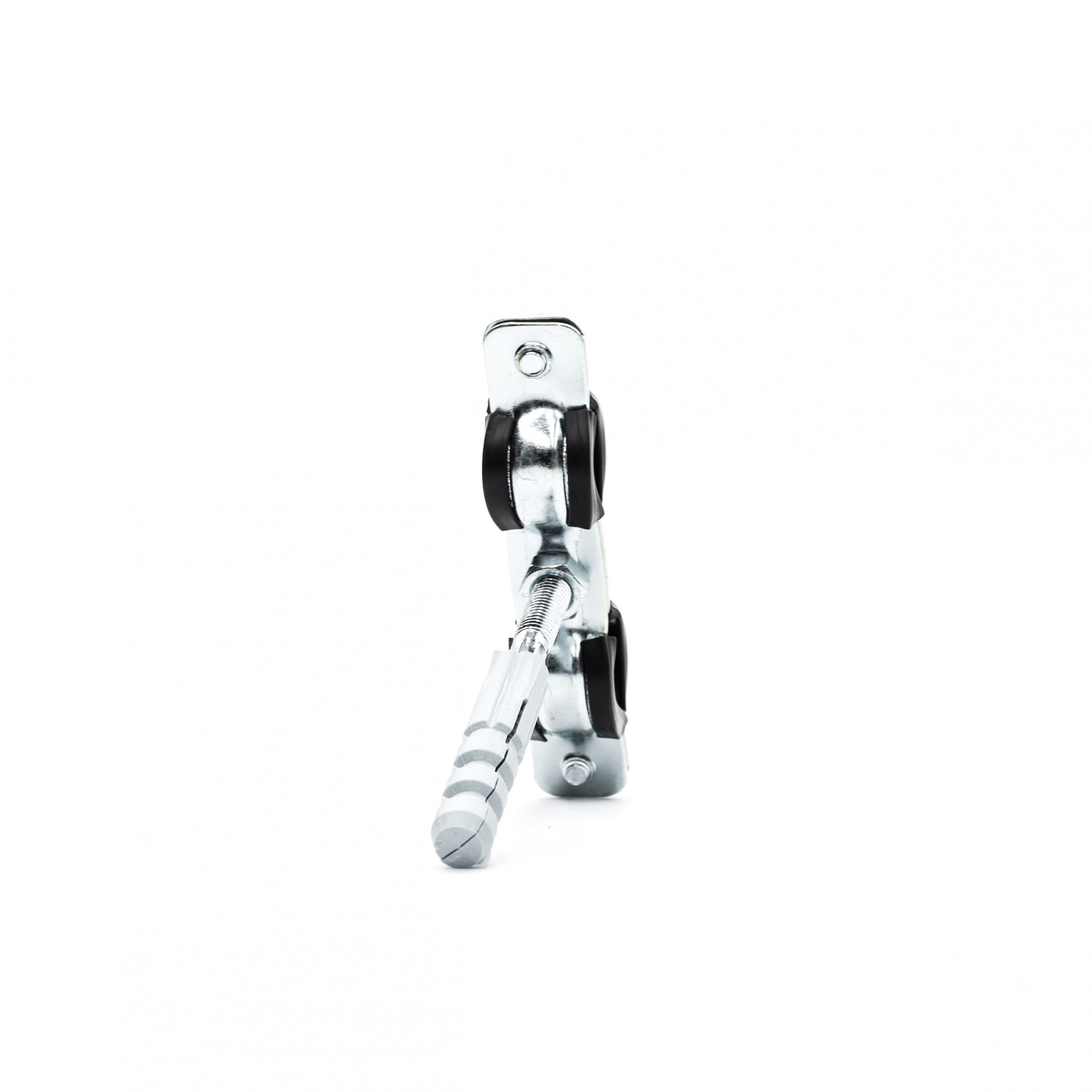

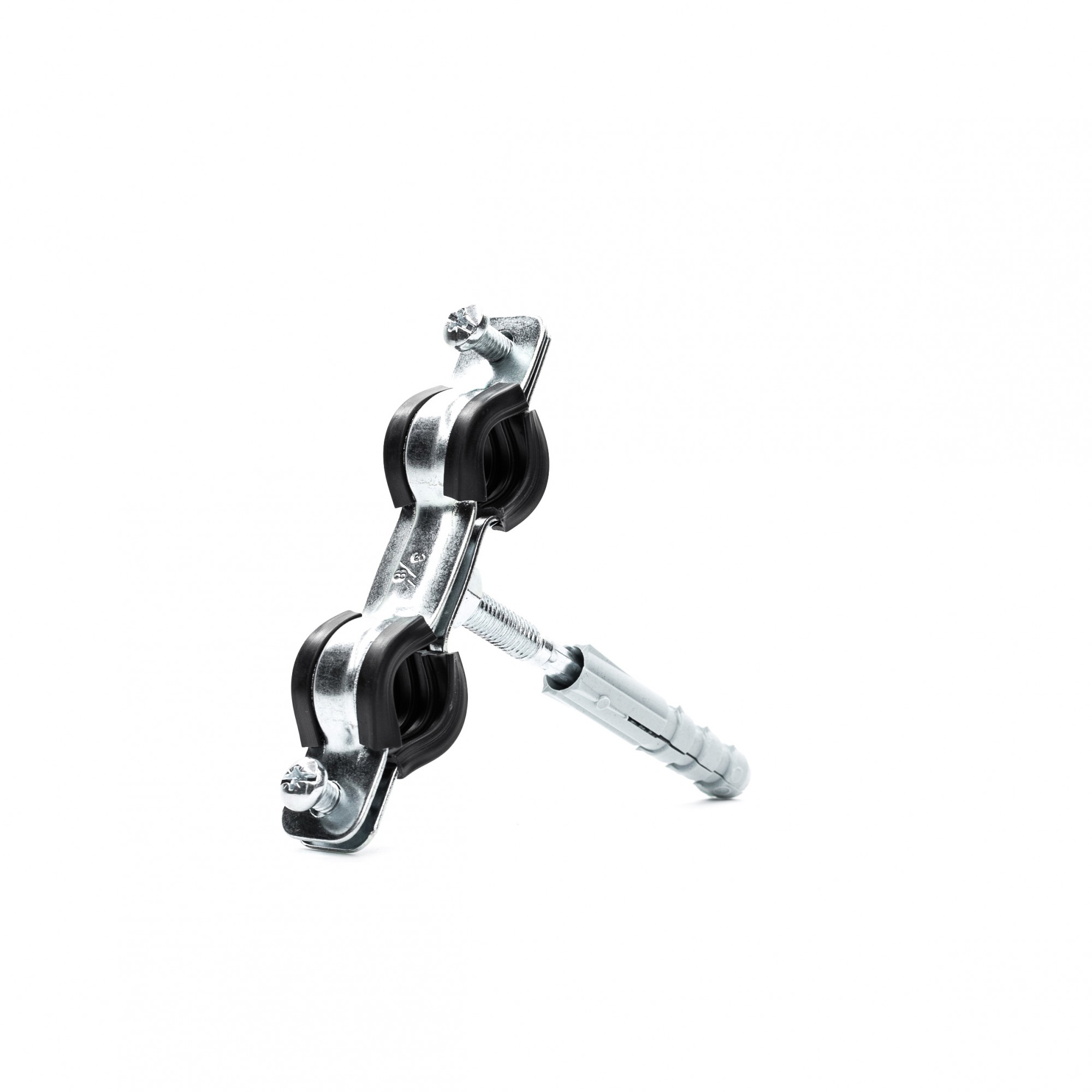

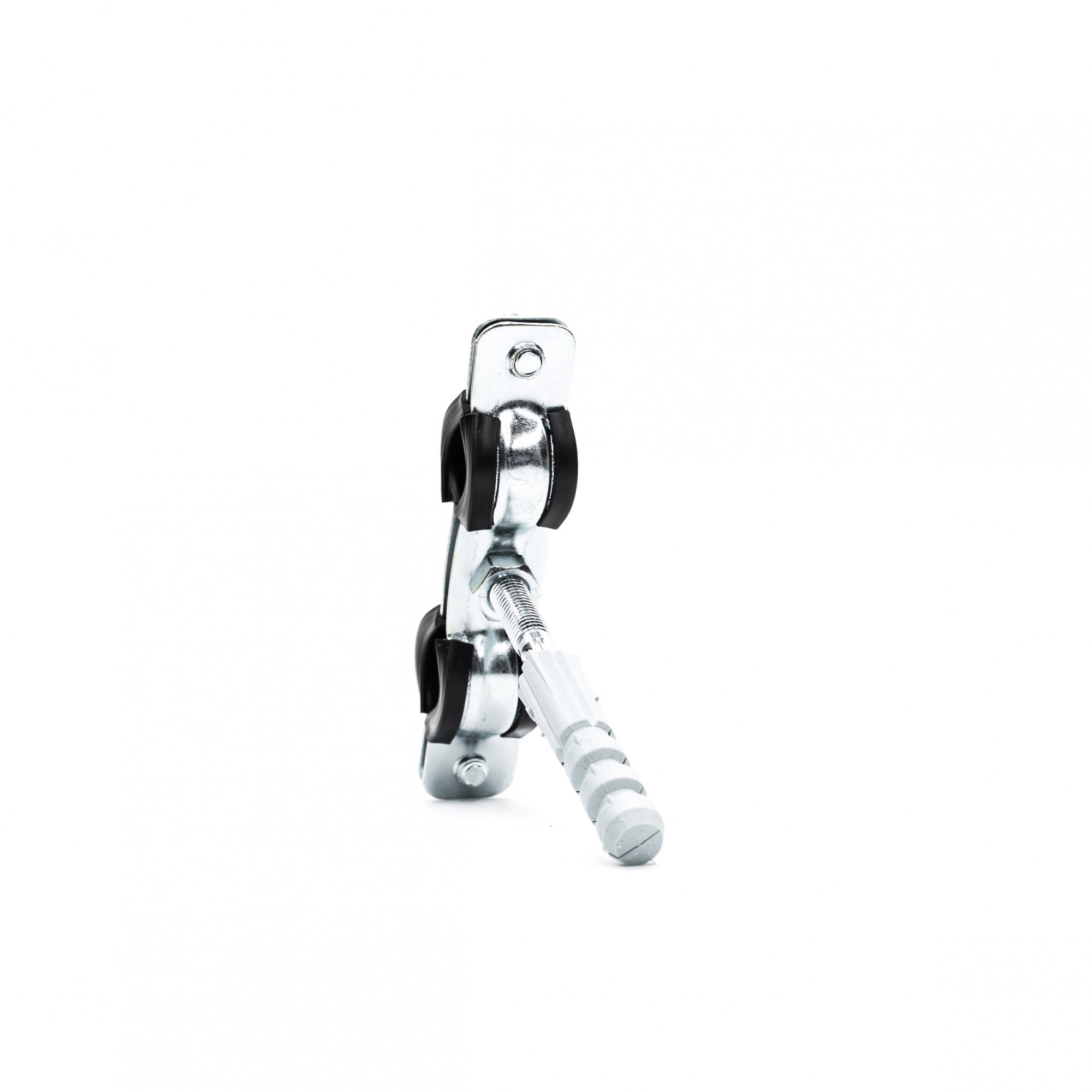

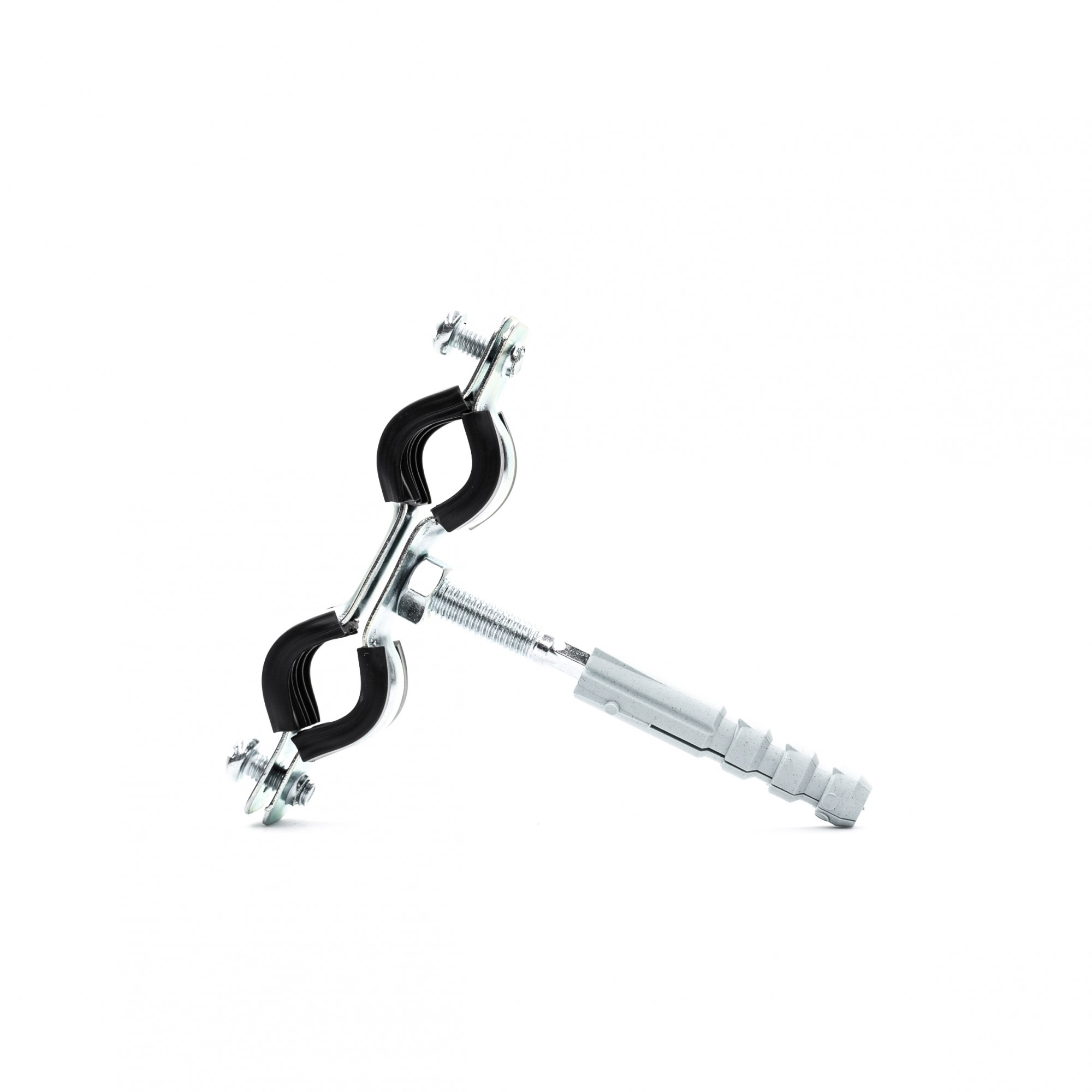

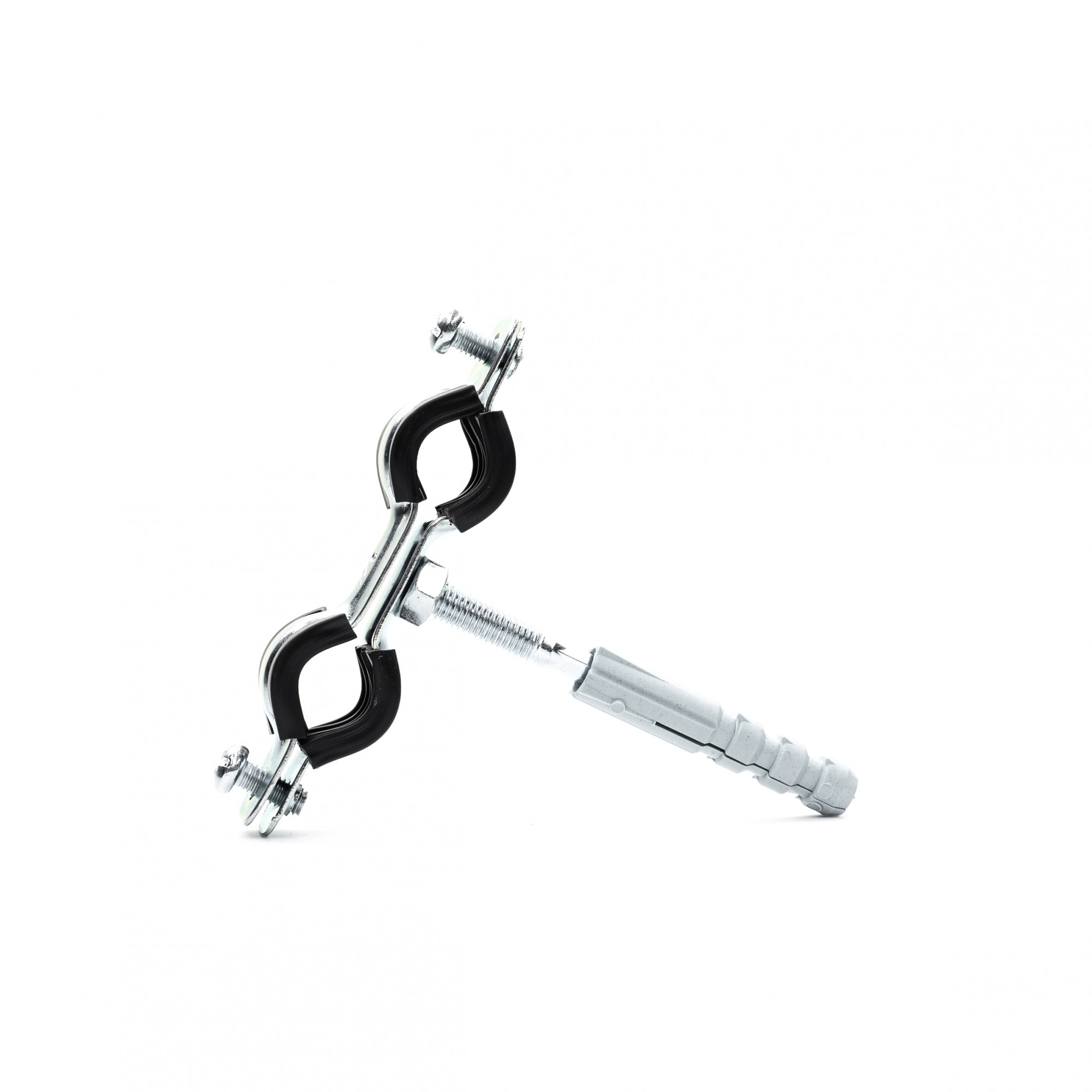

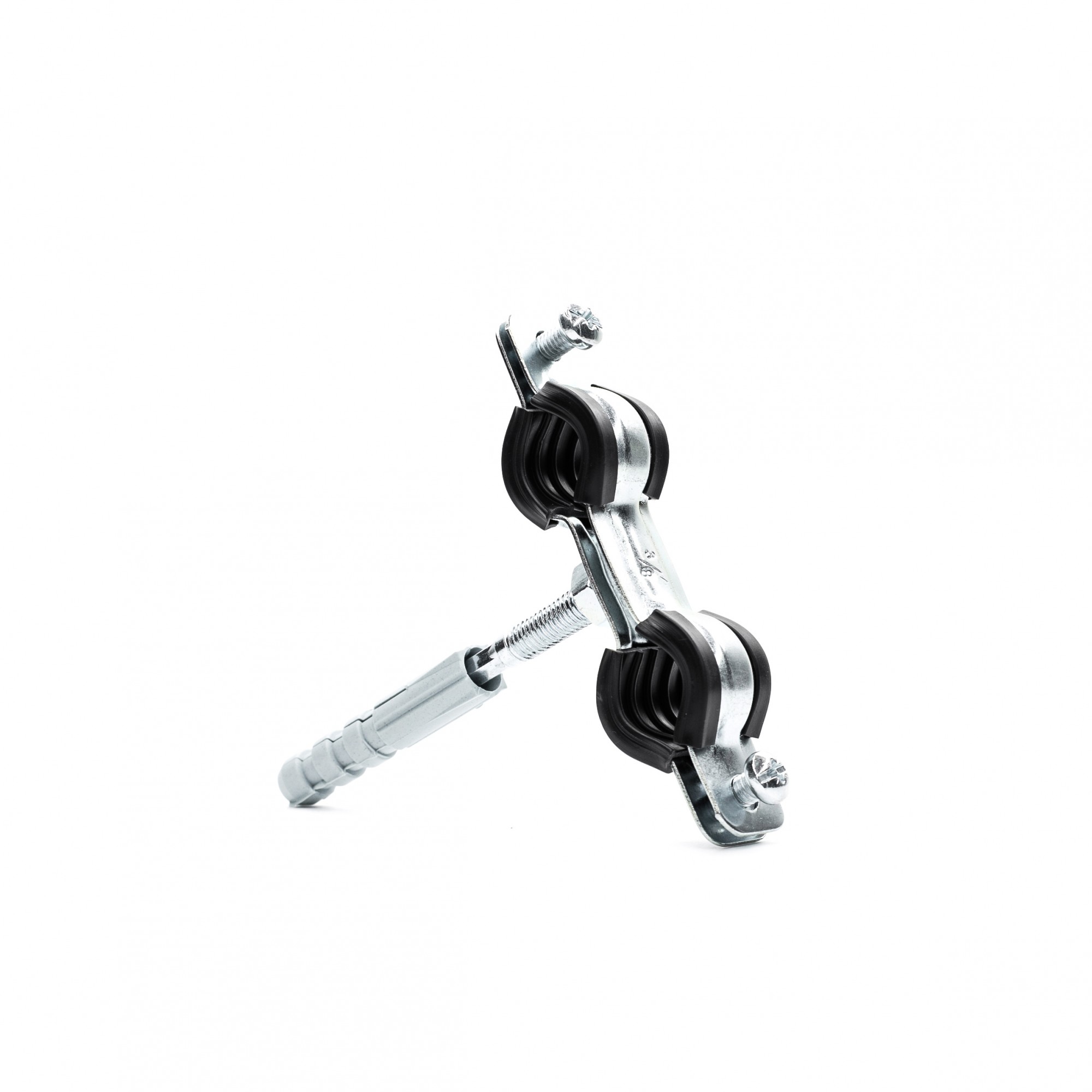

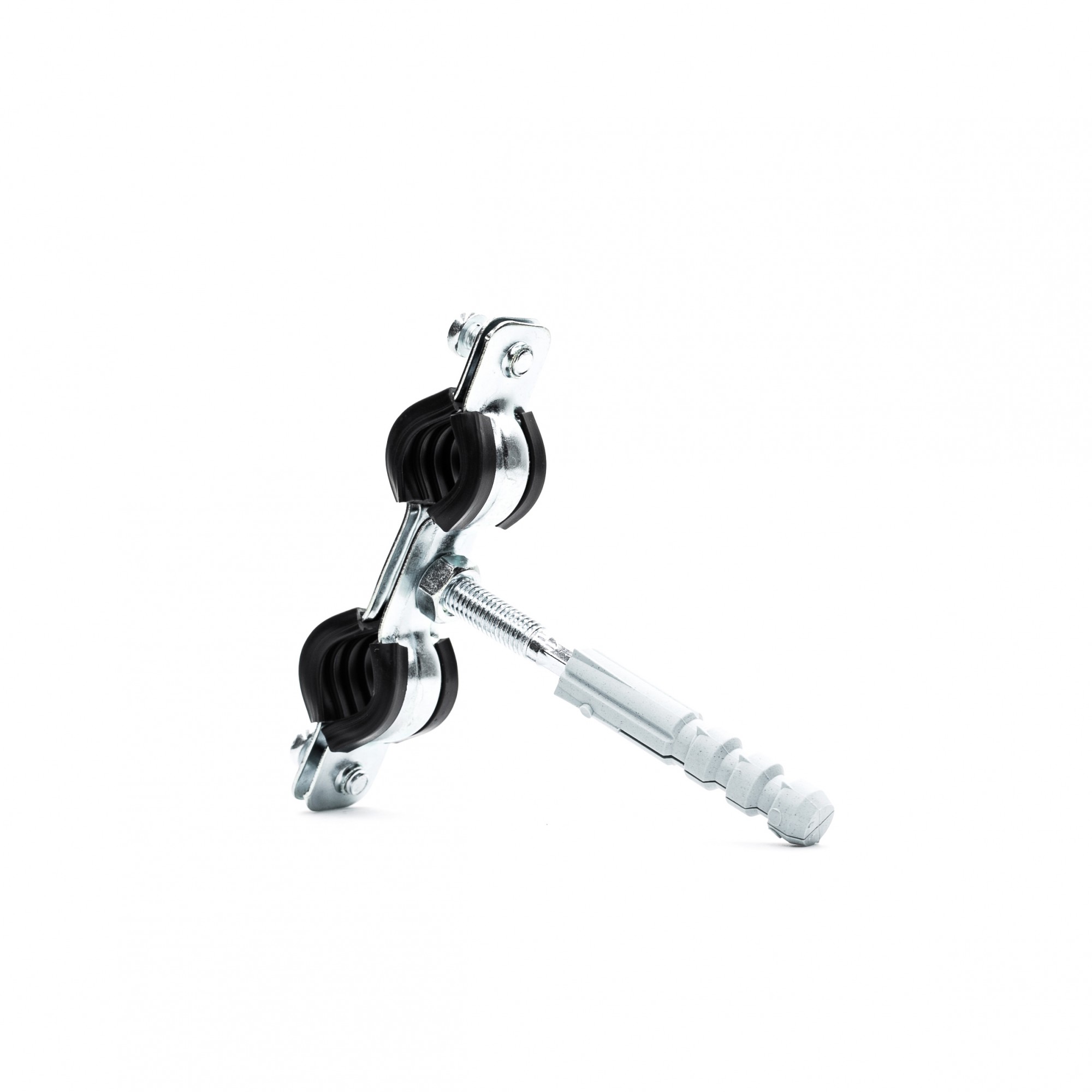

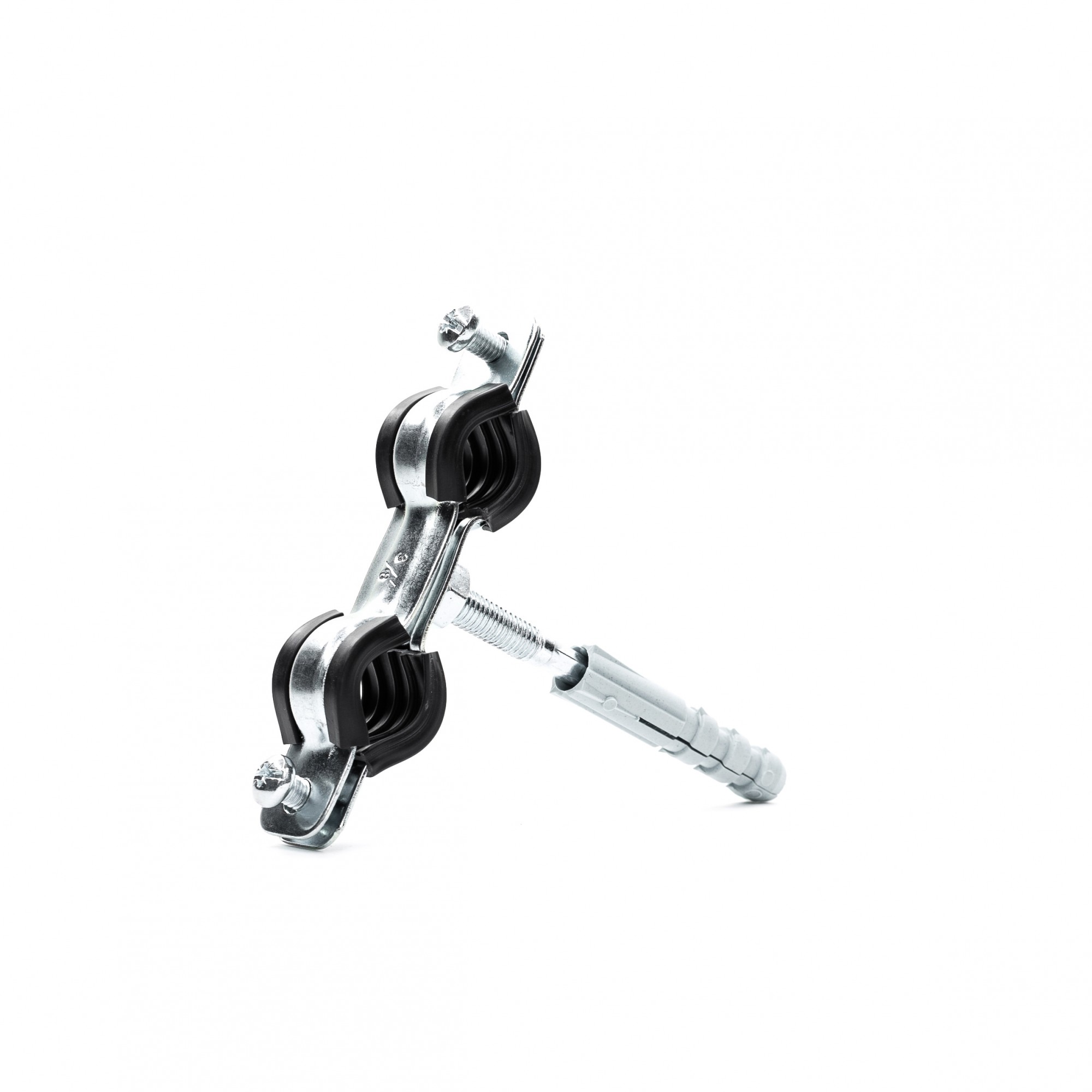

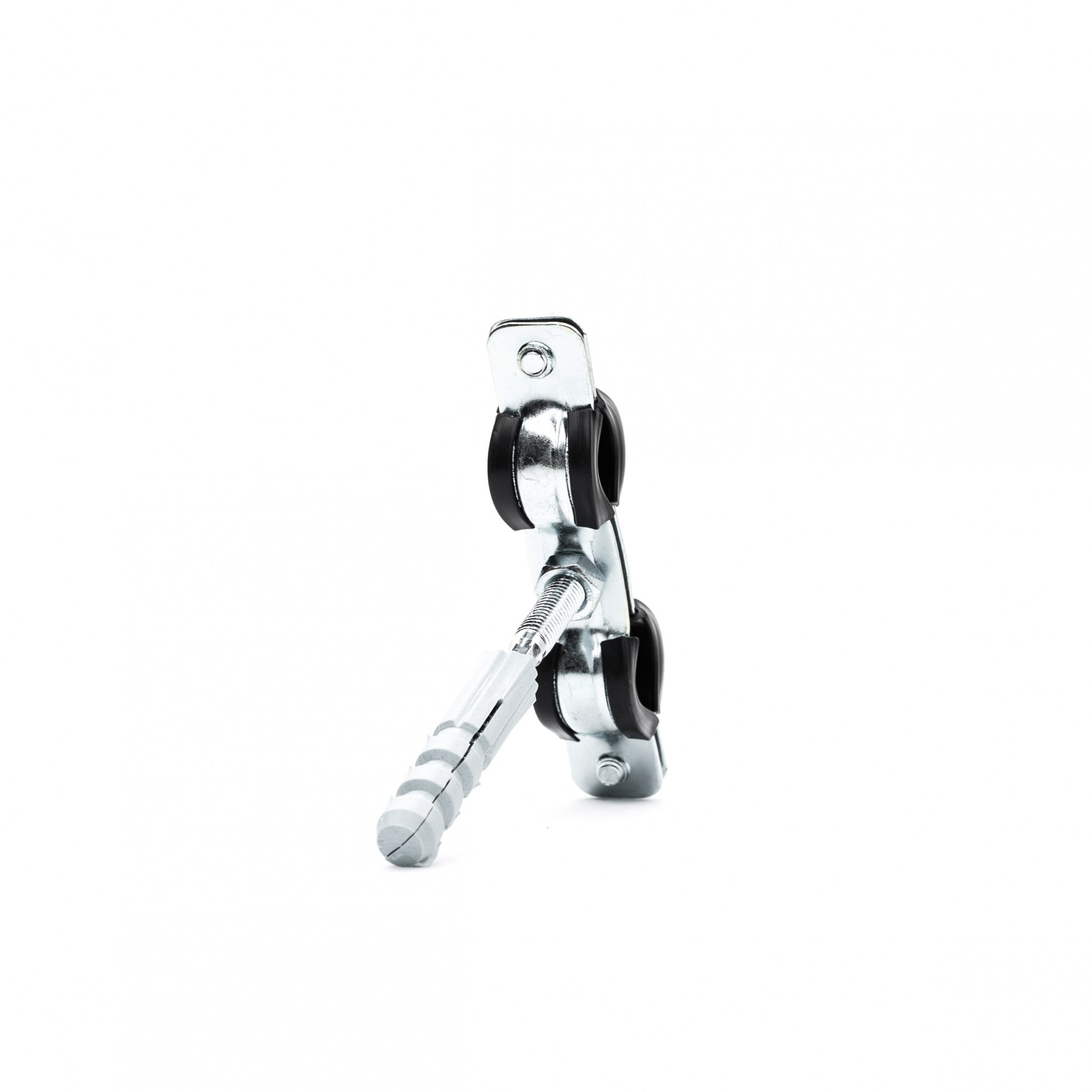

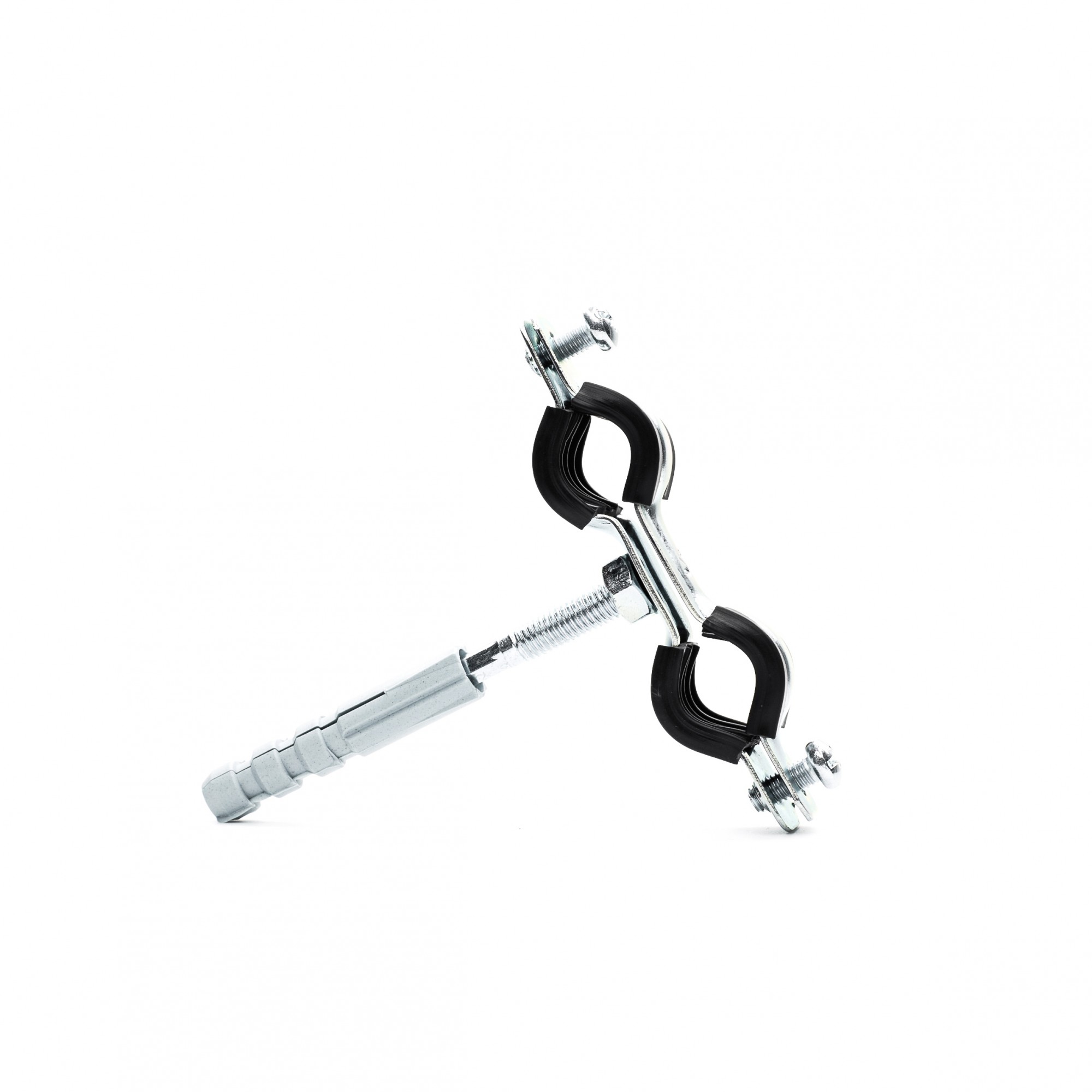

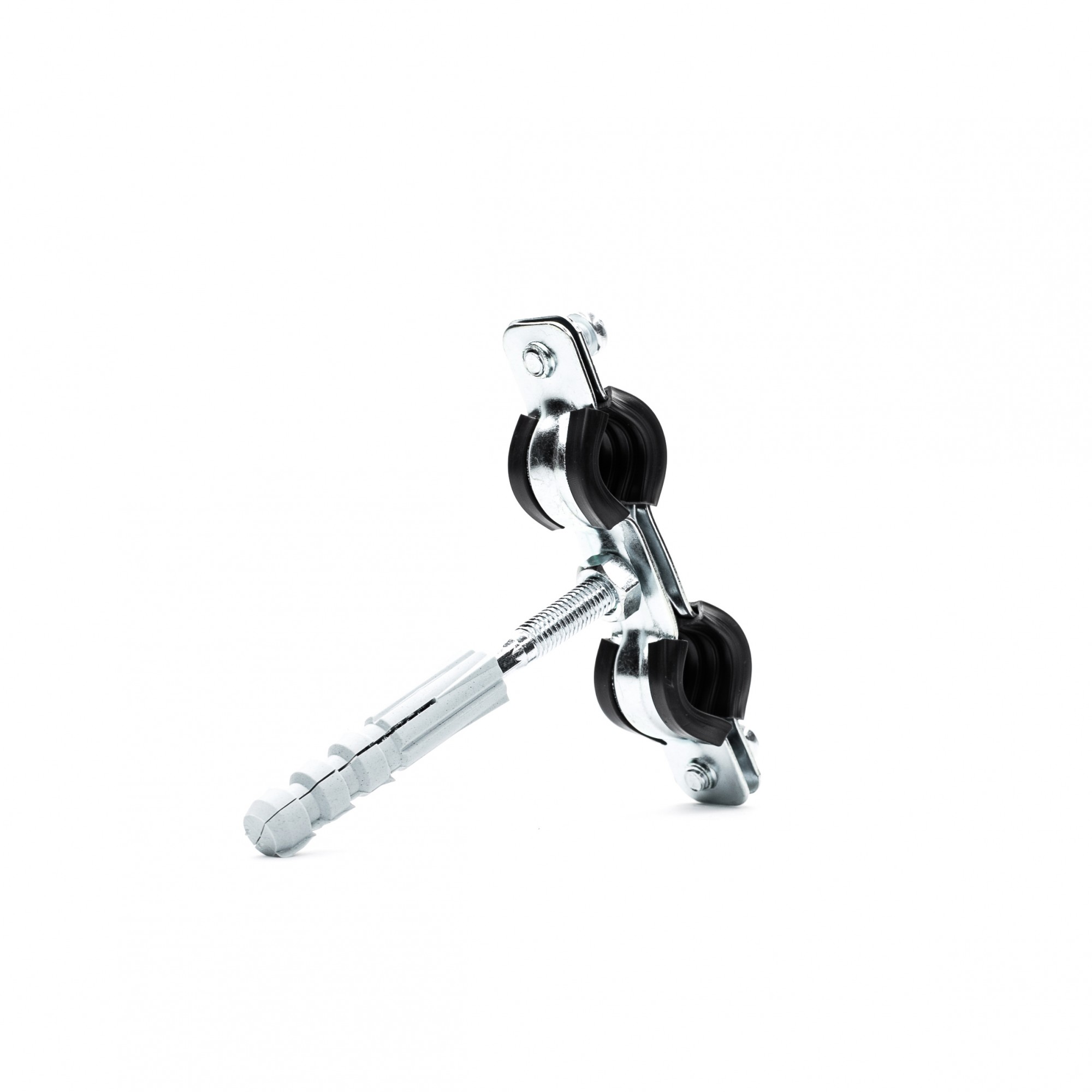

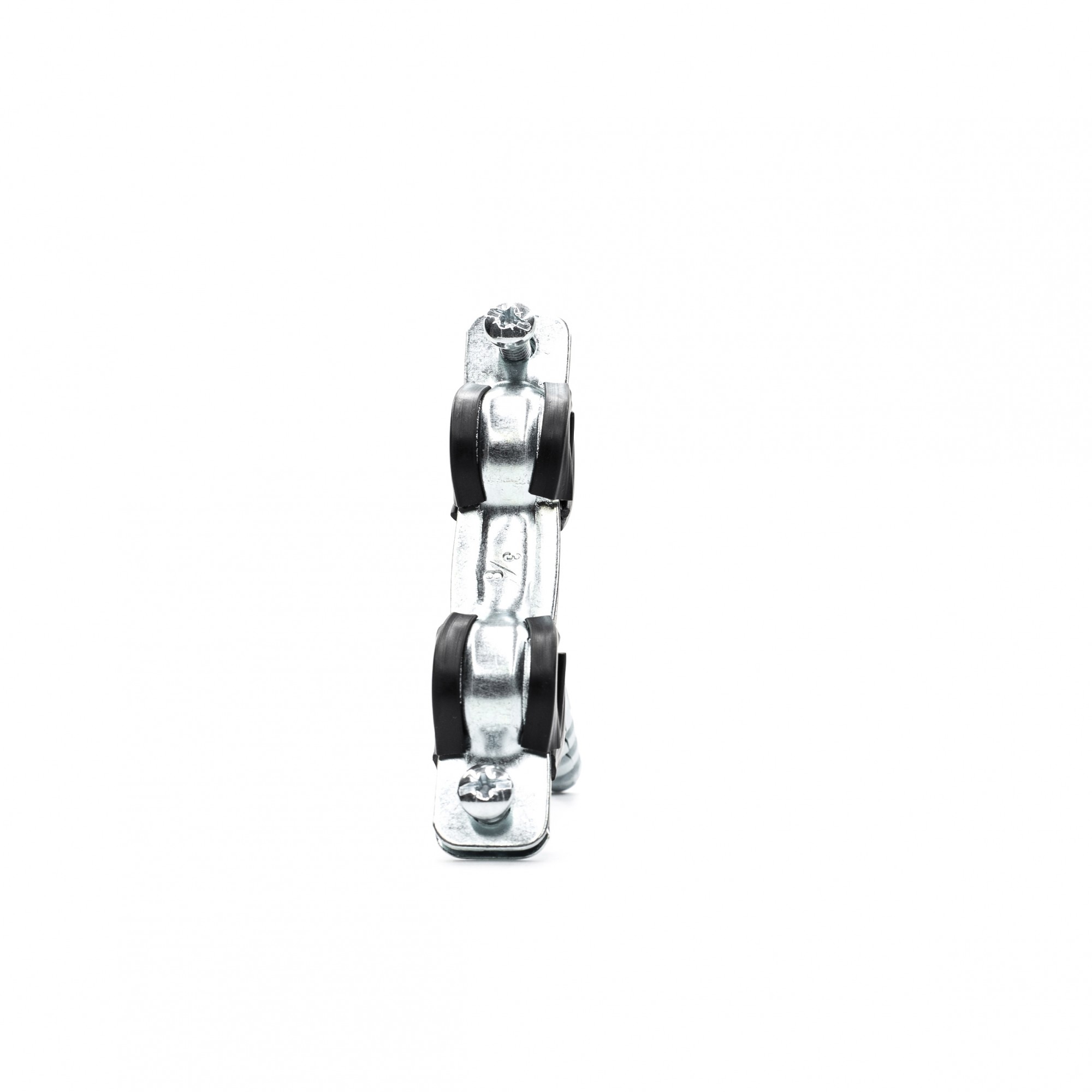

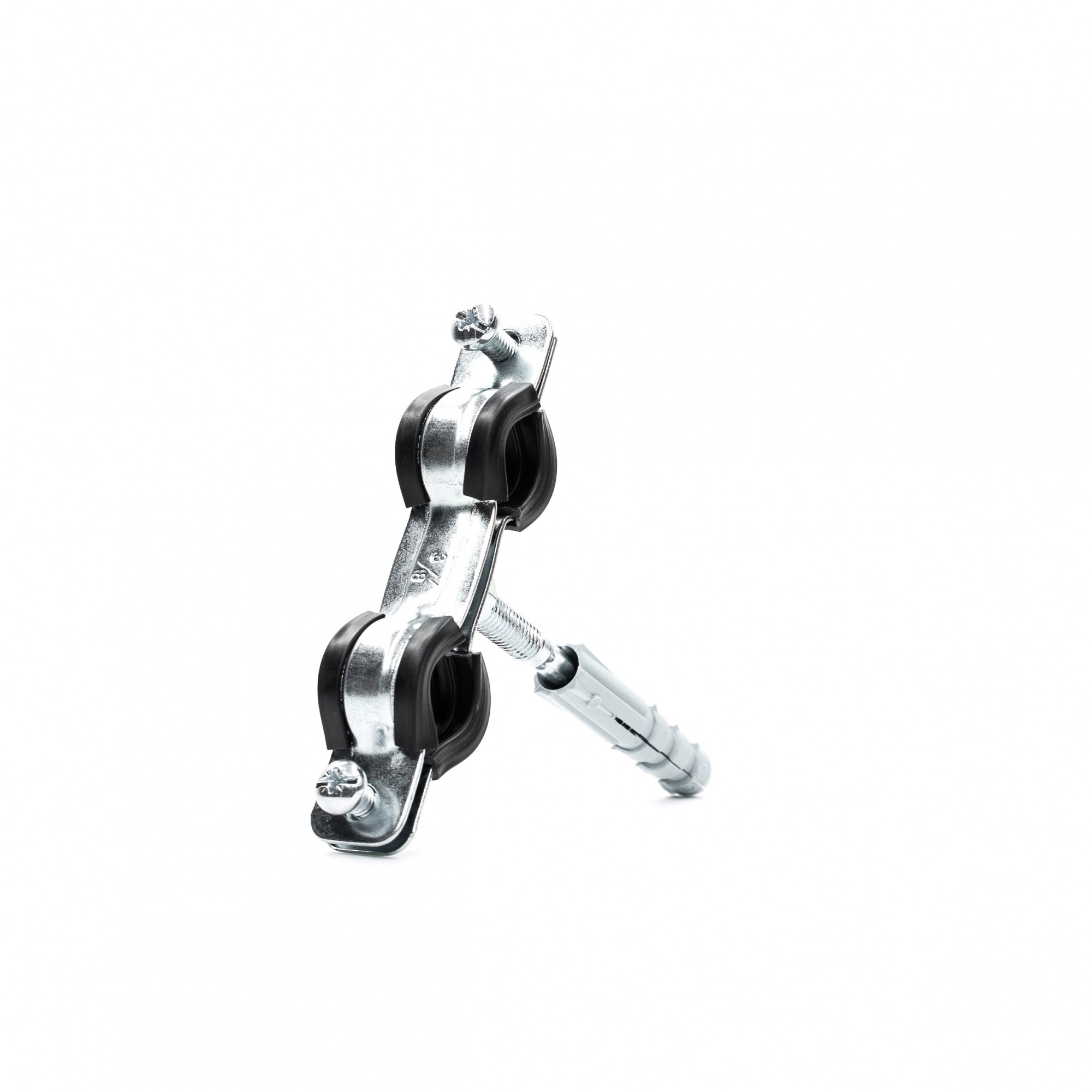

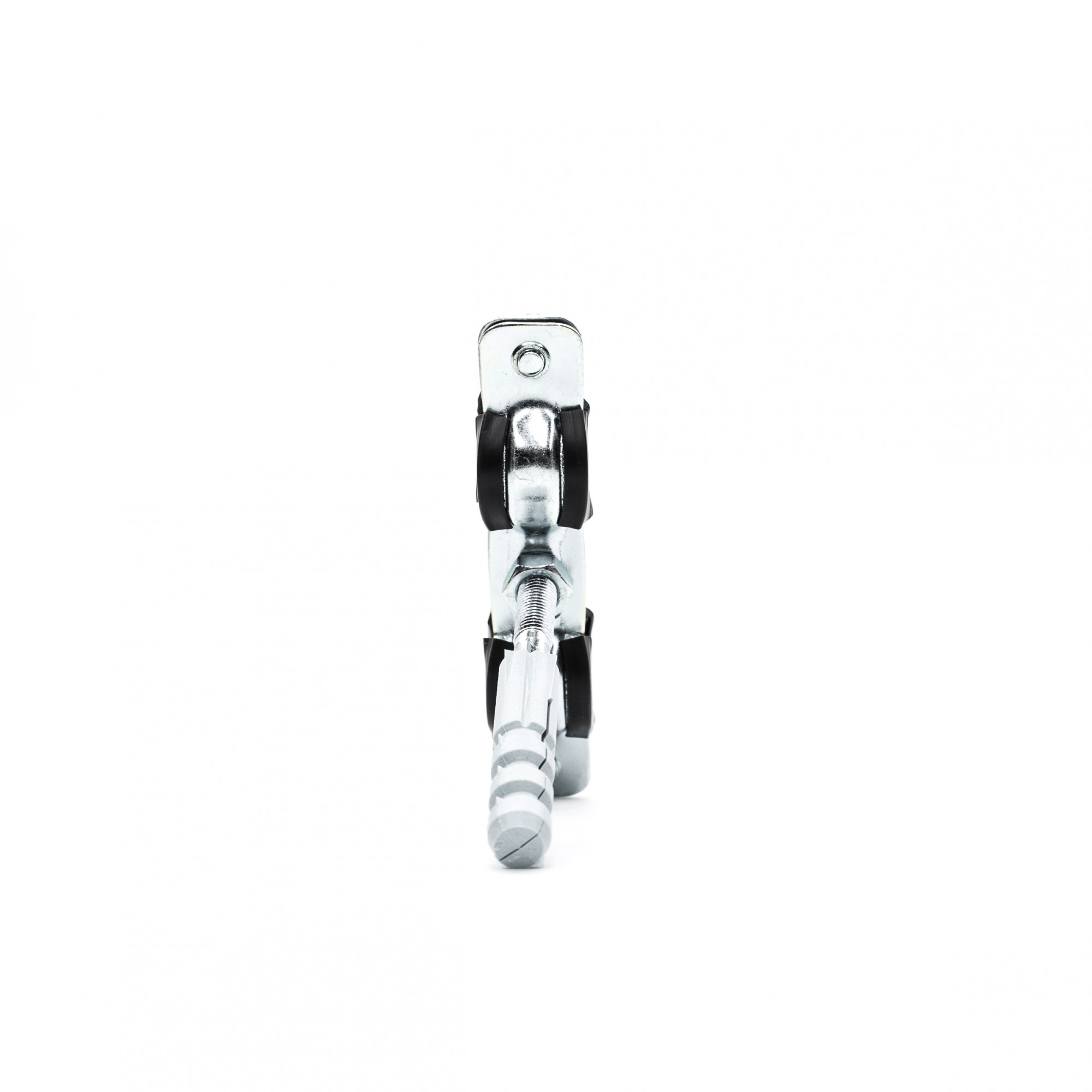

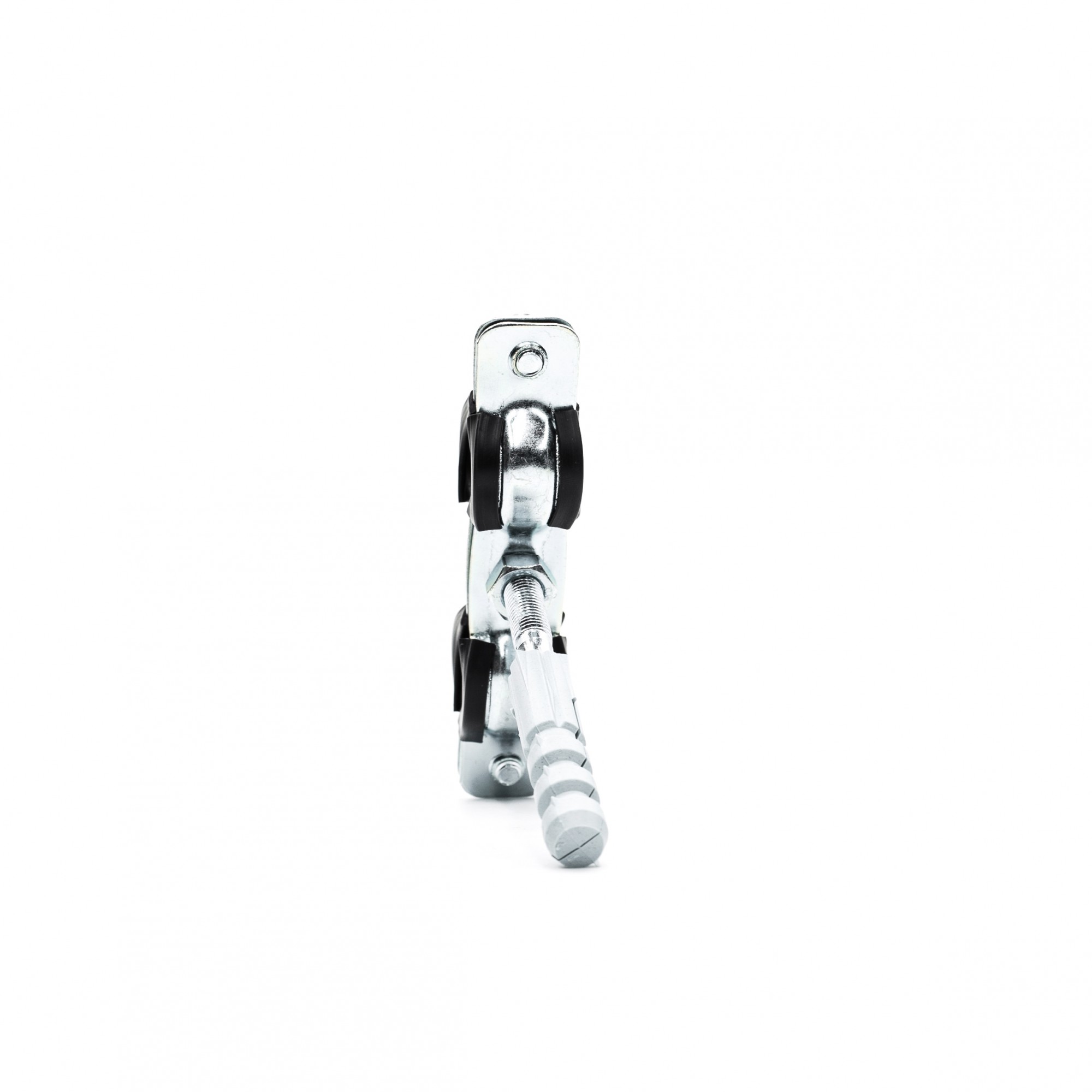

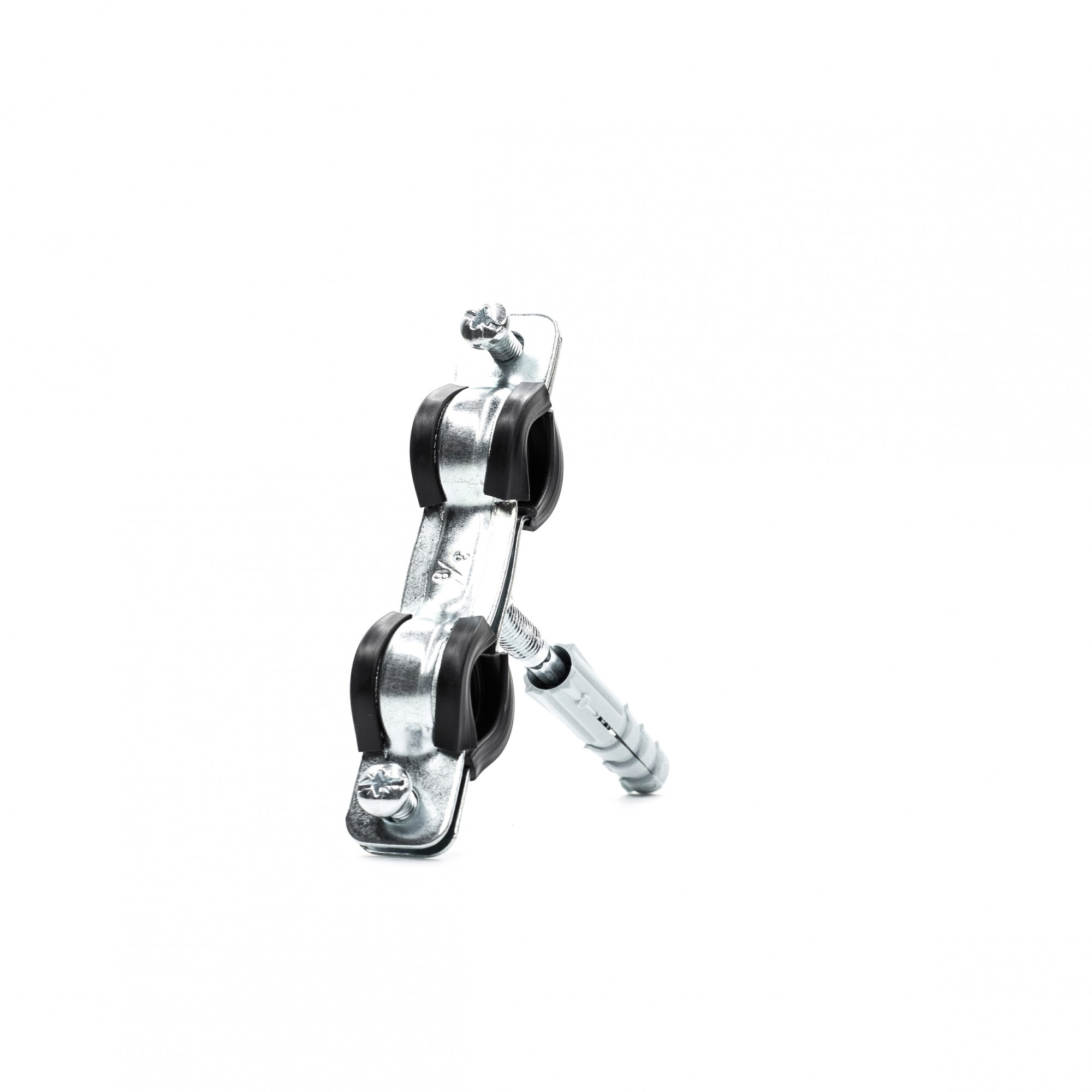

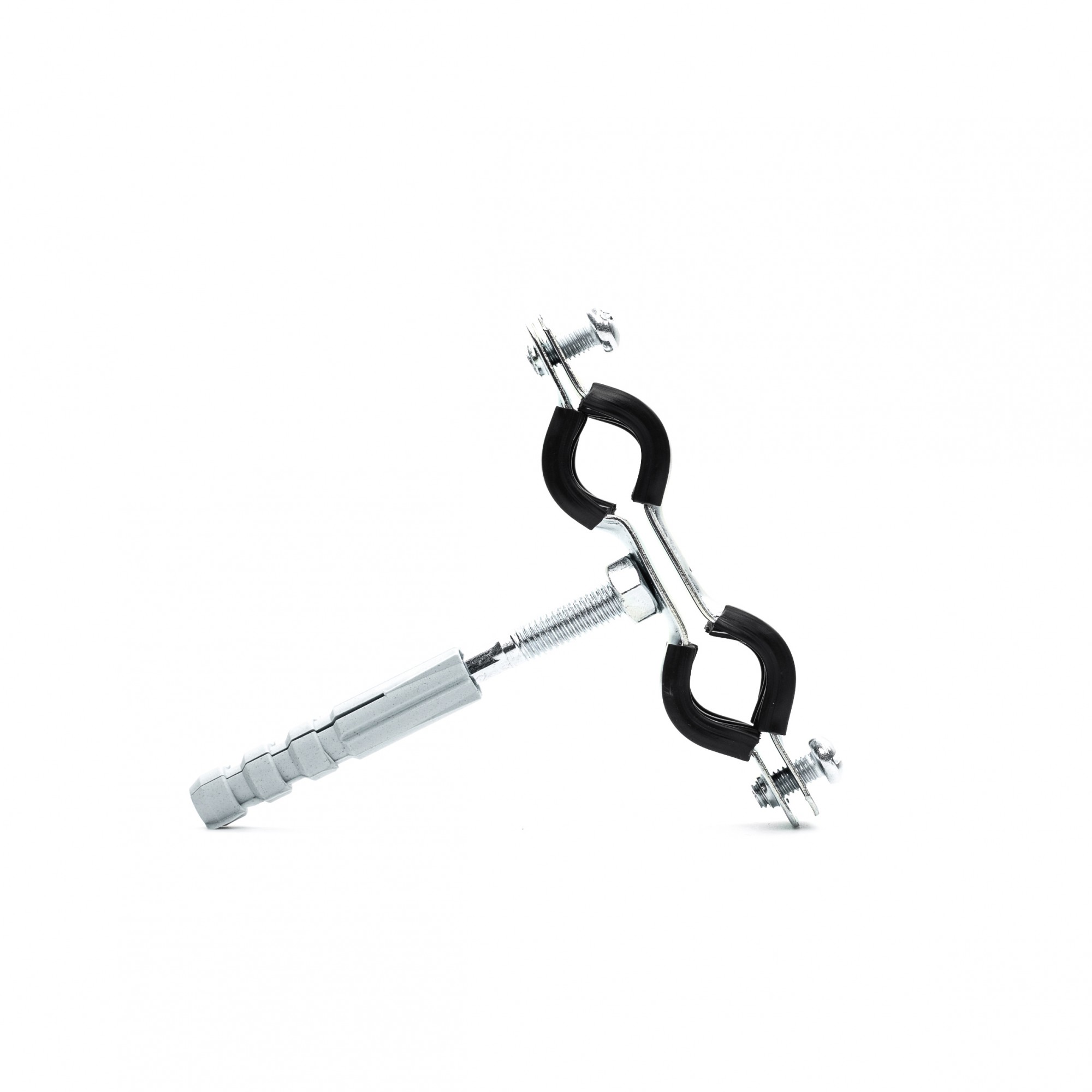

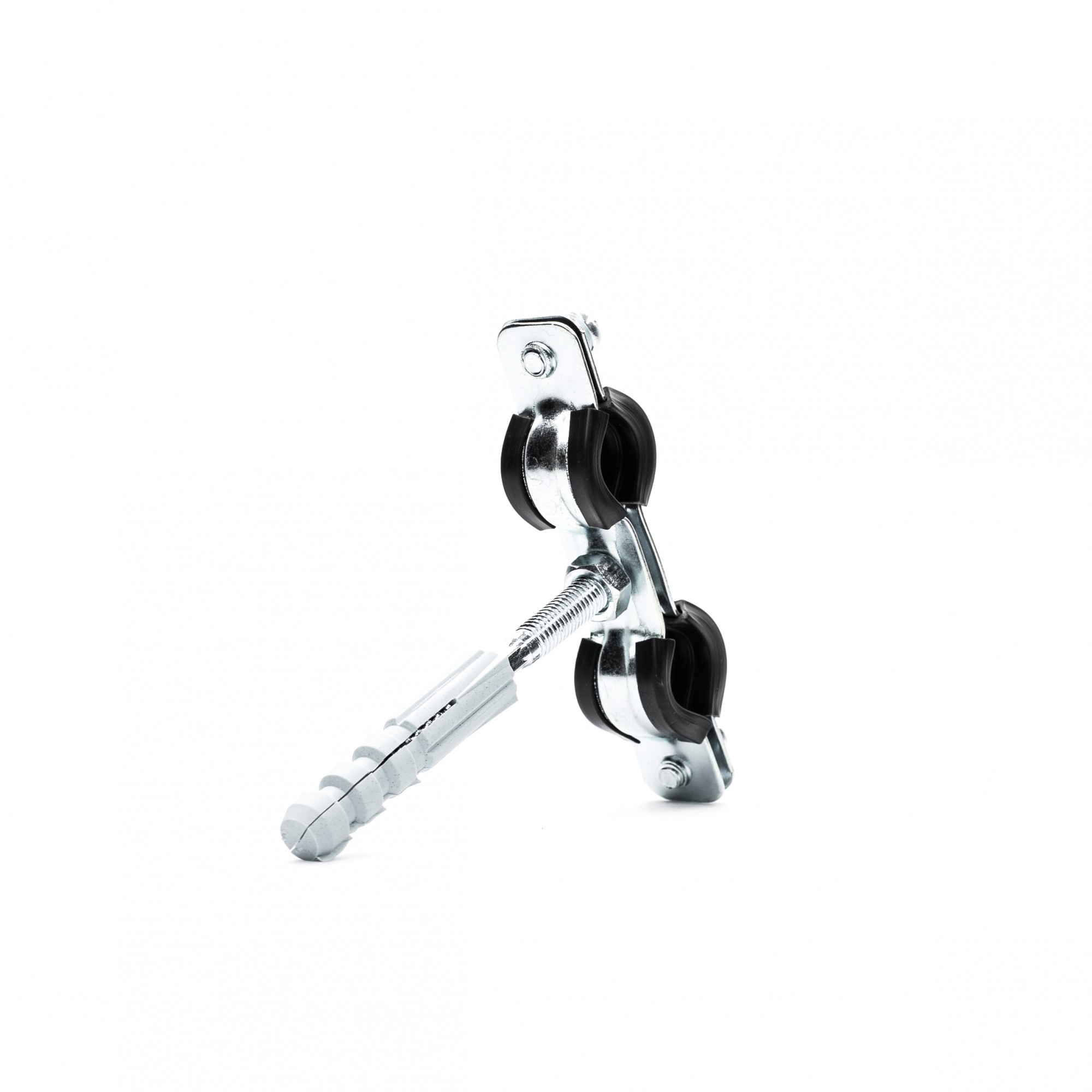

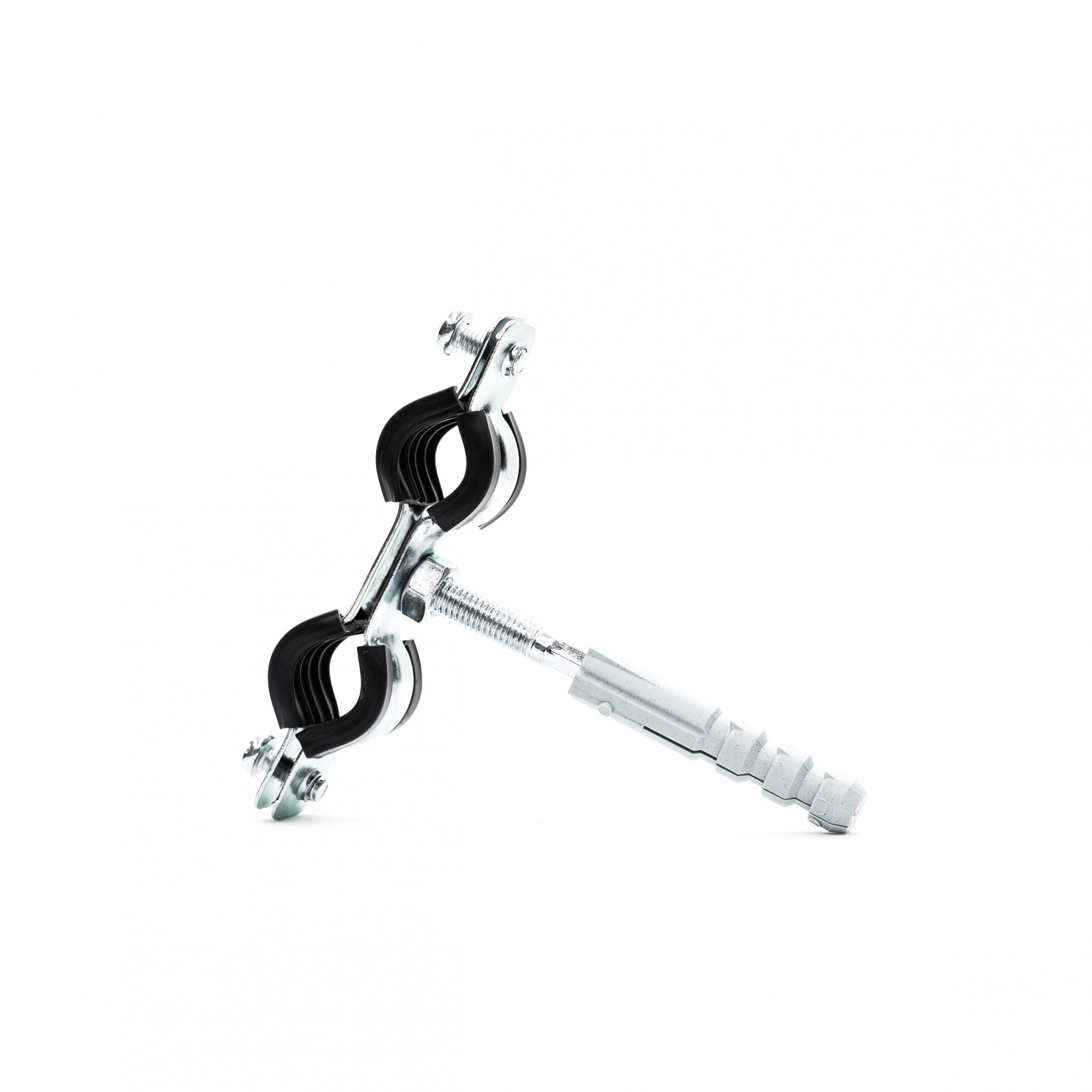

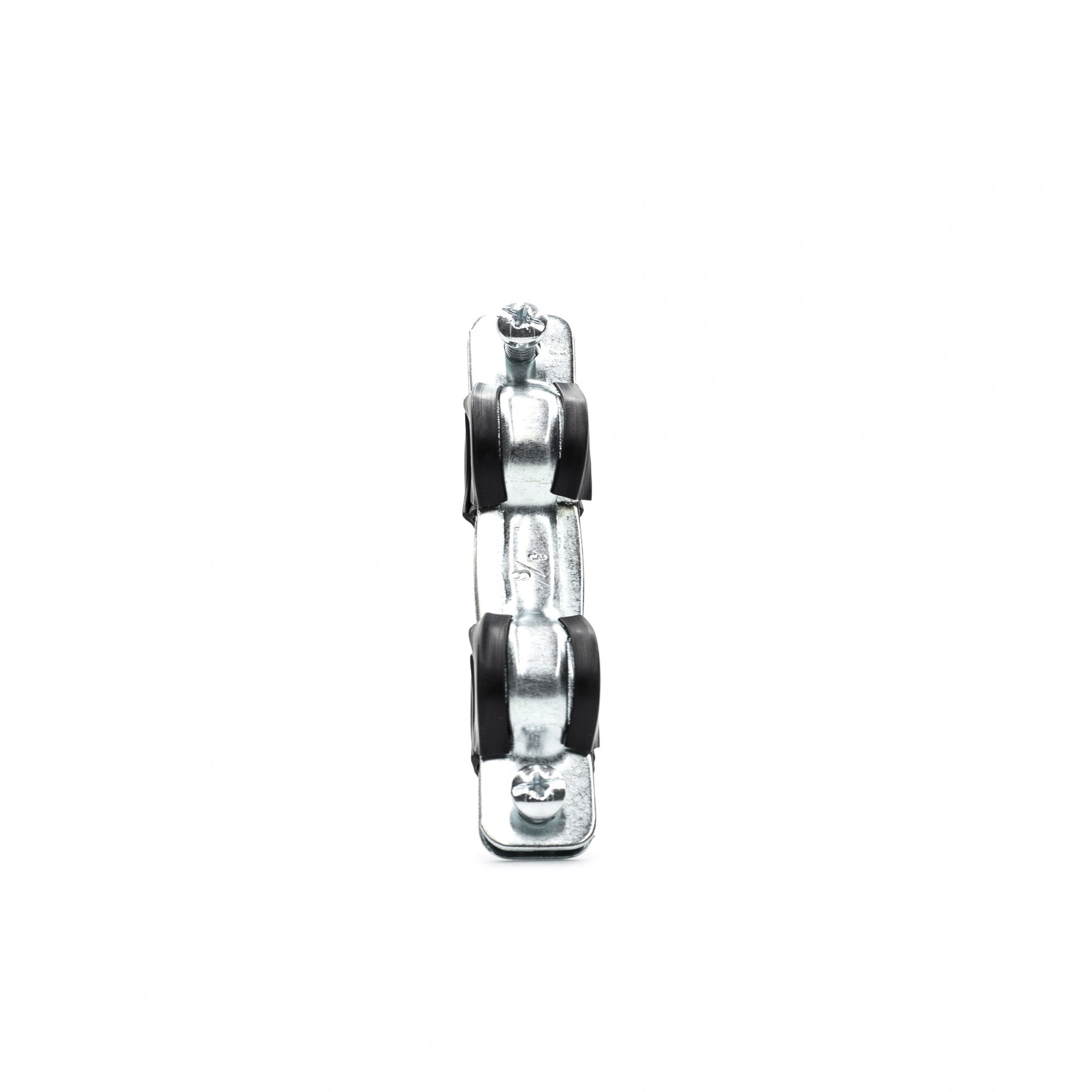

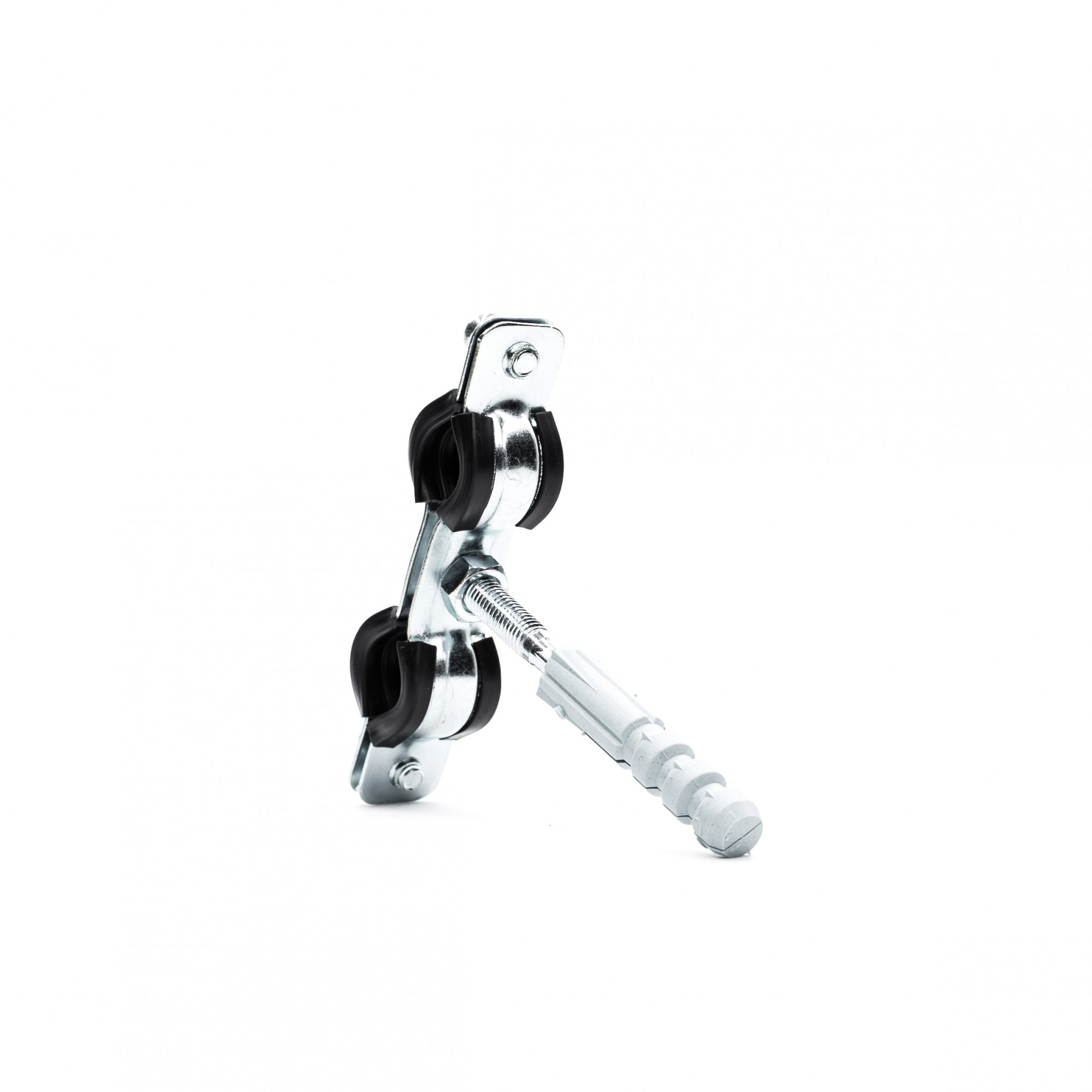

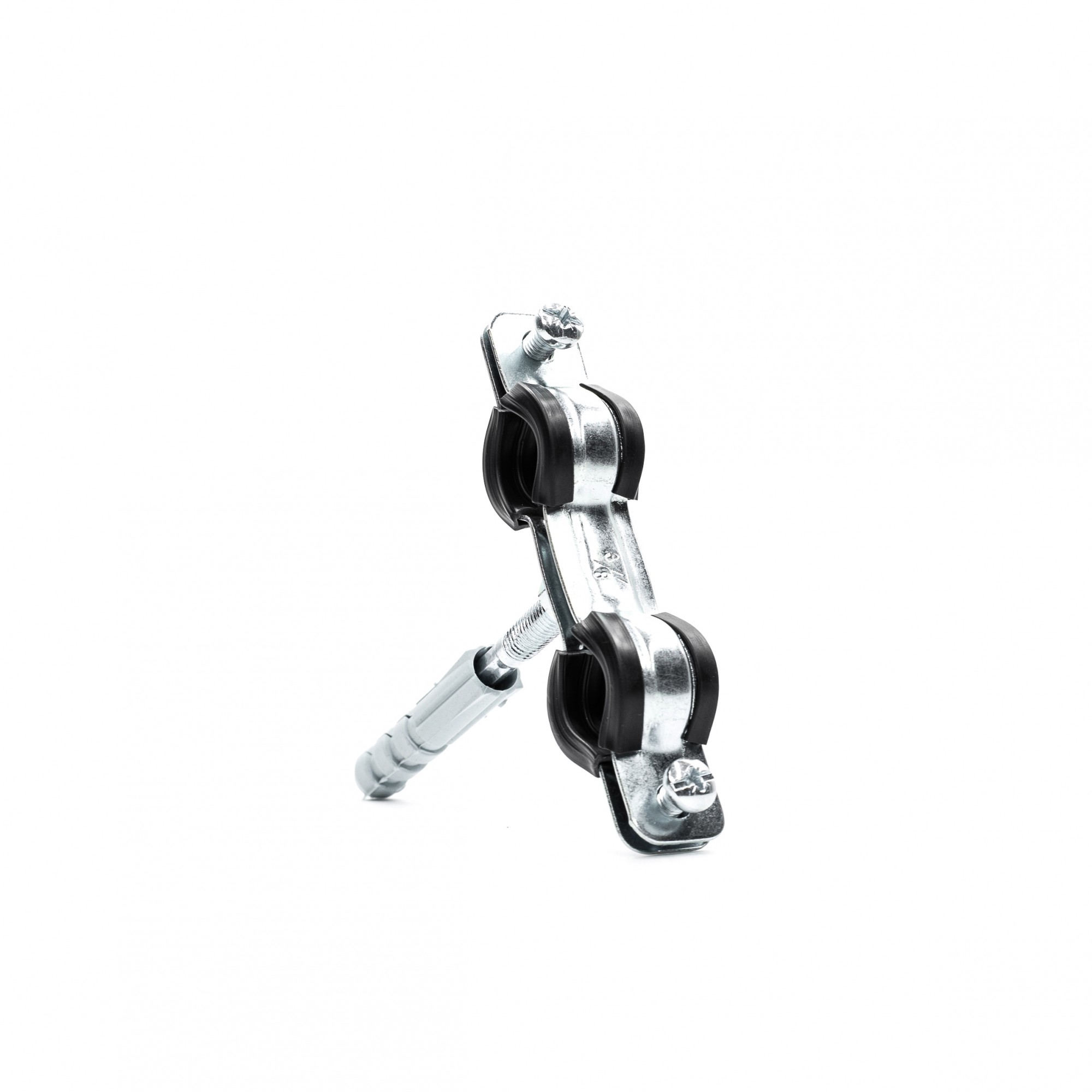

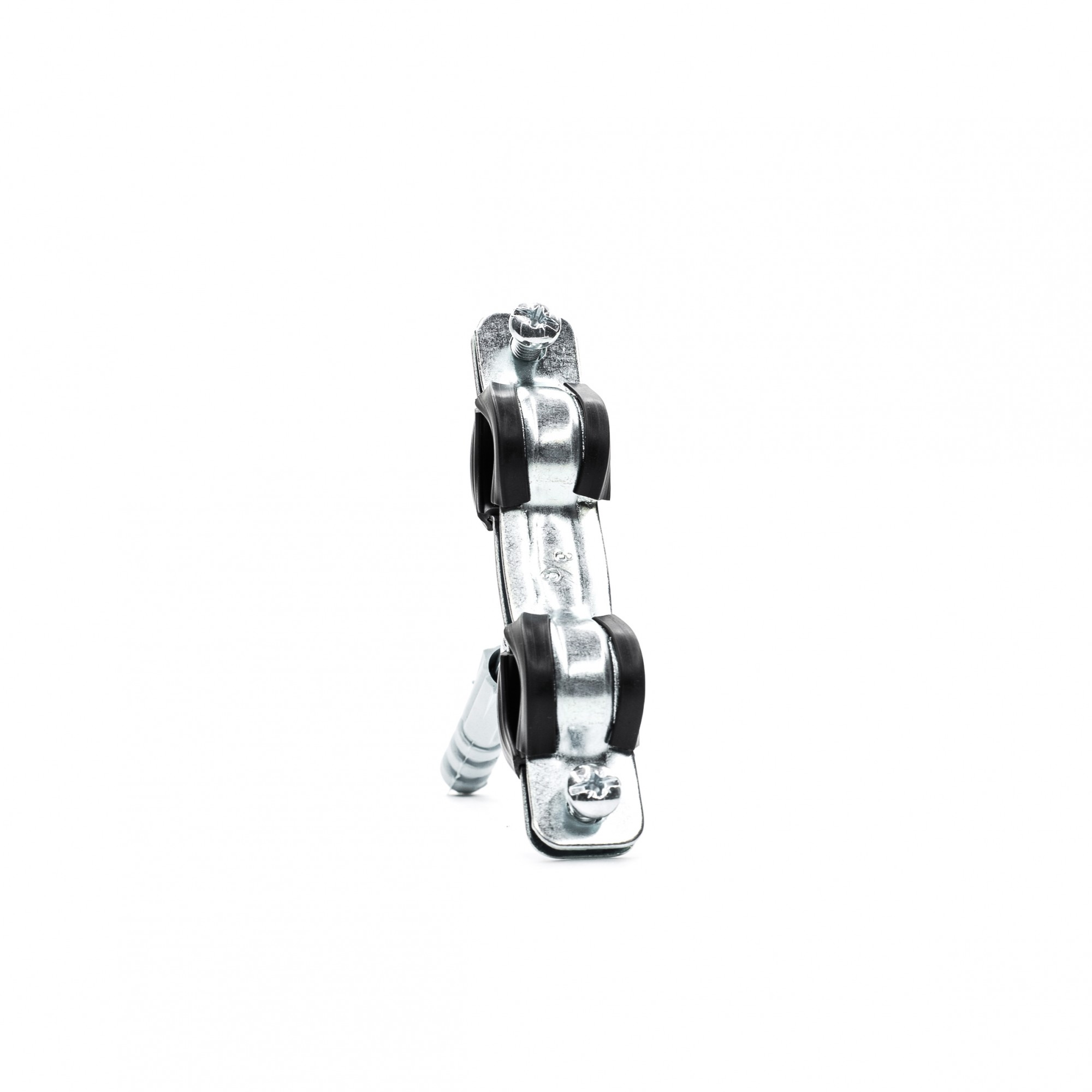

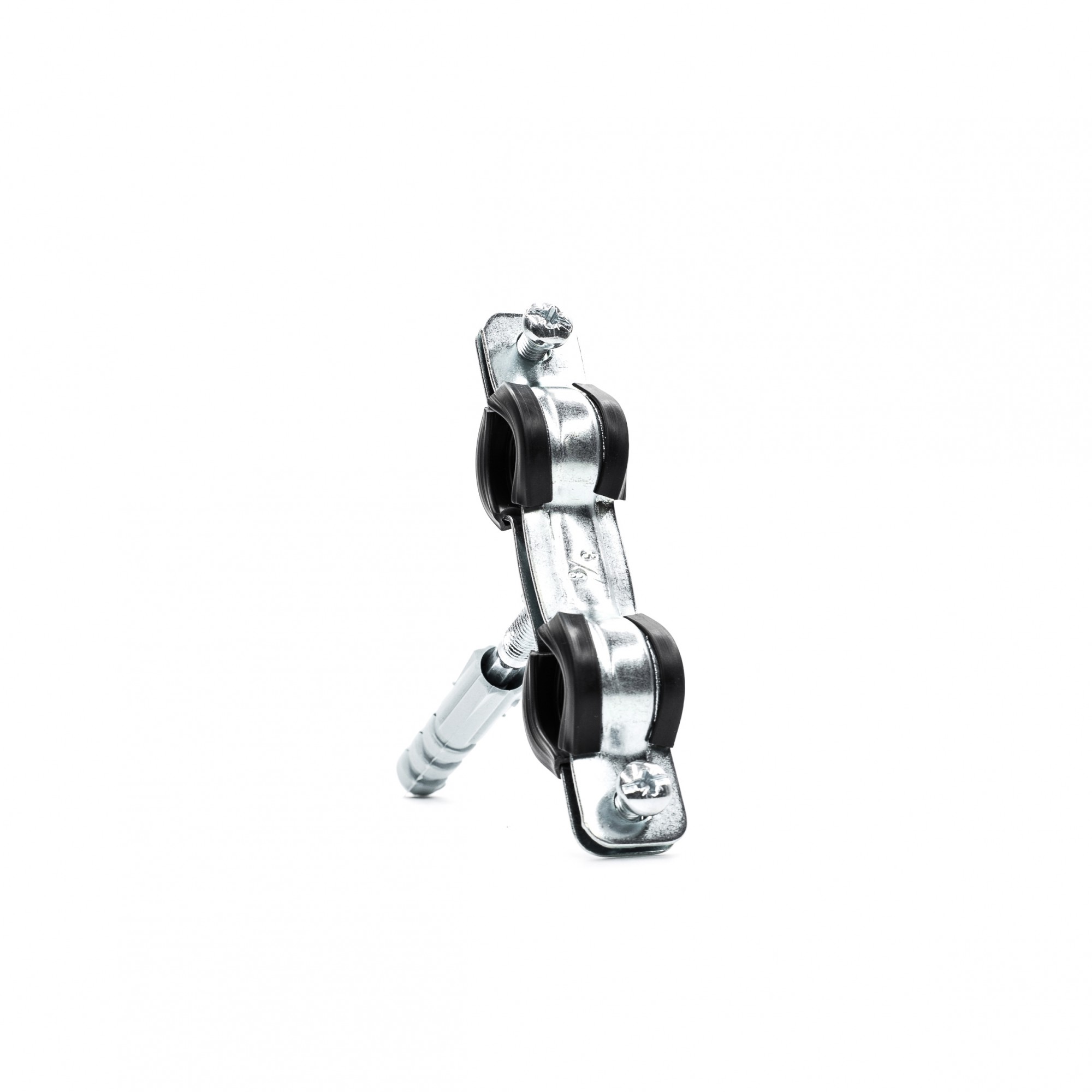

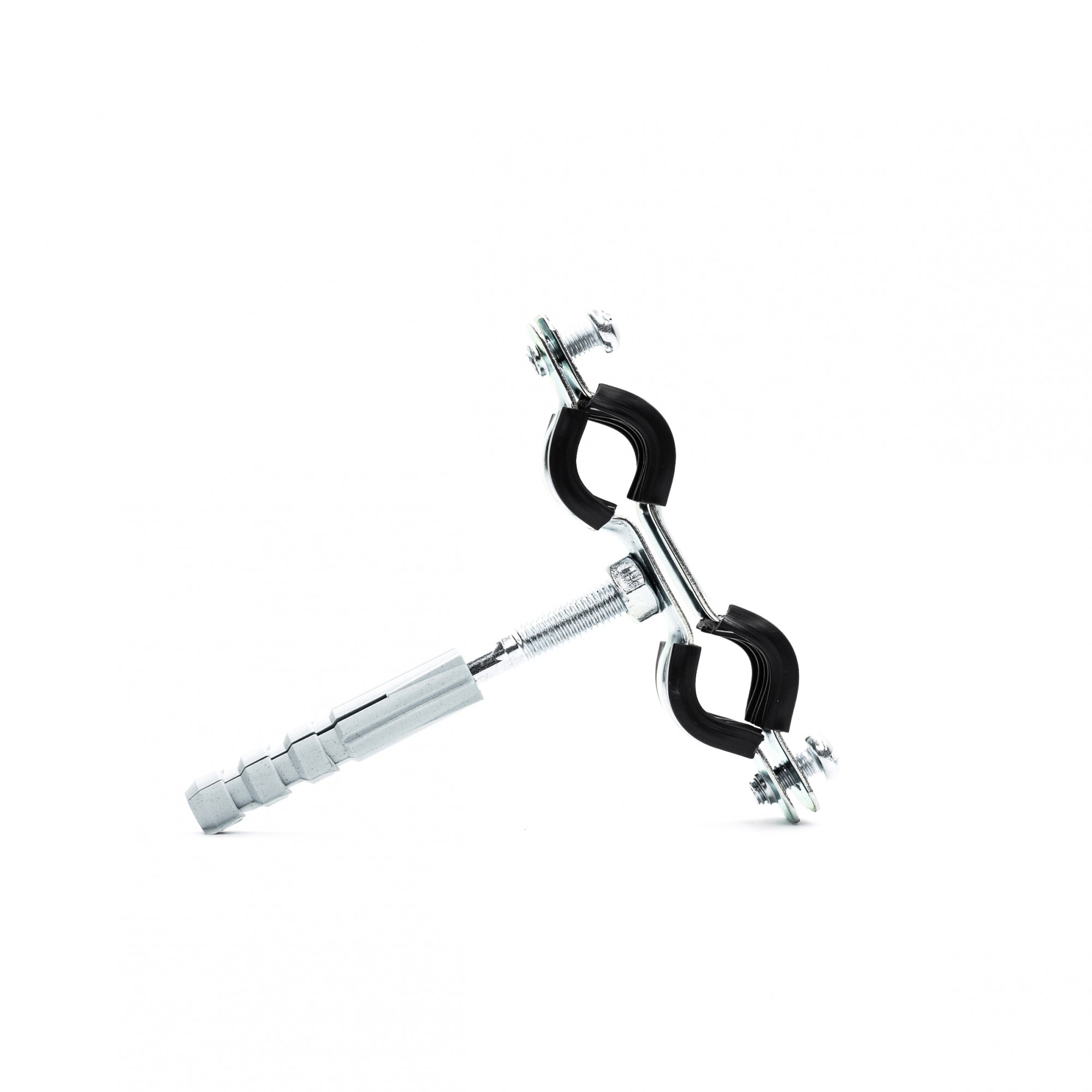

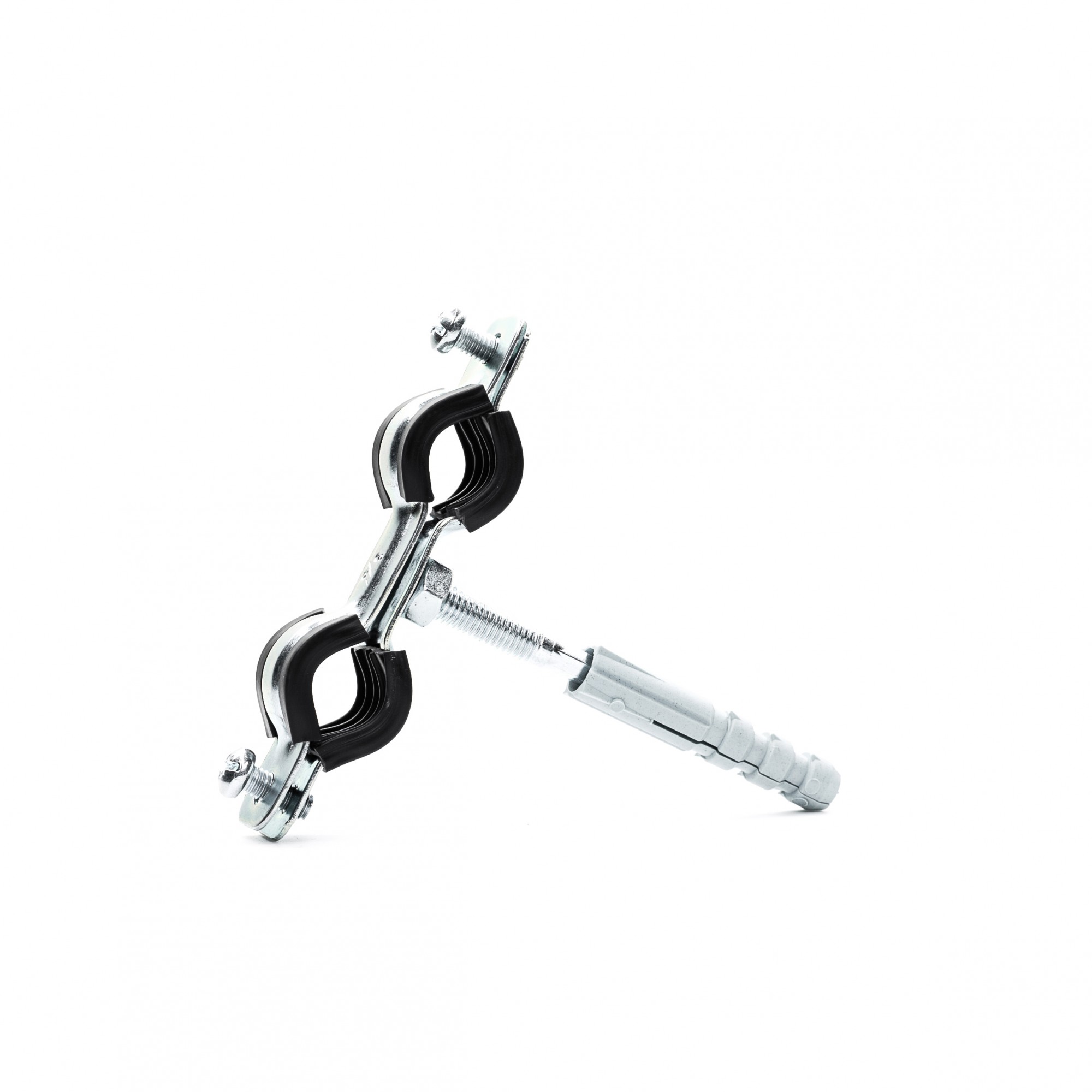

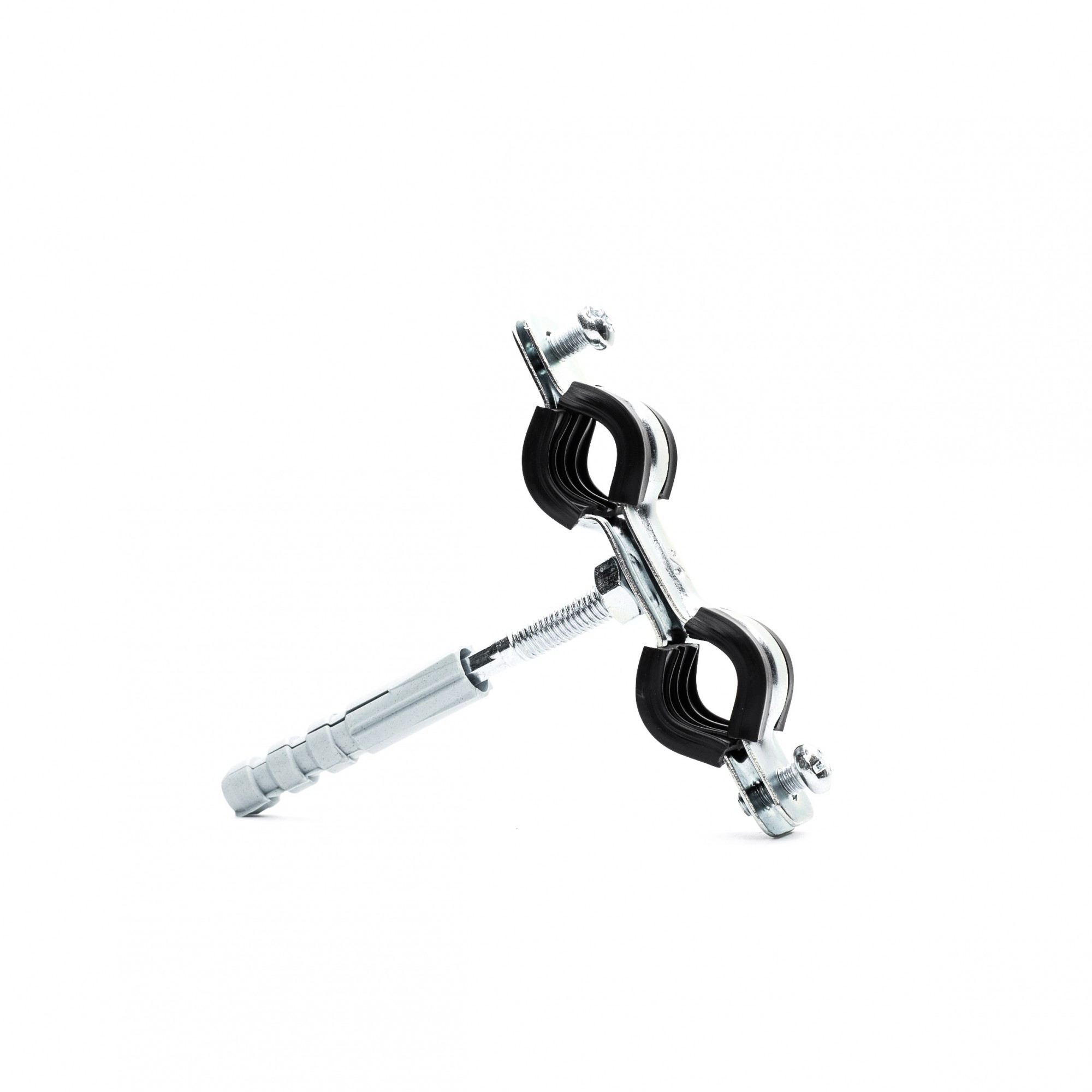

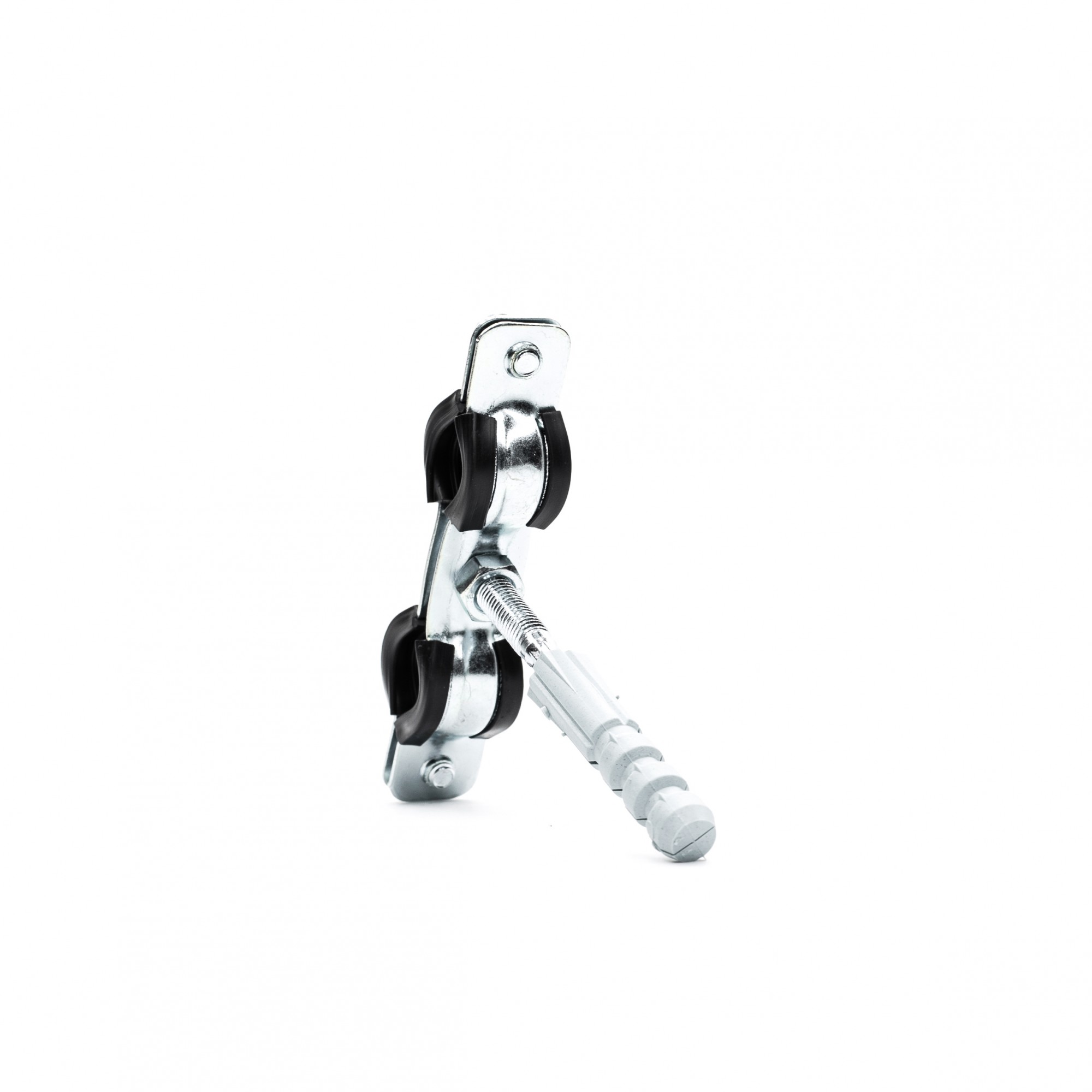

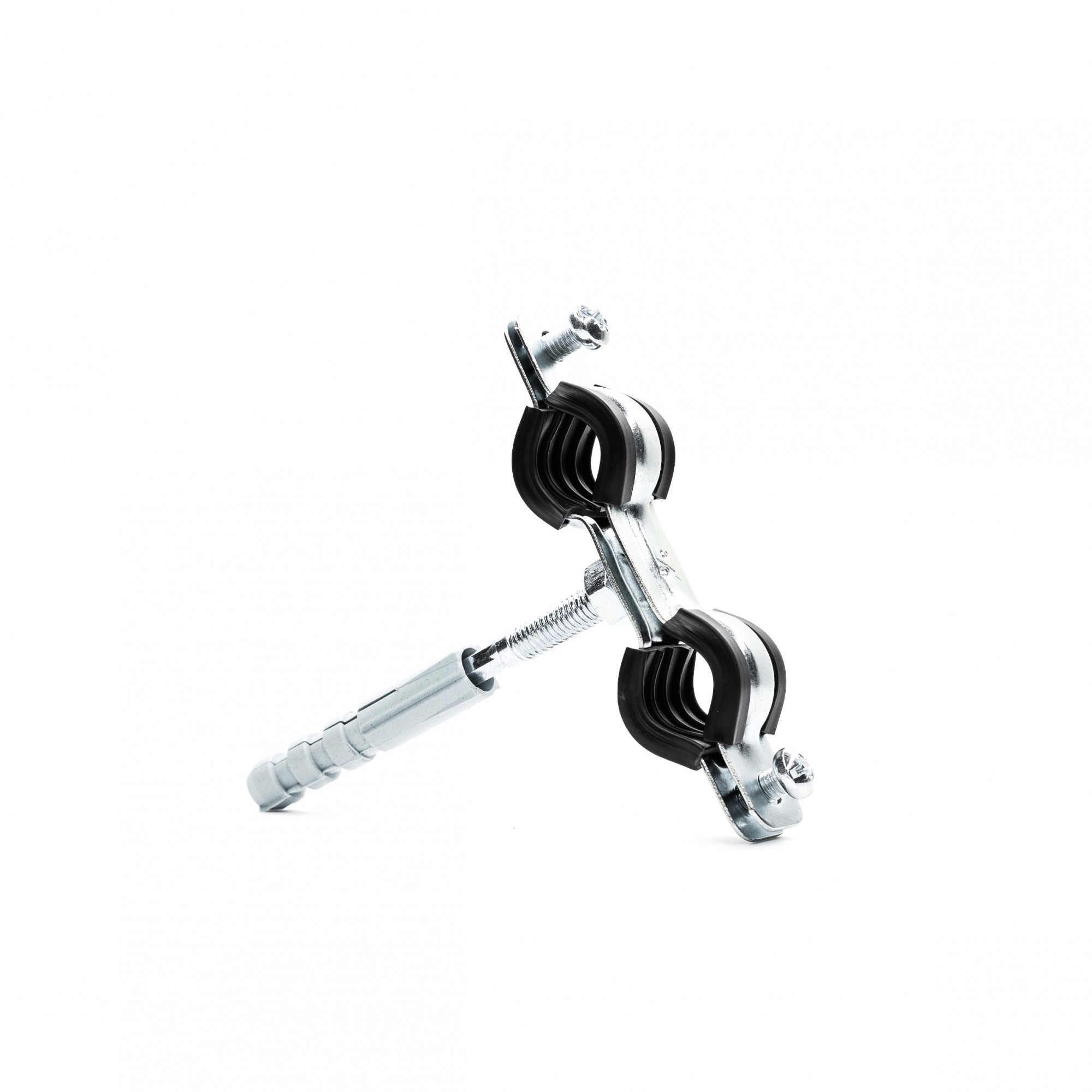

Double metal pipe clamp with EPDM rubber - set

product description

Metal clamps are used for horizontal and vertical mounting of plastic, steel and copper pipes used in cold and hot water systems. It is also often used in central heating, drainage and gas systems.

EPDM rubber protects pipe against scratching and significantly dampens pipe vibrations.

FEATURES:

  • metal clamps are quickly installable
  • due to usage of non- toxic materials, clamps are eco - friendly
  • multi- purpose use, internal and external montage


technical data:

  • connection nut

Clamps 3/8”-2”: M8
Clamps 2 ½”: M8/M10

  • M6 side screws with plastic washers
  • EPDM insulation compliant with DIN 4109 standard
  • Temperature resistance for EPDM: from -40˚C to +120˚C
  Single pack Multipack Pallet
Indeks  Diameter
(mm)
Product dimensions
X/Y/Z (mm)
Net
weight
(g)
Quantity Dimensions
(cm)
Gross
weight
(kg)
Quantity Dimensions
(cm)
Gross
weight
(kg)
Quantity Dimensions
(cm)
Gross
weight
(kg)
B-691330 3/8' 108 x 27 x 23 87.7 1 13 x 13 0.1 100 43 x 14 x 28 9.3 8000 120 x 80 x 155 764
B-691347 1/2' 118 x 32 x 23 96.5 1 13 x 13 0.1 100 43 x 16 x 28 10.1 7200 120 x 80 x 170 747
B-691354 3/4' 127 x 36 x 23 102.9 1 15 x 15 0.1 100 43 x 18 x 28 10.8 6400 120 x 80 x 170 711
B-691361 1' 143 x 43 x 23 116.8 1 15 x 15 0.1 50 43 x 14 x 28 6.3 4000 120 x 80 x 155 524
