product description

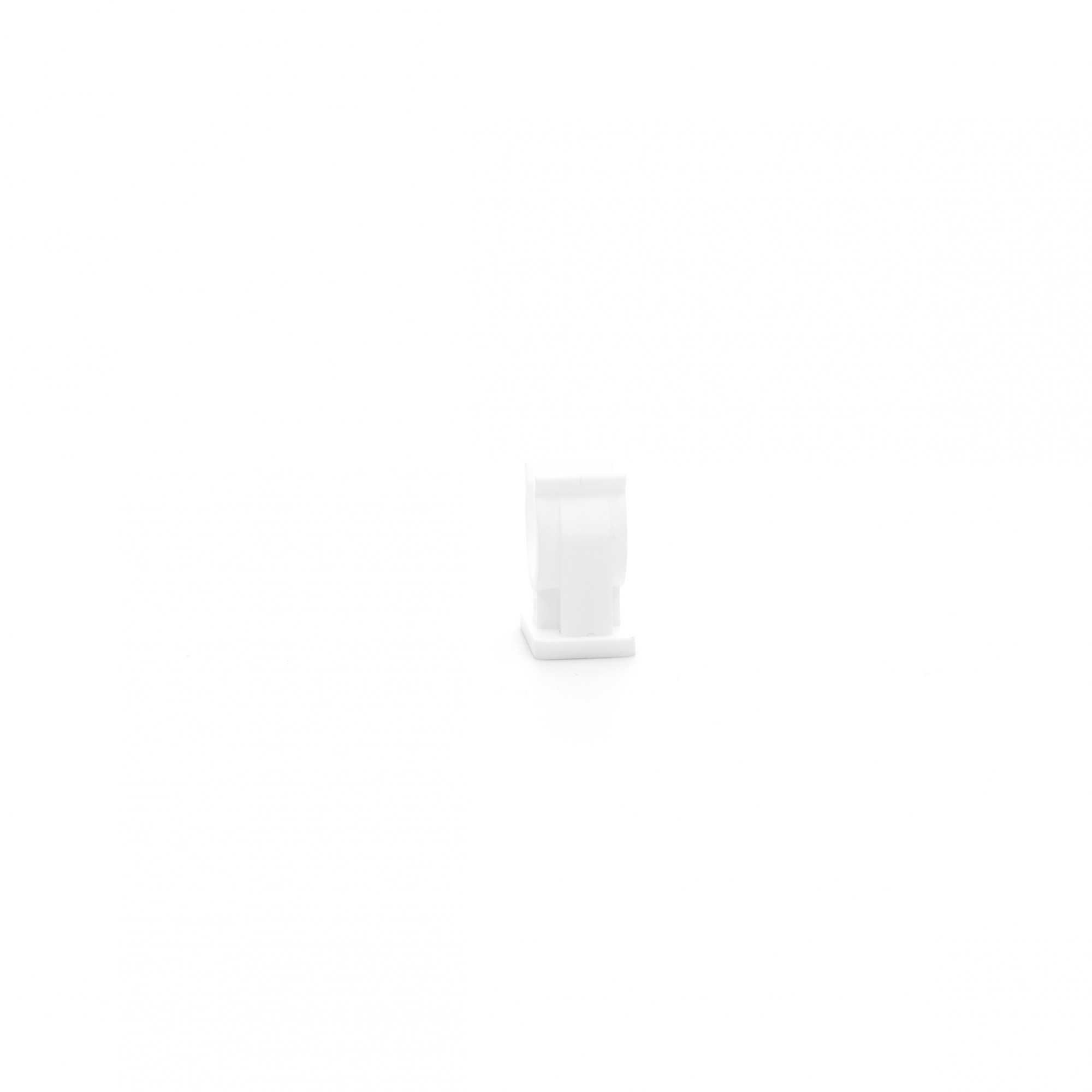

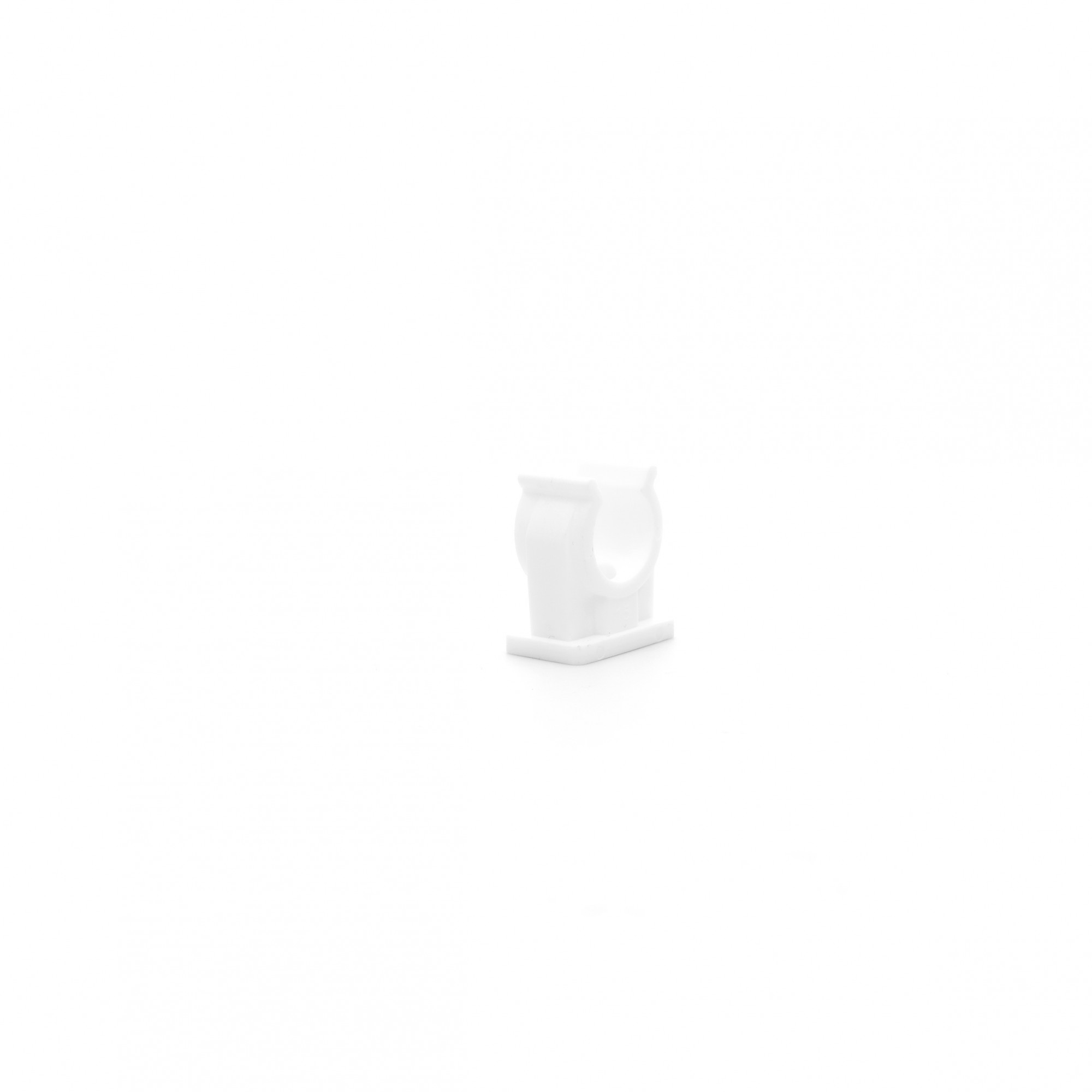

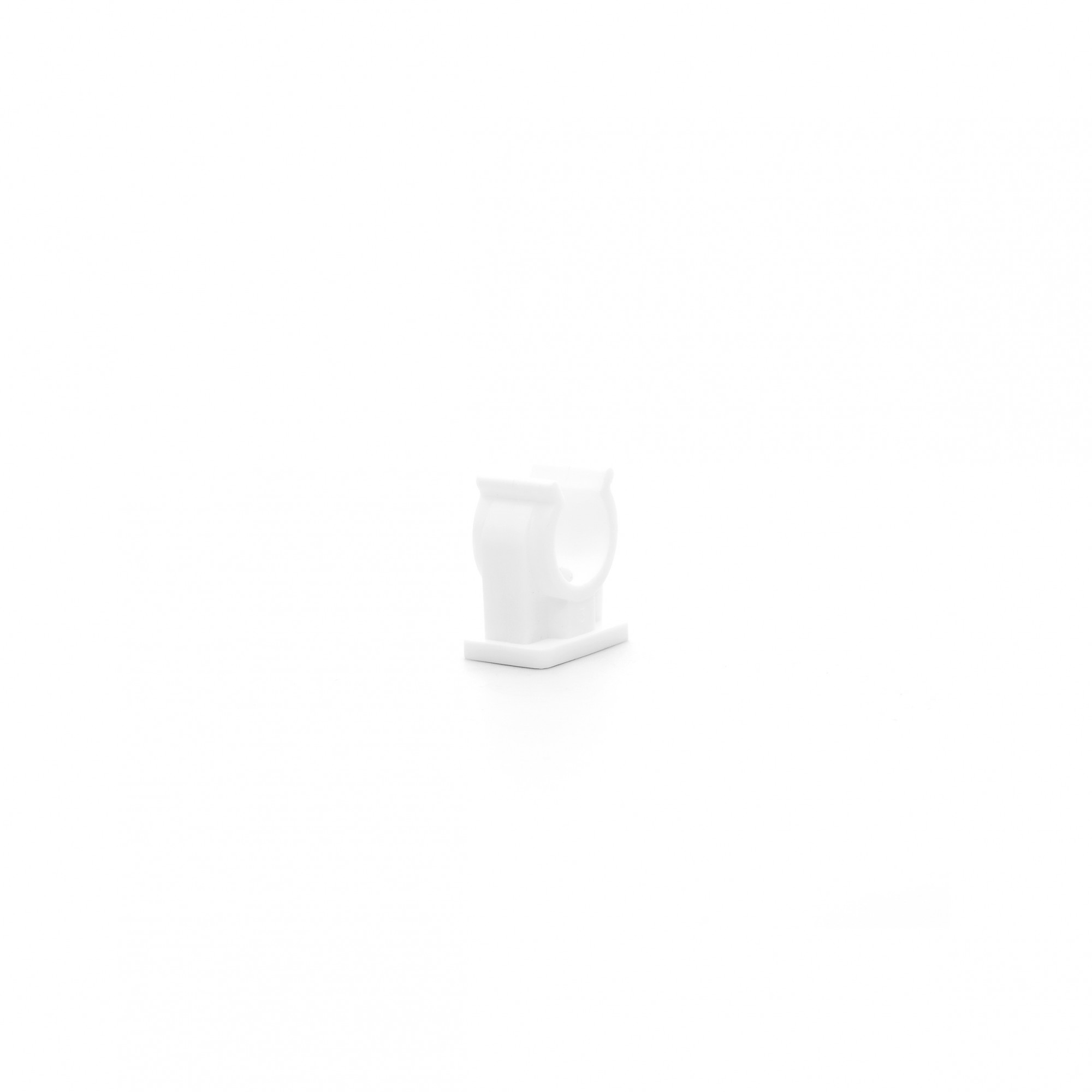

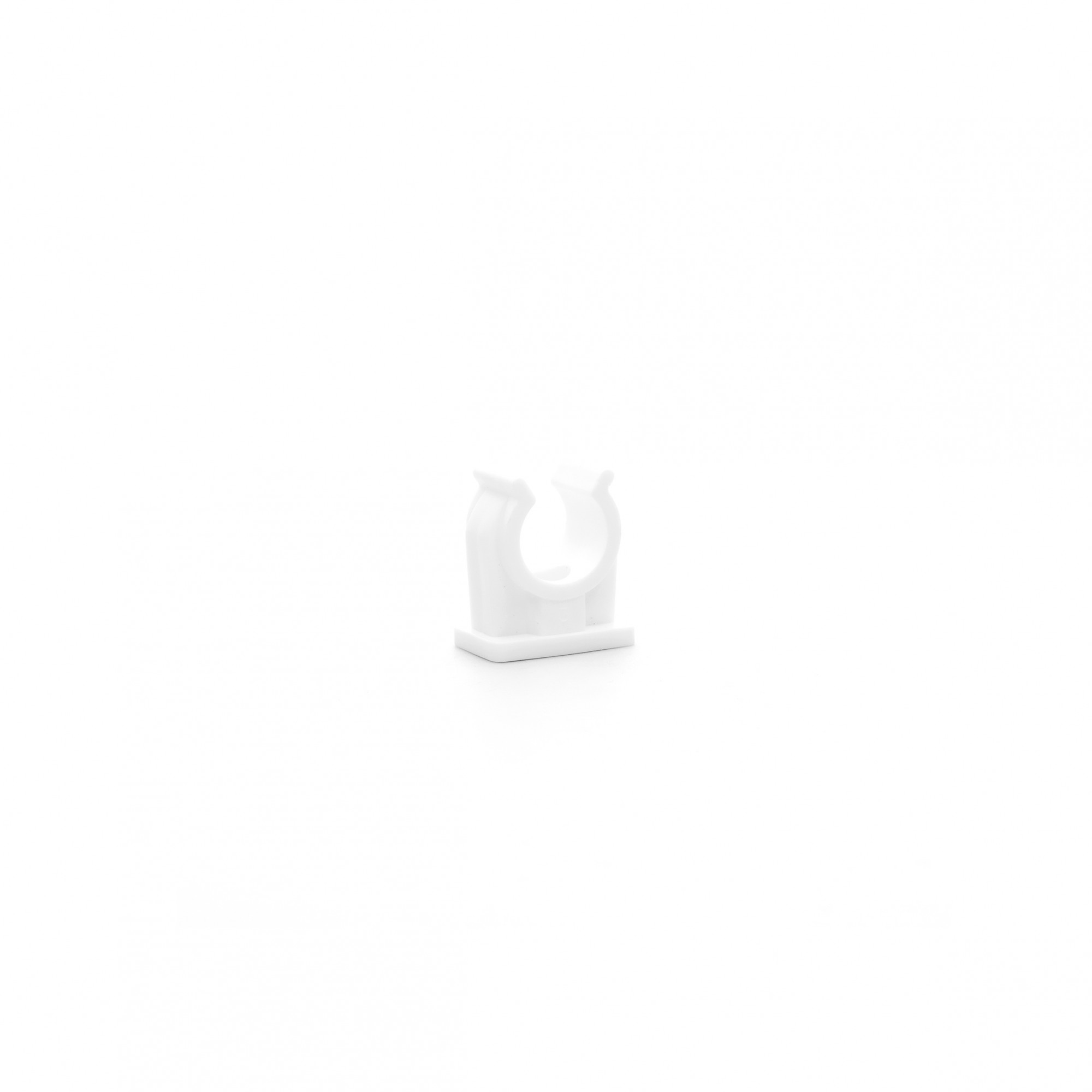

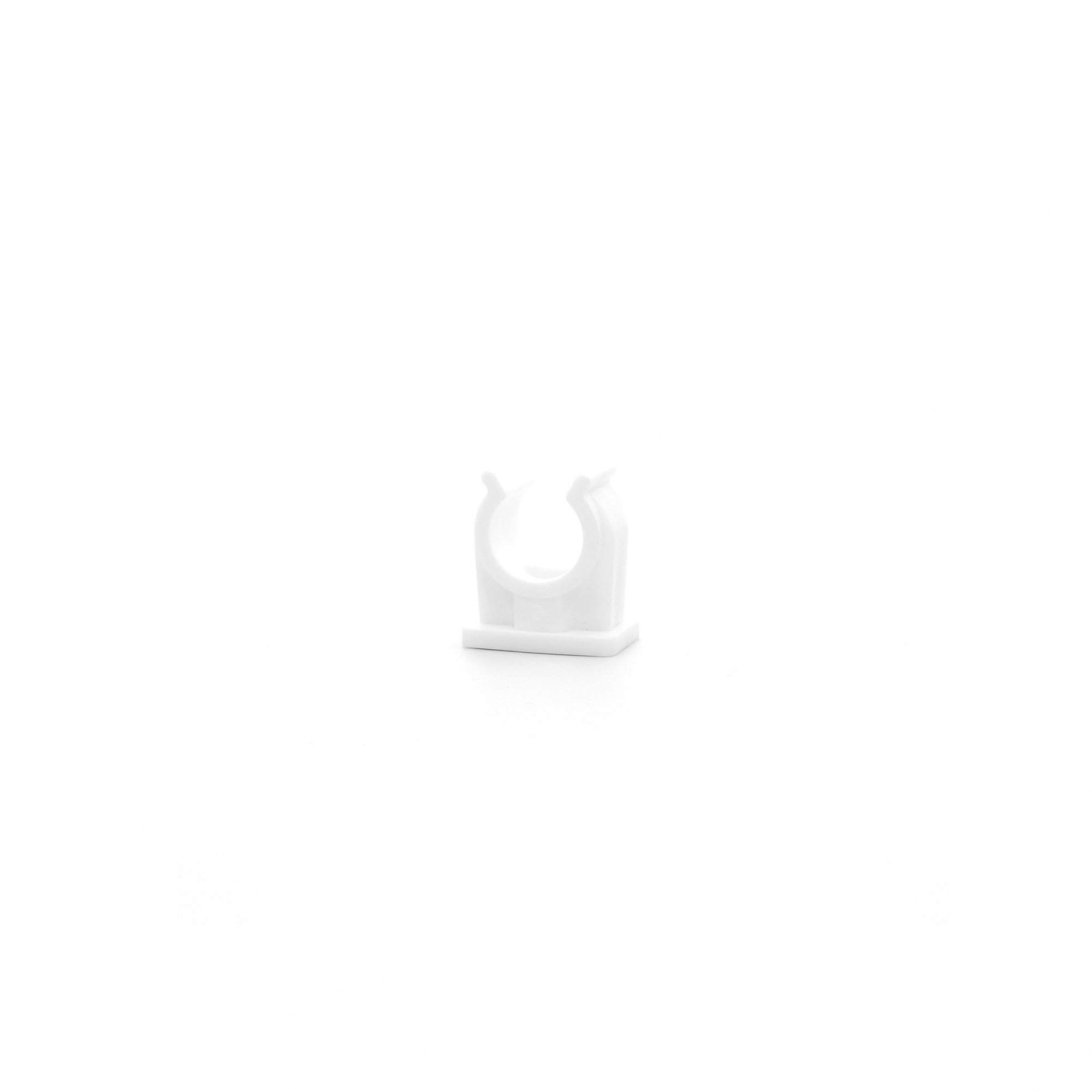

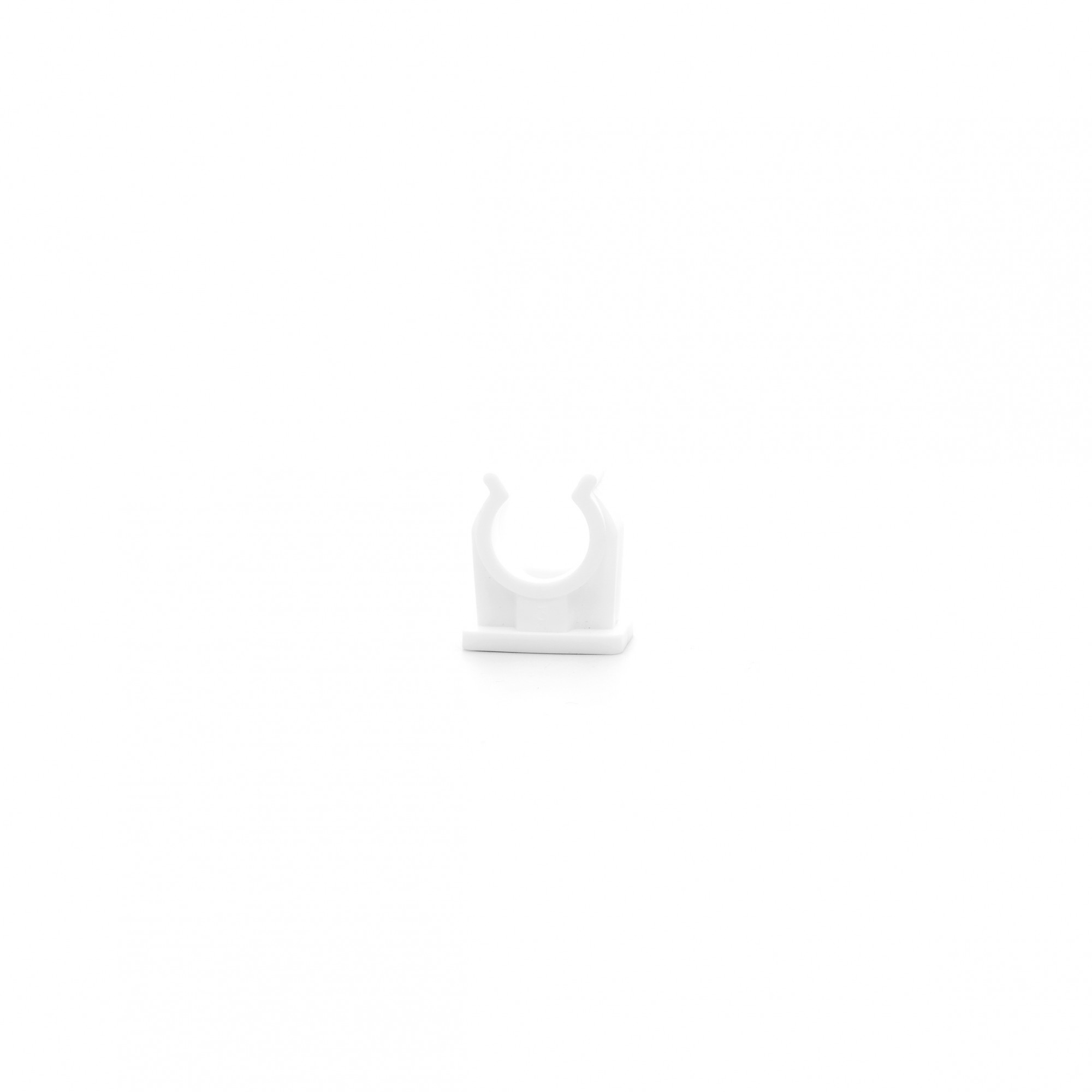

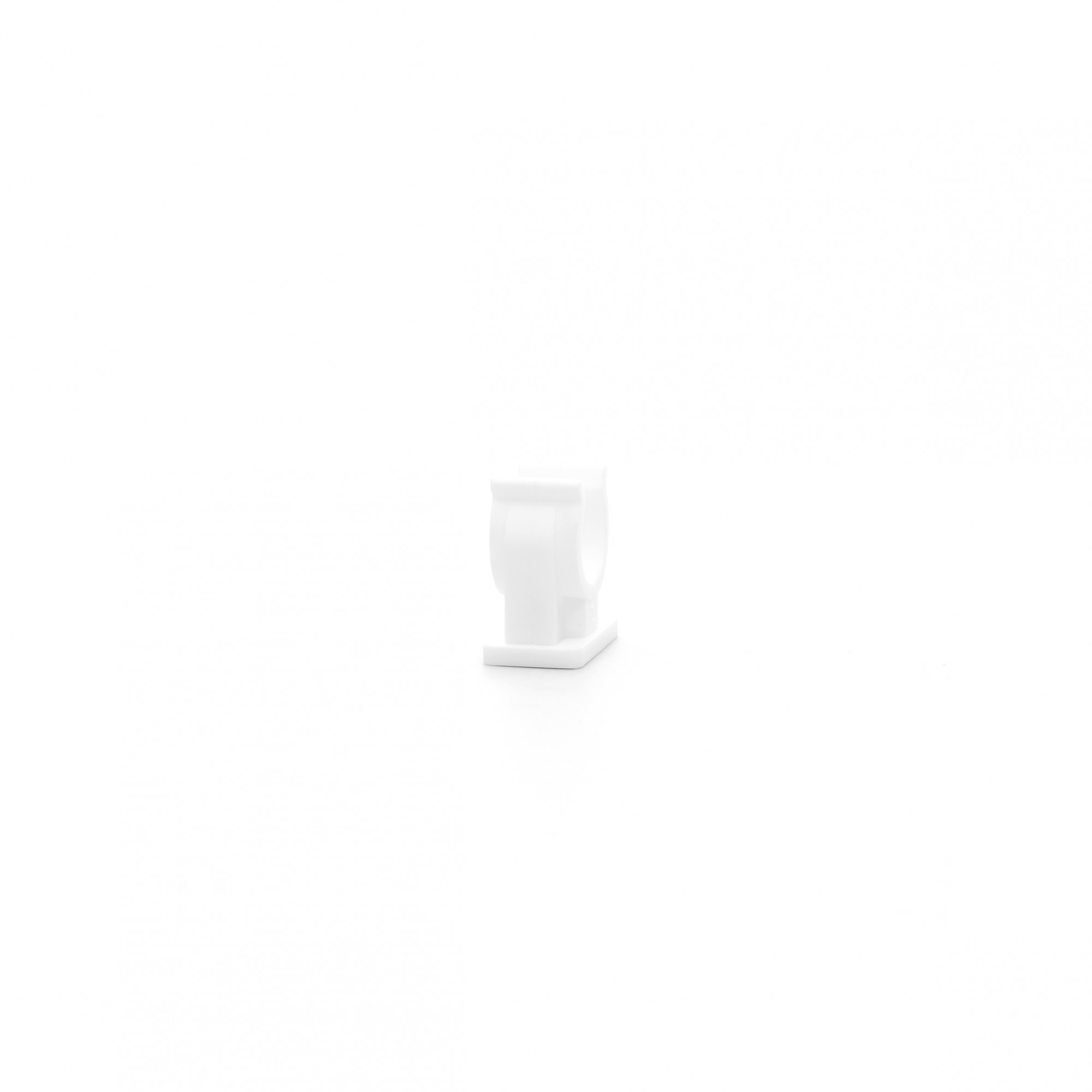

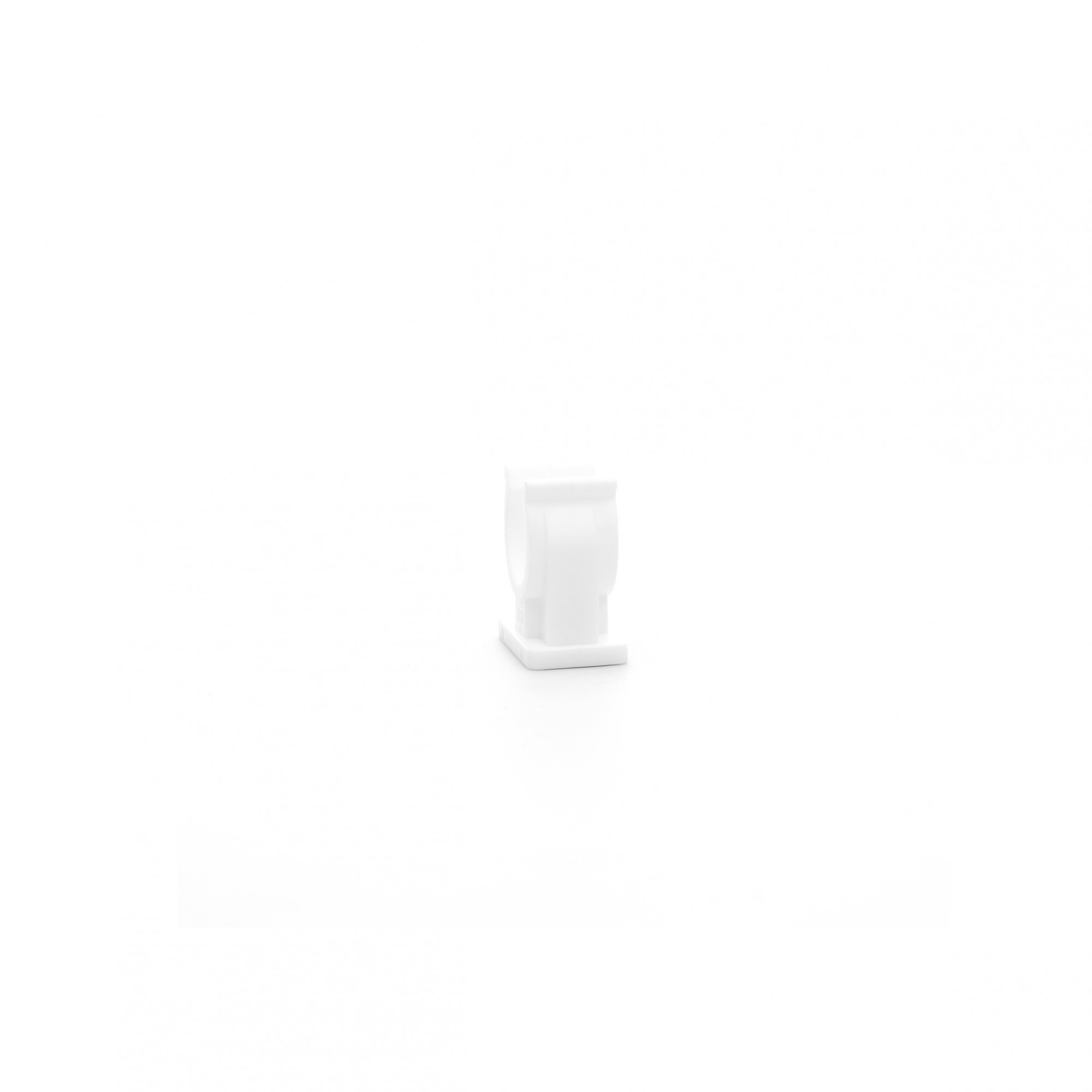

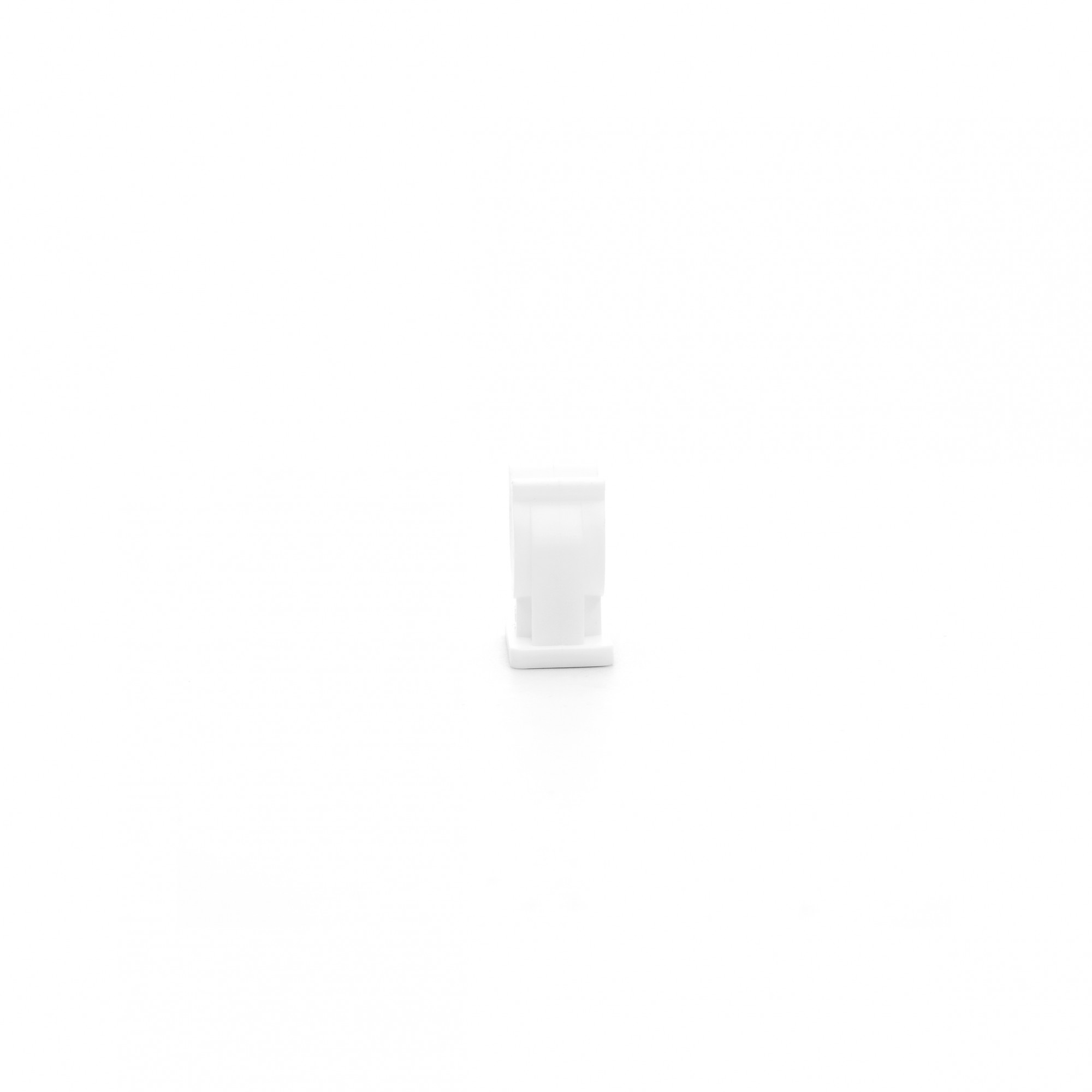

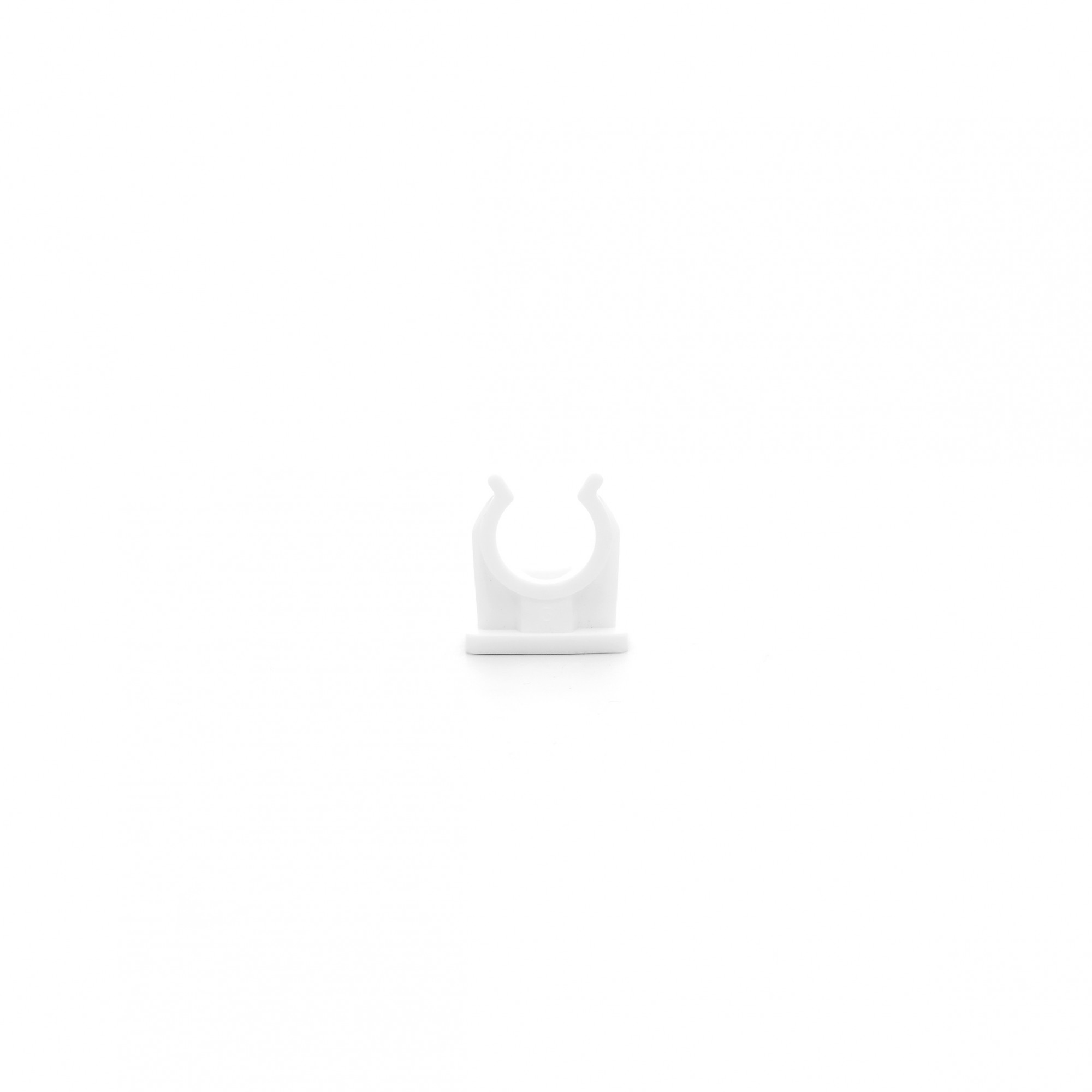

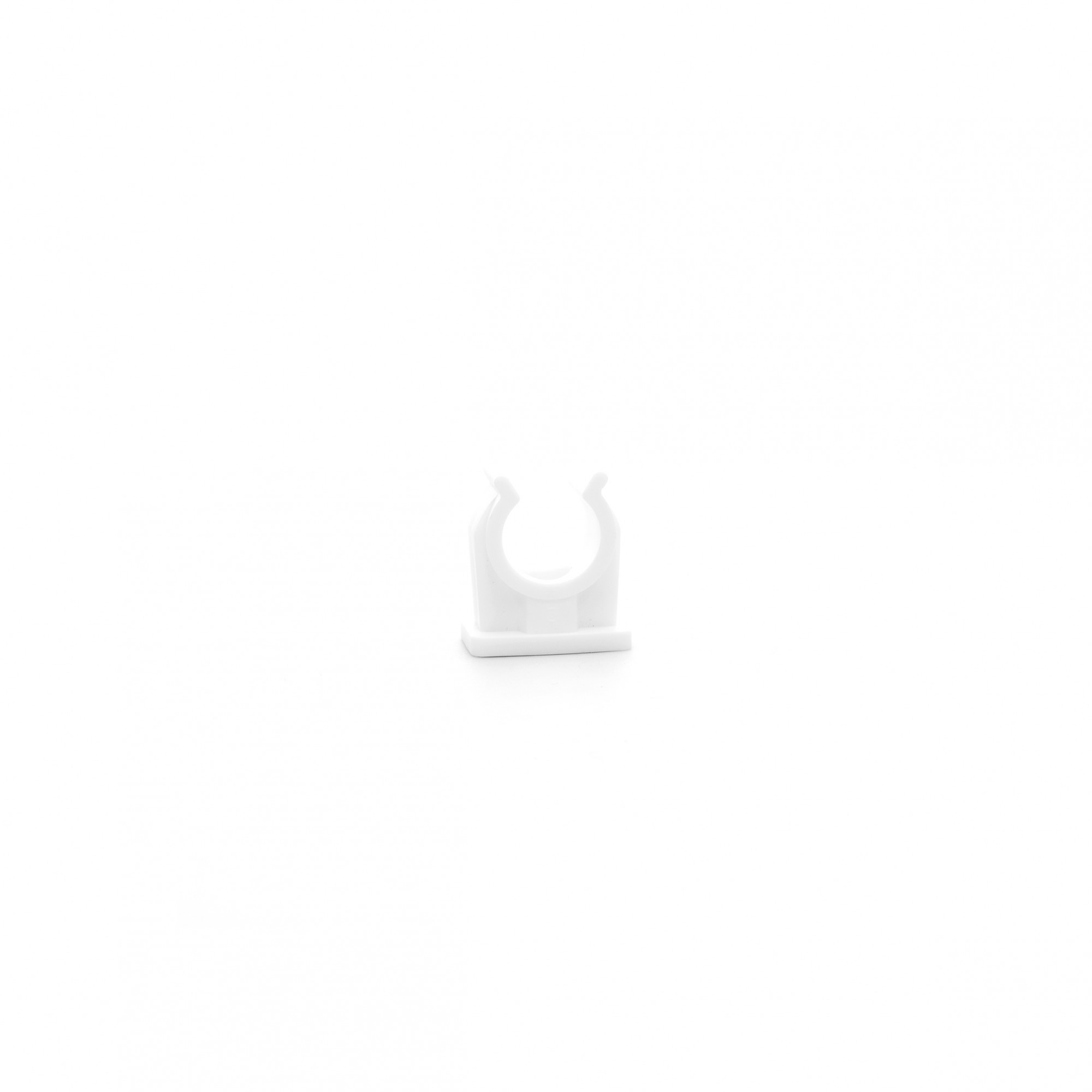

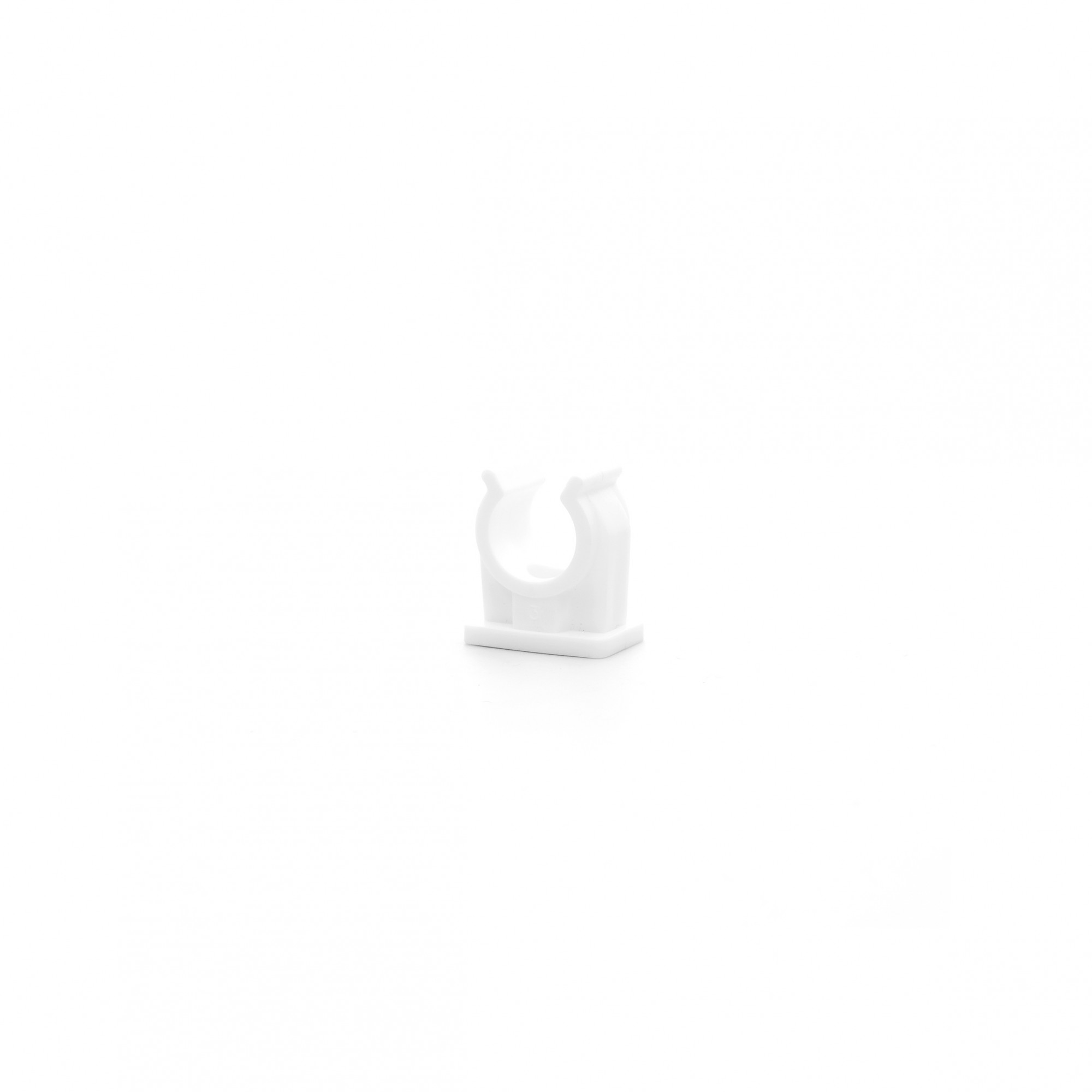

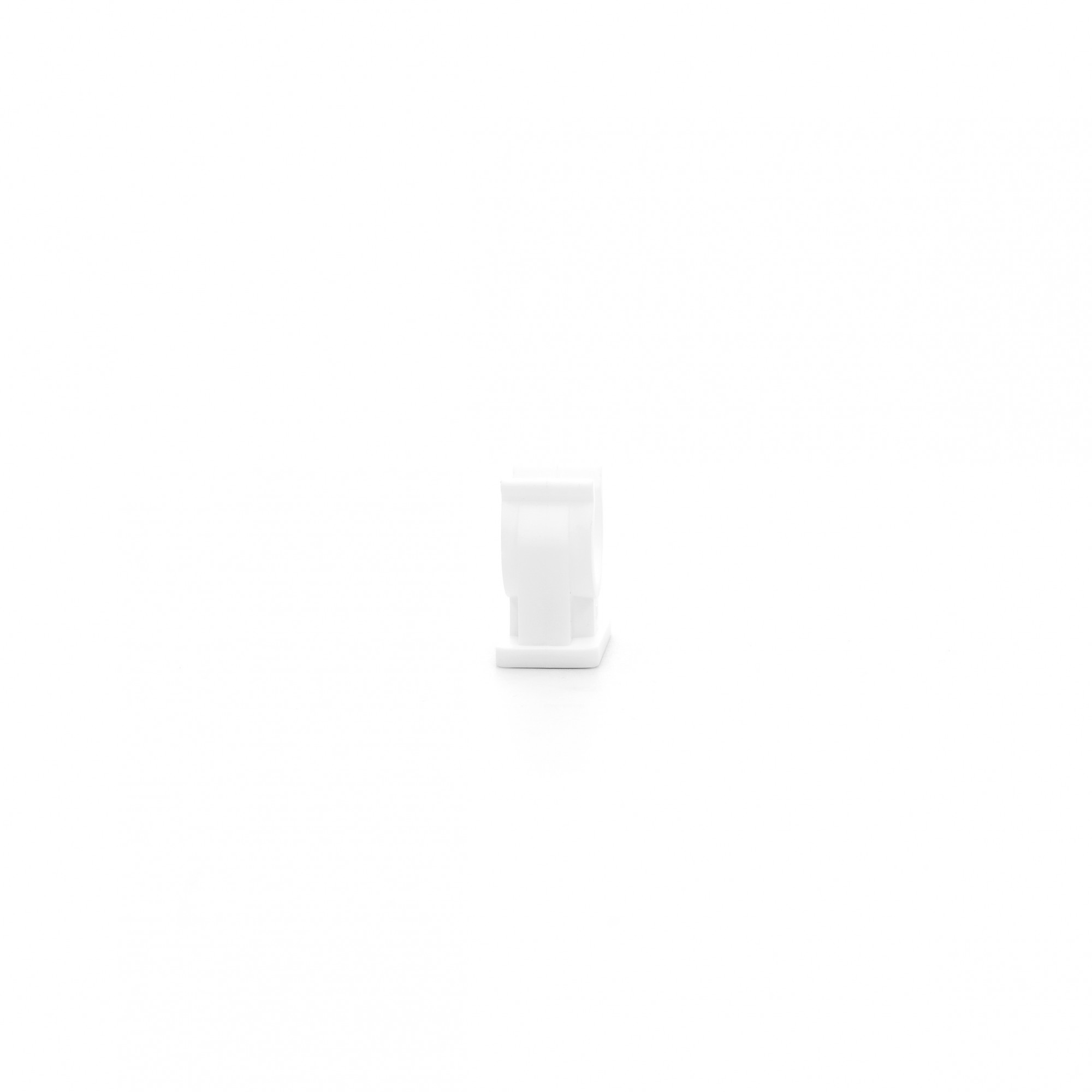

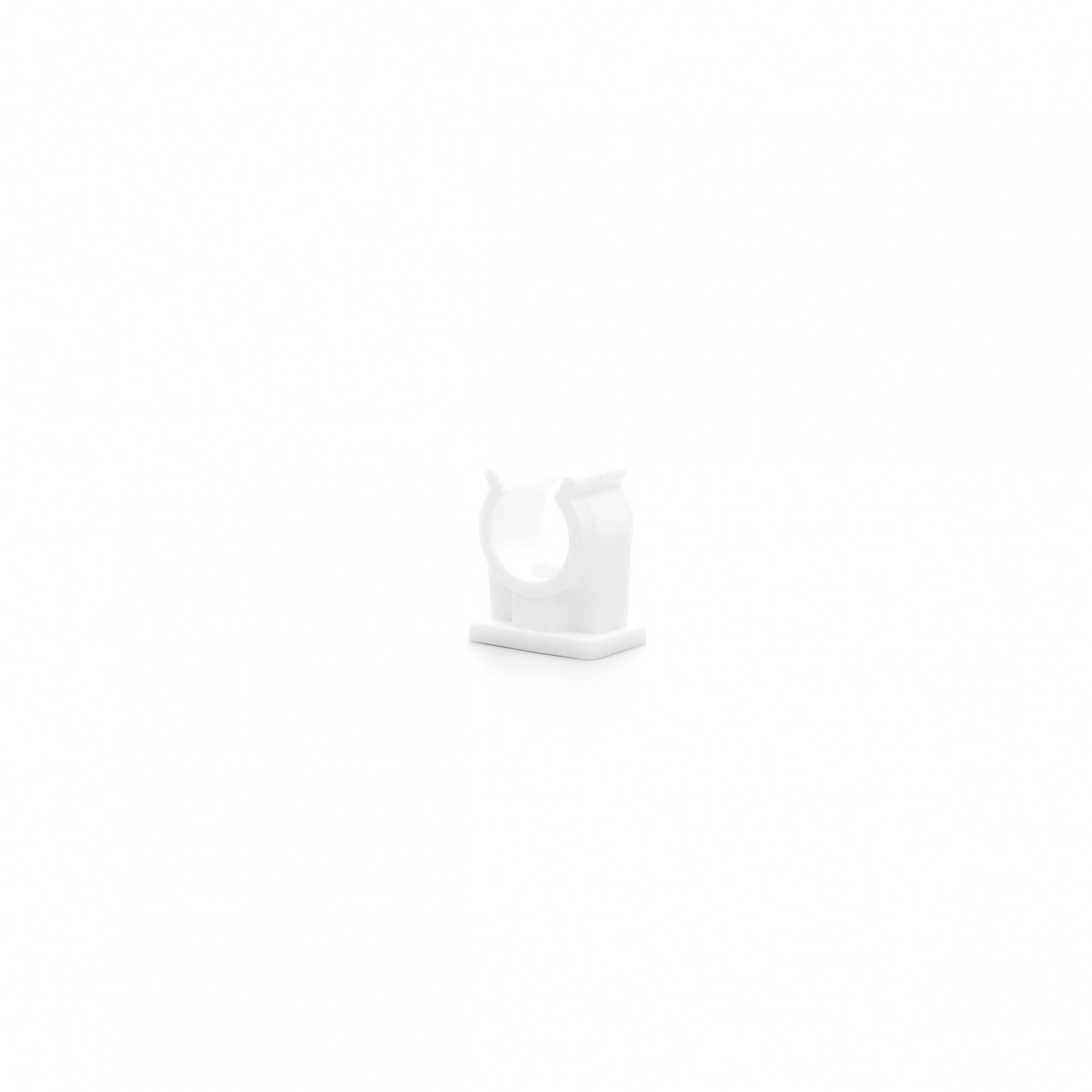

Wide range of sizes for individual clip allows to use various types of pipes made of: copper, PP, pex-al-pex, metric,etc.). Being the most popular market solution, plastic clips are available in diameters from 6 mm to 42 mm. The products are present as single and double.
MATERIAL: Copolymer
Technical data:
- temperature resistance: from -10˚C do +90˚C
- fixing temperature: from -10˚C • high tensile strength
- colour: white ral 9002, others colours available on request
- temperature resistance - melting point 160˚C
ASSEMBLY: The system facilitating pipe placement makes an easy introduction pipe to the clip, eliminating the possible breaking of the arms. Clip can be mounted using screws, double- threaded screws M6 and mounting rails.
| Confezione singola | Confezione multipla | Pallet | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indice | Diametro | Dimensioni del prodotto X/Y/Z (mm) |
Peso netto (g) | Numero | Dimensioni (cm) |
Peso lordo (kg) |
Numero | Dimensioni (cm) |
Peso lordo (kg) |
Numero | Dimensioni (cm) |
Peso lordo (kg) |
| A-690180 | 10 | 14.5 x 16.5 x 21 | 1.9 | 100 | 150 x 220 | 0.2 | 2500 | 395 x 260 x 165 | 5,1 | 225000 | 120 x 80 x 190 | 479 |
| A-690197 | 12 | 17 x 15.5 x 23 | 2.5 | 100 | 160 x 250 | 0.3 | 1500 | 395 x 260 x 165 | 4,2 | 135000 | 120 x 80 x 190 | 399 |
| A-690203 | 14-15 | 147x15,5x28 | 3.6 | 100 | 160 x 250 | 0.4 | 1000 | 395 x 260 x 165 | 3,9 | 90000 | 120 x 80 x 190 | 368 |
| A-063437 | 14-15 | 24 x 15.5 x 26.5 | 3.4 | 100 | 160 x 250 | 0.3 | 1000 | 395 x 260 x 165 | 3,7 | 90000 | 120 x 80 x 190 | 350 |
| A-690227 | 16-18 | 23 x 15.5 x 34 | 4.1 | 100 | 200 x 300 | 0.4 | 800 | 395 x 260 x 165 | 3,6 | 72000 | 120 x 80 x 190 | 340 |
| A-690241 | 20-22 | 24.5 x 15.5 x38 | 5 | 50 | 160 x 250 | 0.3 | 600 | 395 x 260 x 165 | 3,3 | 54000 | 120 x 80 x 190 | 314 |
| A-690265 | 25-28 | 32.5 x 15.5 x 50 | 9 | 50 | 200 x 300 | 0.5 | 300 | 395 x 260 x165 | 3 | 27000 | 120 x 80 x 190 | 287 |
| A-690272 | 35 | 34 x 16.5 x 52 | 8.2 | 50 | 200 x 300 | 0.4 | 300 | 395 x 260 x165 | 2,7 | 27000 | 120 x 80 x 190 | 266 |
| A-063390 | 42 | - | - | - | - | - | - | - | - | - | - | - |
Technical drawing
