product description

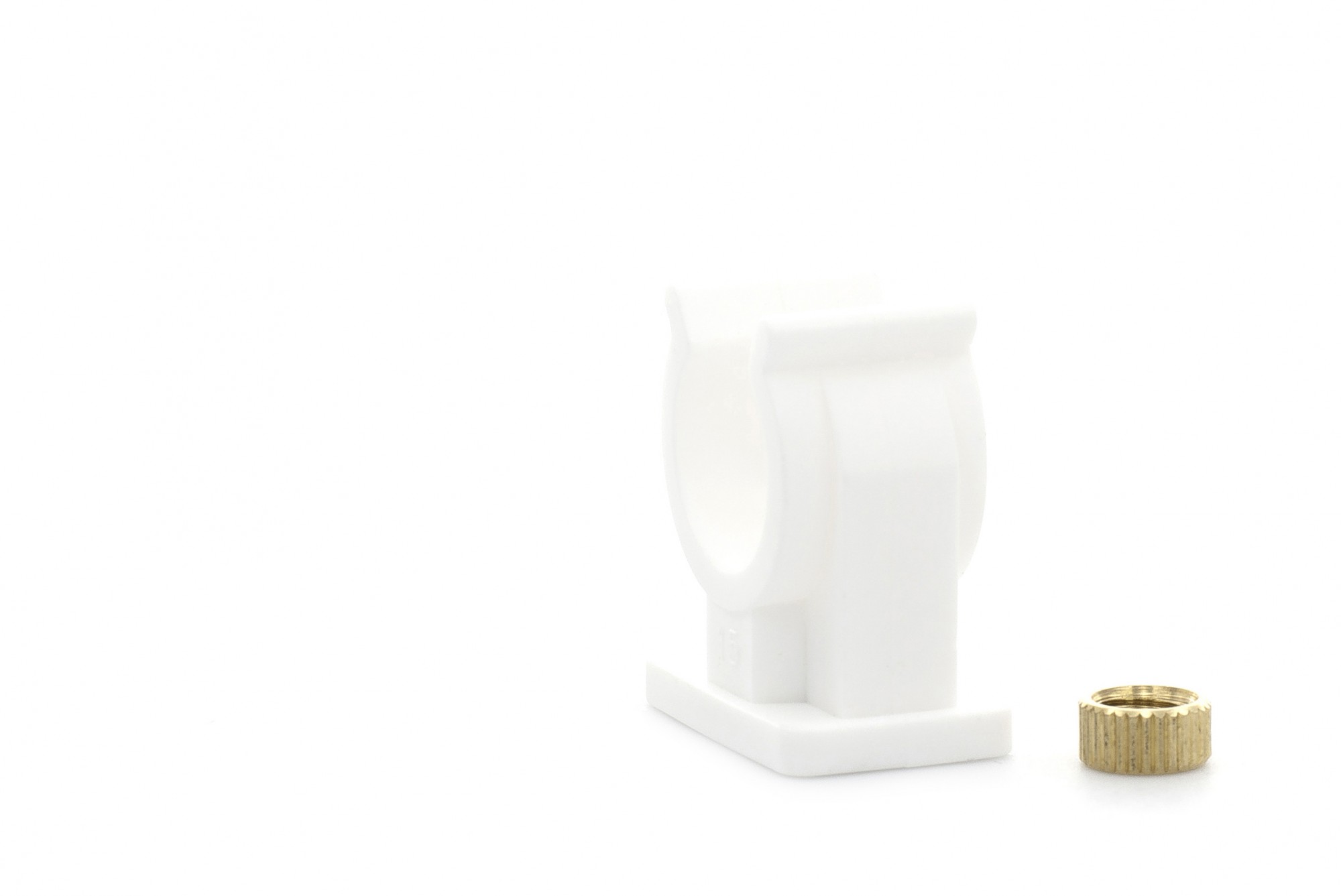

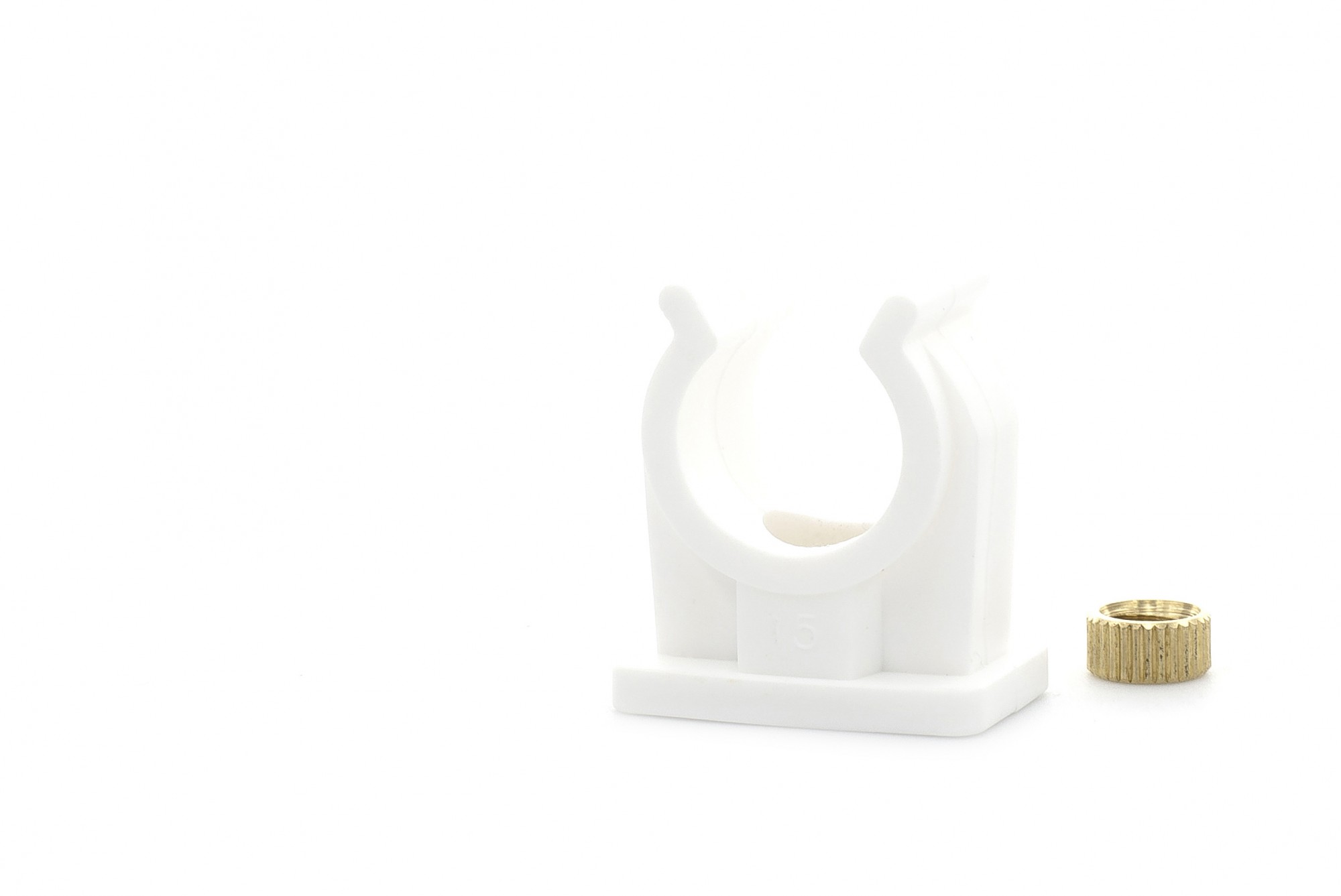

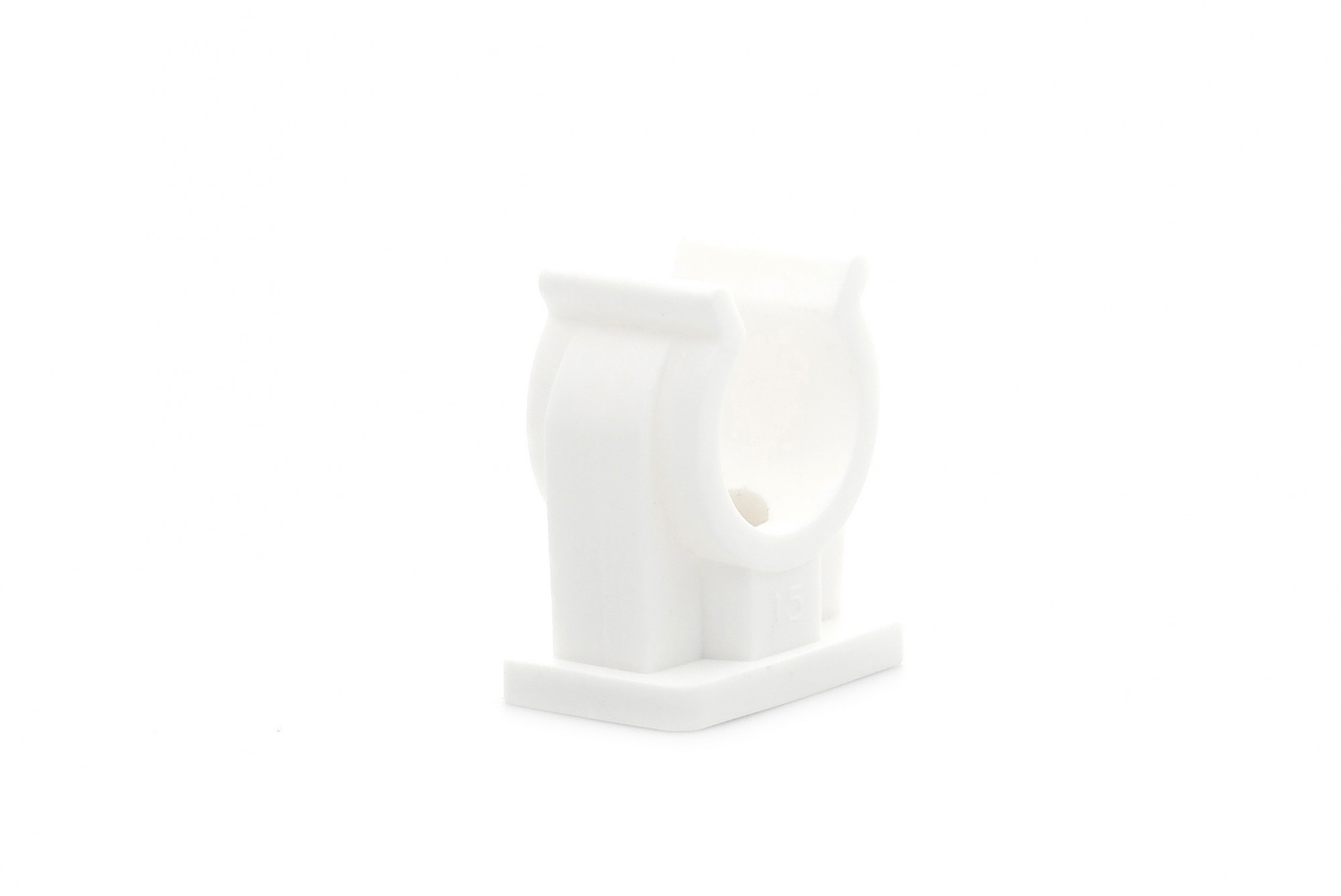

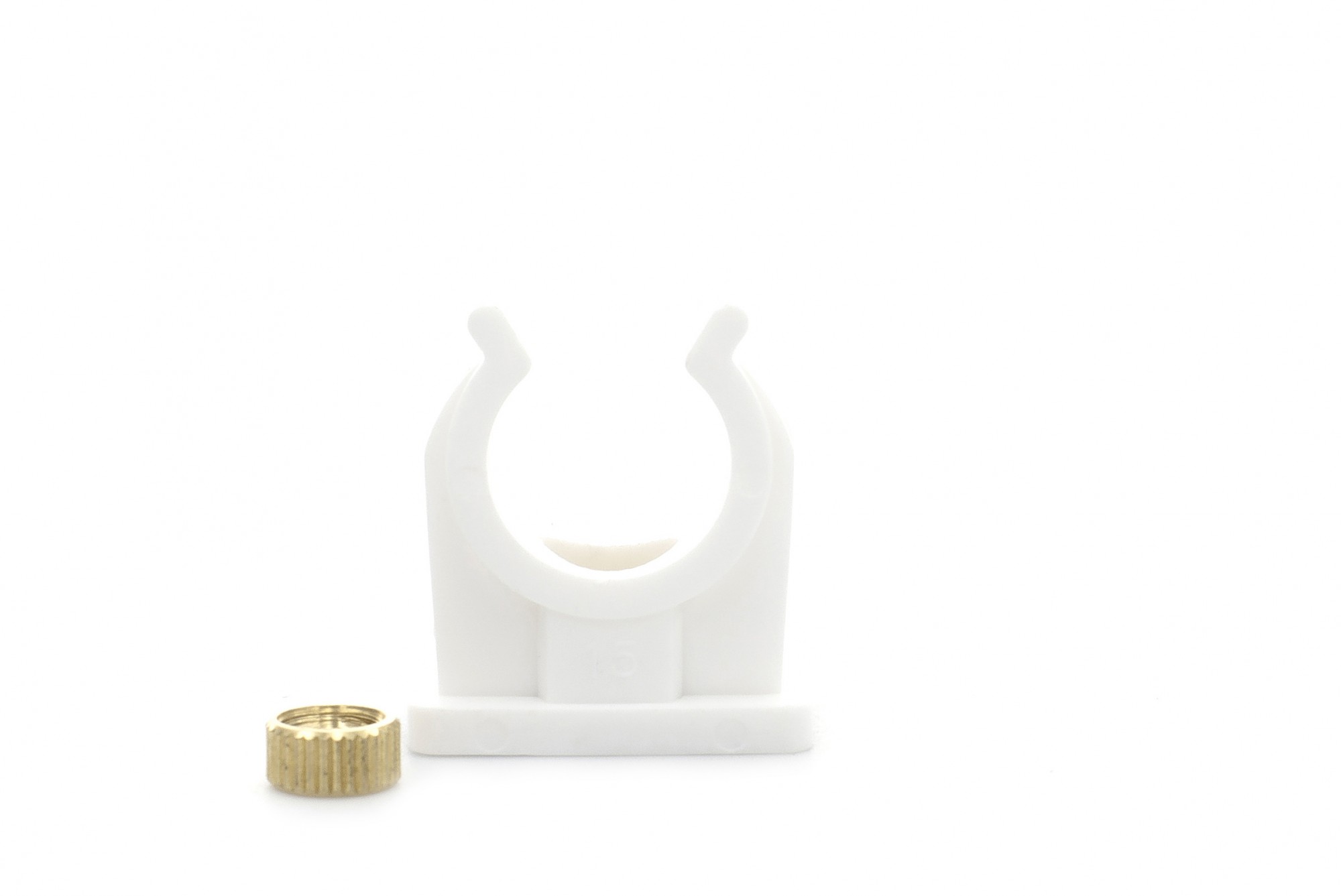

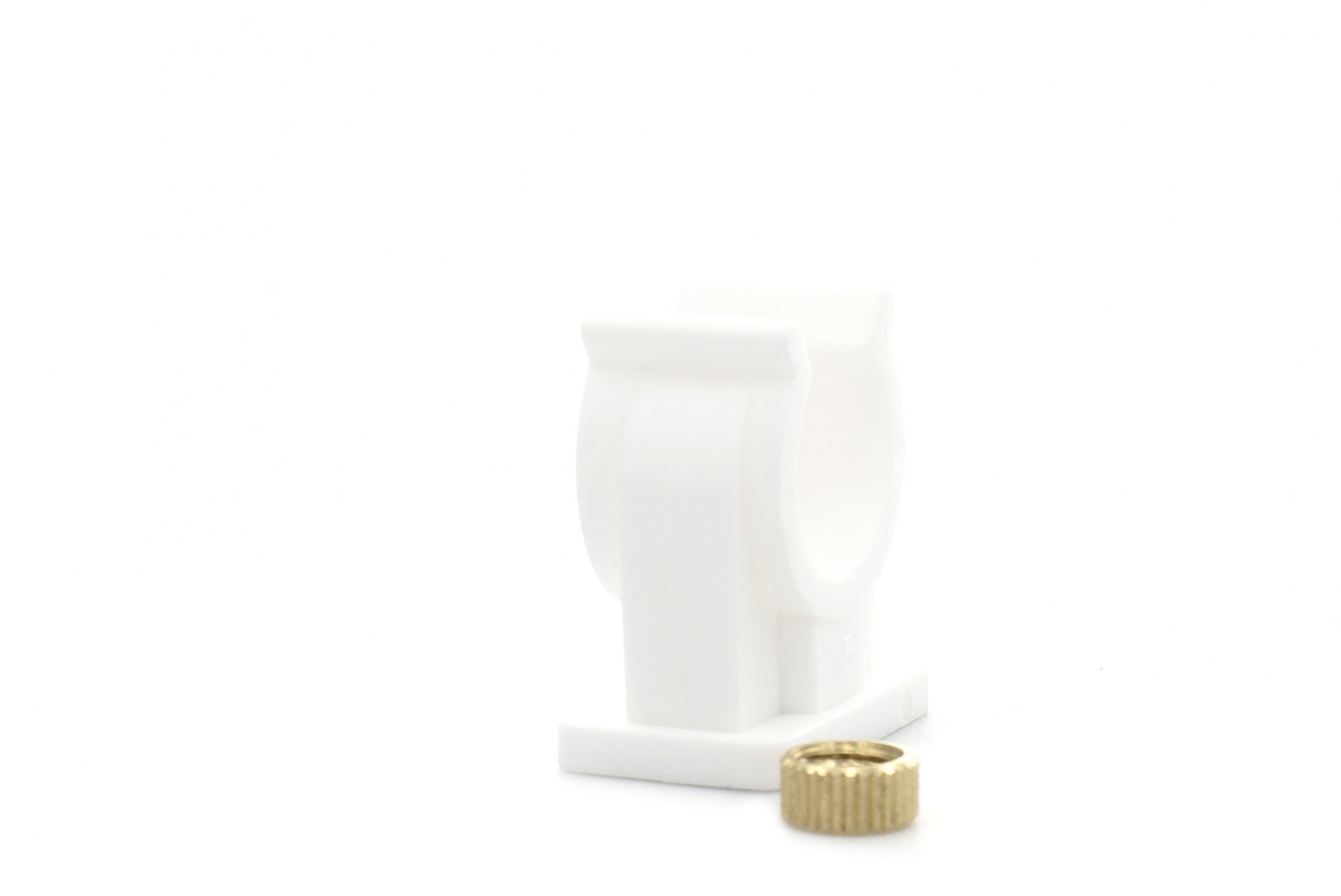

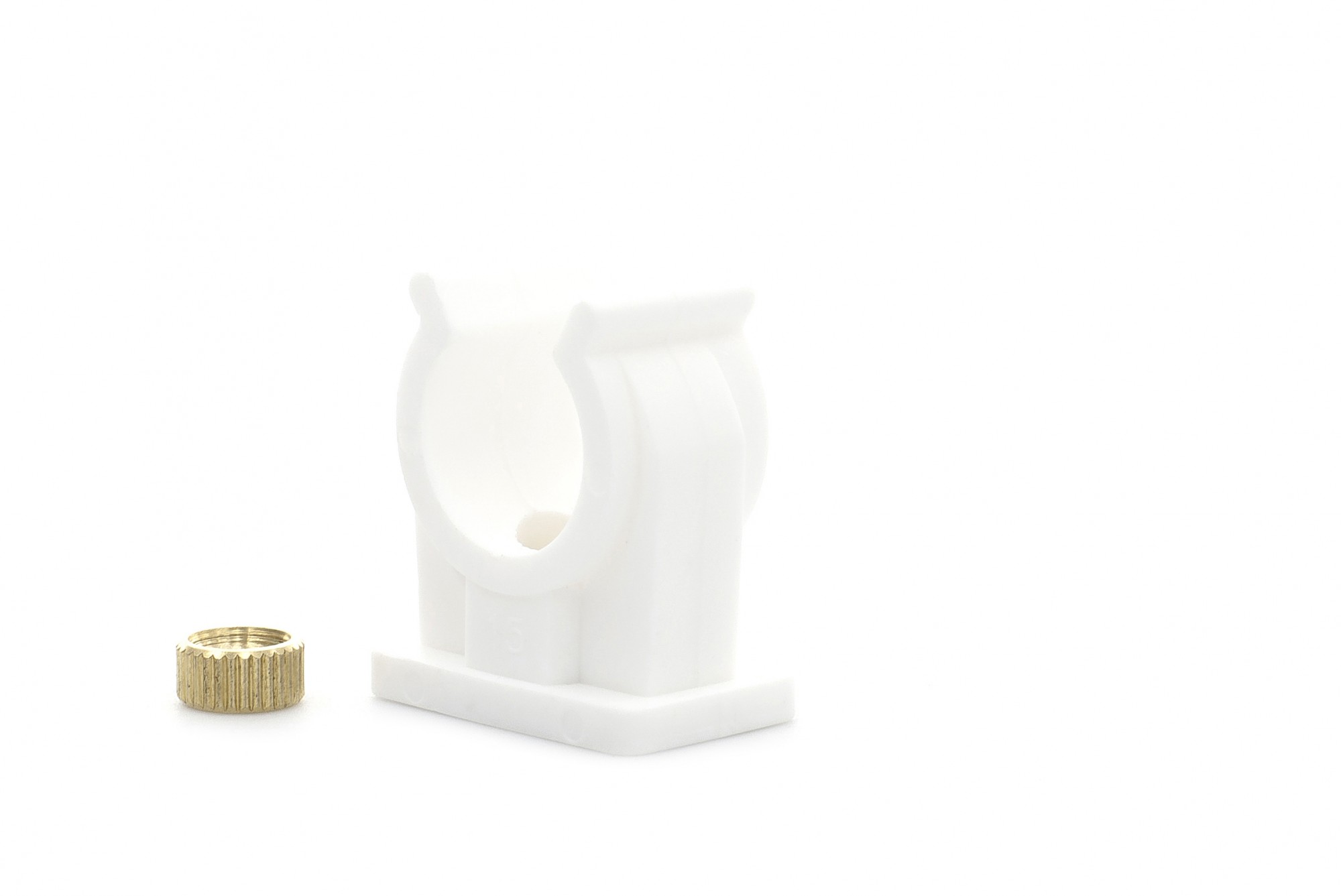

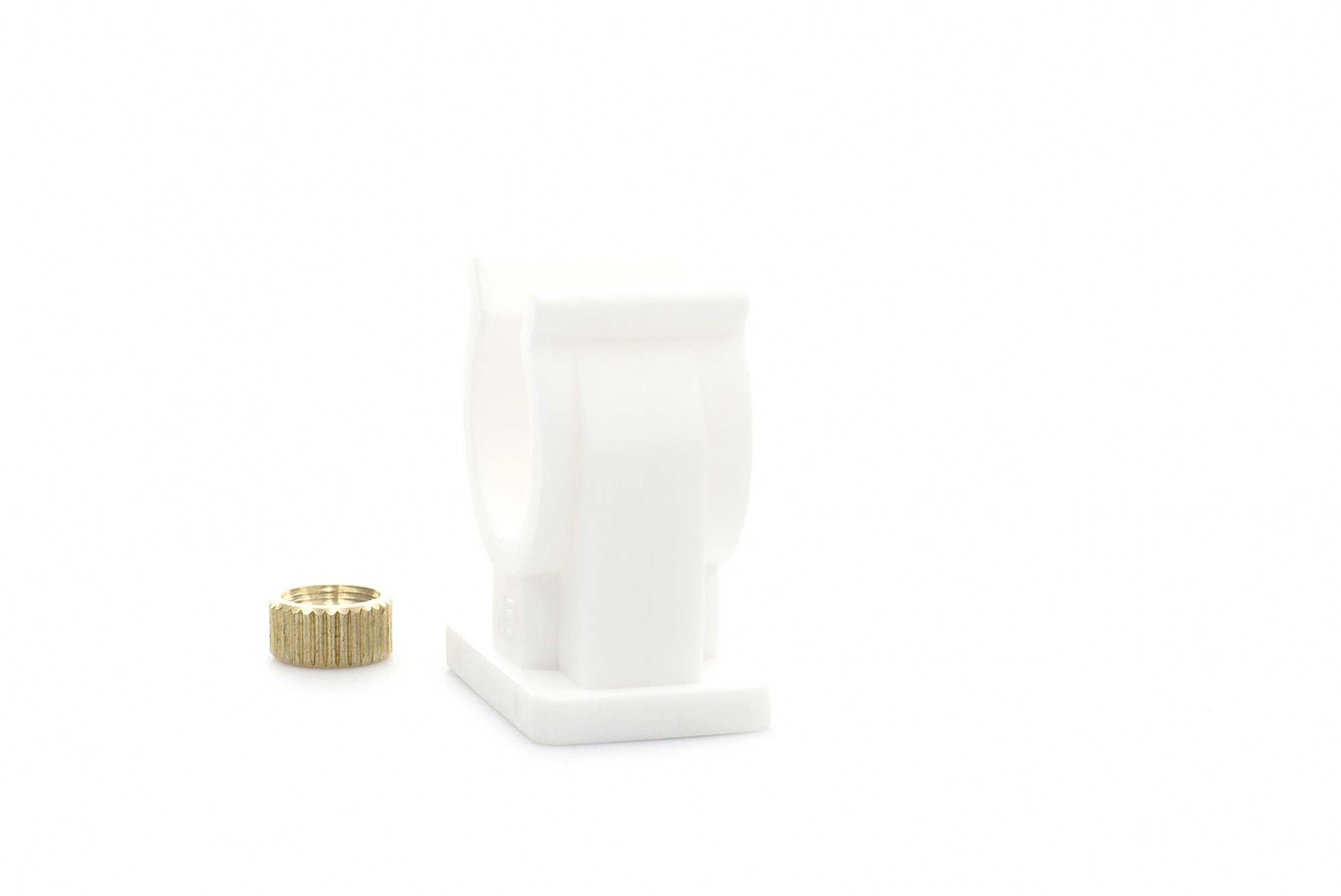

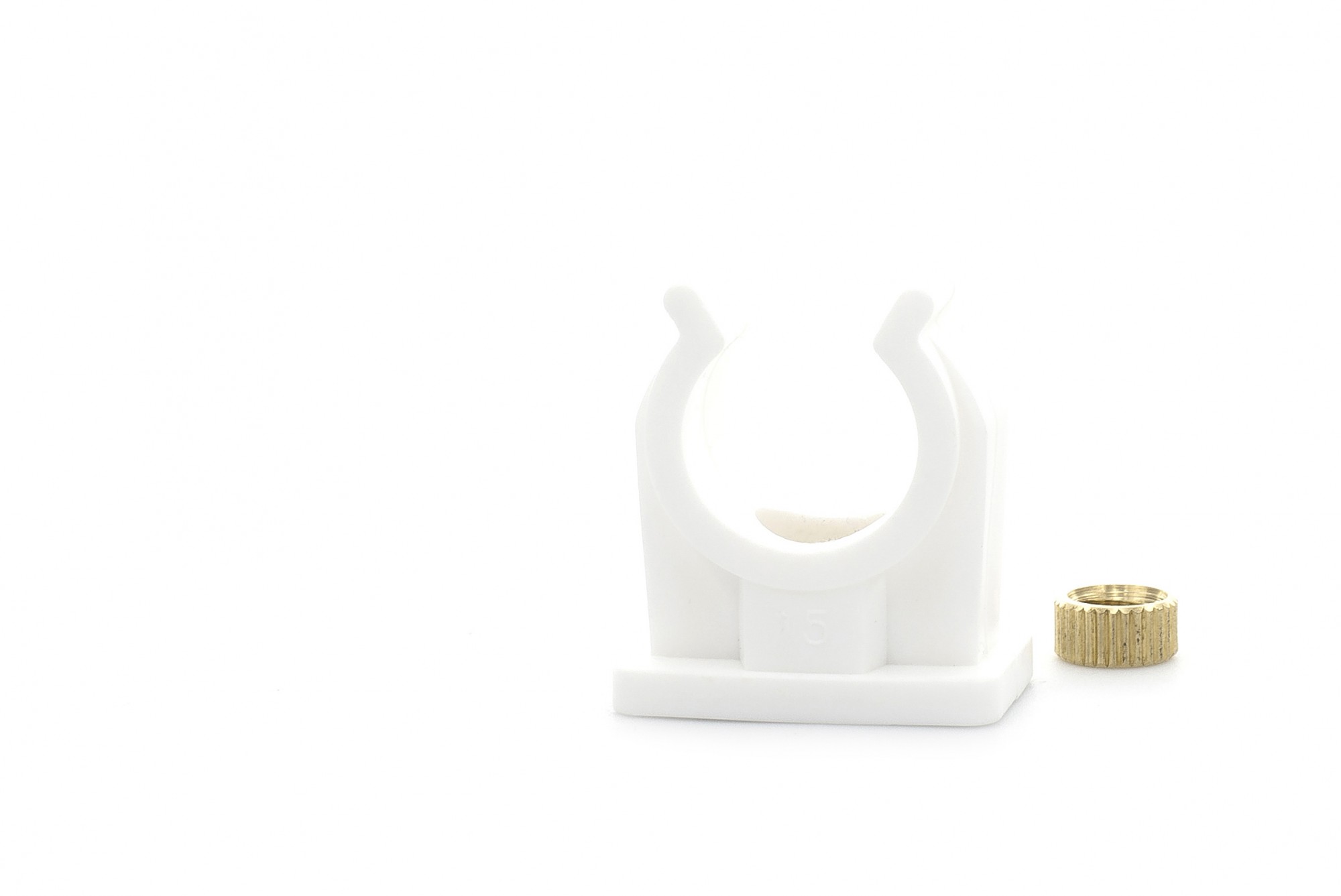

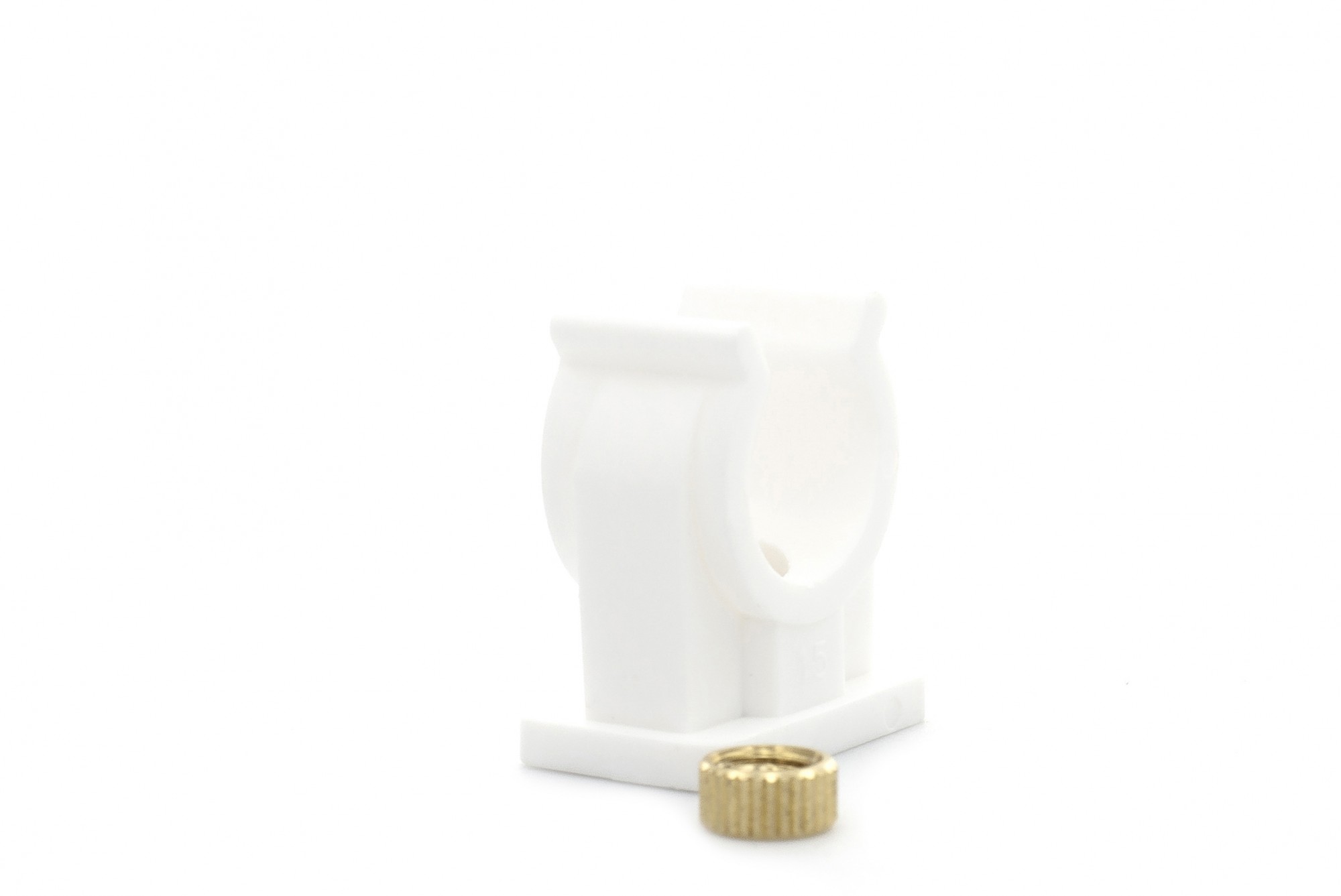

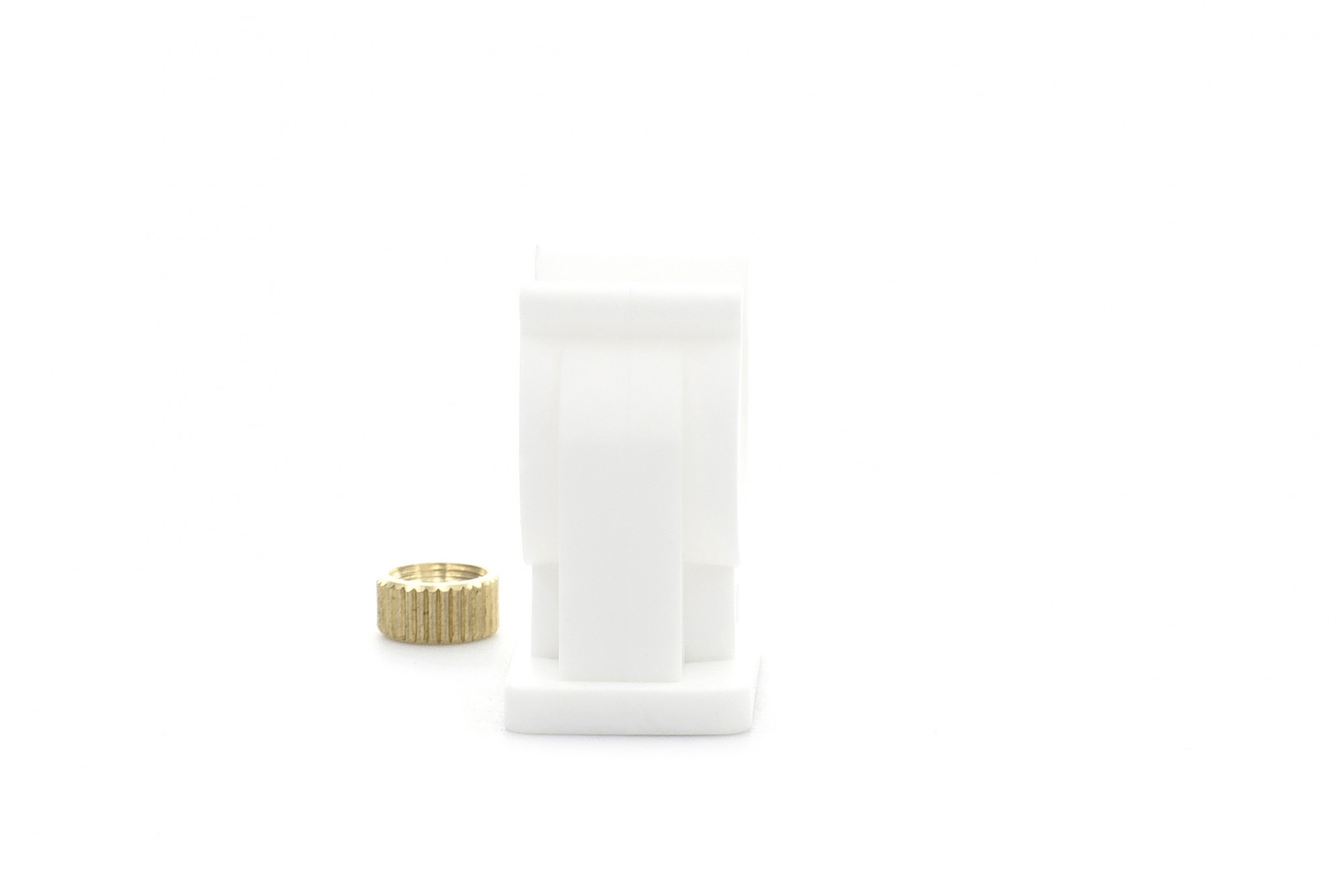

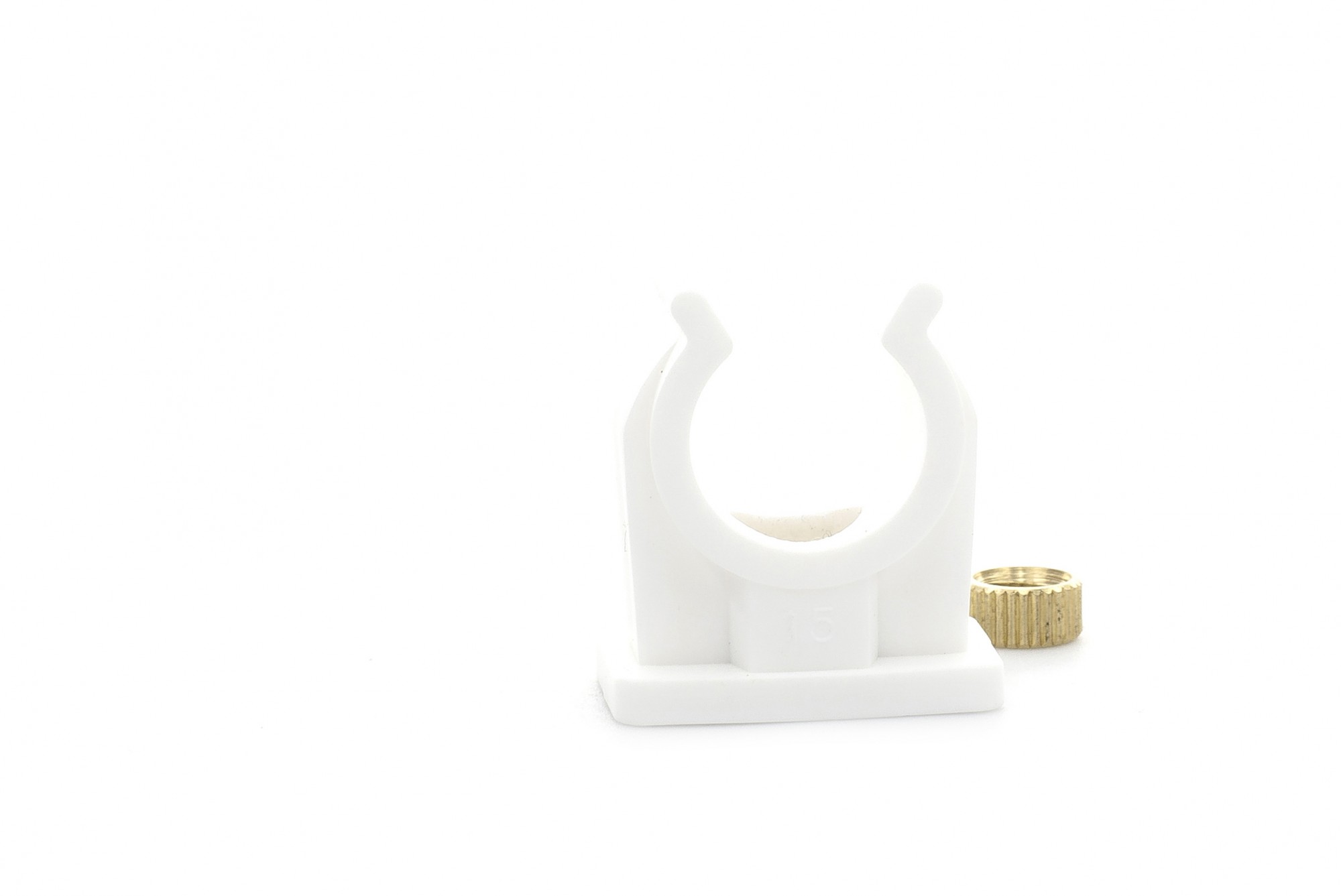

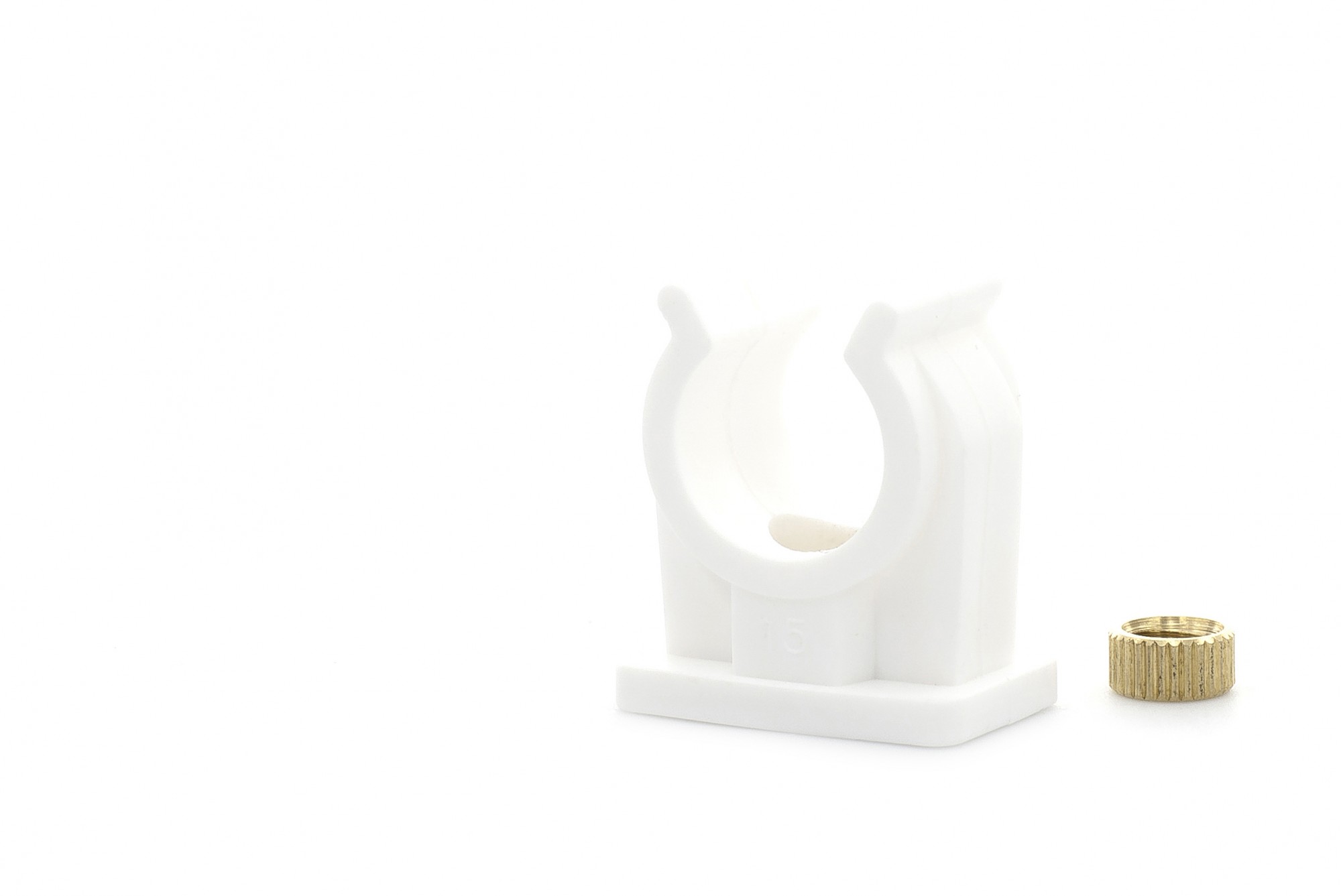

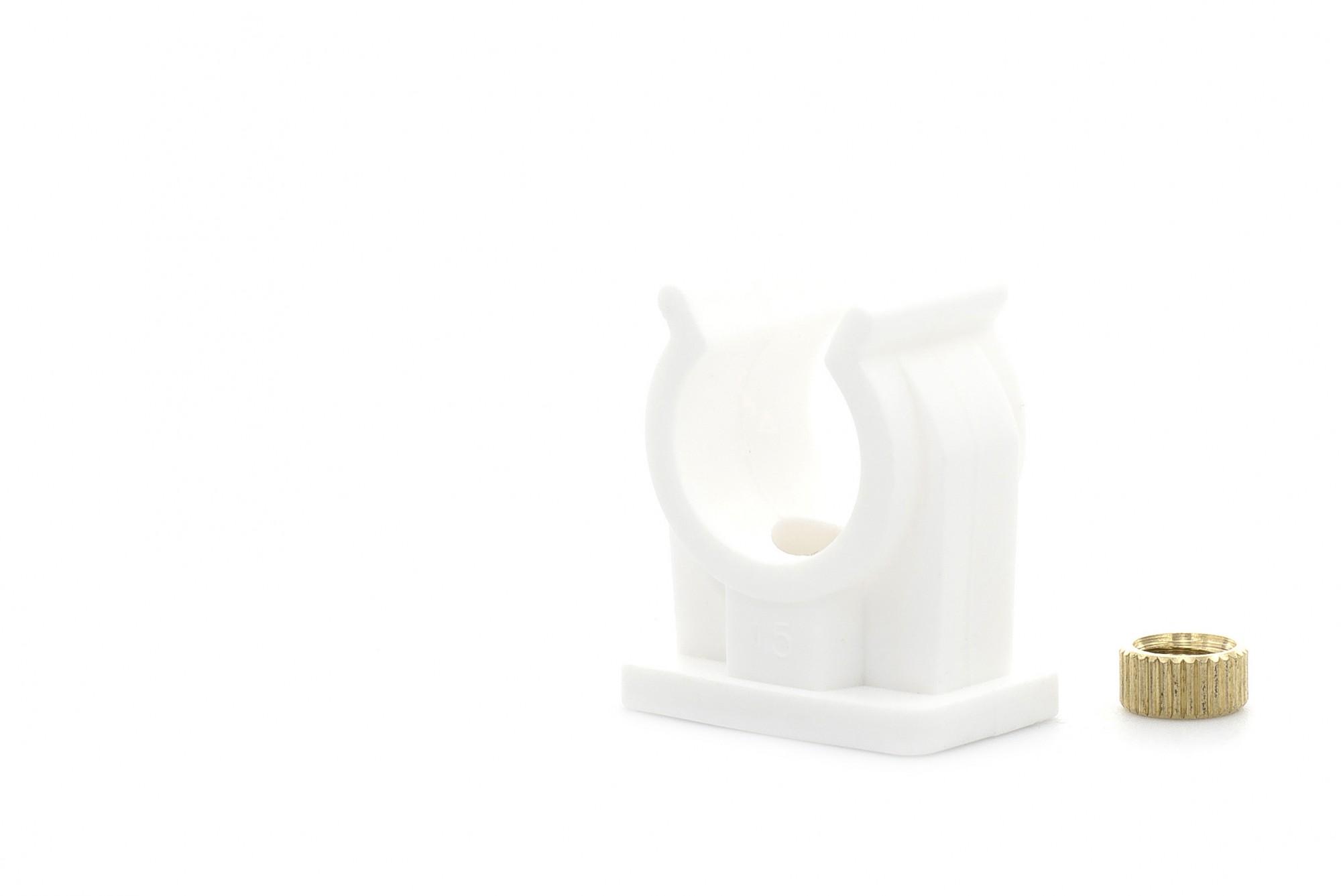

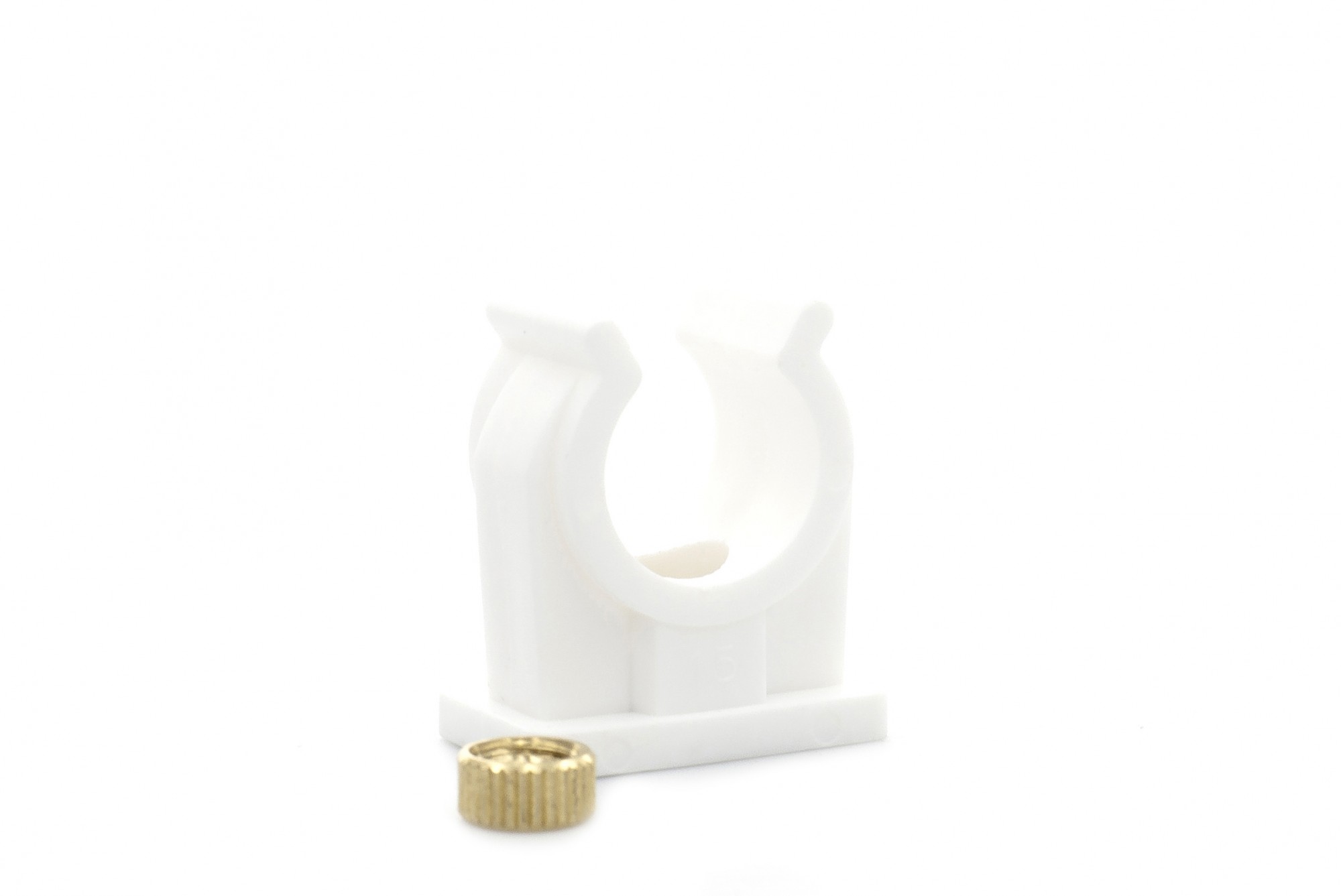

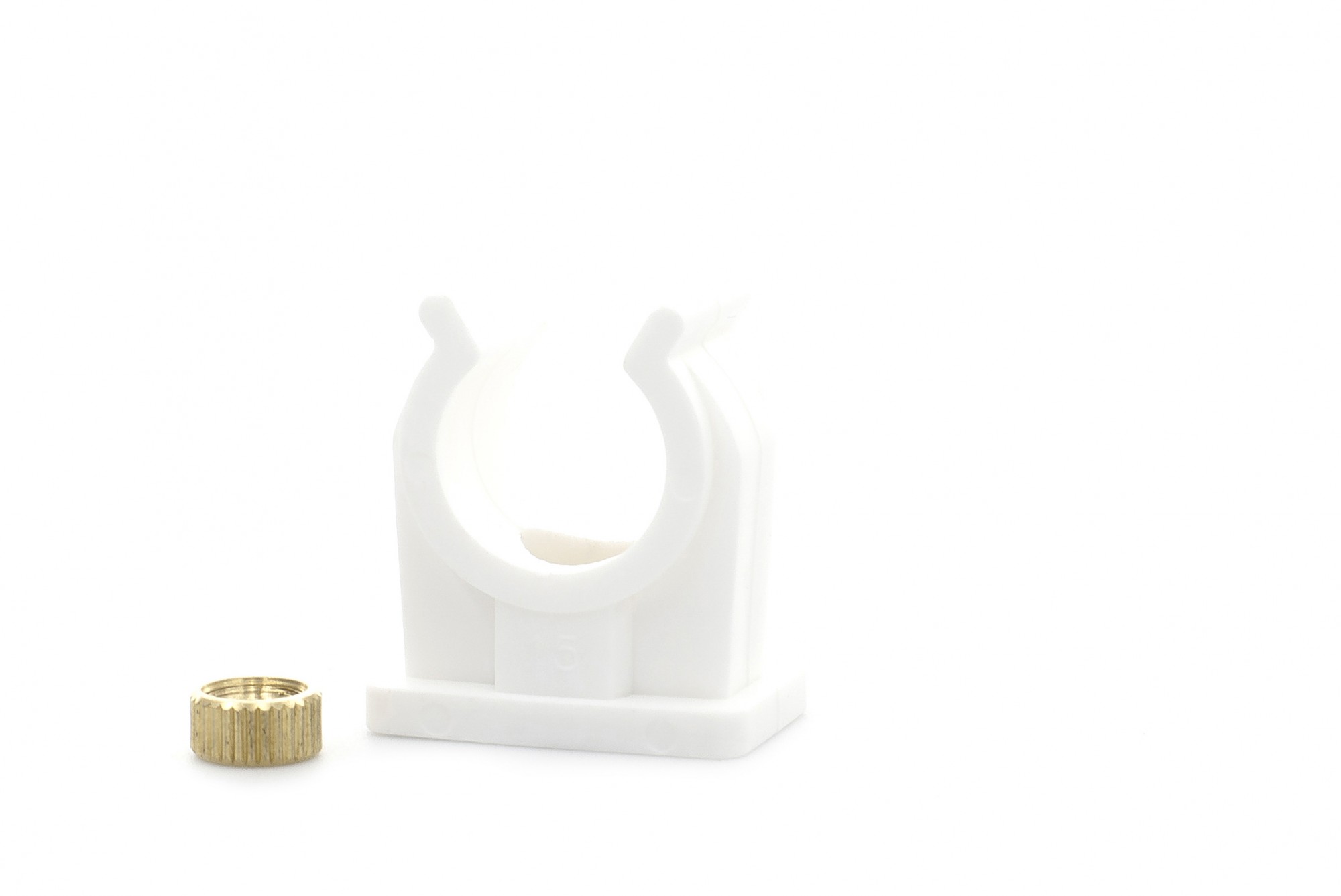

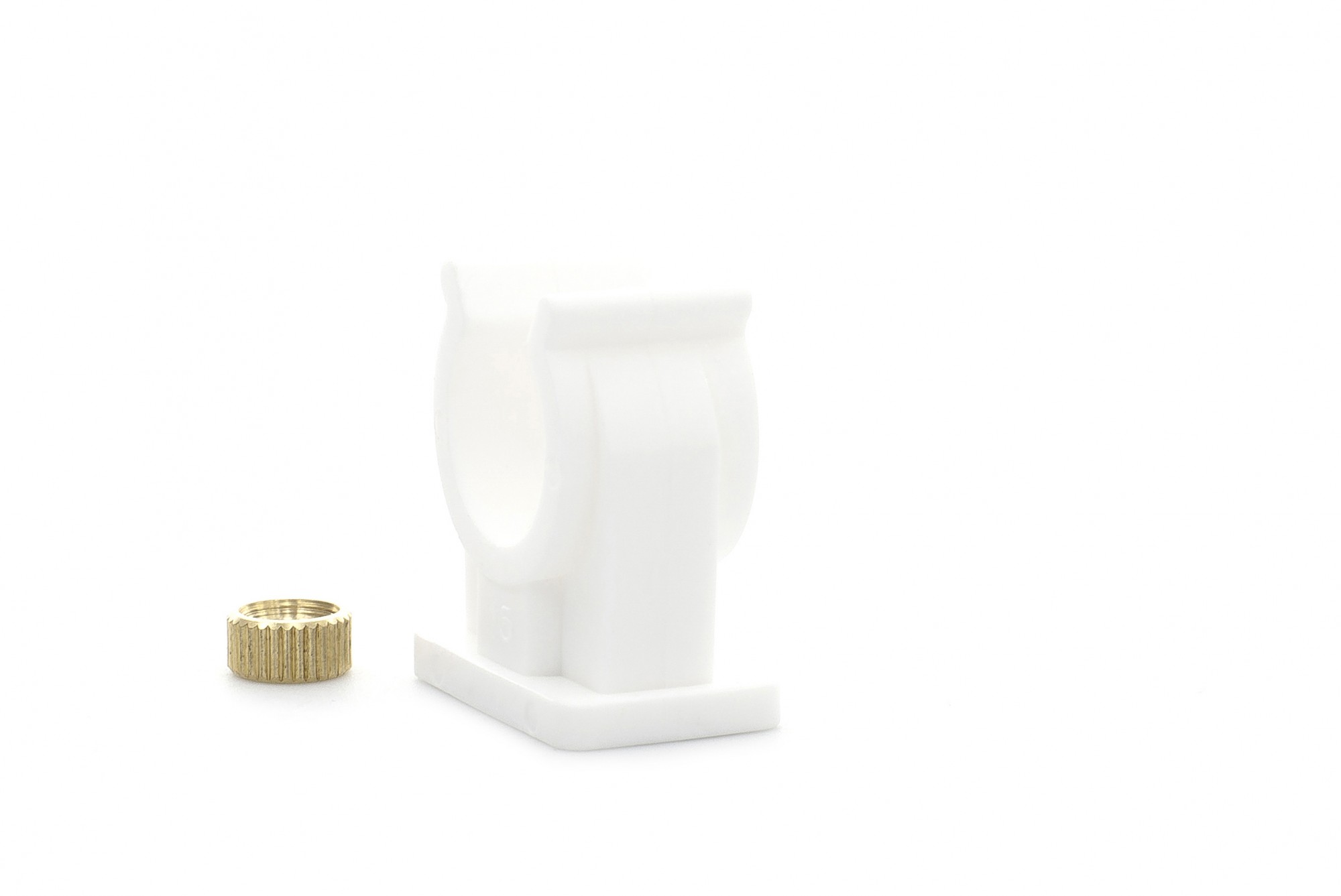

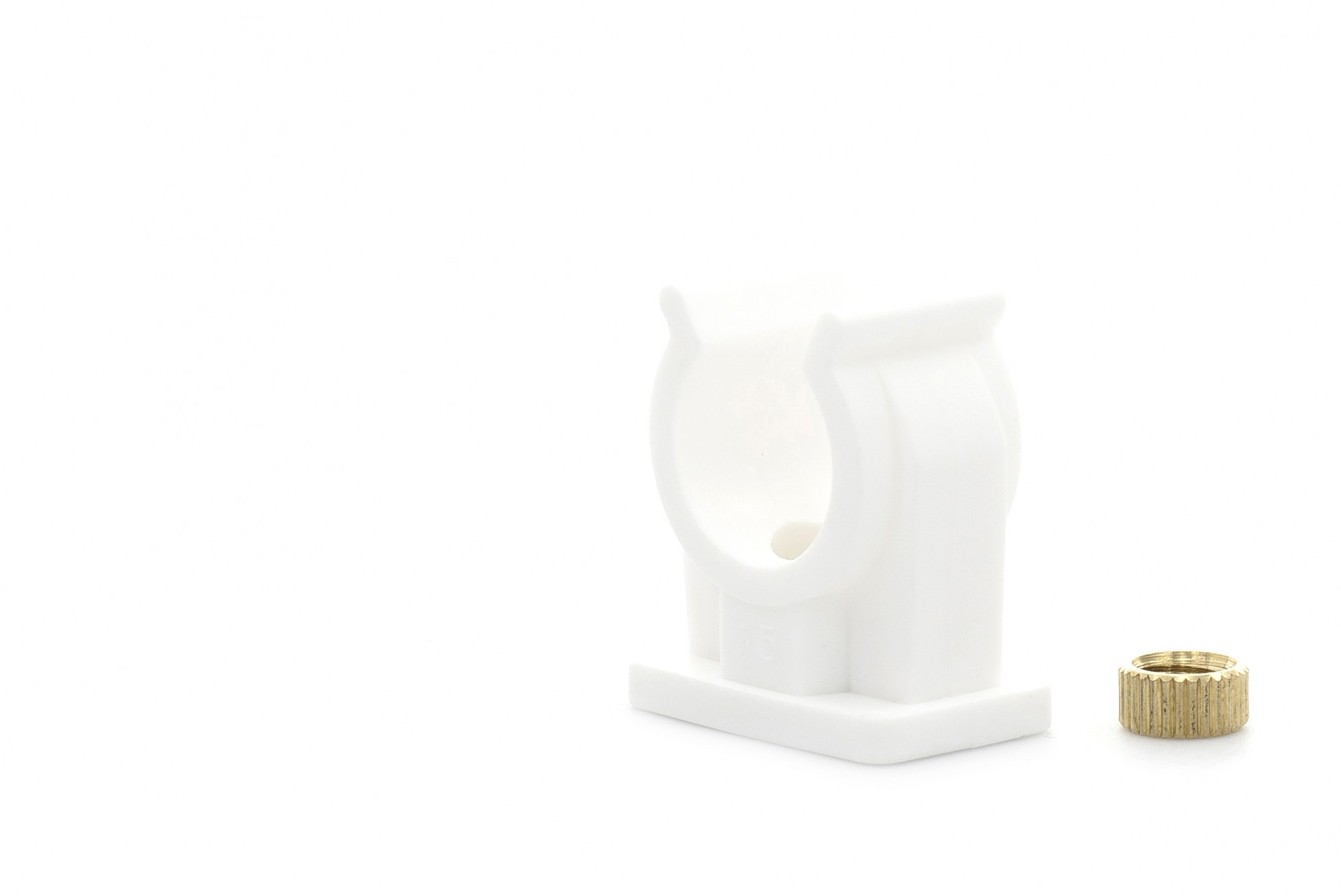

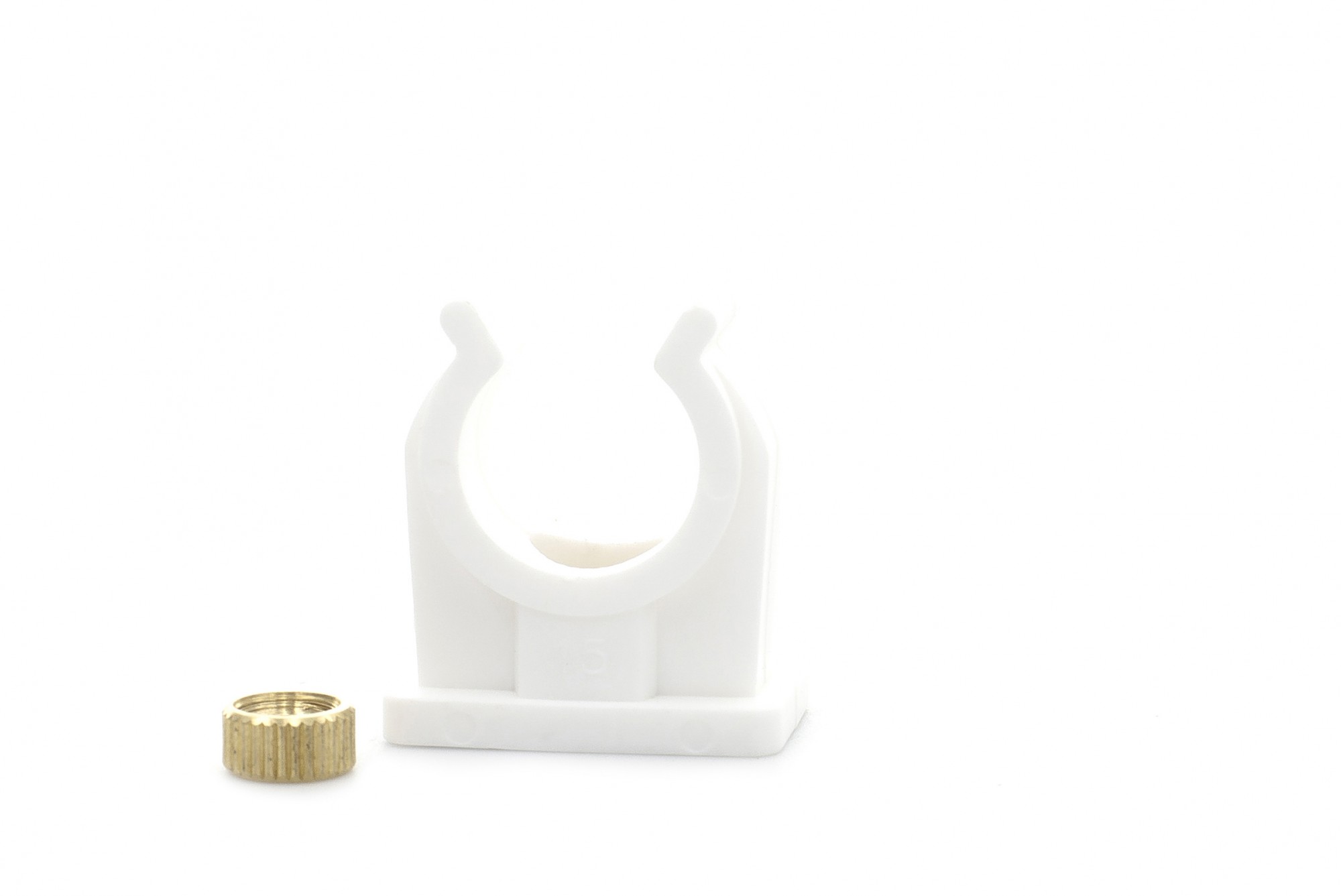

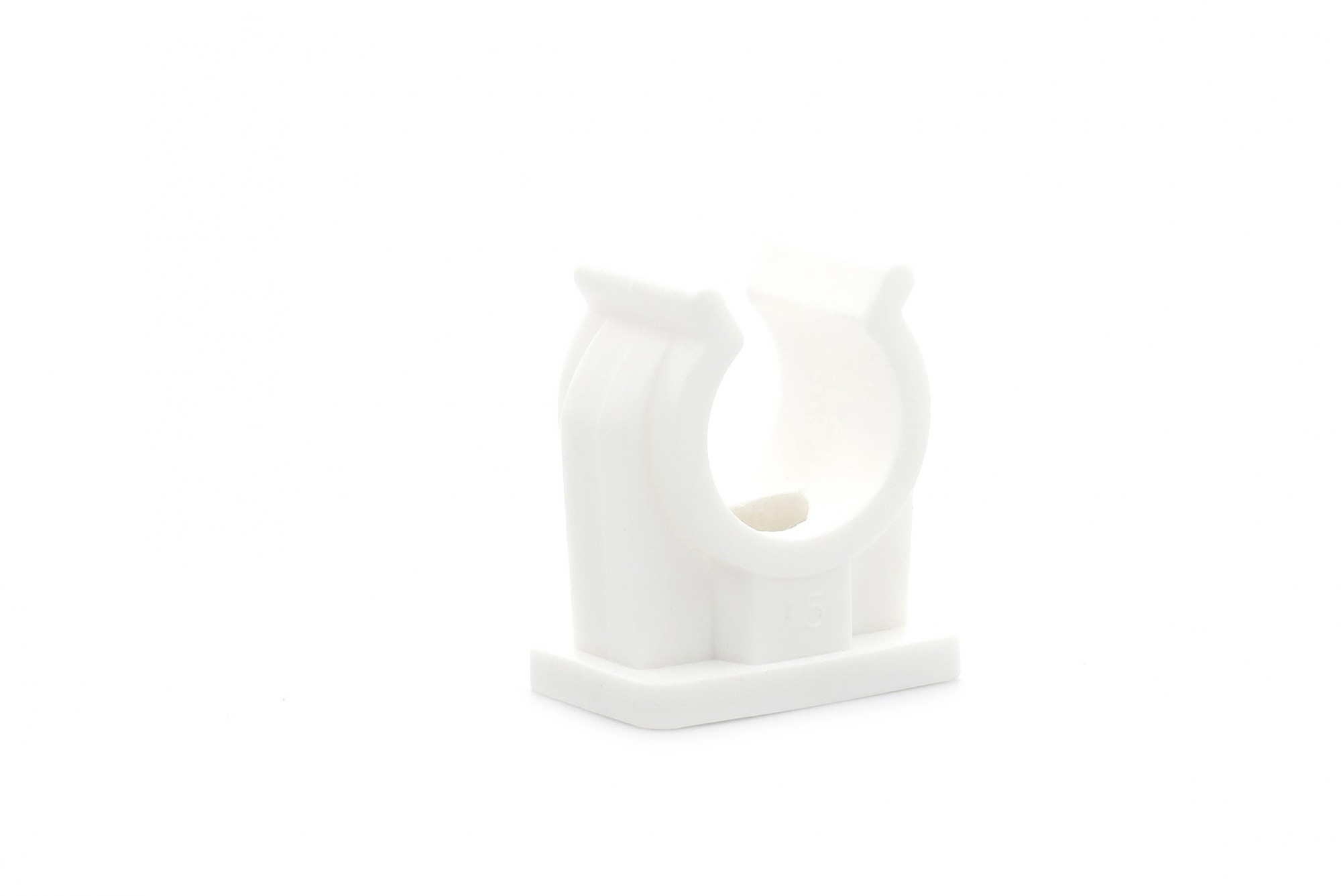

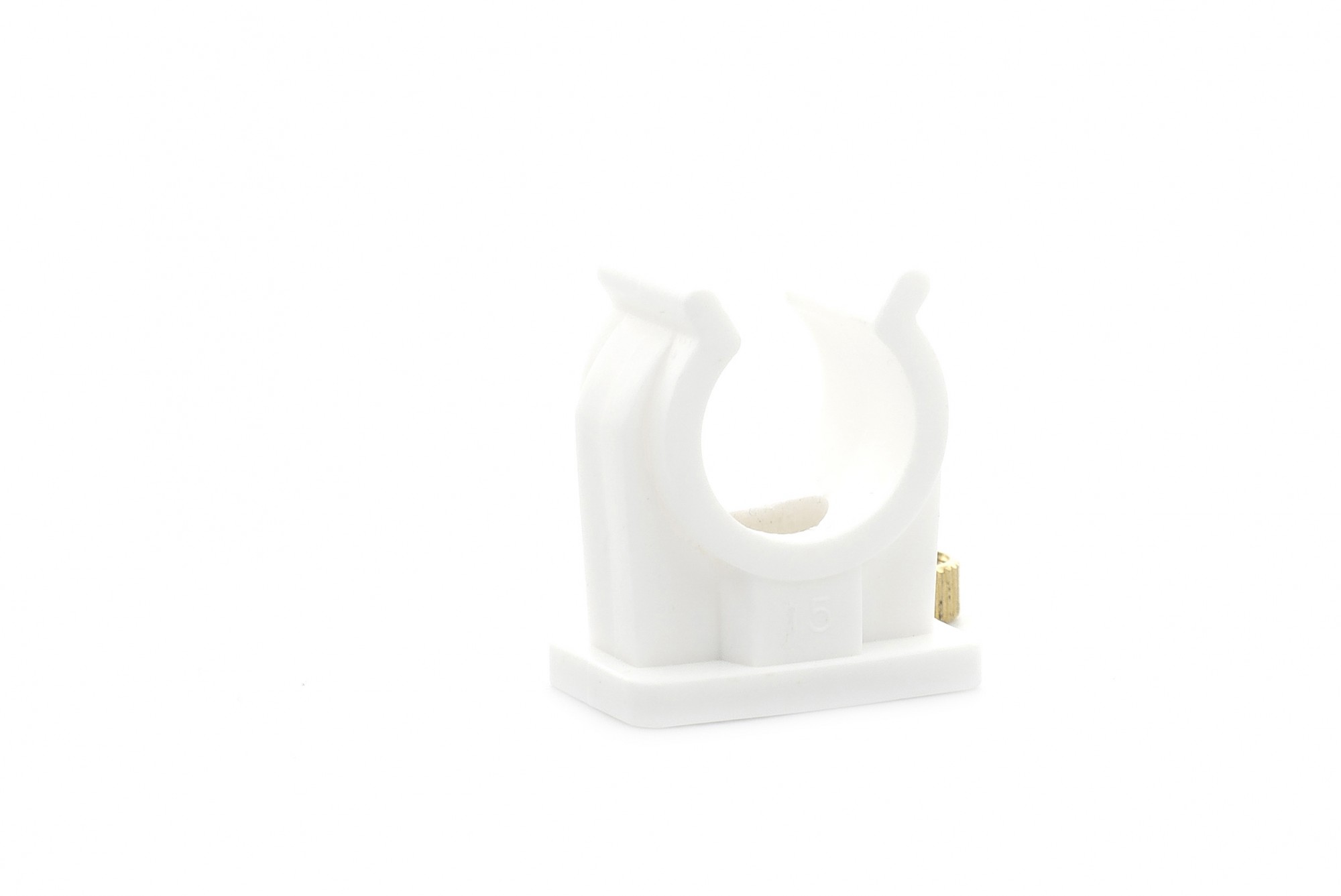

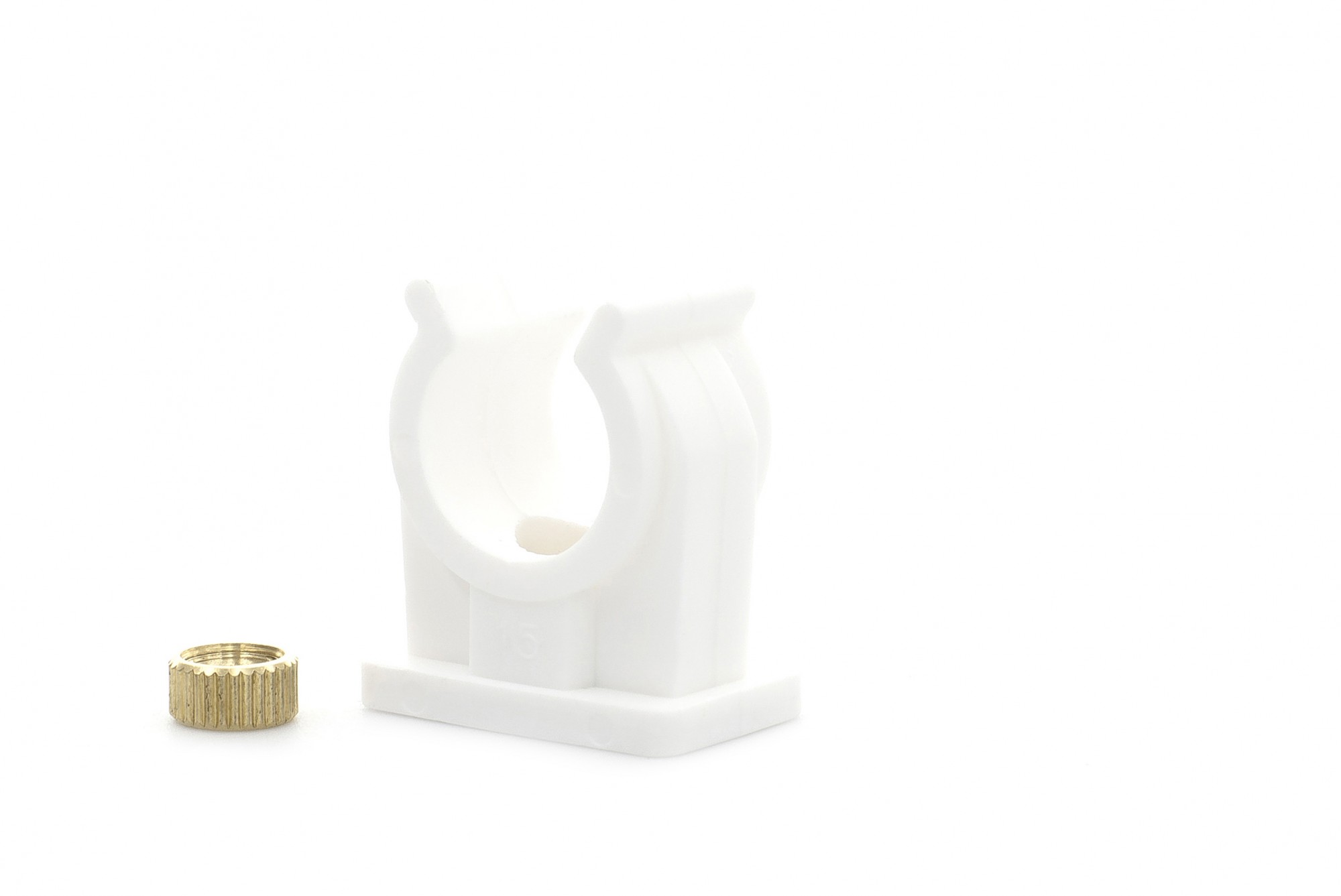

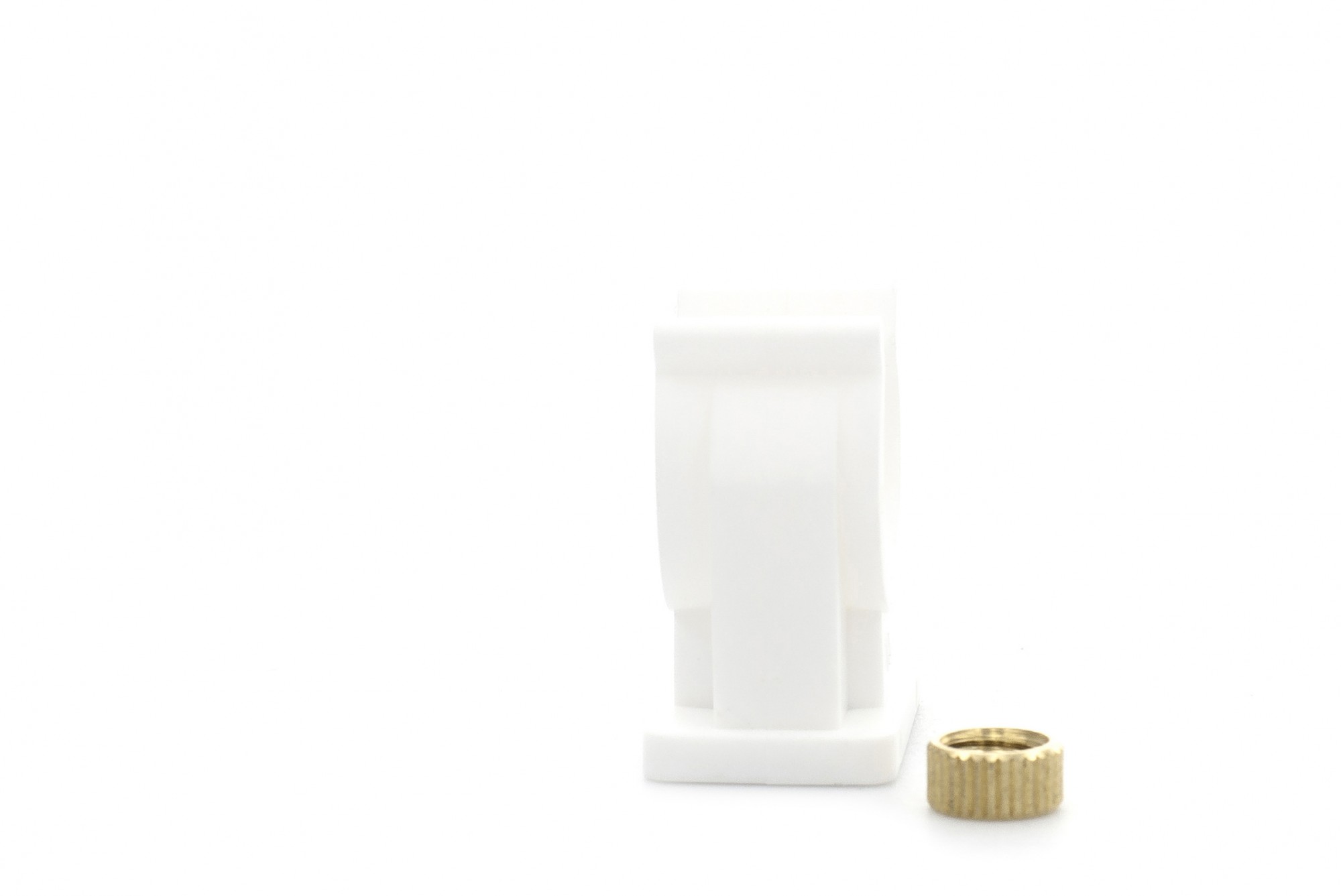

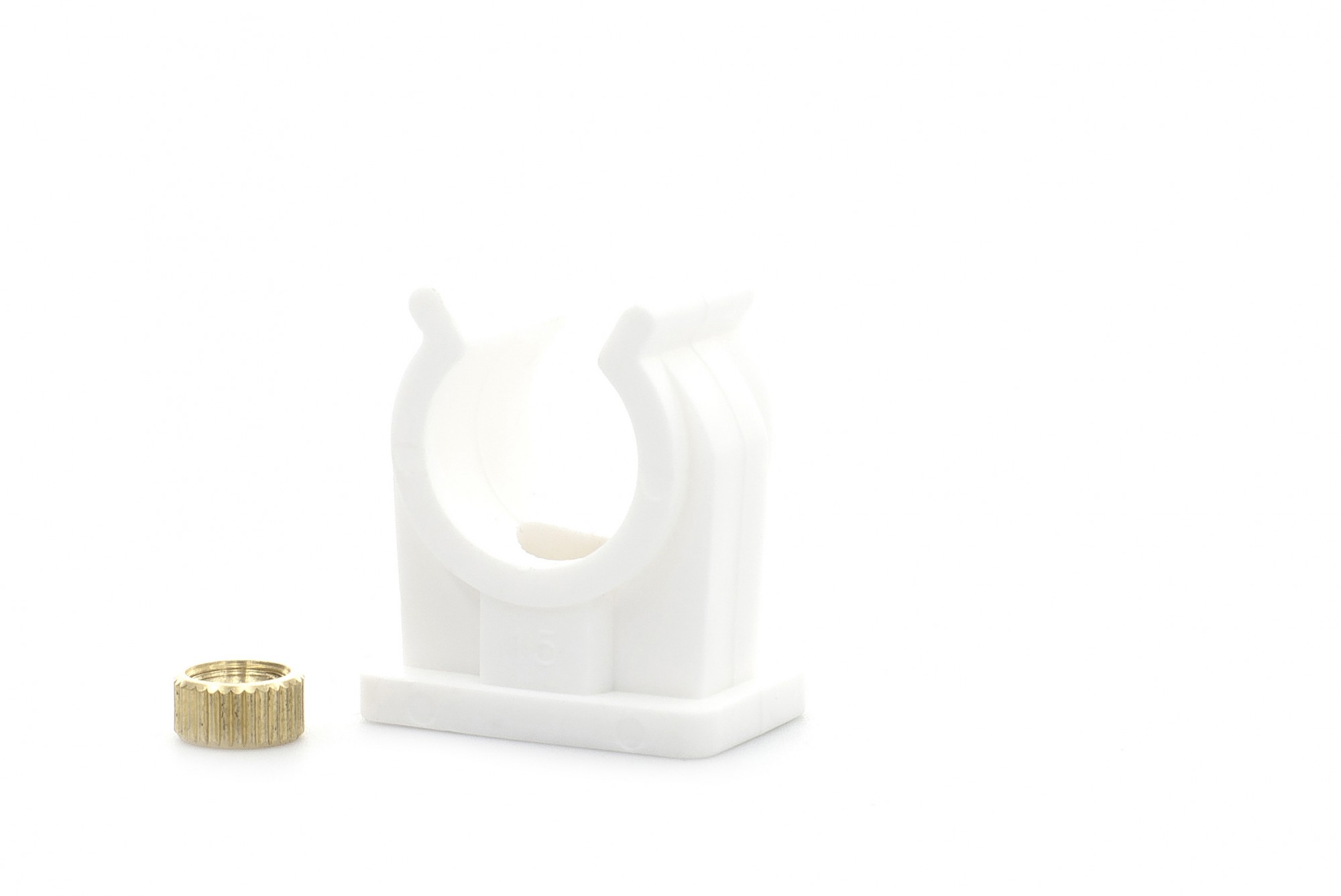

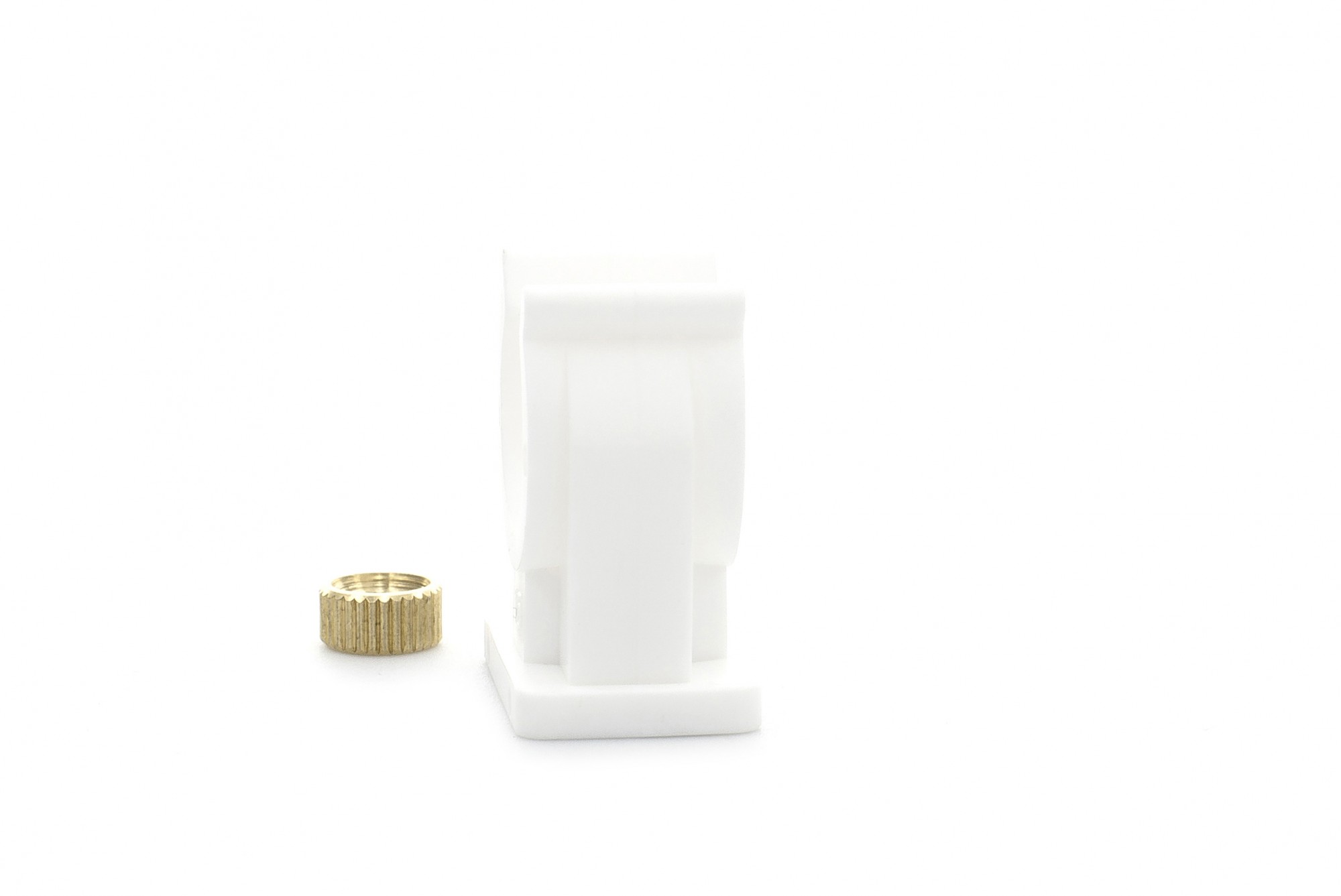

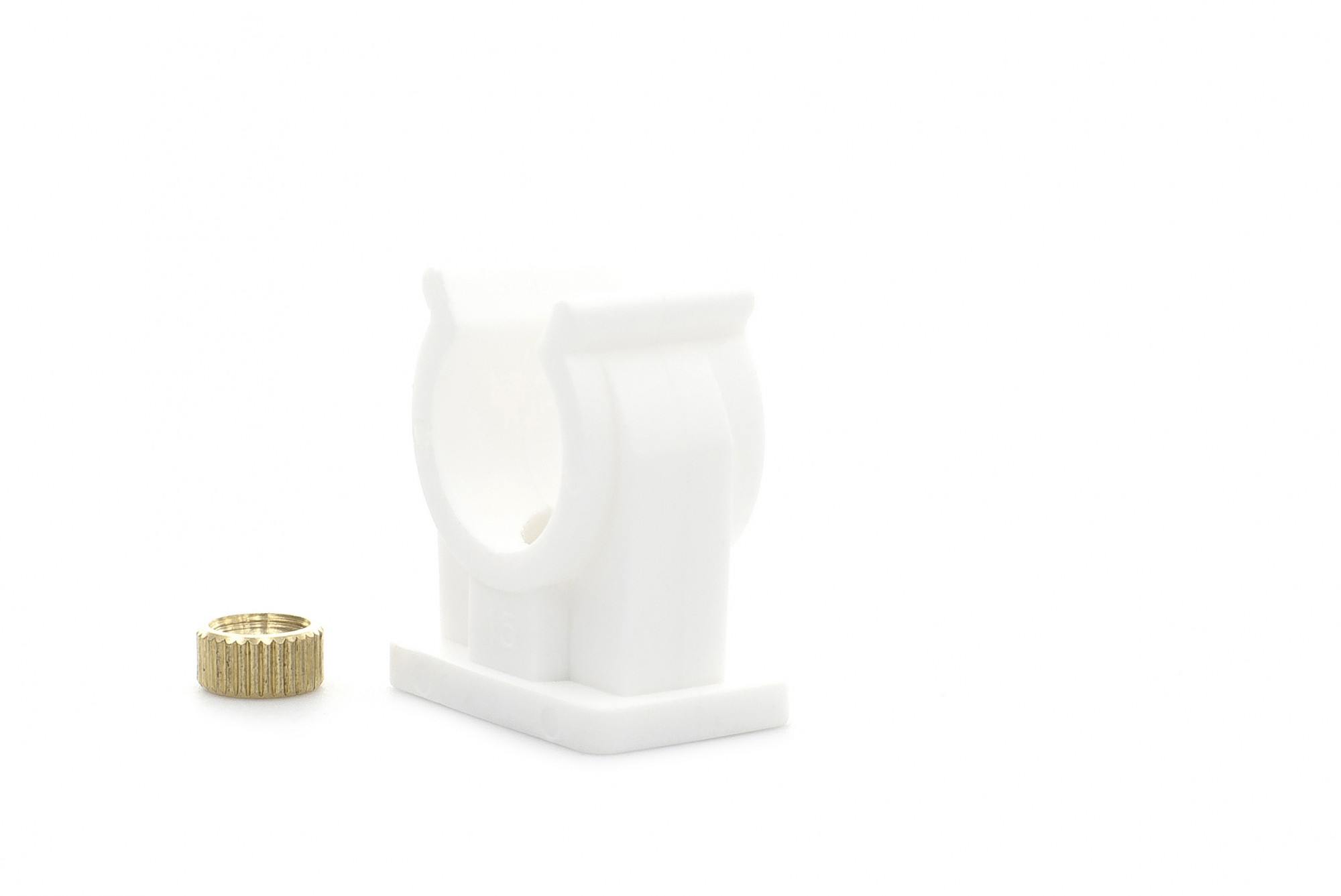

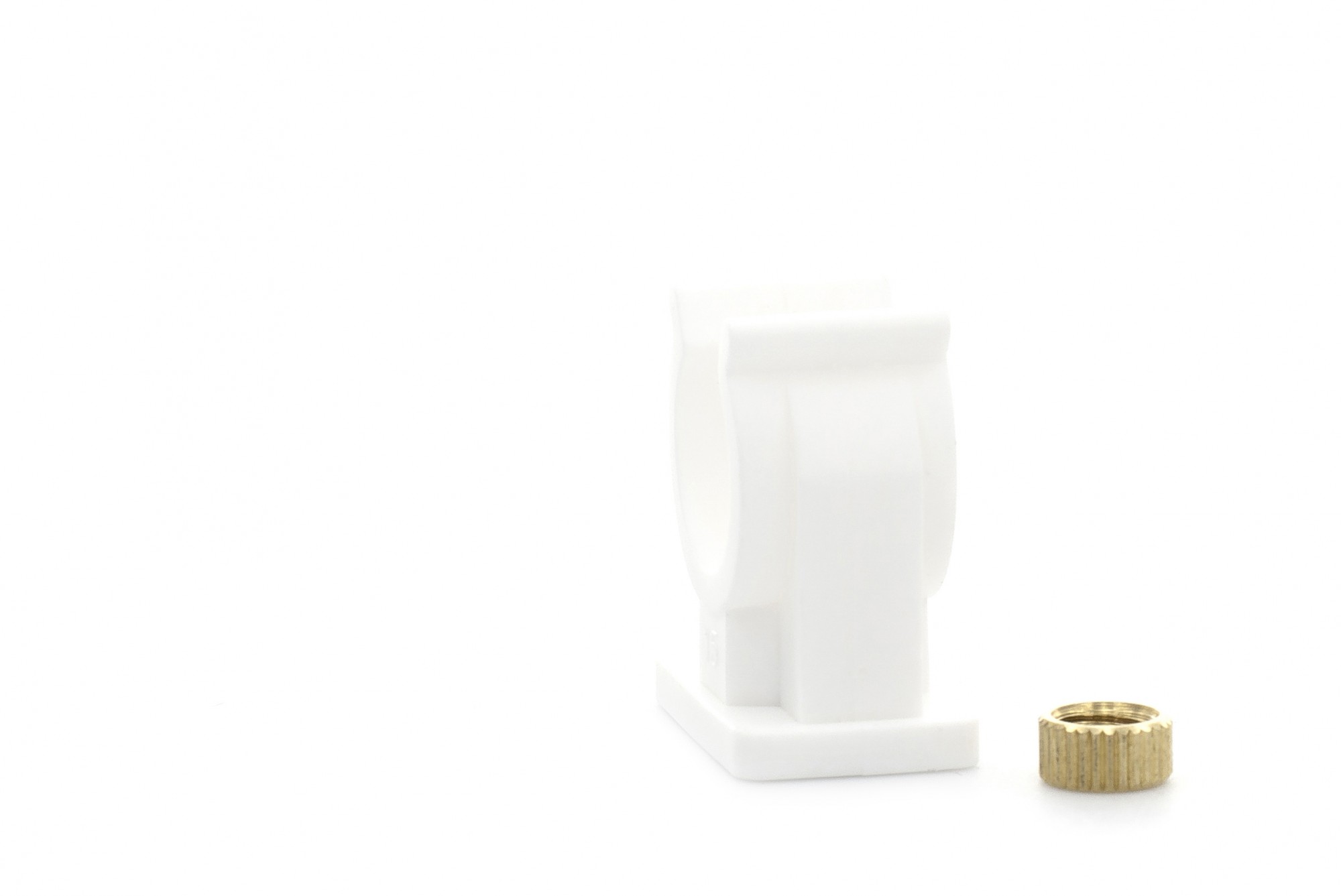

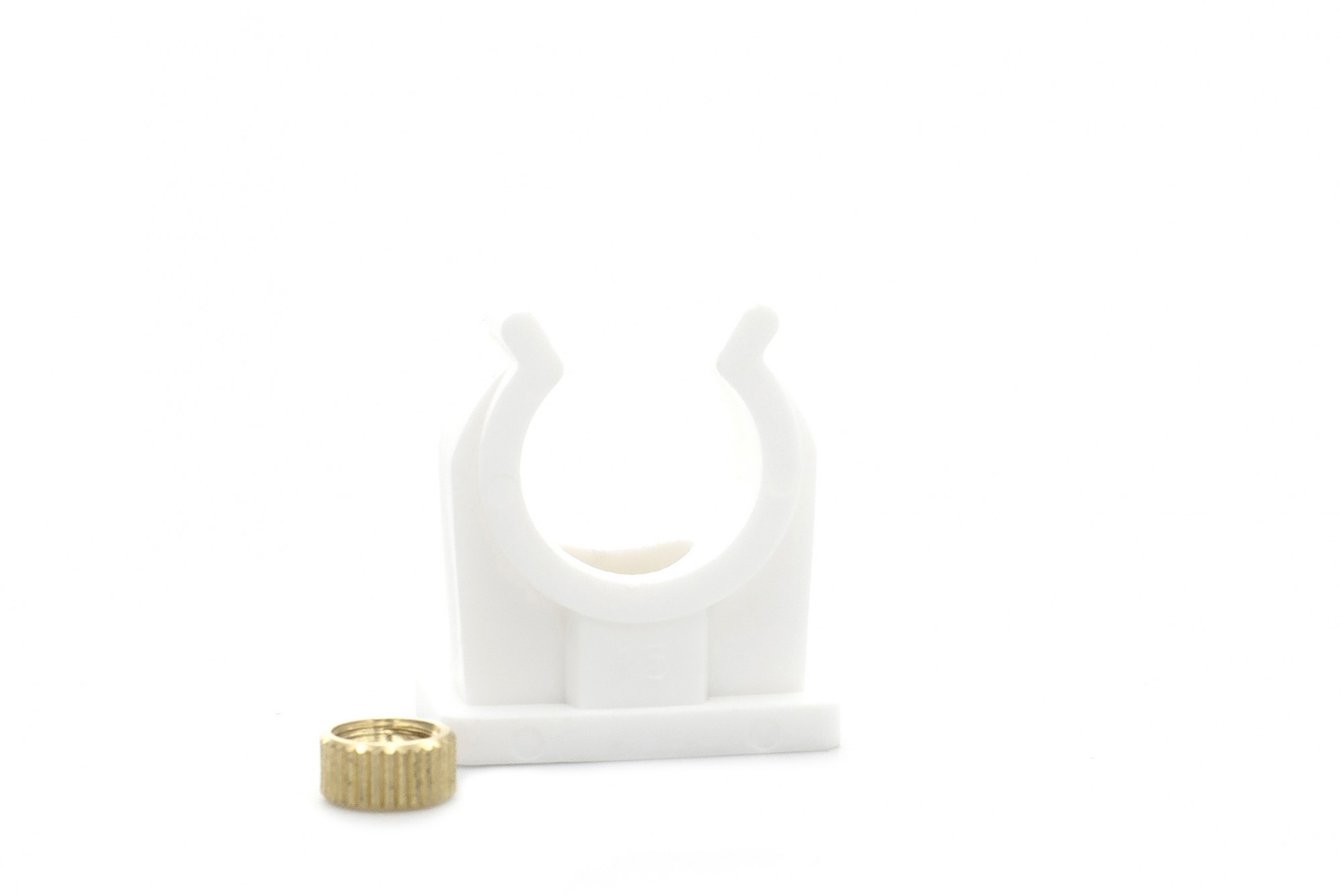

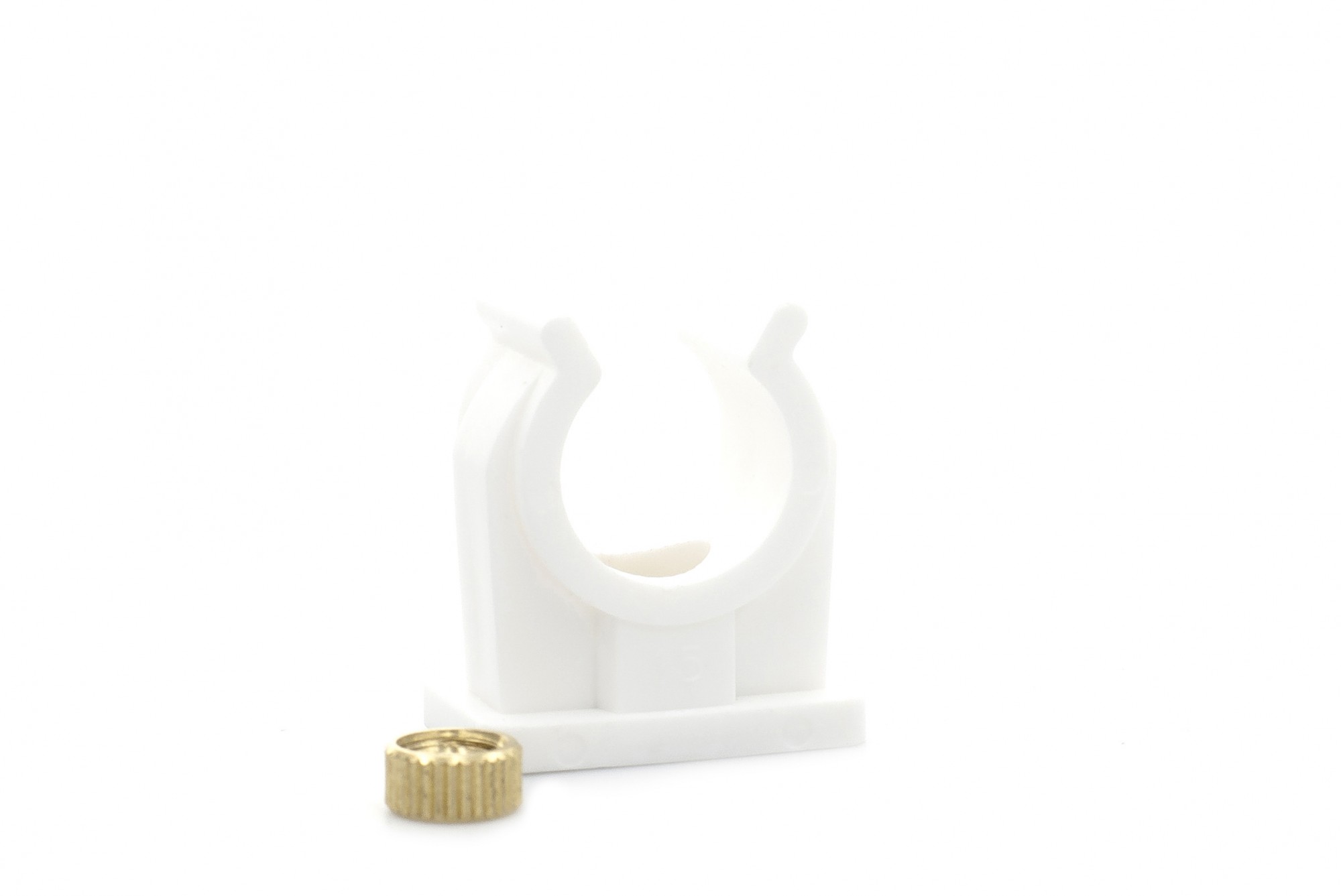

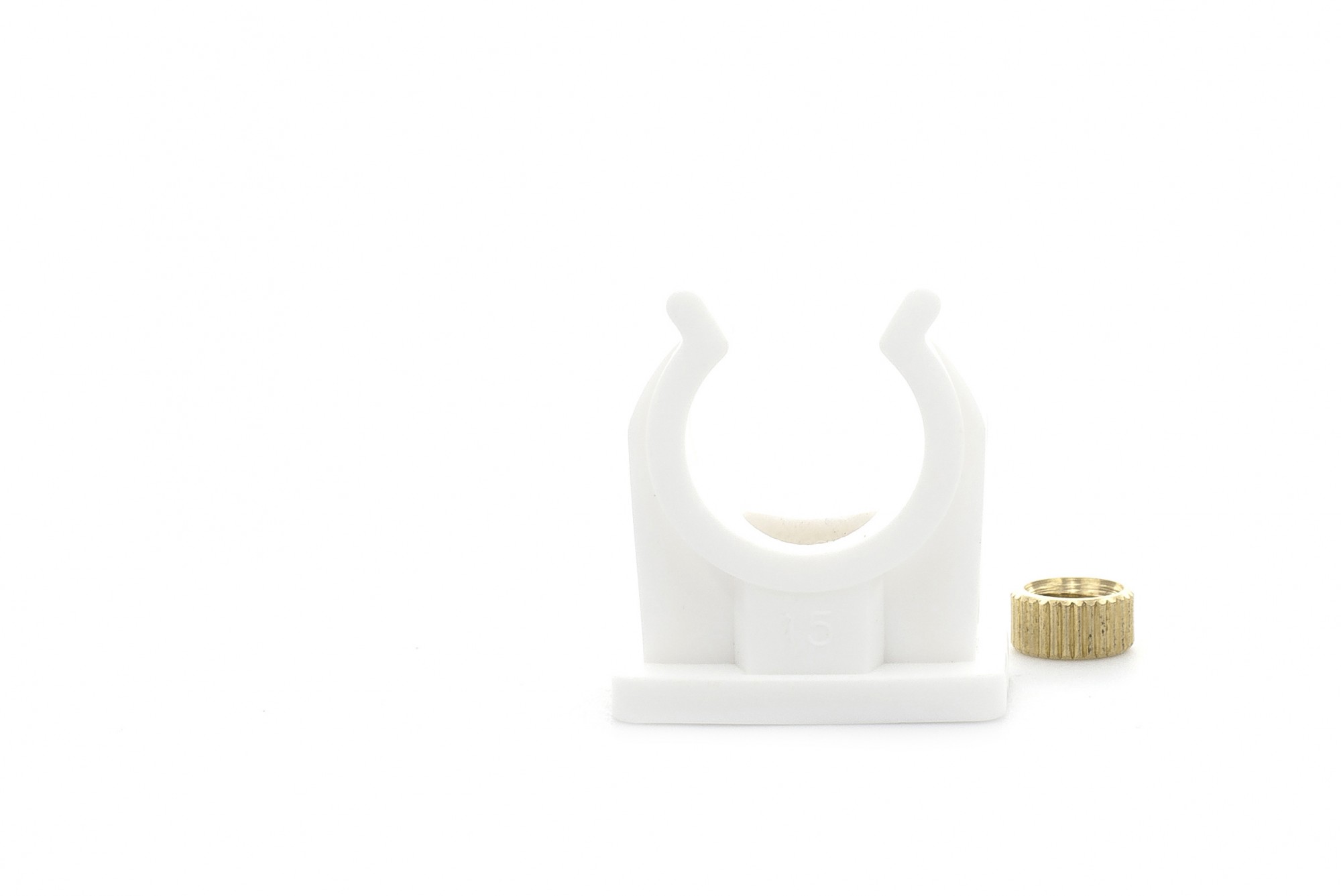

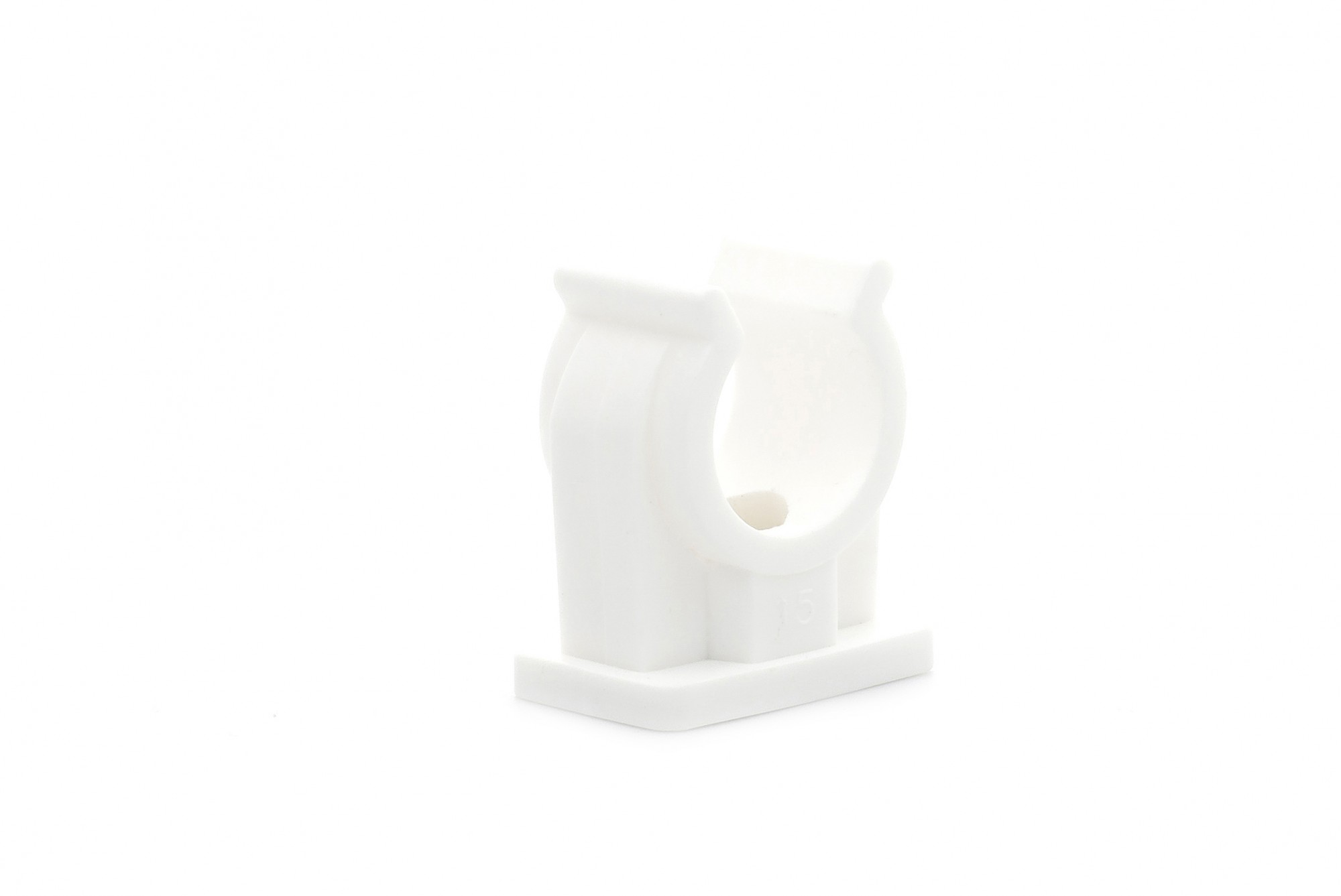

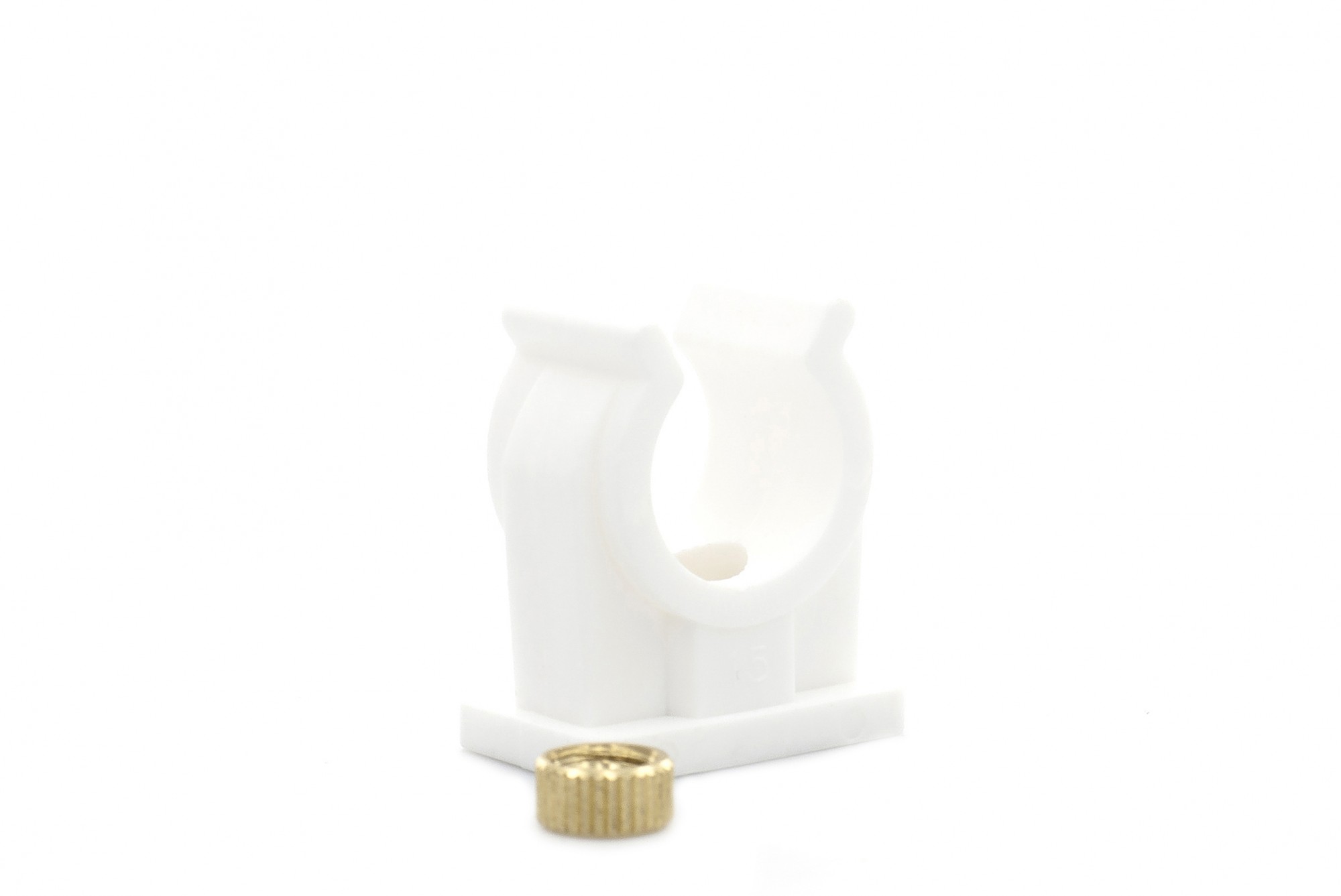

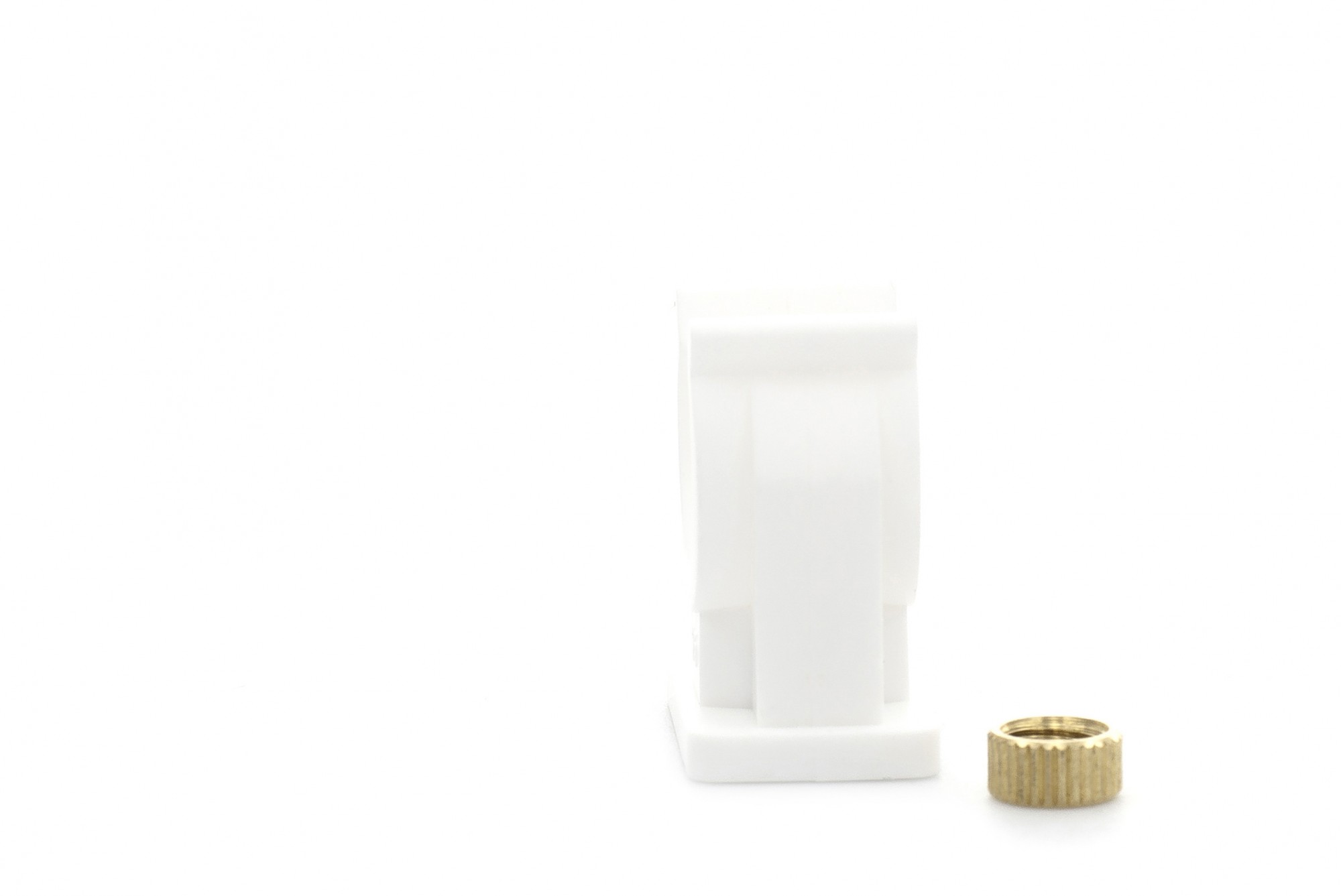

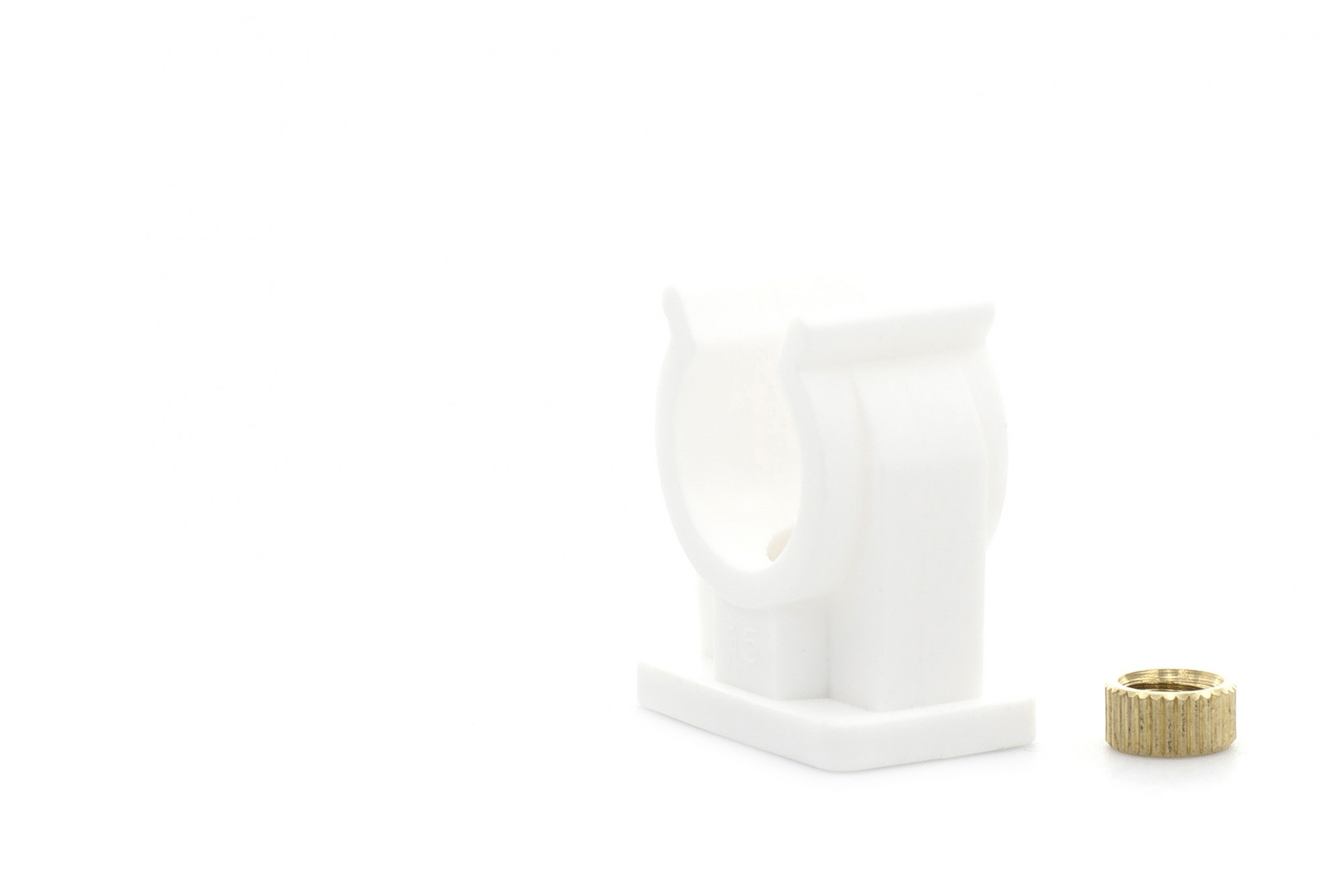

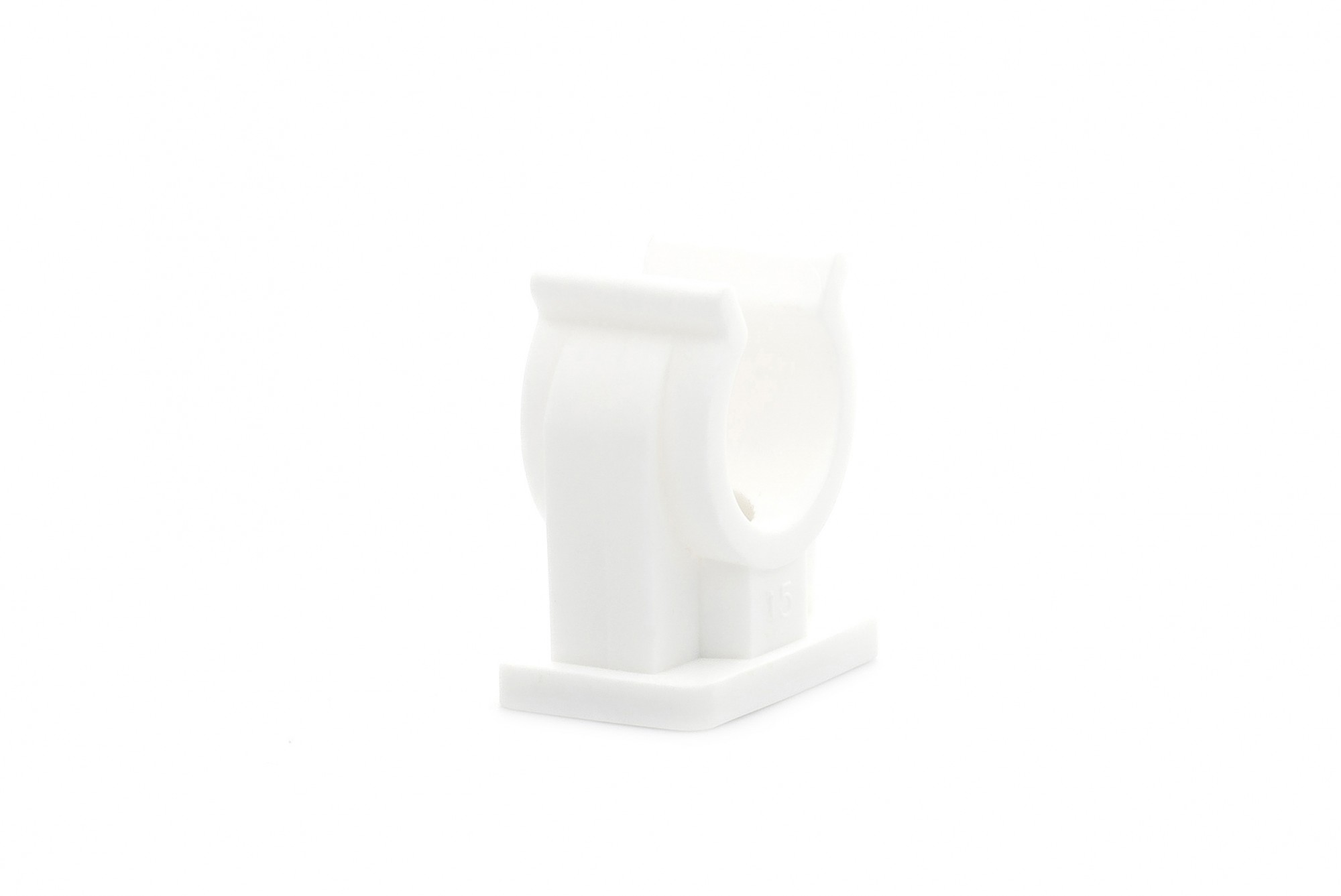

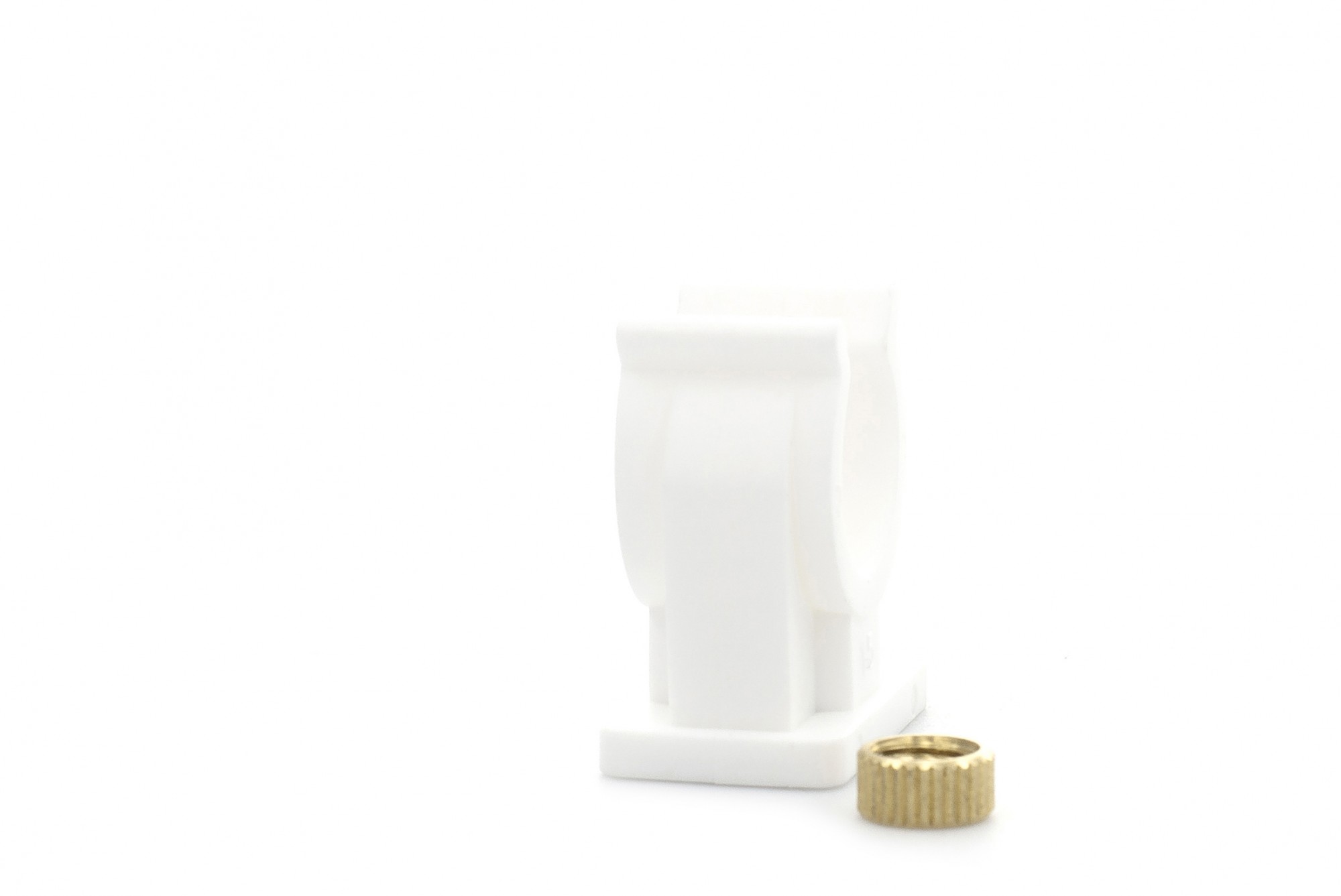

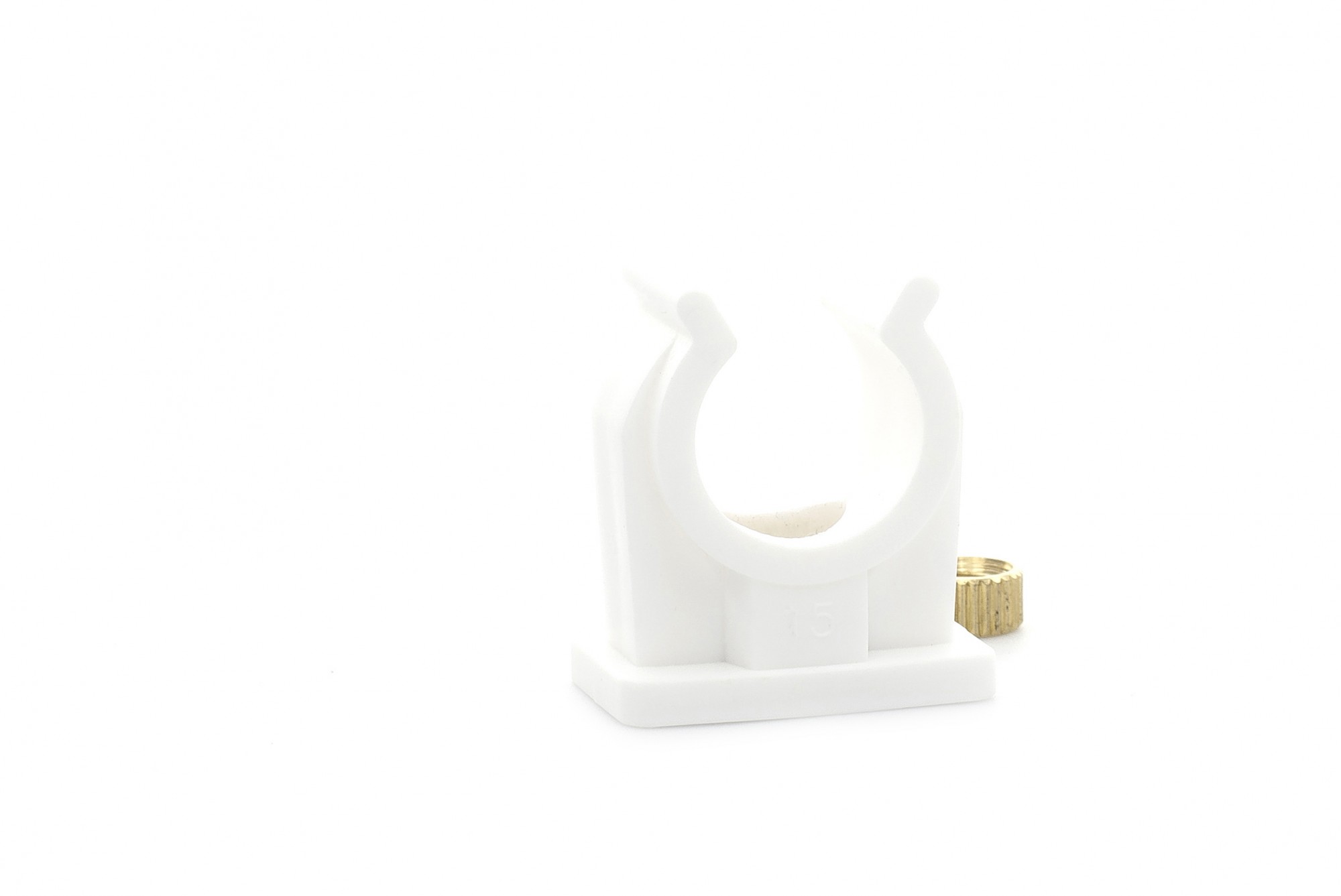

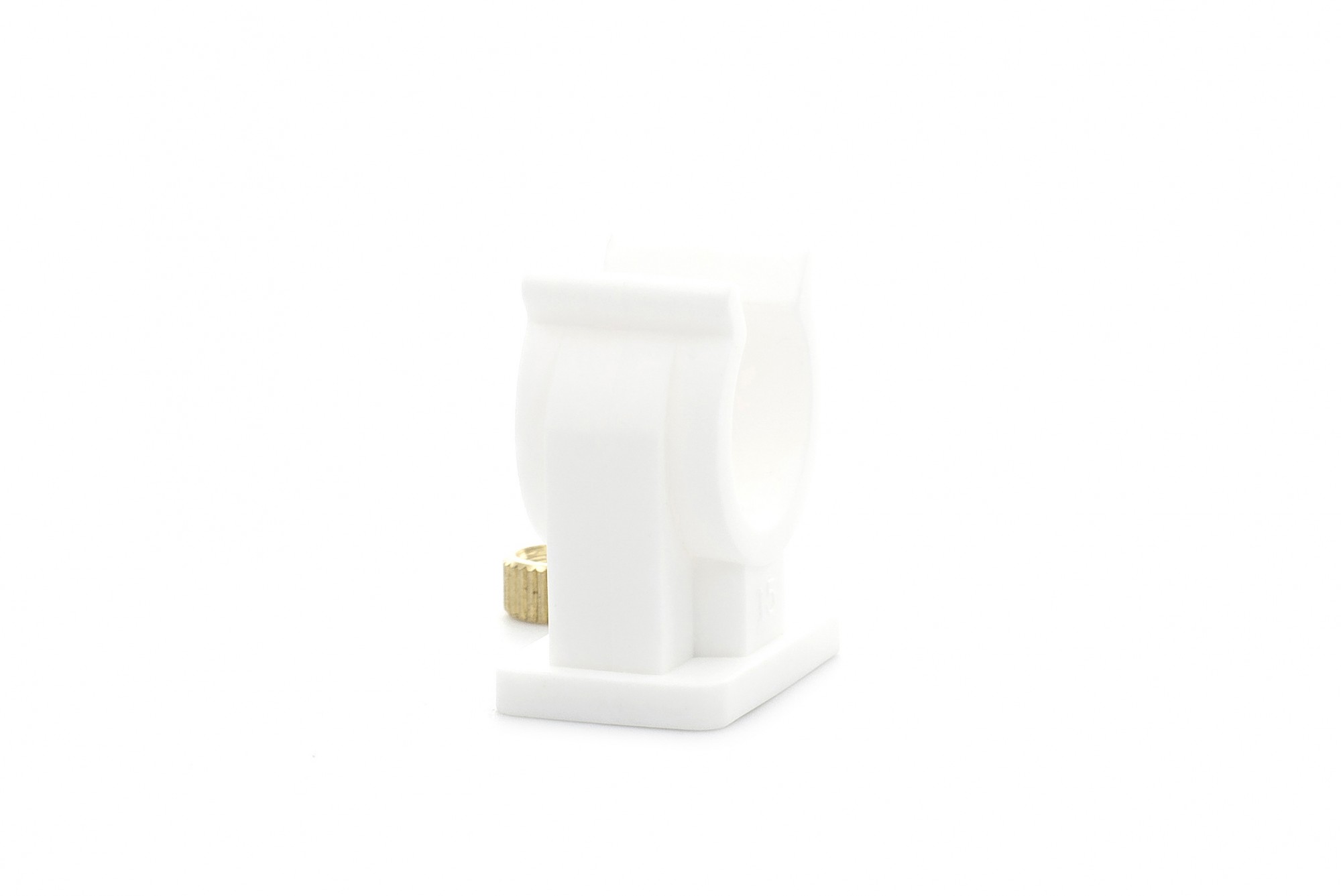

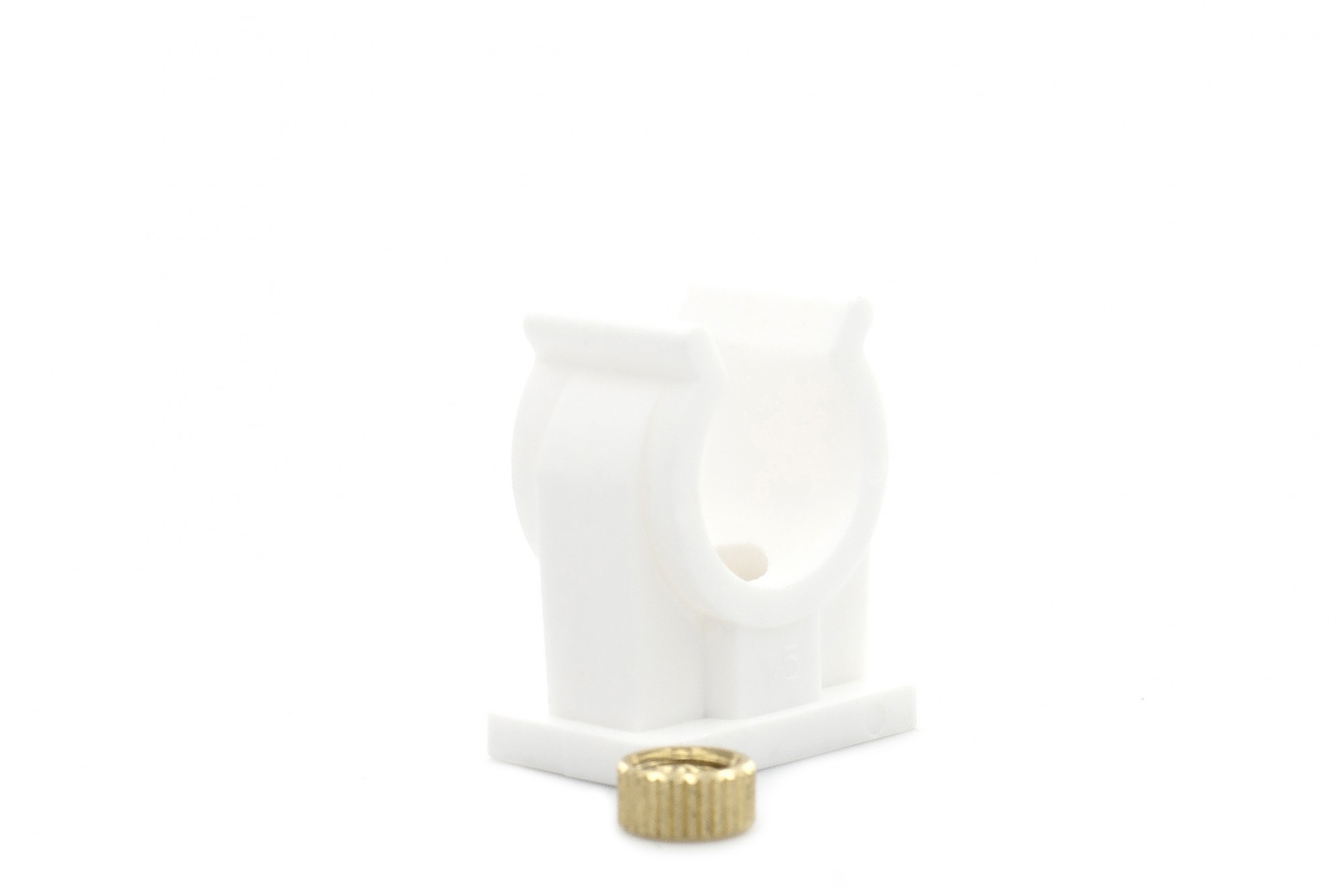

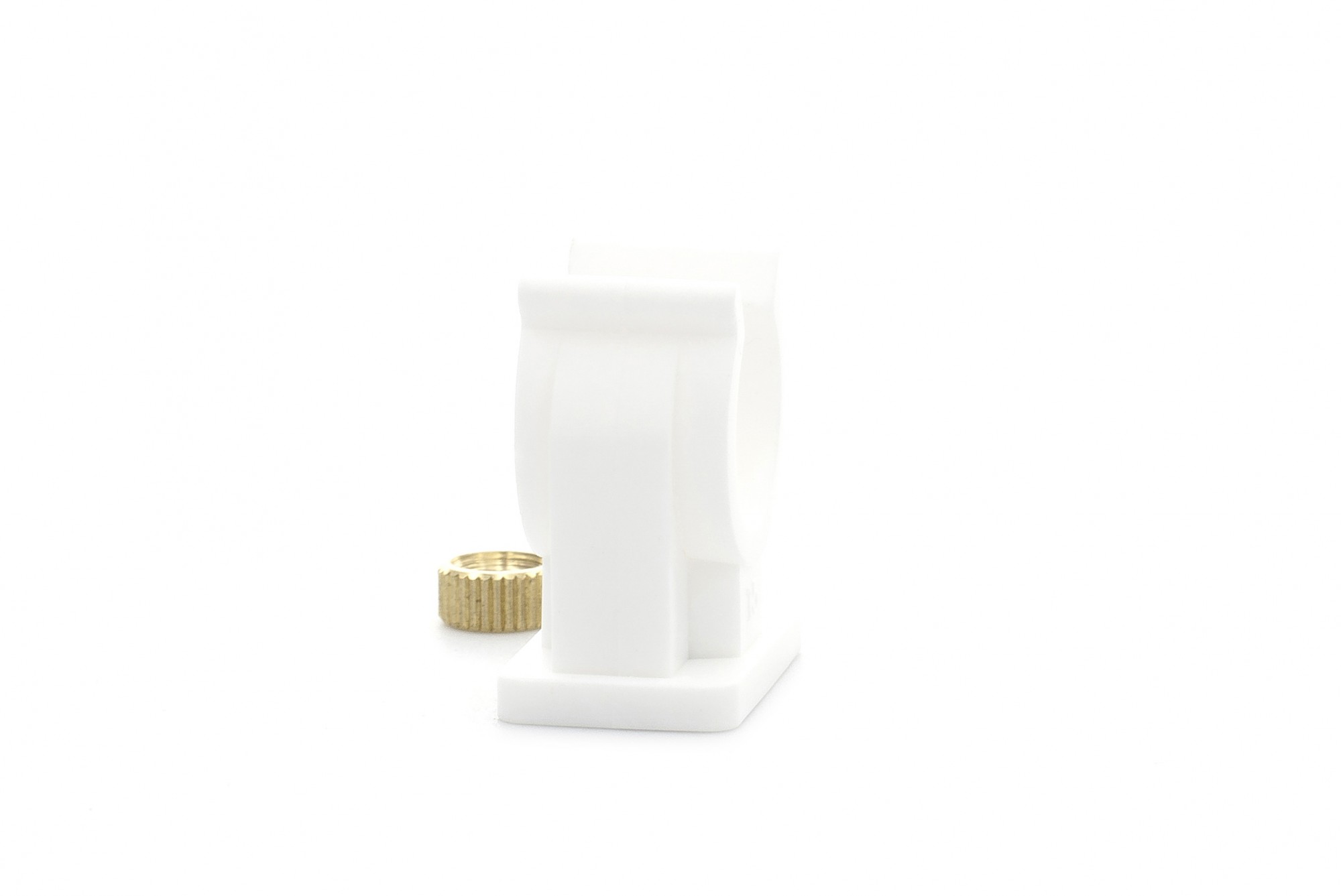

Open holders are a standard solution for fixing installation pipes. A wider range of sizes for a single holder allows the use of various types of pipes made of: copper, pp, pex-al-pex, metric, etc. Being the most popular solution on the market, the clamps are available in diameters from 6 mm to 42 mm. The products come in single and double versions.
INSTALLATION:
The system for easy placement of the pipe results in easy insertion of the pipe into the holder, eliminating possible kinking of the arms. The holder can be mounted with screws, M6 double-threaded screws and mounting rails.
Technical parameters:
- Temperature range from -10ºC to +90ºC.
- Mounting temperature from -10ºC.
- High resistance to stretching
- Color: white ral 9002 Other colors on request.
- Temperature resistance - melting temperature of 160ºC.
MATERIAL: Copolymer
| Single pack | Multipack | Pallet | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indeks | Diameter | Product dimensions X/Y/Z (mm) |
Net weight (g) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
| A-694300 | 6 | 13.5 x 16.5 x 16.5 | 2.1 | 100 | 120 x 180 | 0.2 | 3000 | 395 x 260 x 165 | 6.6 | 270000 | 120 x 80 x 190 | 611.3 |
| A-694317 | 8 | 13 x 16.5 x 17.5 | 2.8 | 100 | 120 x 180 | 0.3 | 2500 | 395 x 260 x 165 | 7.3 | 225000 | 120 x 80 x 190 | 674.3 |
| A-690388 | 10 | 14.5 x 16.5 x 21 | 2.9 | 100 | 150 x 220 | 0.3 | 2000 | 395 x 260 x 165 | 6.1 | 180000 | 120 x 80 x 190 | 569 |
| A-690395 | 12 | 17 x 15.5 x 23 | 3.6 | 100 | 160 x 250 | 0.4 | 1500 | 395 x 260 x 165 | 5.7 | 135000 | 120 x 80 x 190 | 530.3 |
| A-690401 | 14-15 | 17 x 15.5 x 28 | 4.6 | 100 | 200 x 250 | 0.5 | 1200 | 395 x 260 x 165 | 5.8 | 108000 | 120 x 80 x 190 | 541.1 |
| A-063451 | 14-15 | 24 x 15.5 x 26.5 | 4.4 | 100 | 200 x 250 | 0.4 | 1200 | 395 x 260 x 165 | 5.6 | 108000 | 120 x 80 x 190 | 519.5 |
| A-690418 | 16-18 | 23 x 15.5 x 34 | 5.2 | 100 | 200 x 300 | 0.5 | 800 | 395 x 260 x 165 | 4.4 | 72000 | 120 x 80 x 190 | 418.7 |
| A-690425 | 20-22 | 24.5 x 15.5 x 38 | 6 | 50 | 160 x 250 | 0.3 | 600 | 395 x 260 x 165 | 3.9 | 54000 | 120 x 80 x 190 | 368.3 |
| A-690432 | 25-28 | 32.5 x 15.5 x 50 | 9.8 | 50 | 200 x 300 | 0.5 | 300 | 395 x 260 x 165 | 3.2 | 27000 | 120 x 80 x 190 | 308.9 |
| A-690449 | 35 | 34 x 16.5 x 52 | 9.2 | 50 | 200 x 300 | 0.5 | 300 | 395 x 260 x 165 | 3.0 | 27000 | 120 x 80 x 190 | 292.7 |
| A-063413 | 42 | 45.5 x 17x 62.5 | 17.2 | 50 | 250 x 350 | 0.9 | 200 | 395 x 260 x 165 | 3.7 | 18000 | 120 x 80 x 190 | 354 |
Technical drawing
