RTL set for underplaster box

product description

RTL set for underplaster box is used for installation in a underplaster cabinet, providing a quantitative temperature control of the heating medium, for use on the radiator’s return or for temperature control of small underfloor heating circuits in mixed heating systems.

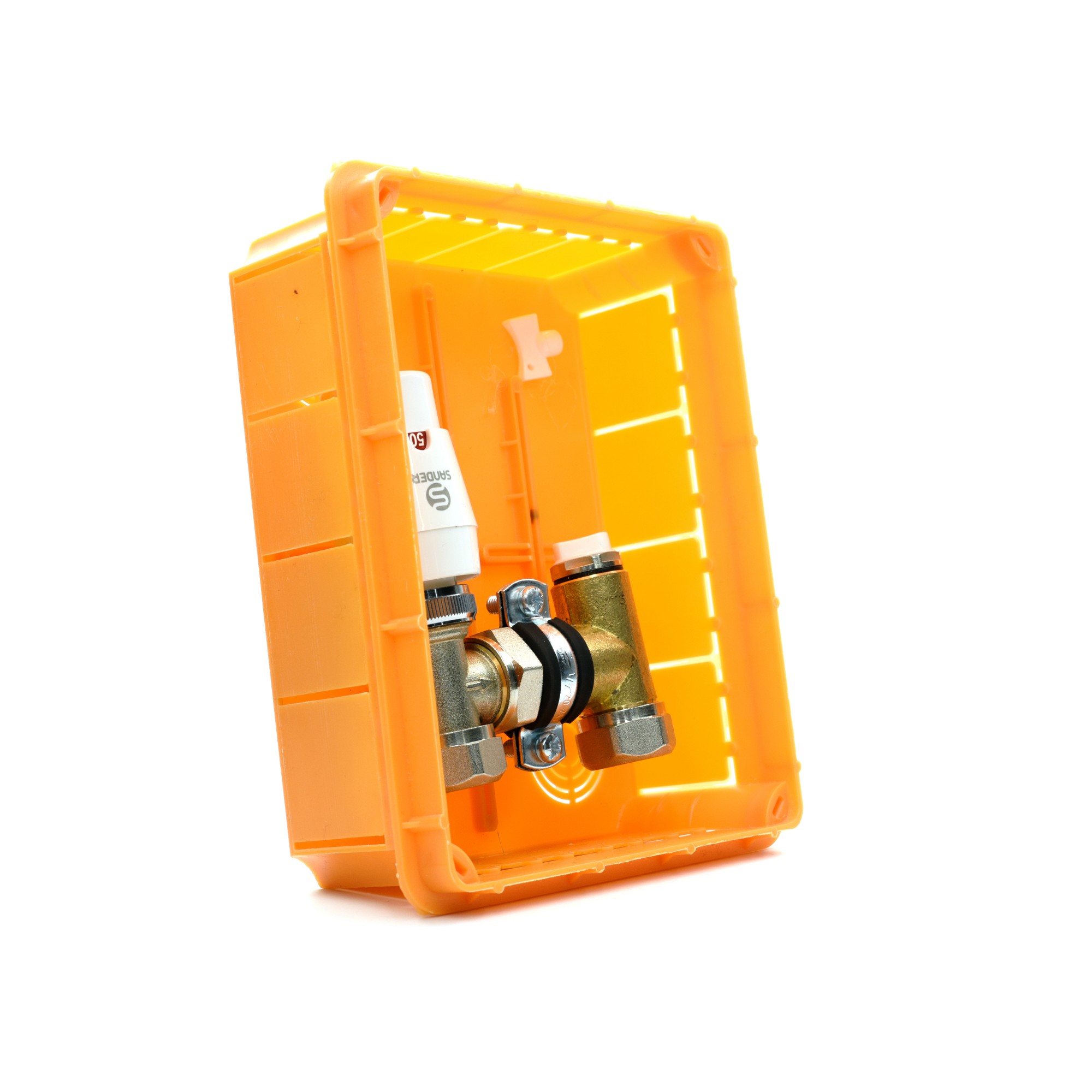

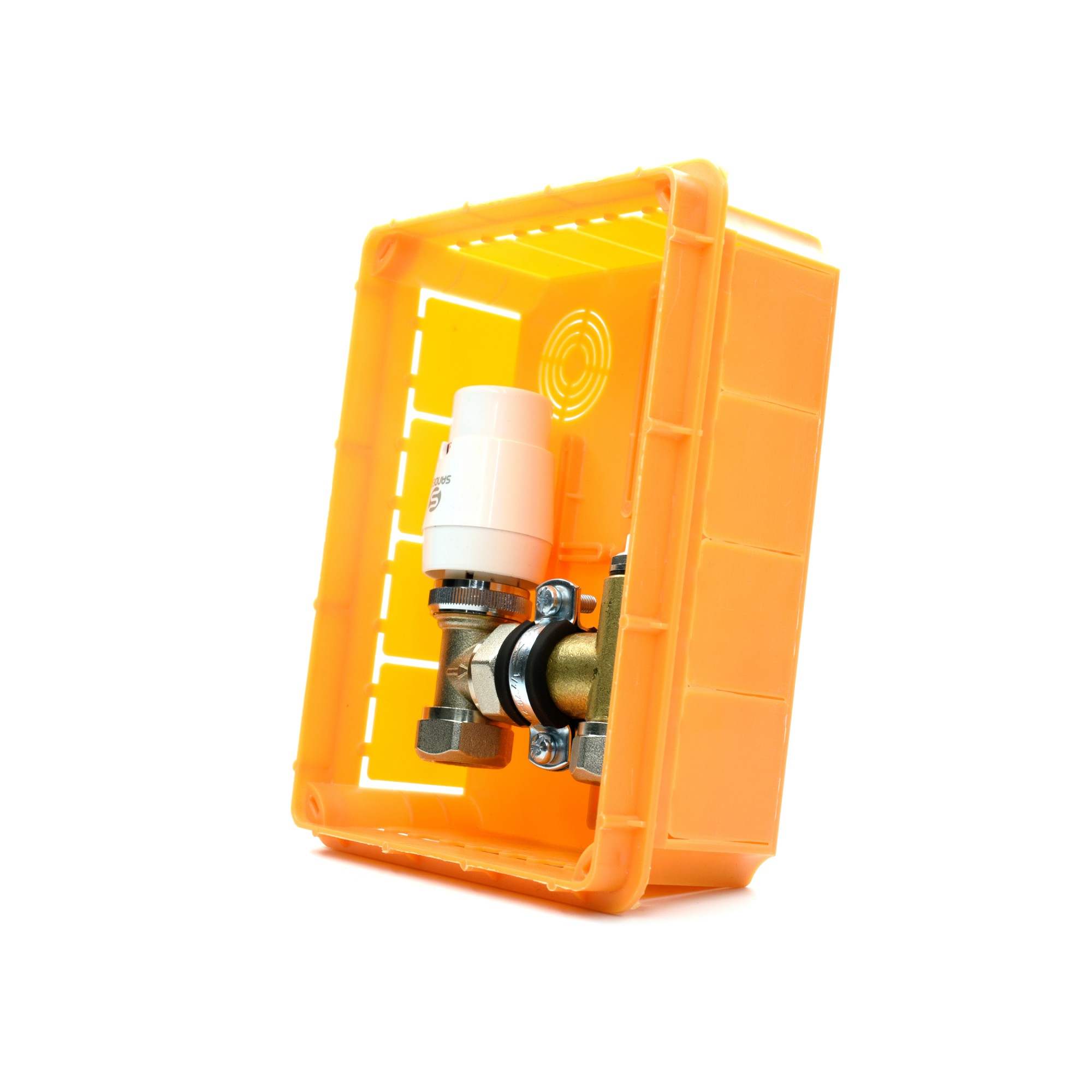

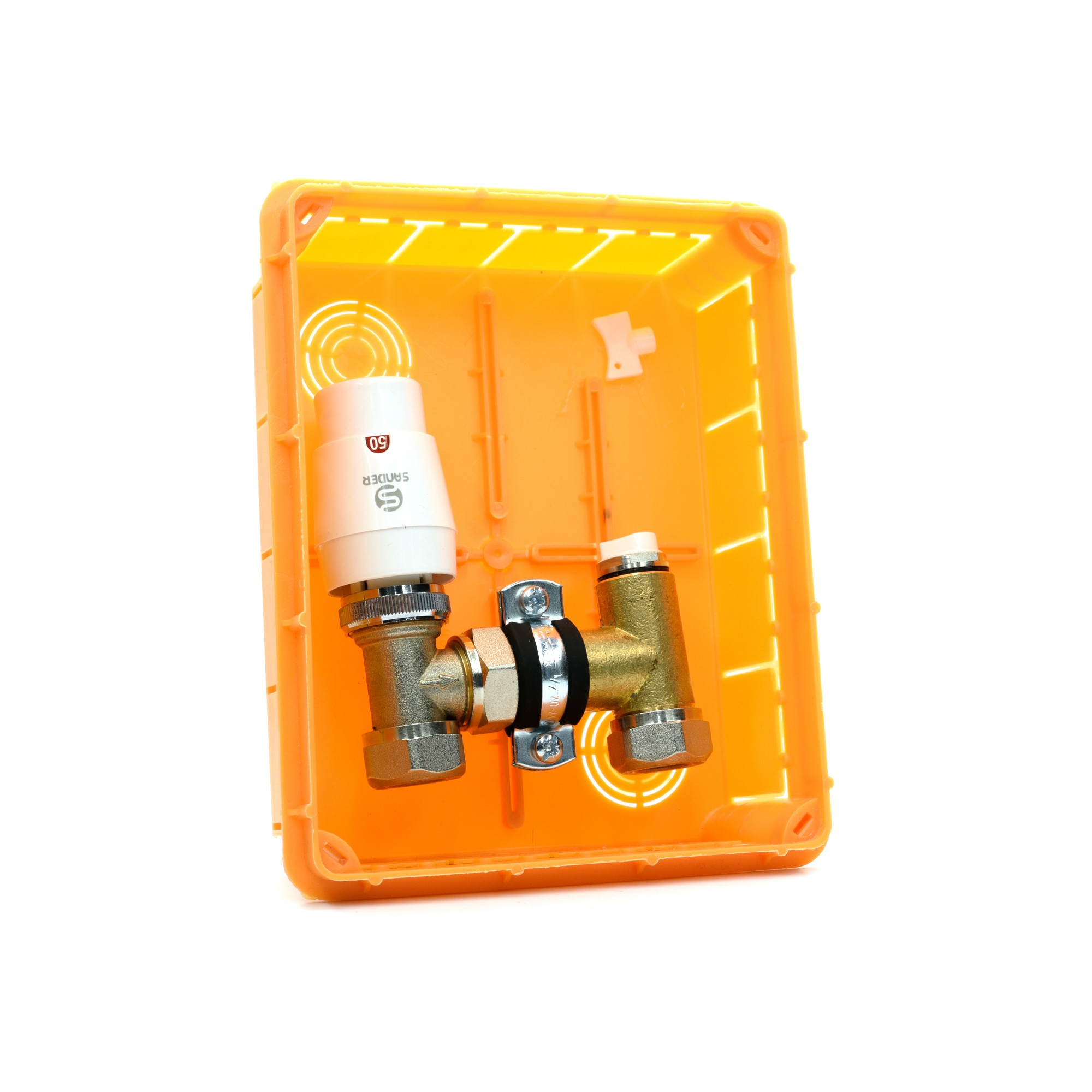

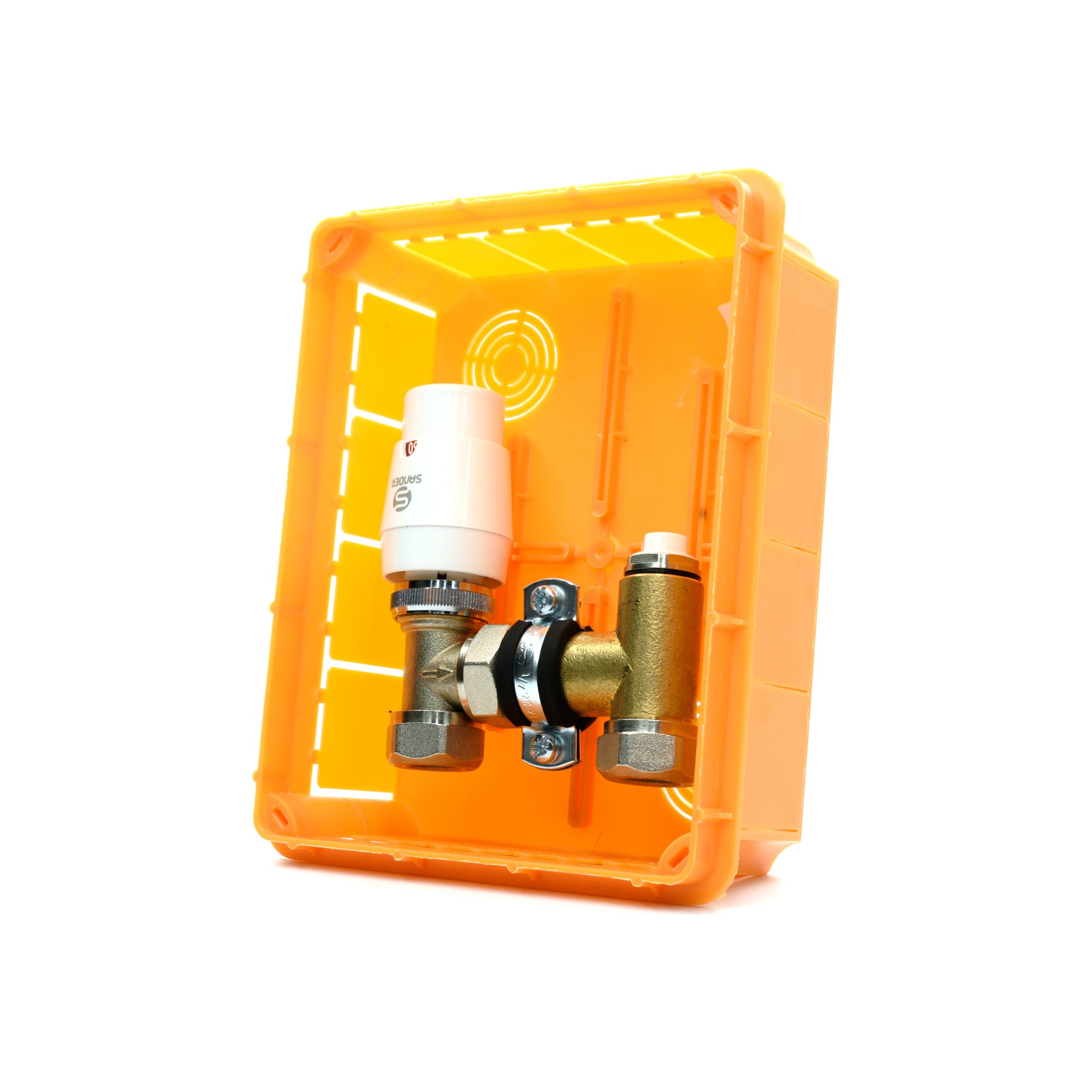

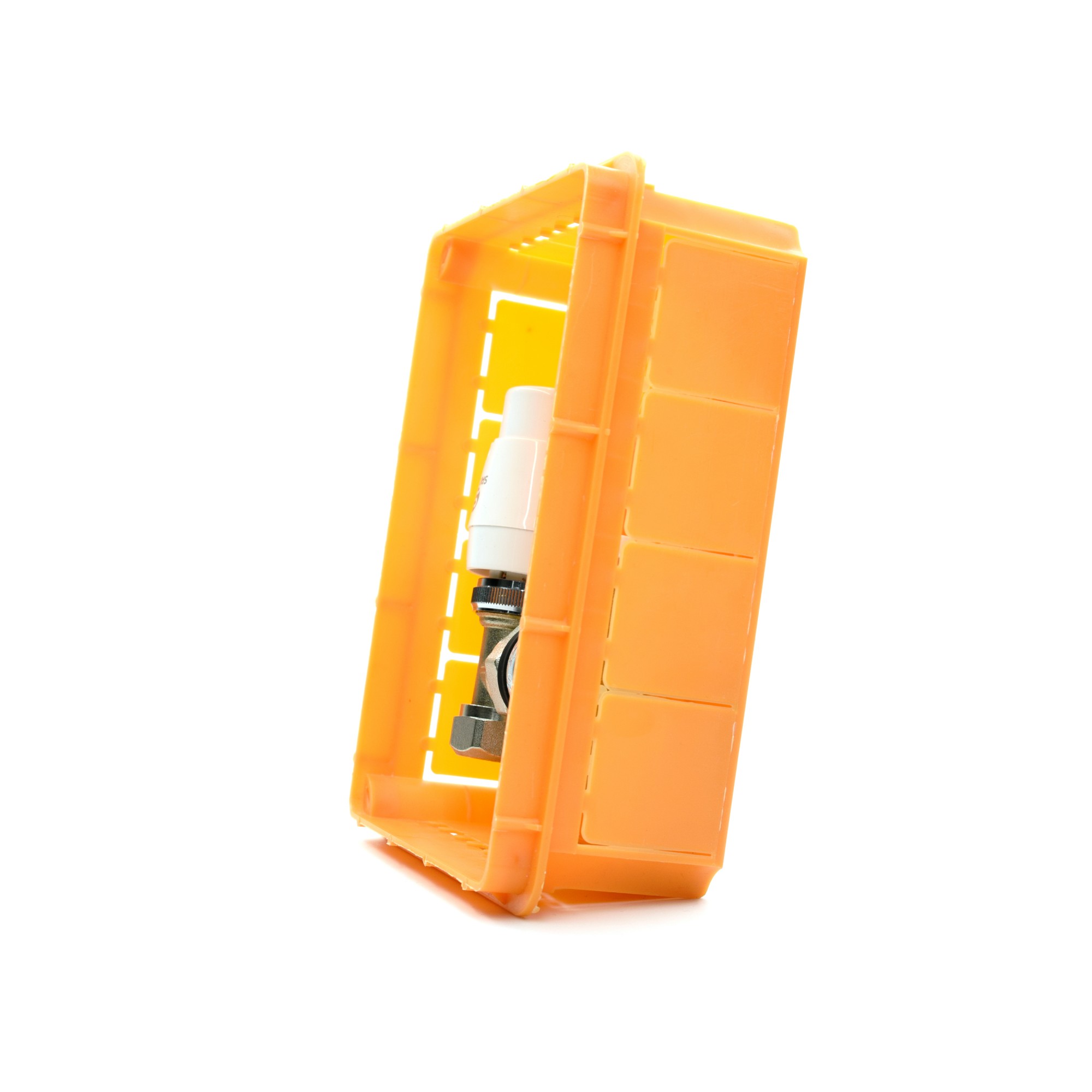

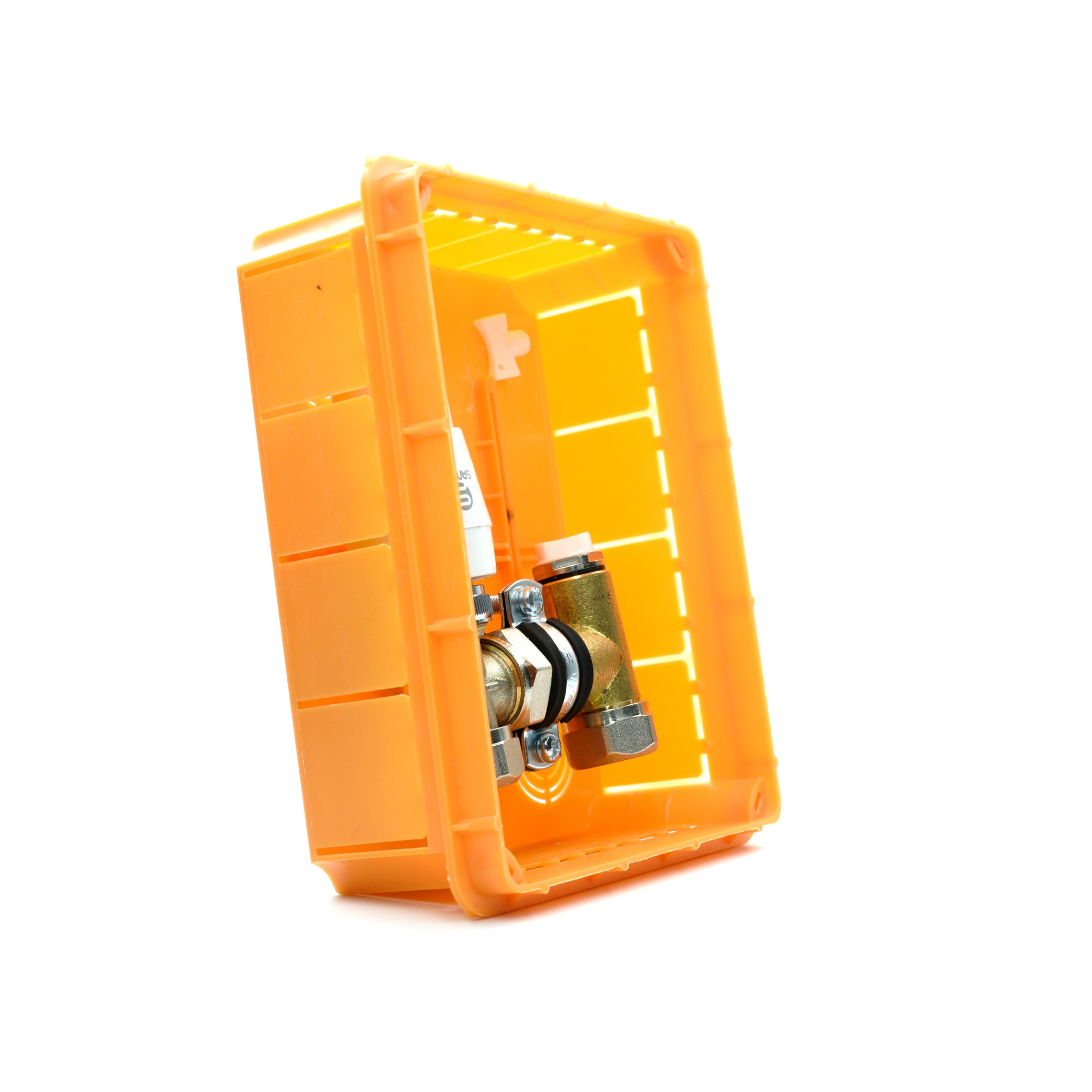

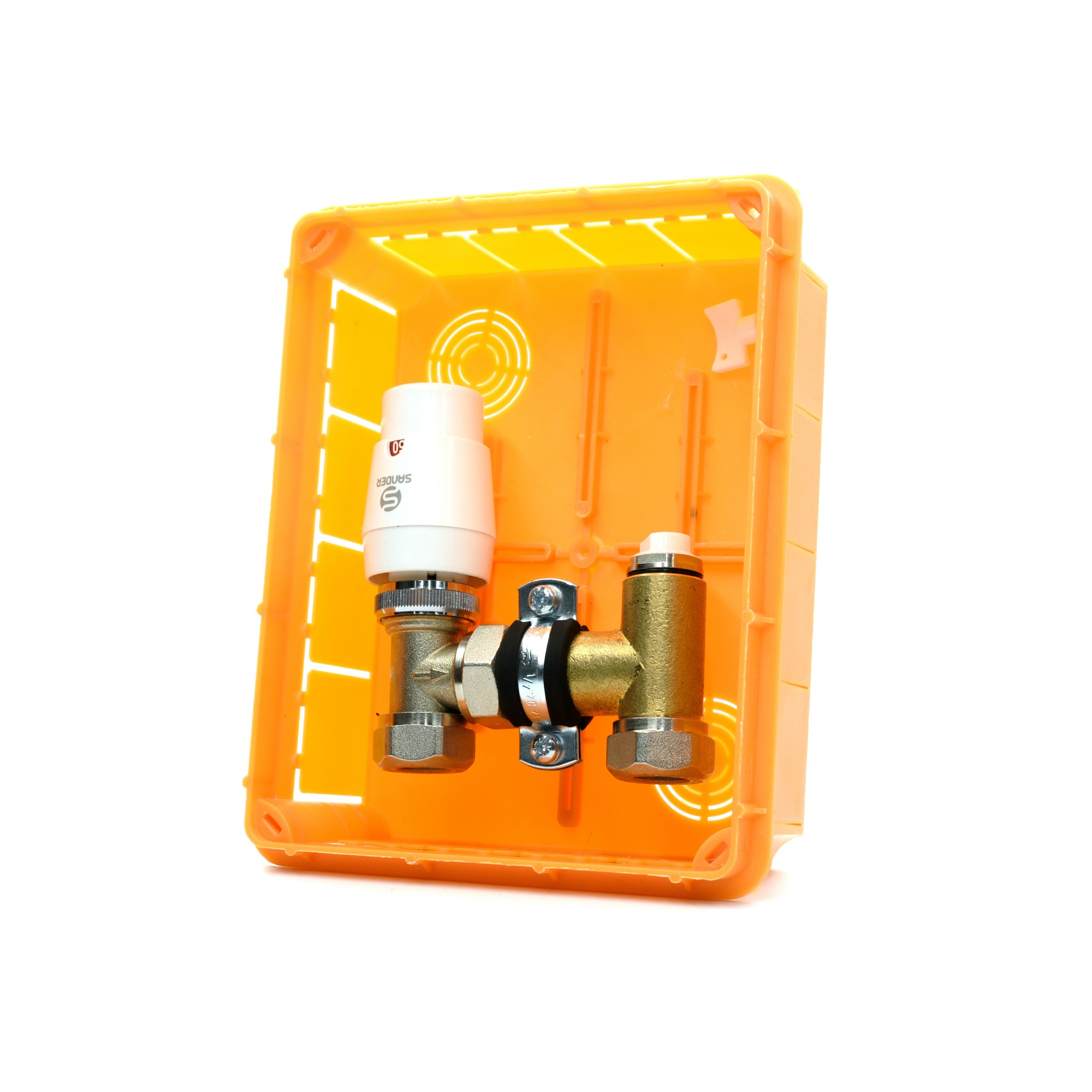

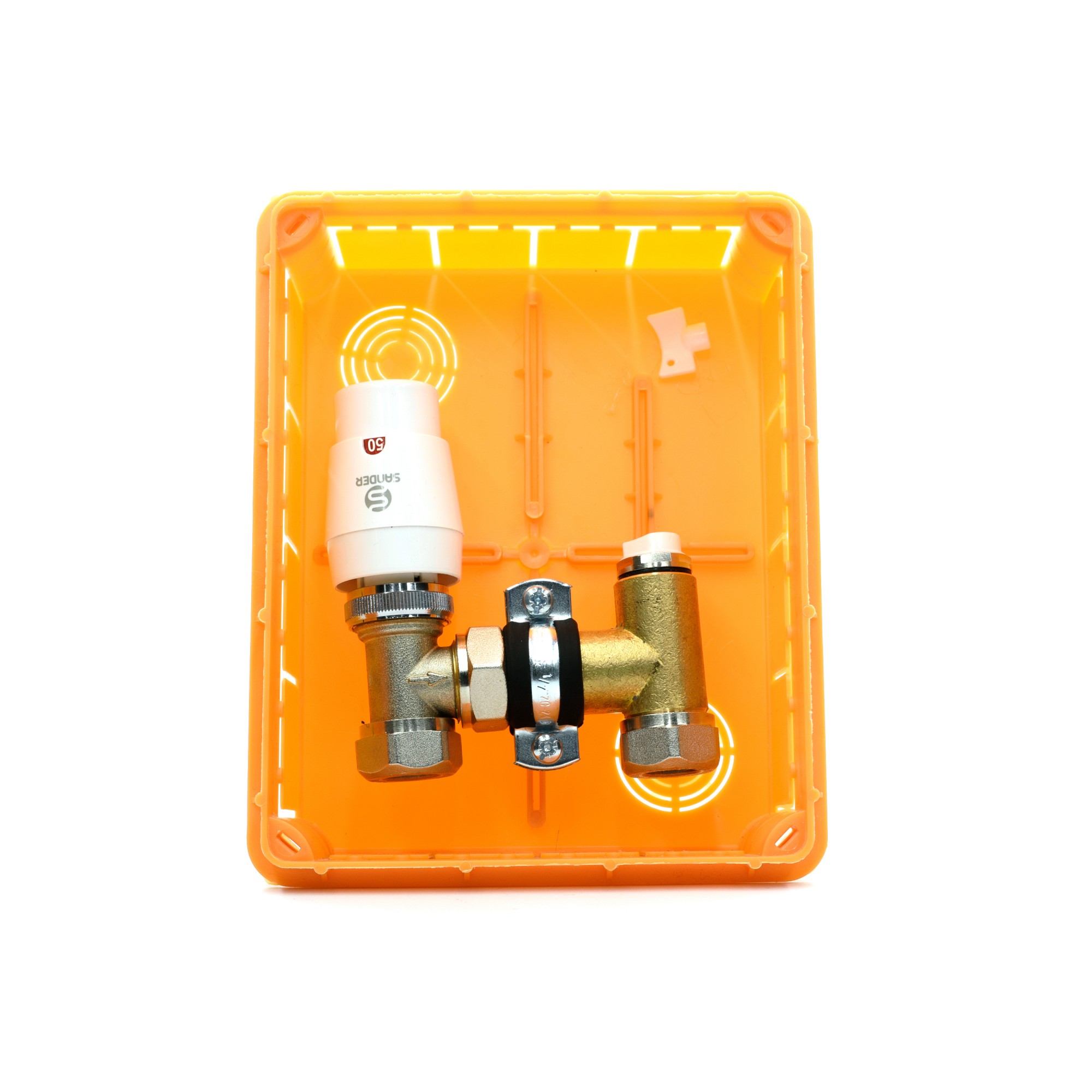

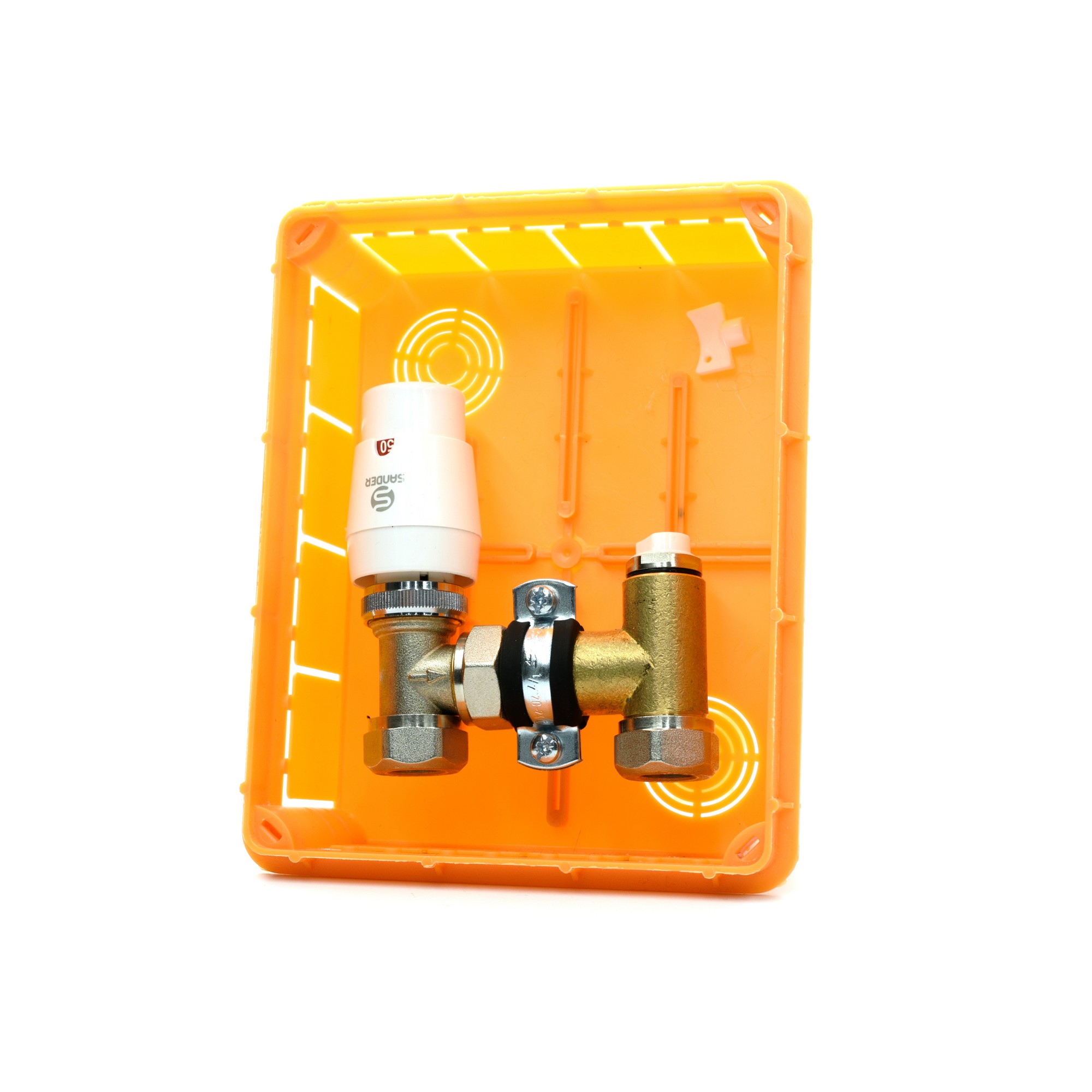

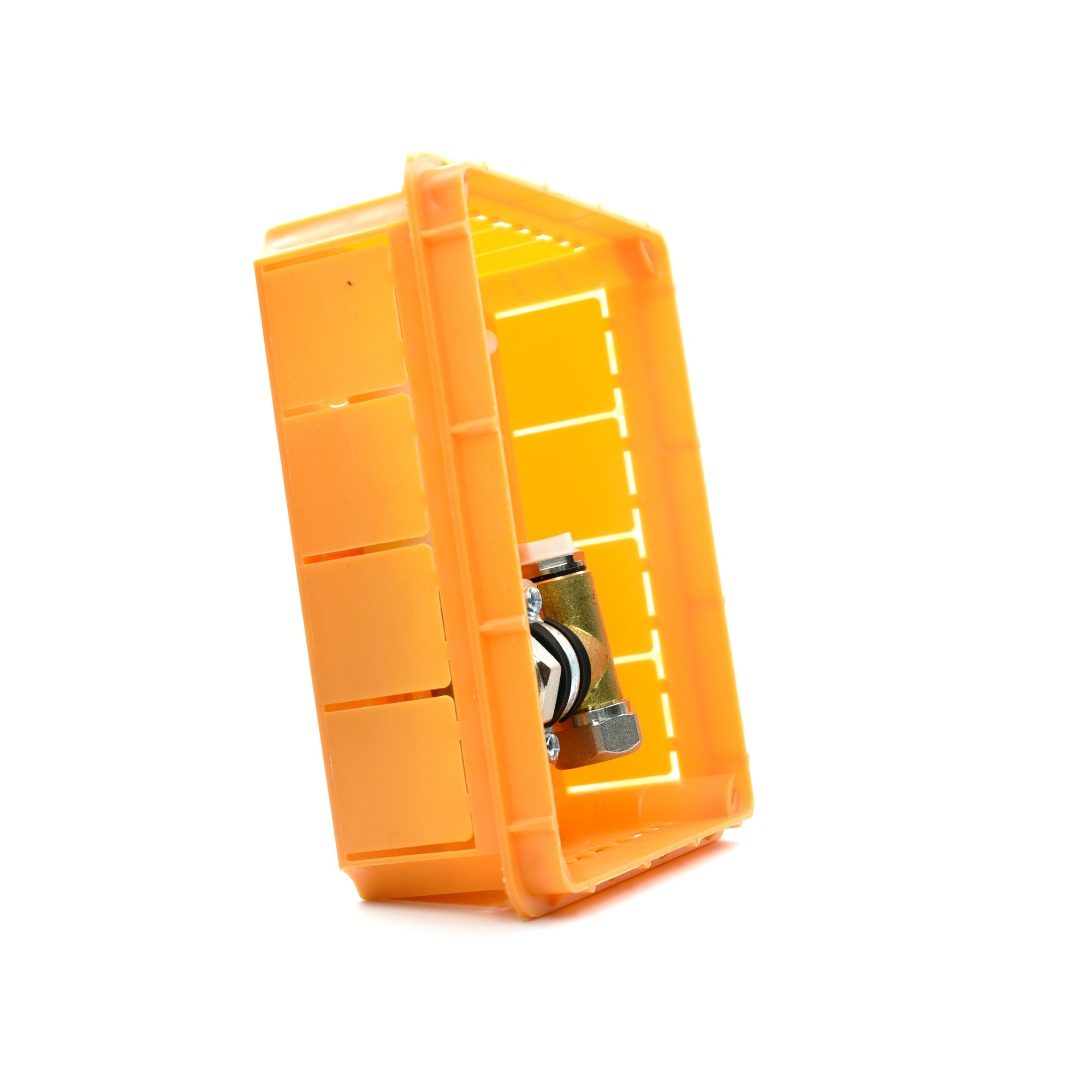

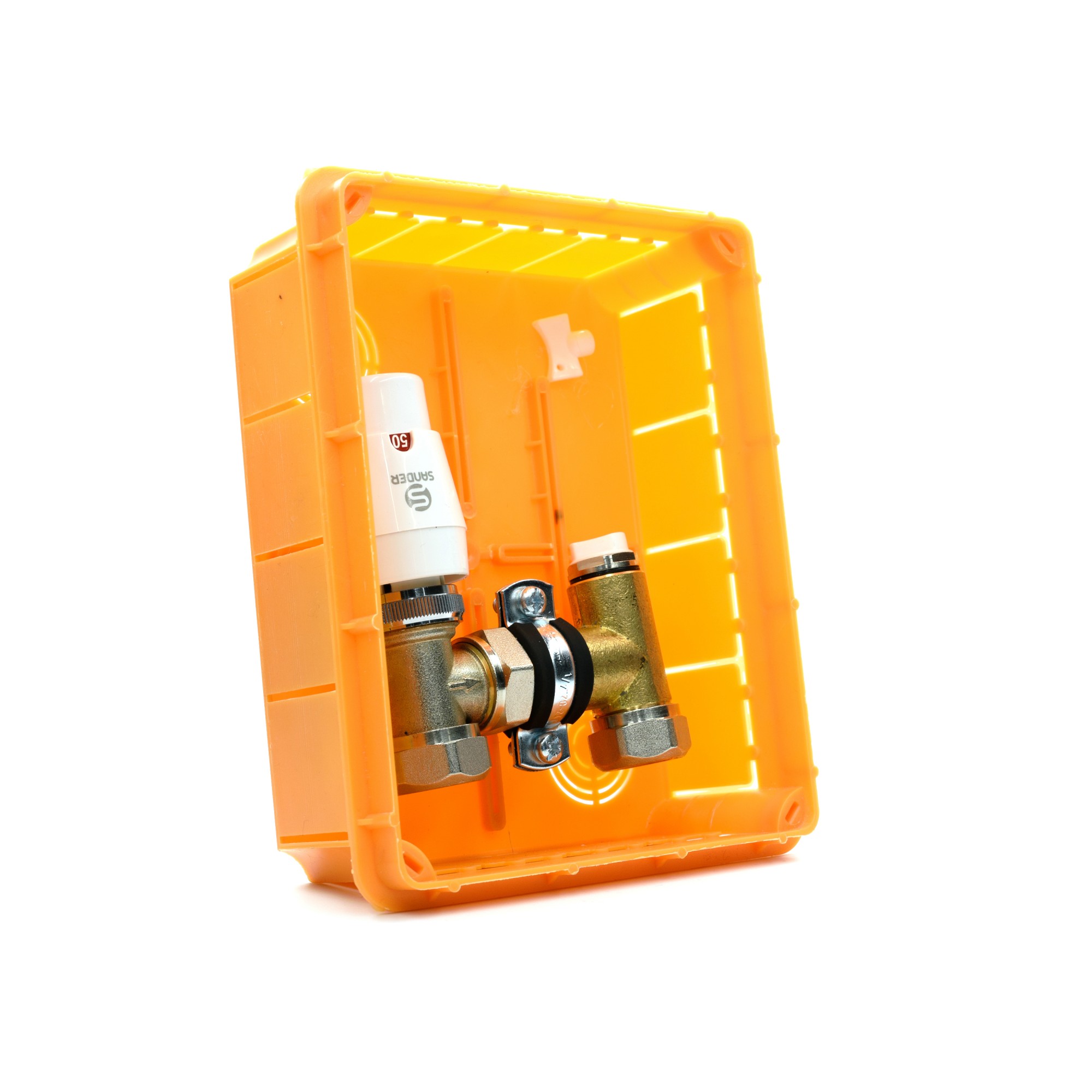

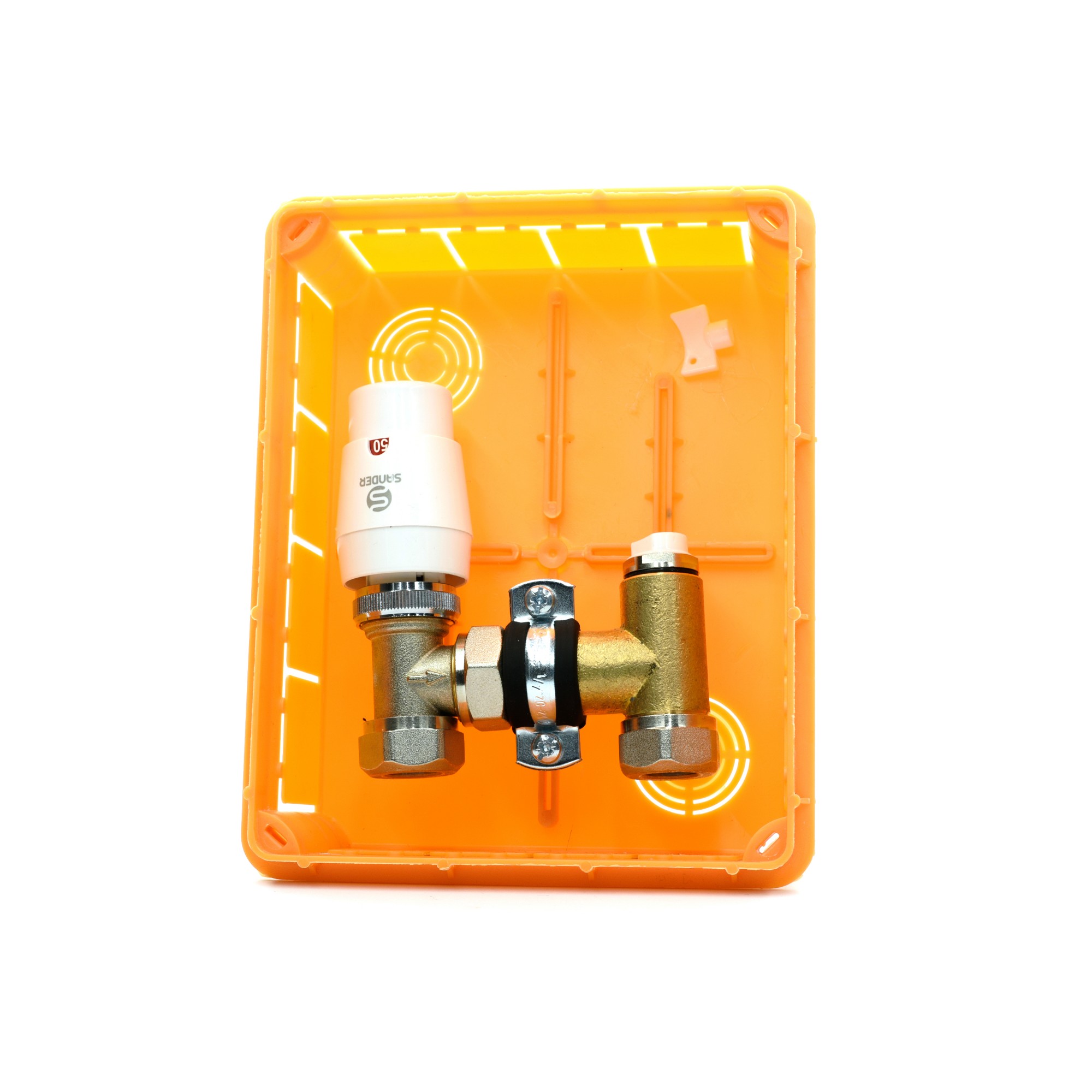

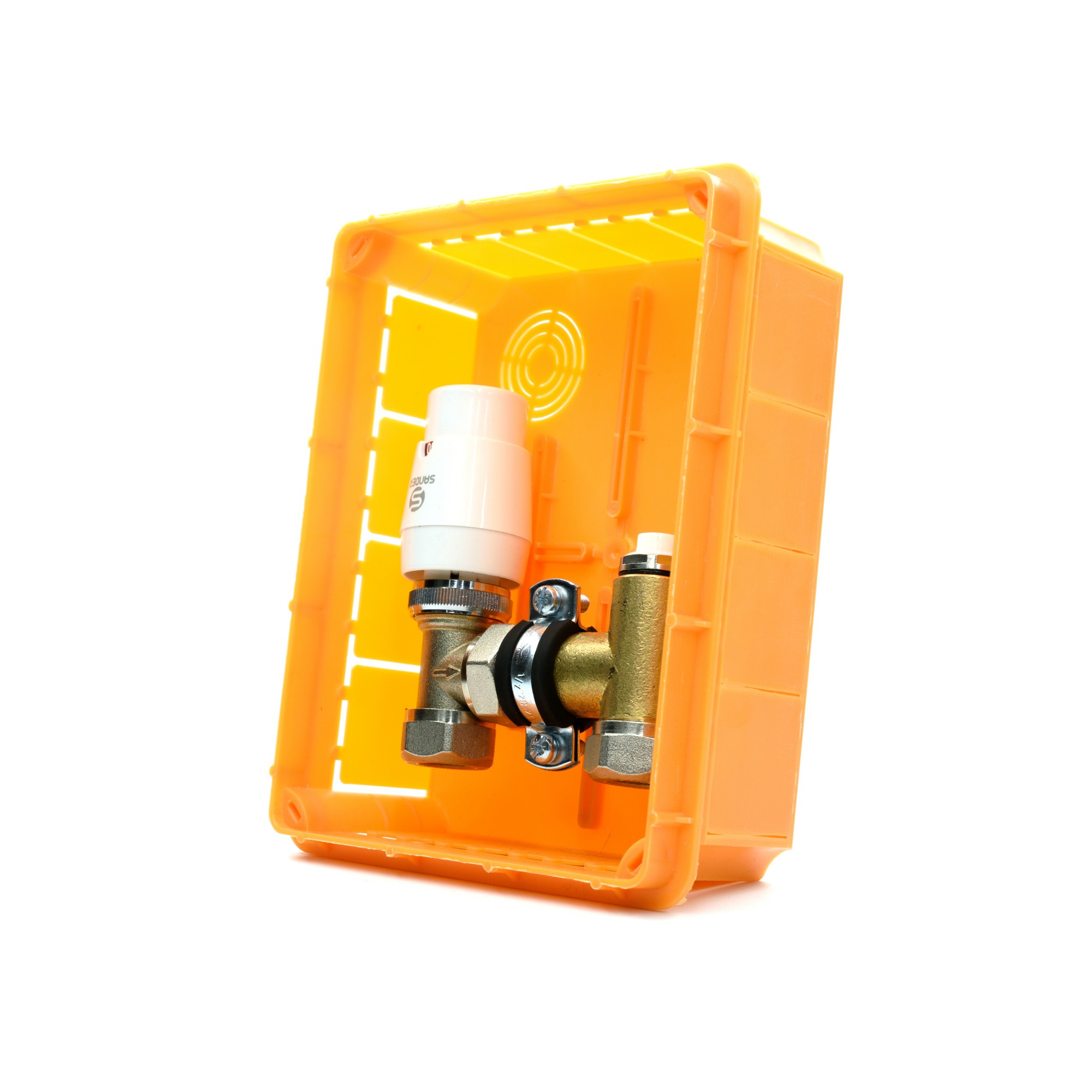

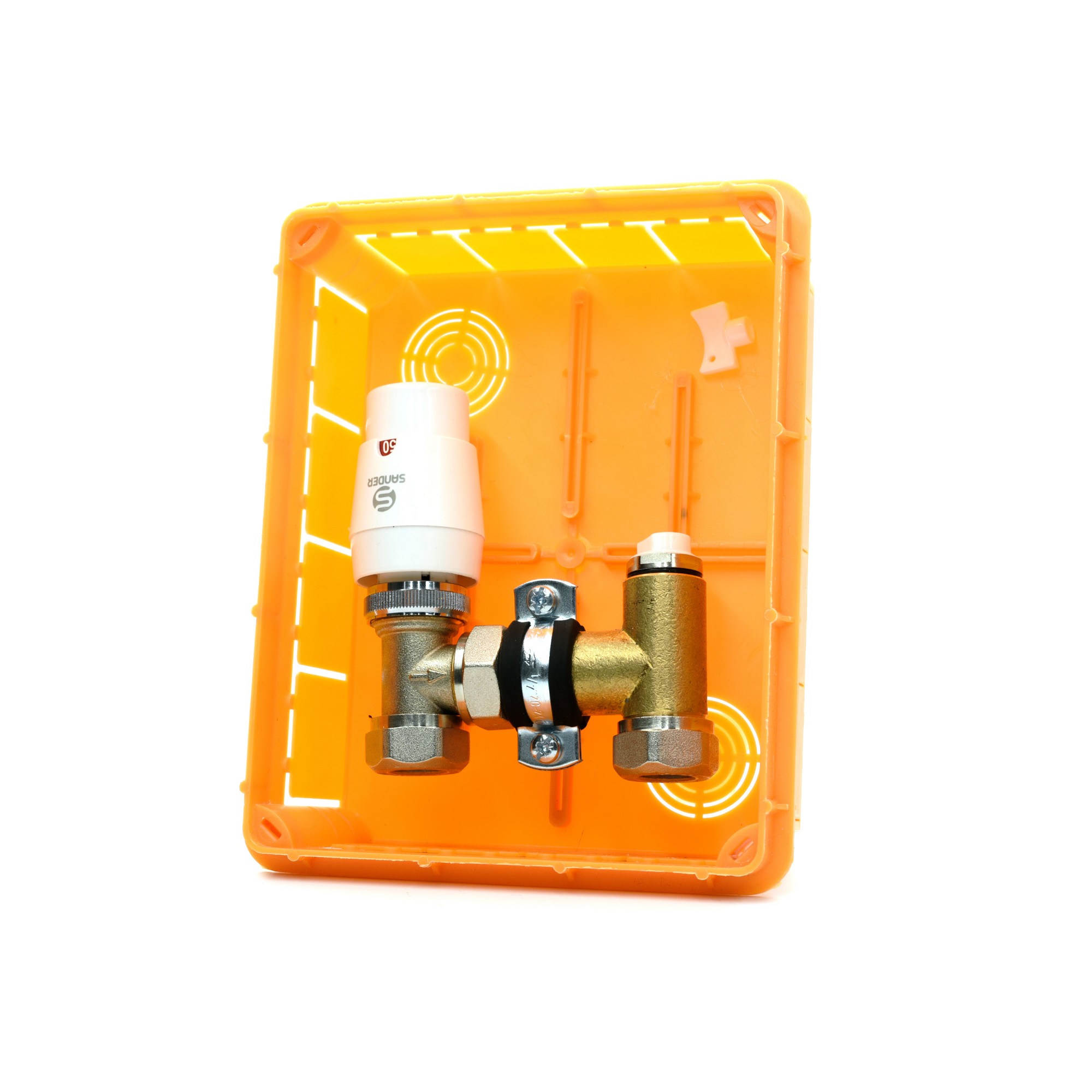

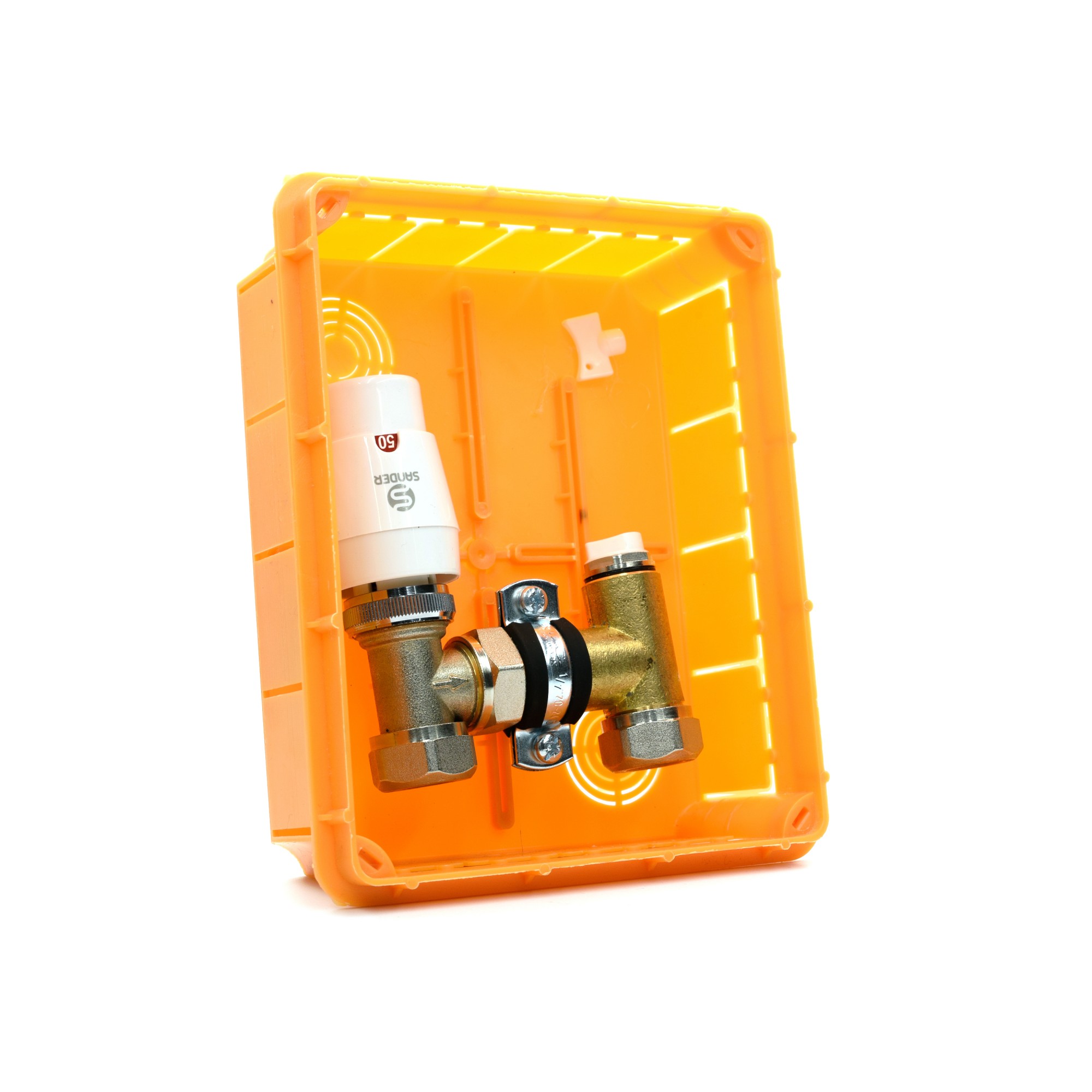

Construction of RTL box:

1. RTL head
2. RTL valve
3. T-connector (tee)
4. Air vent
5. Air vent key
6. Connectors 16 x 2

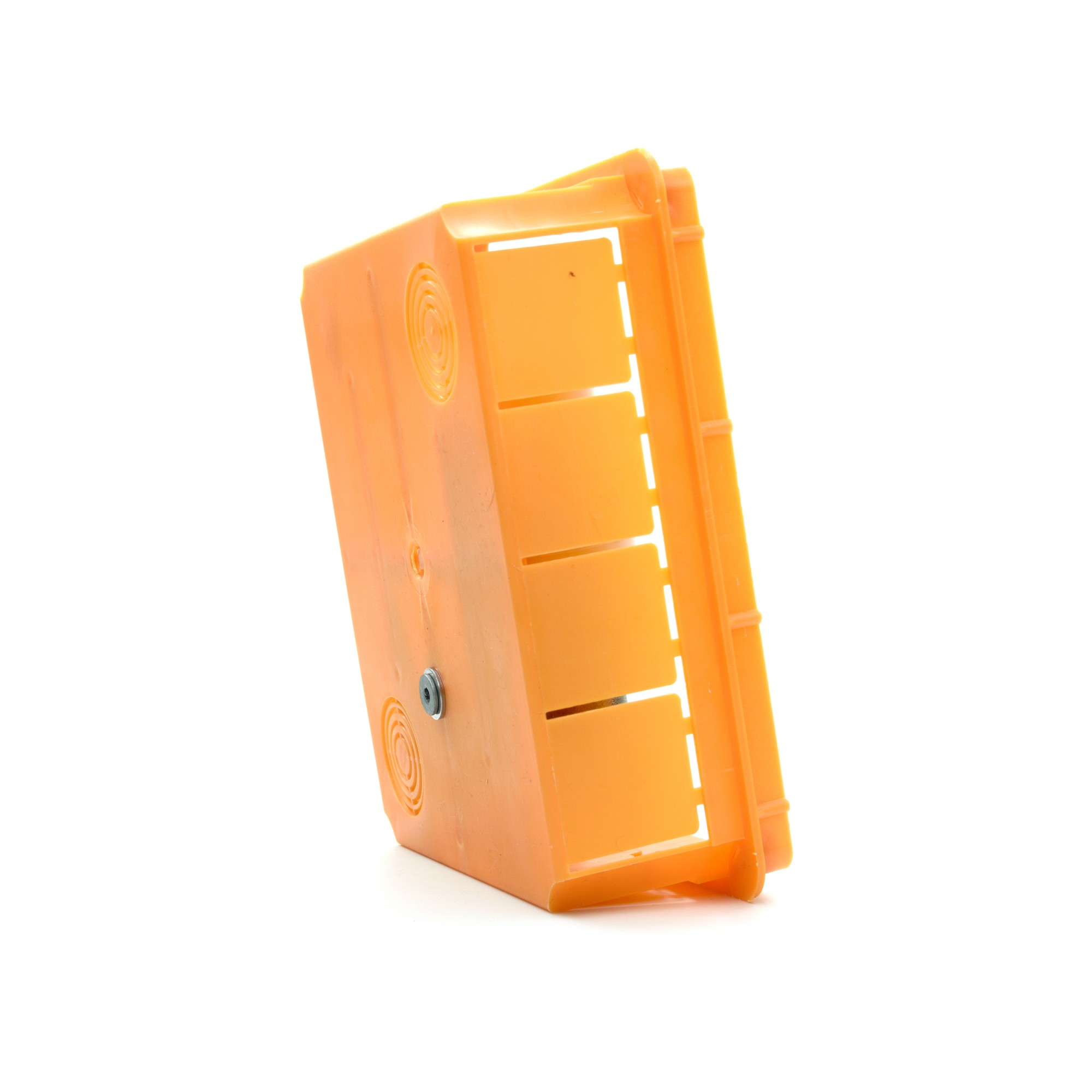

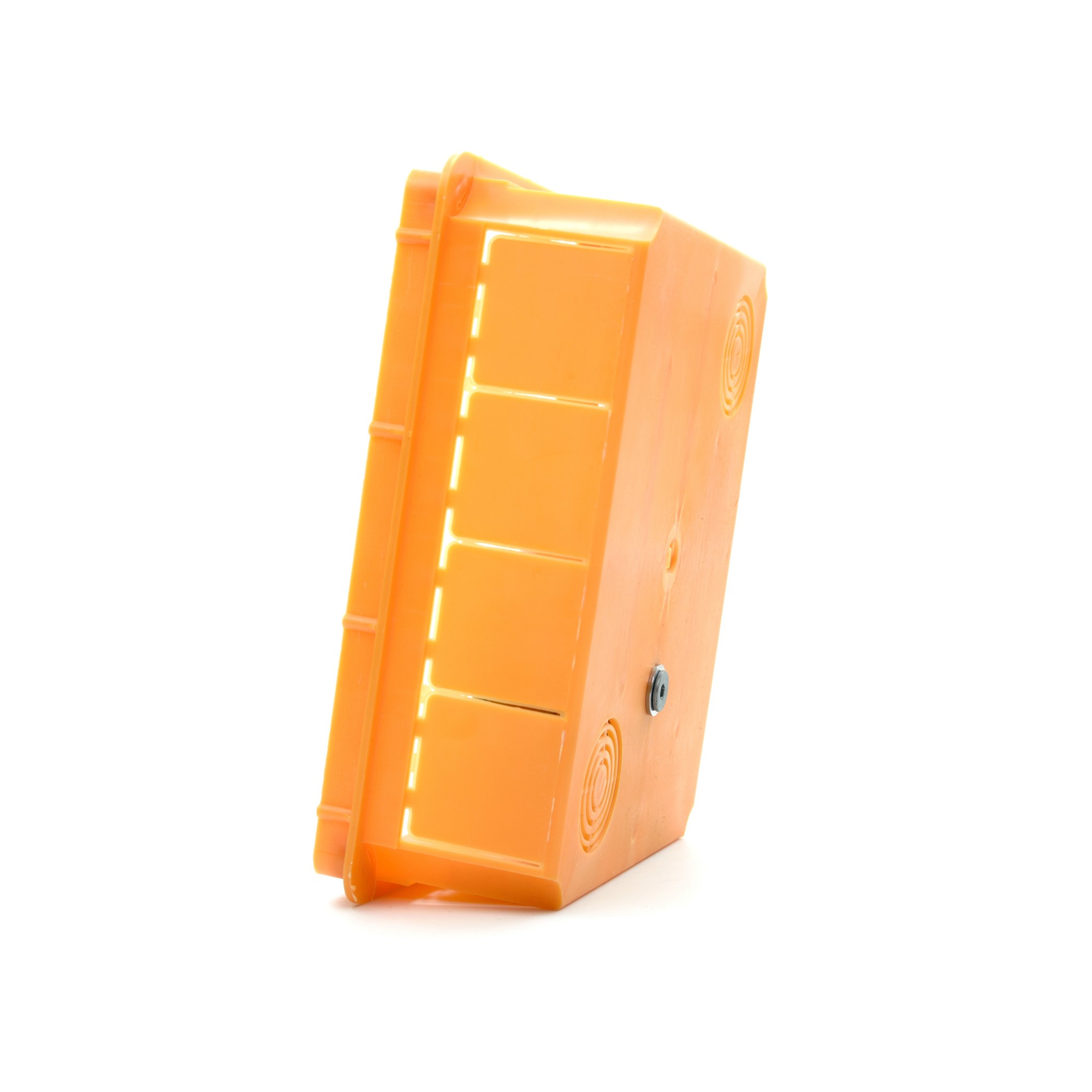

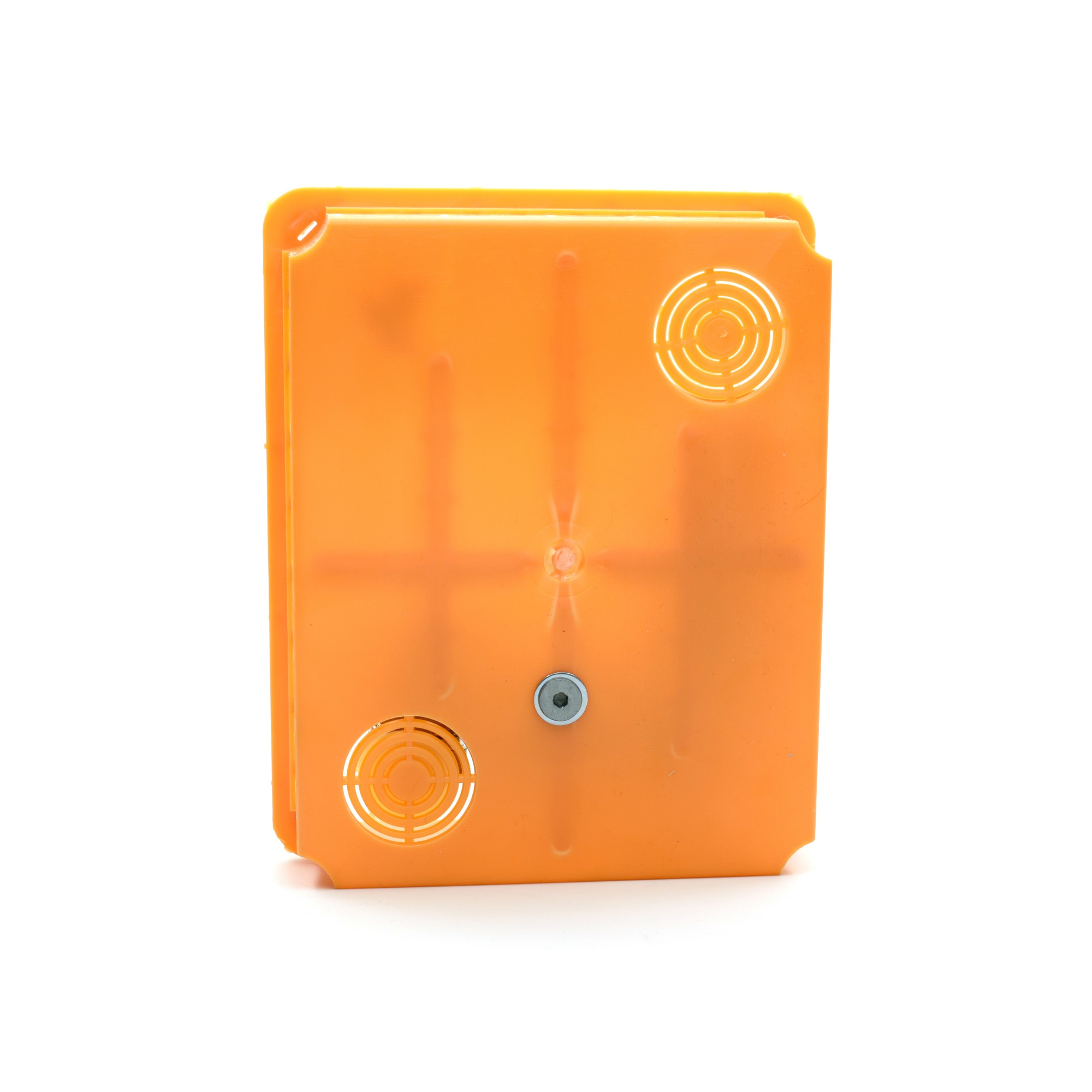

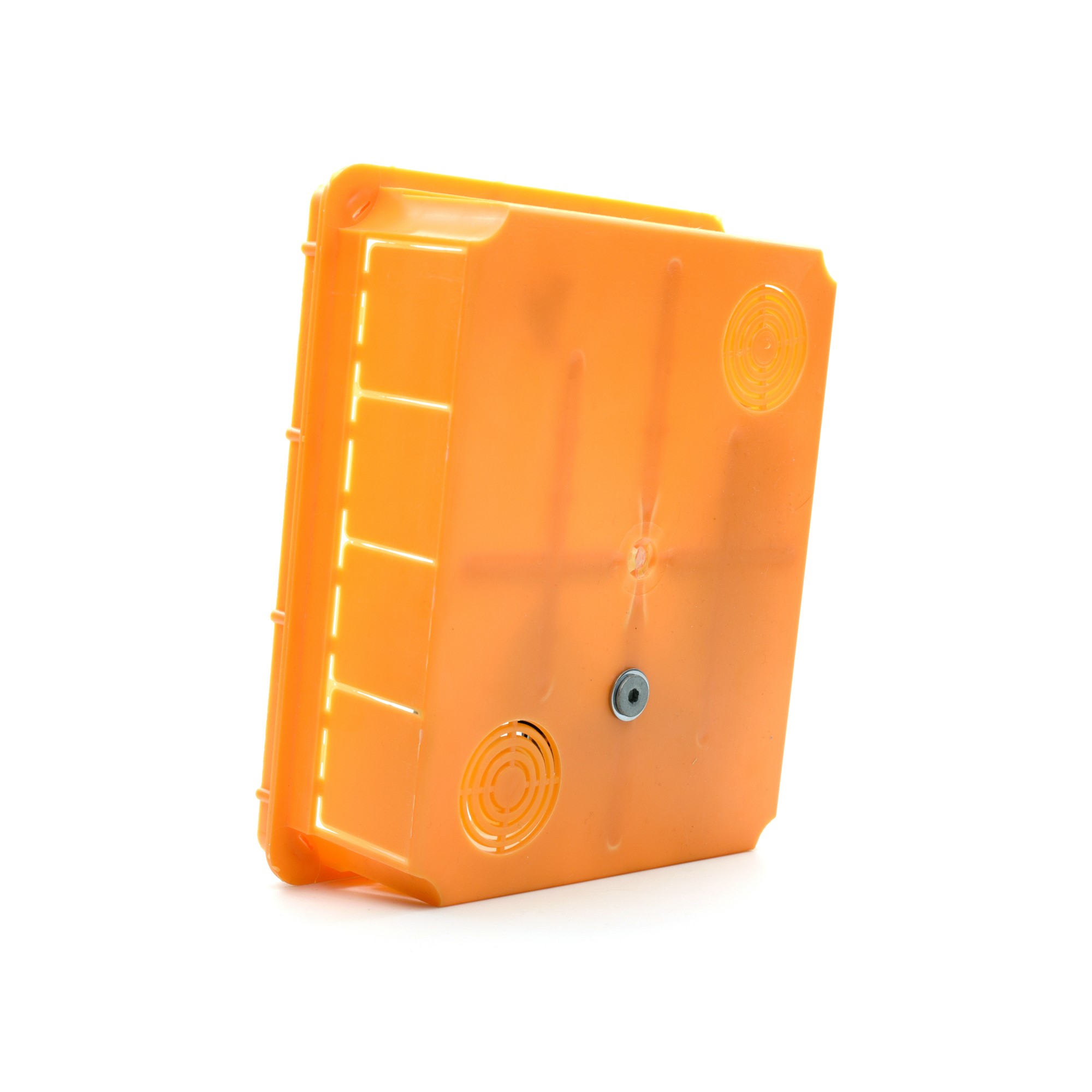

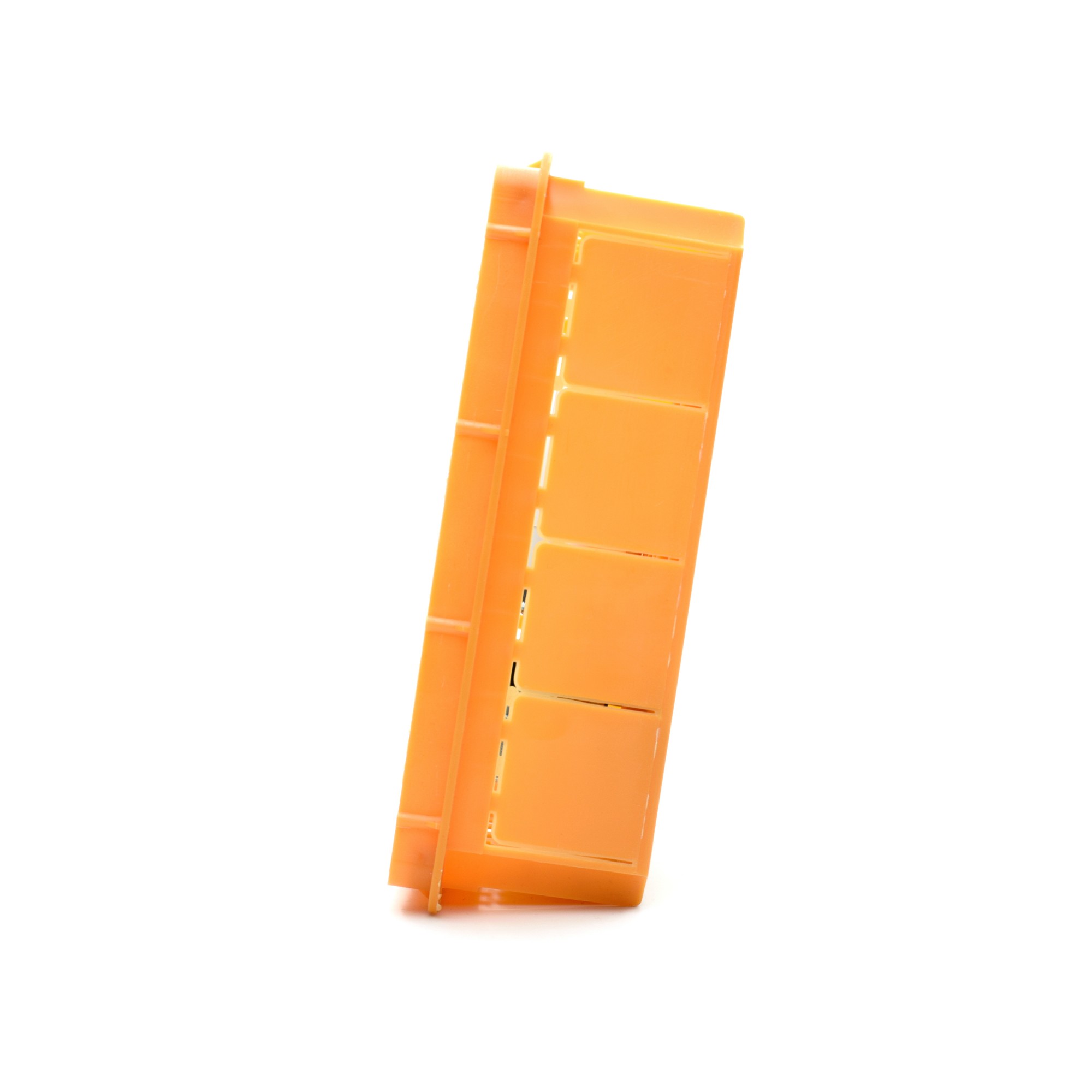

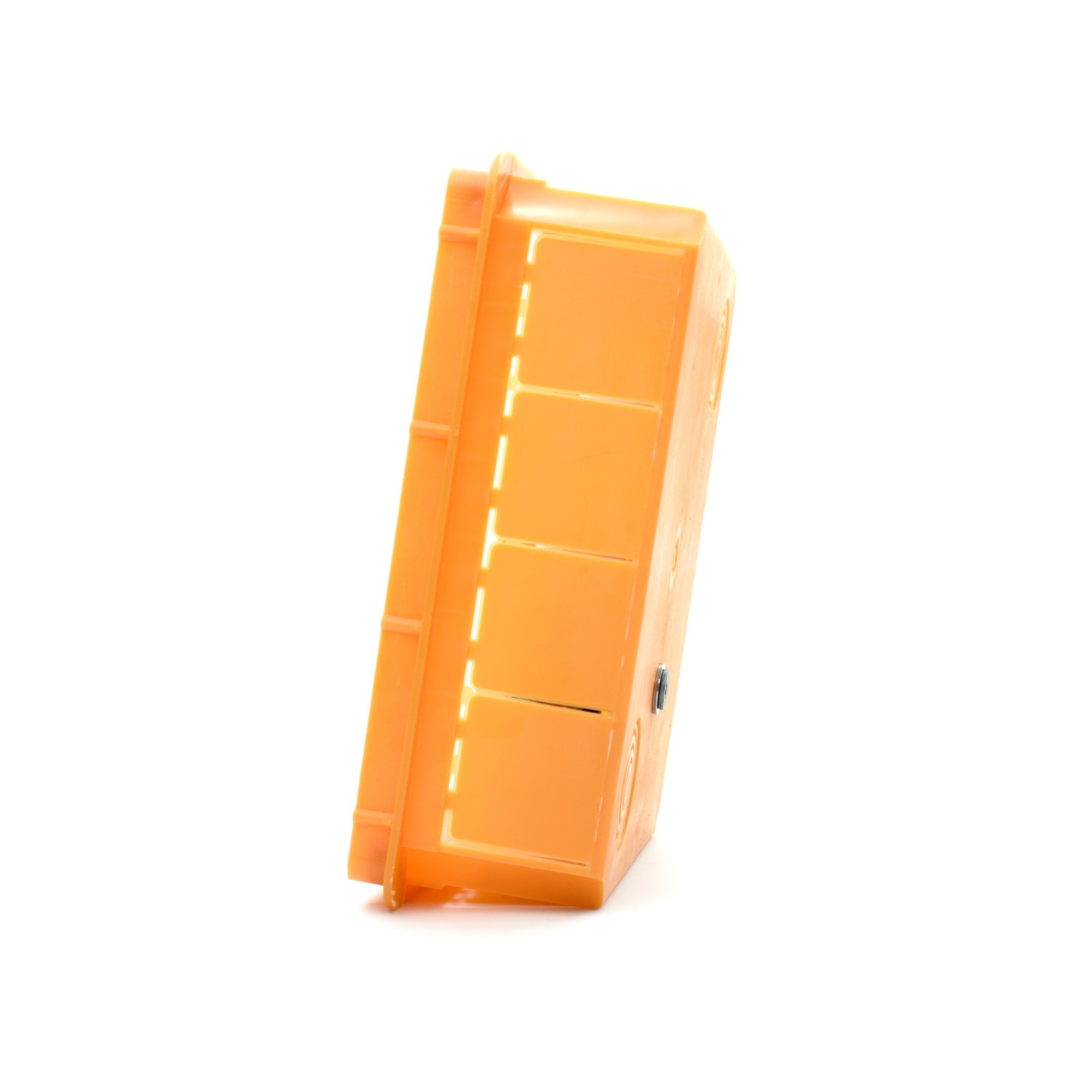

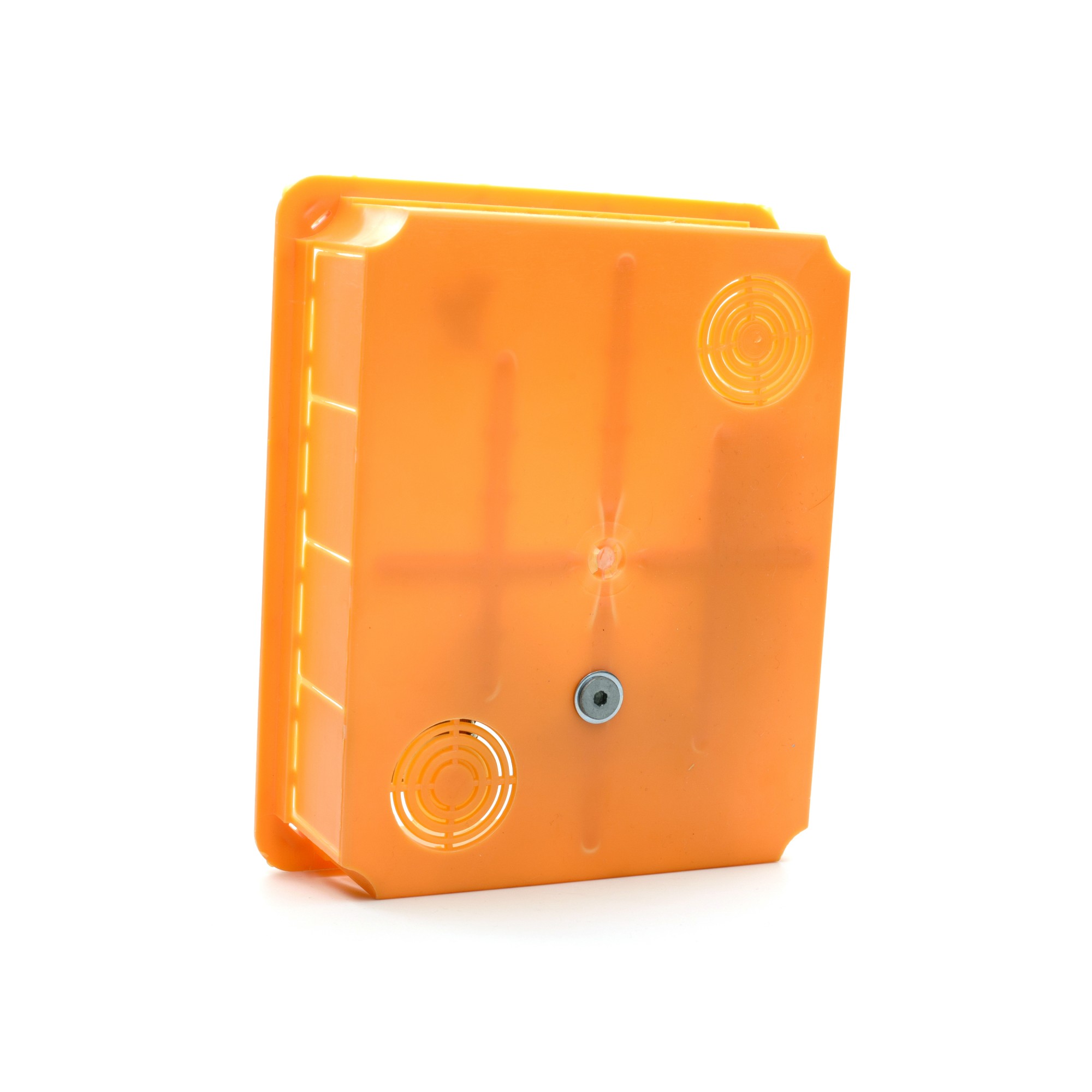

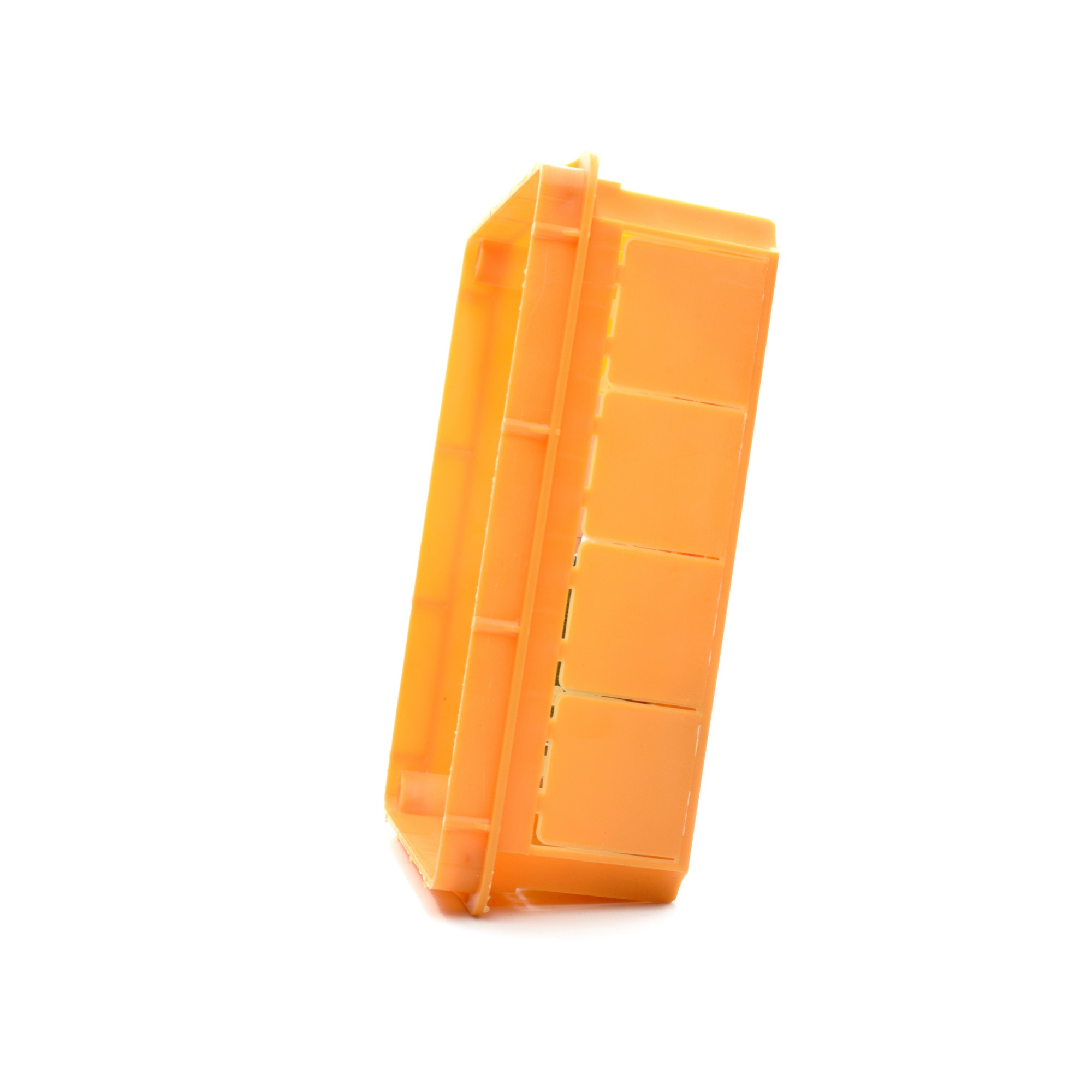

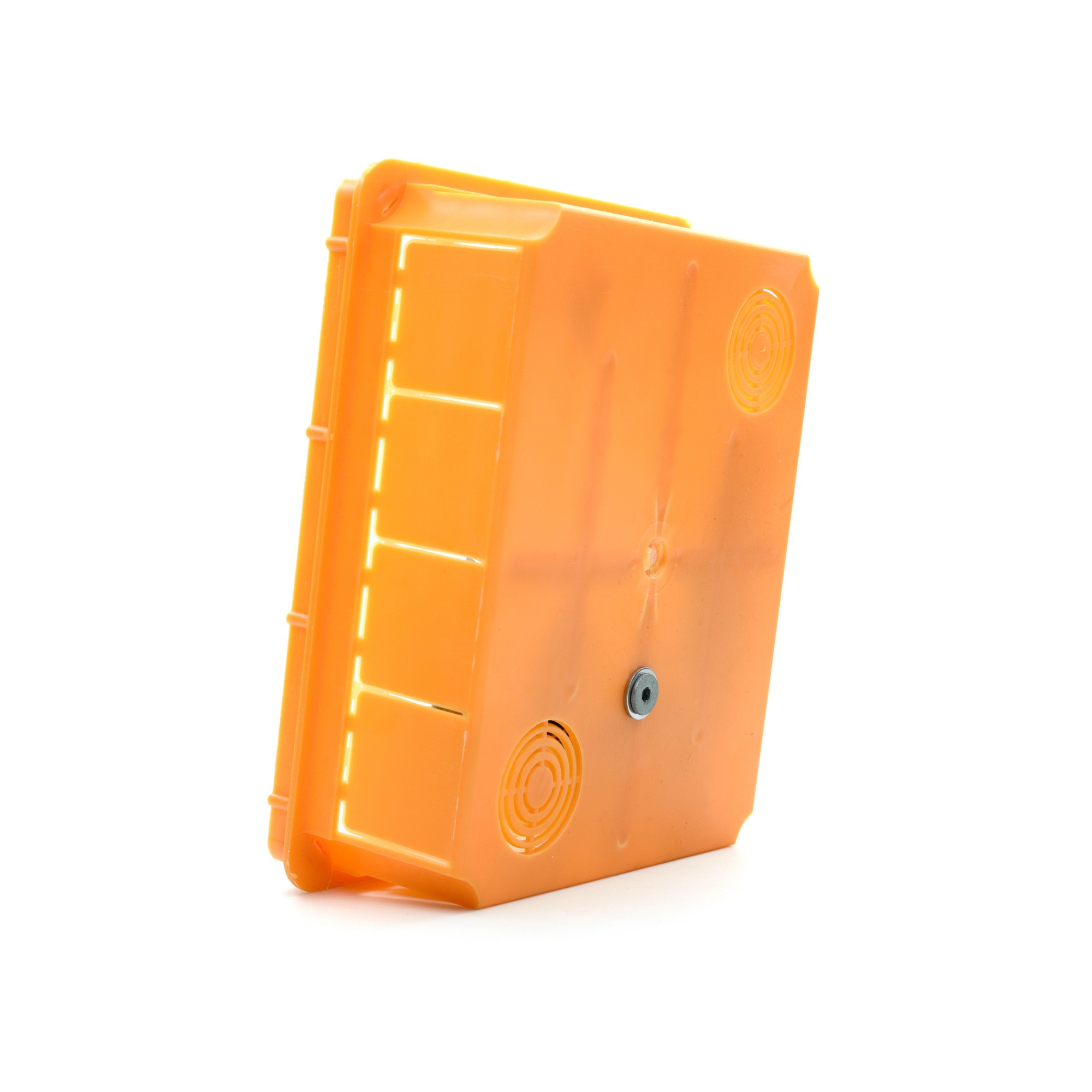

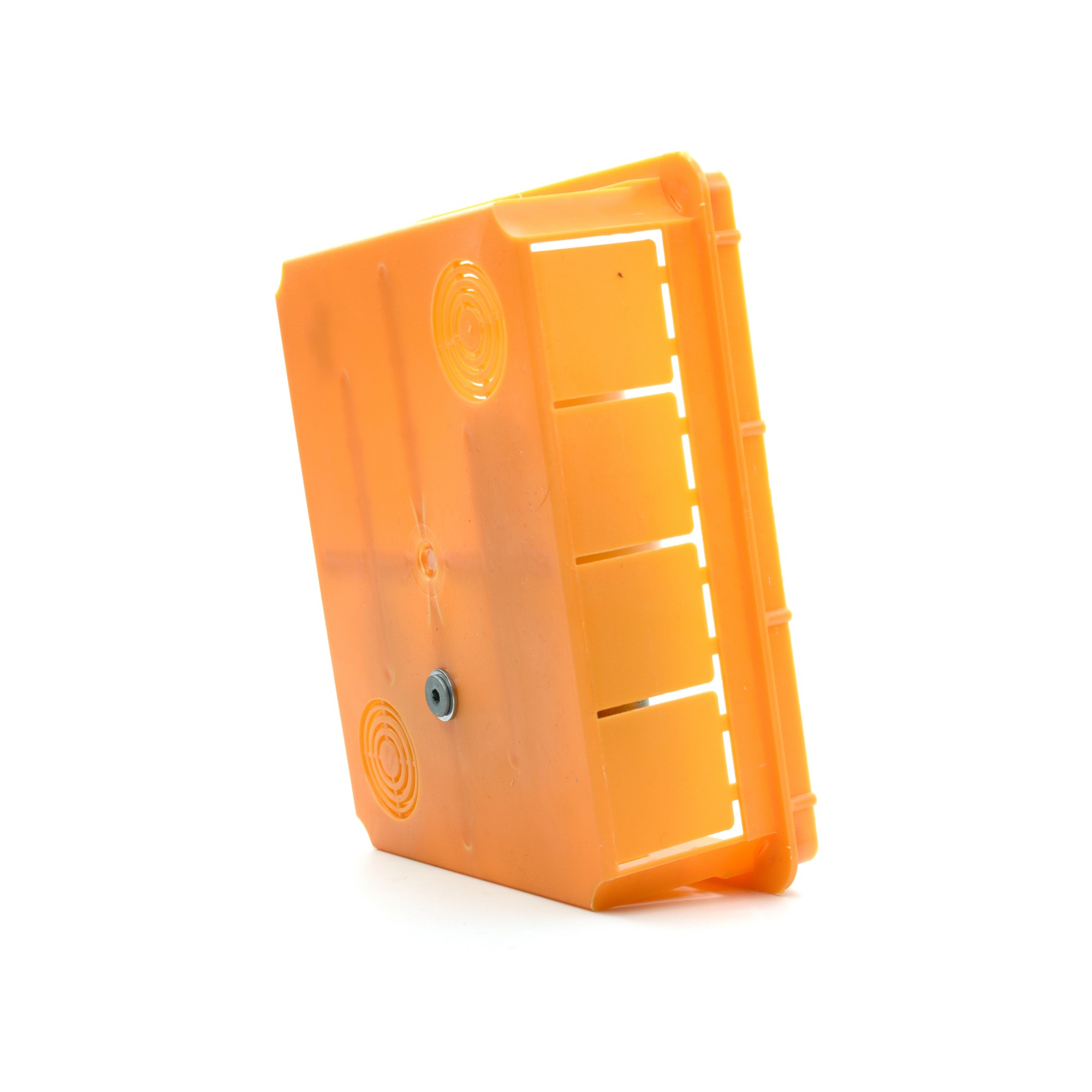

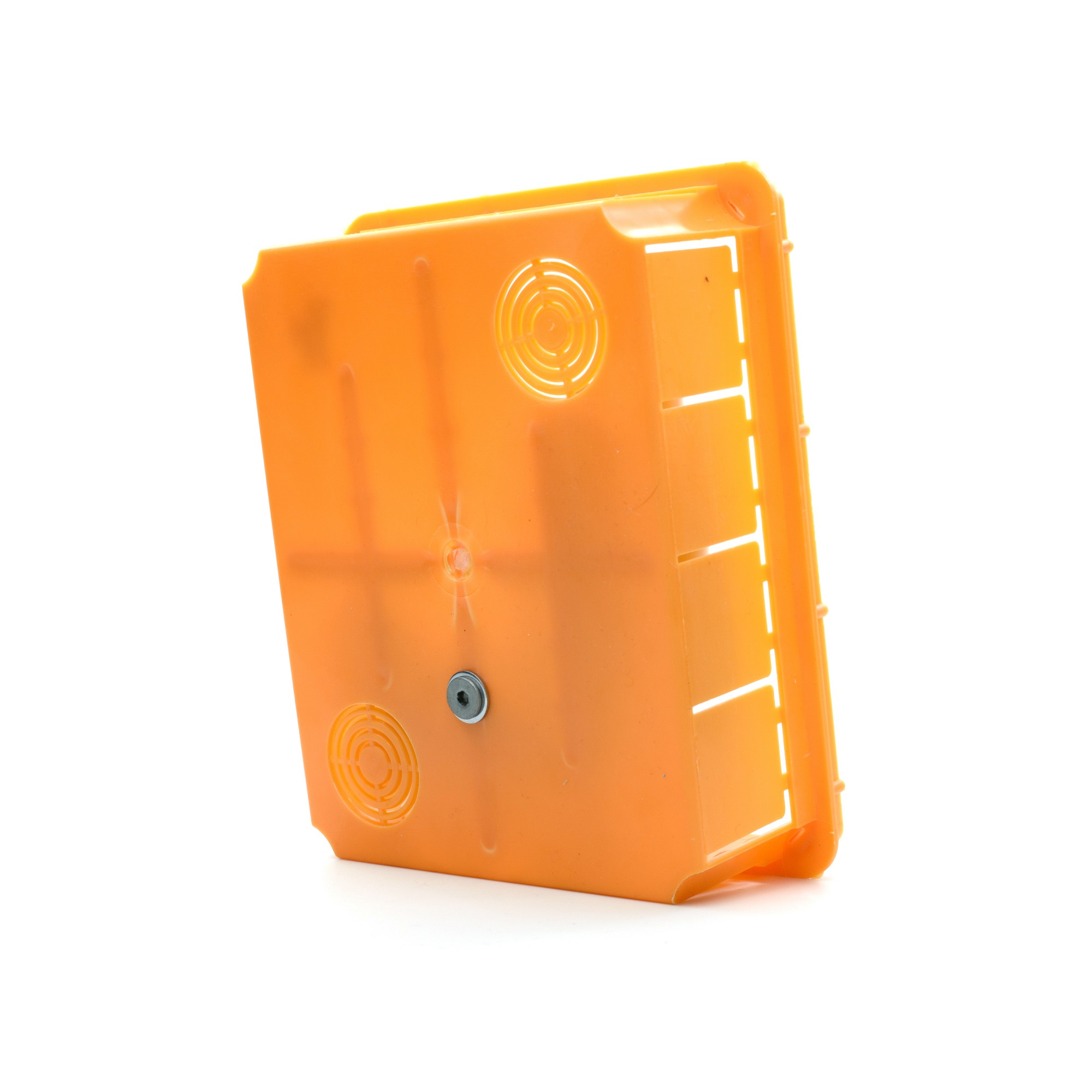

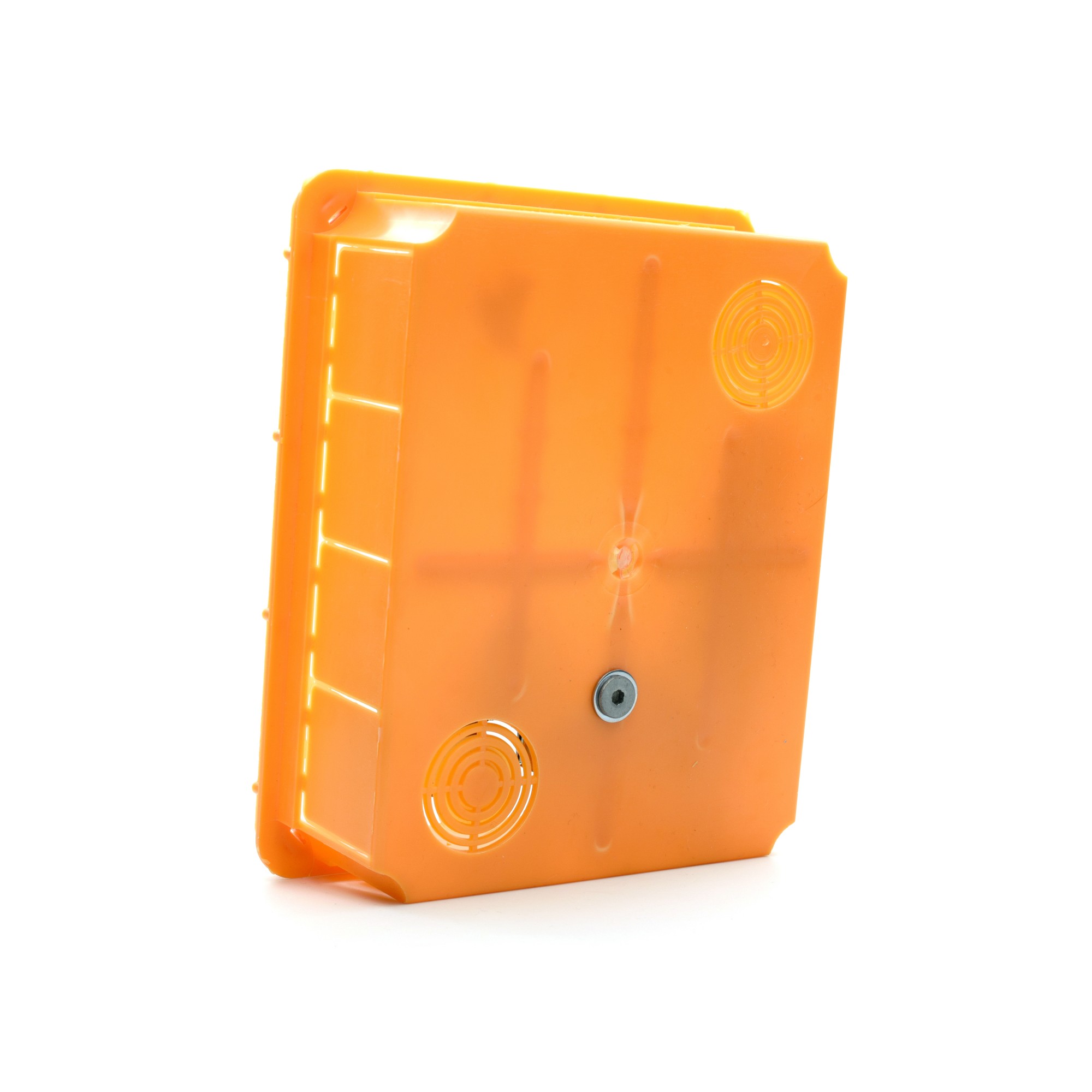

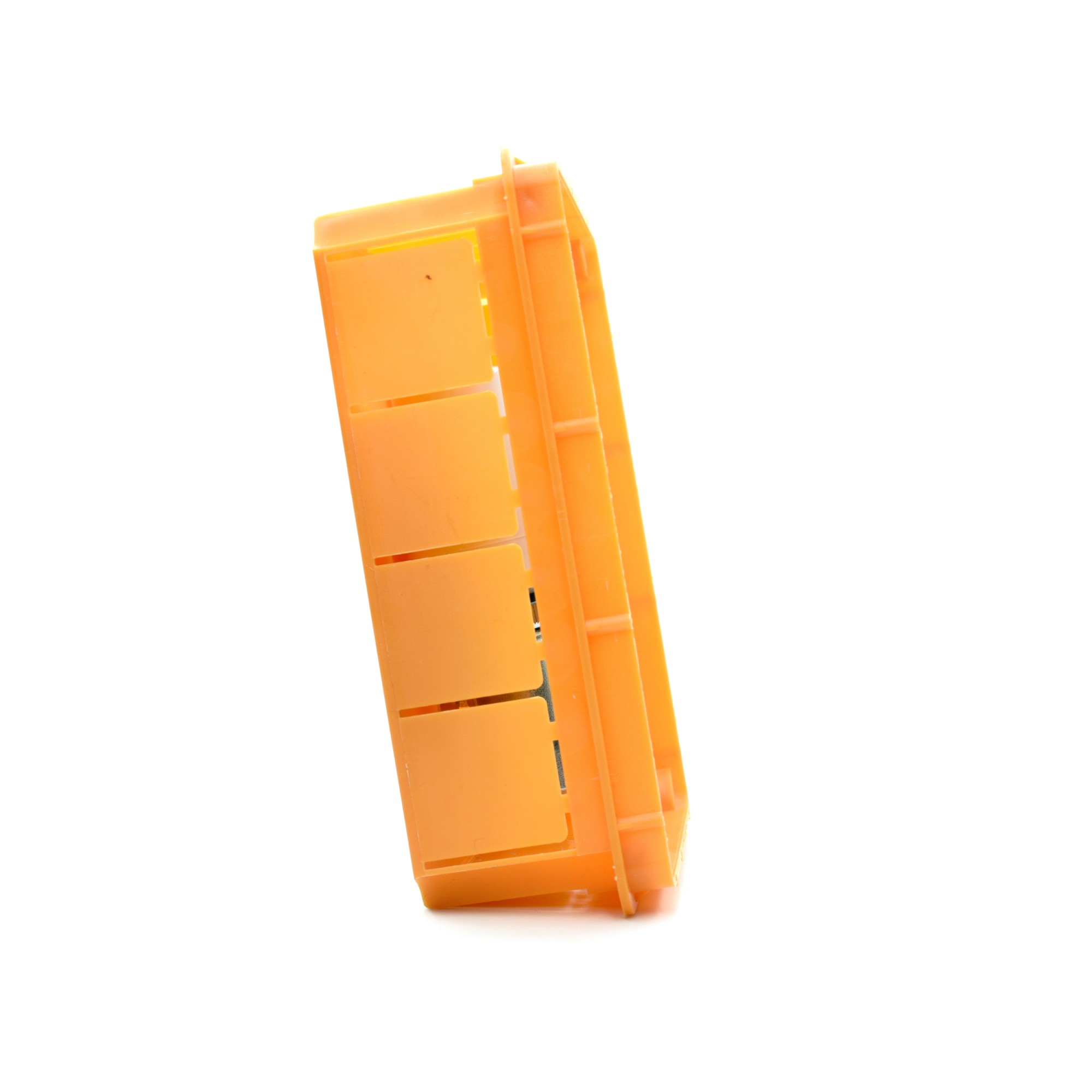

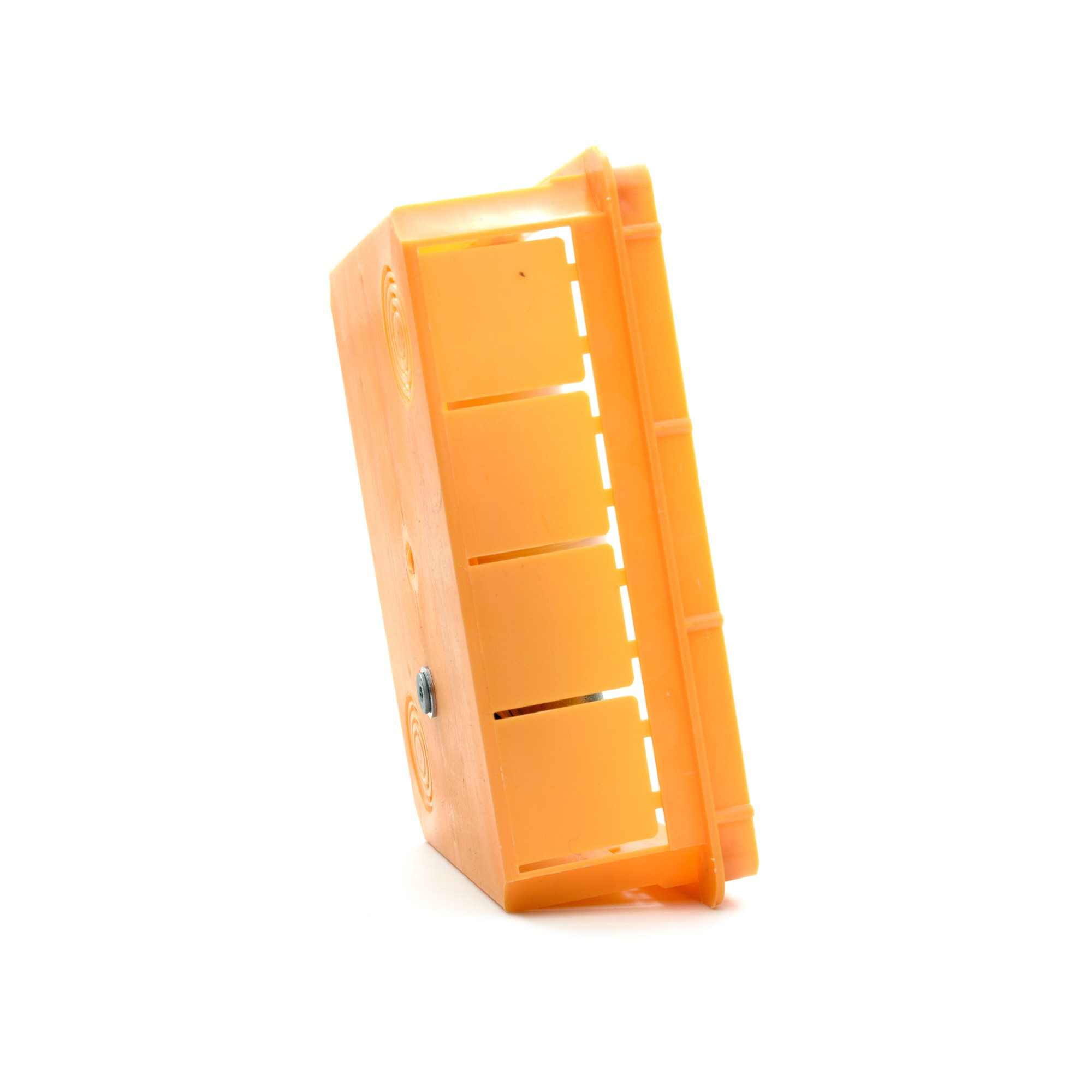

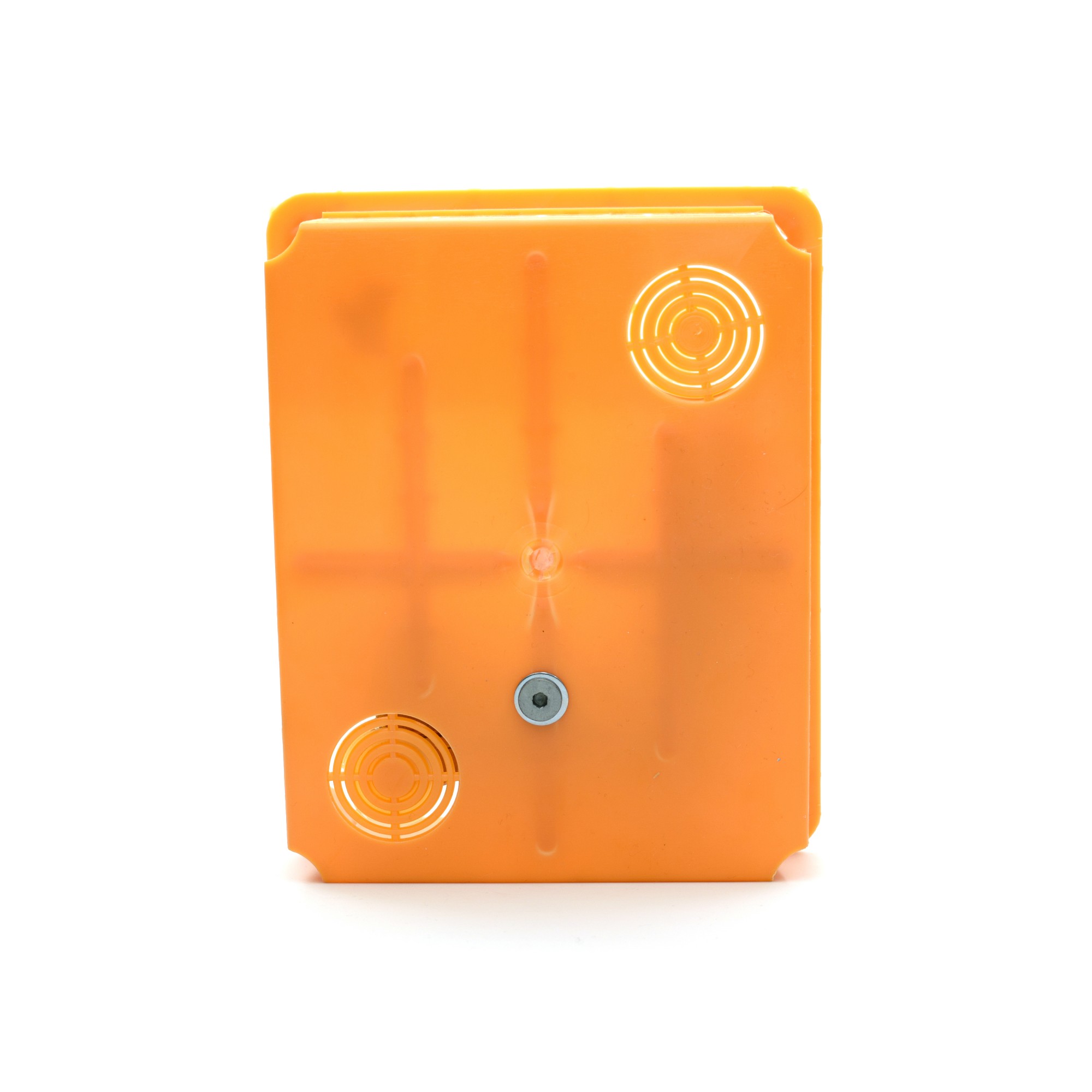

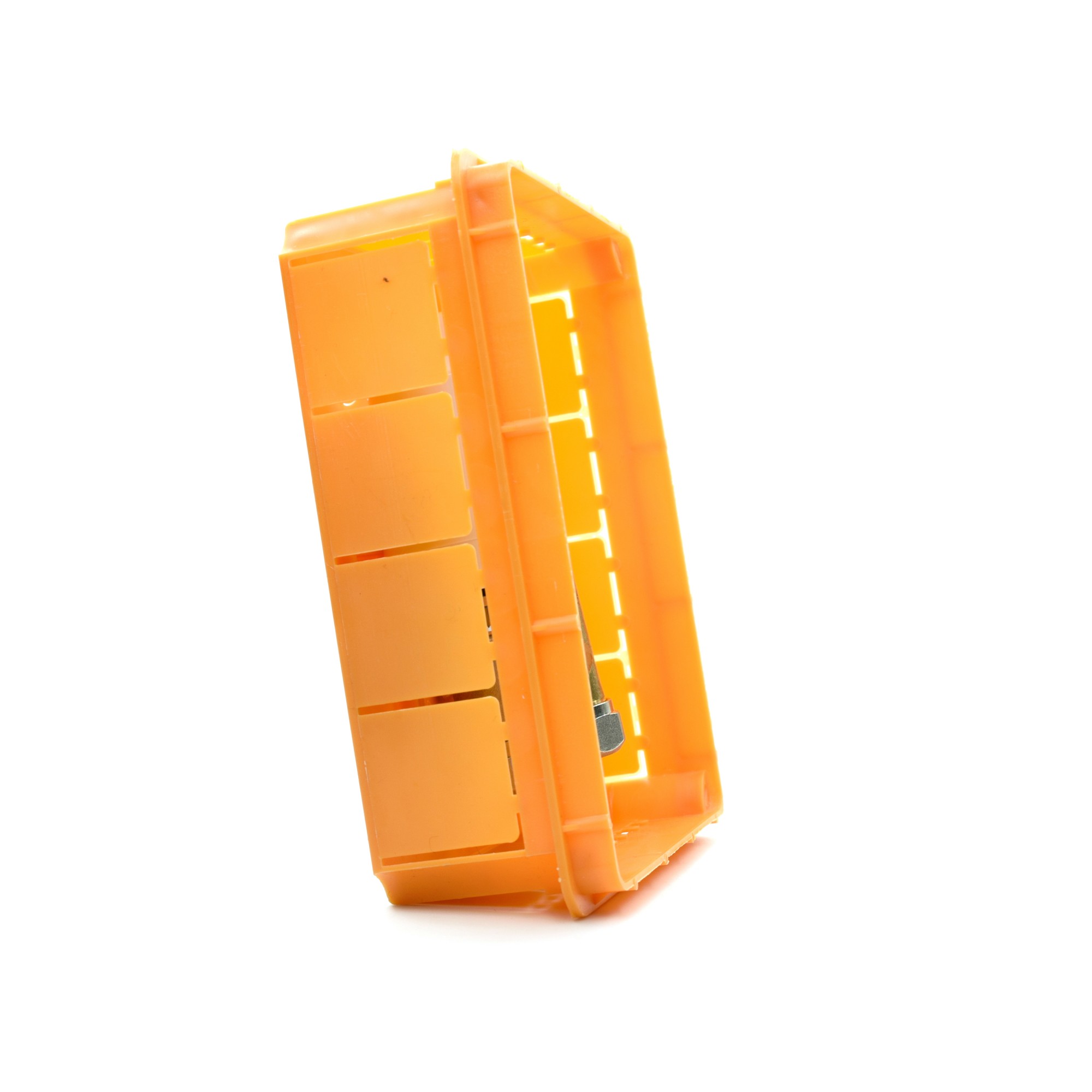

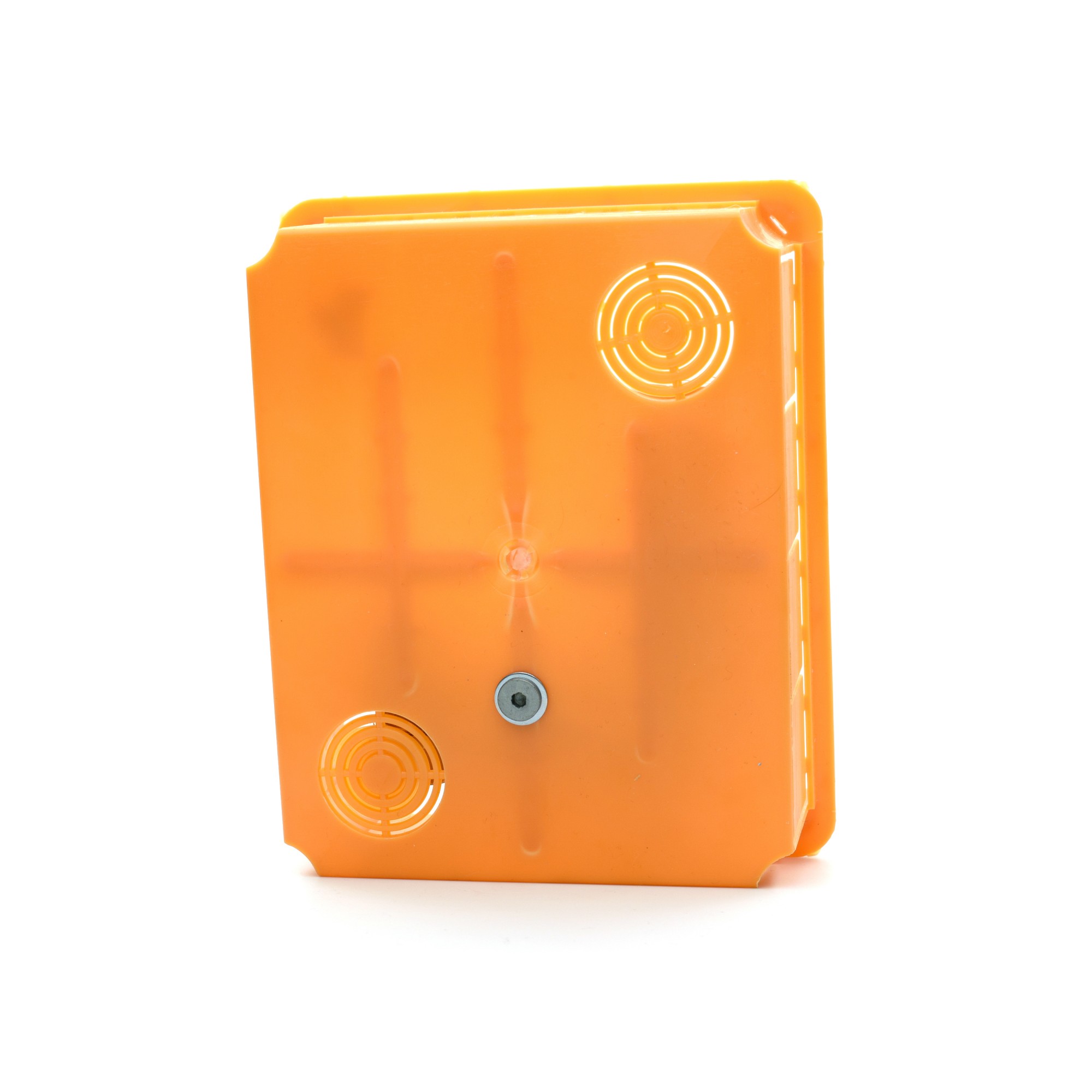

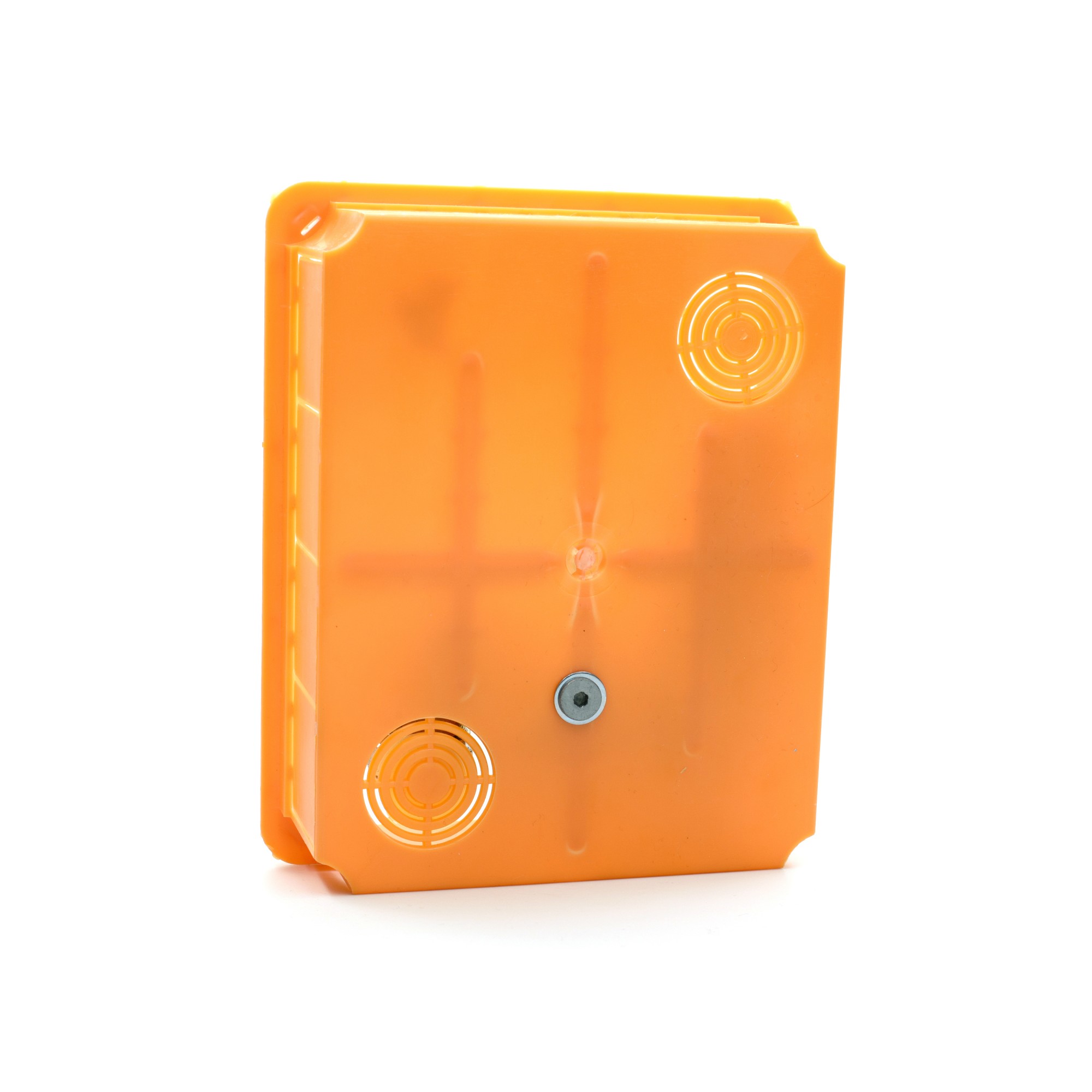

7. Overplaster housing with bracket
8. Masking frame.

			Single pack			Multipack			Pallet
Index	Product dimensions X/Y/Z (mm)	Net weight (g)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)	Quantity	Dimensions (cm)	Gross weight (kg)
F-066476	175 x 215 x 75	993	1	18.5 x 22.5 x 8	1.09	14	54.5 x 41.5 x 36.5	15.96	224	120 x 80 x 185	275
