product description

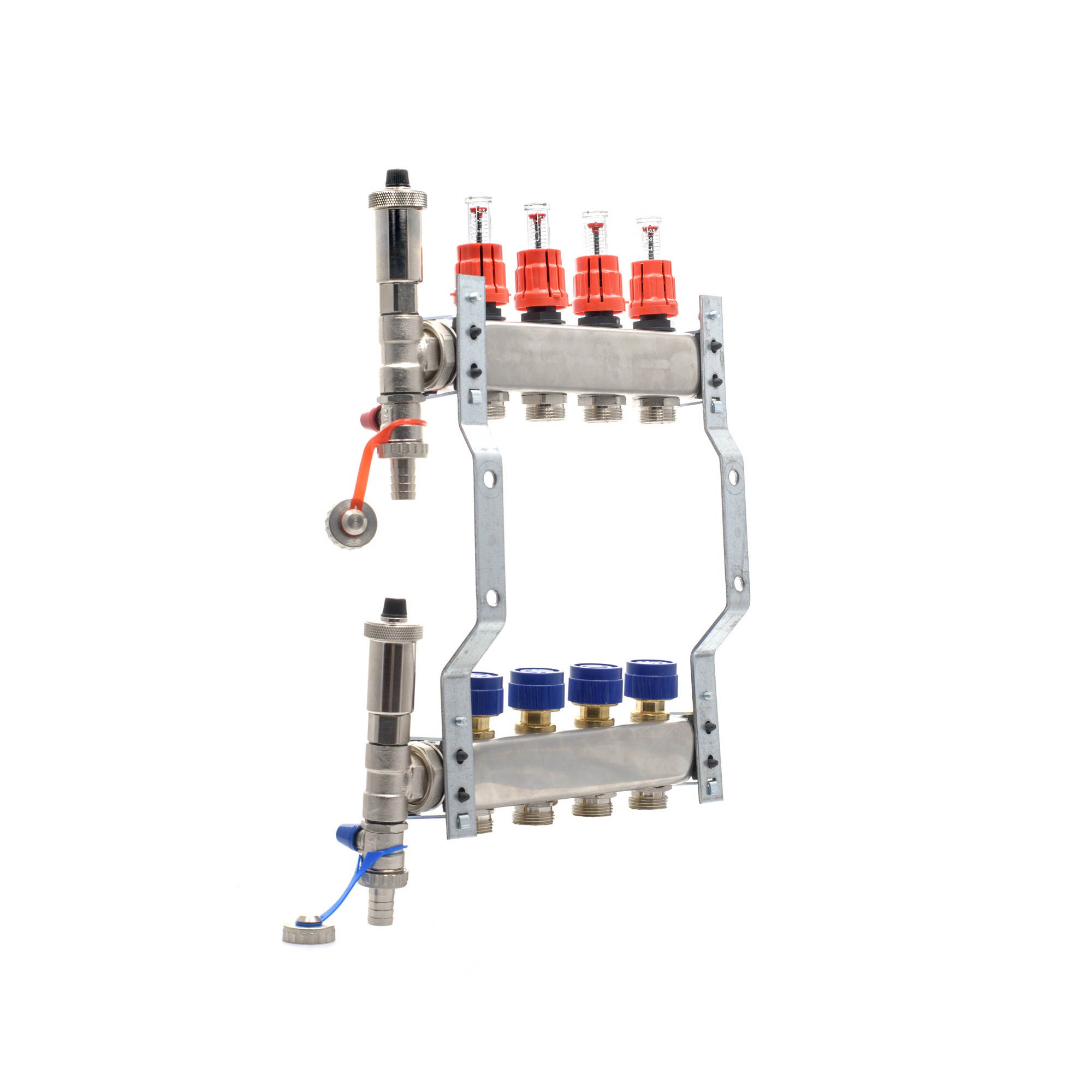

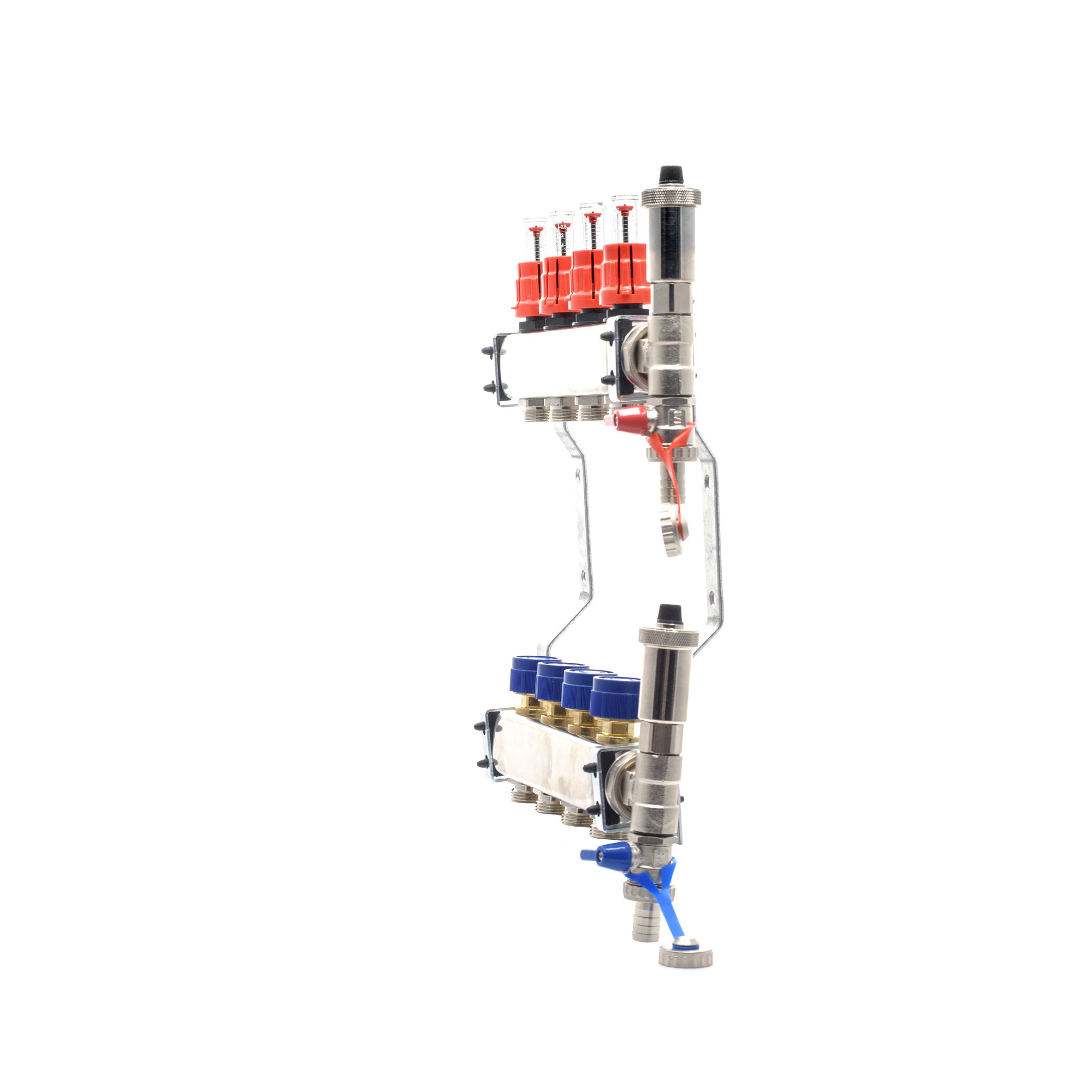

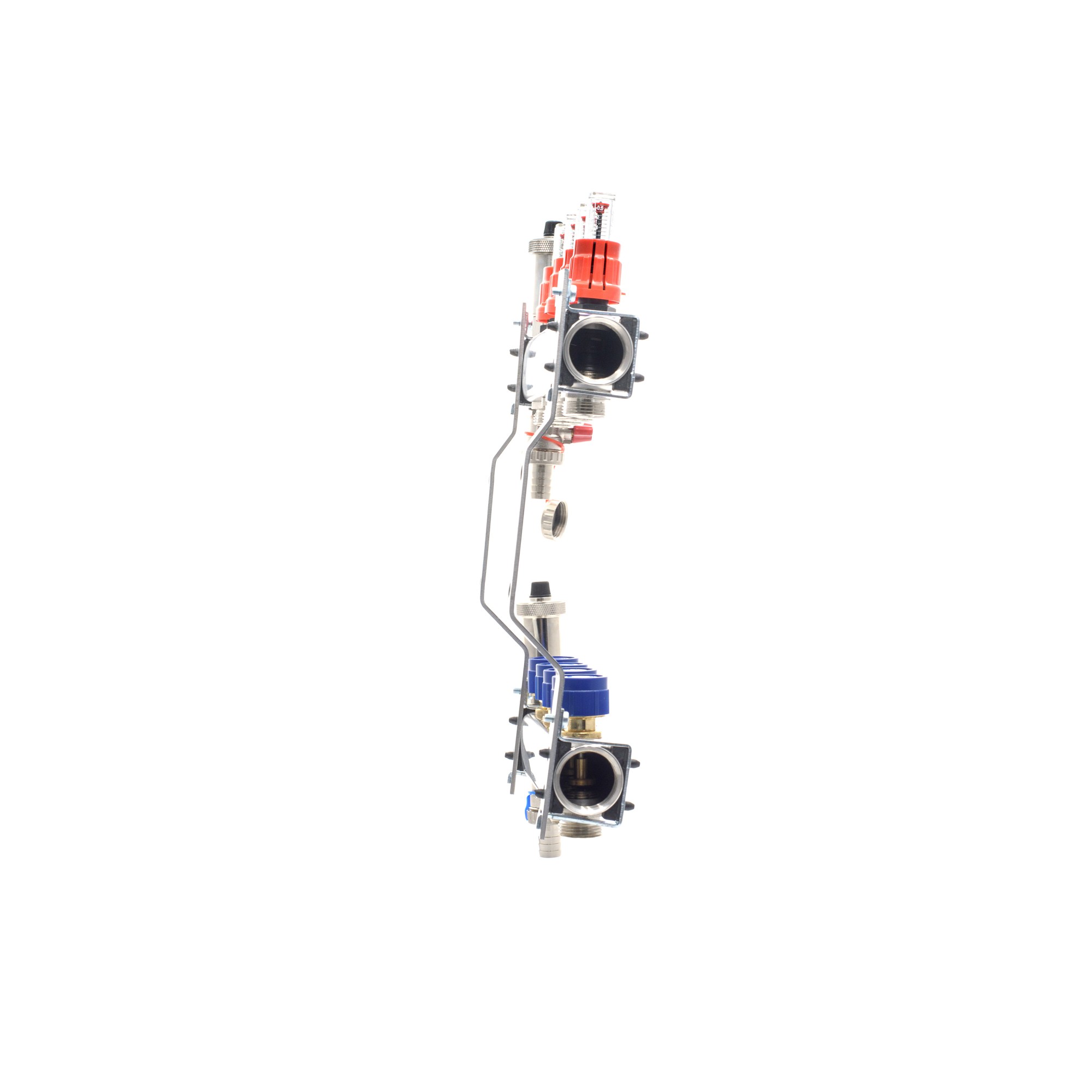

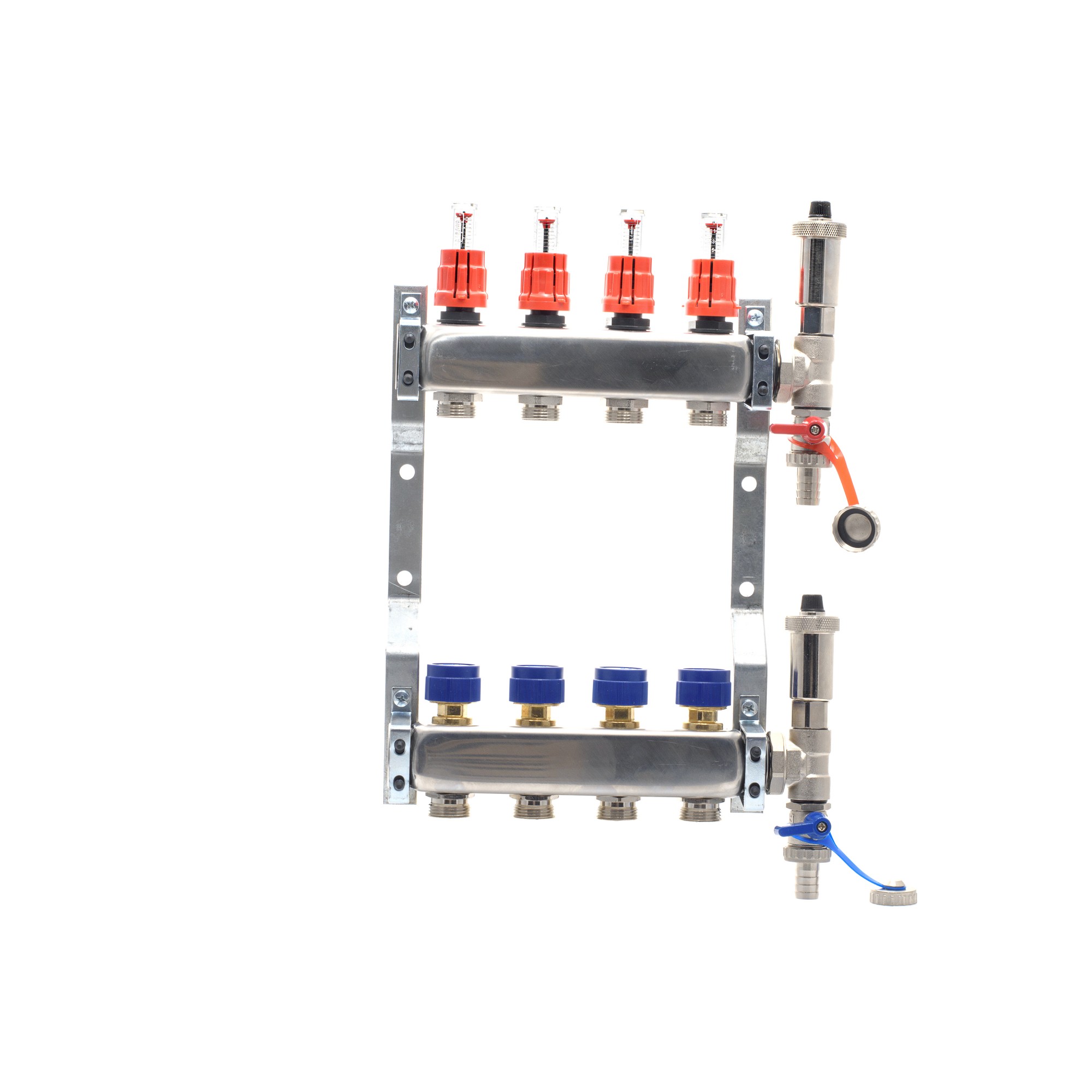

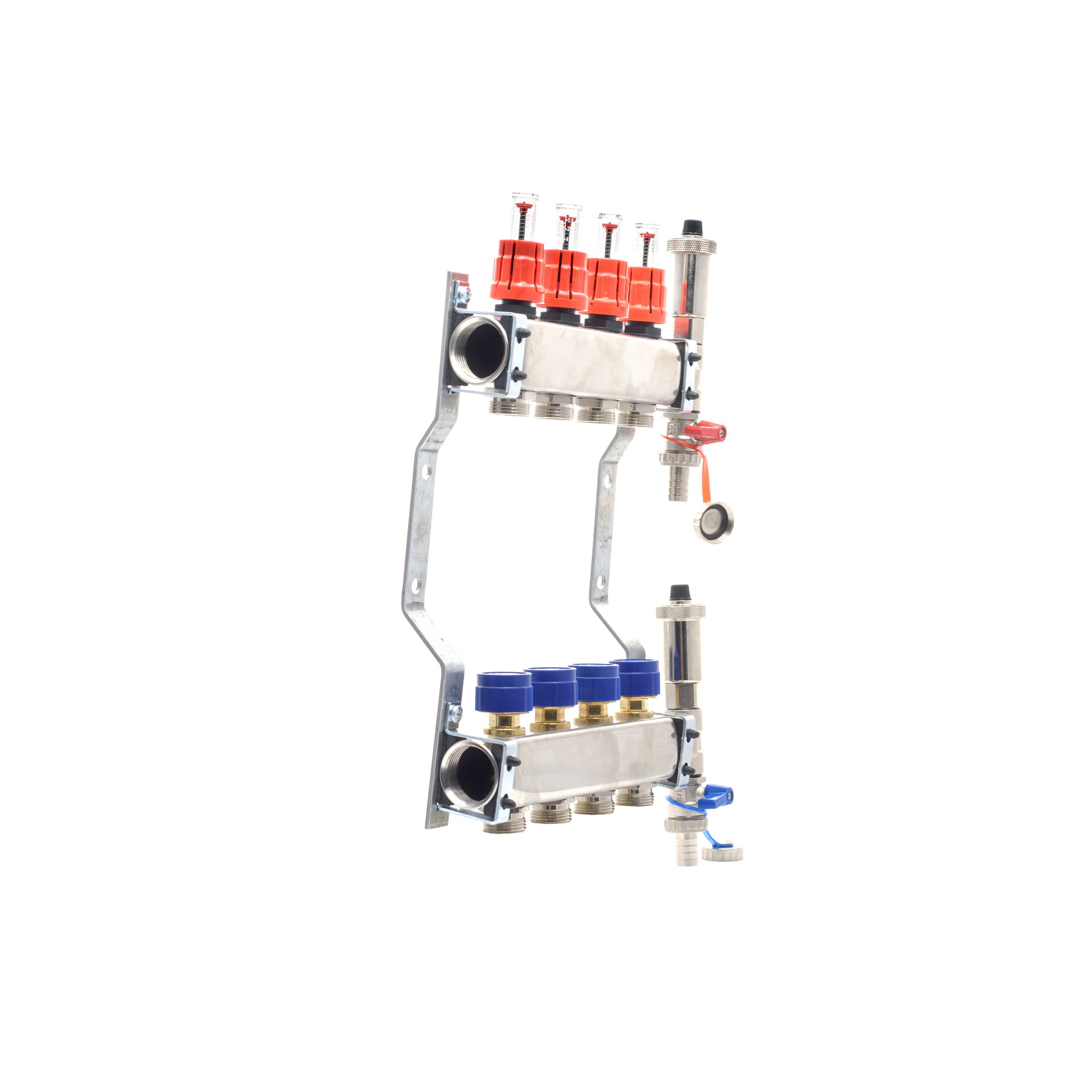

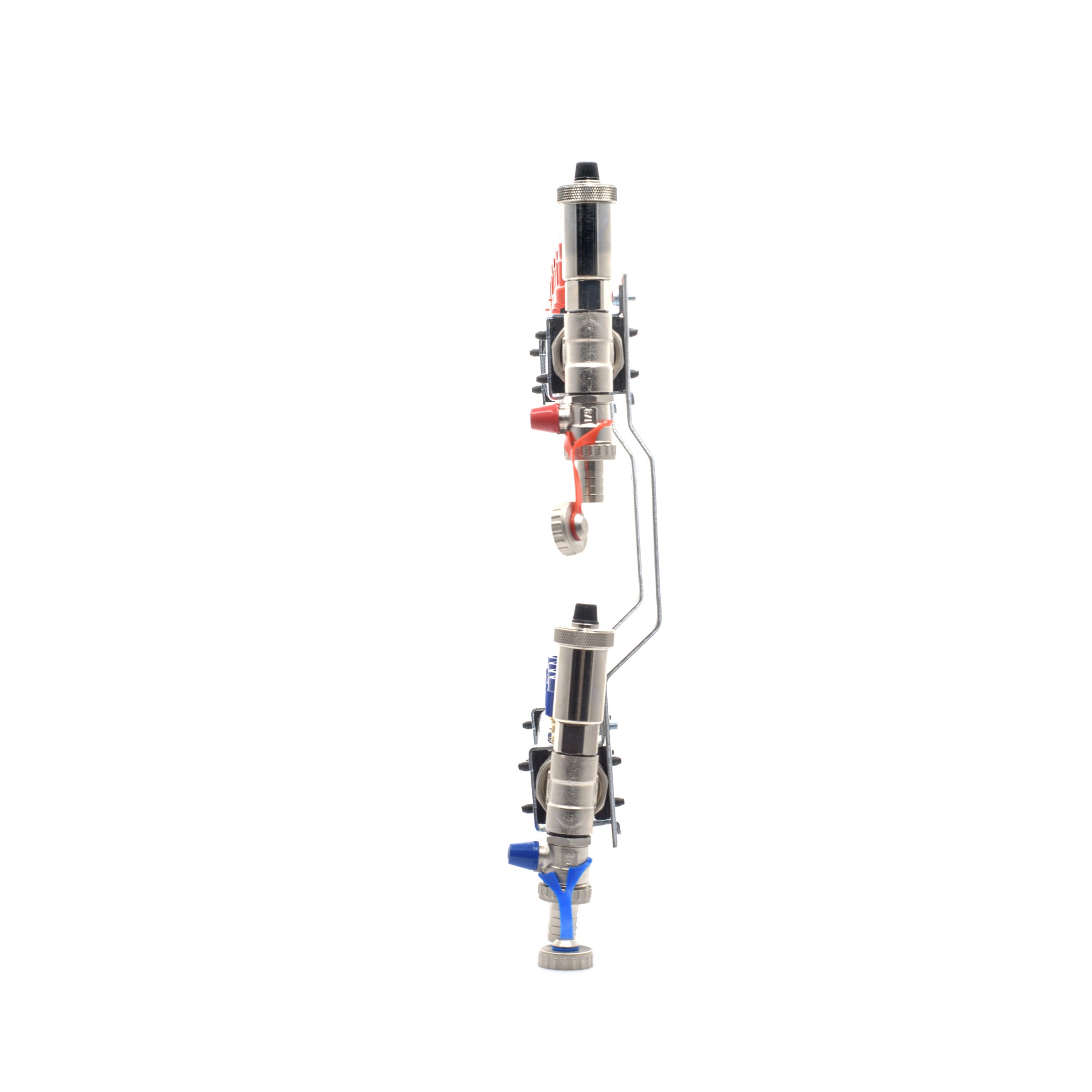

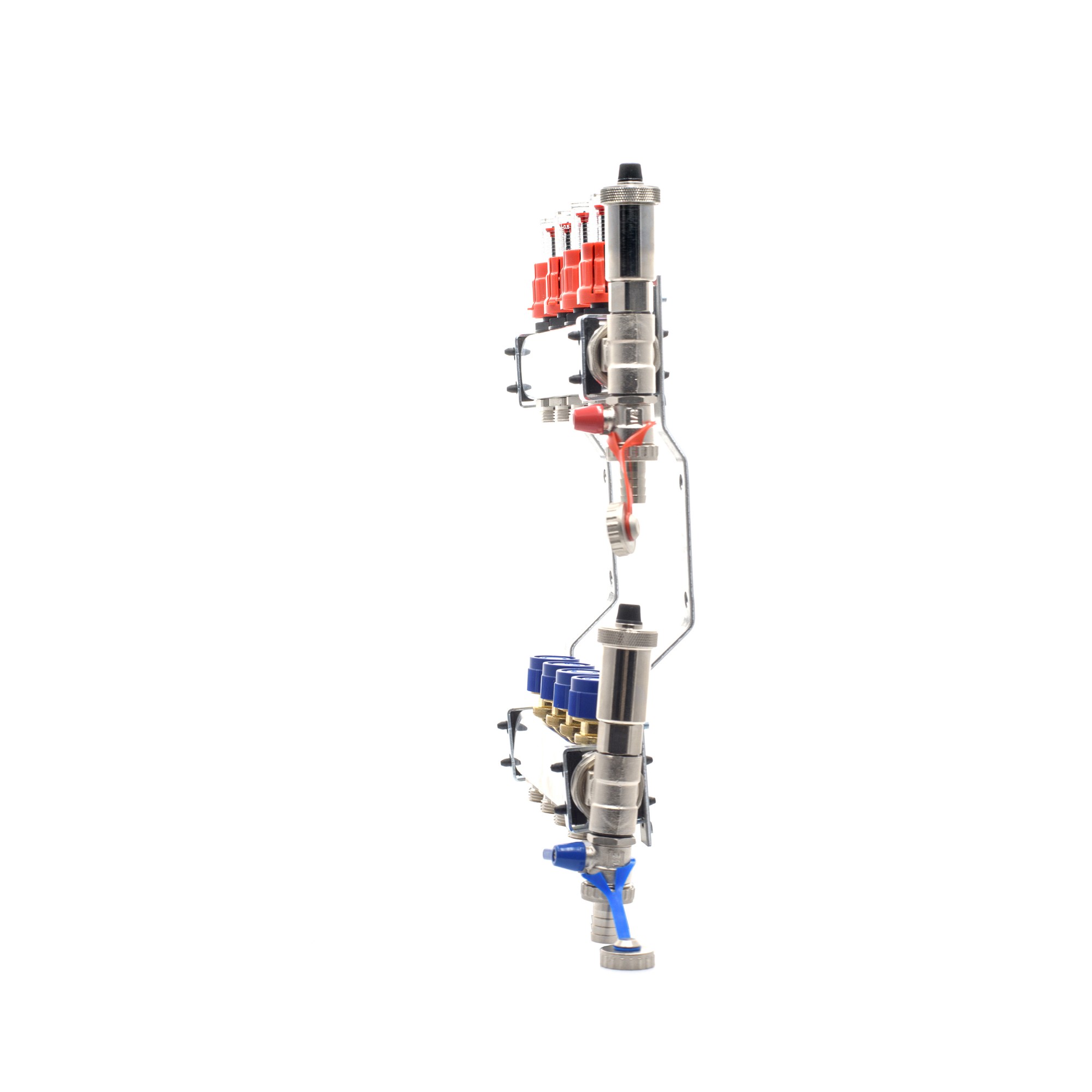

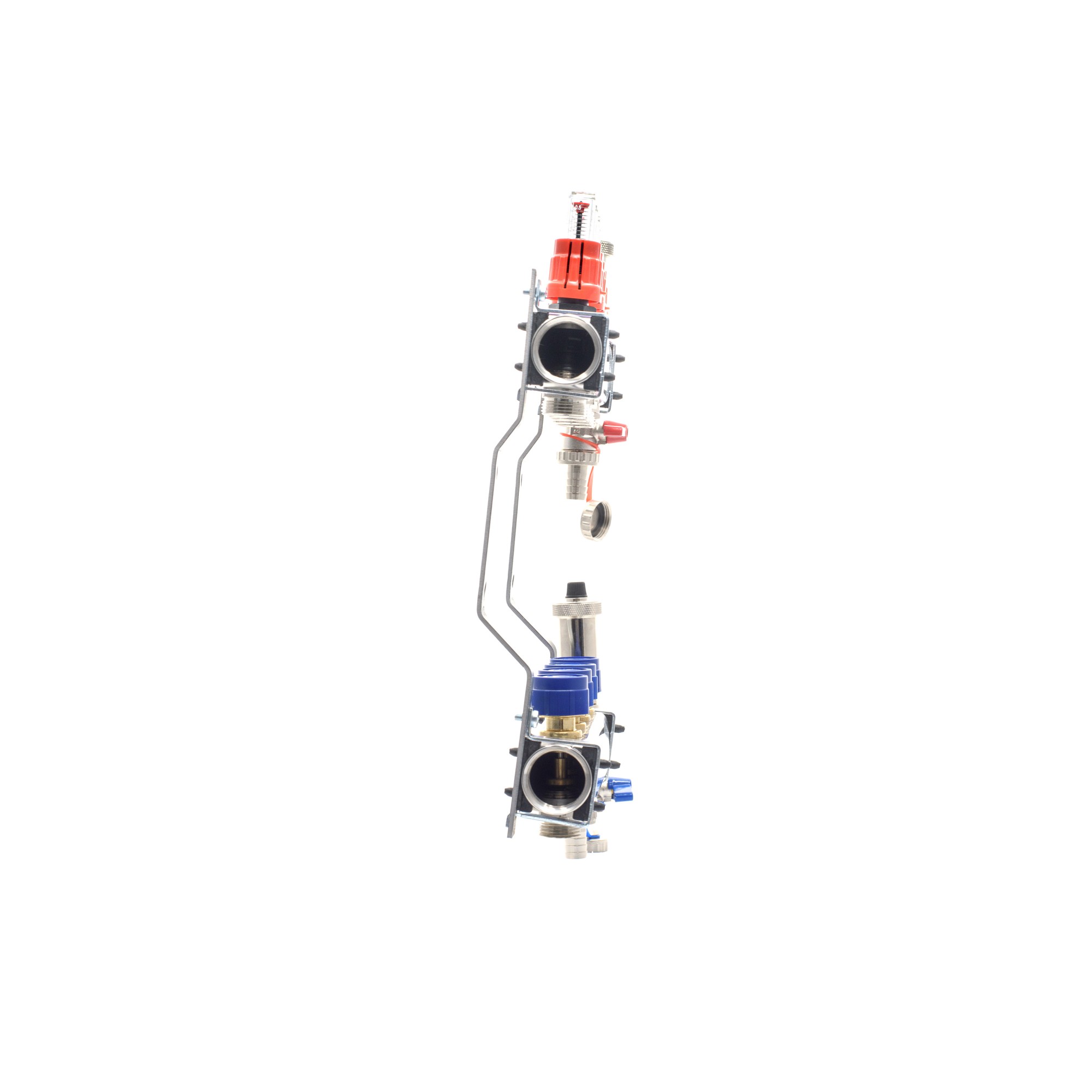

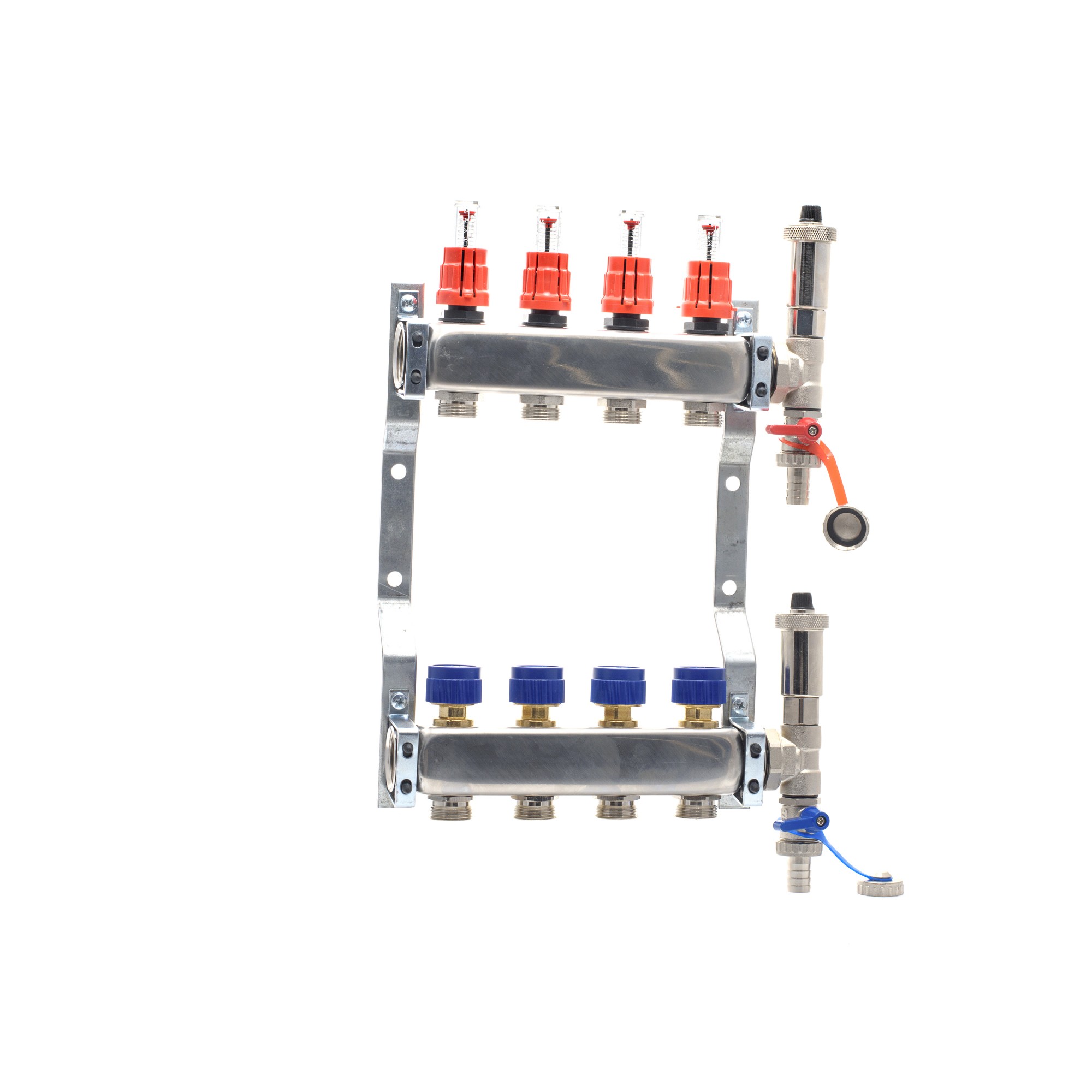

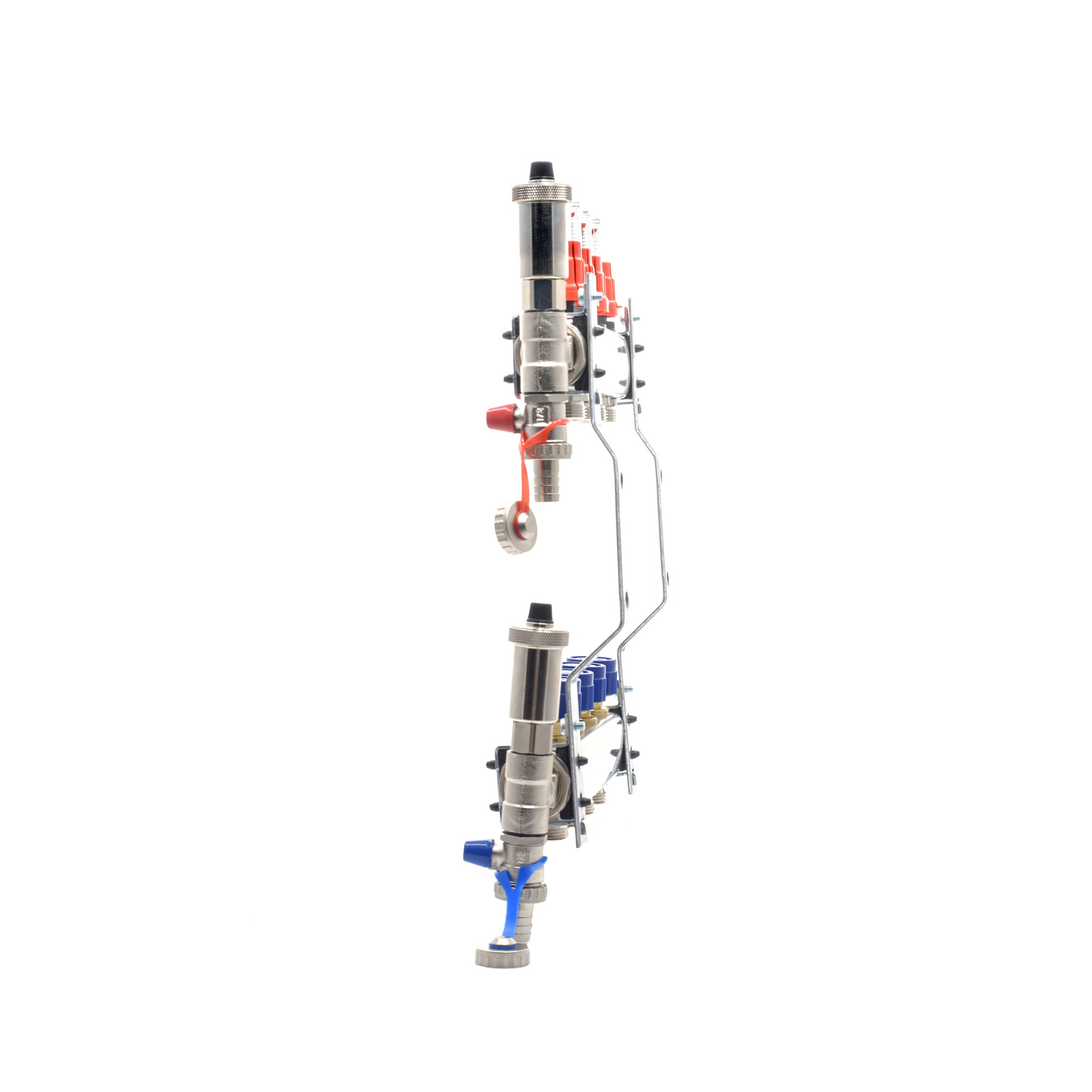

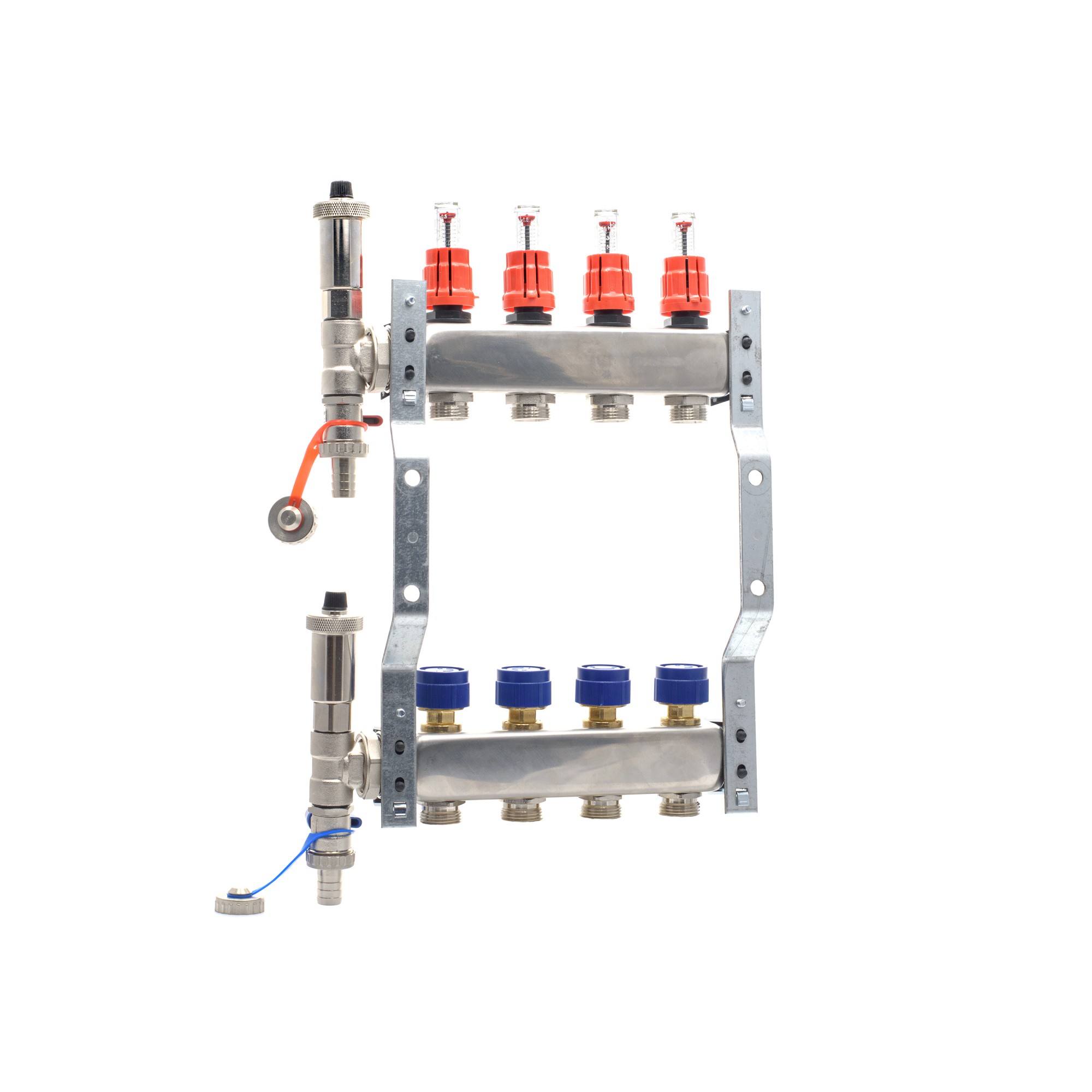

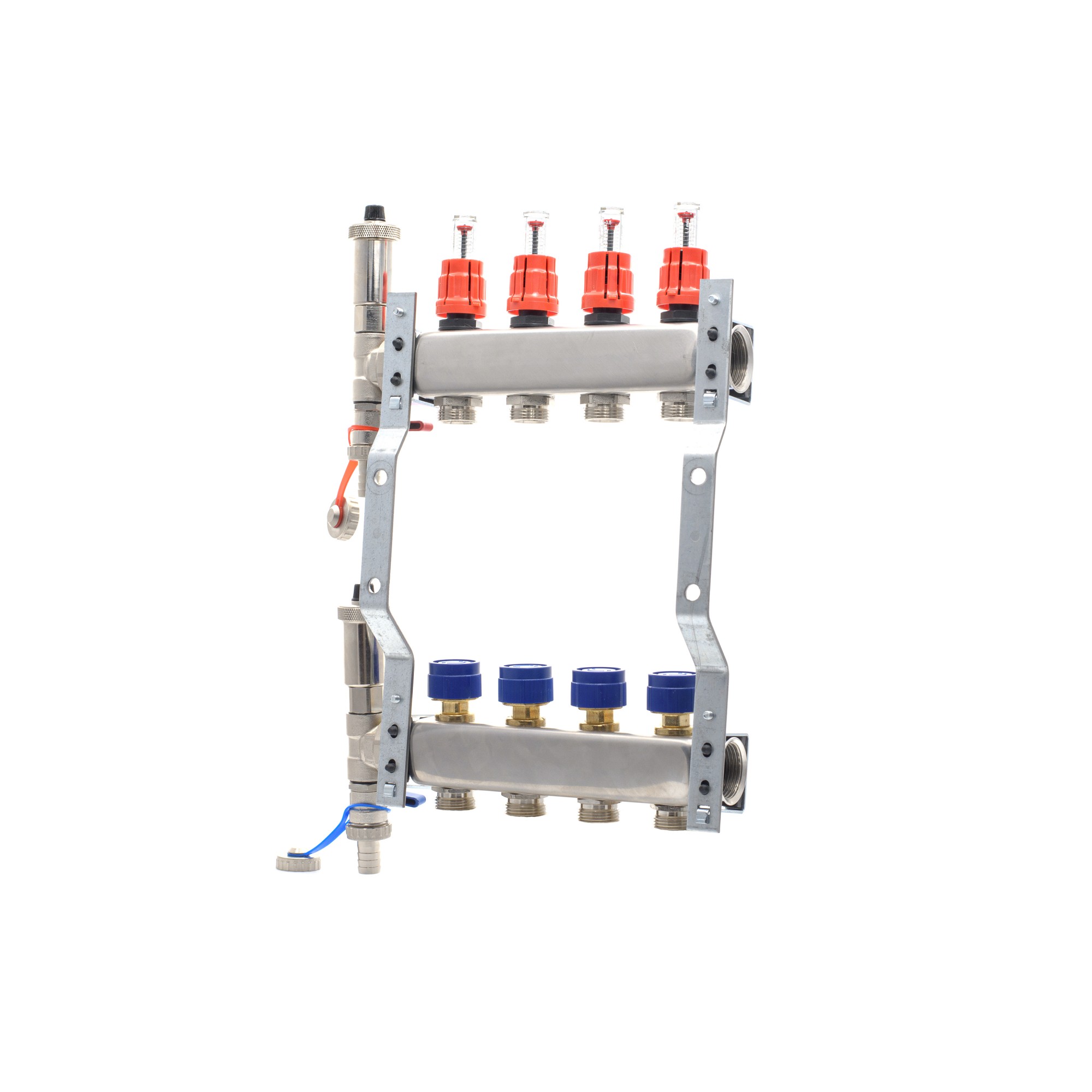

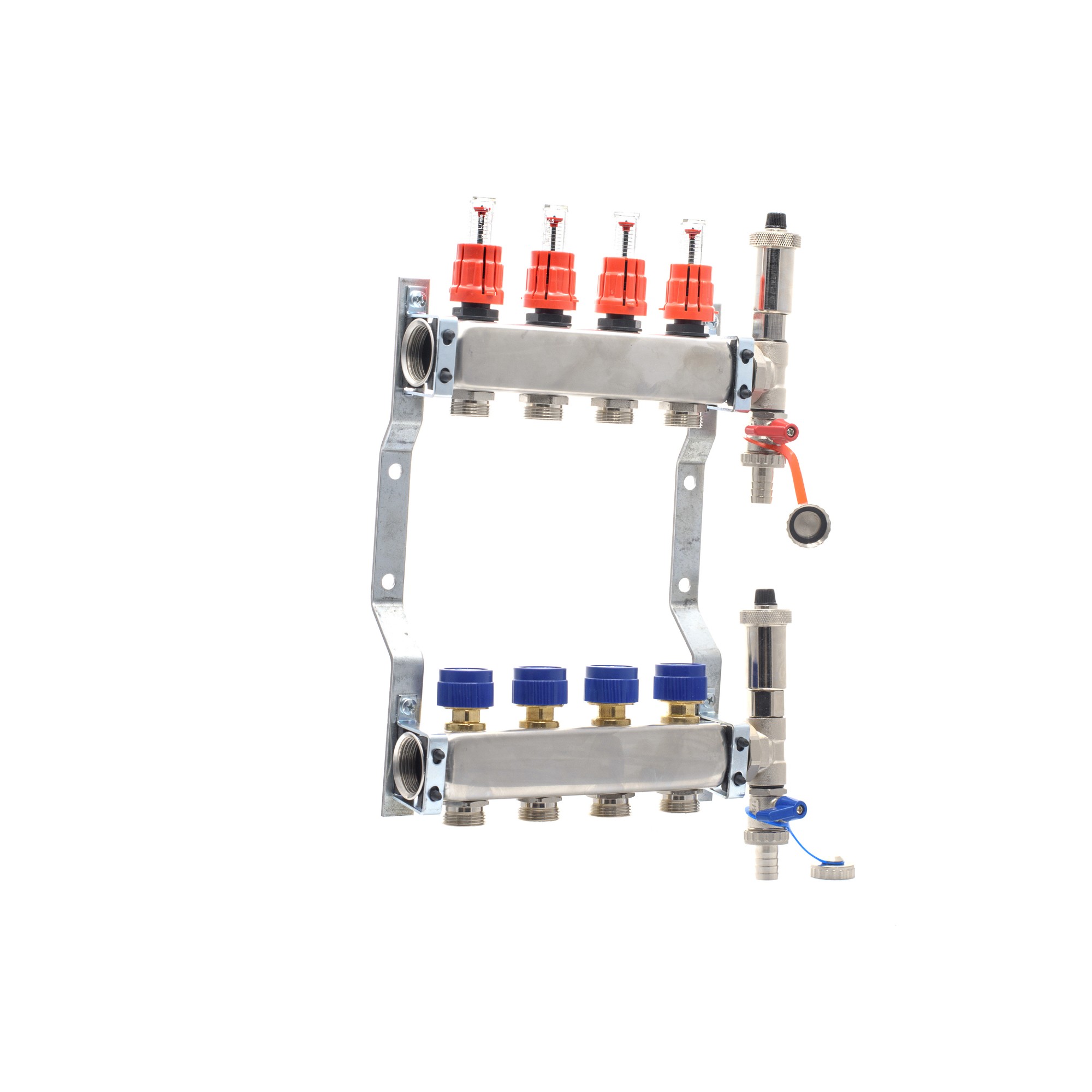

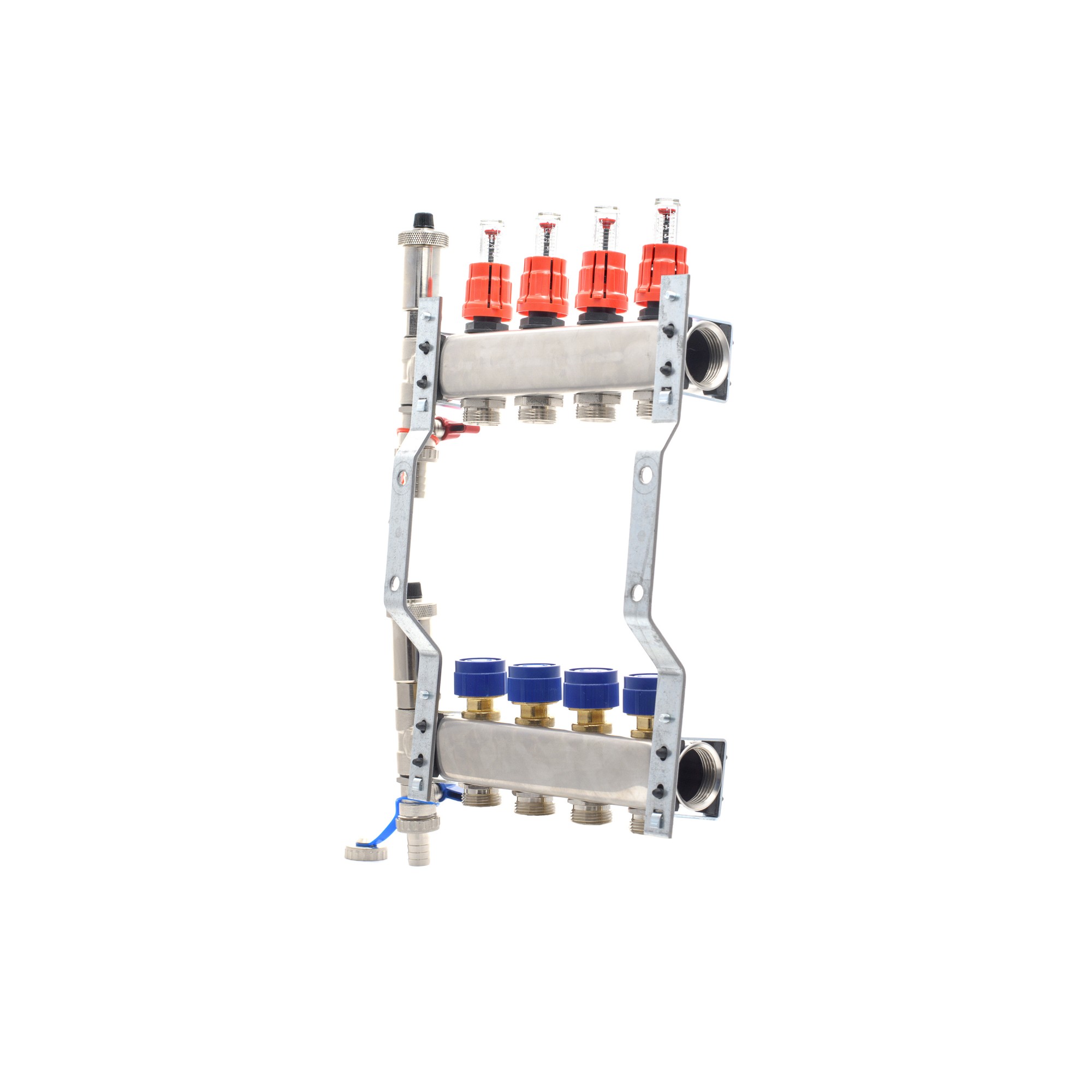

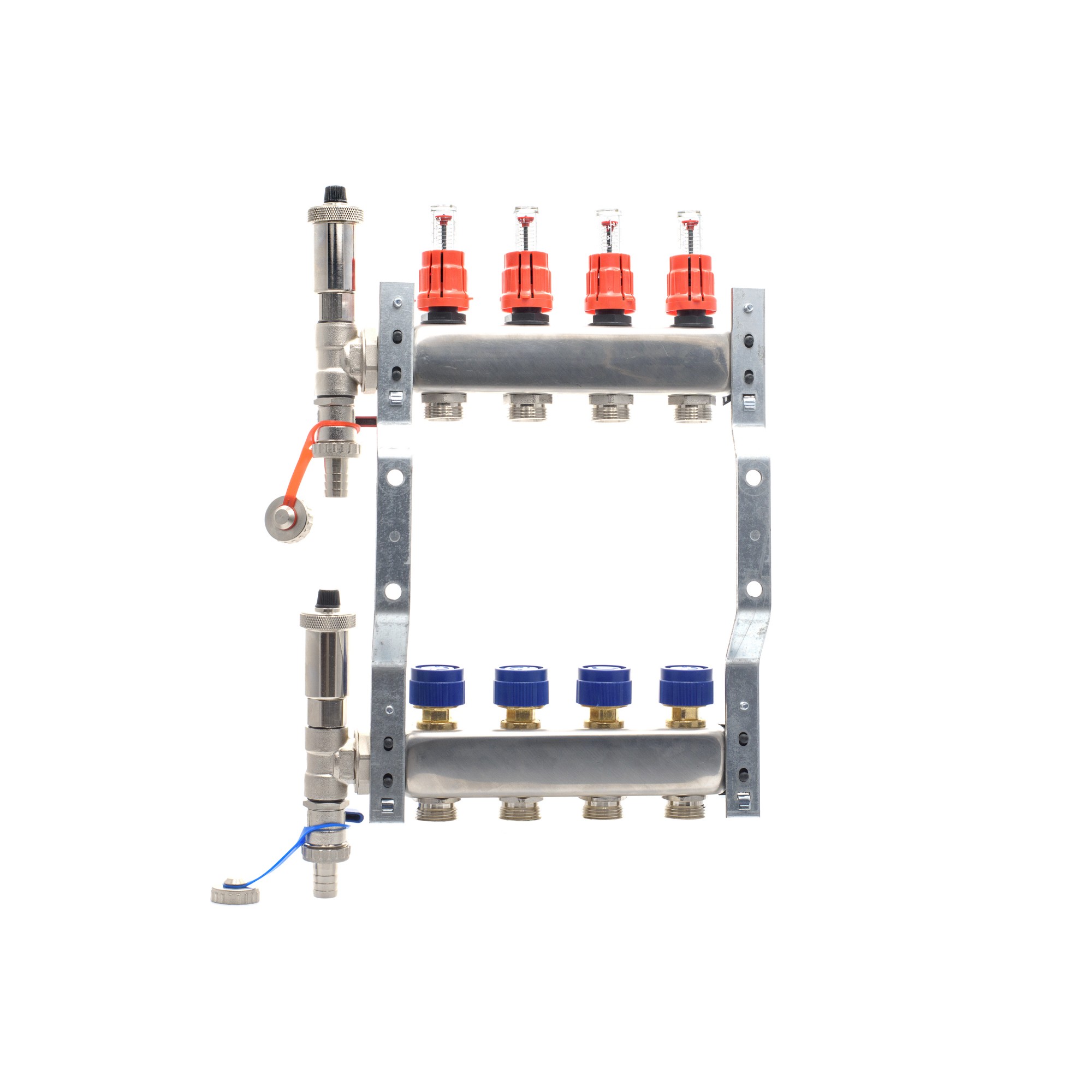

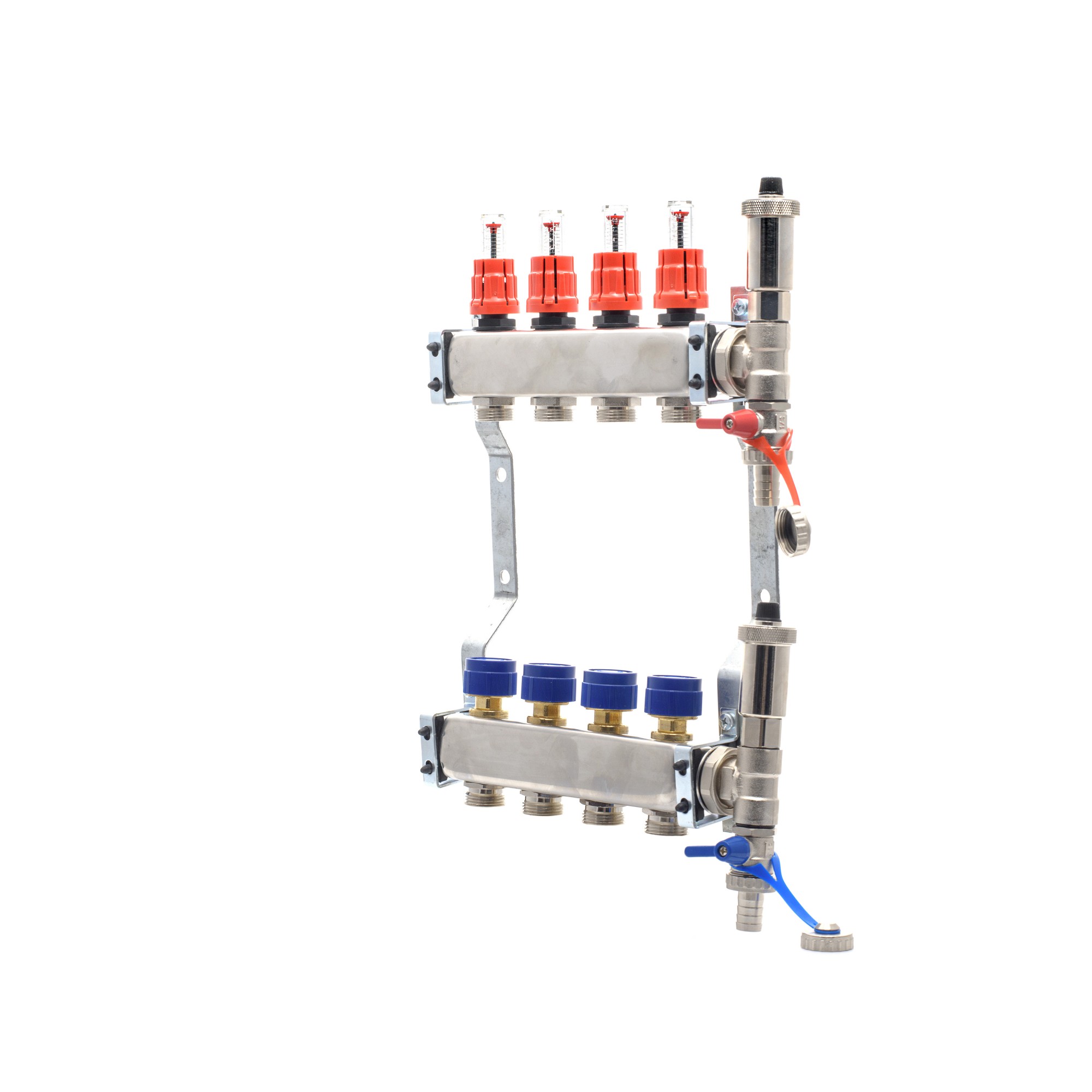

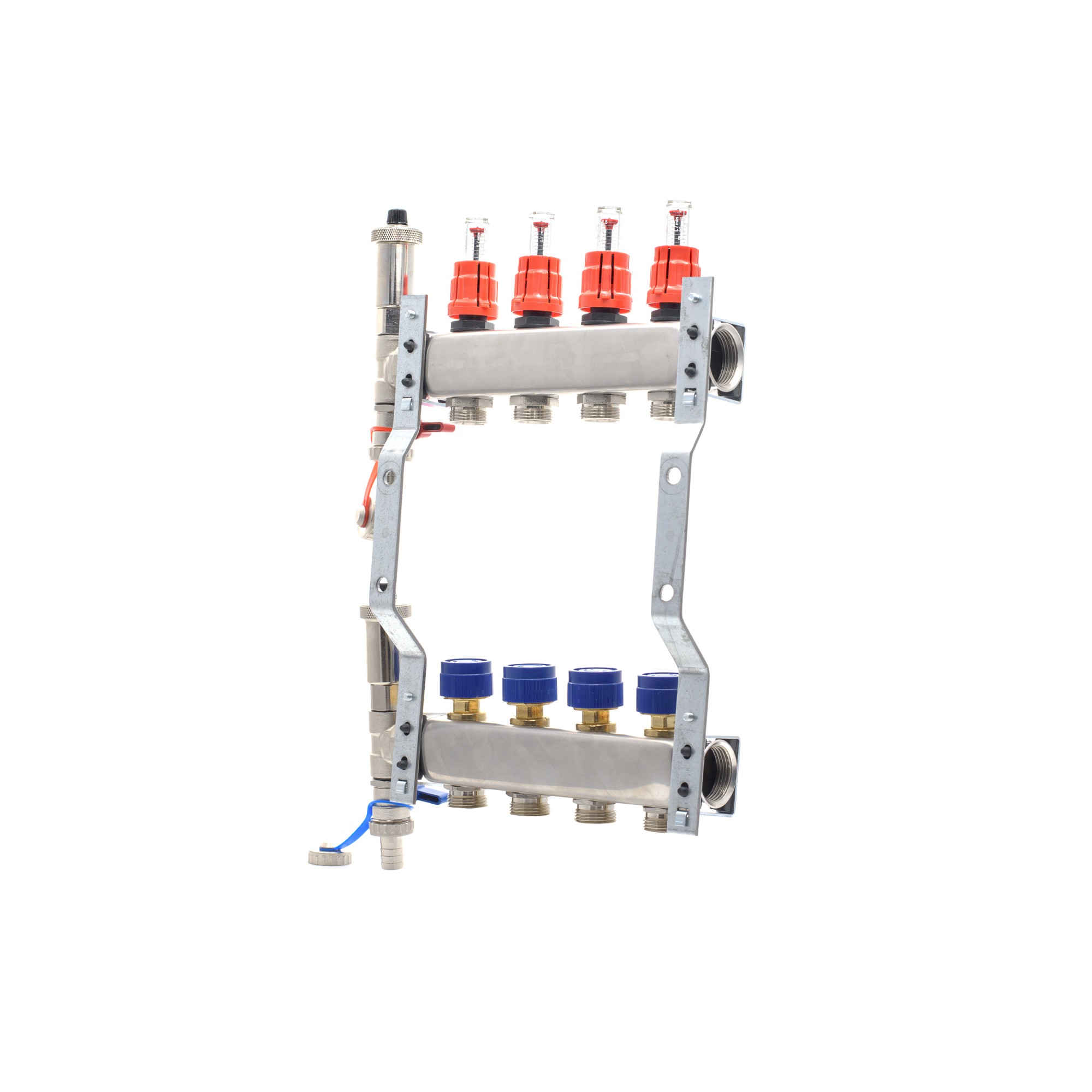

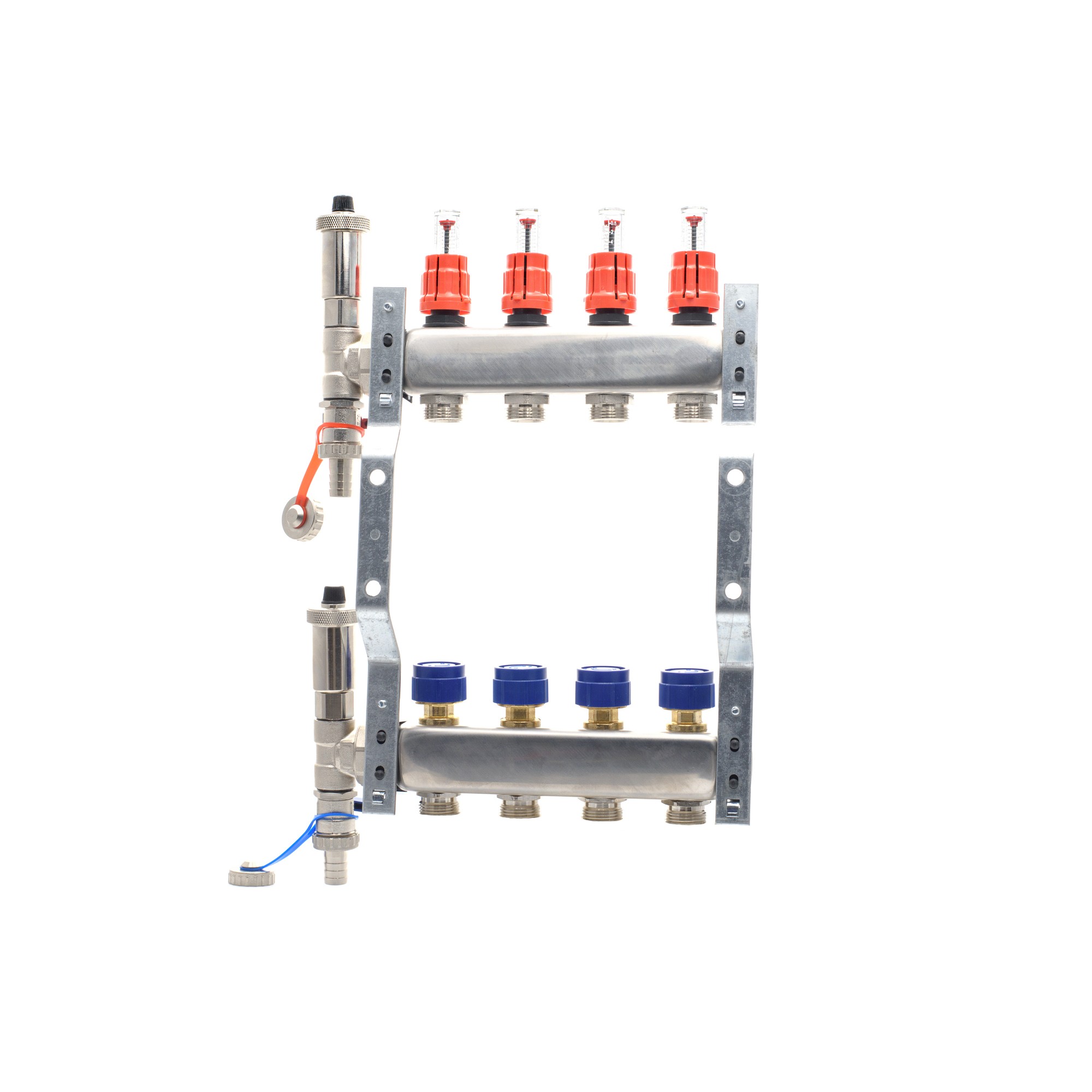

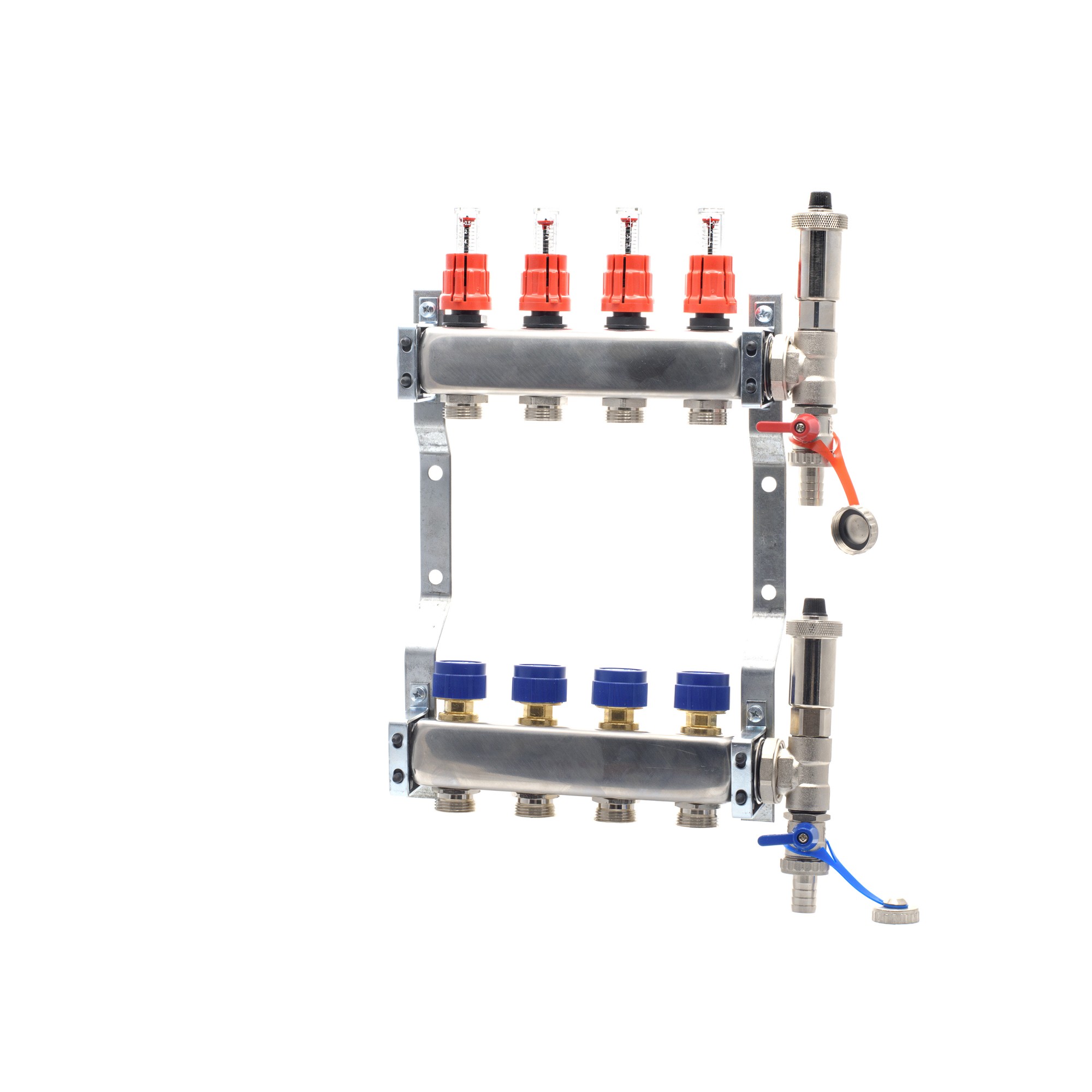

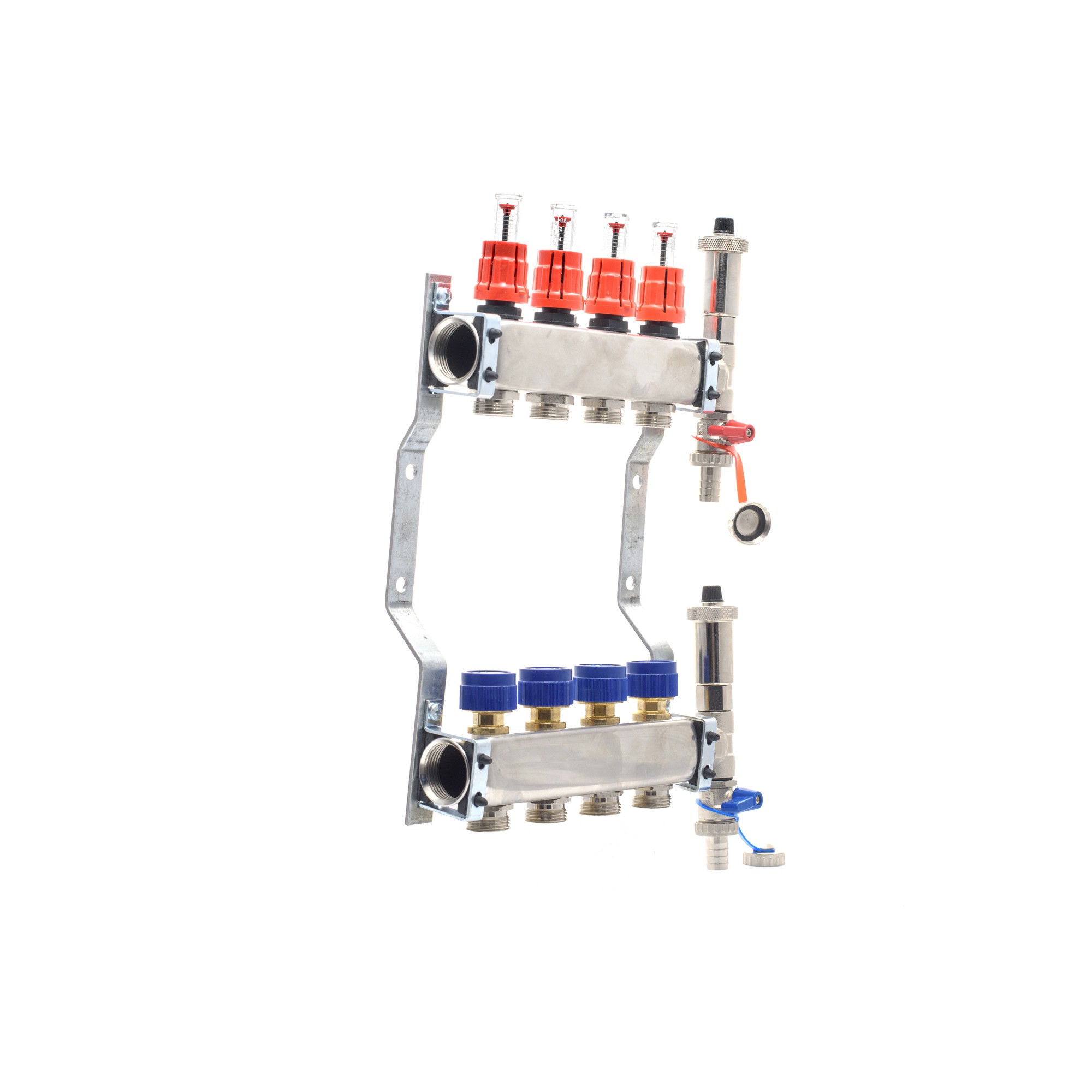

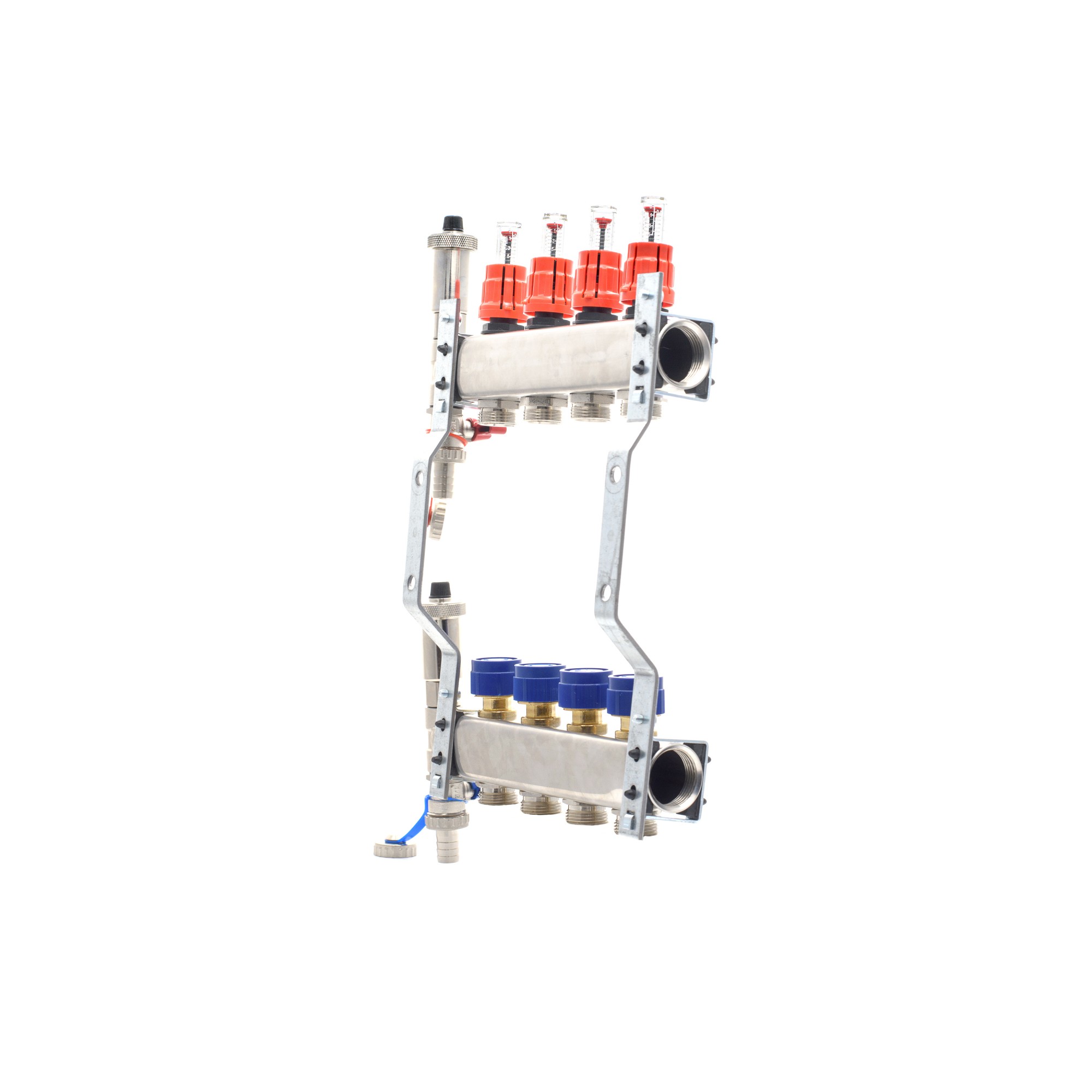

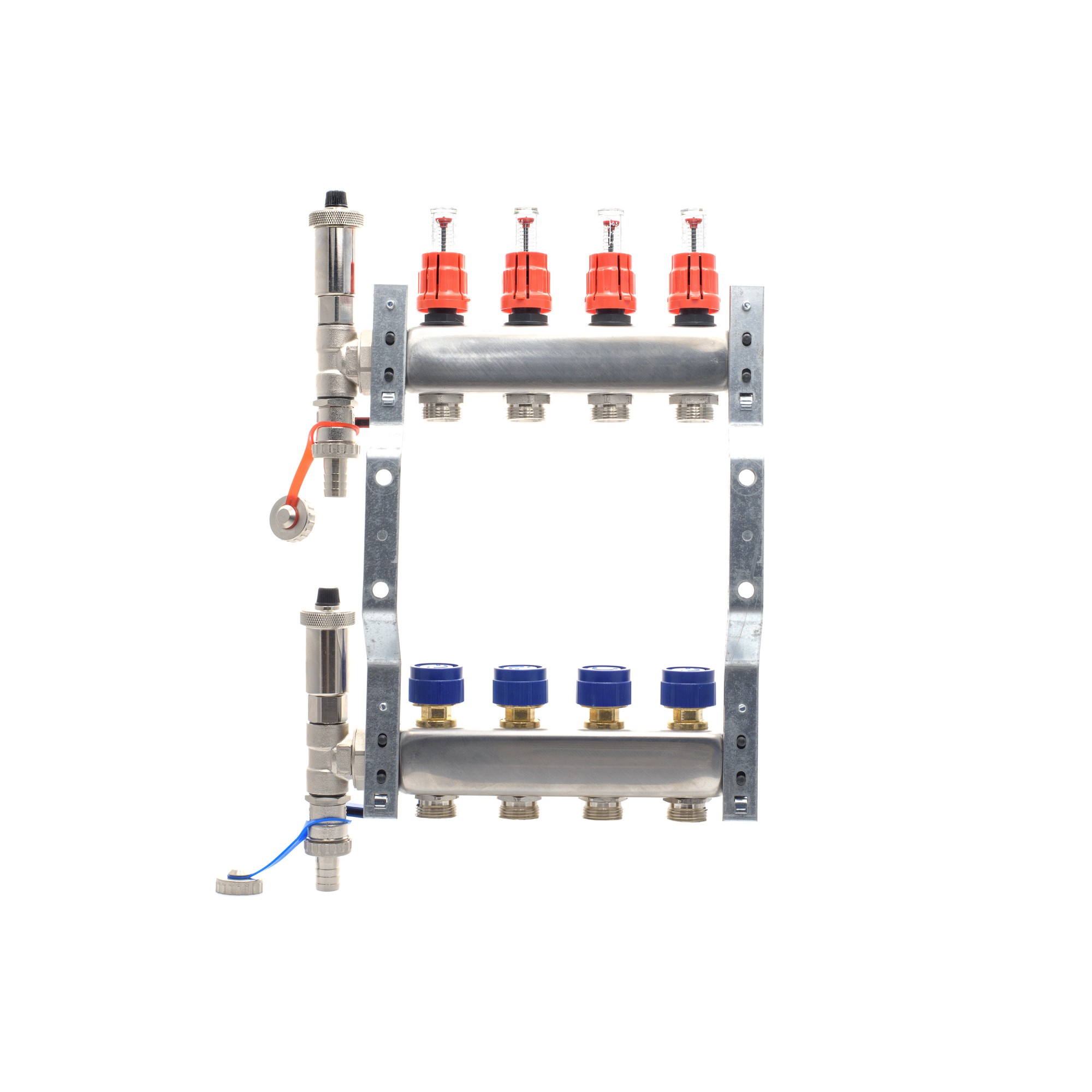

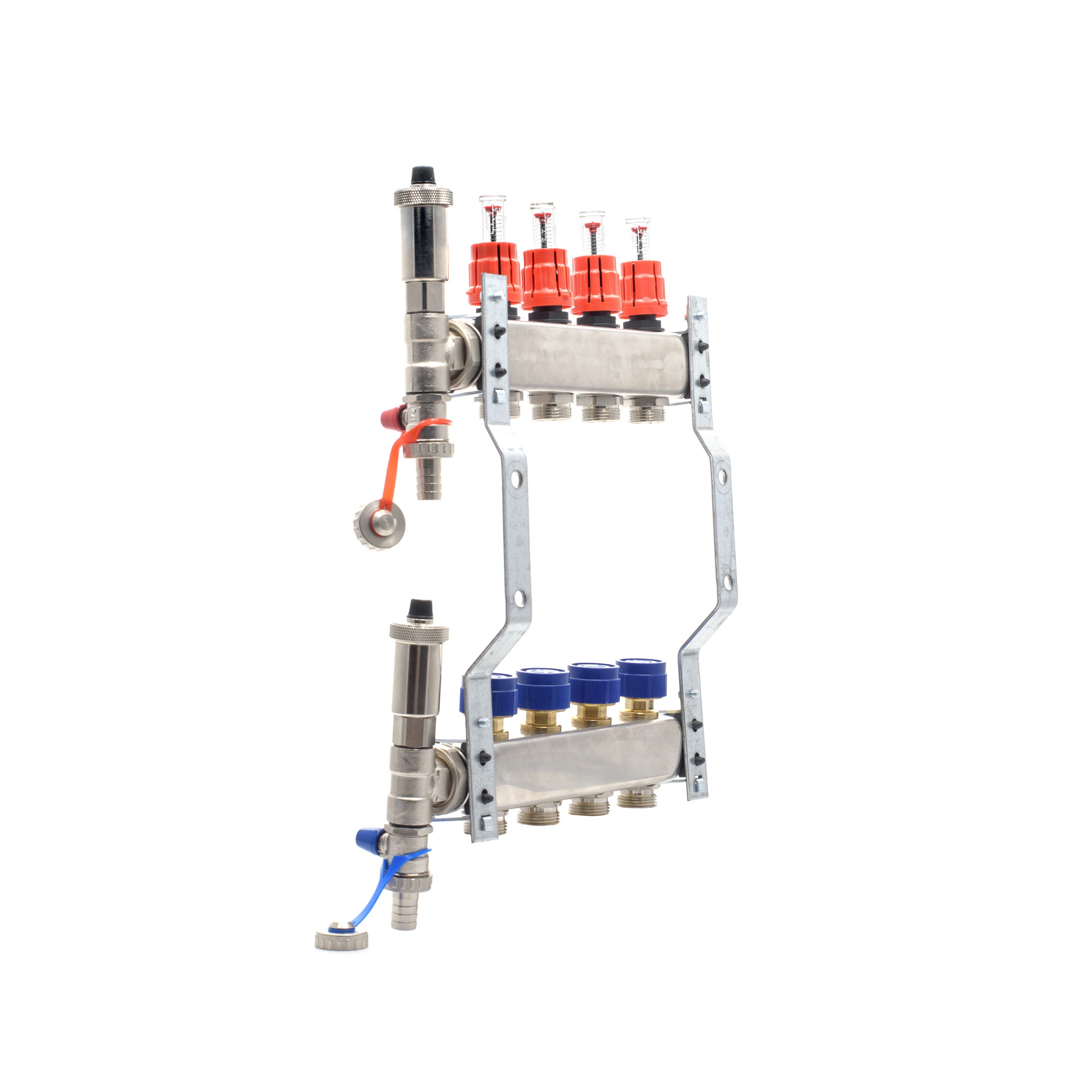

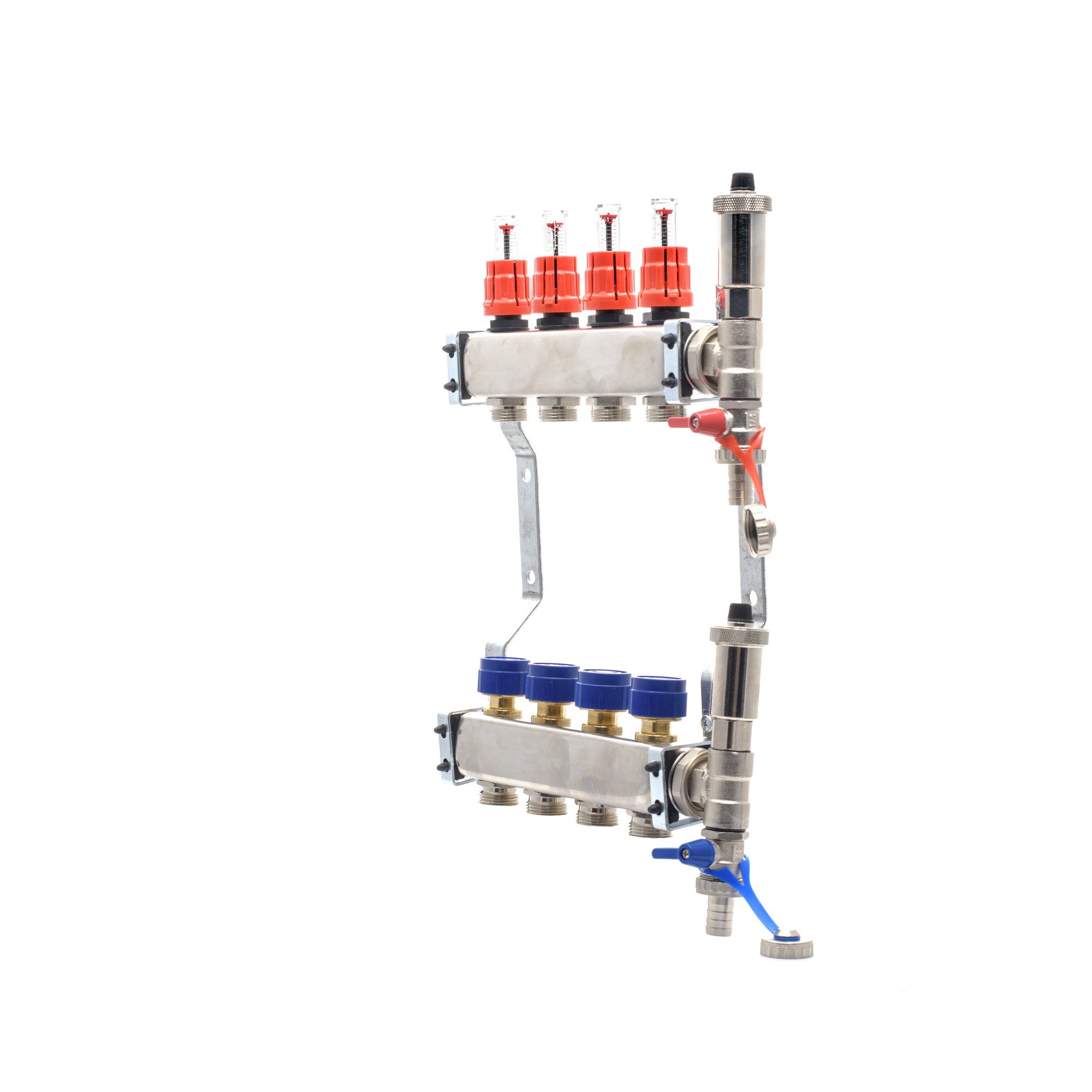

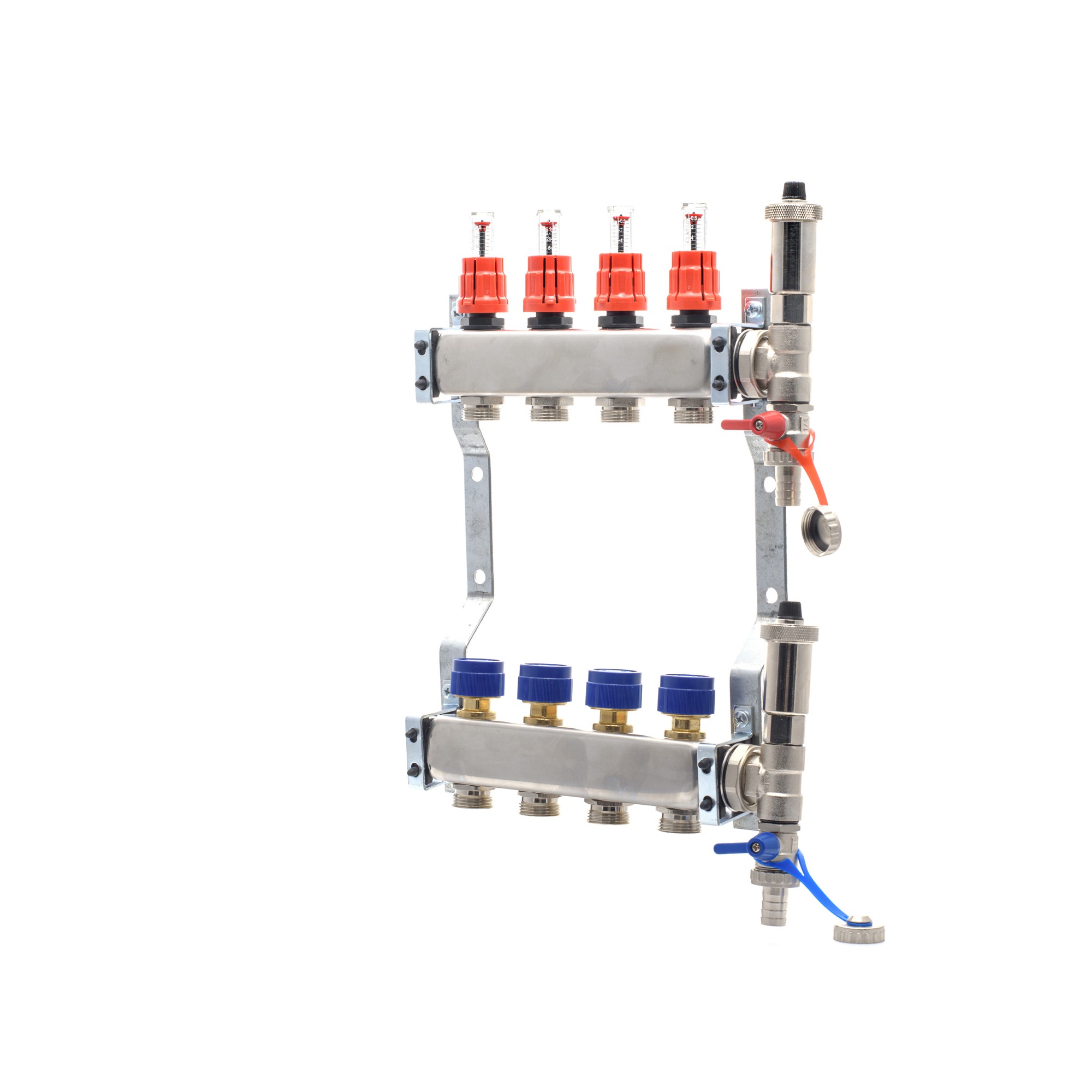

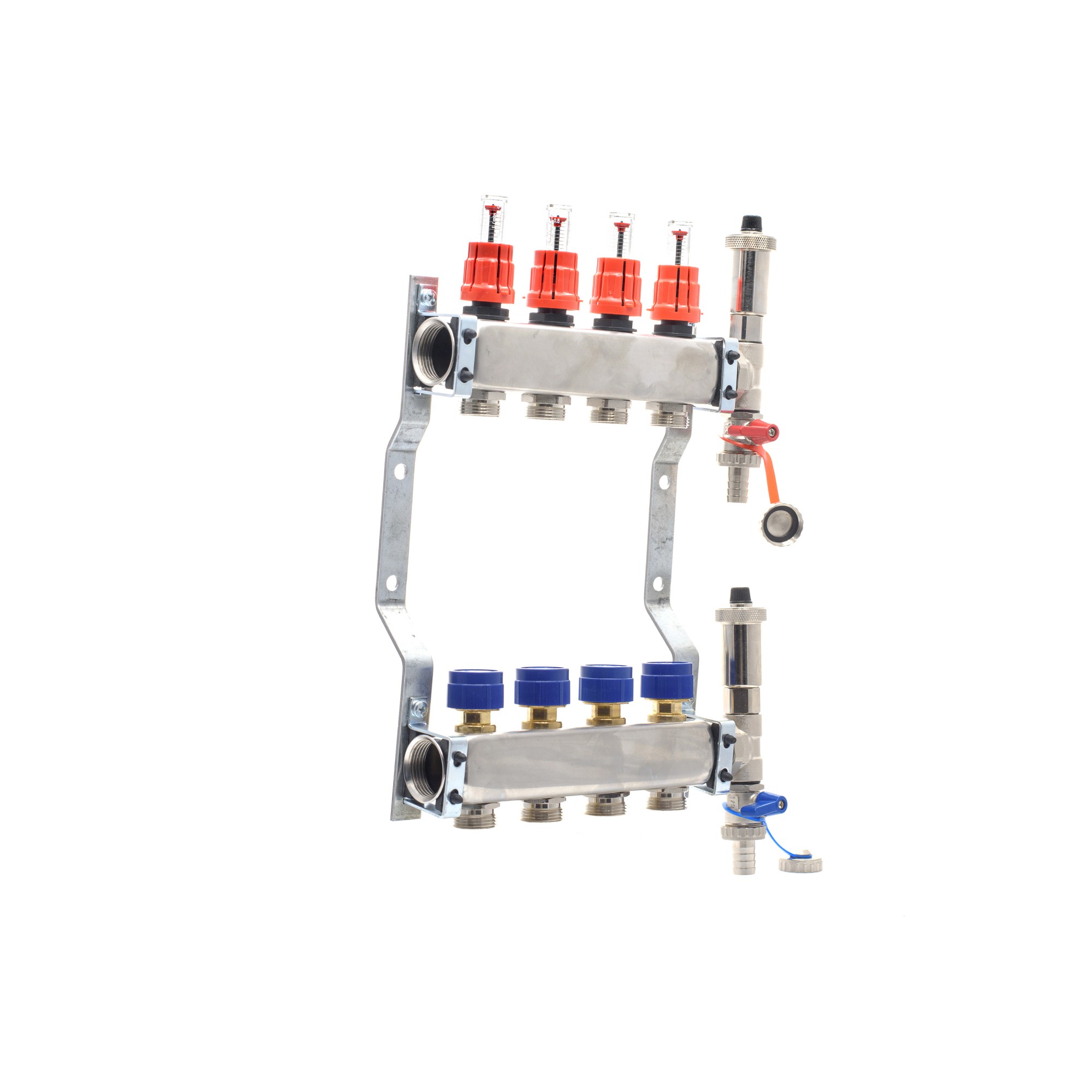

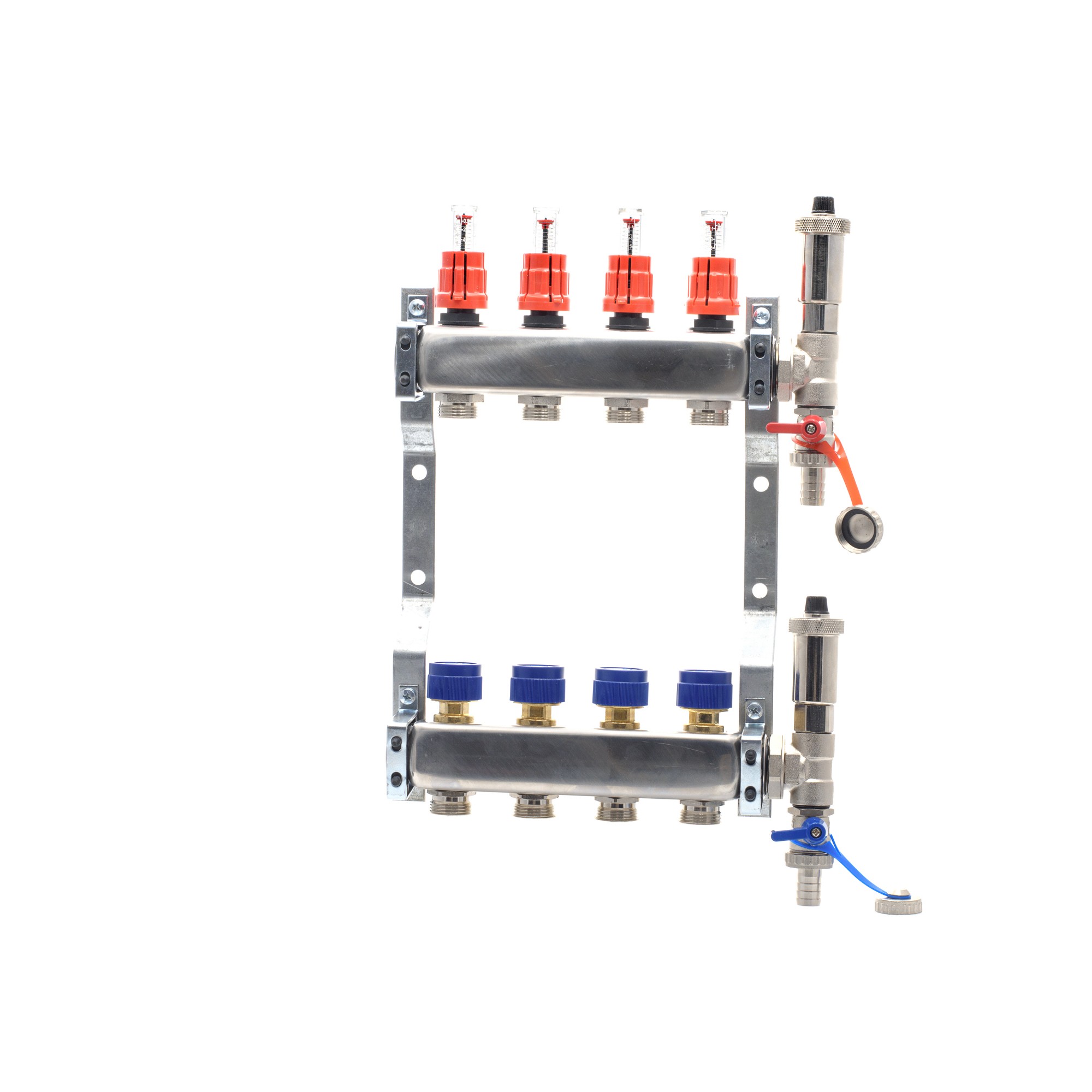

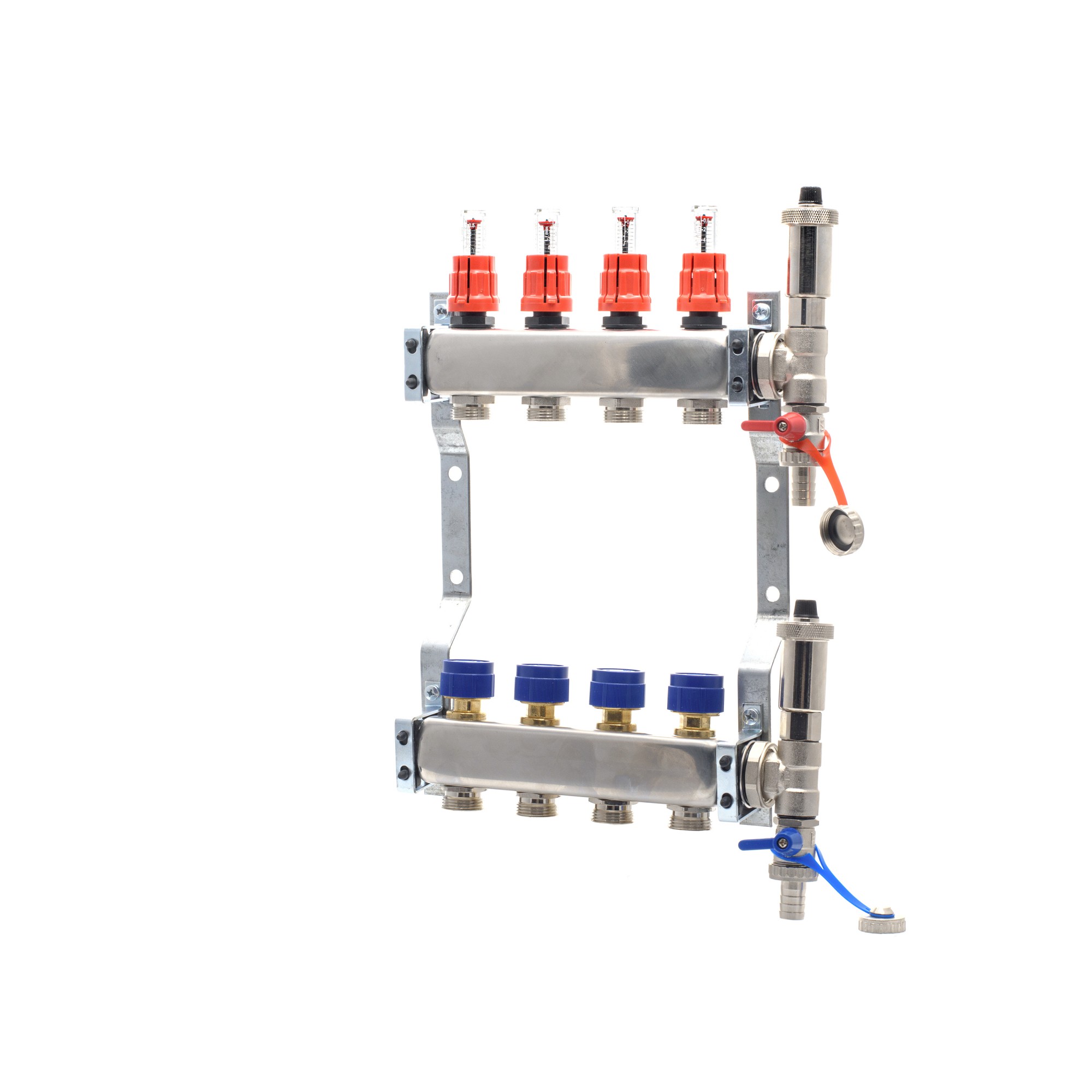

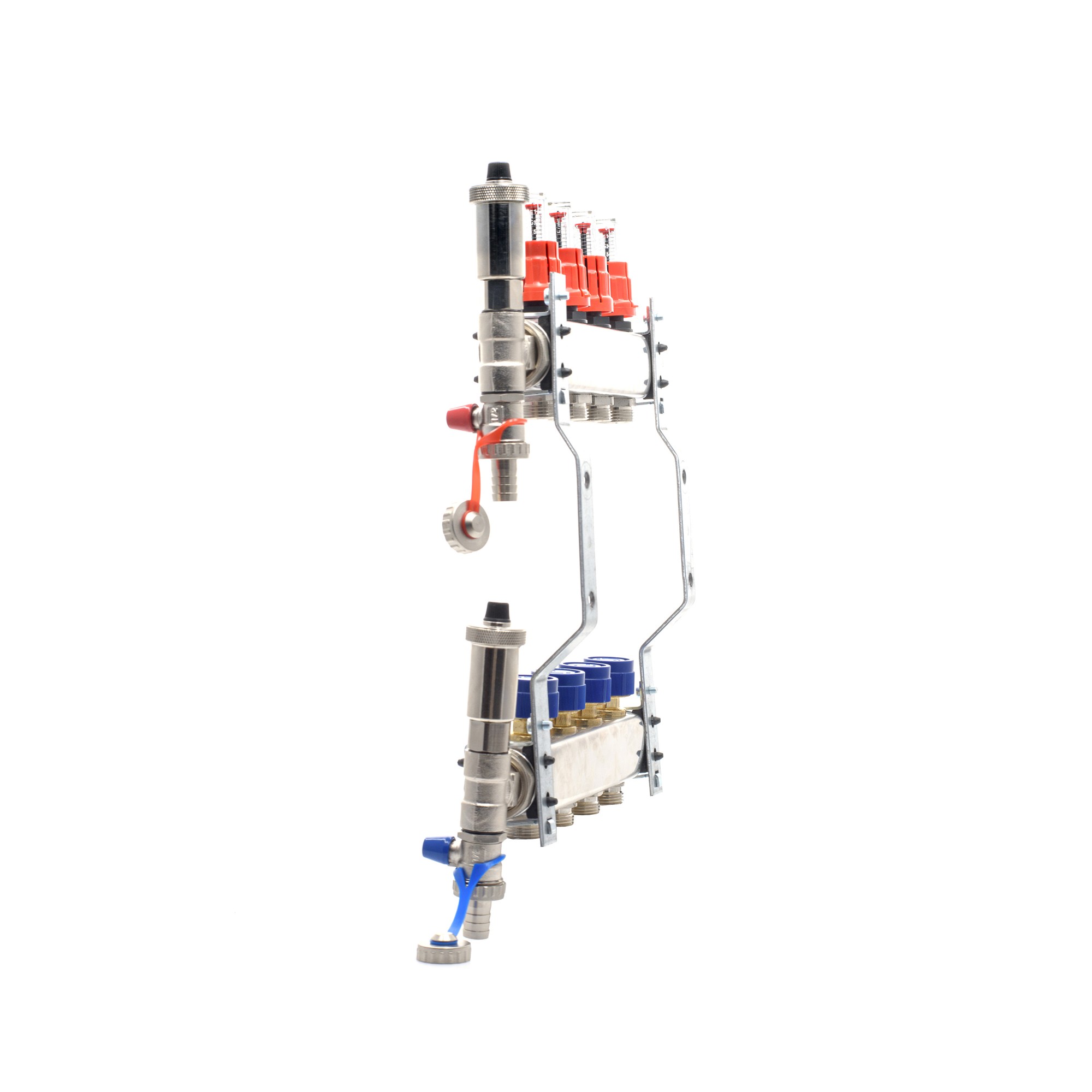

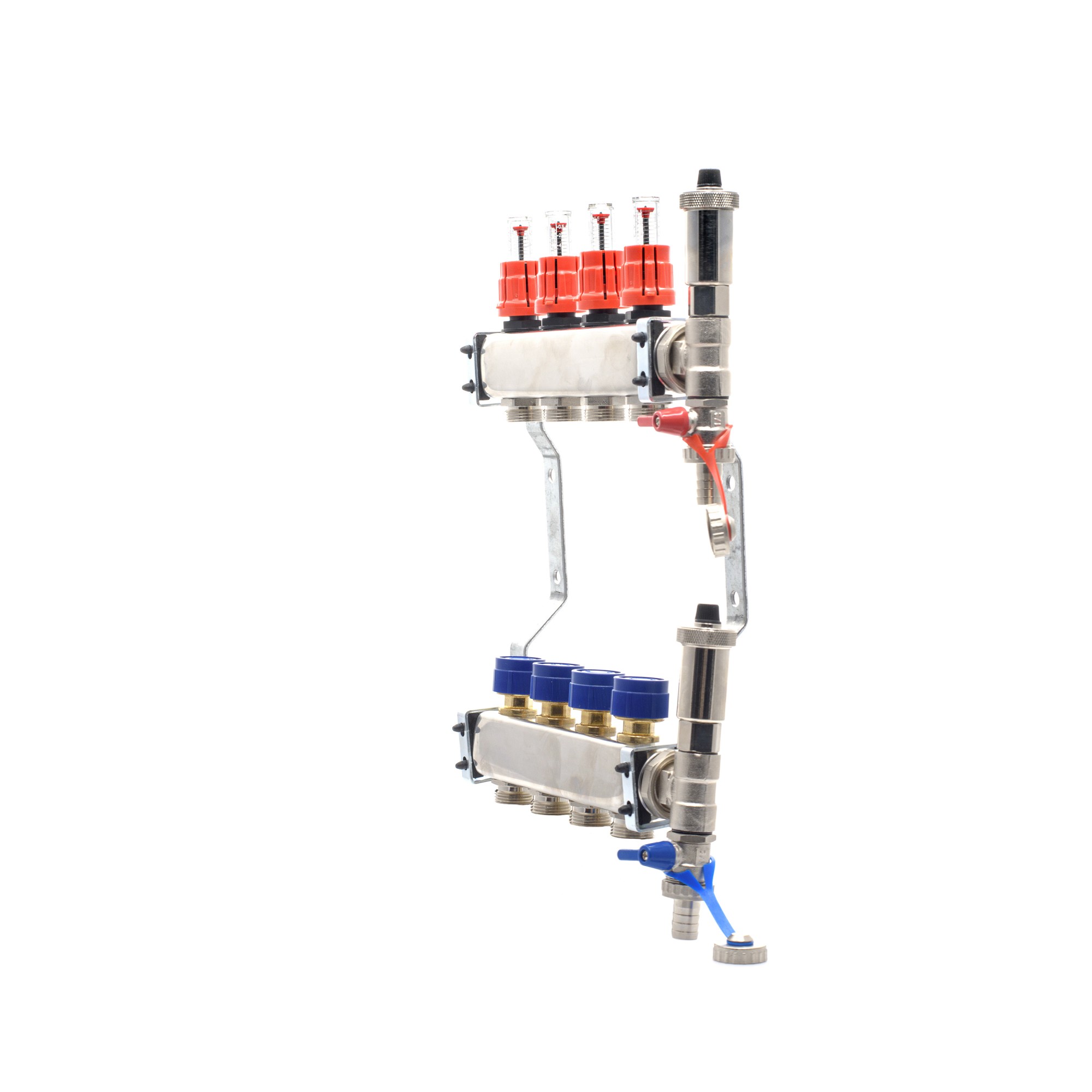

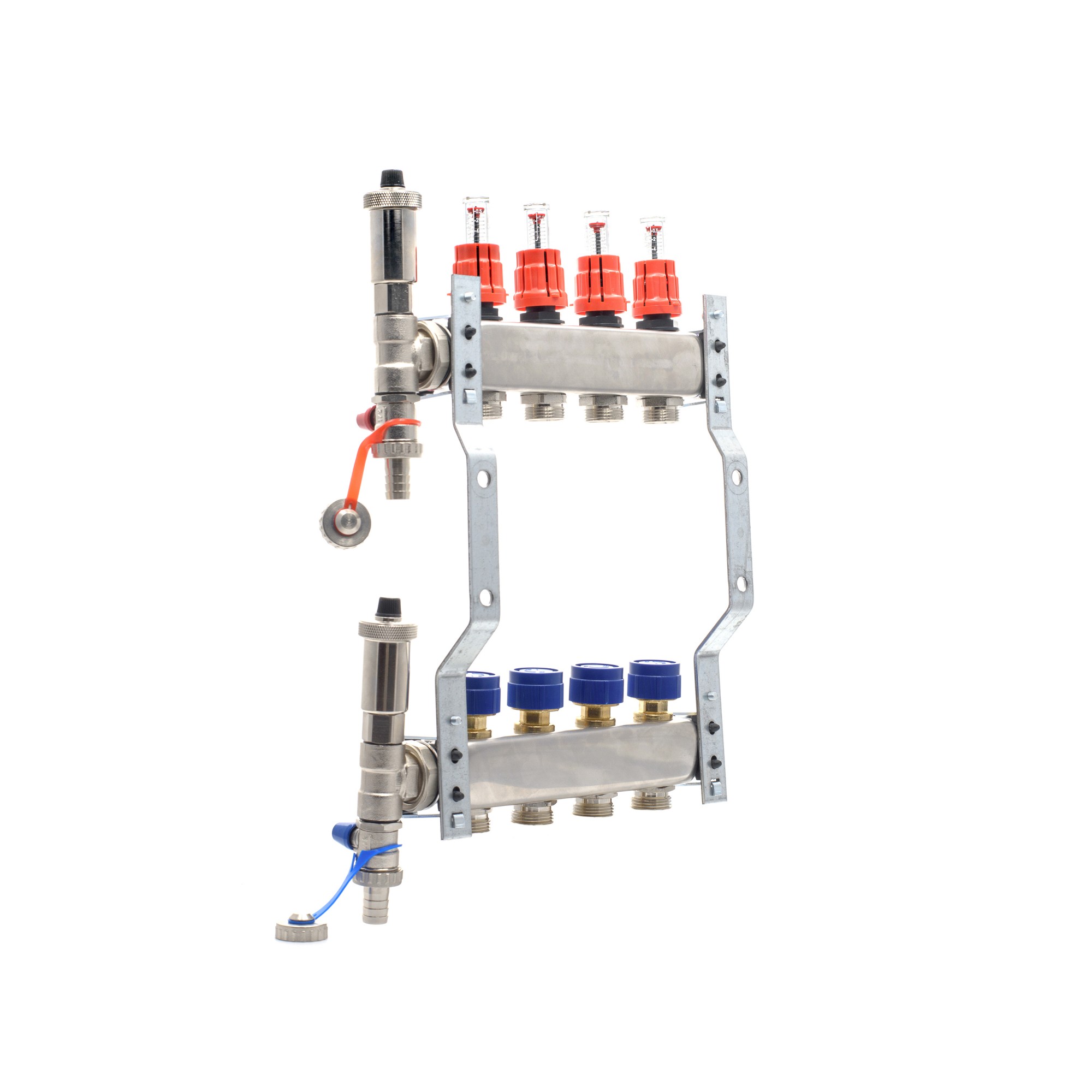

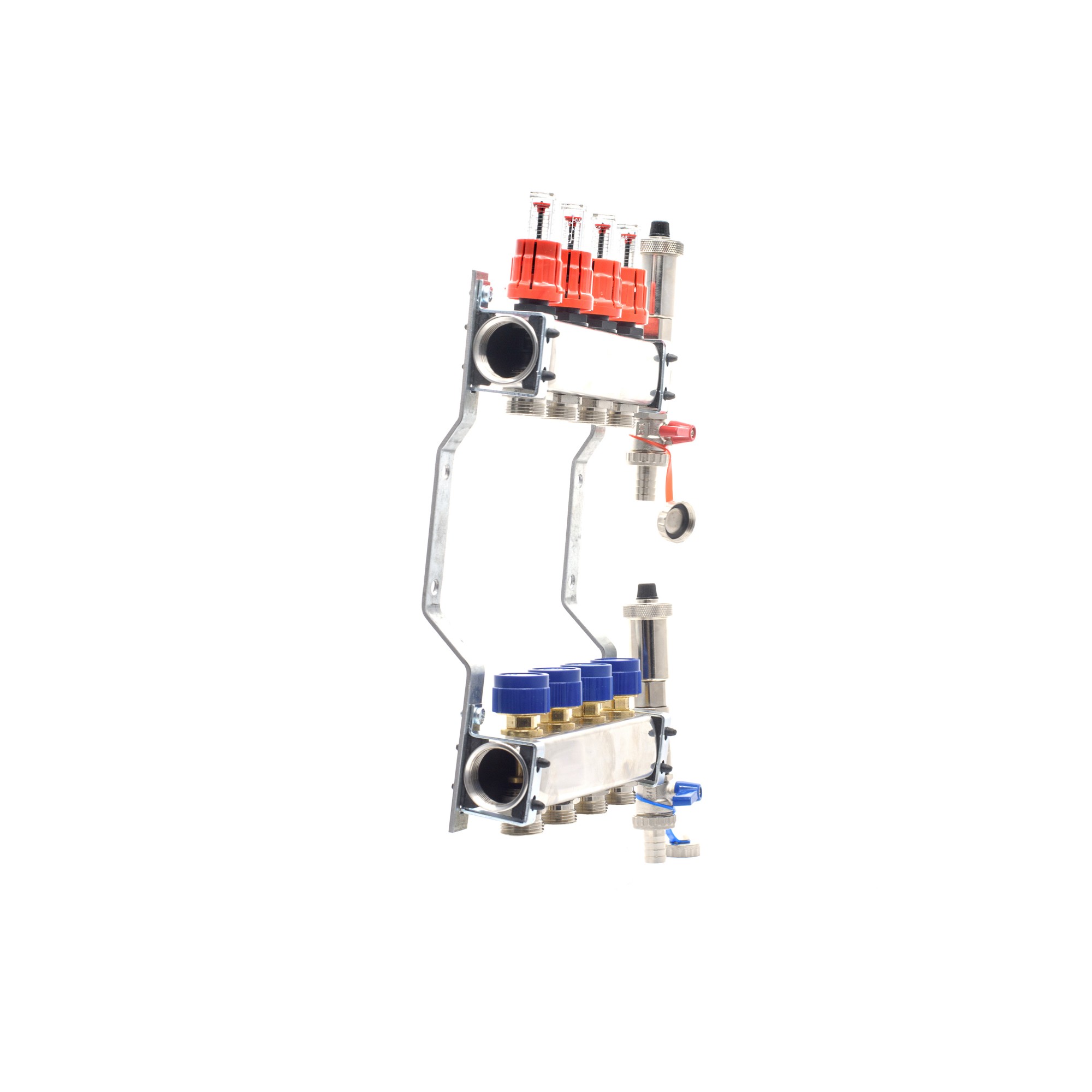

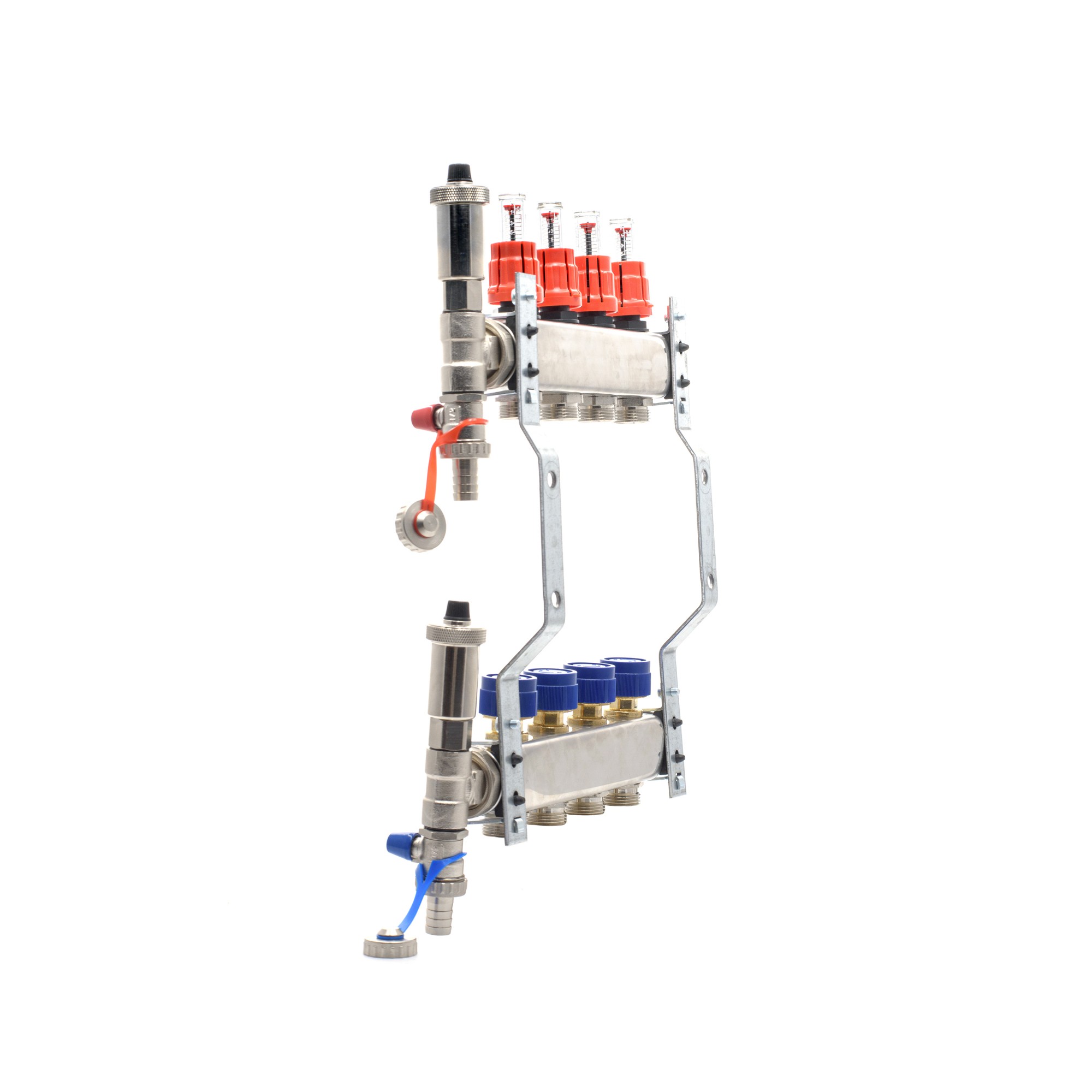

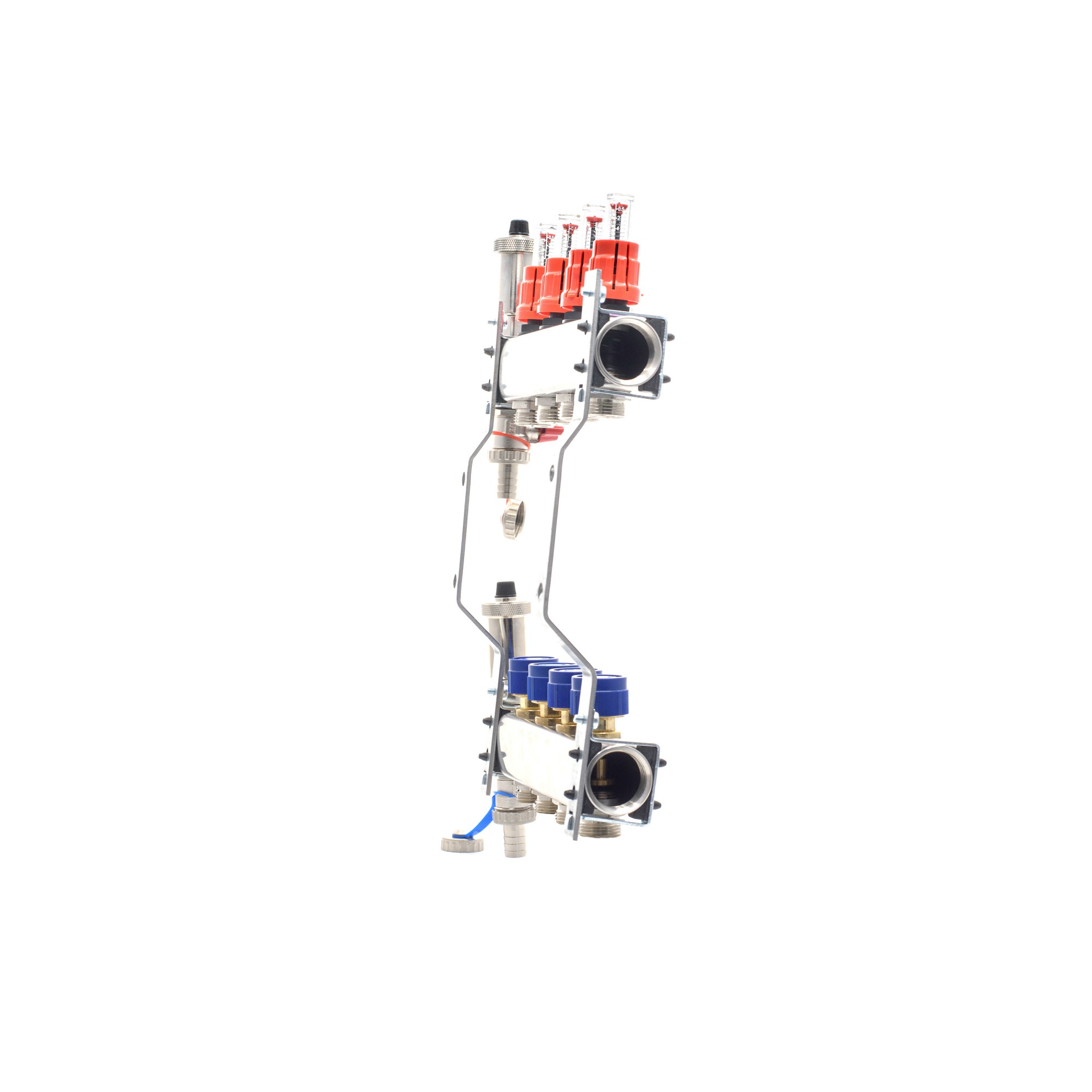

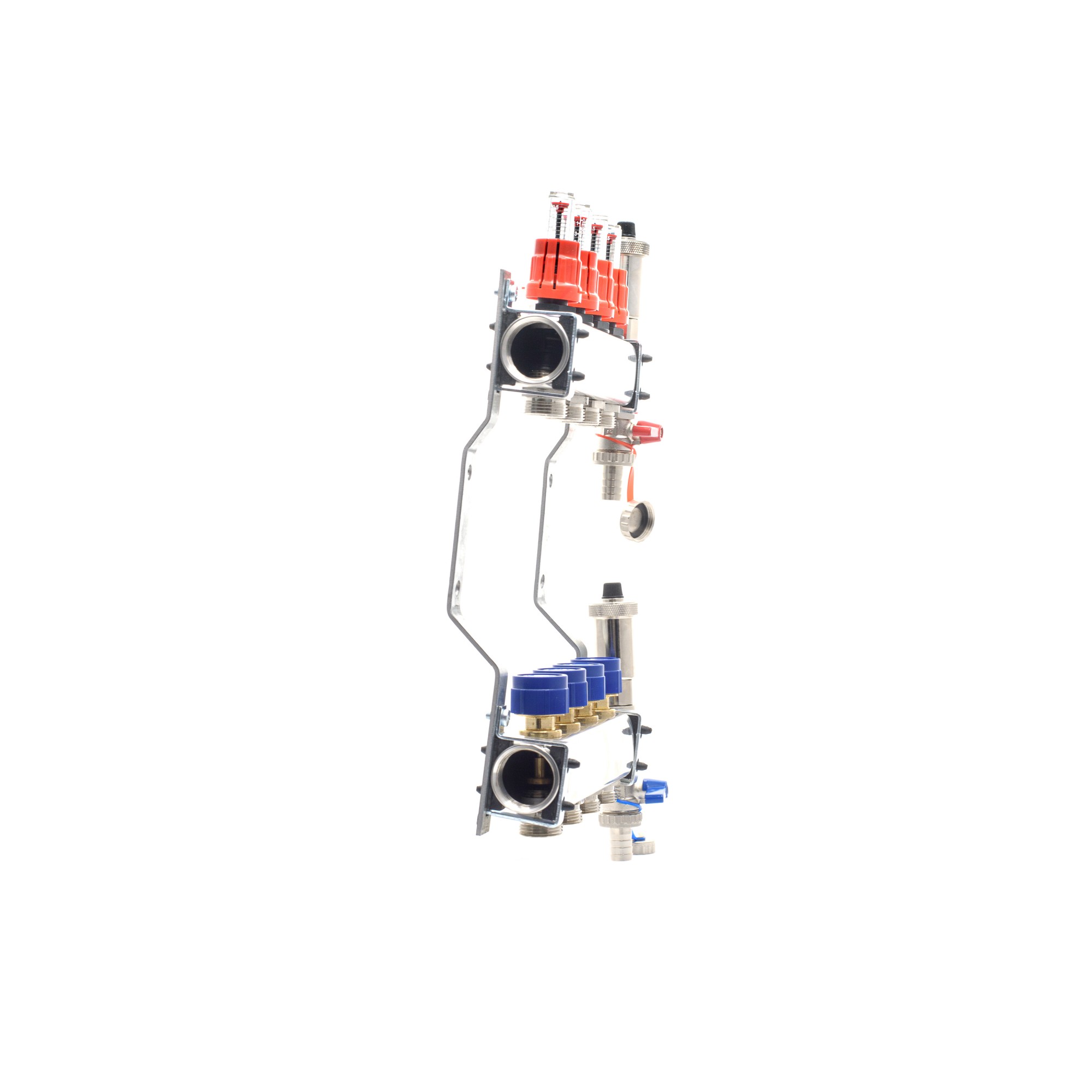

Manifold for underfloor heating is used in order to ensure distribution of heating medium to the individual heating loops of surface heating system.
technical data

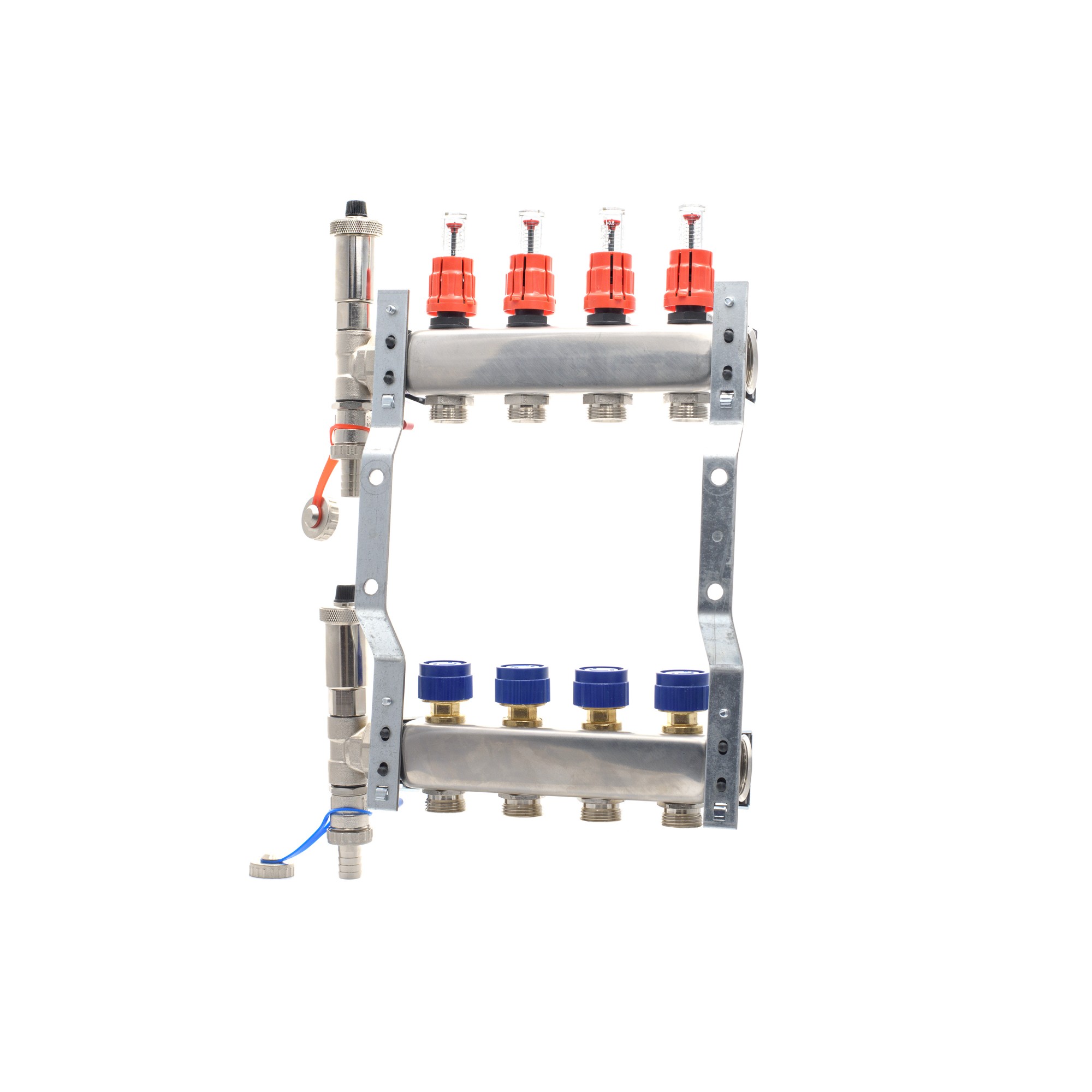

Manifolds consists of:
- steel beams with hole spacing 50 mm
- flowmeters
- thermostatic valves
- 1/2"-3/4" nipples
- eurocone 3/4"- 16 x 2.0 mm
- automatic air release and vent section
- 2 mounting brackets length 235 mmor 210 mm
*Ability to apply a 2.5 litres flowmeter
| Characteristic/Dimensions (mm) | Packing system | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Index | Heating loops | G Diameter of accessories connector |
L Beam spacing |
H | M | N | K | S Diameter of beam port |
J | Net weight/pcs (g) | Single pack | Pallet |
| F-2063413-S | 2 | 1/2” | 235/210 | 409 | 175 | 50 | 25 | 1" | 28 | 2186 | 1 | 100 |
| F-2063420-S | 3 | 1/2” | 235/210 | 409 | 225 | 50 | 25 | 1" | 28 | 2606 | 1 | 100 |
| F-2063437-S | 4 | 1/2” | 235/210 | 409 | 275 | 50 | 25 | 1" | 28 | 3026 | 1 | 100 |
| F-2063444-S | 5 | 1/2” | 235/210 | 409 | 325 | 50 | 25 | 1" | 28 | 3406 | 1 | 60 |
| F-2063451-S | 6 | 1/2” | 235/210 | 409 | 375 | 50 | 25 | 1" | 28 | 3816 | 1 | 60 |
| F-2063468-S | 7 | 1/2” | 235/210 | 409 | 425 | 50 | 25 | 1" | 28 | 4236 | 1 | 60 |
| F-2063475-S | 8 | 1/2” | 235/210 | 409 | 475 | 50 | 25 | 1" | 28 | 4636 | 1 | 48 |
| F-2063482-S | 9 | 1/2” | 235/210 | 409 | 525 | 50 | 25 | 1" | 28 | 5056 | 1 | 48 |
| F-2063499-S | 10 | 1/2” | 235/210 | 409 | 575 | 50 | 25 | 1" | 28 | 5476 | 1 | 48 |
| F-2063505-S | 11 | 1/2” | 235/210 | 409 | 625 | 50 | 25 | 1" | 28 | 5886 | 1 | 48 |
| F-2063512-S | 12 | 1/2” | 235/210 | 409 | 675 | 50 | 25 | 1" | 28 | 6296 | 1 | 48 |
