product description
Manifolds for underfloor heating is used in order to ensure distribution of heating medium to the individual heating loops of surface heating system.
technical data

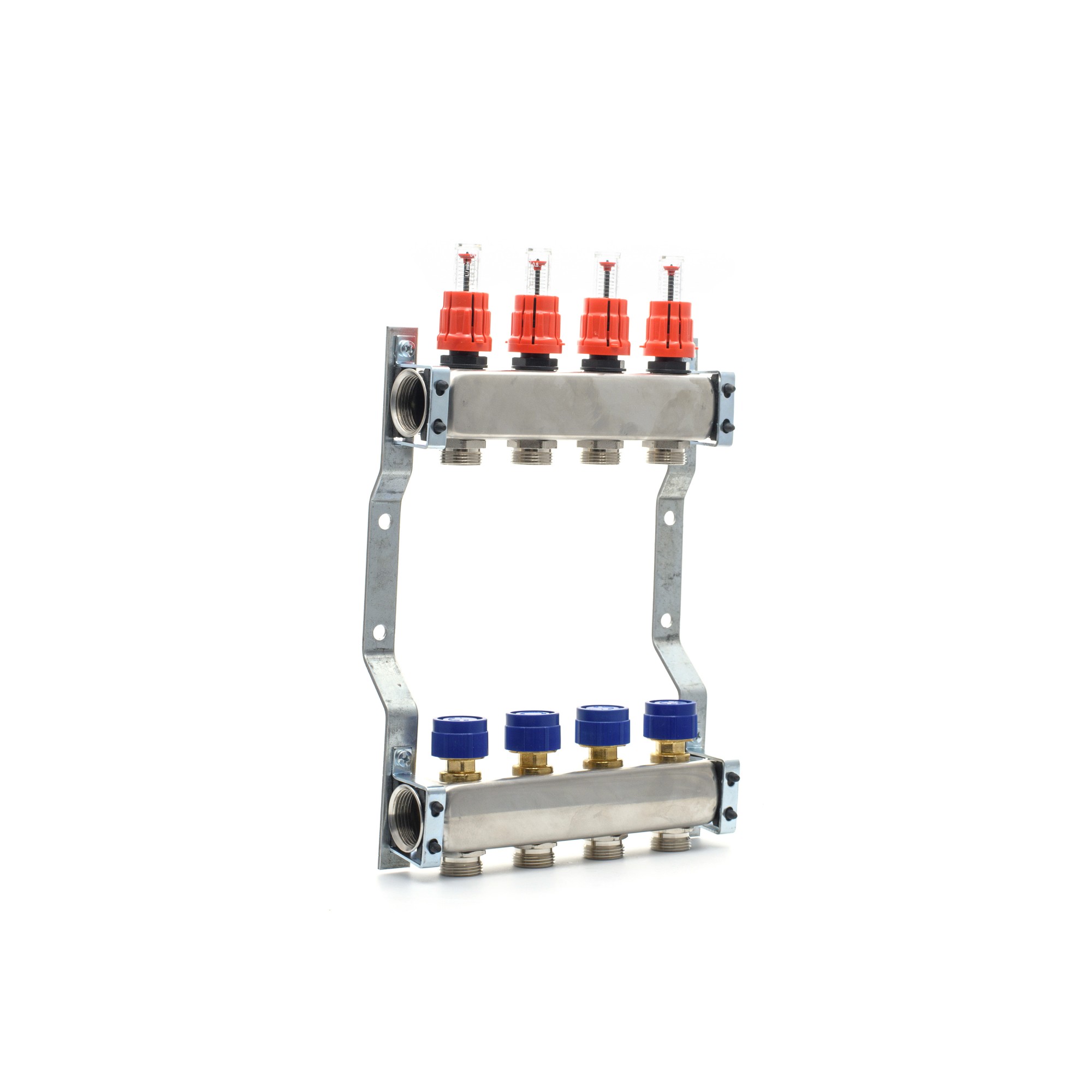

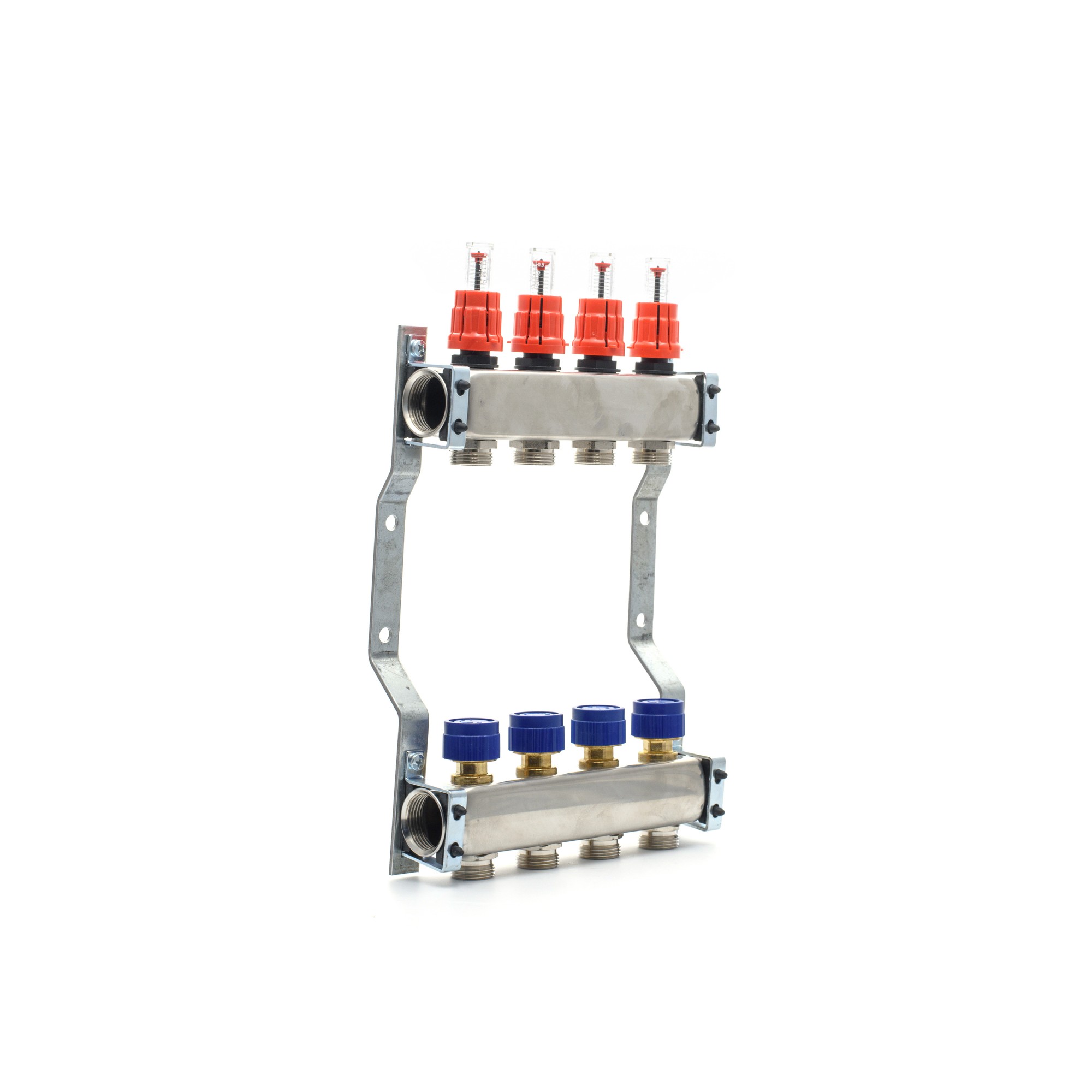

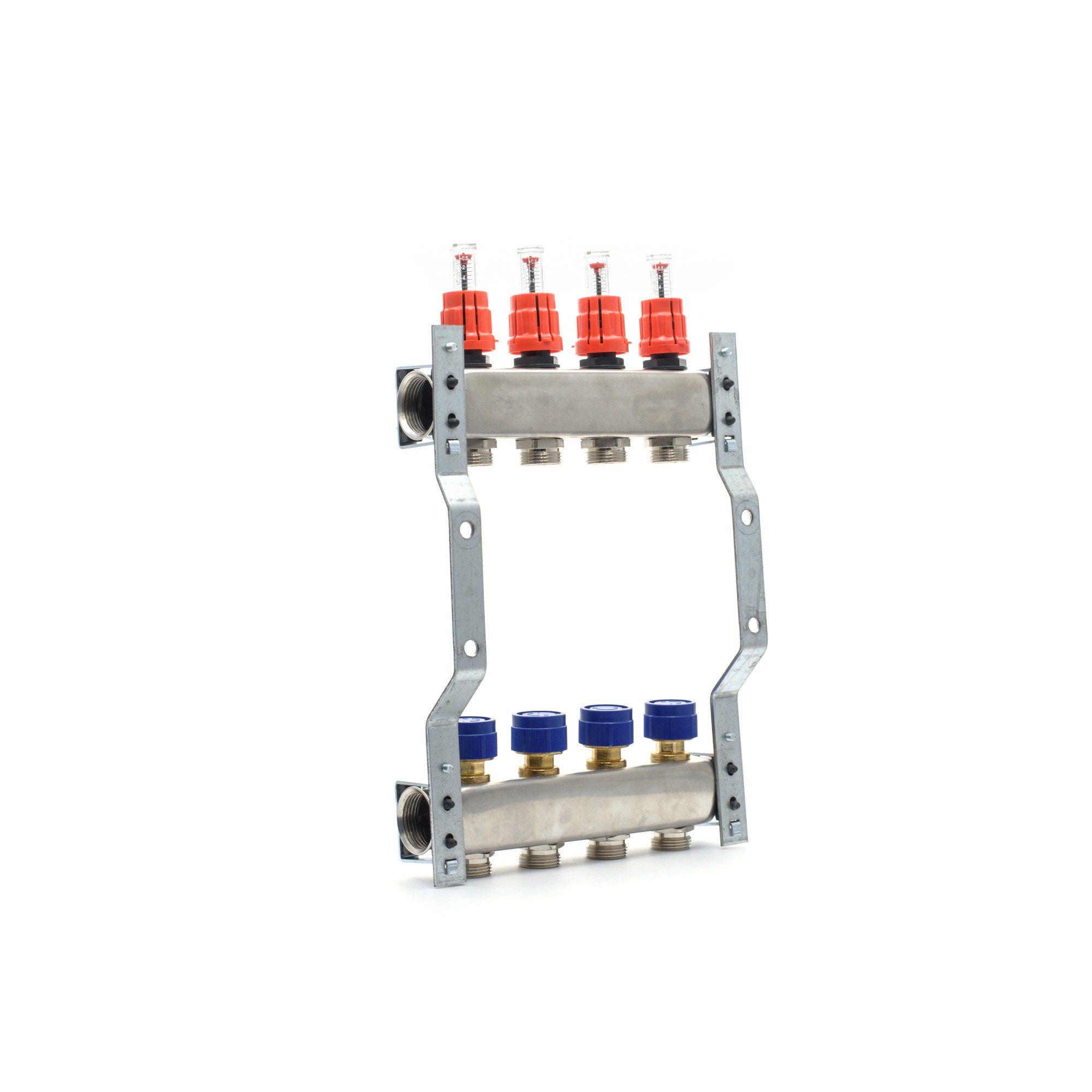

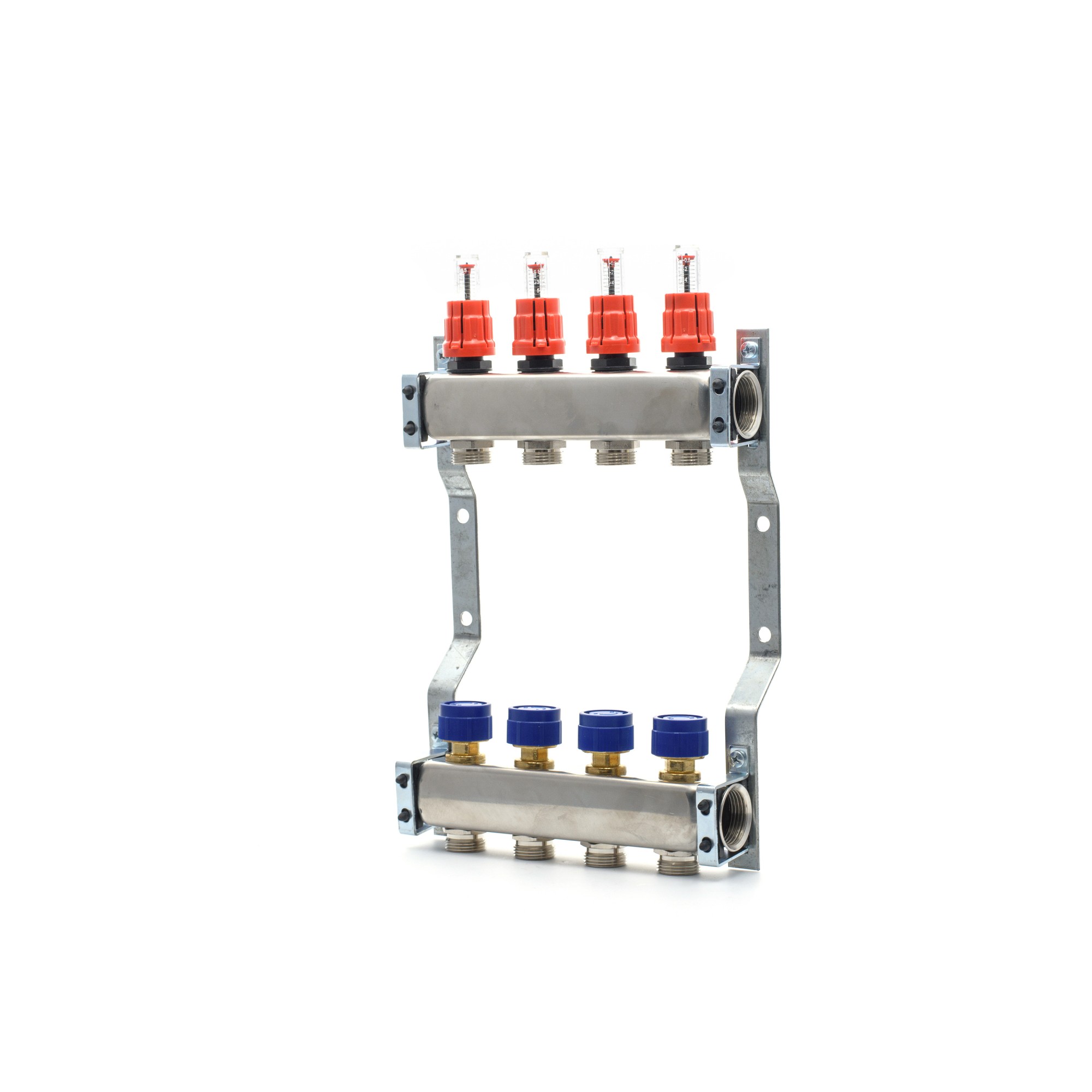

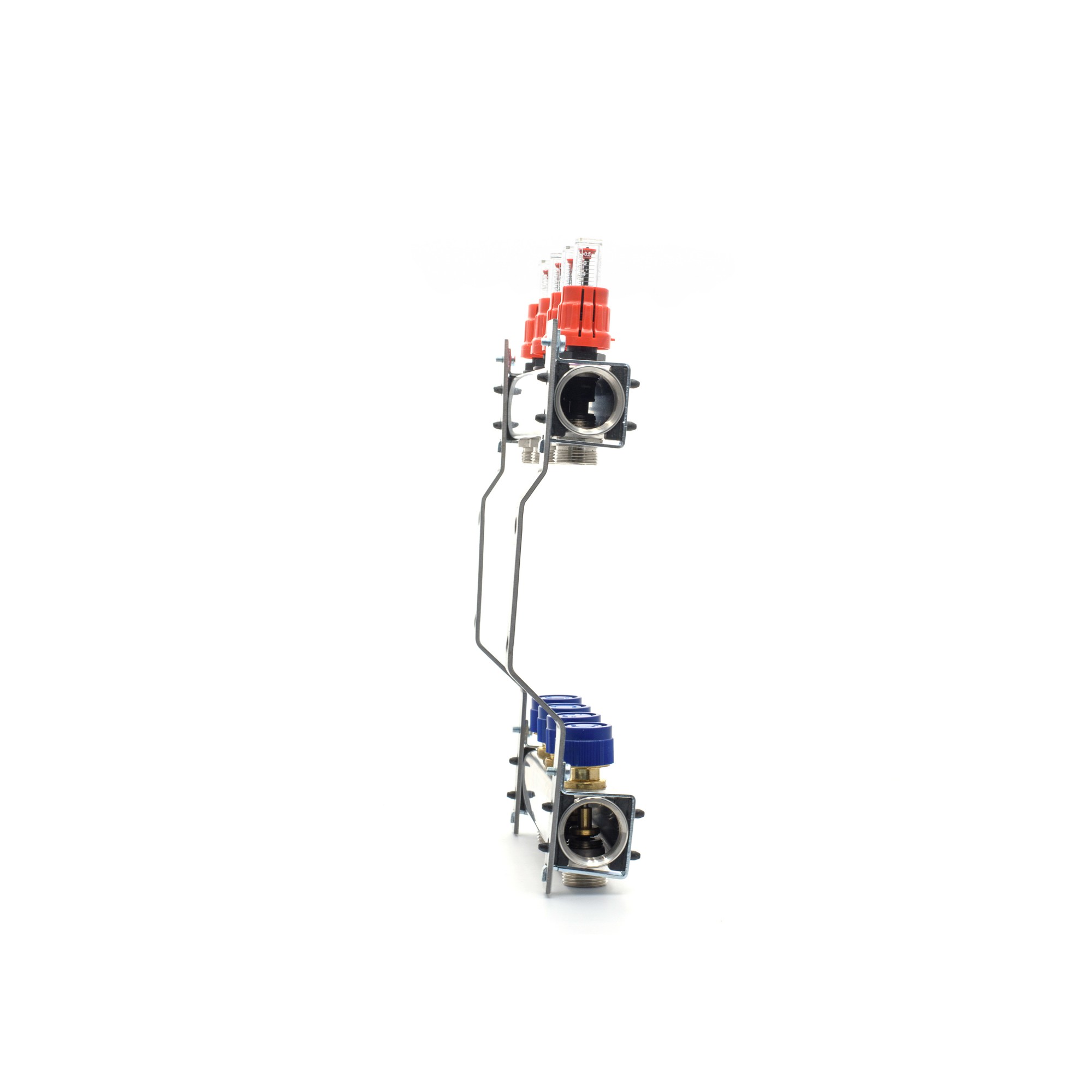

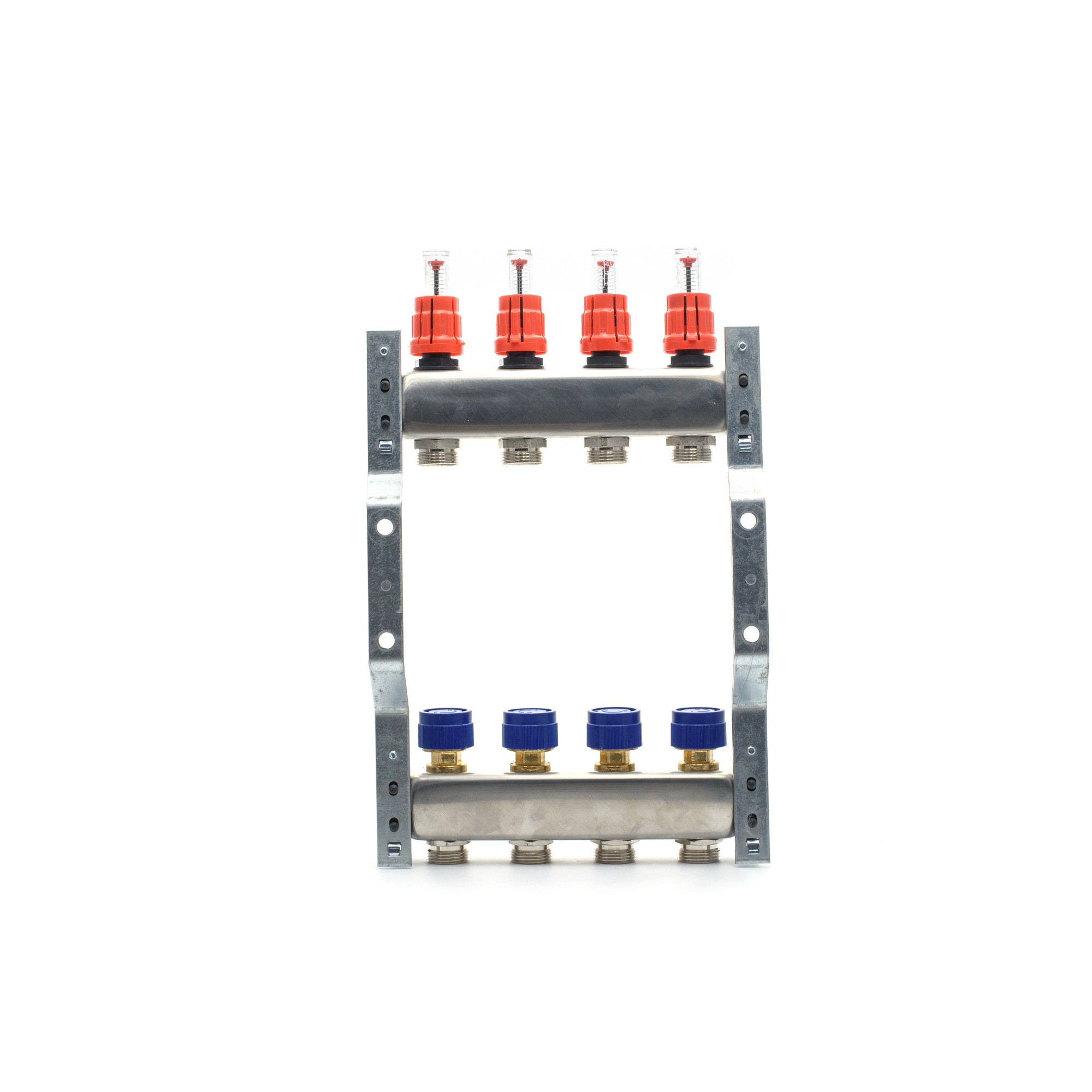

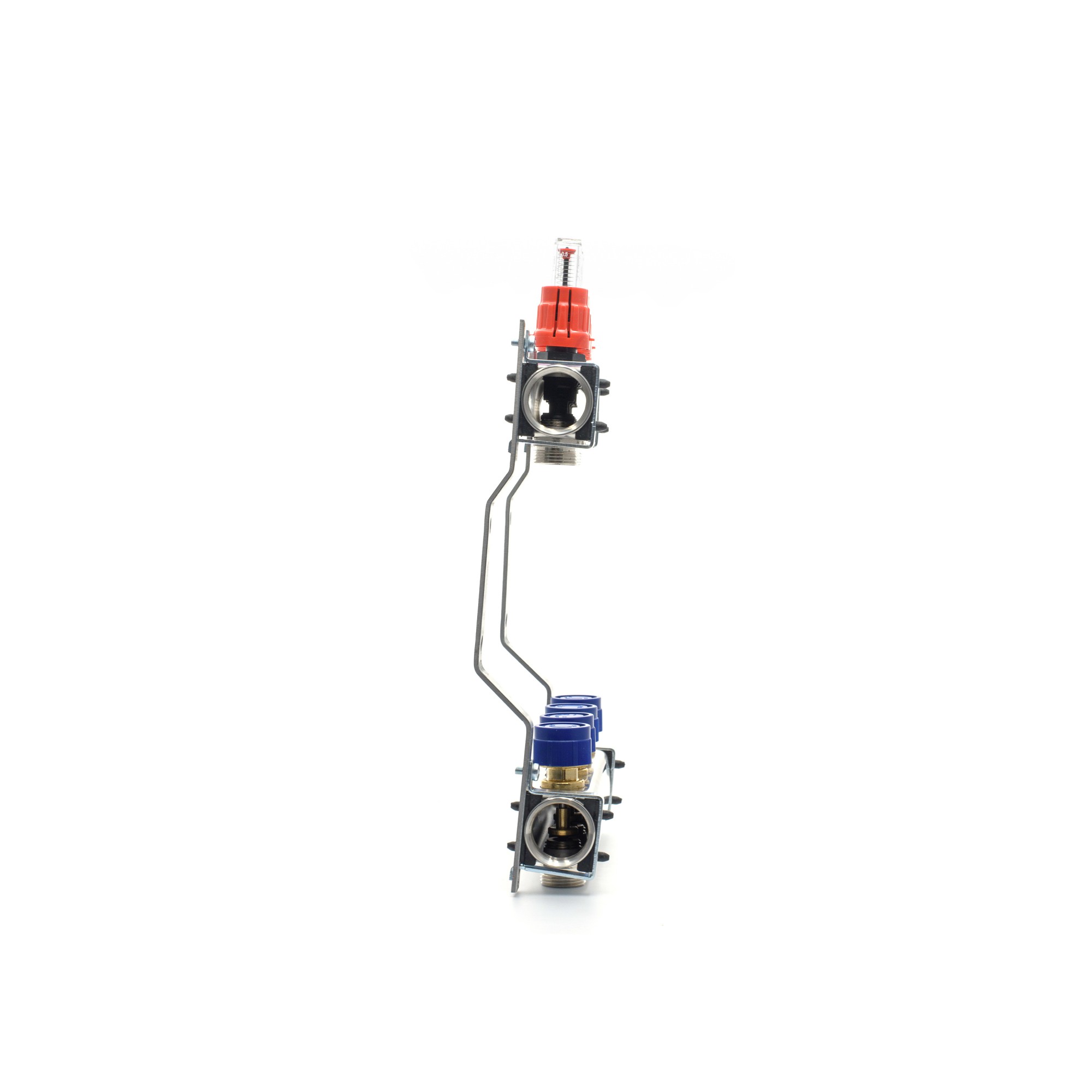

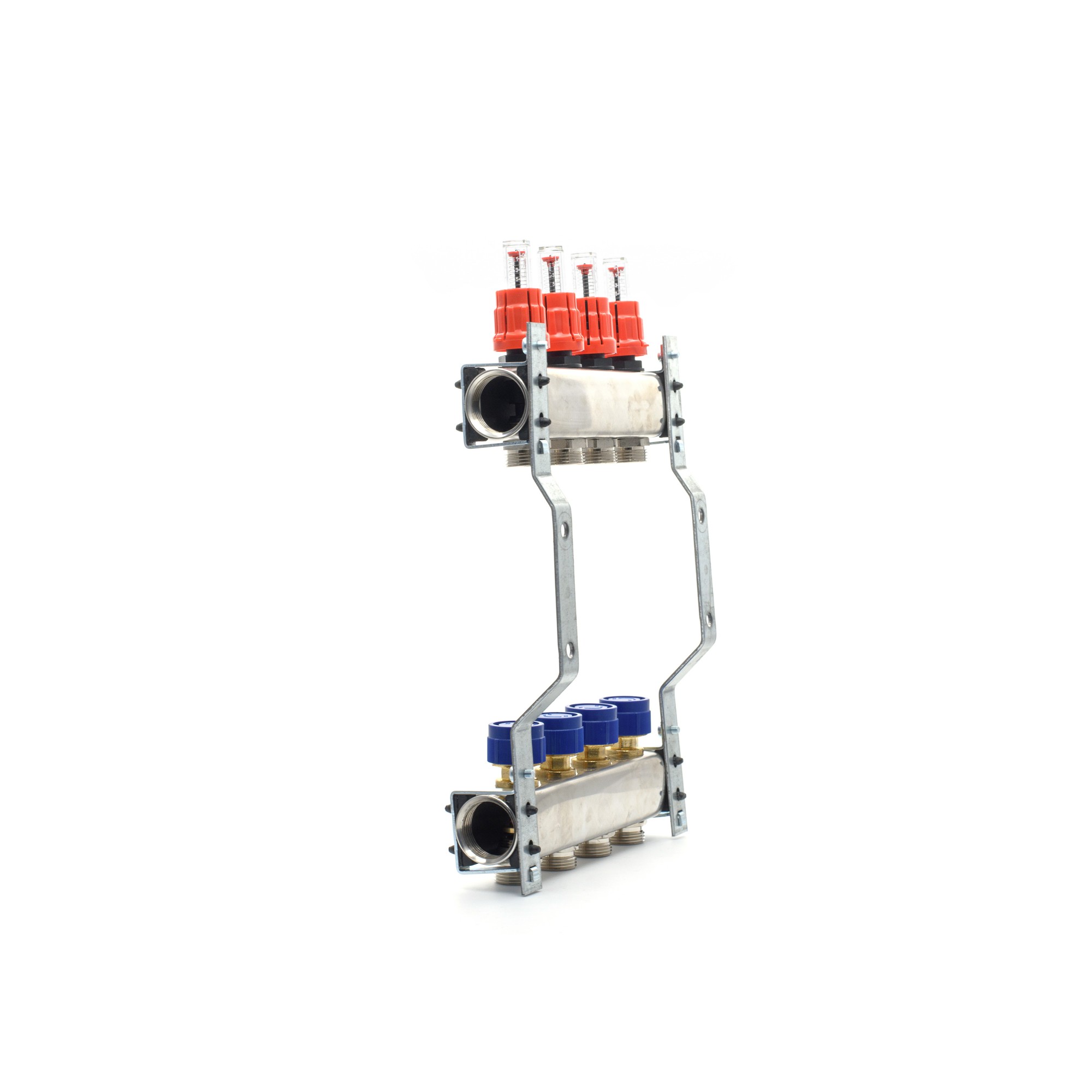

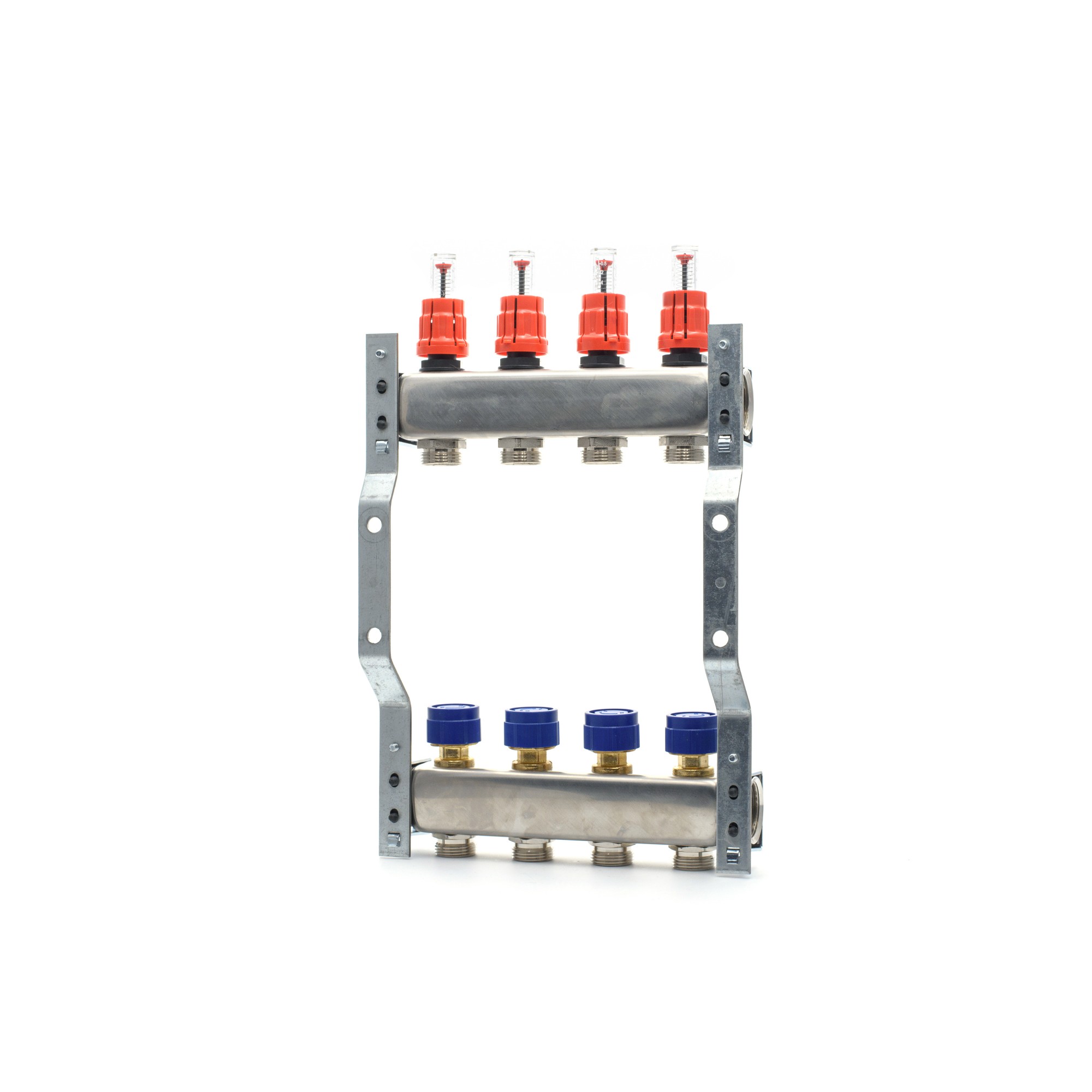

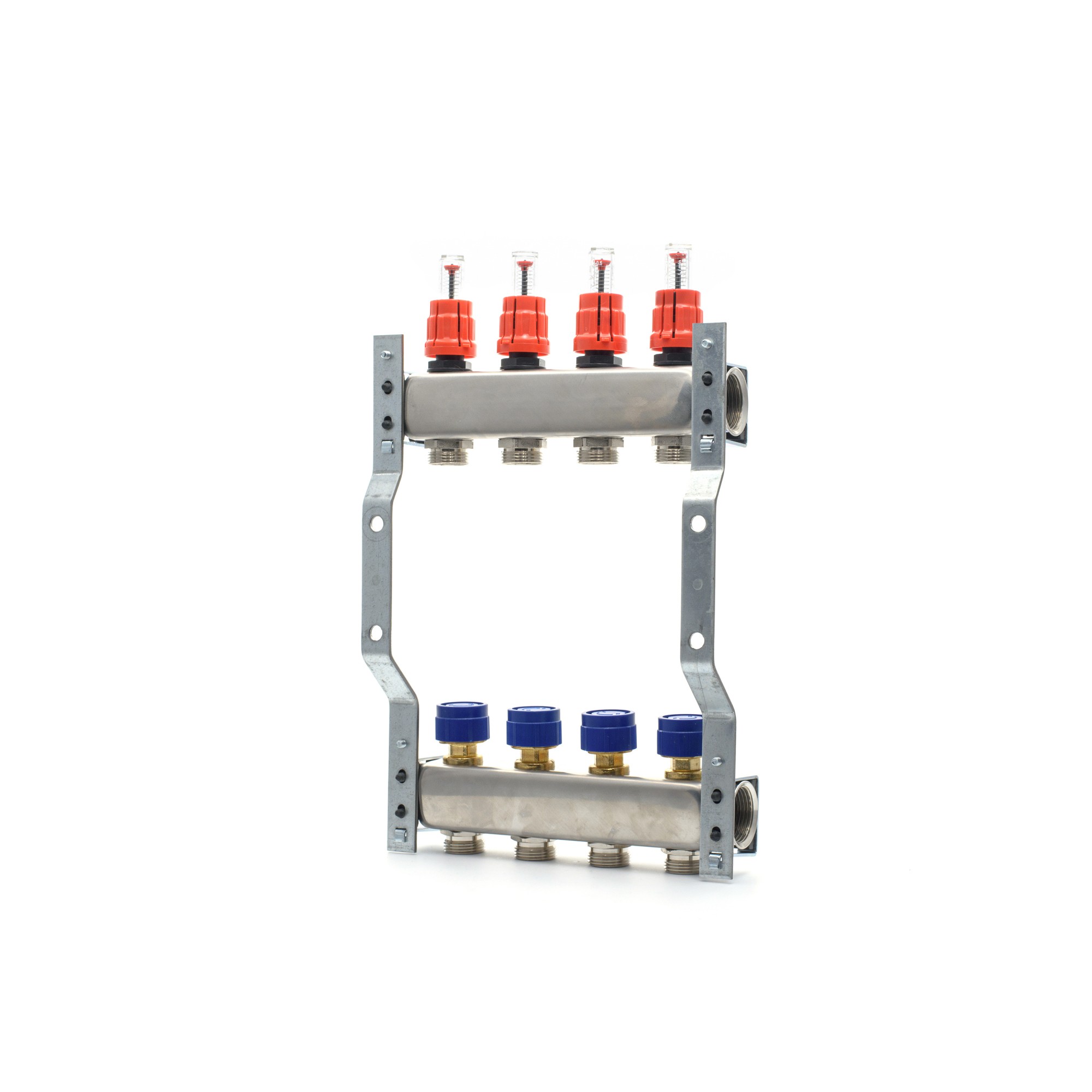

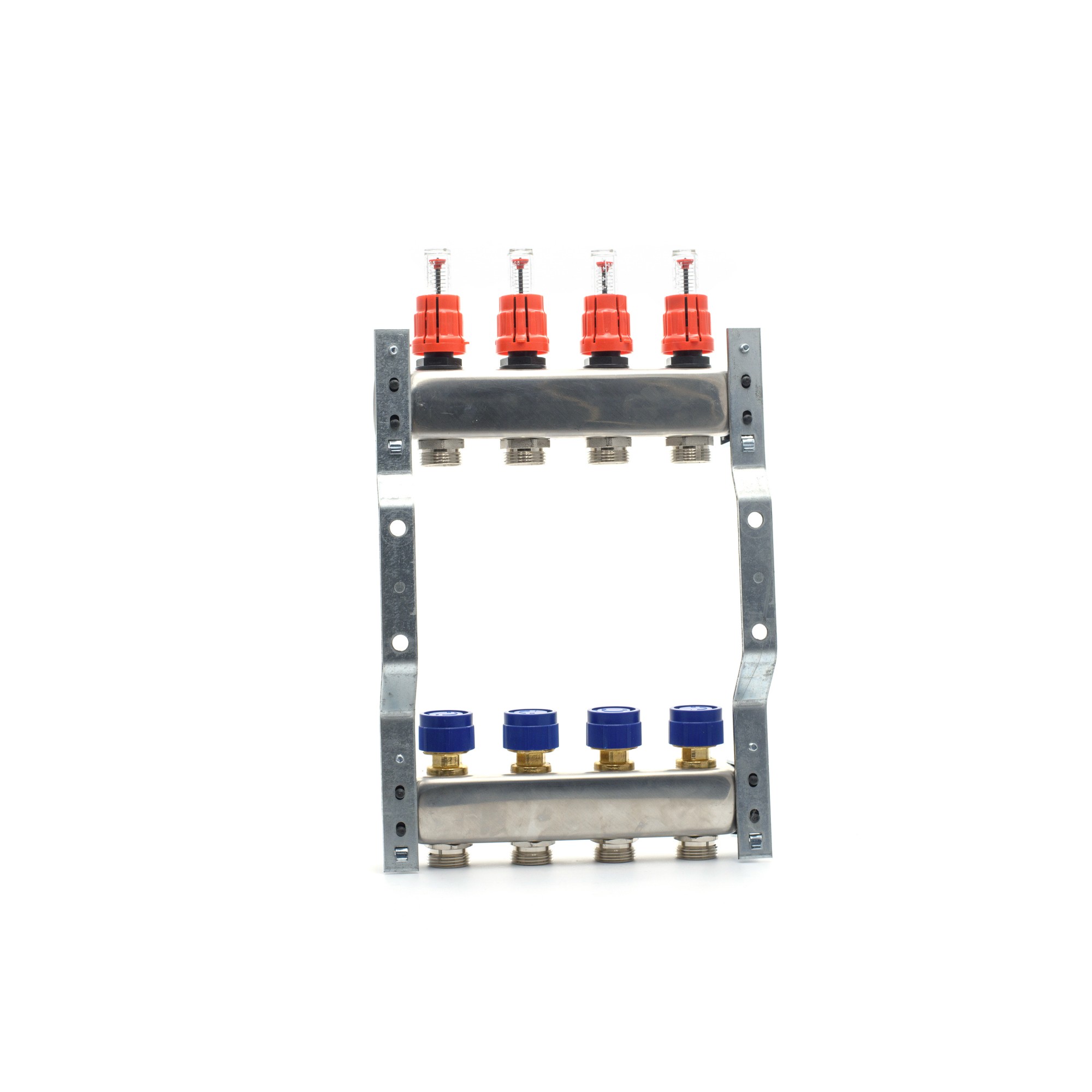

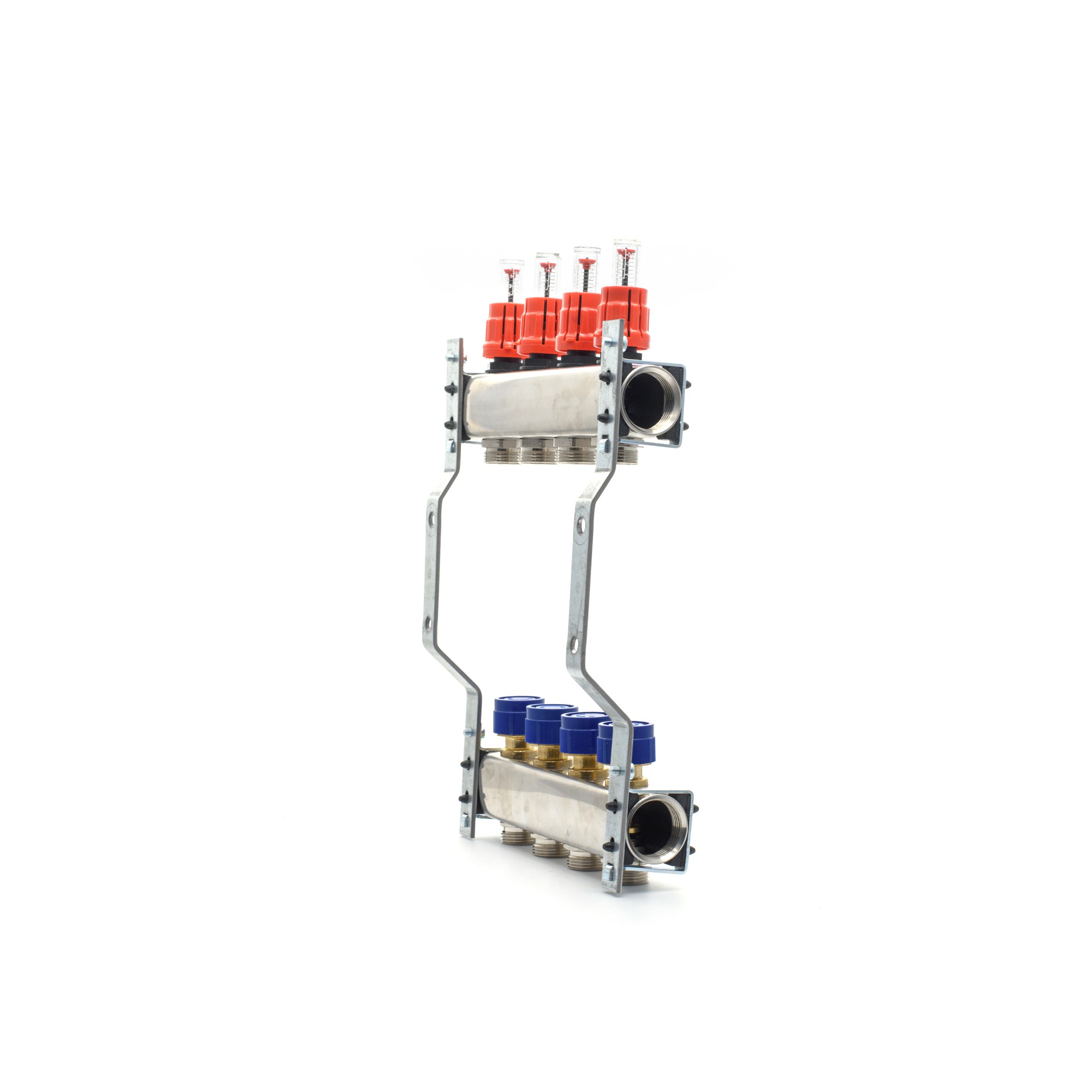

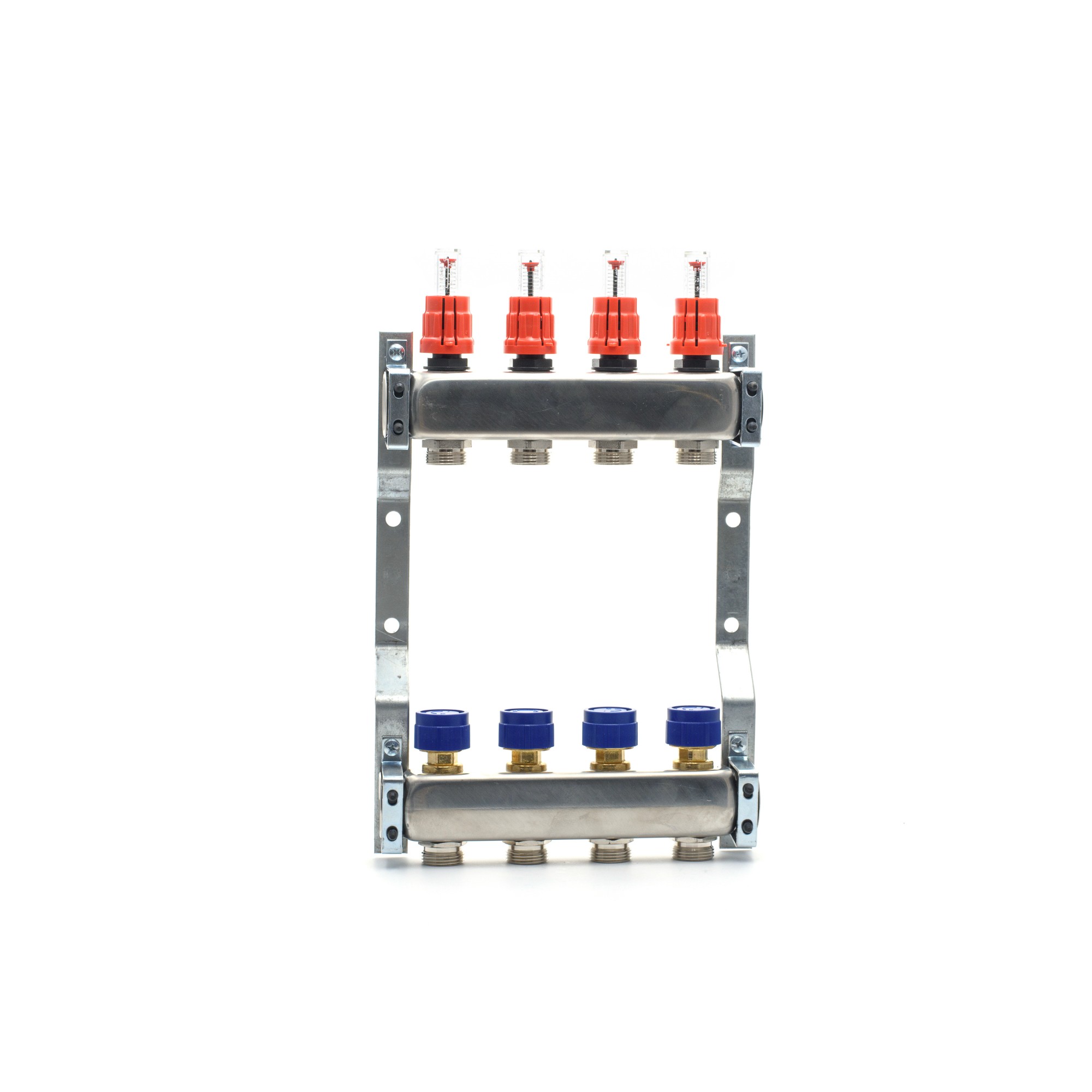

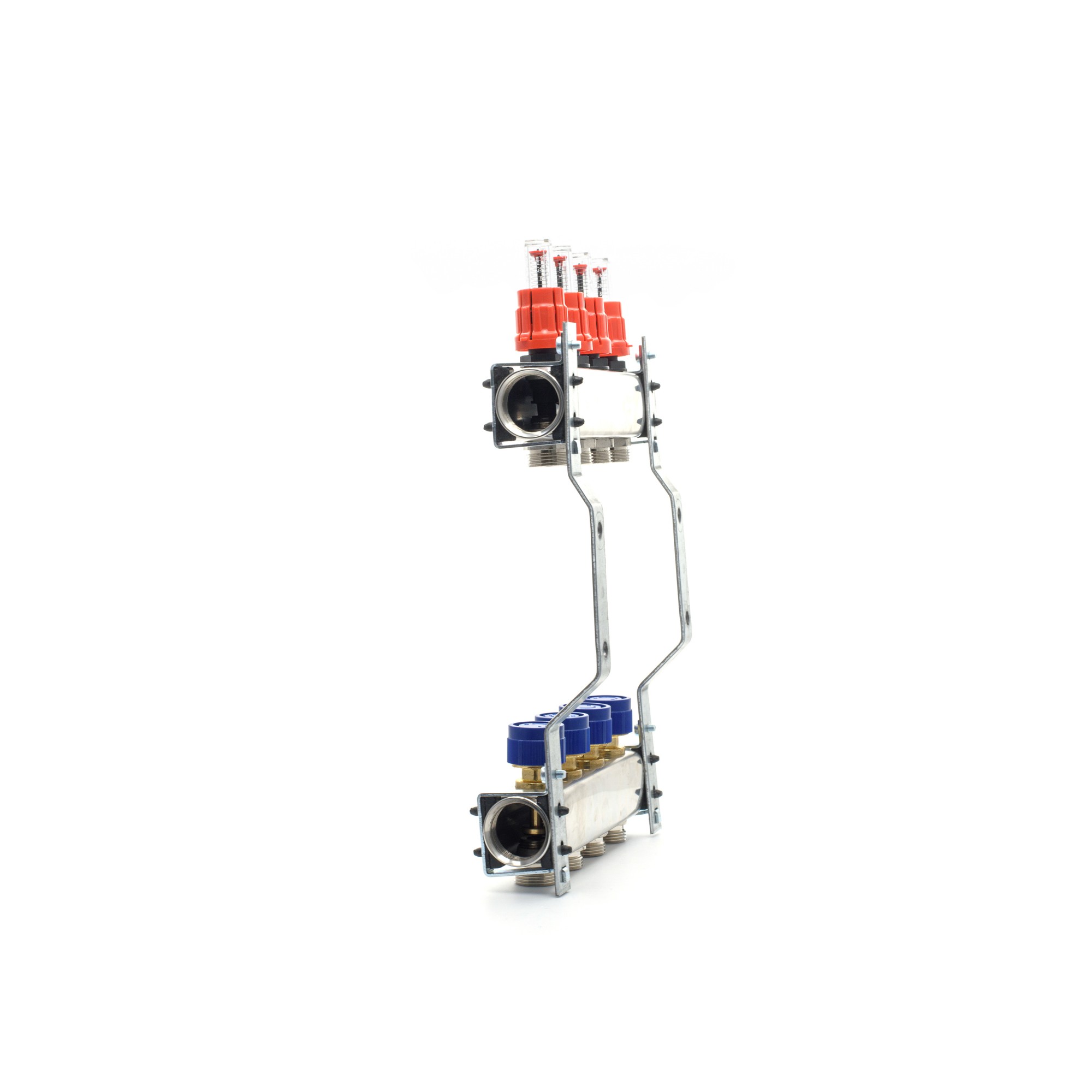

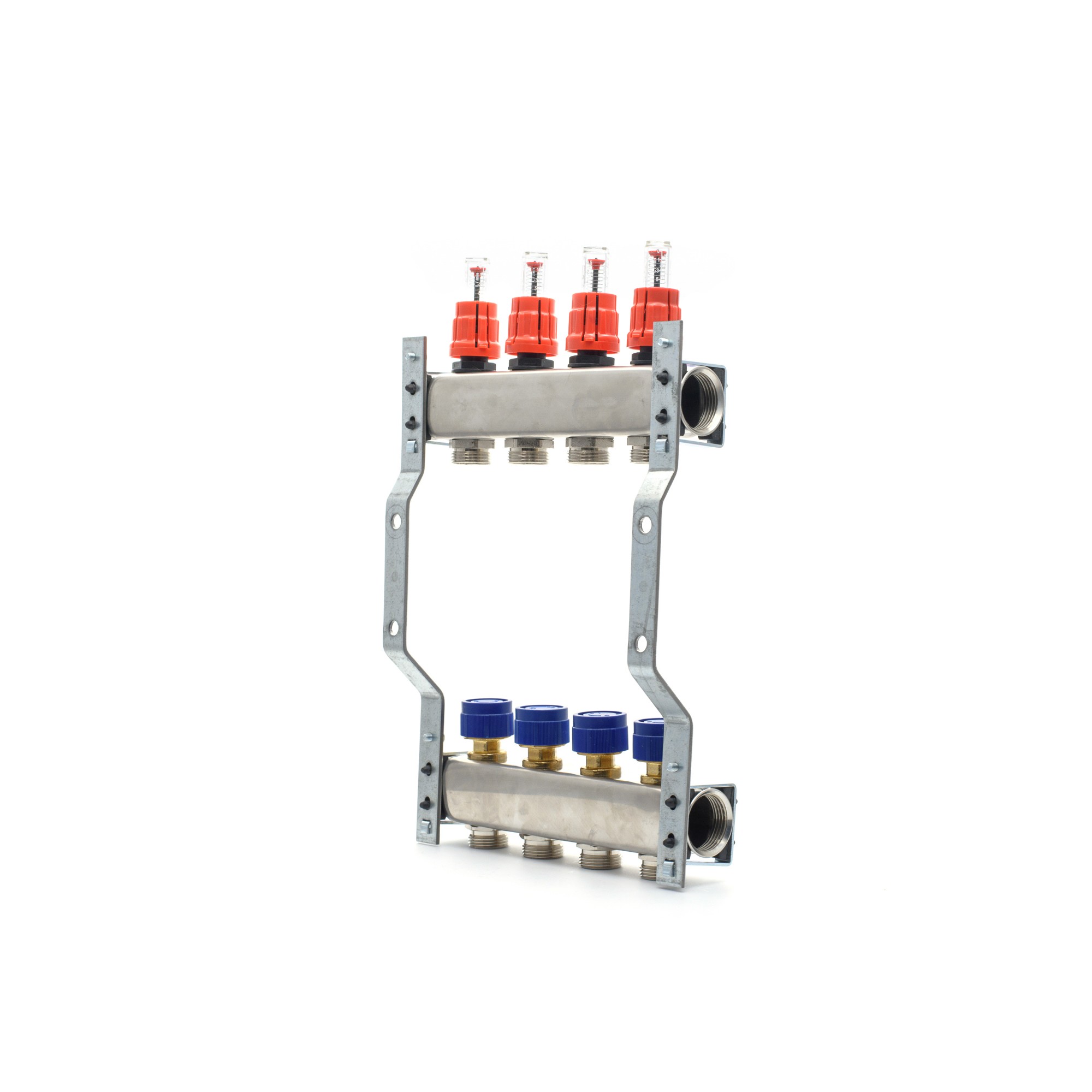

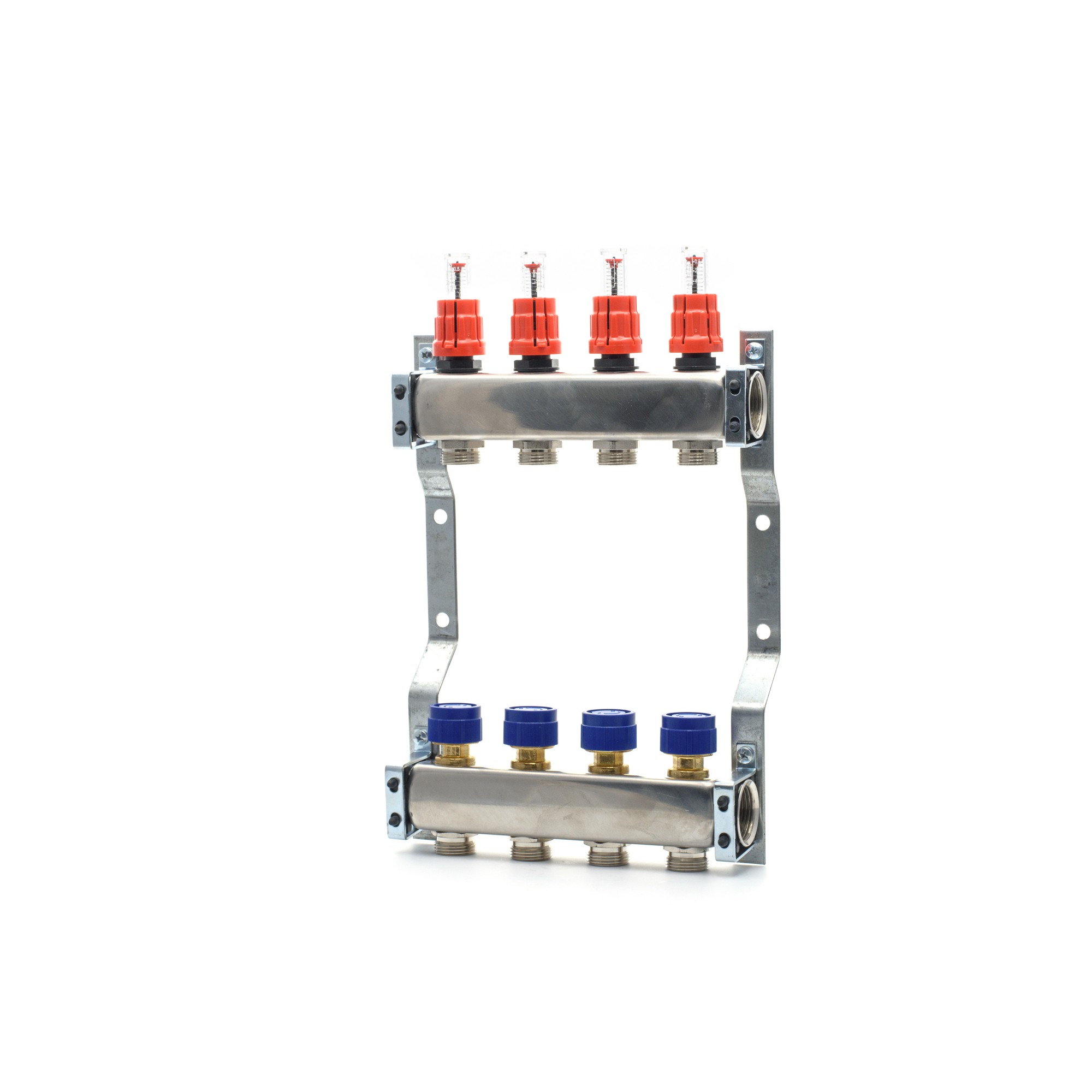

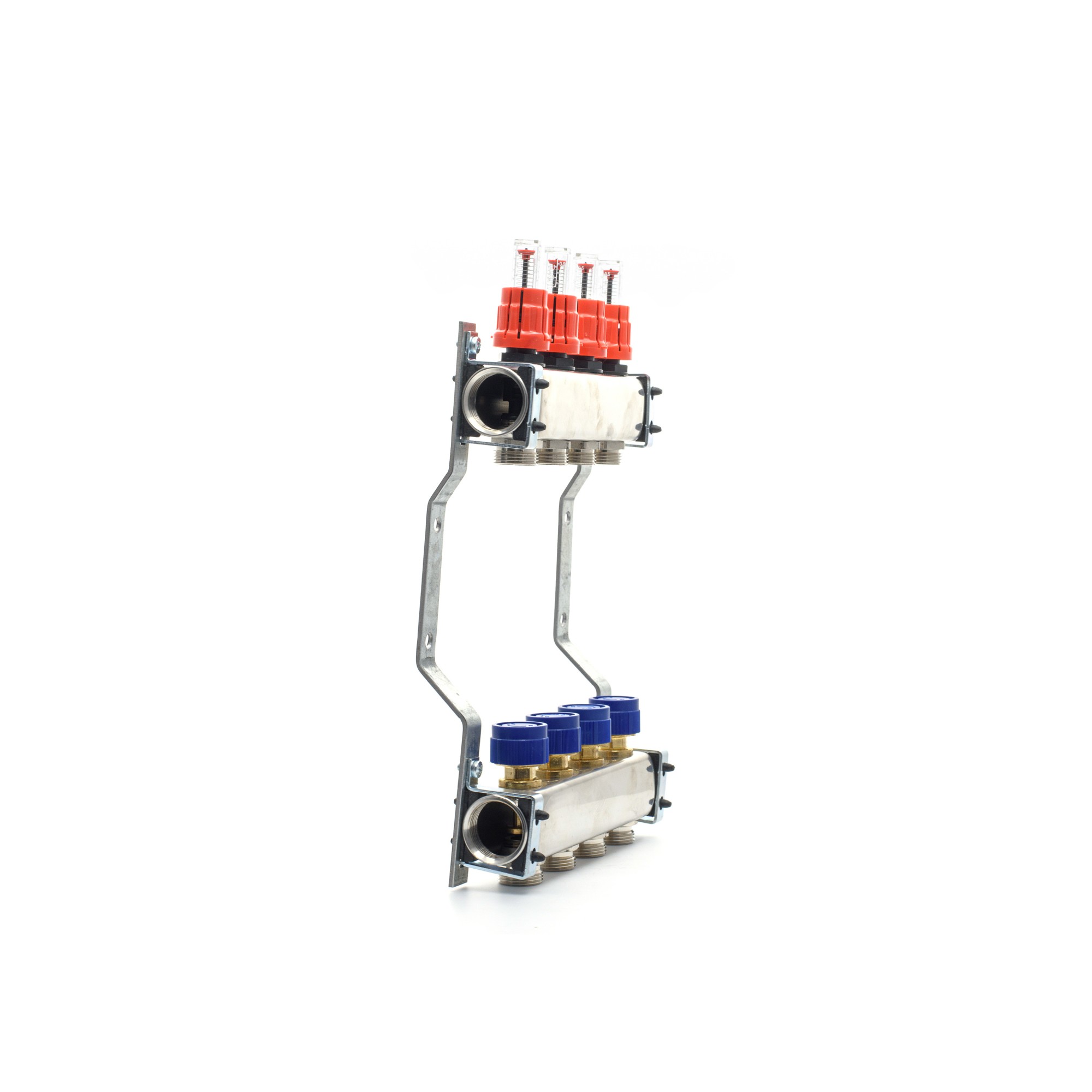

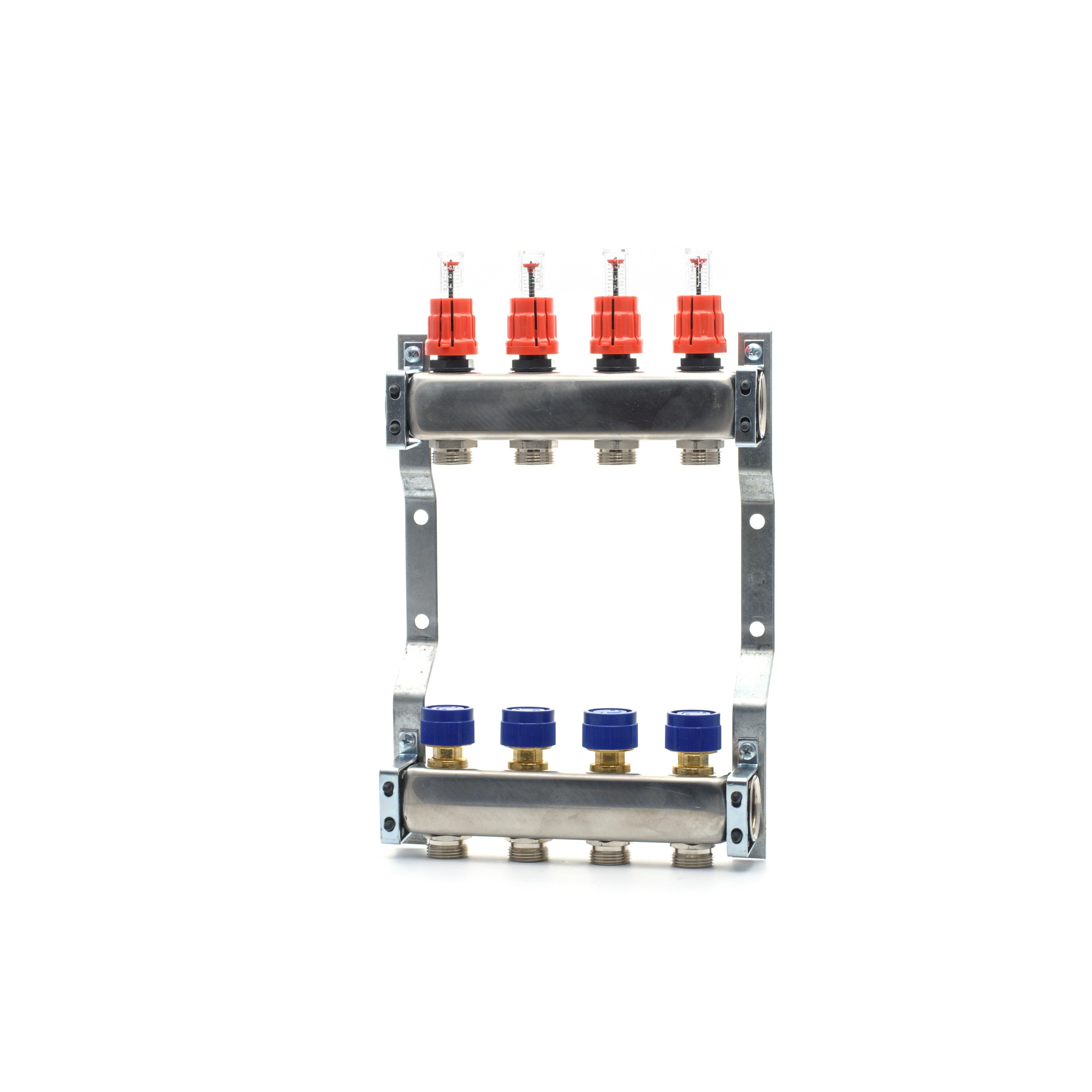

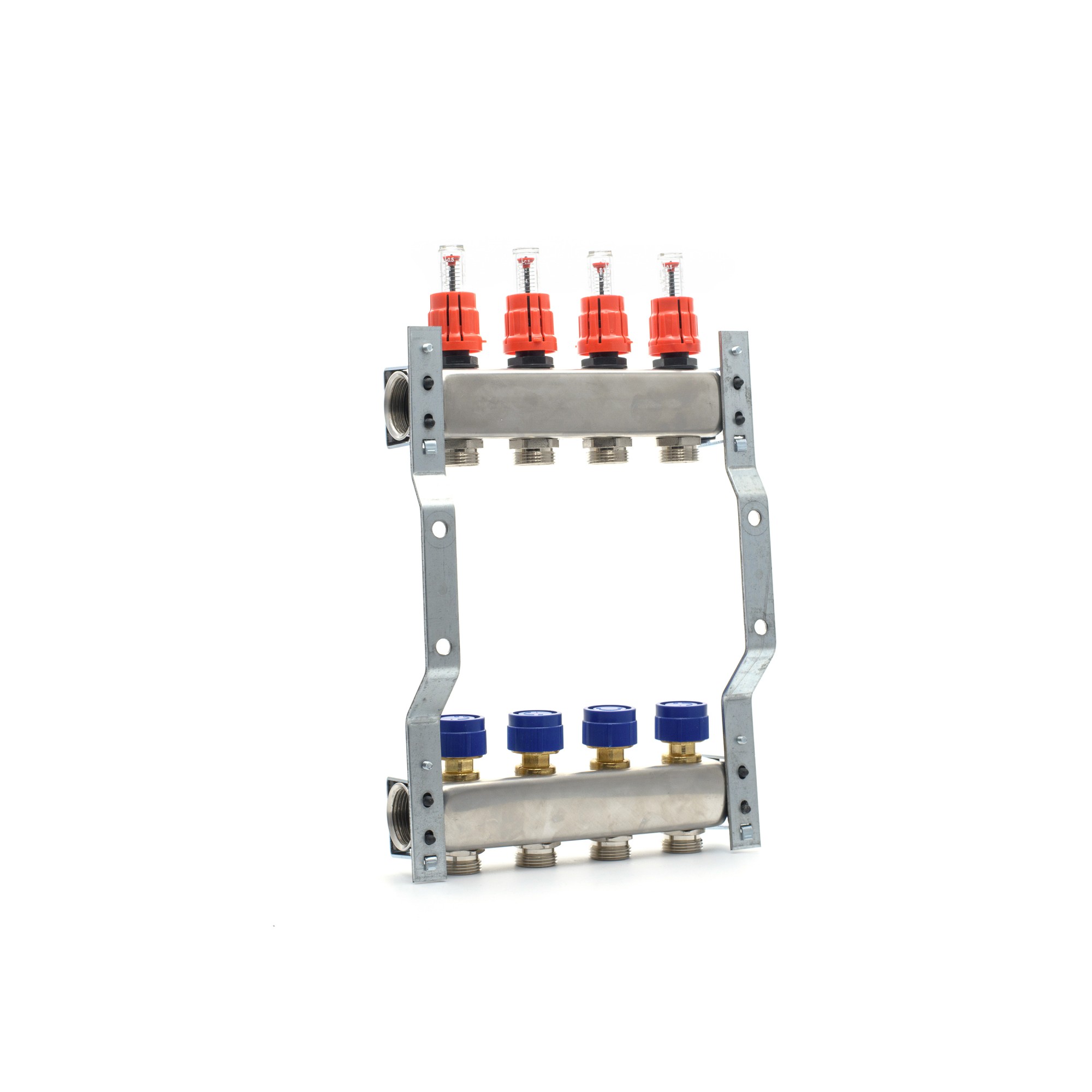

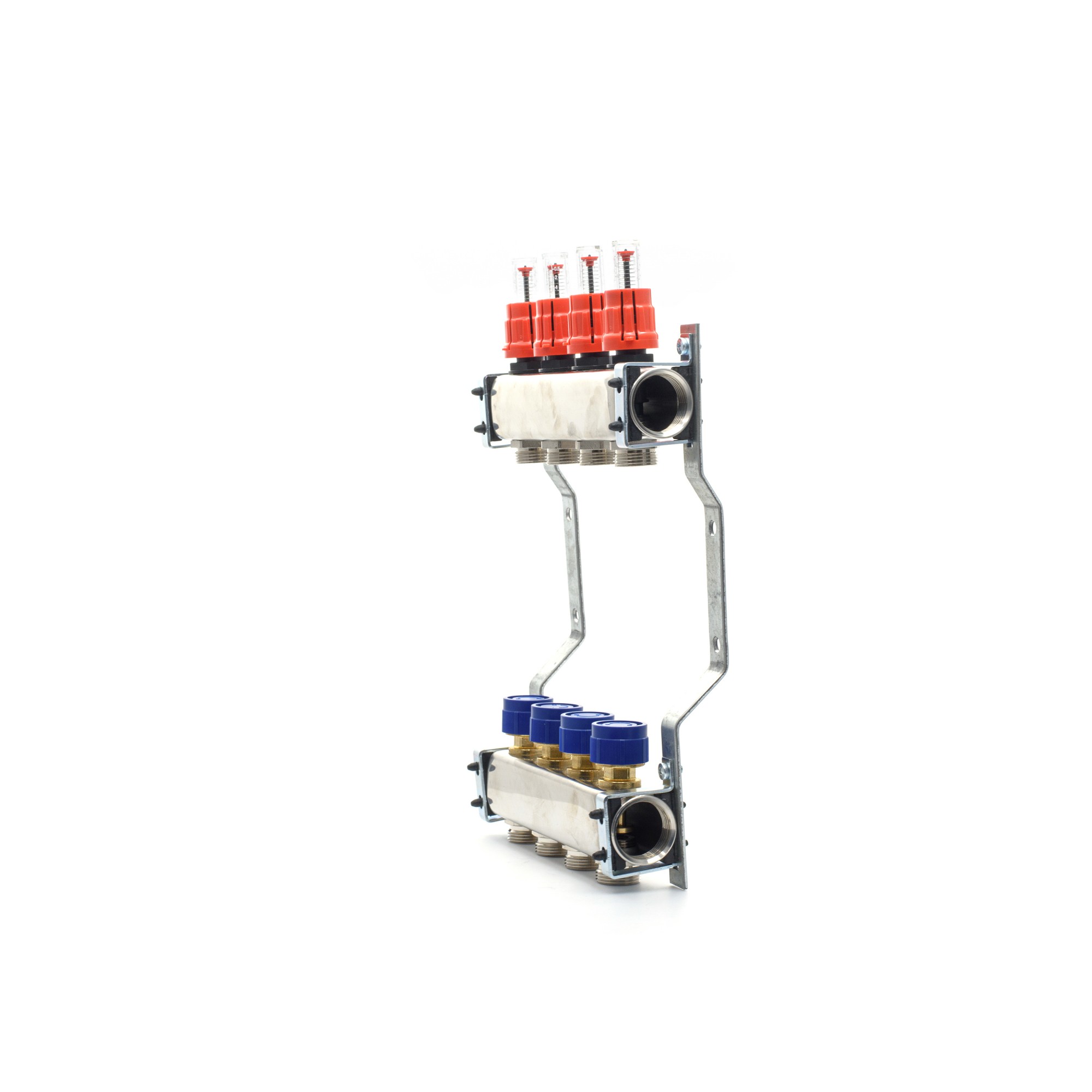

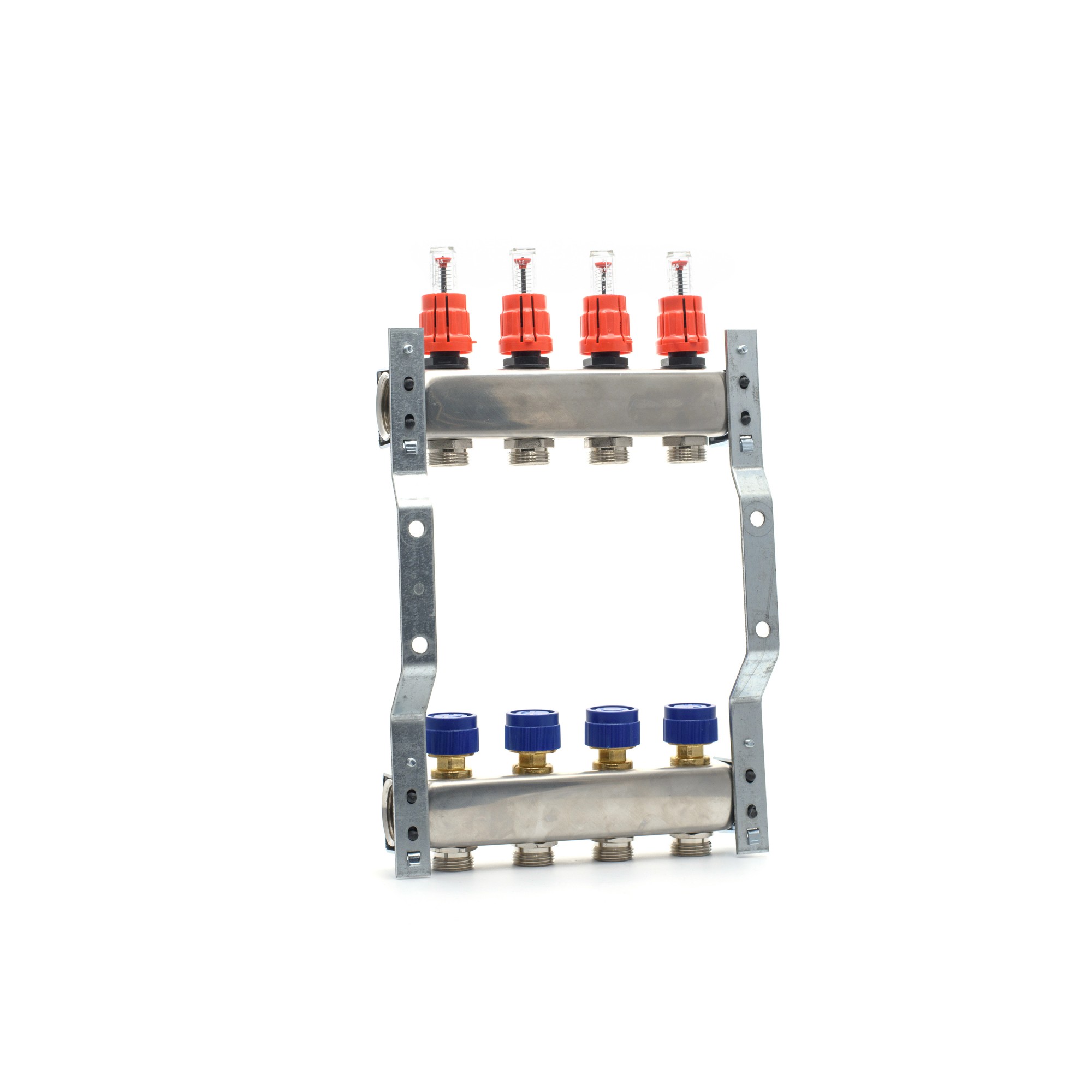

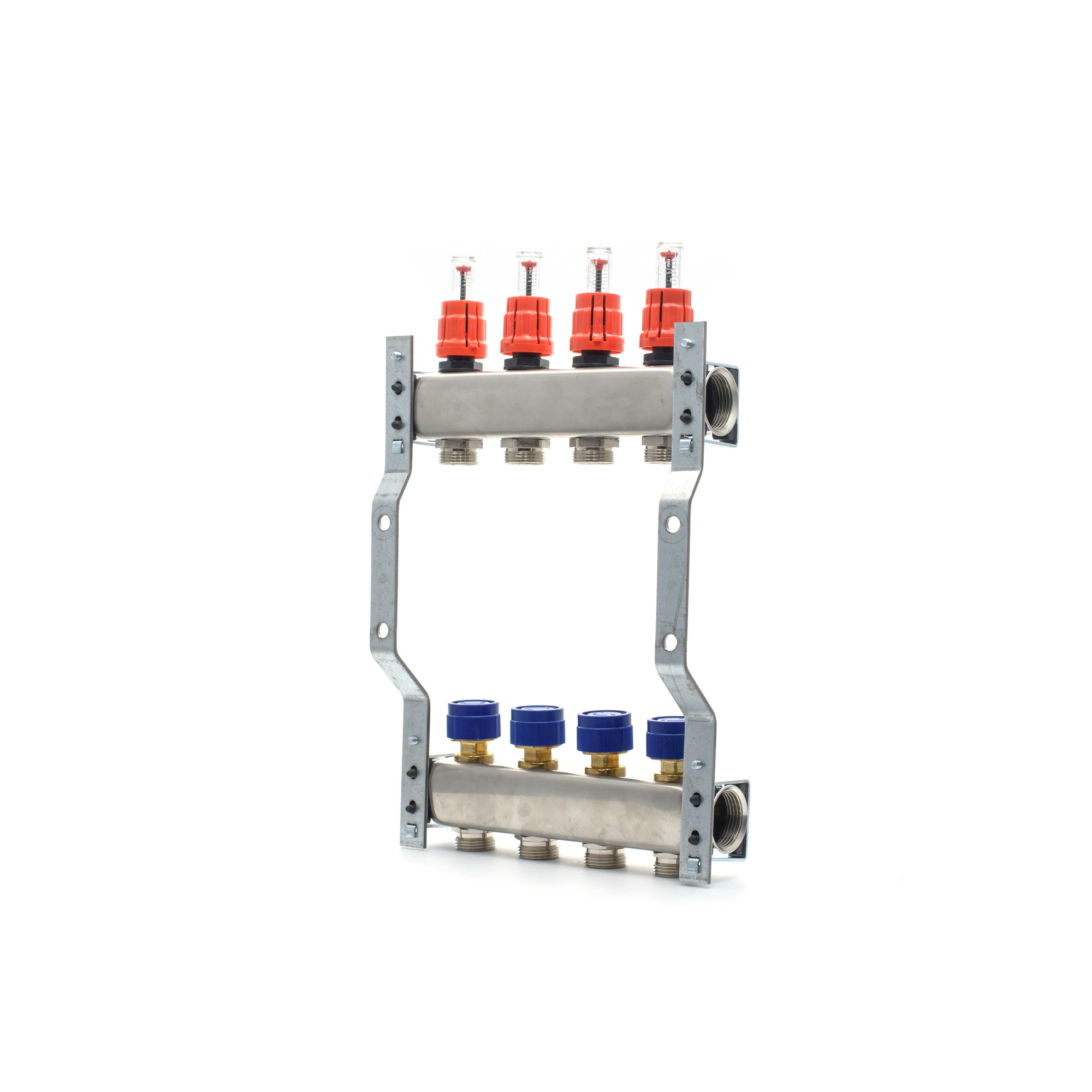

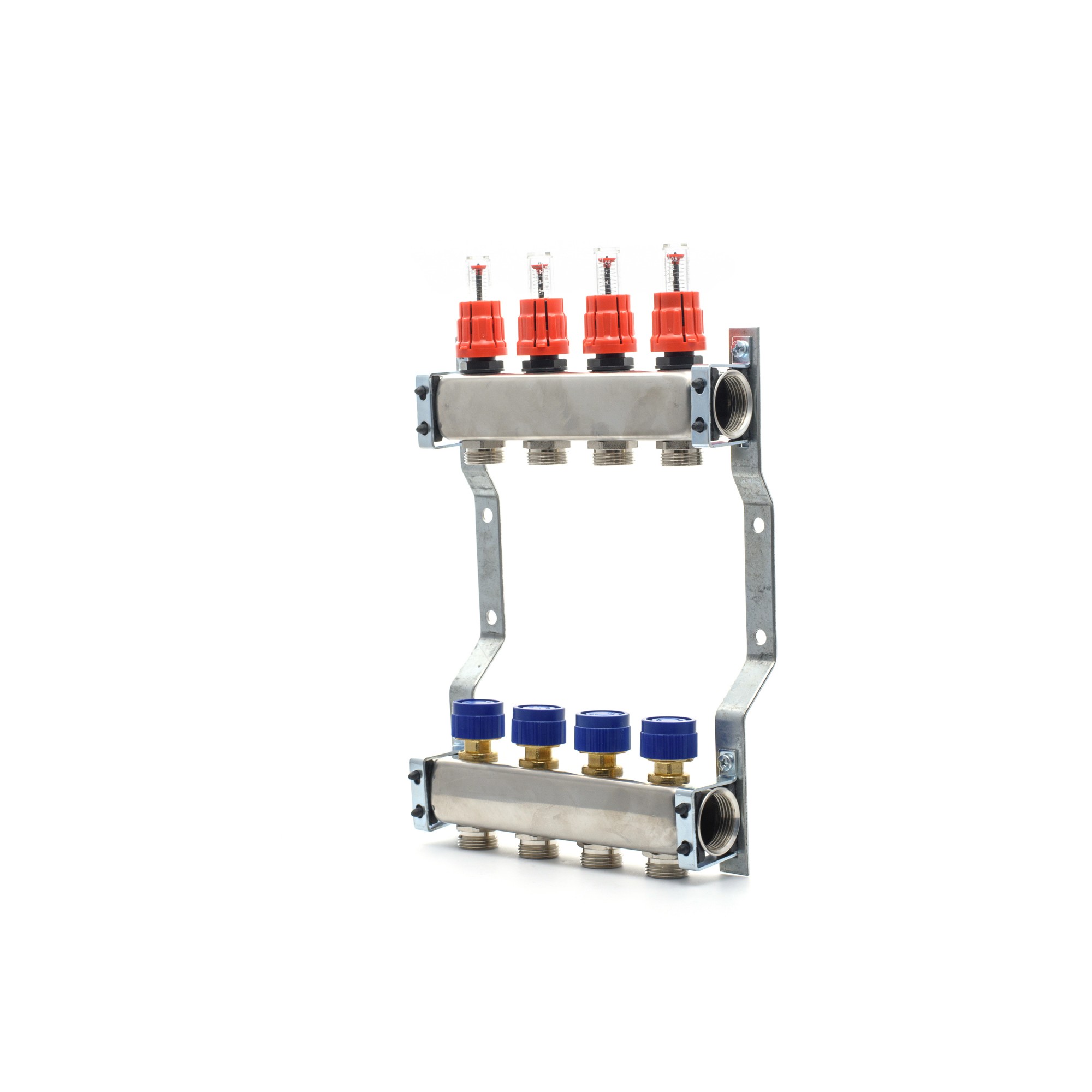

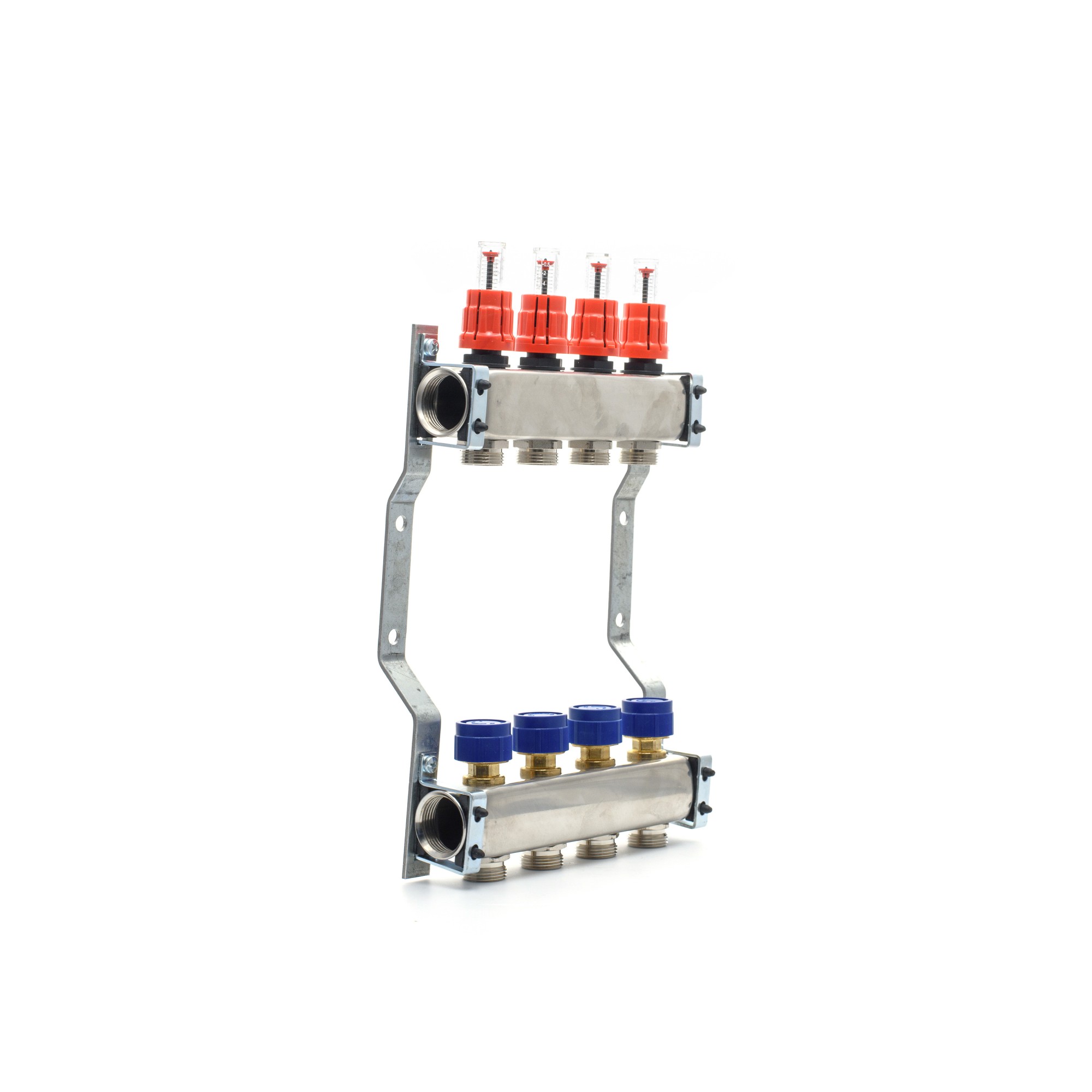

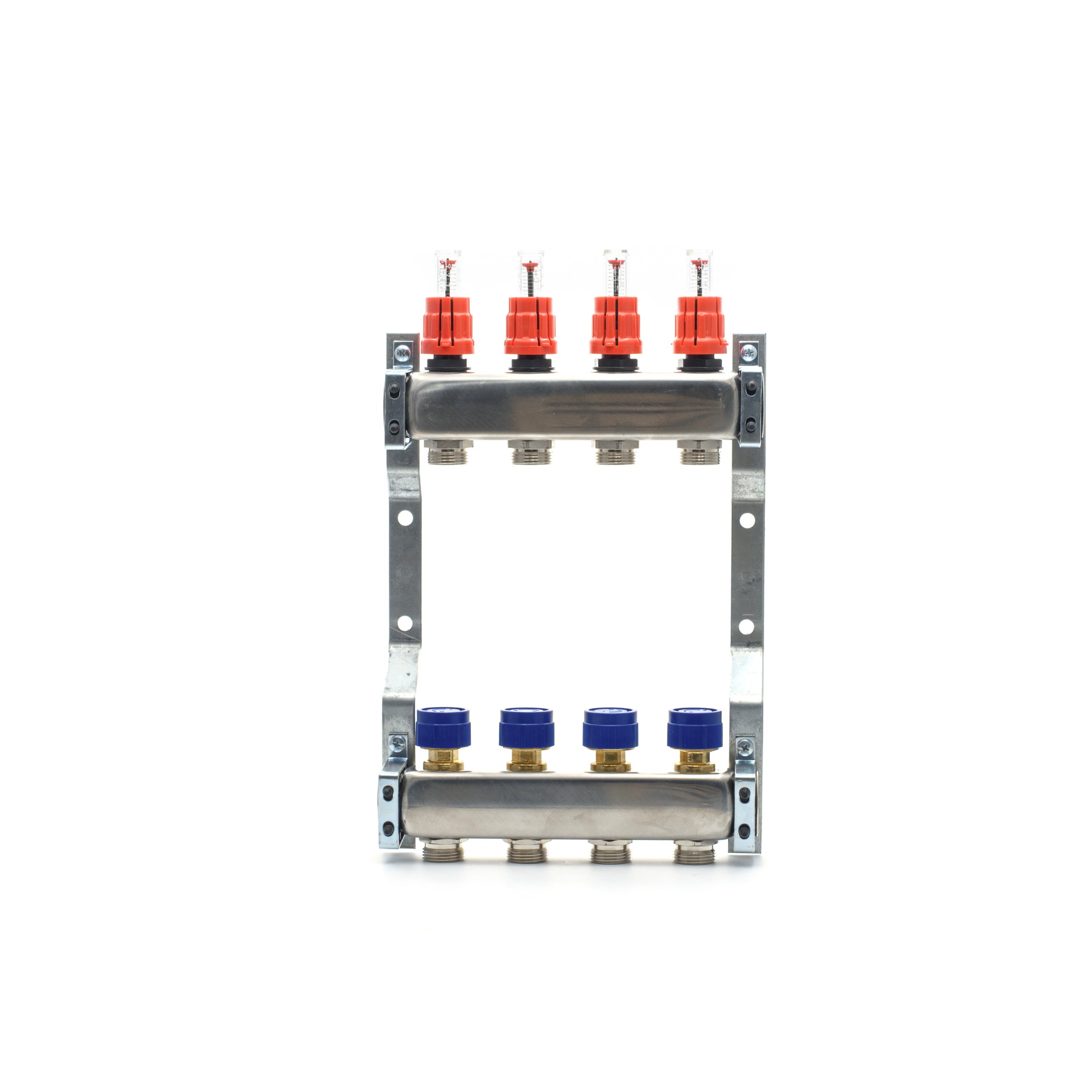

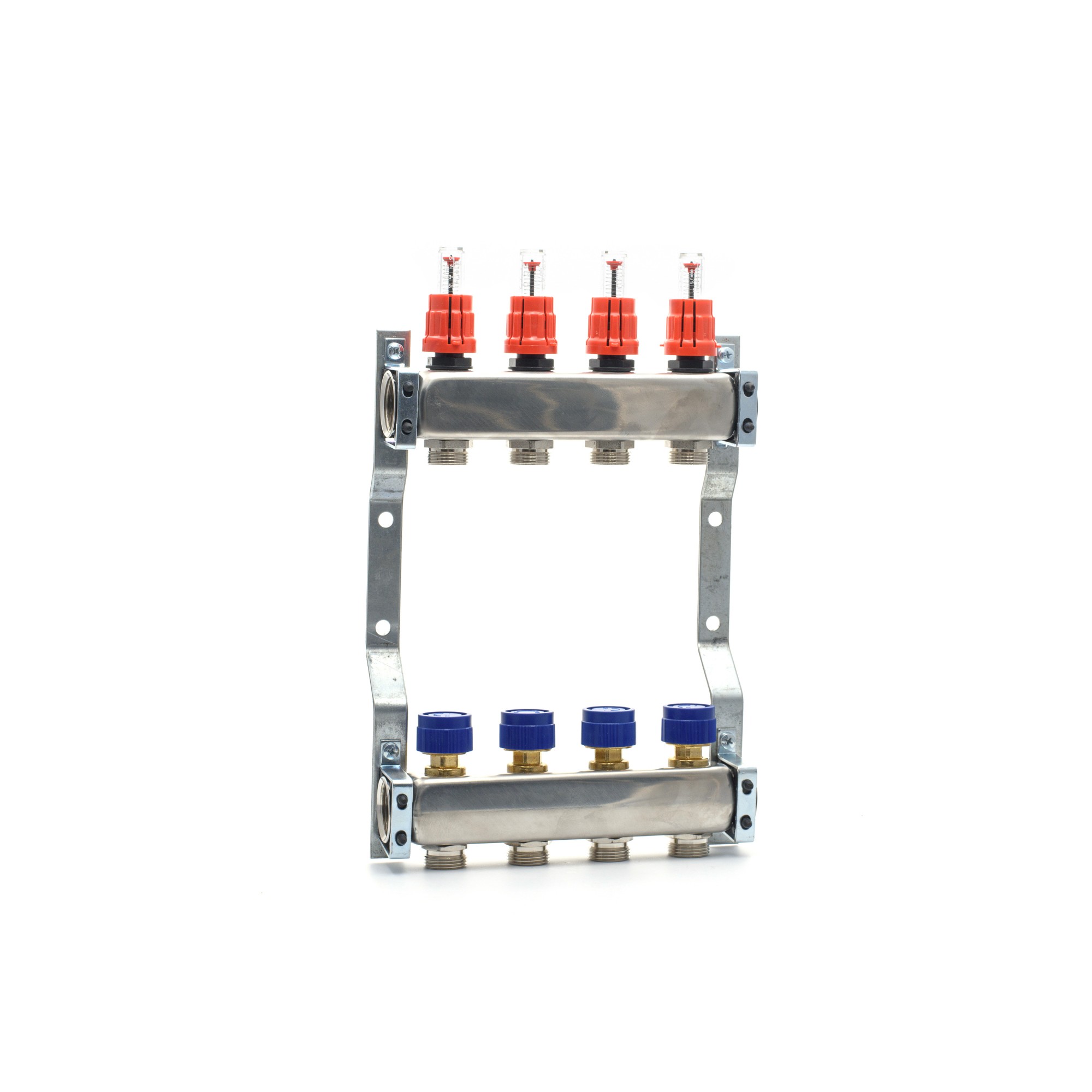

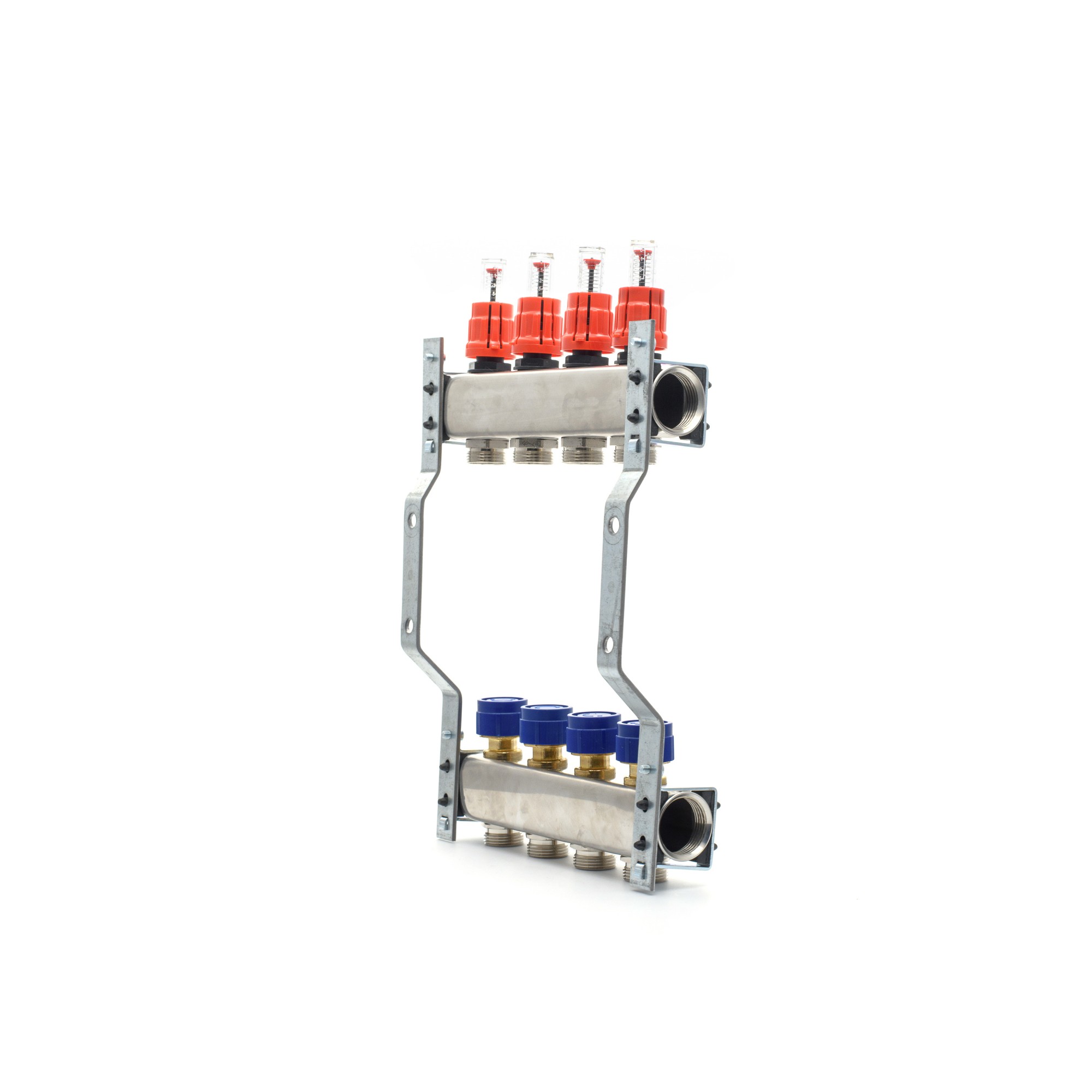

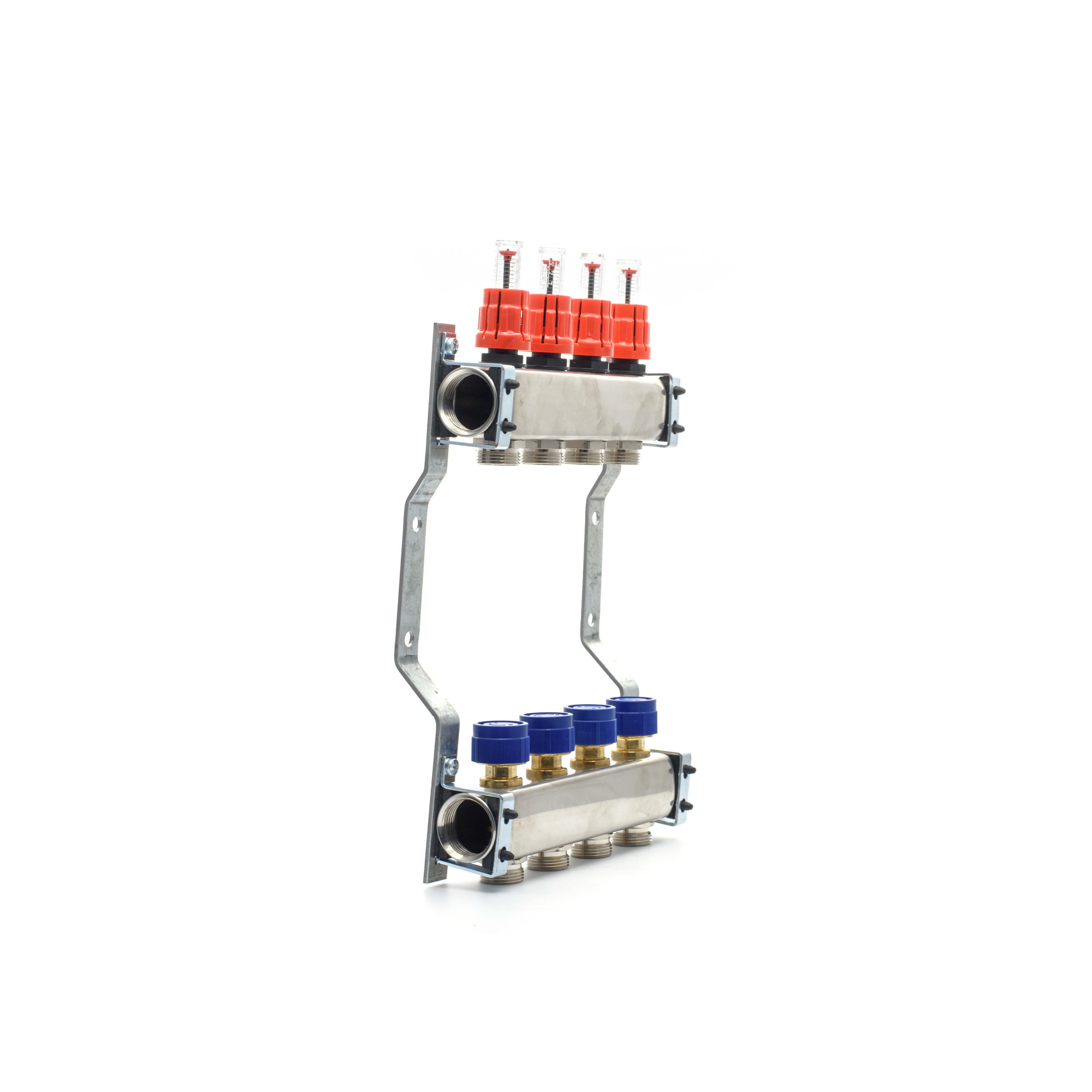

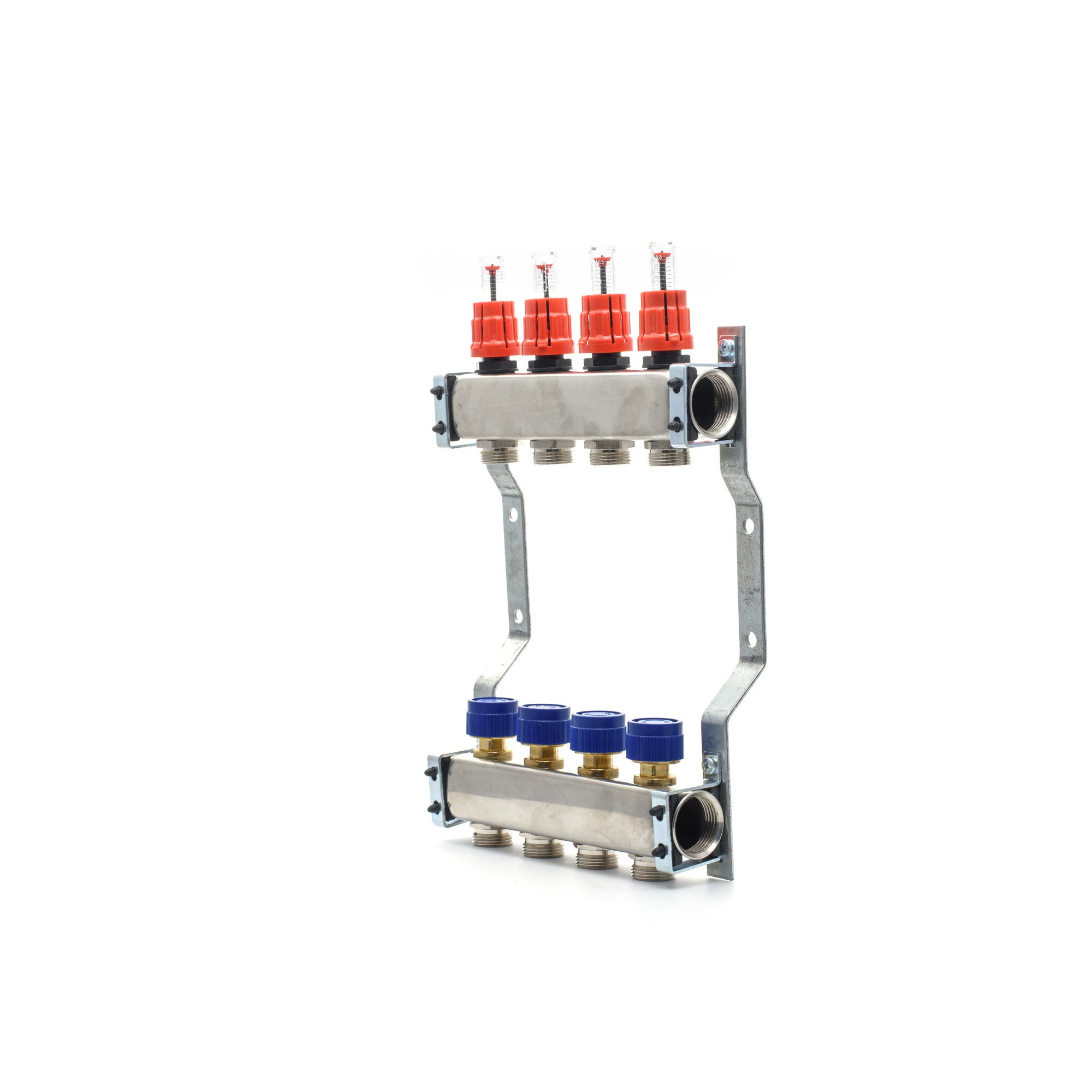

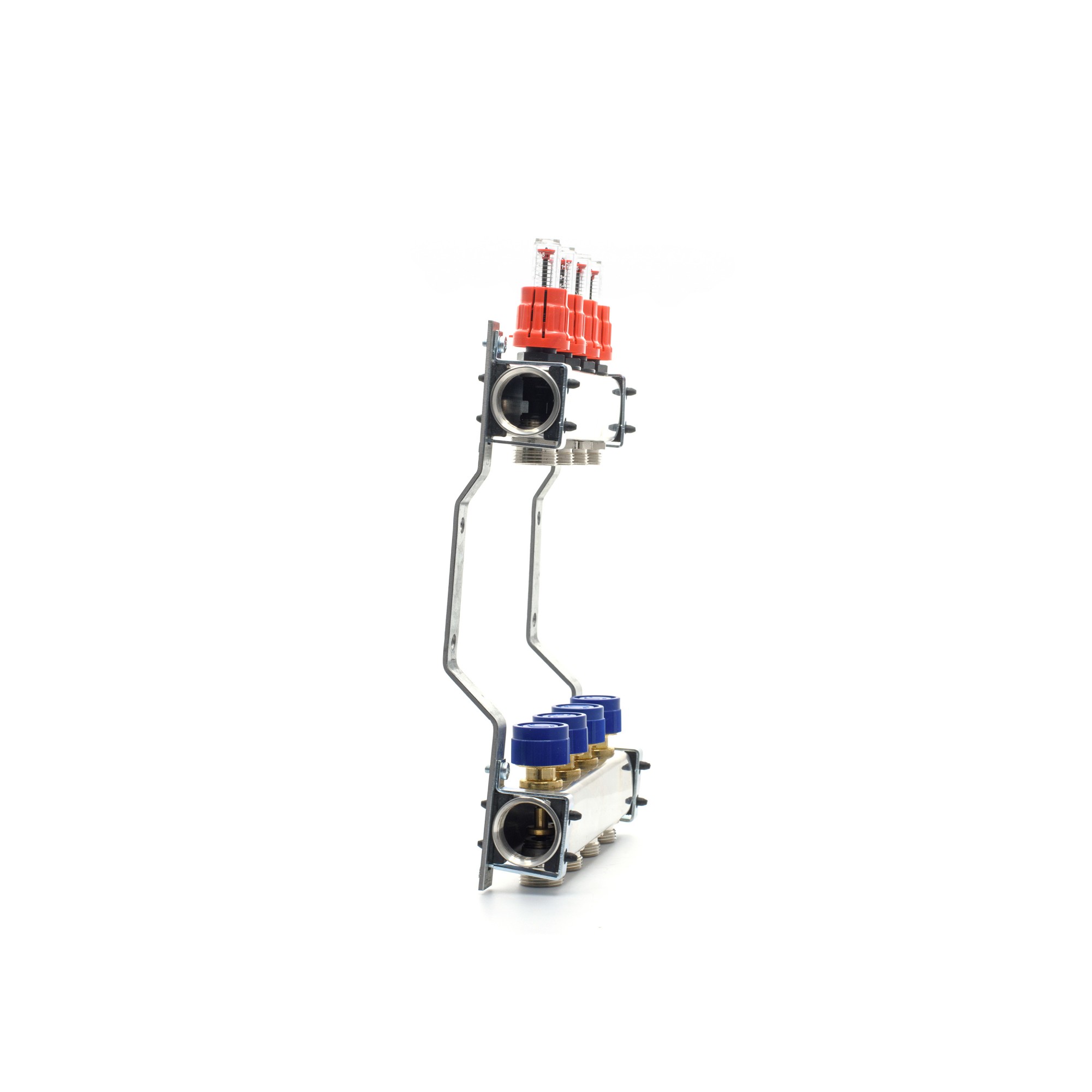

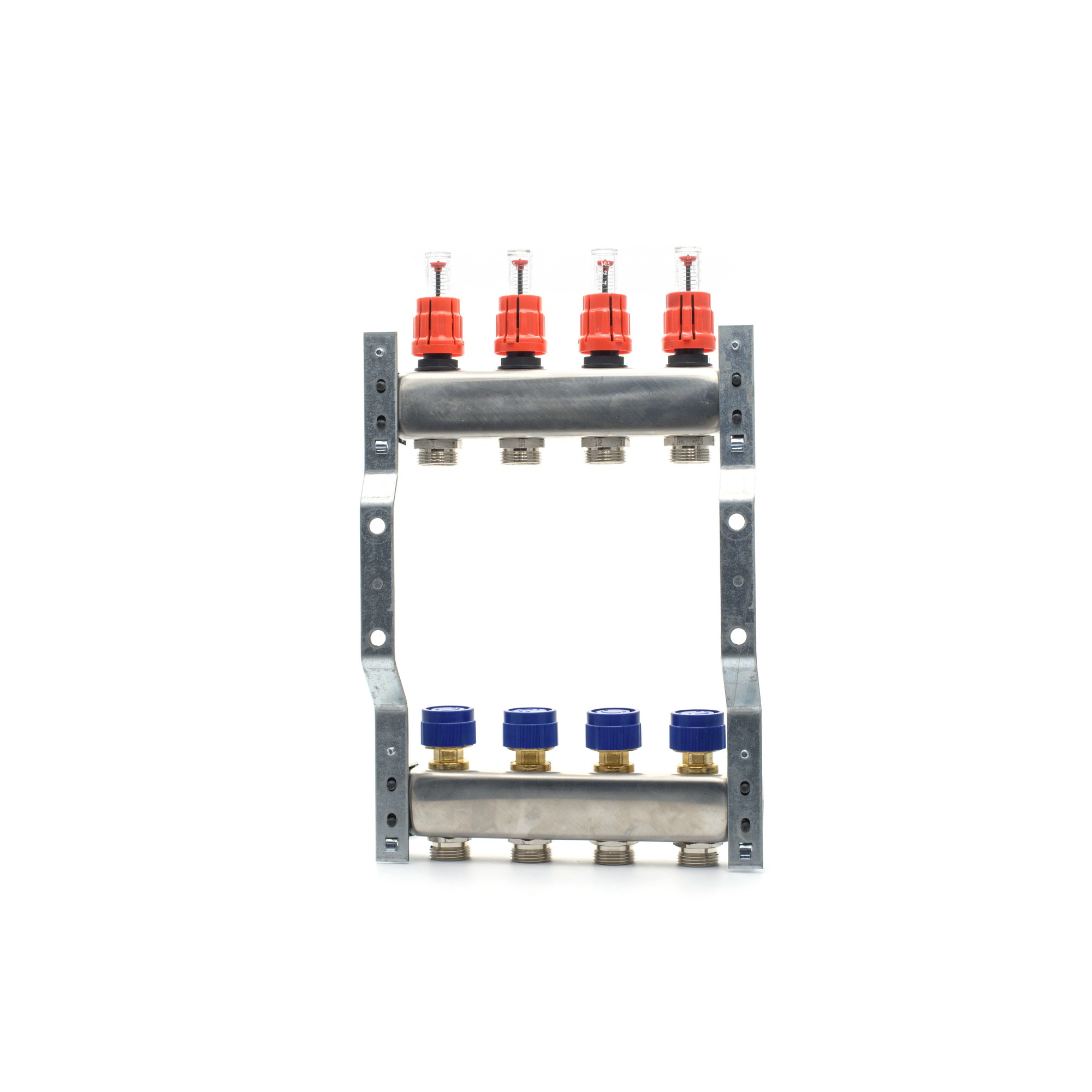

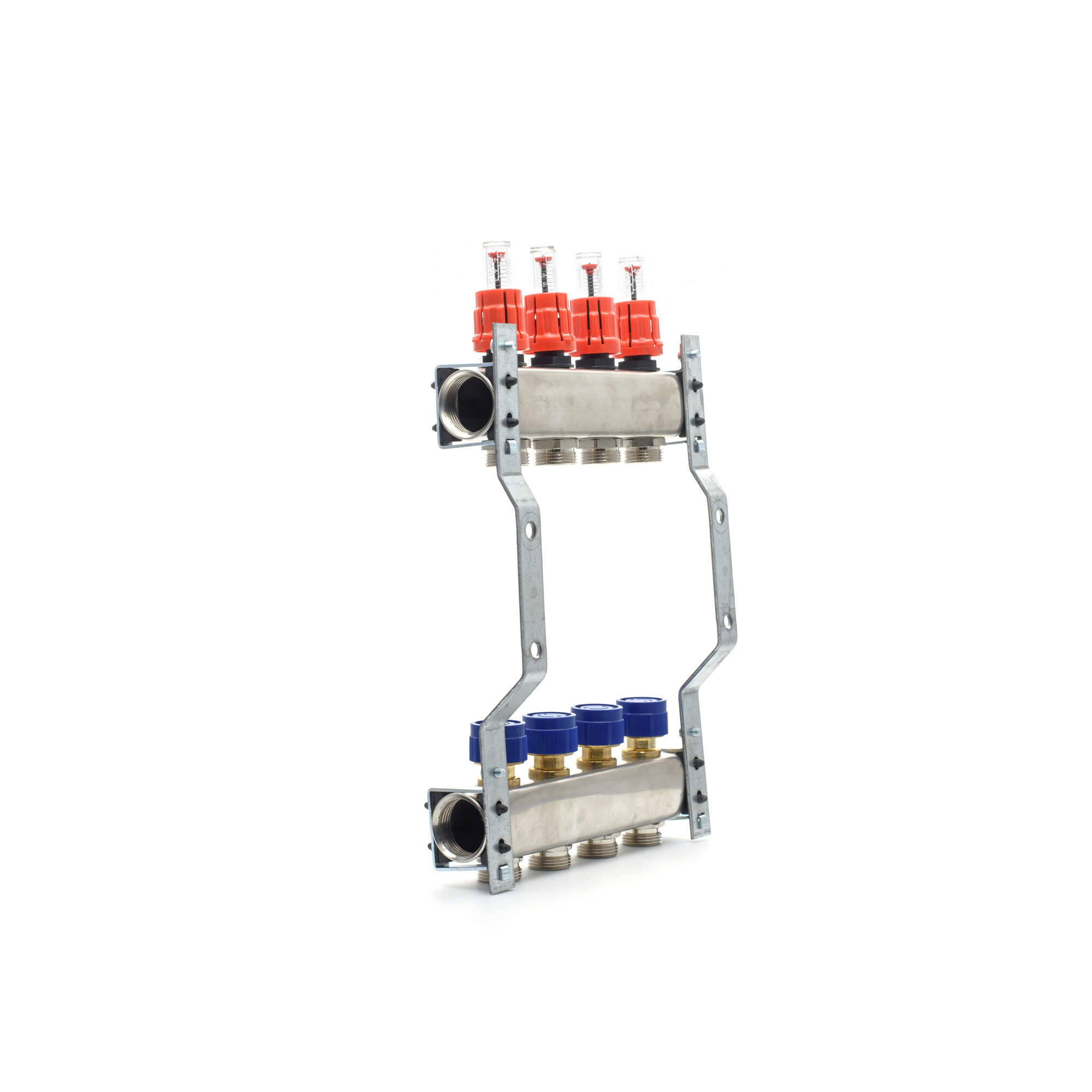

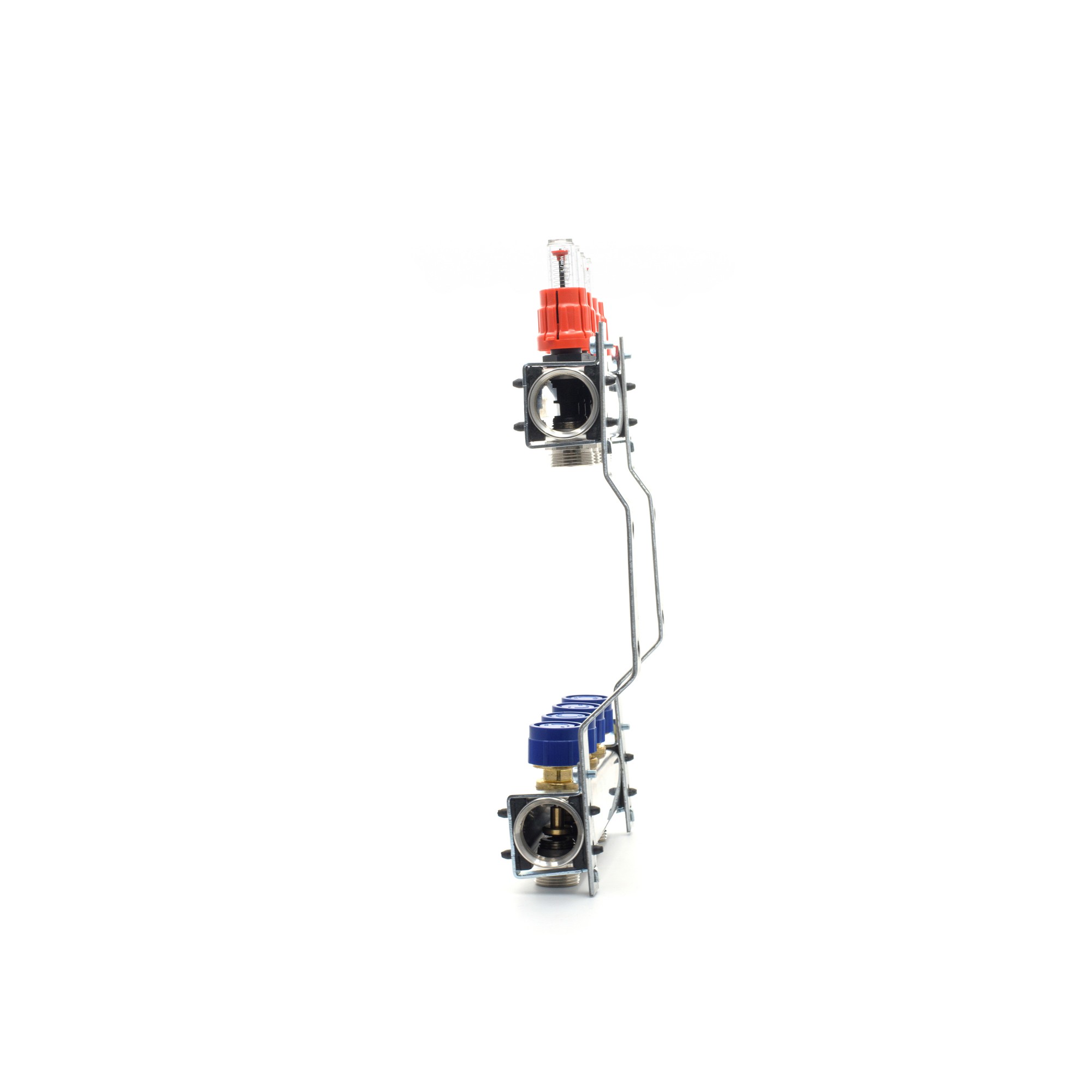

Manifold consist of:
- steal beams with hole spacing 50 mm
- flowmeters
- thermostatic vavles
- 1/2"nipples
- 1" blanking plug
- 2 mounting brackets lenght 235 mm or 210 mm
* Ability to apply a 2.5 litres flowmeter
| Characteristic/Dimensions (mm) | Packing system | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Index | Heating loops | G Diameter of accessories connector |
L Beam spacing |
H | M | N | K | S Diameter of beam port |
J | Net weight/pcs (g) | Single pack | Pallet |
| F-2061778 | 2 | 1/2” | 235/210 | 369 | 125 | 50 | 25 | 1" | 28 | 1420 | 1 | 100 |
| F-2061785 | 3 | 1/2” | 235/210 | 369 | 175 | 50 | 25 | 1" | 28 | 1810 | 1 | 100 |
| F-2061792 | 4 | 1/2” | 235/210 | 369 | 225 | 50 | 25 | 1" | 28 | 2240 | 1 | 100 |
| F-2061808 | 5 | 1/2” | 235/210 | 369 | 275 | 50 | 25 | 1" | 28 | 2630 | 1 | 100 |
| F-2061815 | 6 | 1/2” | 235/210 | 369 | 325 | 50 | 25 | 1" | 28 | 3080 | 1 | 60 |
| F-2061822 | 7 | 1/2” | 235/210 | 369 | 375 | 50 | 25 | 1" | 28 | 3420 | 1 | 60 |
| F-2061839 | 8 | 1/2” | 235/210 | 369 | 425 | 50 | 25 | 1" | 28 | 3870 | 1 | 60 |
| F-2061846 | 9 | 1/2” | 235/210 | 369 | 475 | 50 | 25 | 1" | 28 | 4260 | 1 | 48 |
| F-2061853 | 10 | 1/2” | 235/210 | 369 | 525 | 50 | 25 | 1" | 28 | 4610 | 1 | 48 |
| F-2061860 | 11 | 1/2” | 235/210 | 369 | 575 | 50 | 25 | 1" | 28 | 5030 | 1 | 48 |
| F-2061877 | 12 | 1/2” | 235/210 | 369 | 625 | 50 | 25 | 1" | 28 | 5440 | 1 | 48 |
