product description

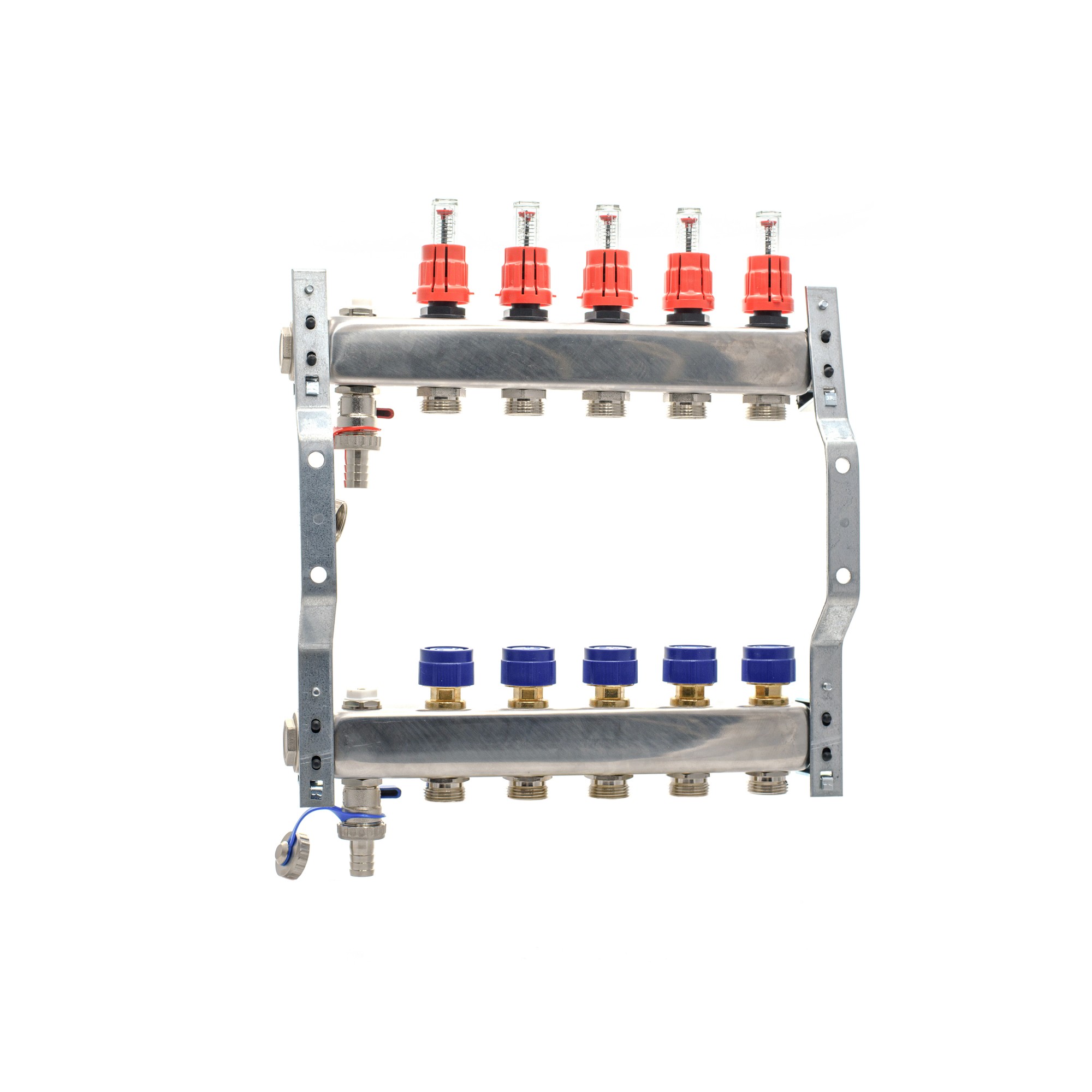

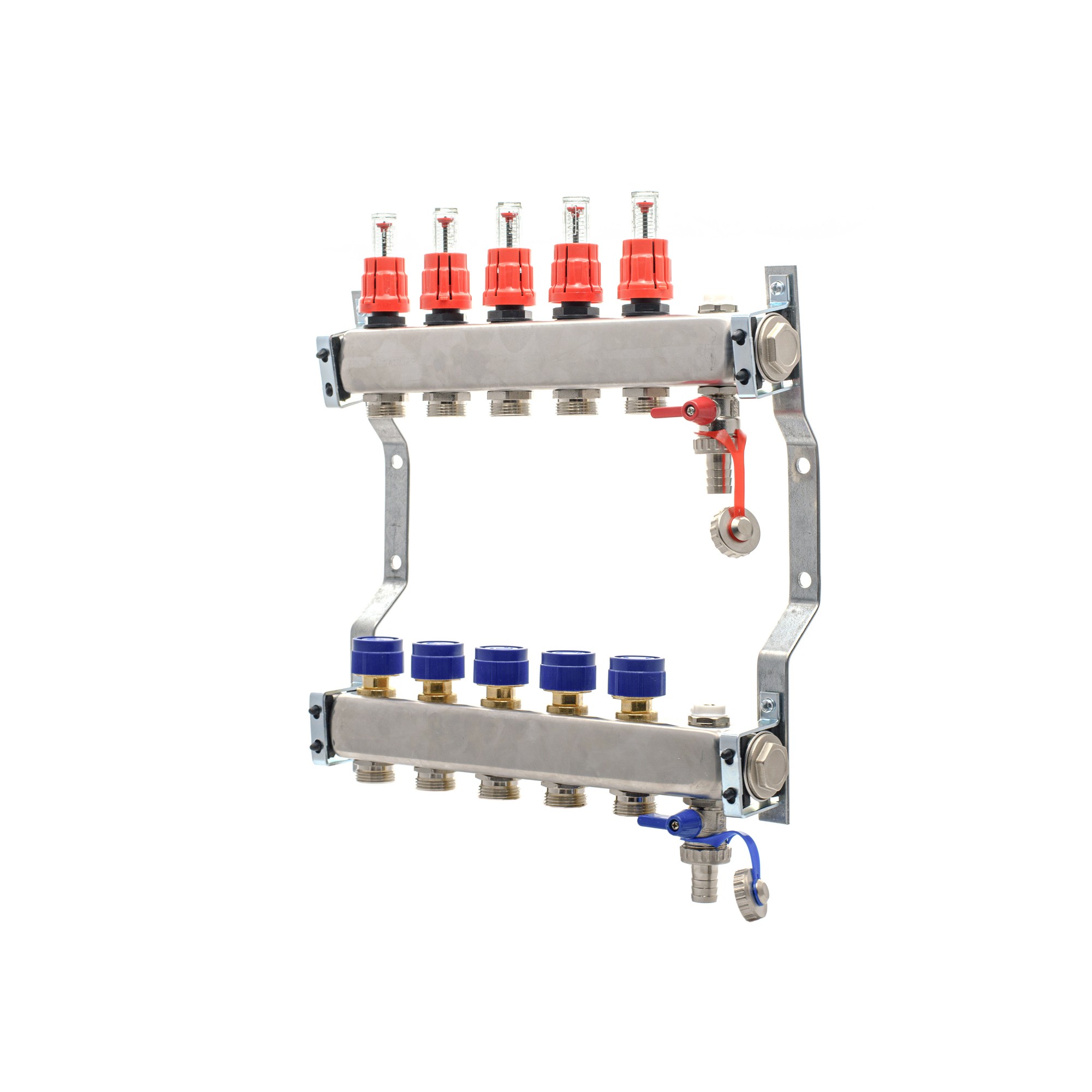

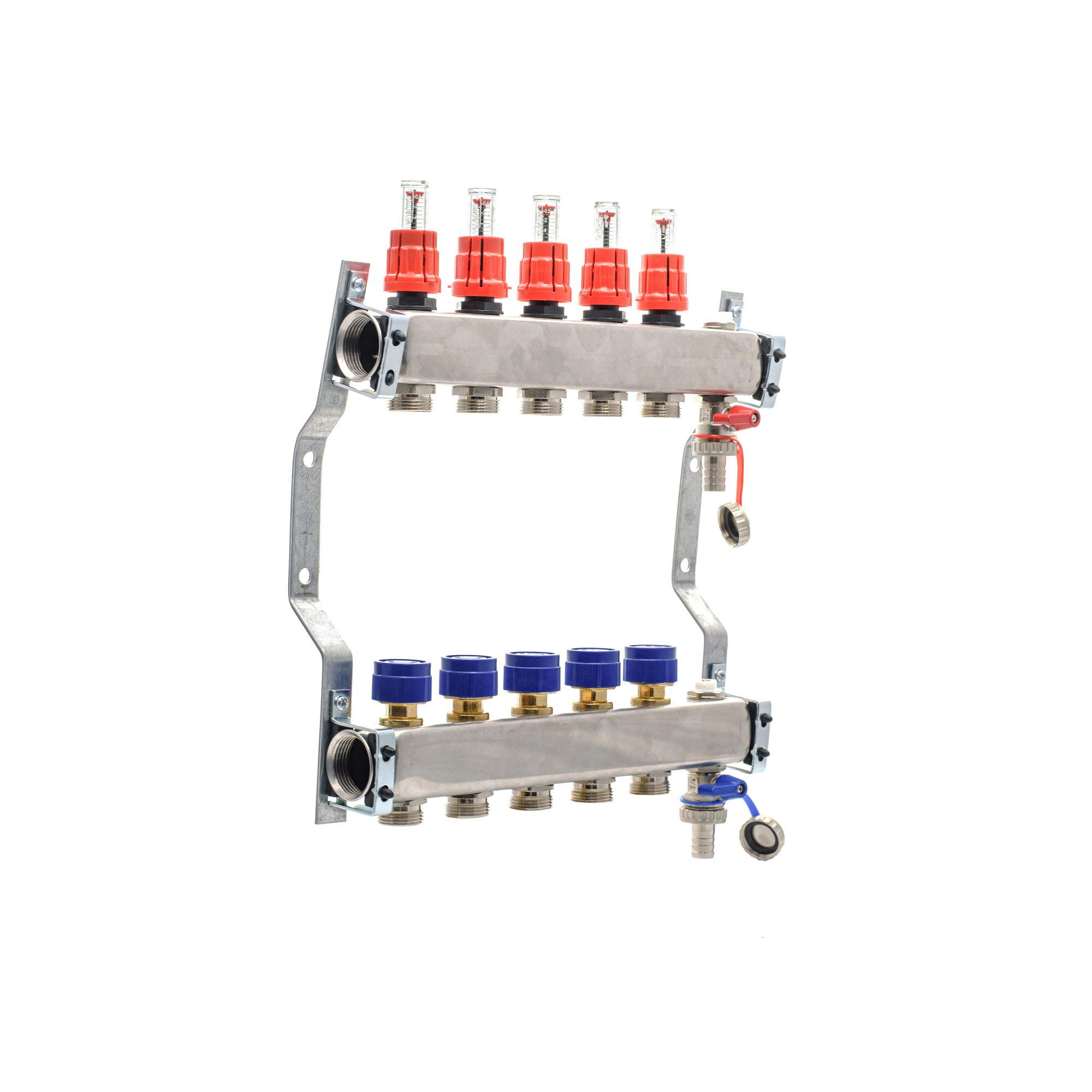

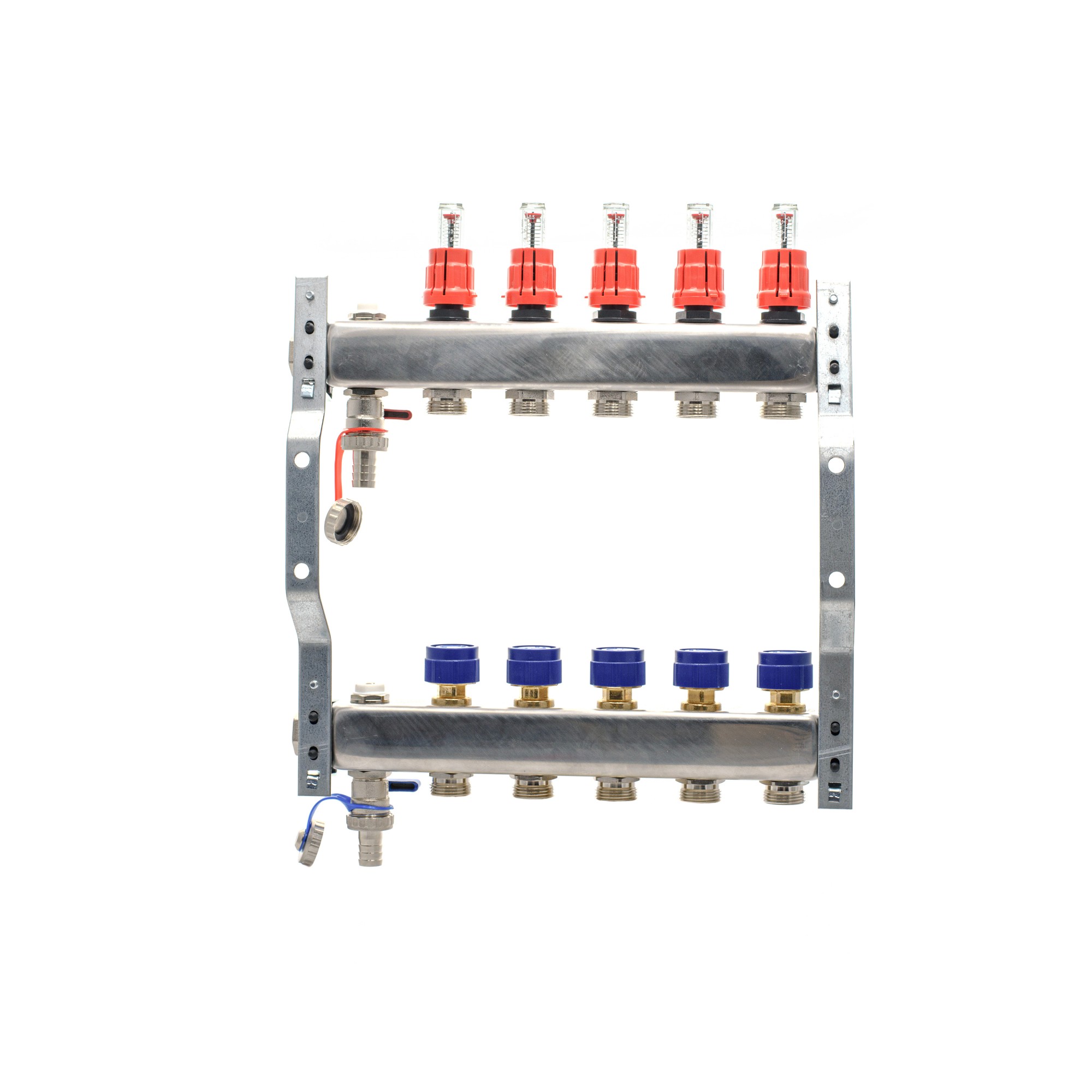

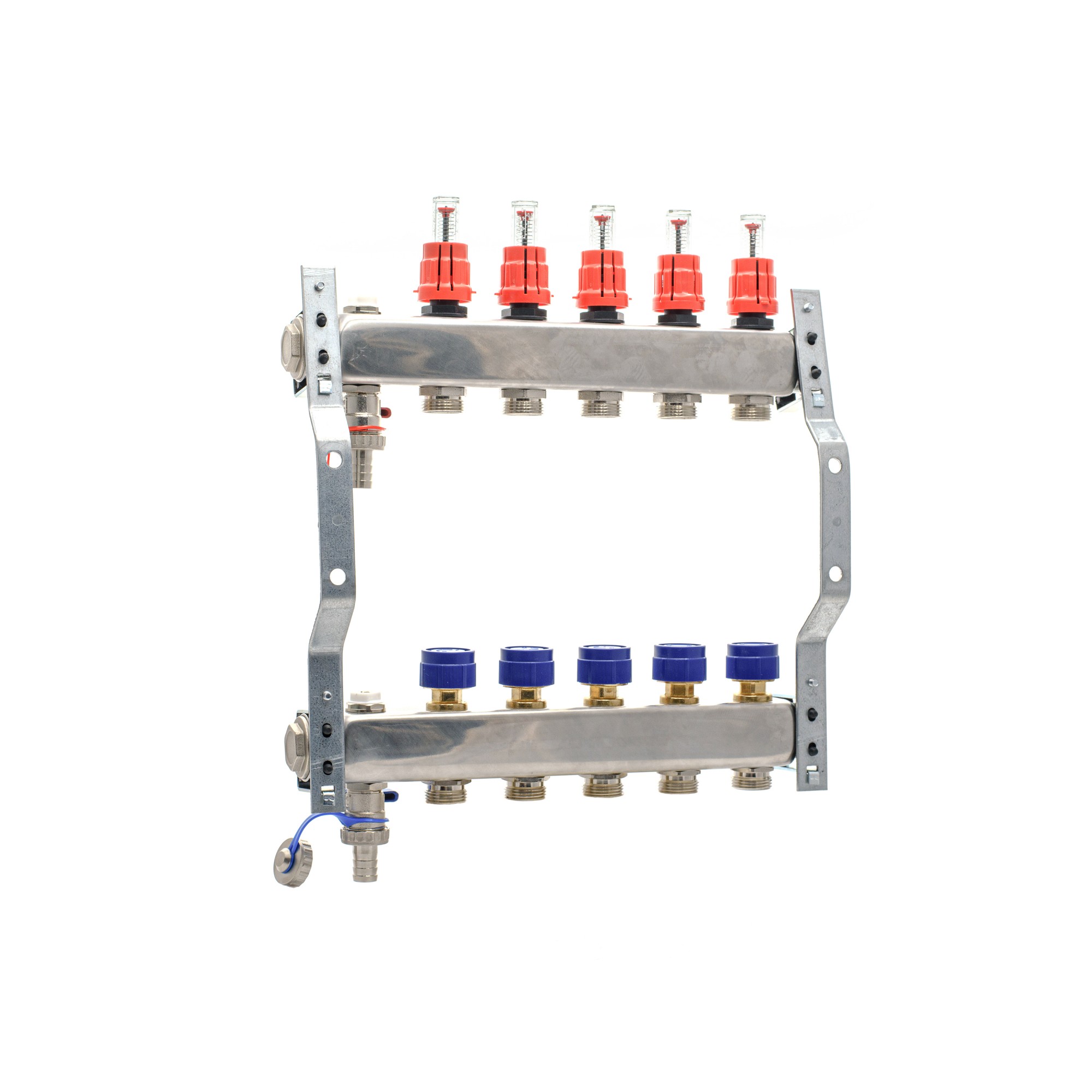

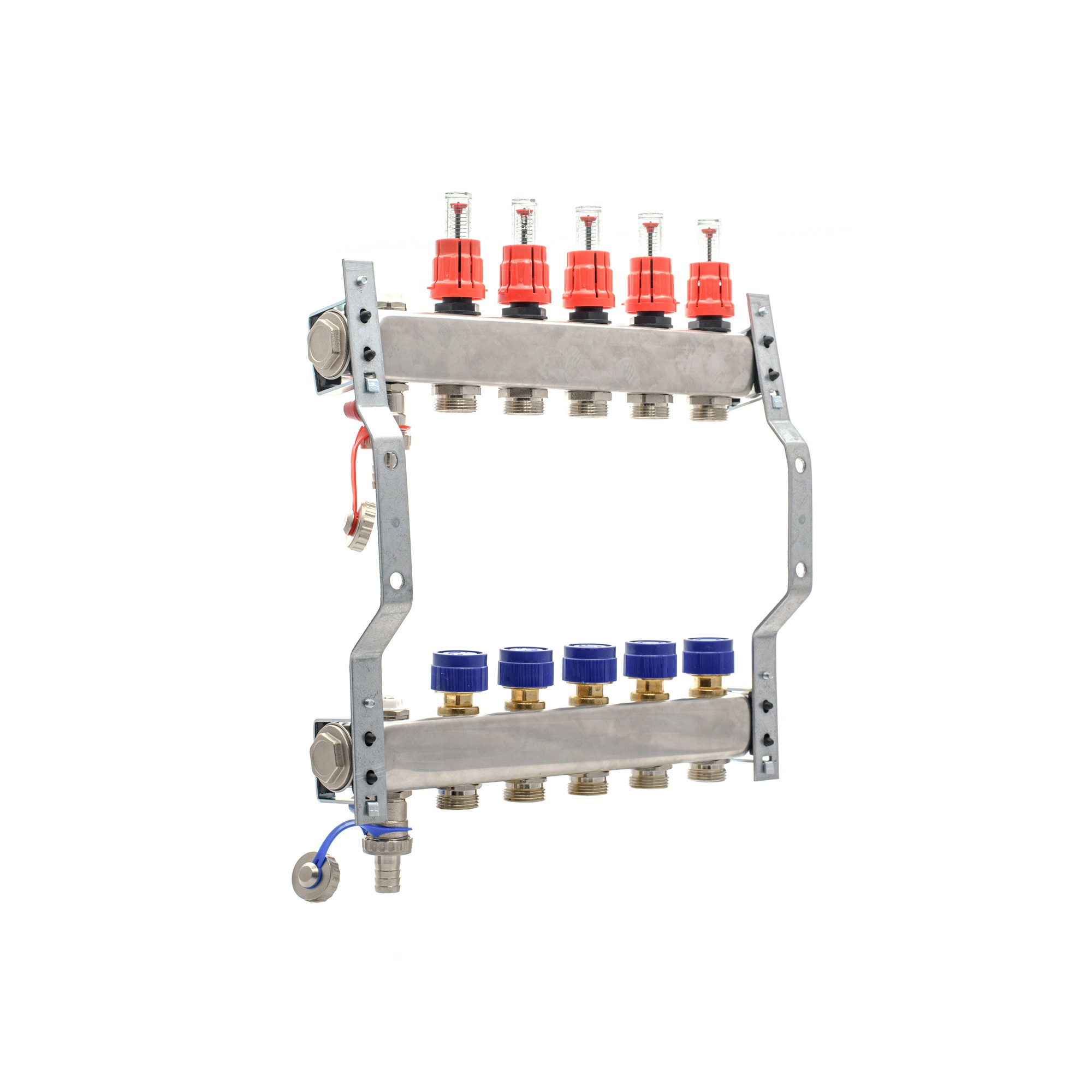

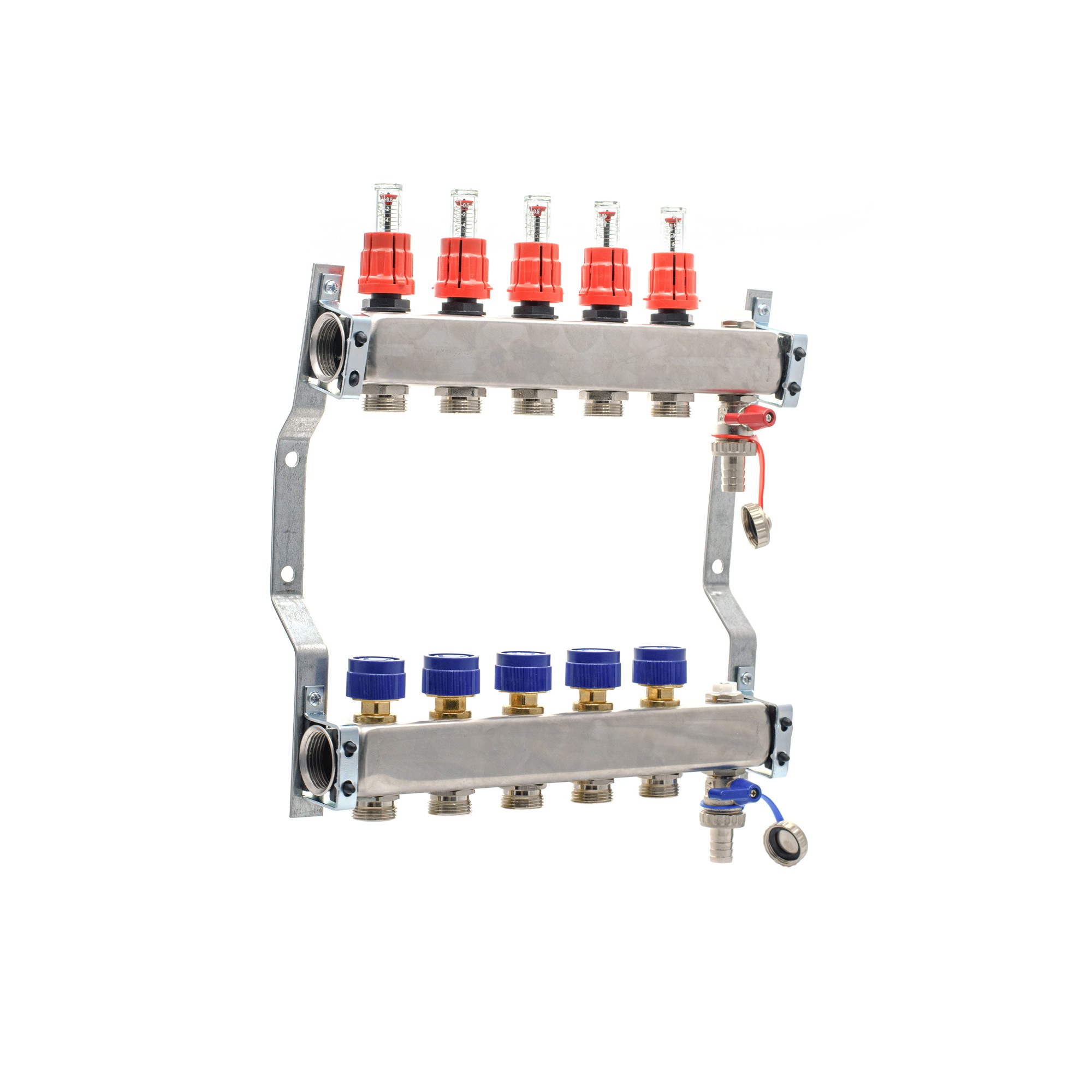

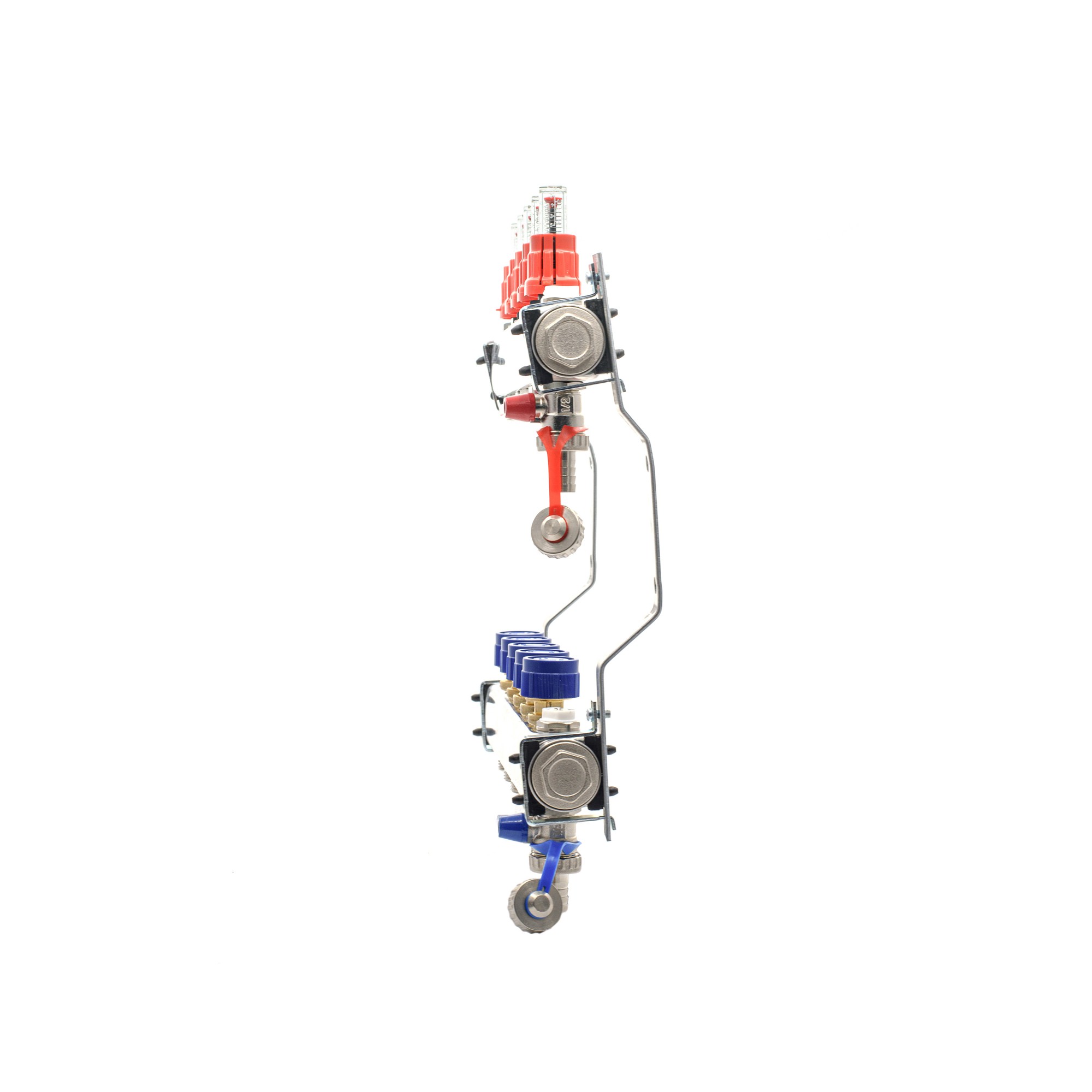

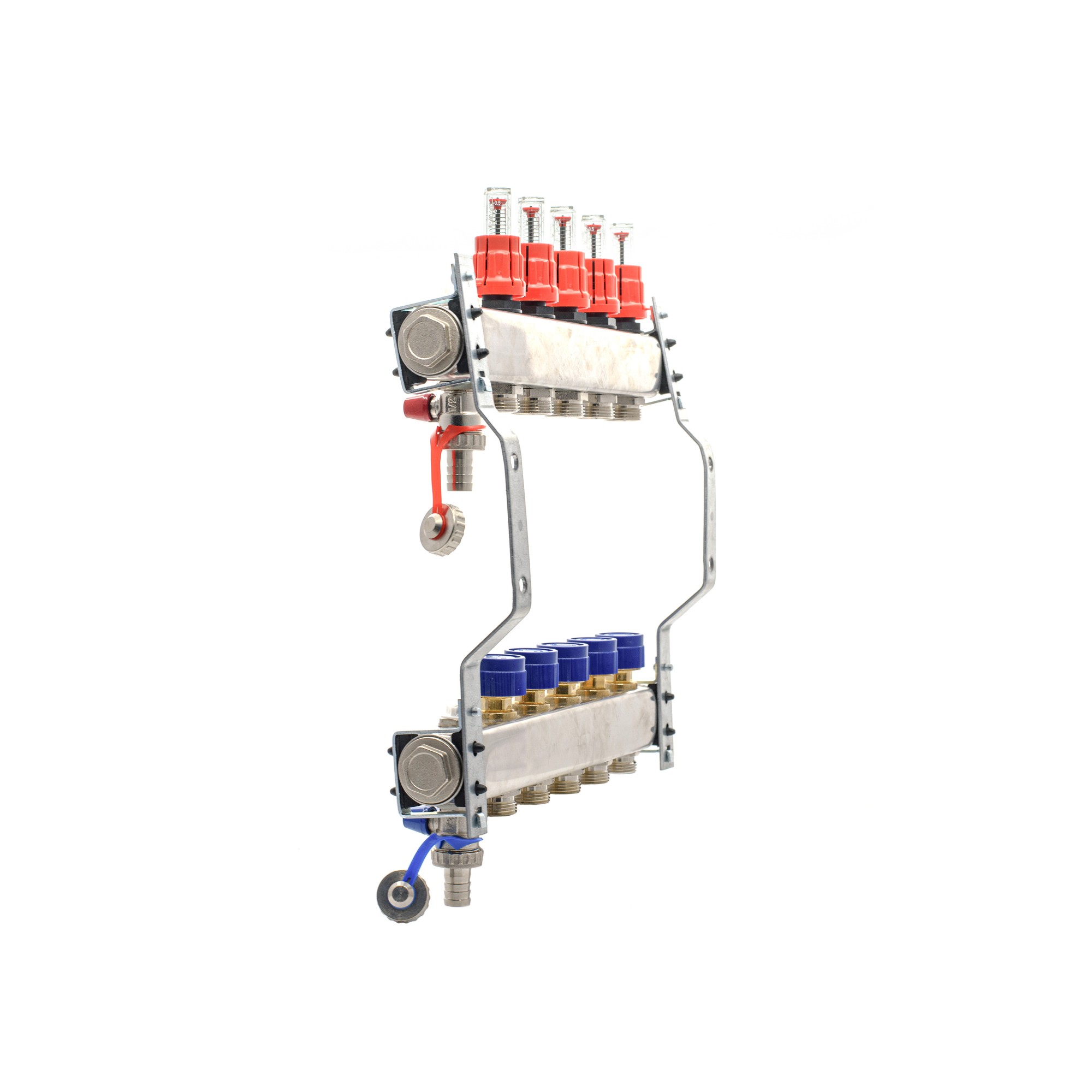

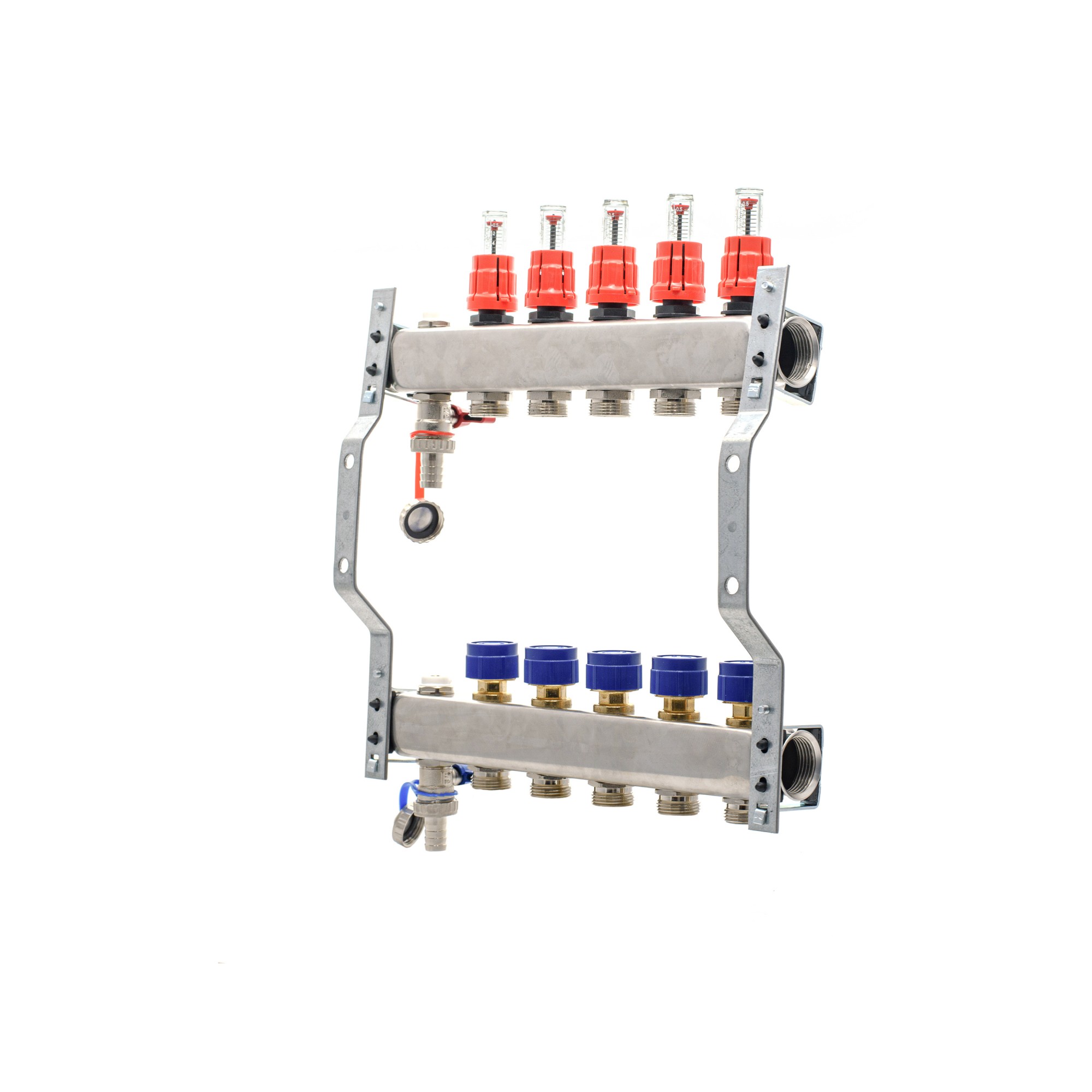

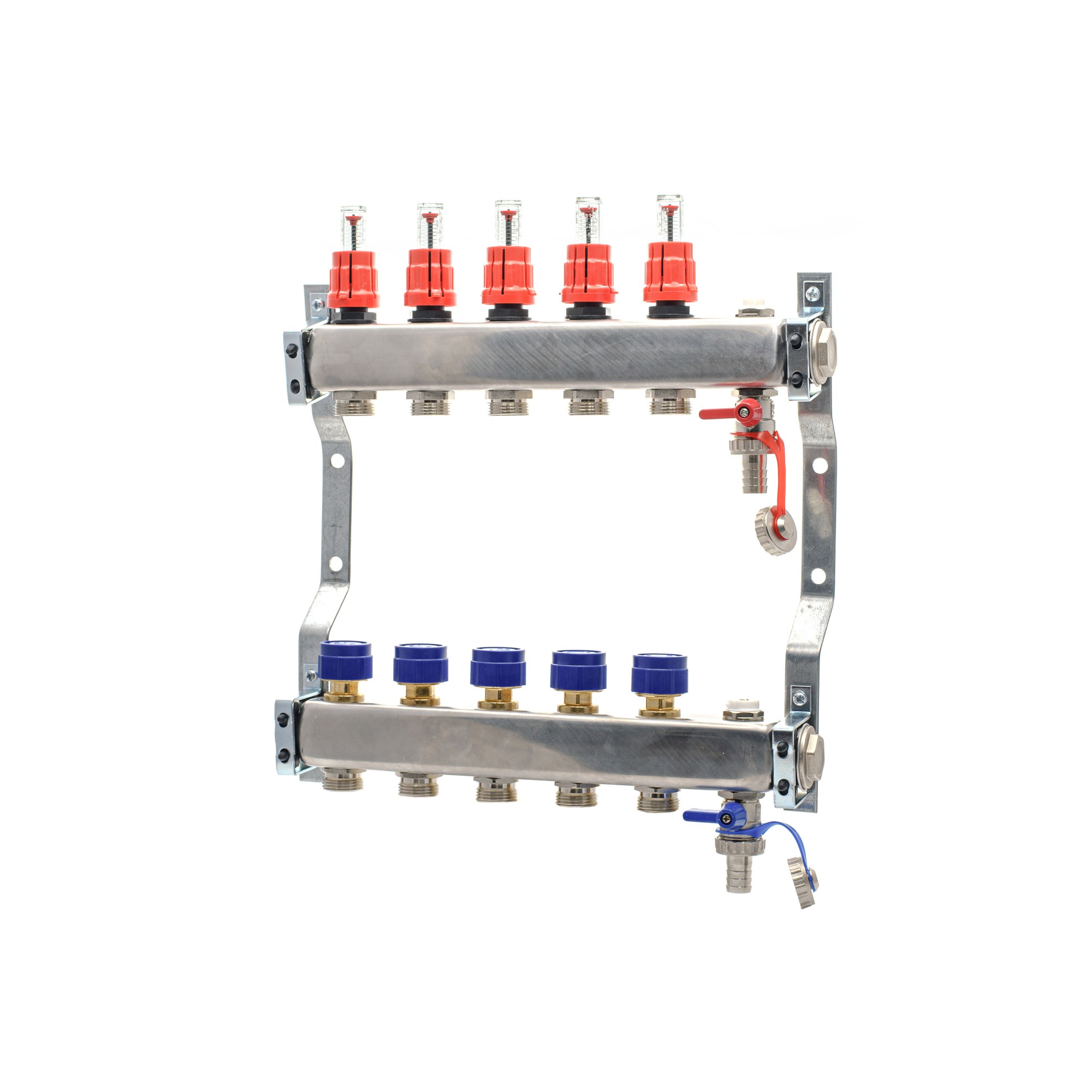

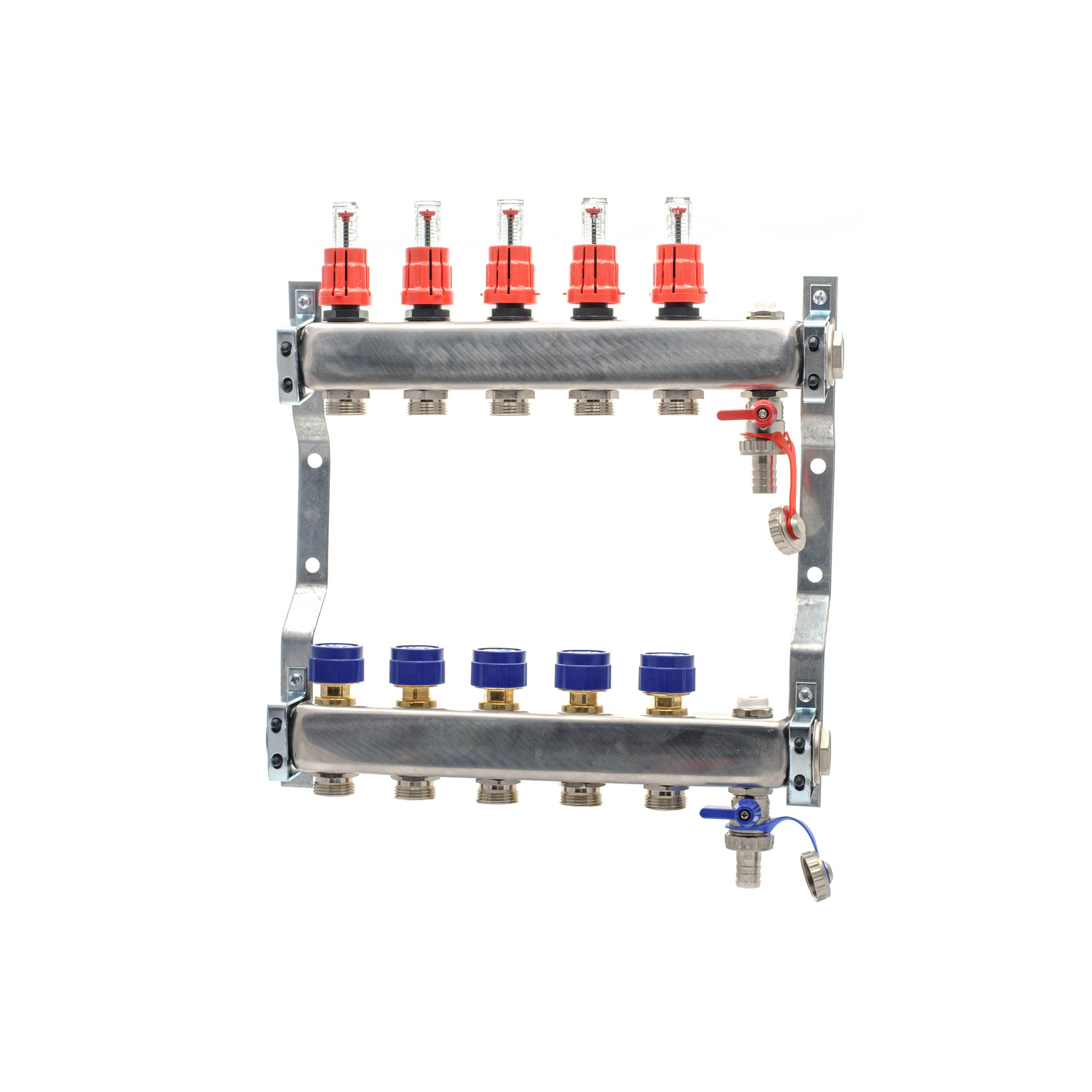

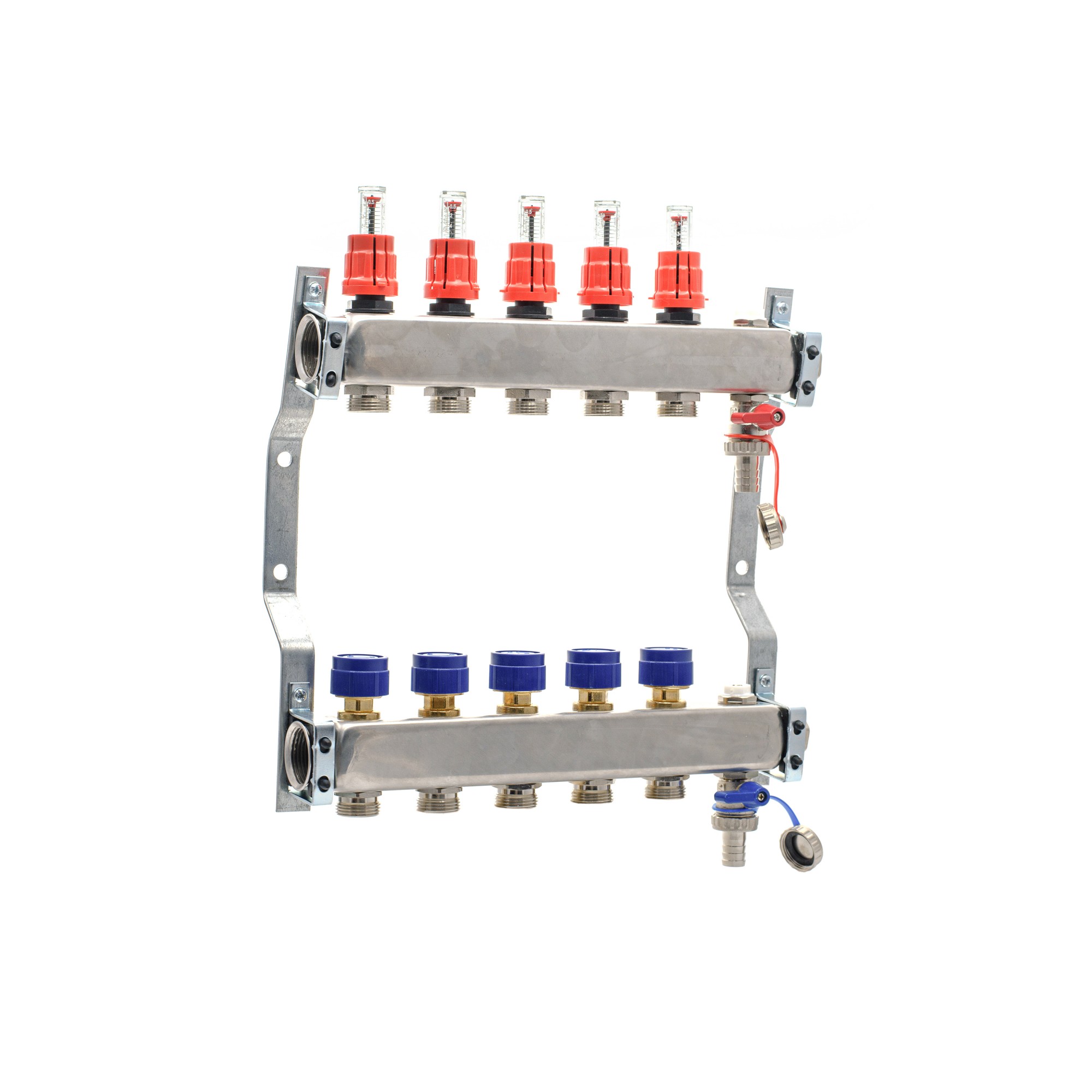

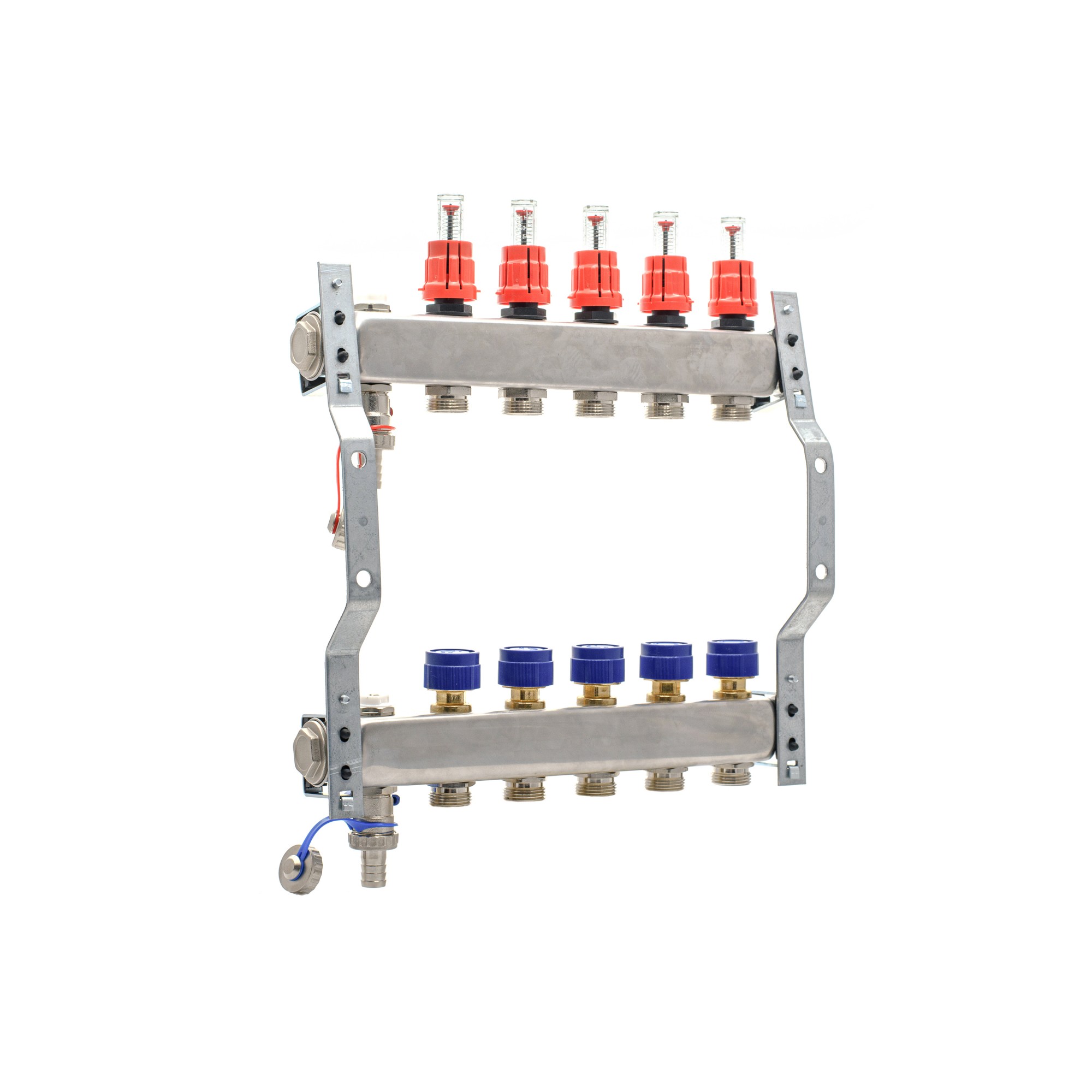

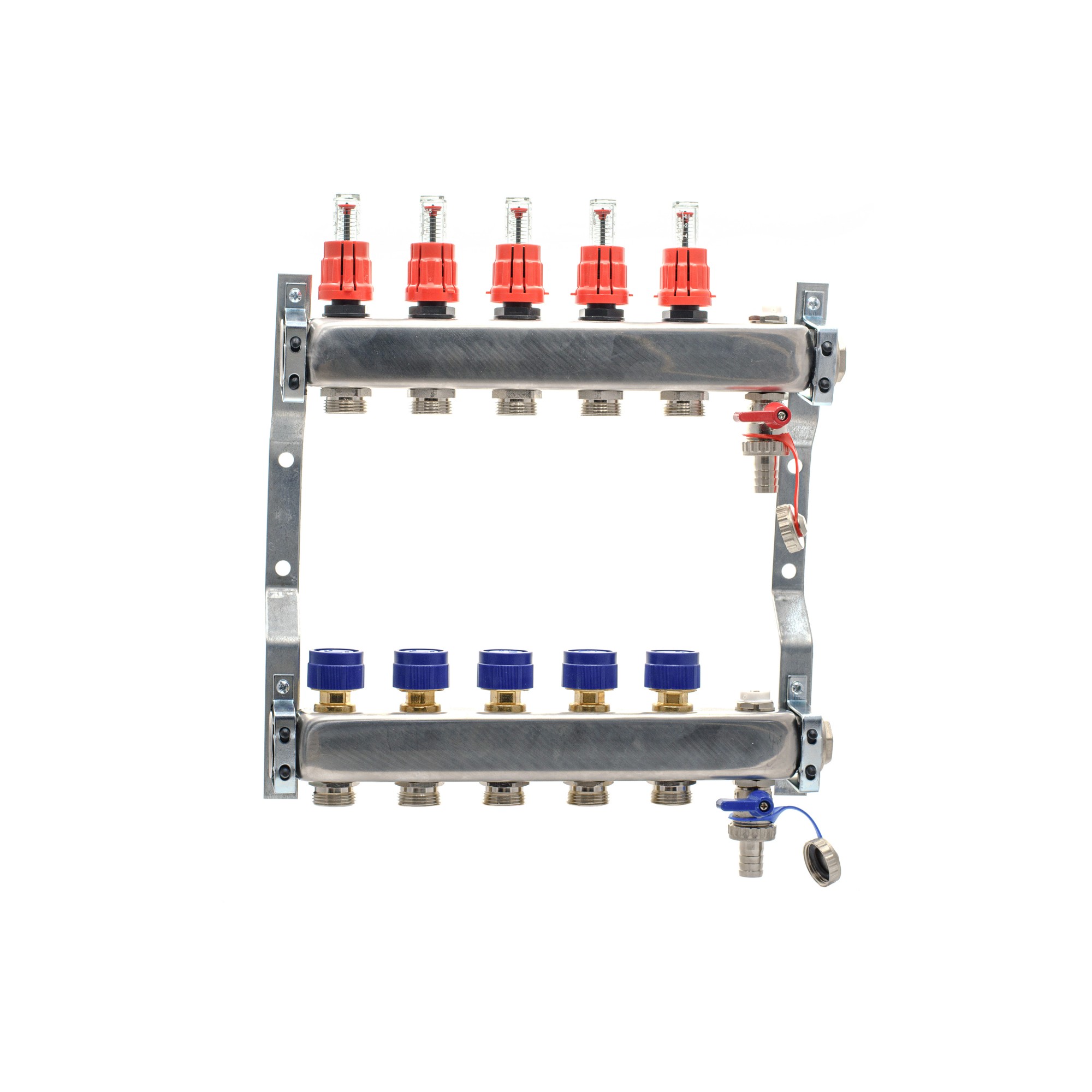

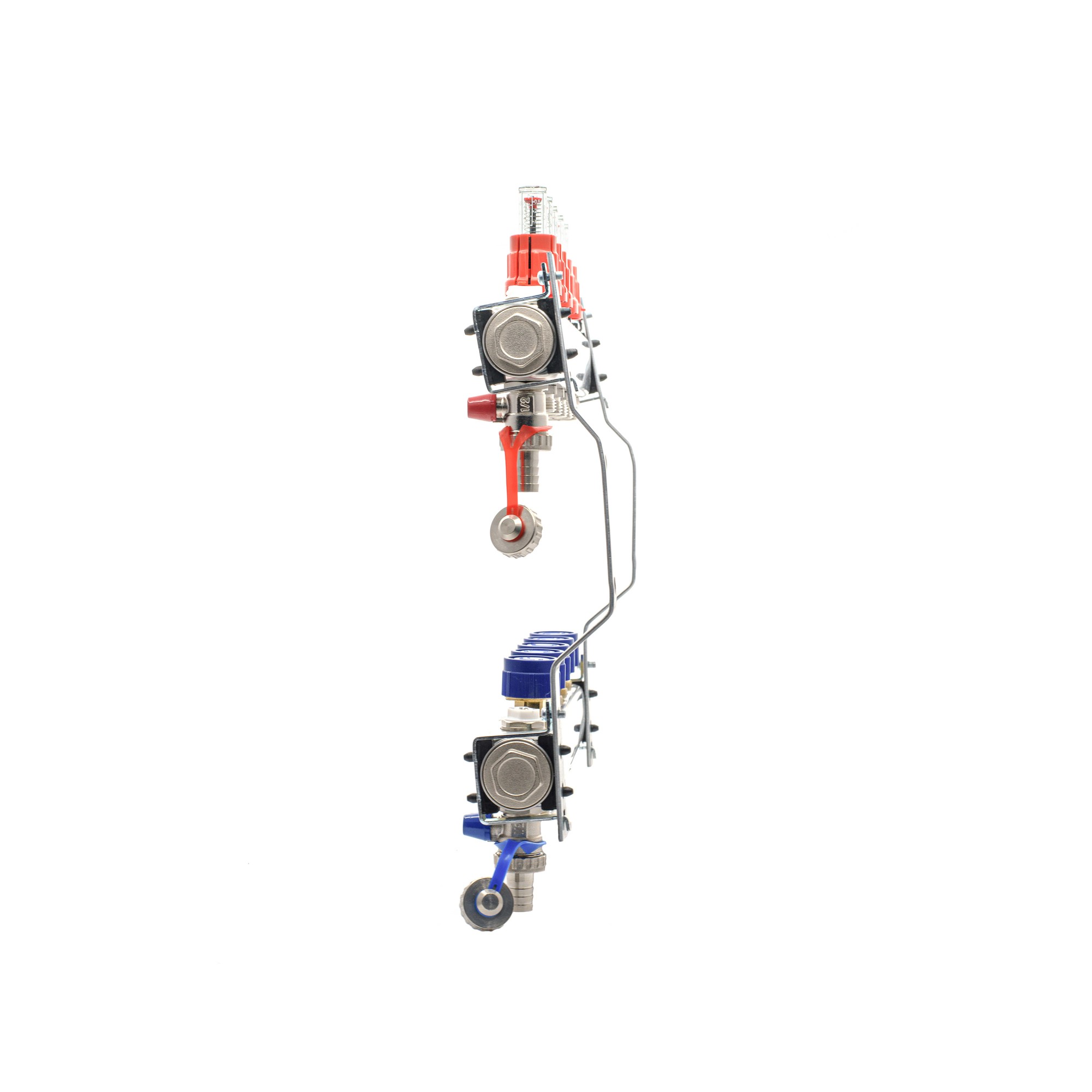

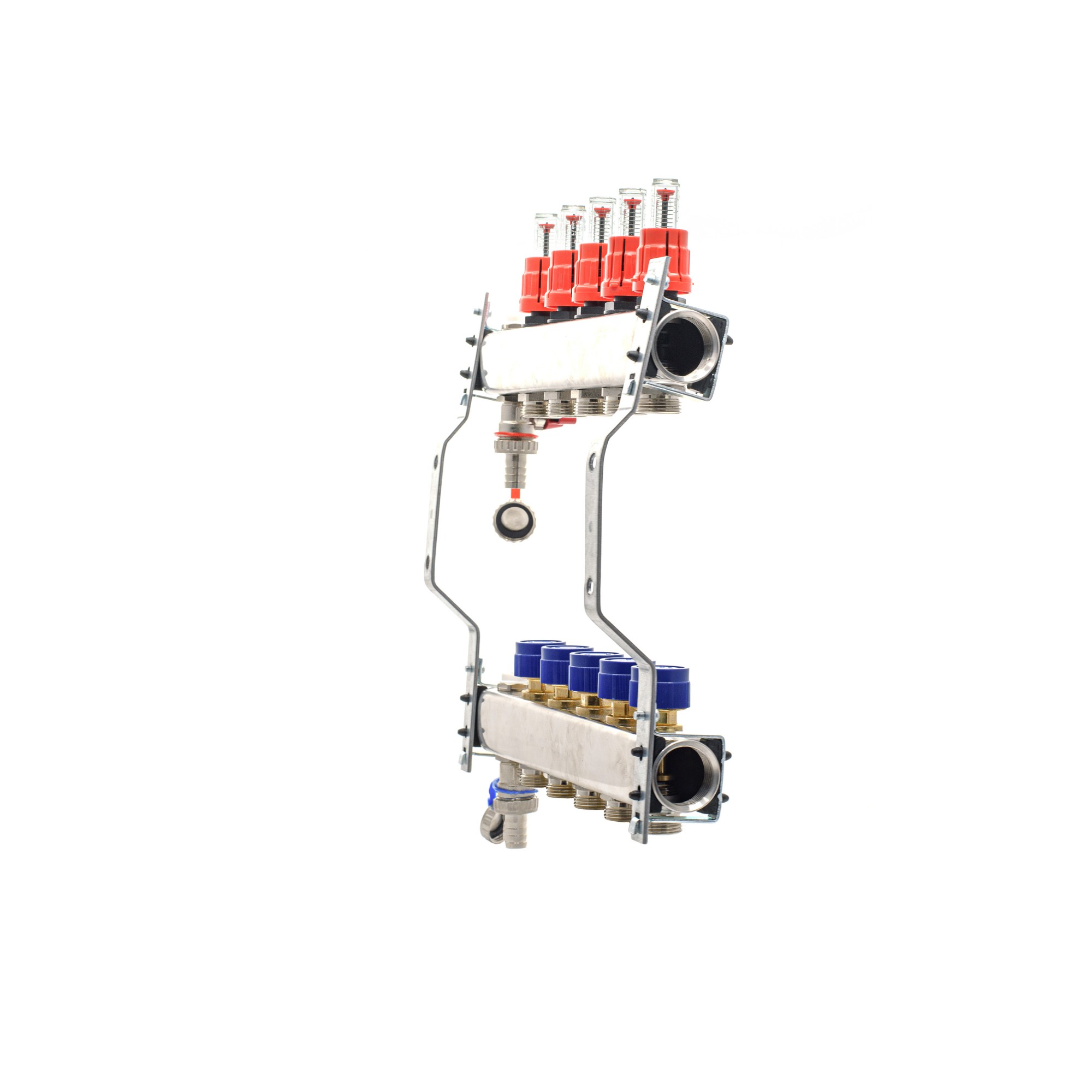

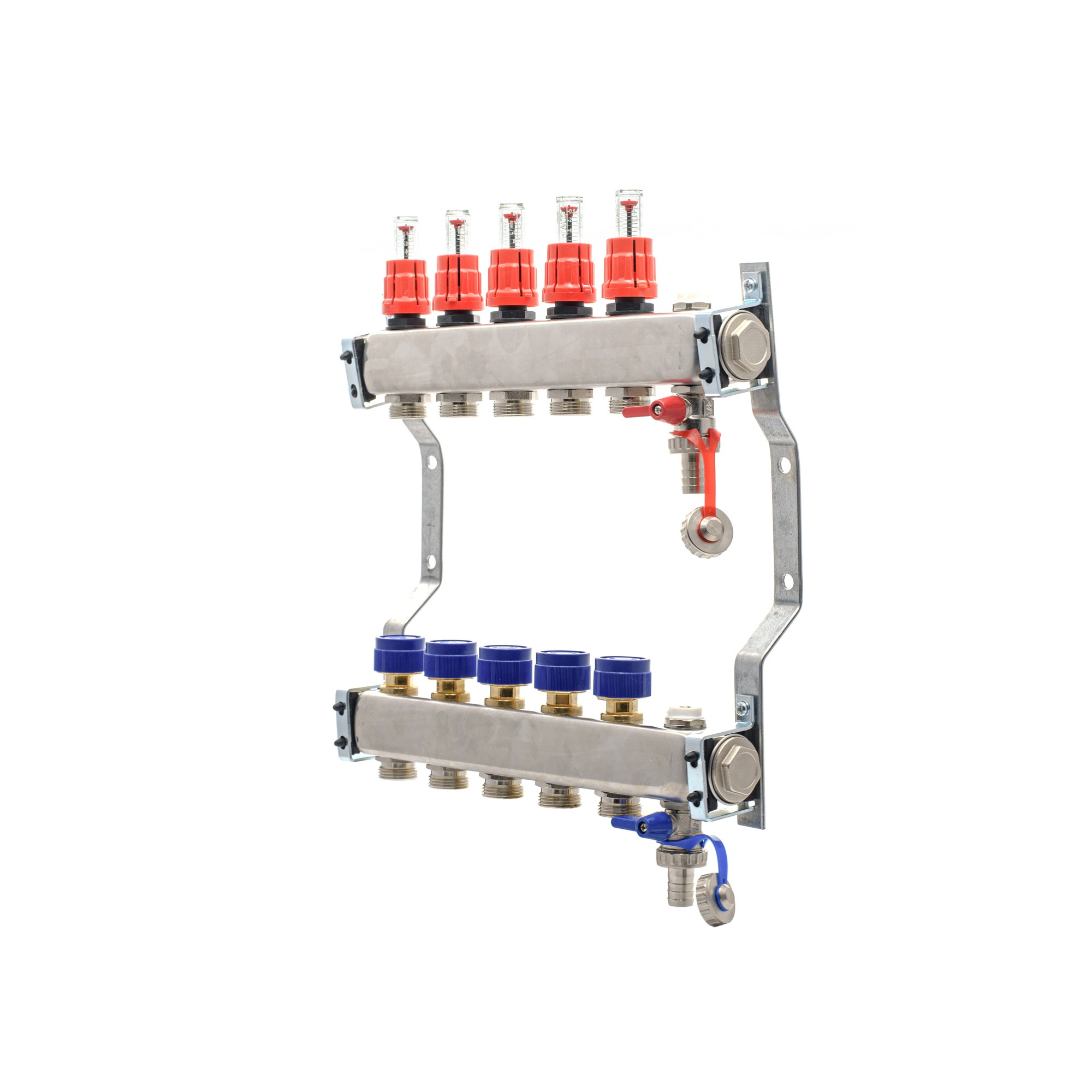

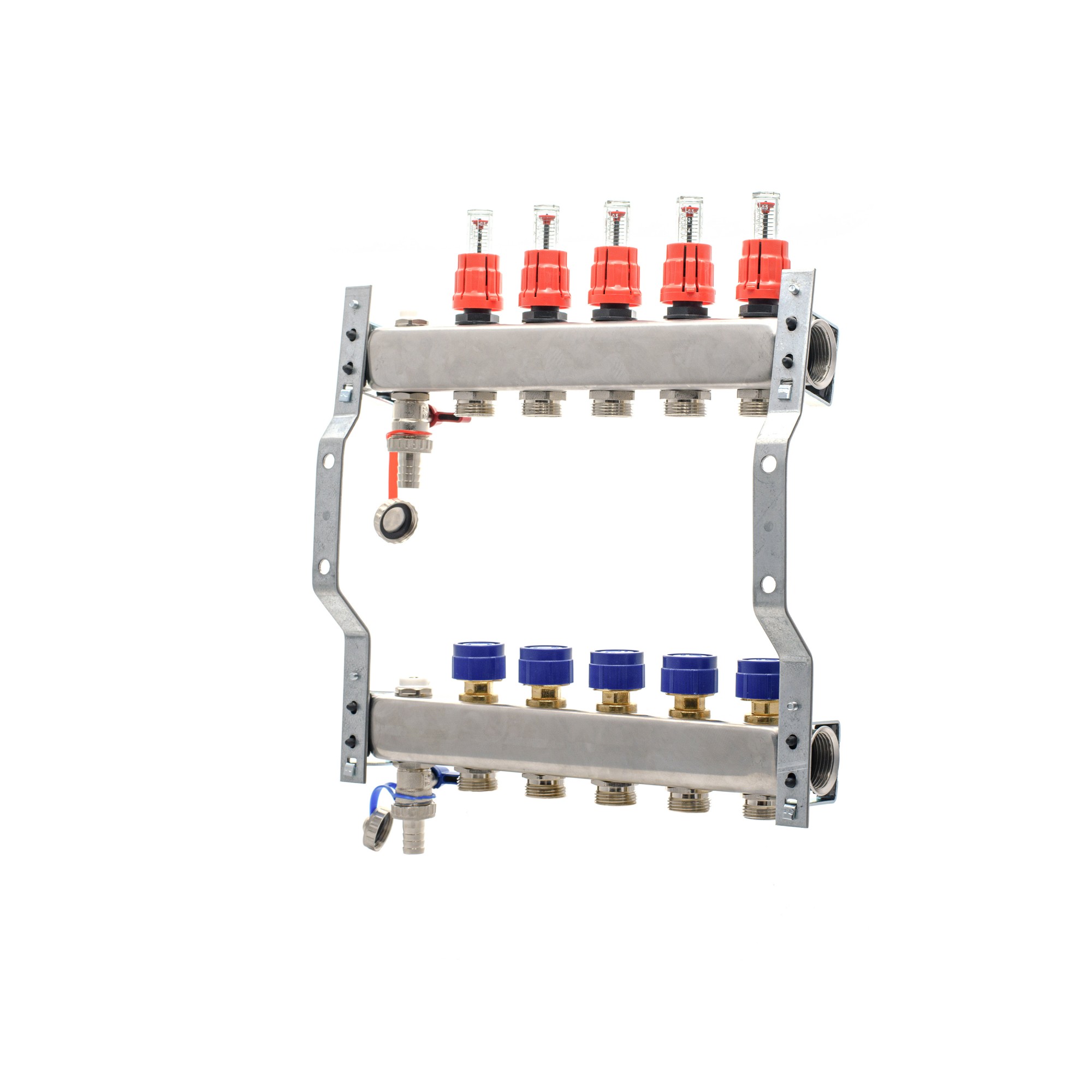

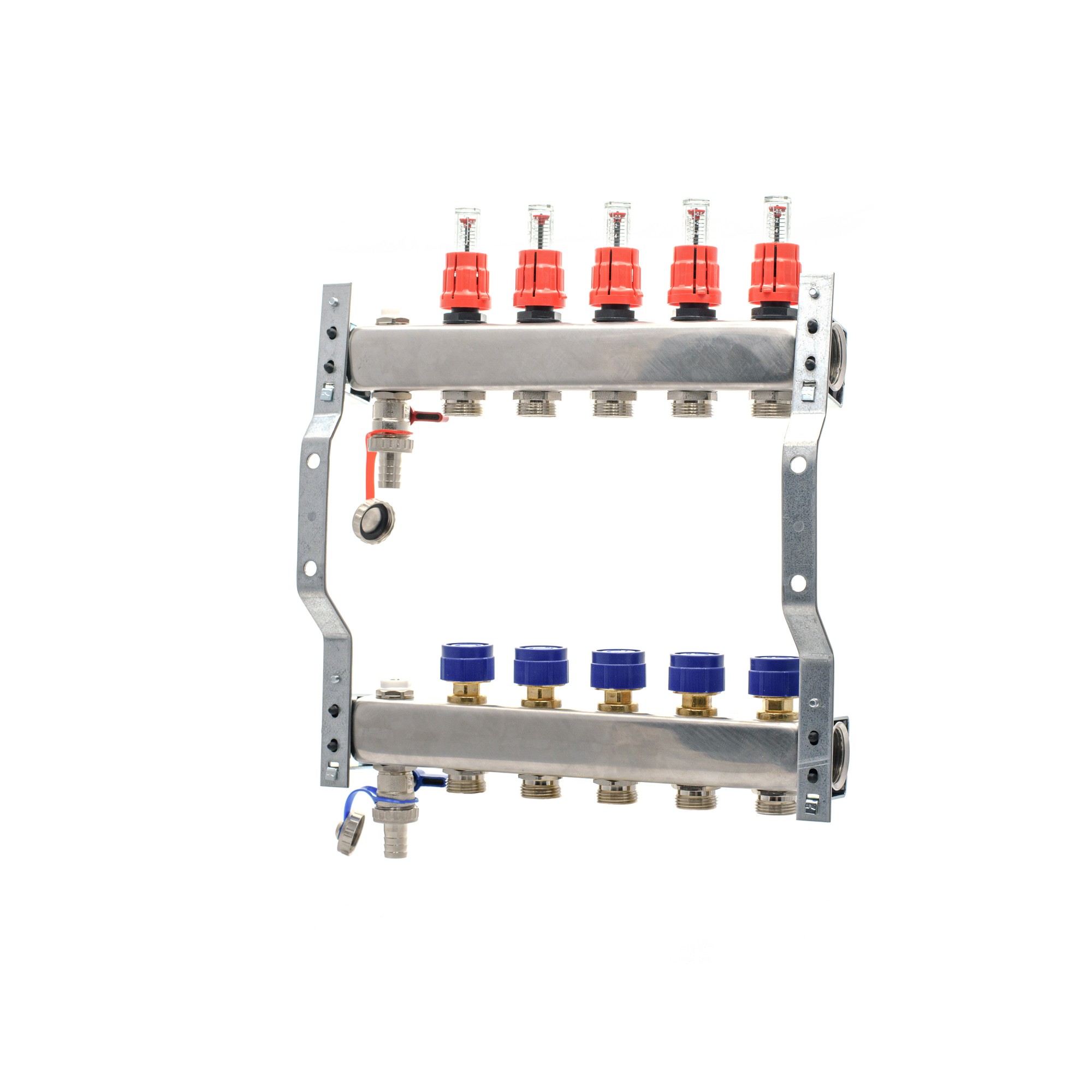

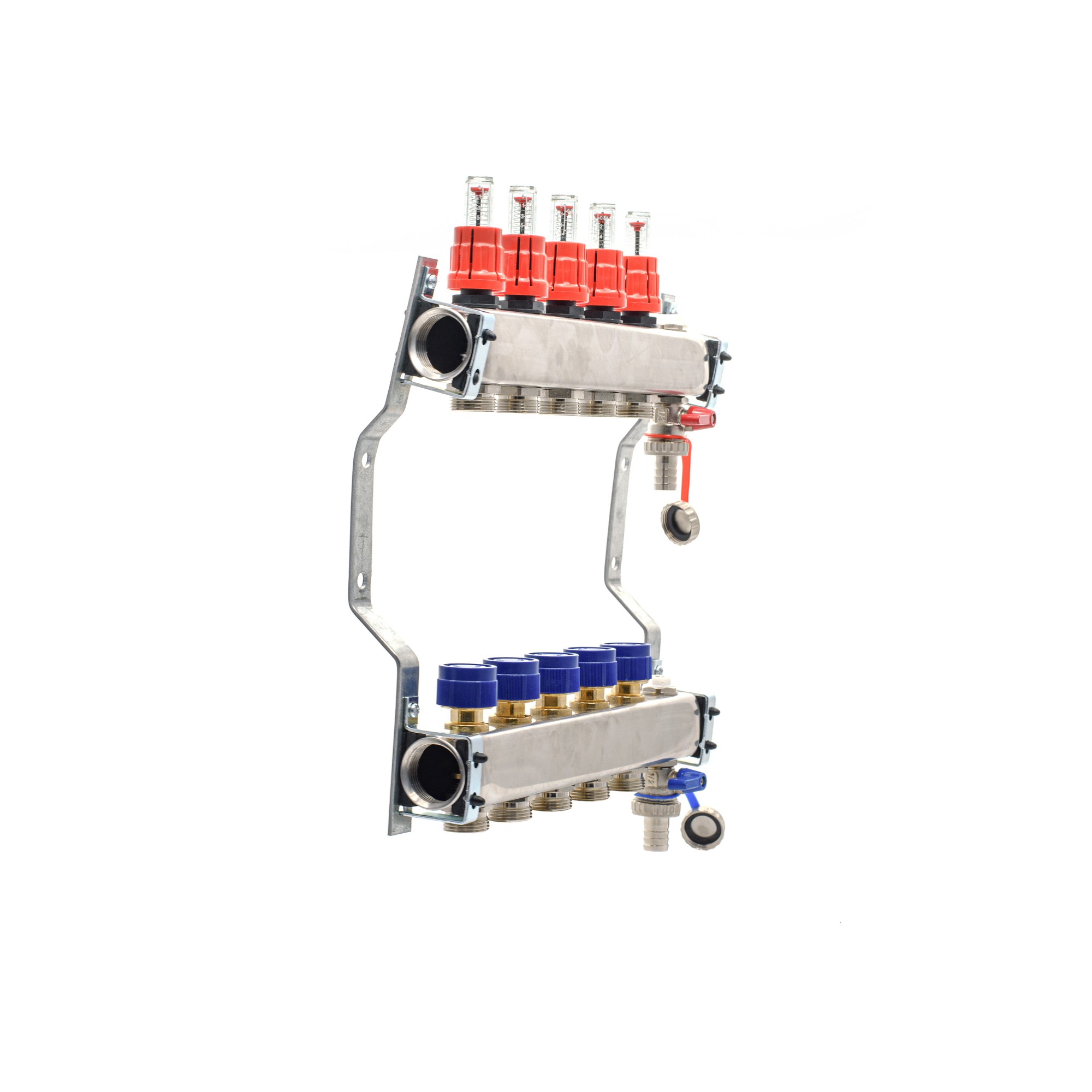

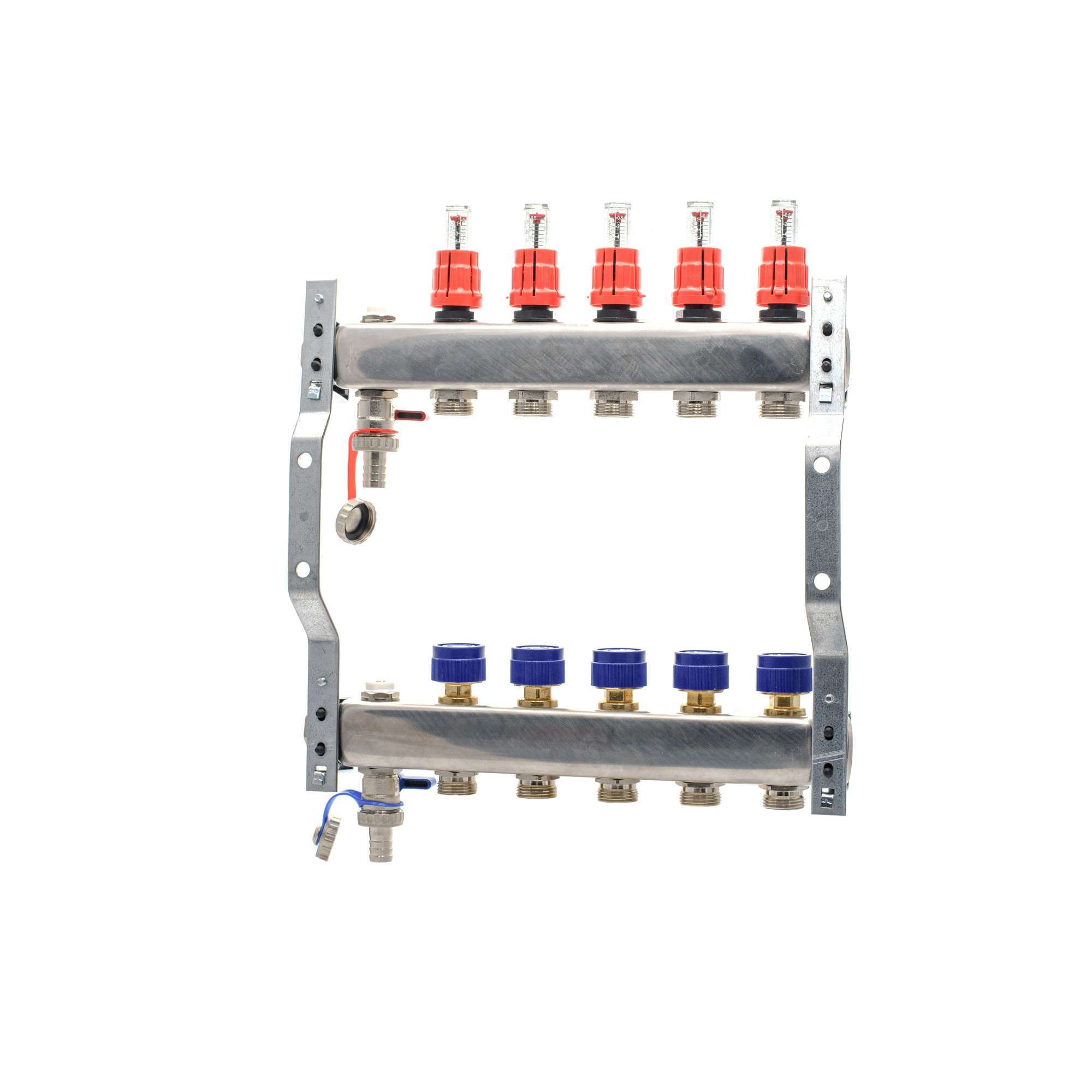

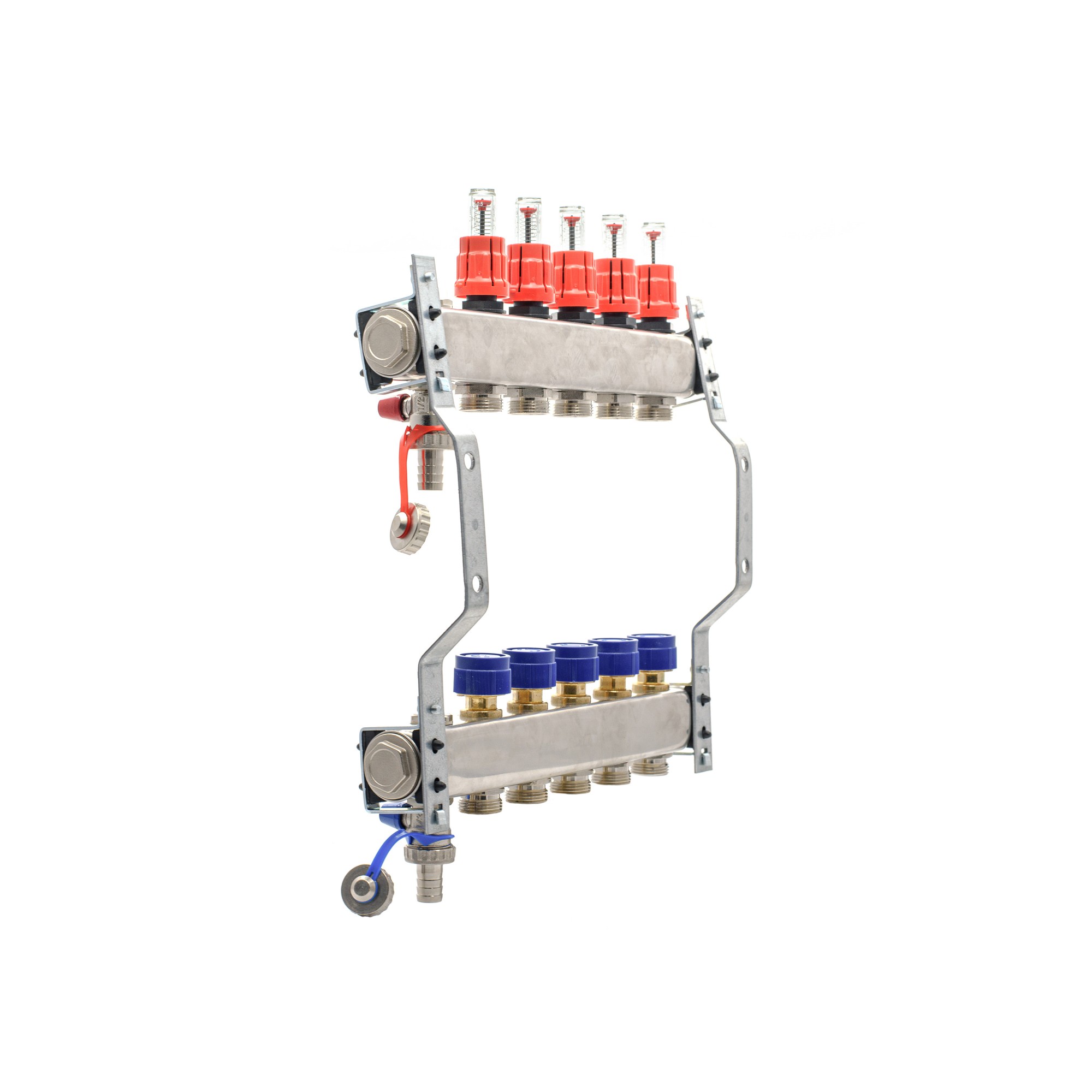

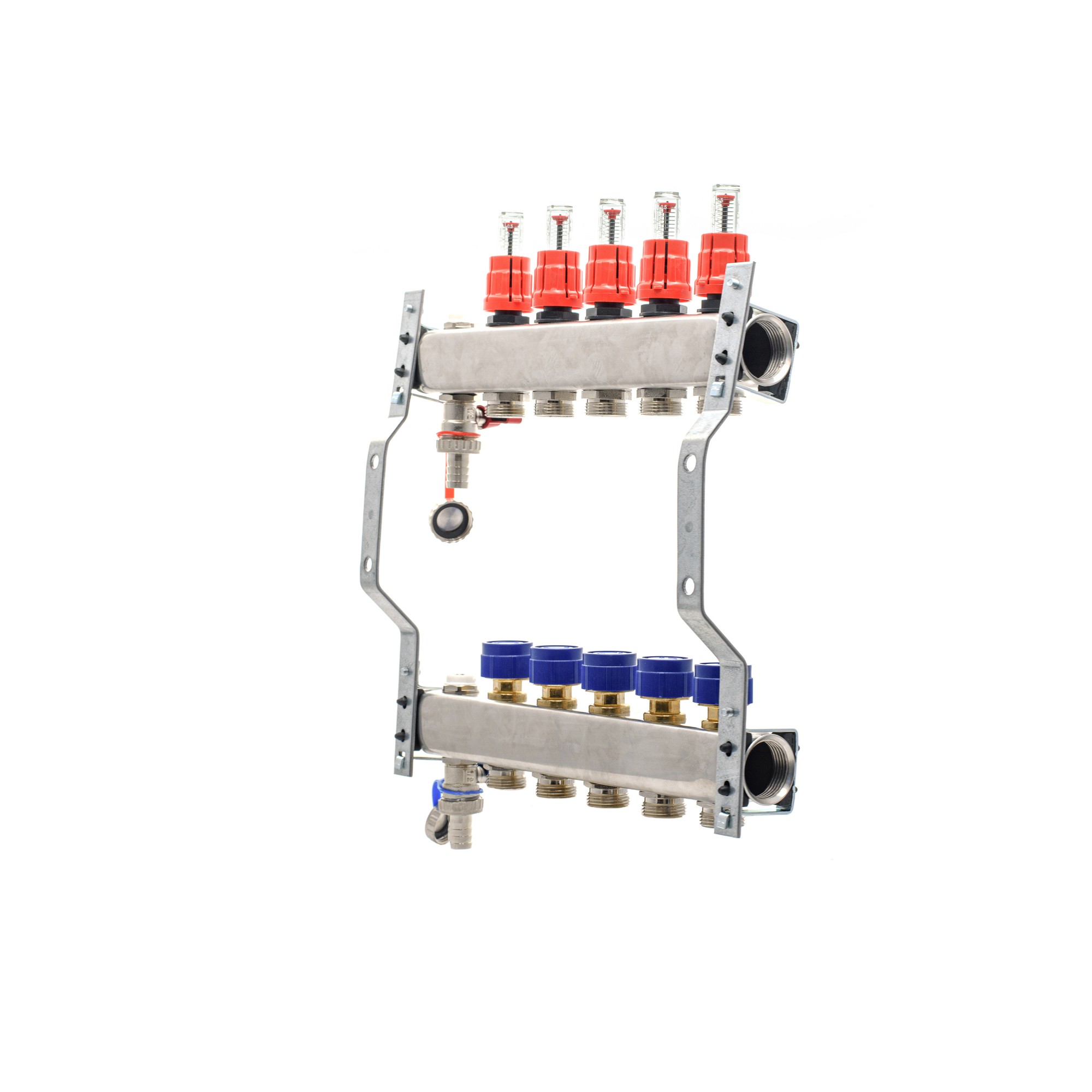

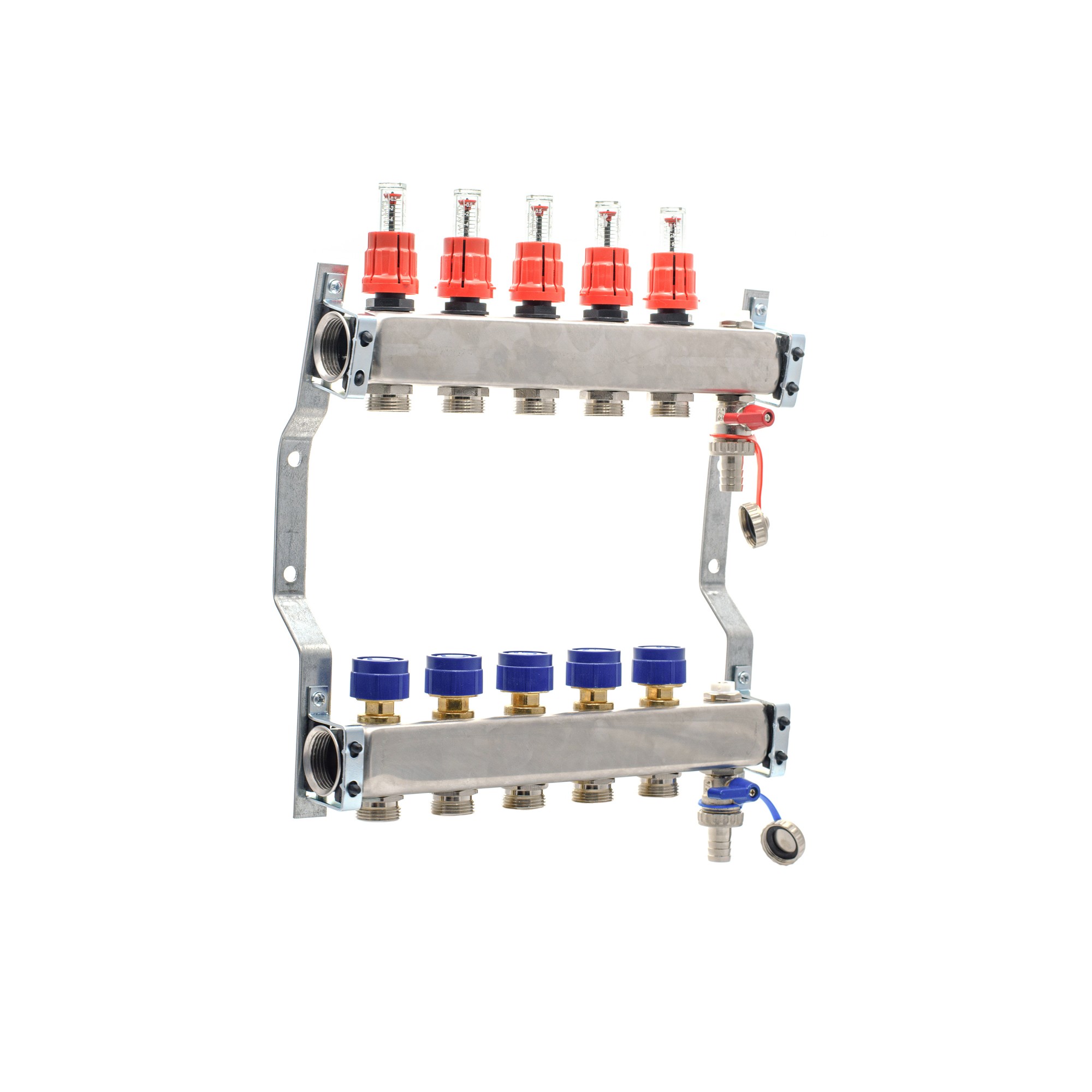

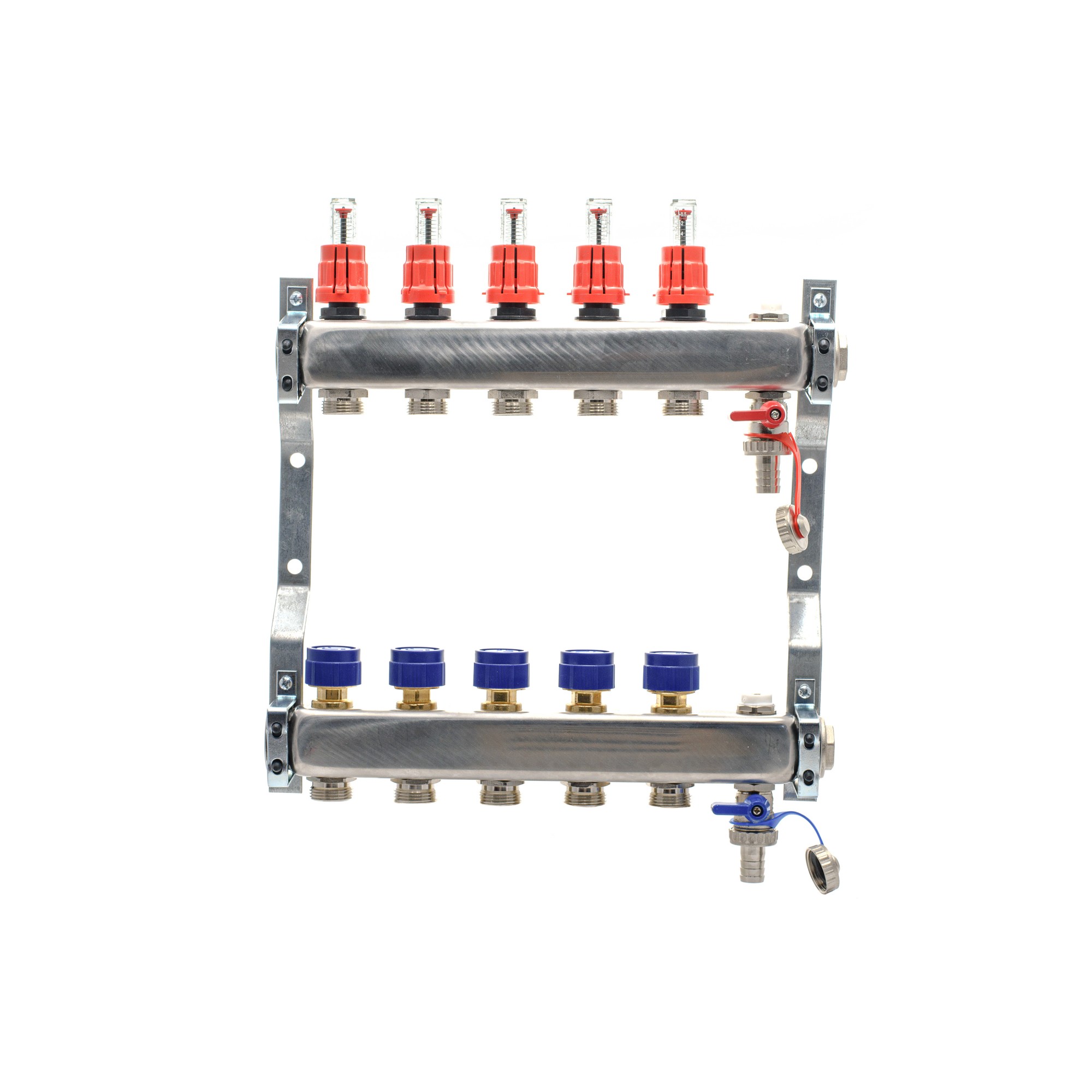

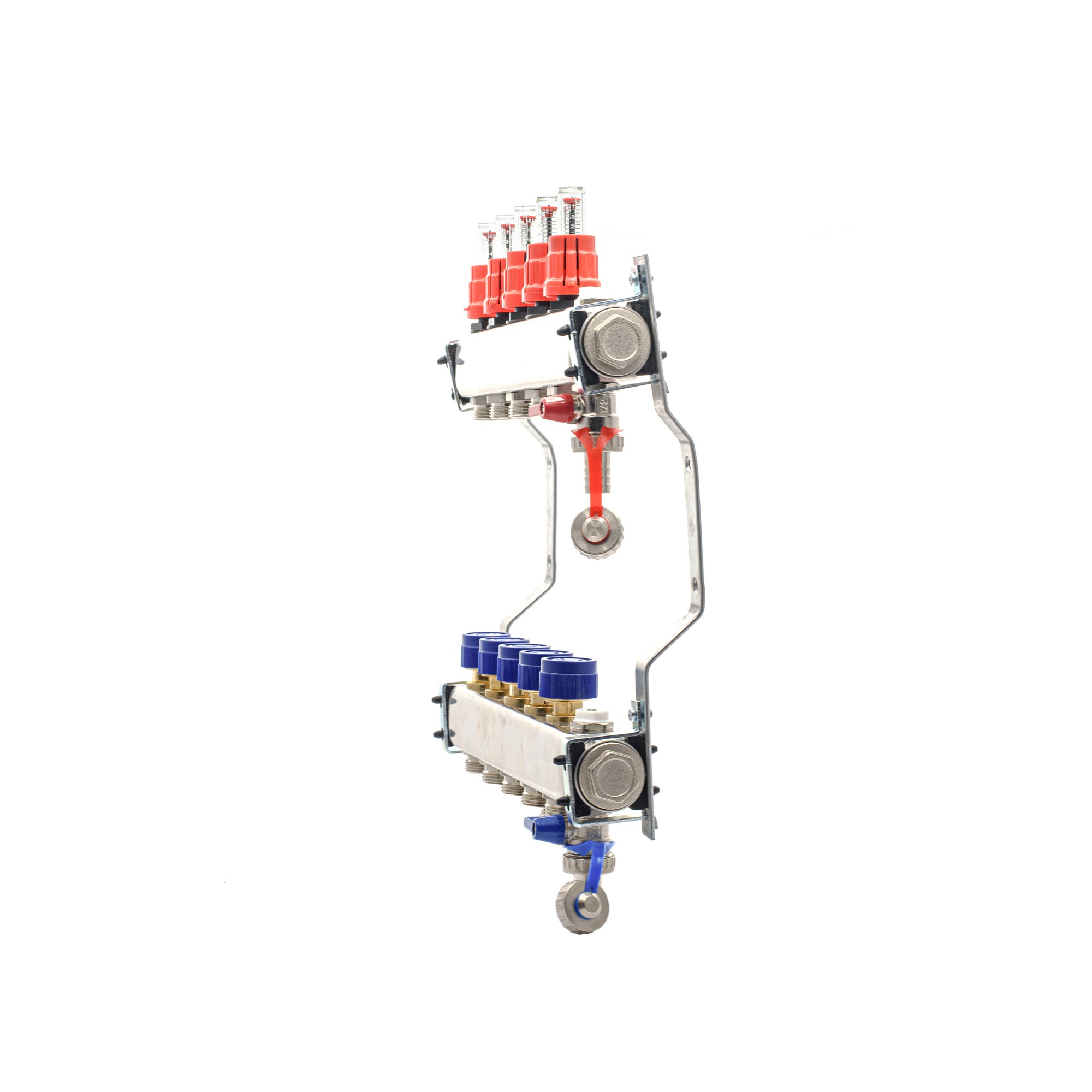

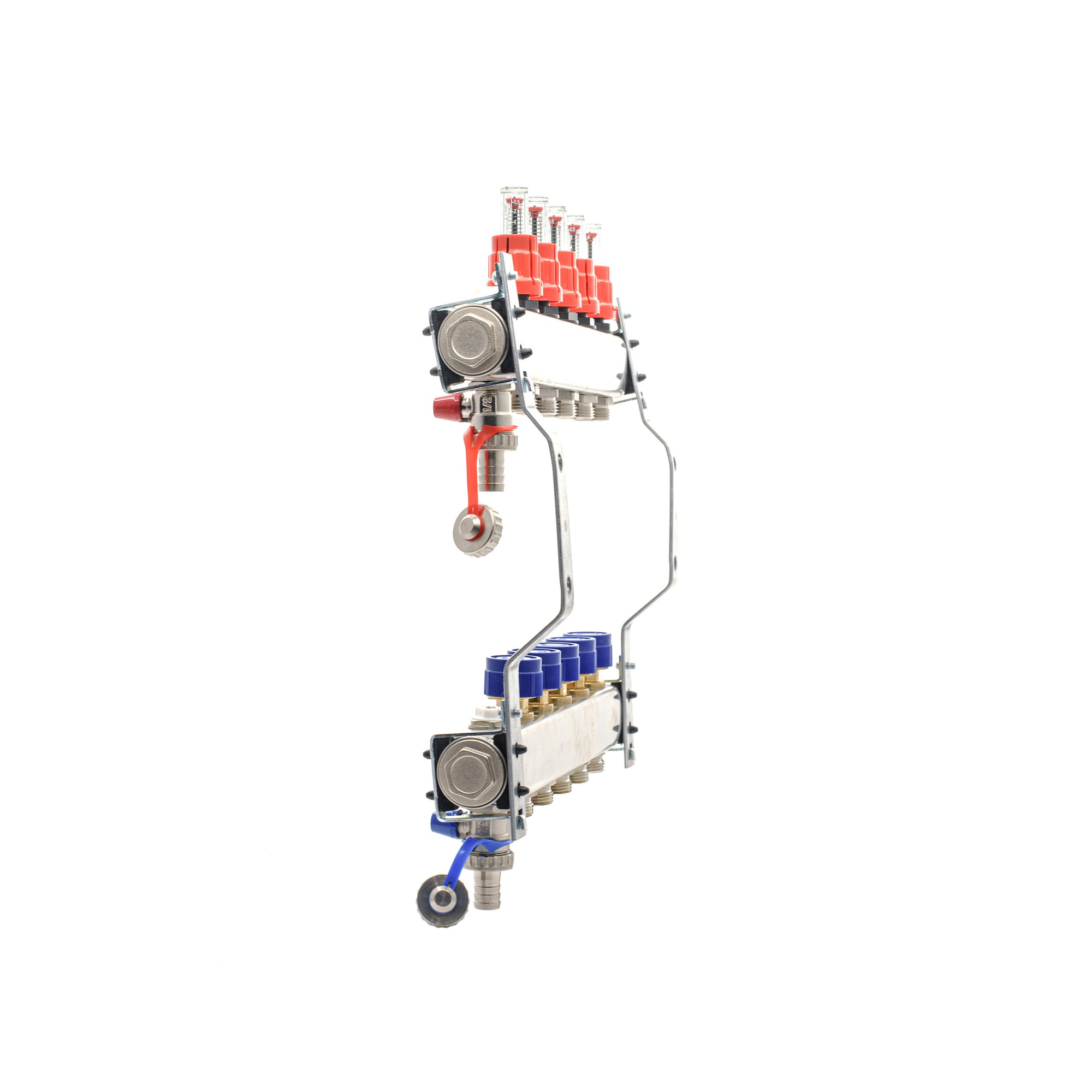

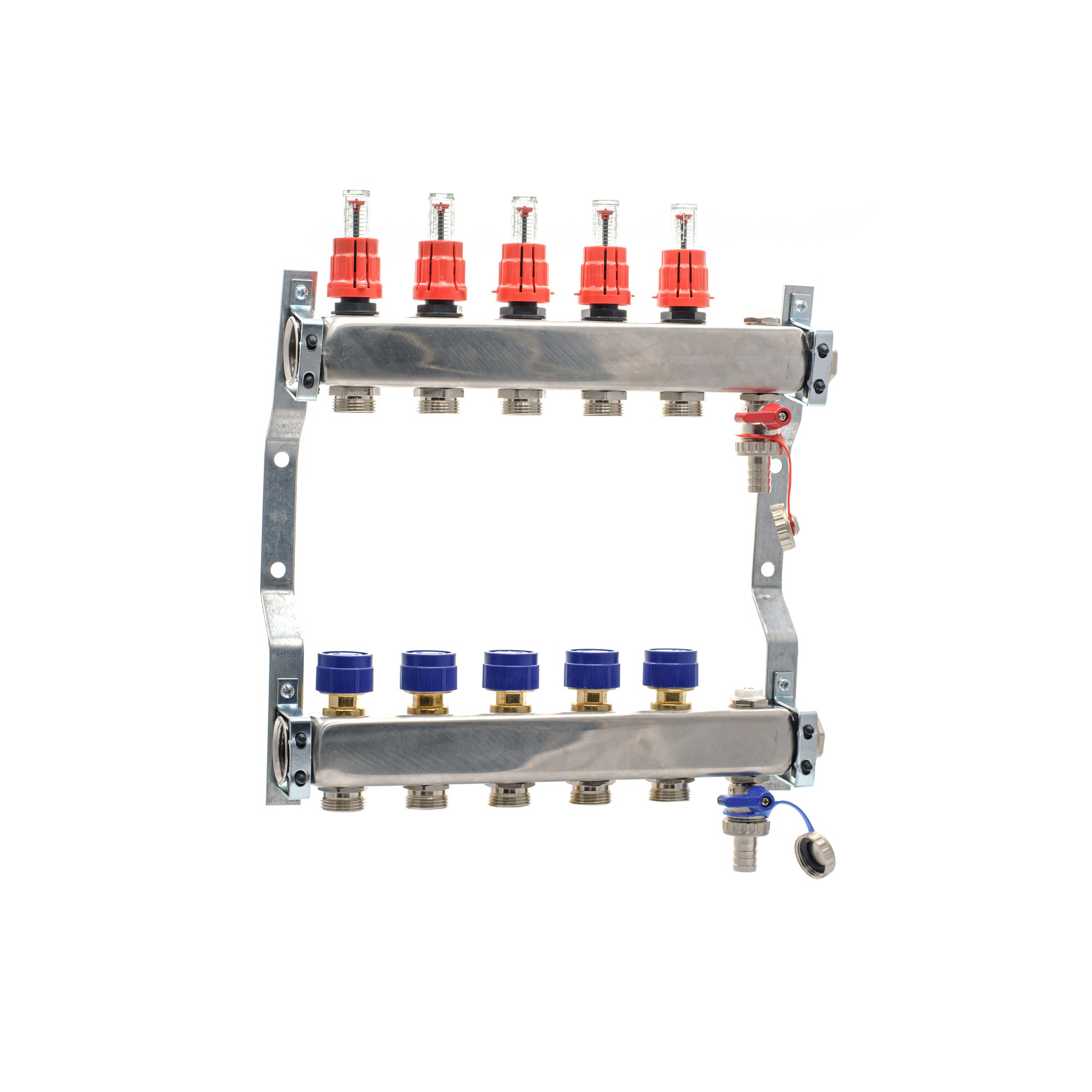

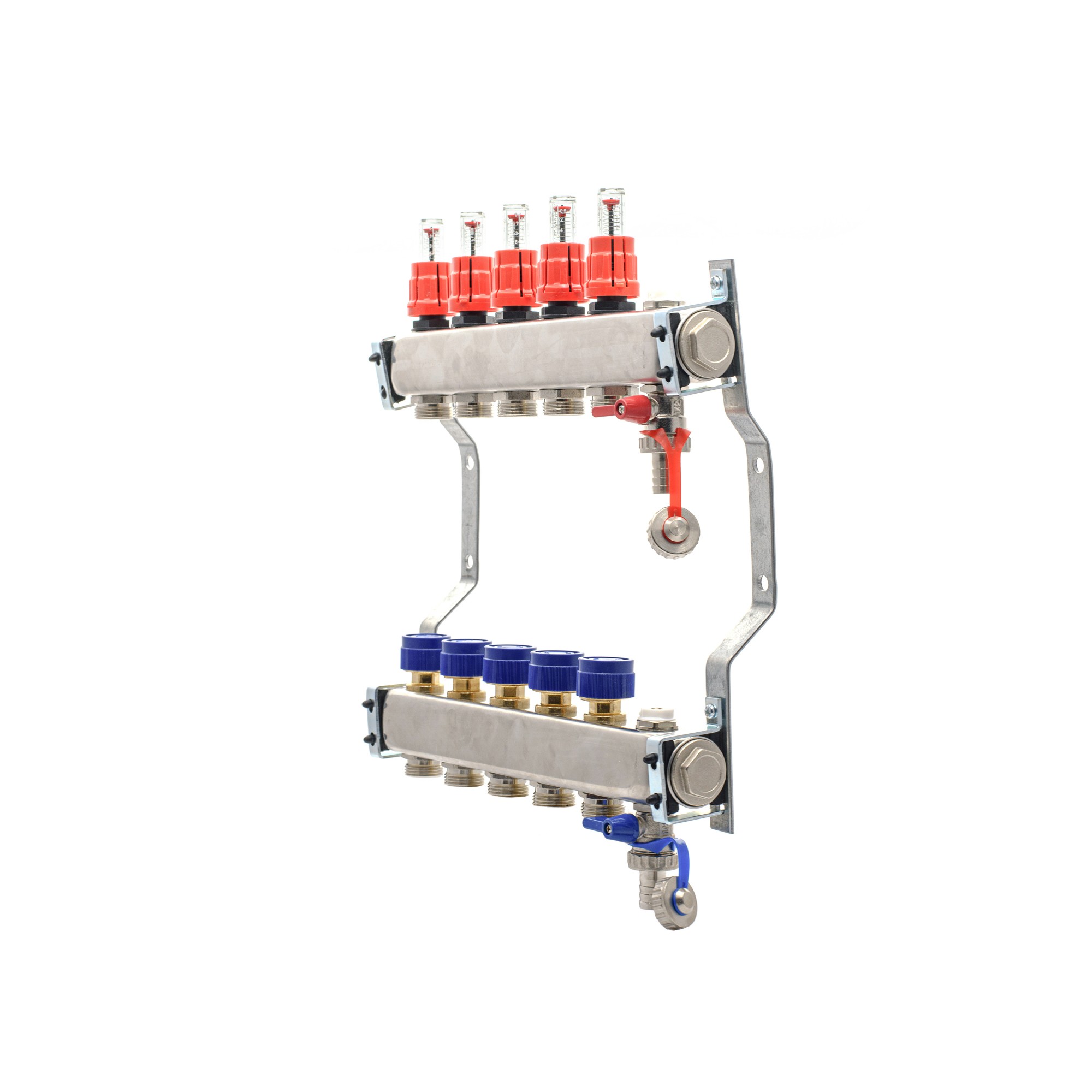

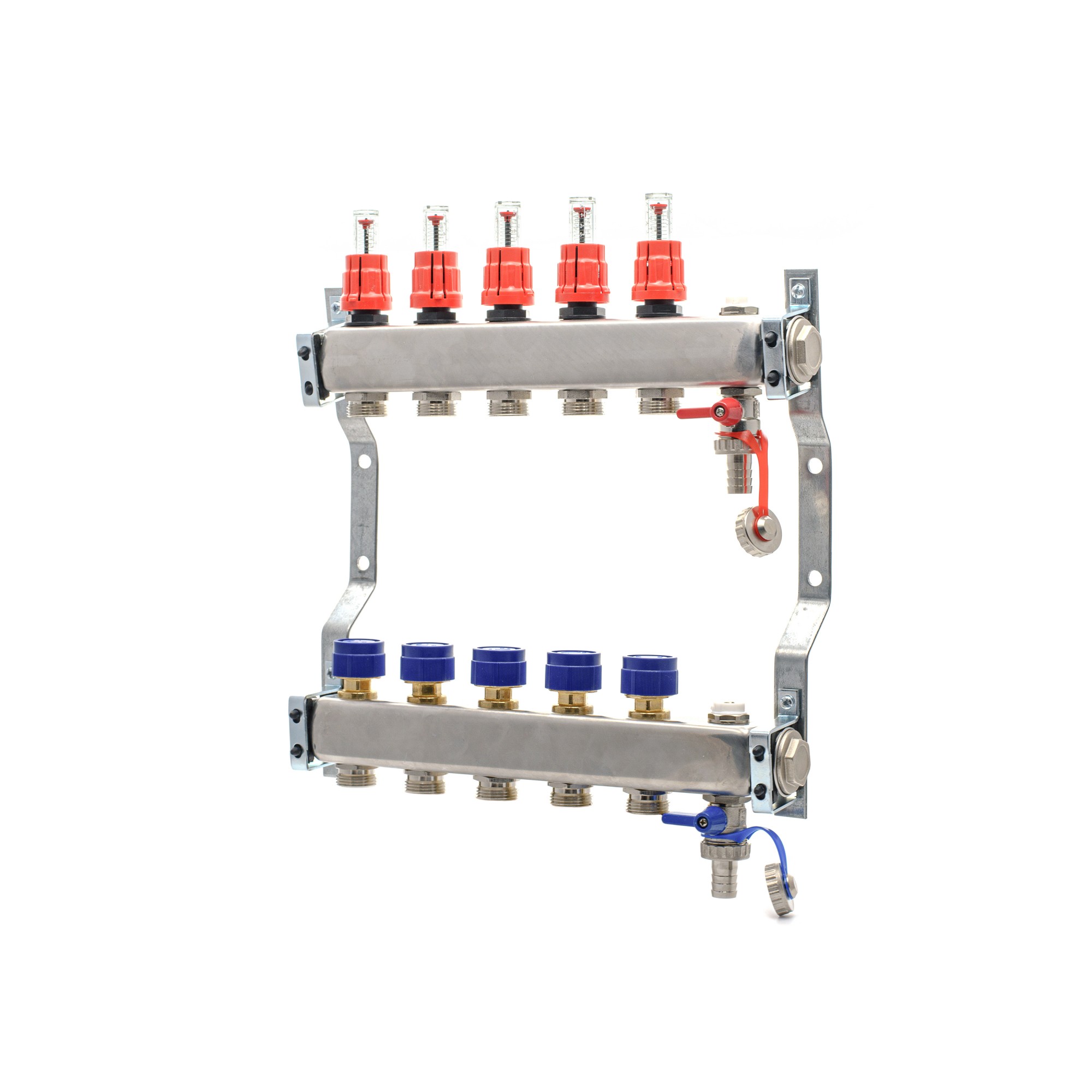

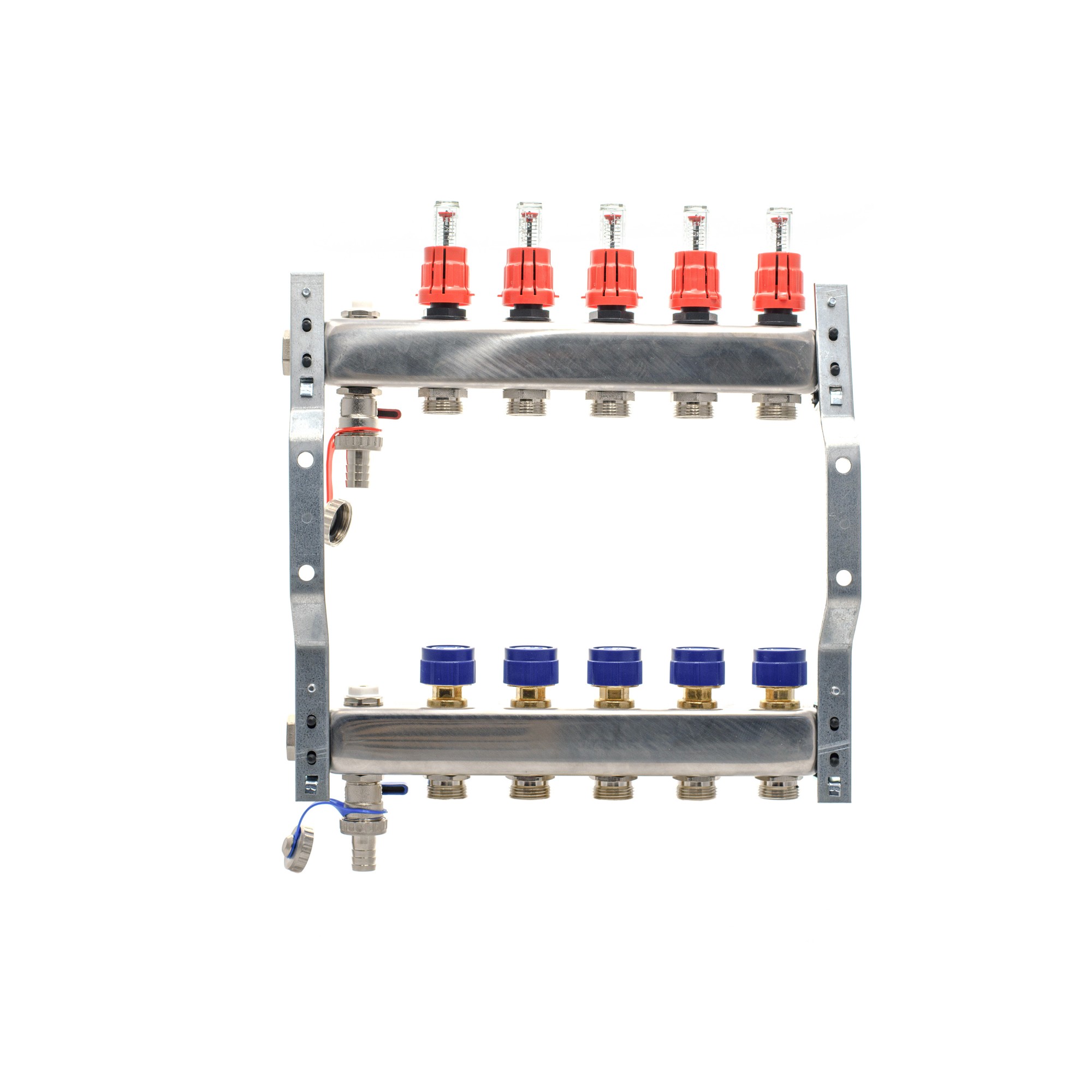

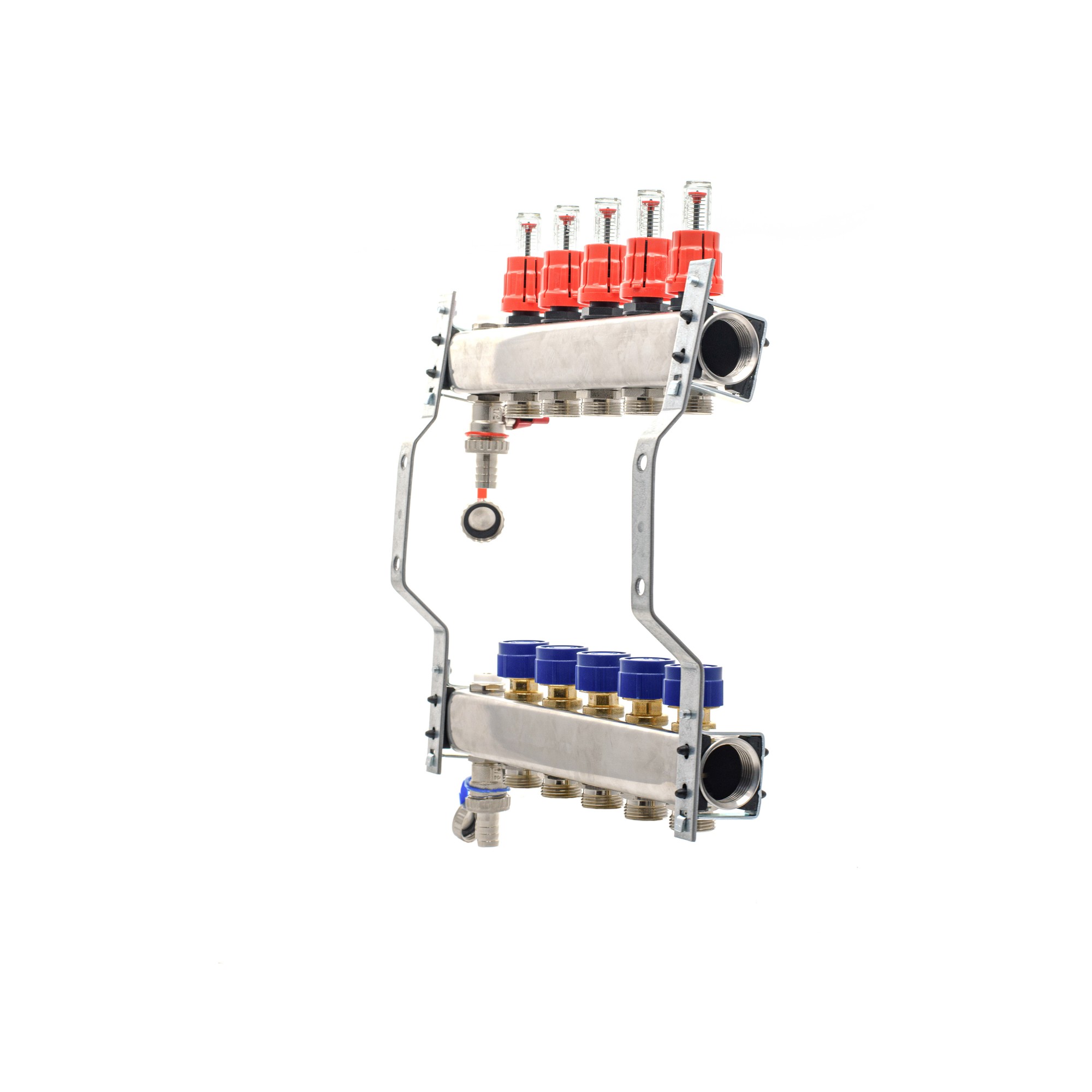

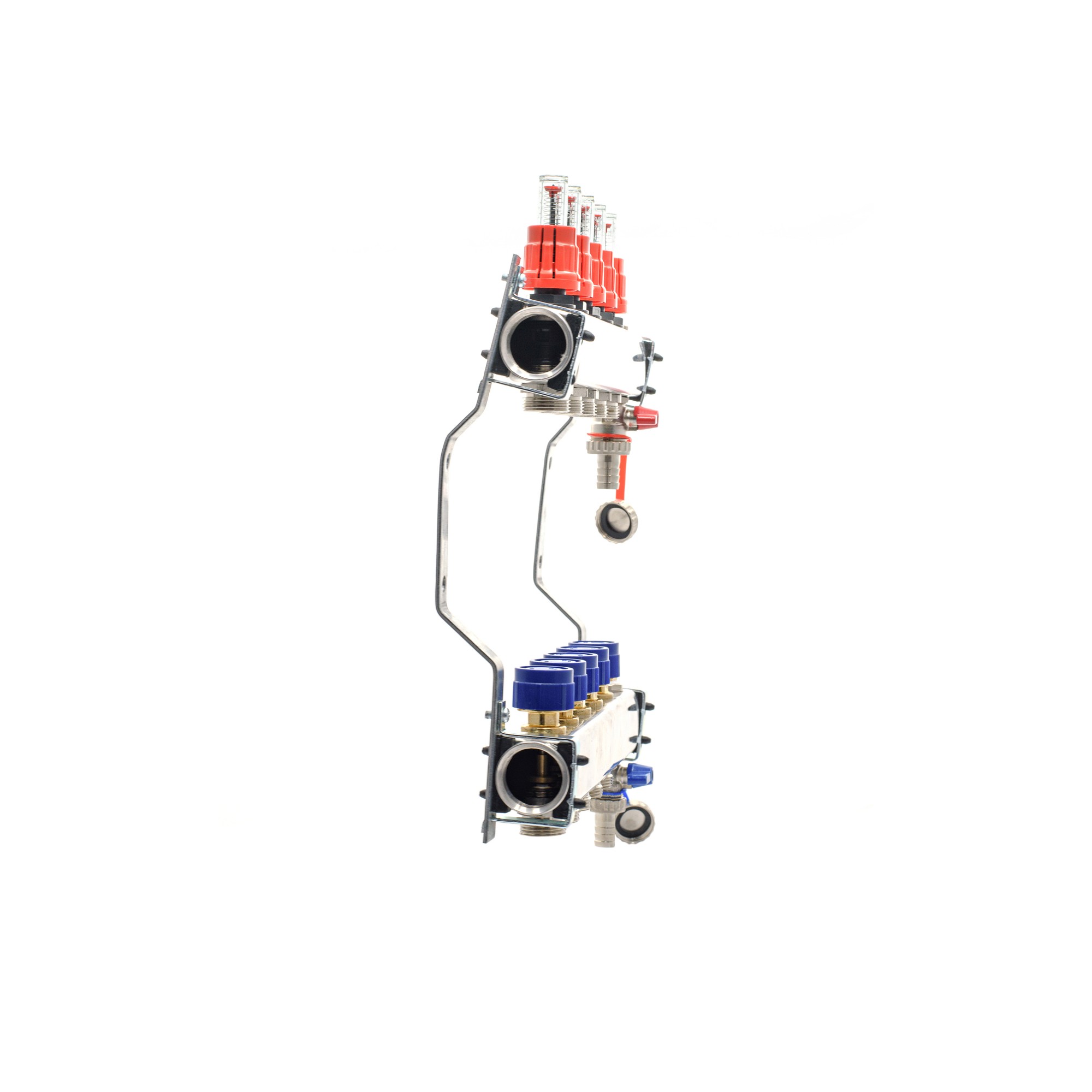

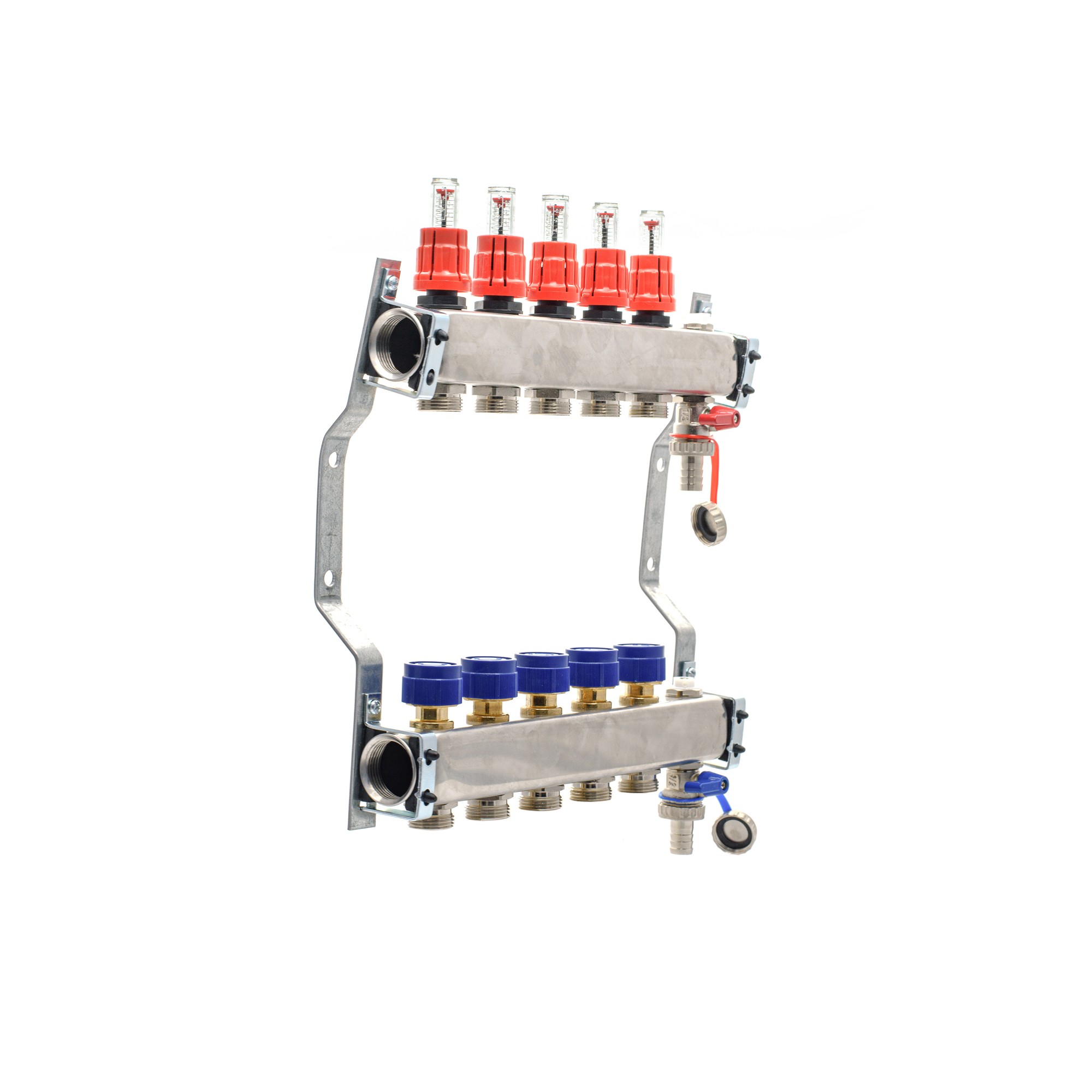

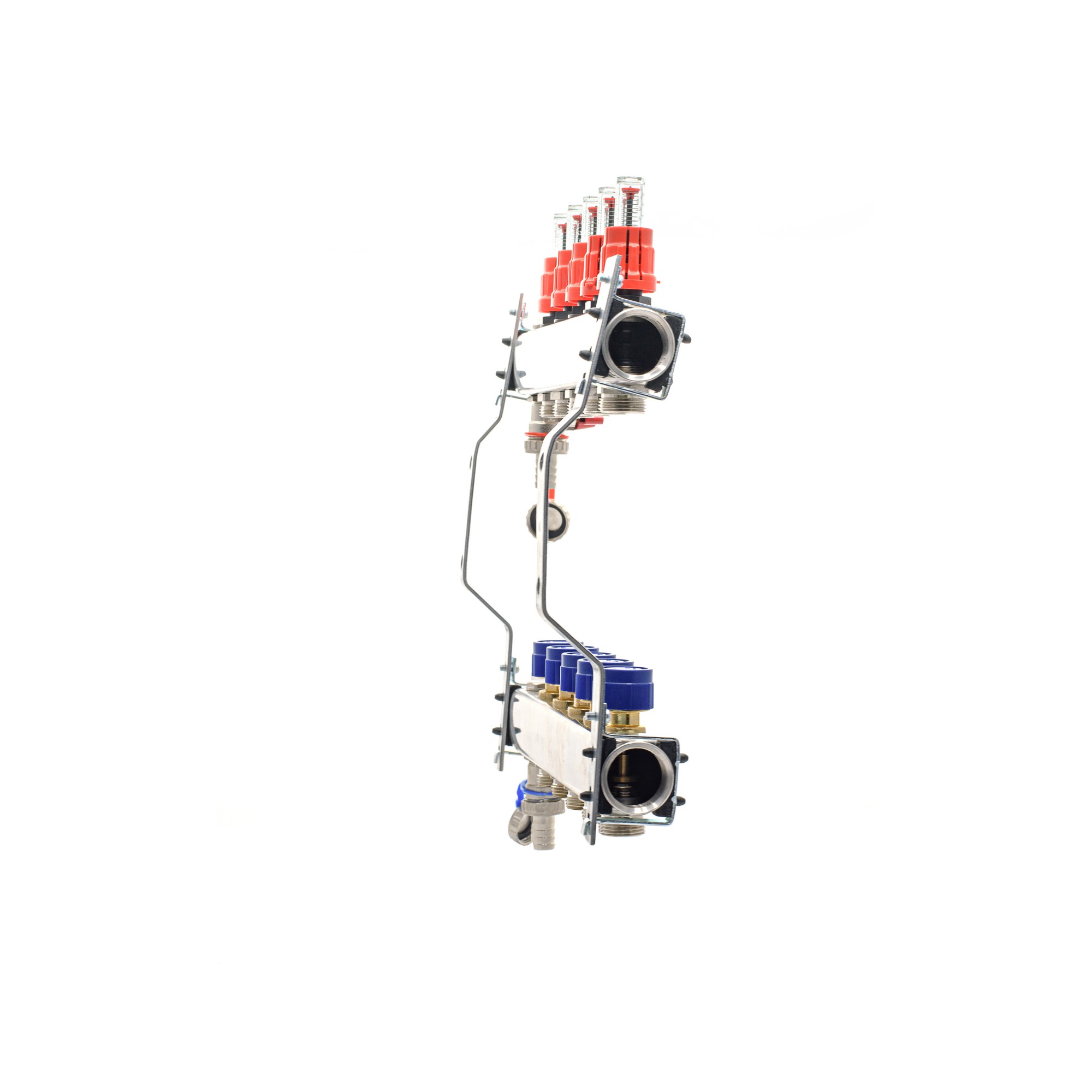

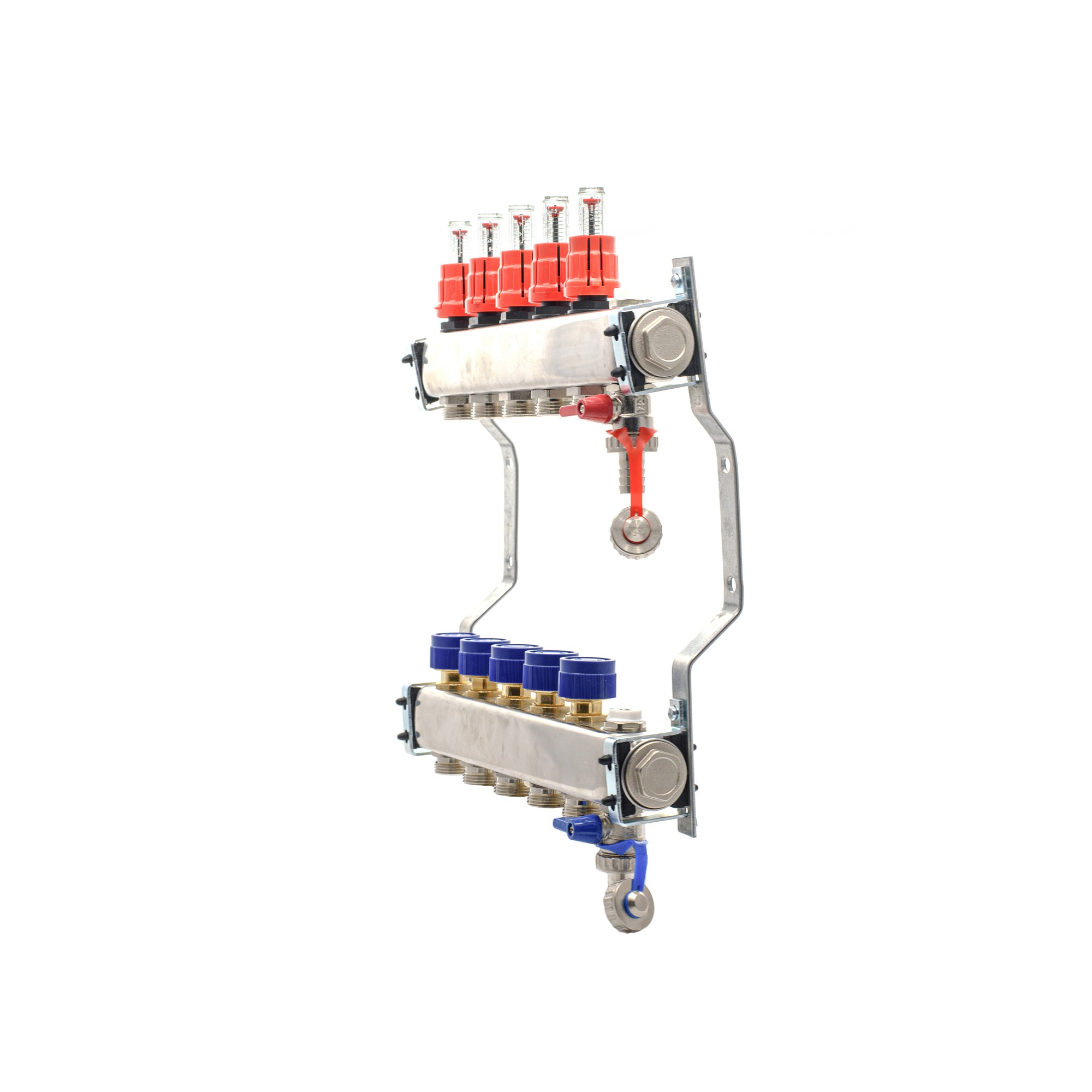

Manifold for underfloor heating is used in order to ensure distribution of heating medium to he individual heating loops of surface heating.
technical data
- steeal beams with hole spacing 50 mm
- flowmeters
- thermostatic valves
- 1/2"-3/4" nipples
- eurocone 3/4"-16 x 2.0 mm
- 1"blanking plug
- fill and drain section with a ball valve and a hose connection nipple
- manual air relase vent alternatively lenght 235 mm or 210 mm
*Ability to apply a 2.5 litres flowmeter
| Characteristic/Dimensions (mm) | Packing system | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Index | Heating loops | G Diameter of accessories connector |
L Beam spacing |
H | M | N | K | S Diameter of beam port |
J | Net weight/pcs (g) | Single pack | Pallet |
| F-2063413 | 2 | 1/2” | 235/210 | 409 | 175 | 50 | 25 | 1" | 28 | 1910 | 1 | 100 |
| F-2063420 | 3 | 1/2” | 235/210 | 409 | 225 | 50 | 25 | 1" | 28 | 2330 | 1 | 100 |
| F-2063437 | 4 | 1/2” | 235/210 | 409 | 275 | 50 | 25 | 1" | 28 | 2750 | 1 | 100 |
| F-2063444 | 5 | 1/2” | 235/210 | 409 | 325 | 50 | 25 | 1" | 28 | 3130 | 1 | 60 |
| F-2063451 | 6 | 1/2” | 235/210 | 409 | 375 | 50 | 25 | 1" | 28 | 3540 | 1 | 60 |
| F-2063468 | 7 | 1/2” | 235/210 | 409 | 425 | 50 | 25 | 1" | 28 | 3960 | 1 | 60 |
| F-2063475 | 8 | 1/2” | 235/210 | 409 | 475 | 50 | 25 | 1" | 28 | 4360 | 1 | 48 |
| F-2063482 | 9 | 1/2” | 235/210 | 409 | 525 | 50 | 25 | 1" | 28 | 4780 | 1 | 48 |
| F-2063499 | 10 | 1/2” | 235/210 | 409 | 575 | 50 | 25 | 1" | 28 | 5200 | 1 | 48 |
| F-2063505 | 11 | 1/2” | 235/210 | 409 | 625 | 50 | 25 | 1" | 28 | 5610 | 1 | 48 |
| F-2063512 | 12 | 1/2” | 235/210 | 409 | 675 | 50 | 25 | 1" | 28 | 6020 | 1 | 48 |
