product description

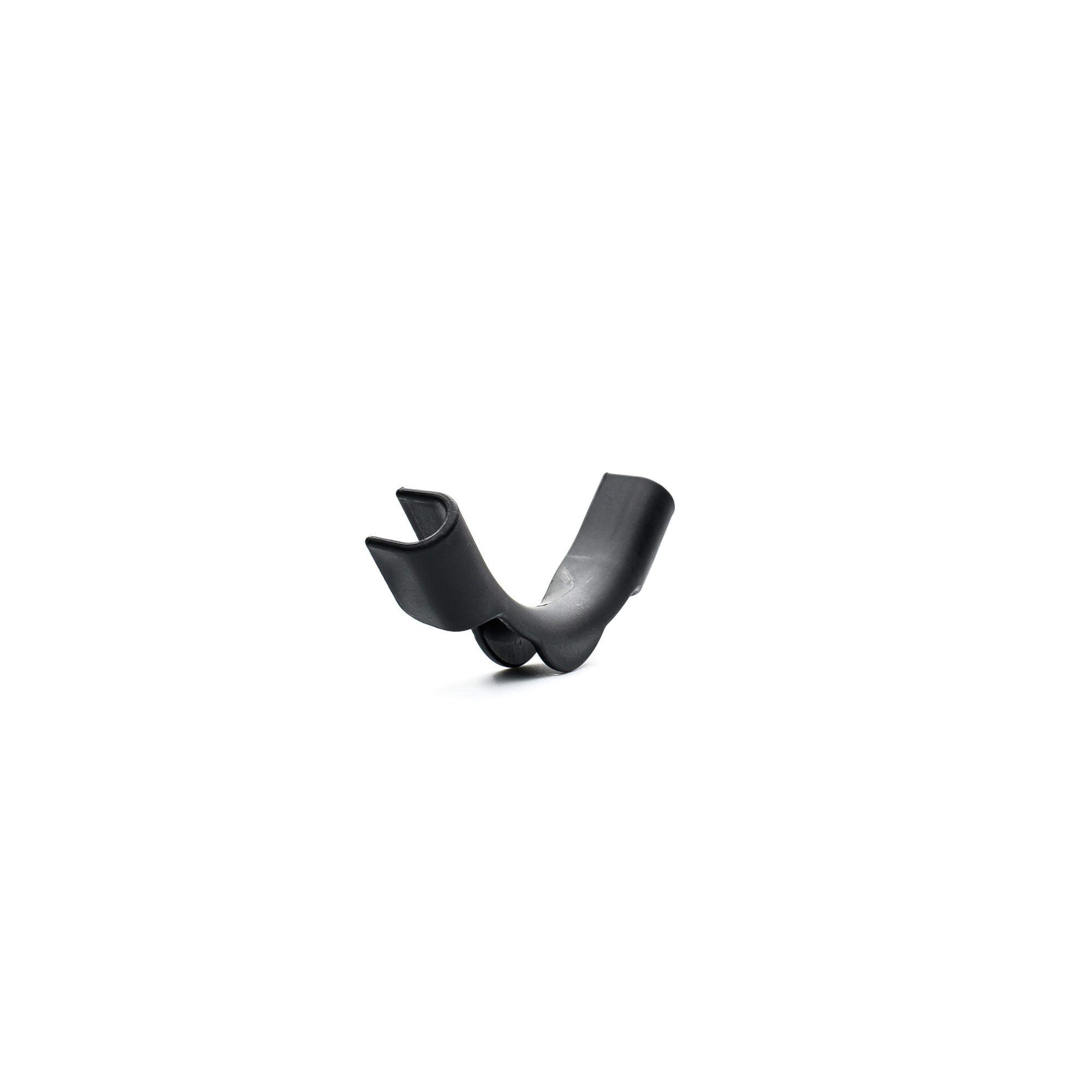

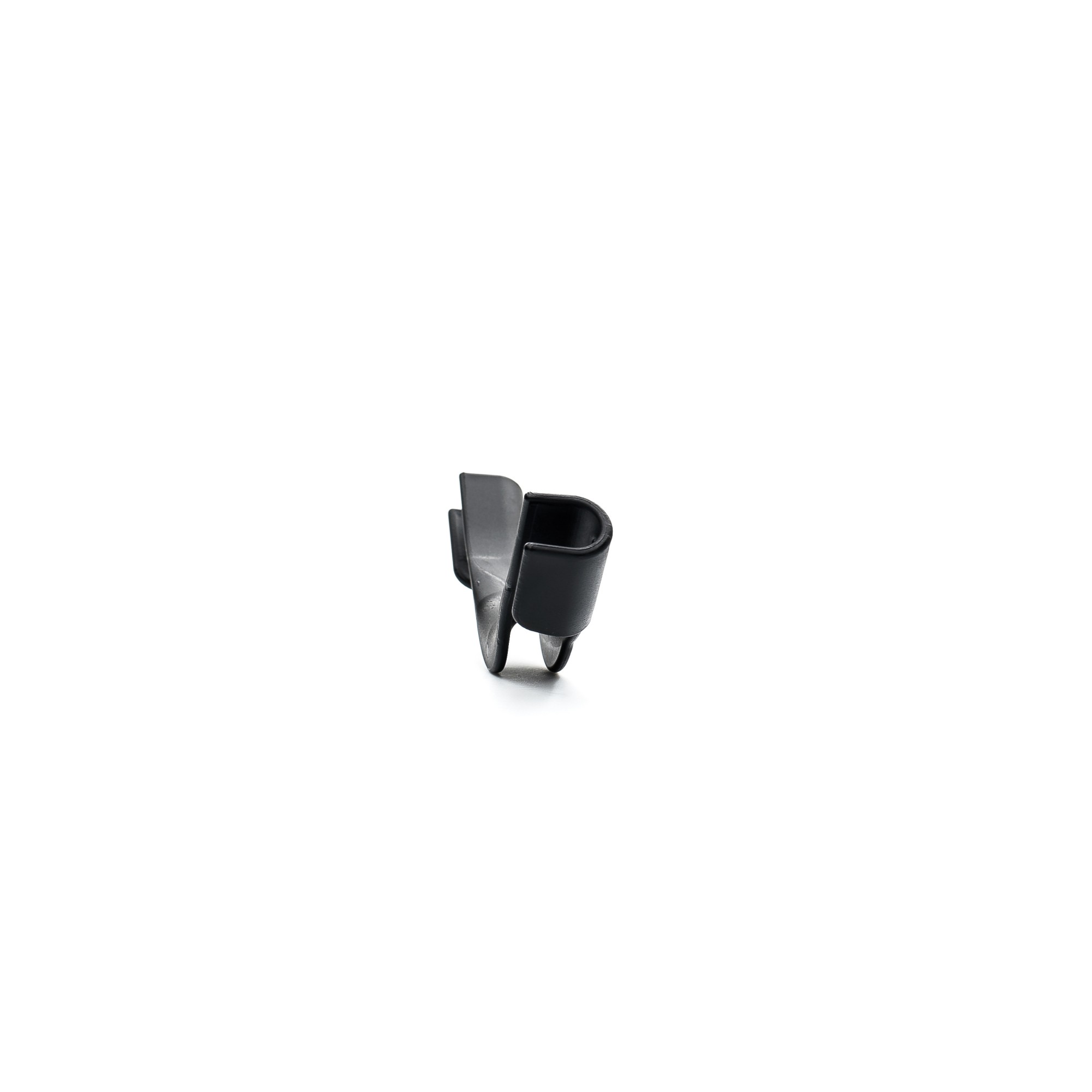

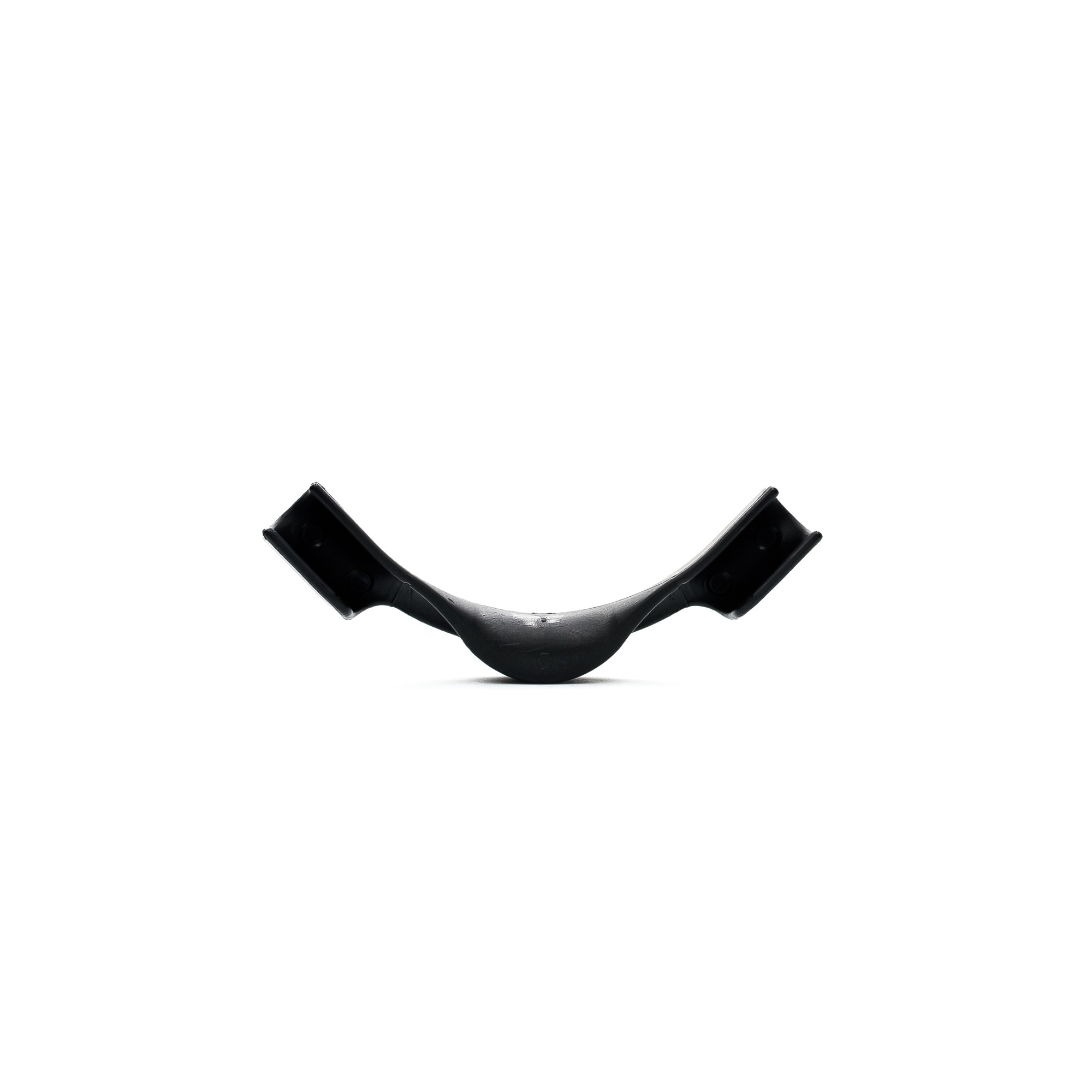

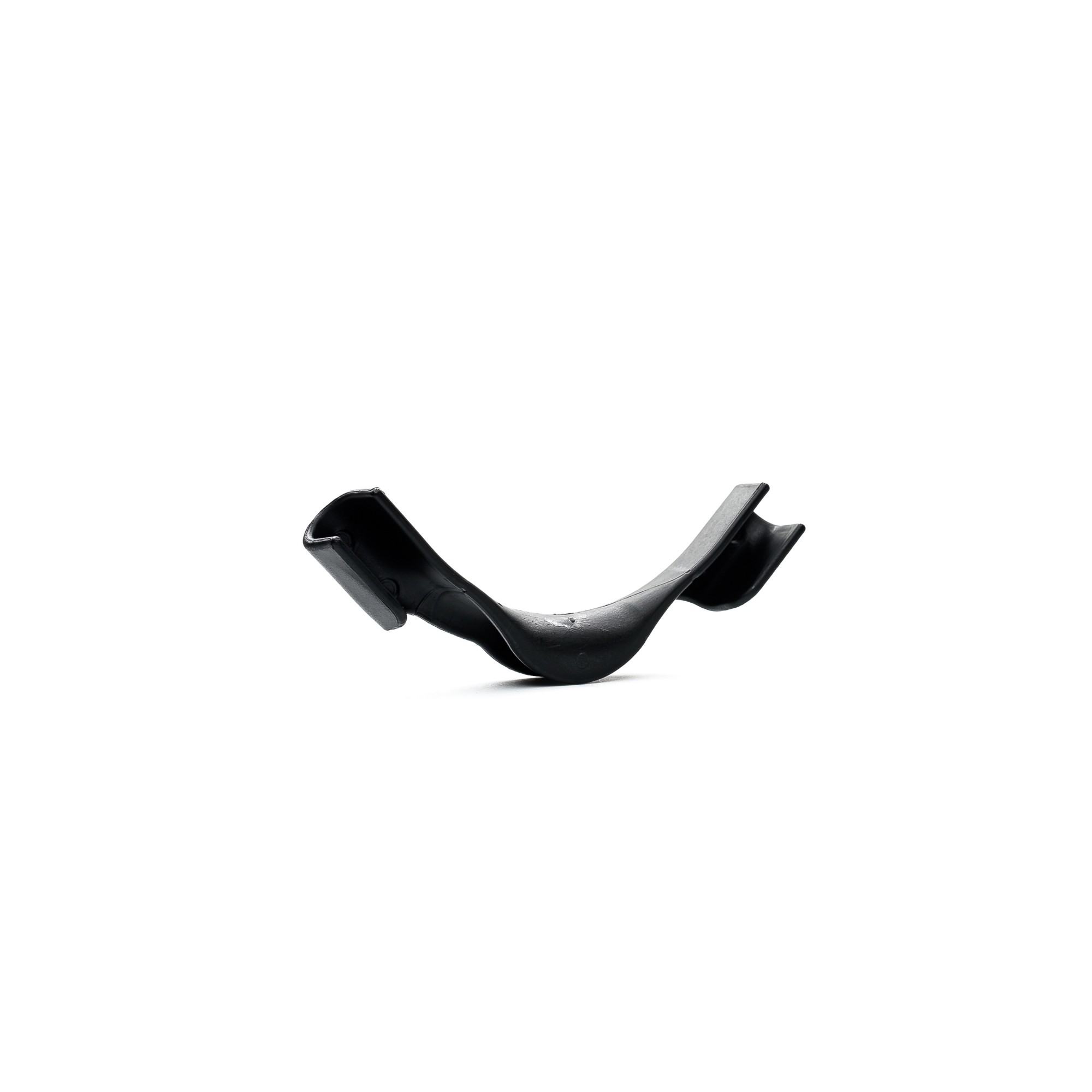

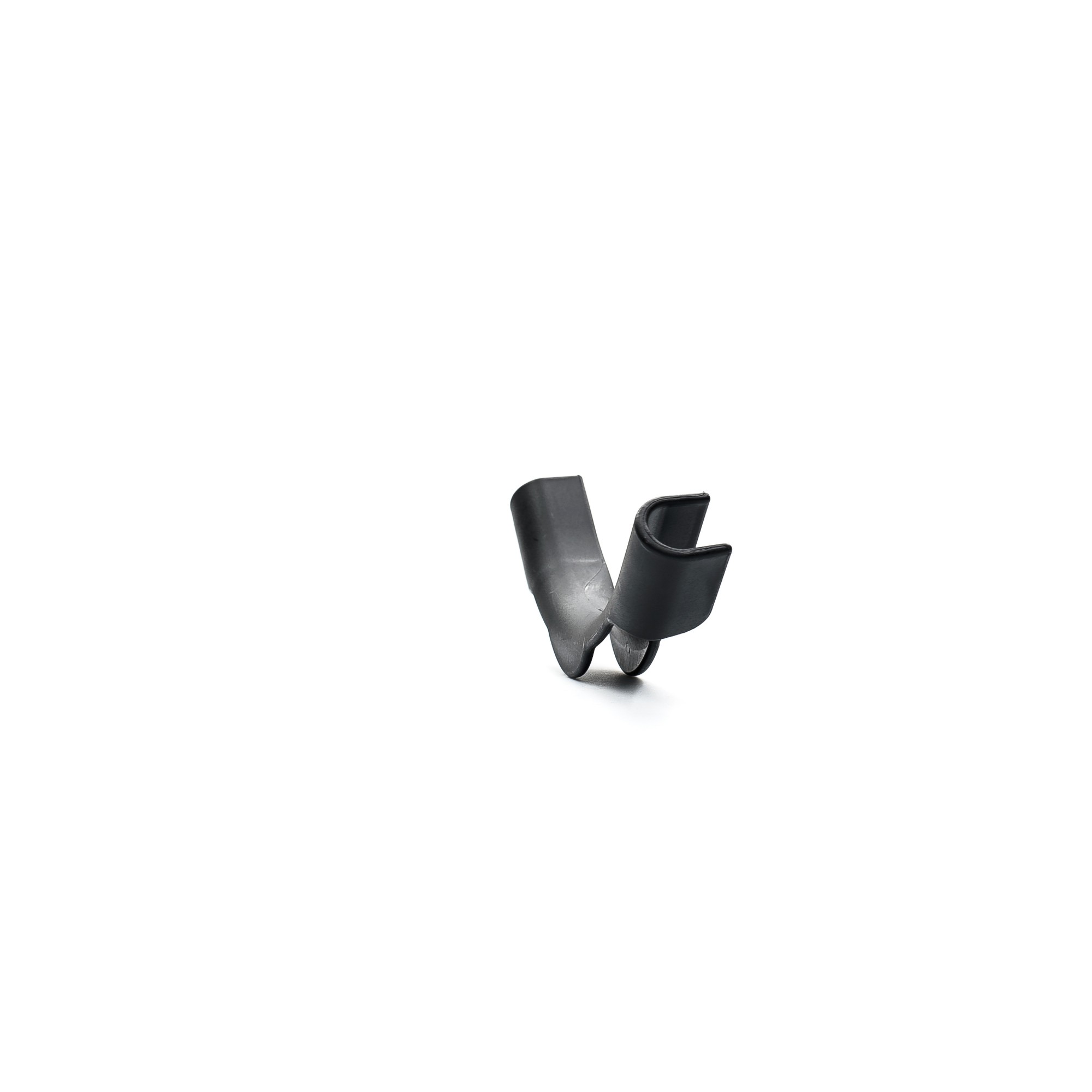

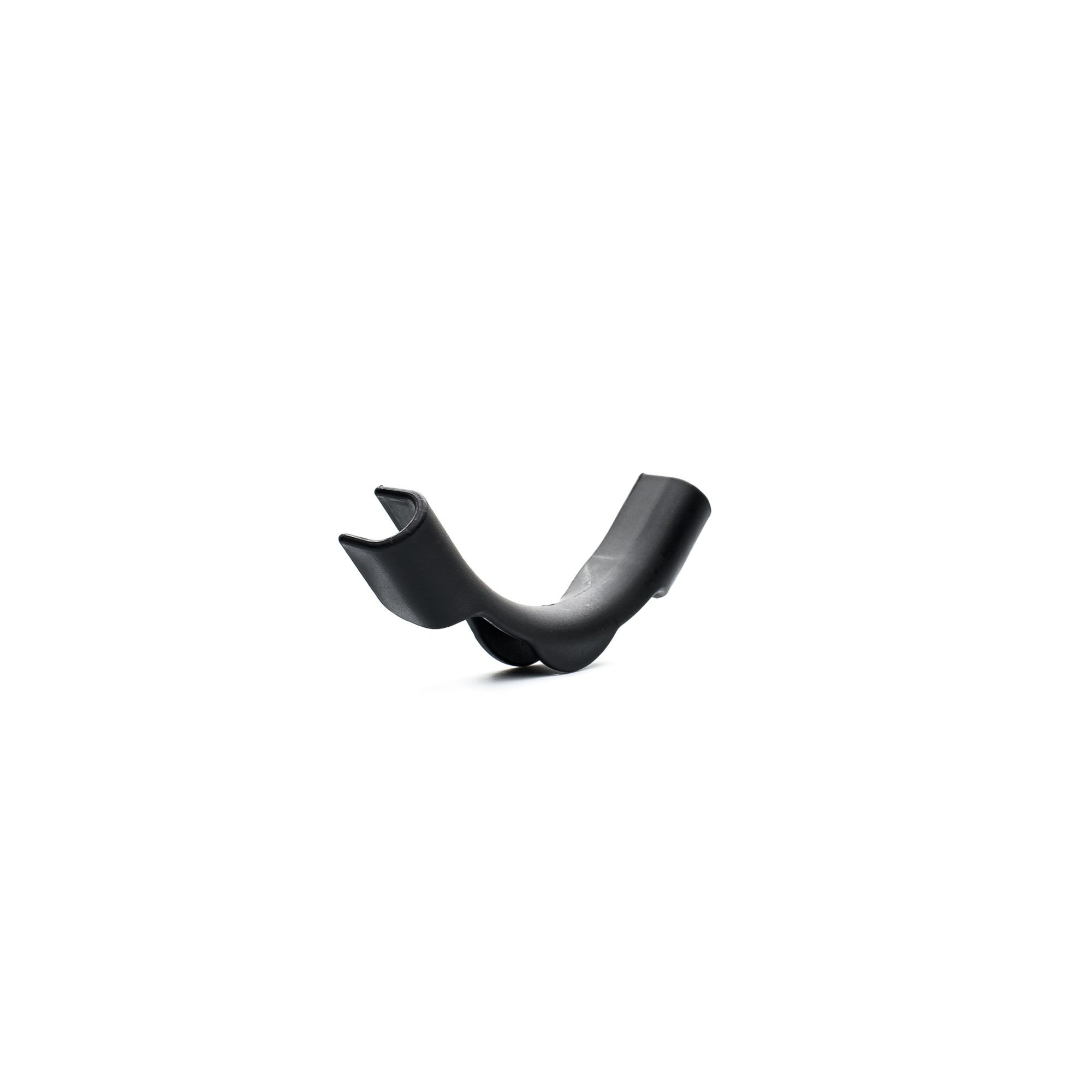

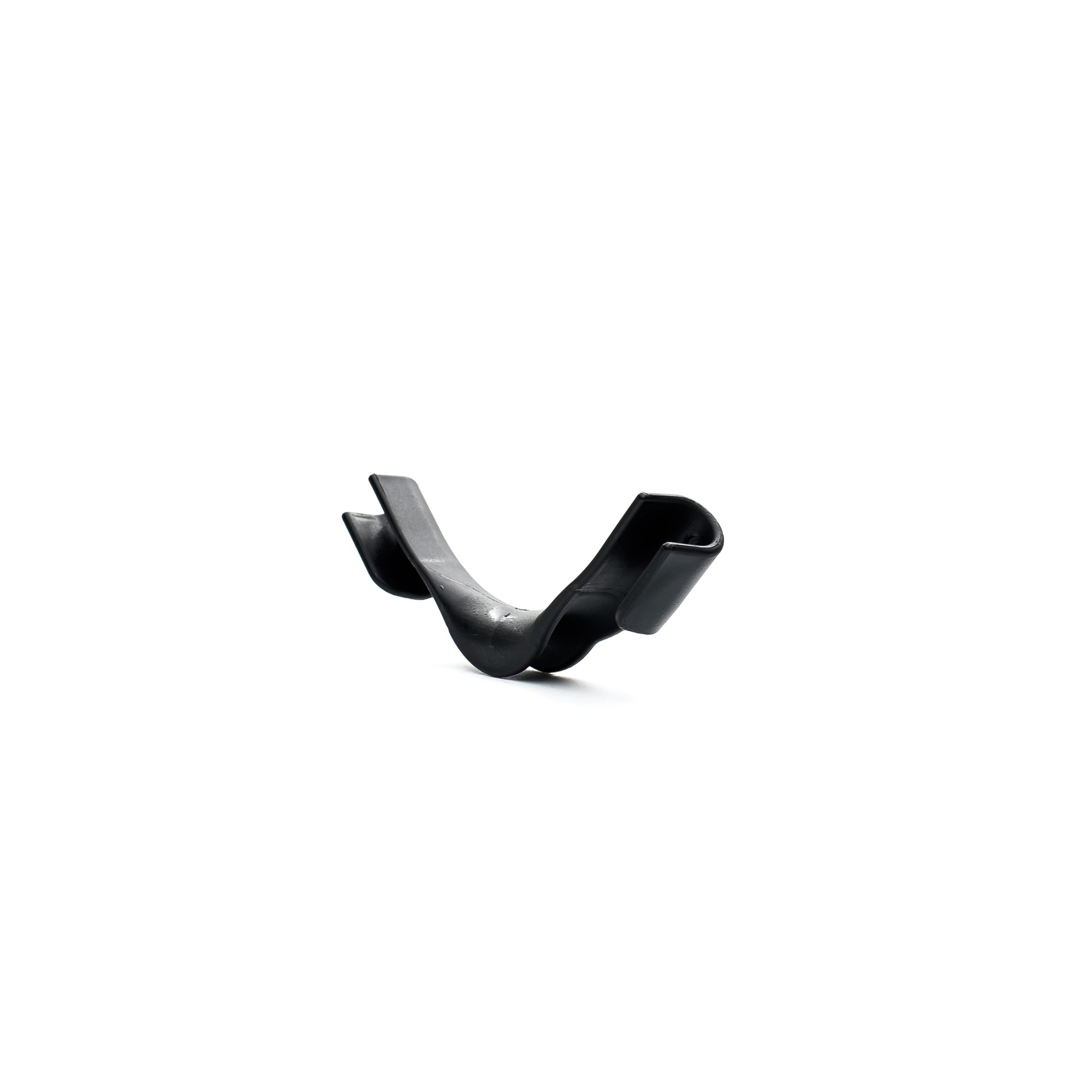

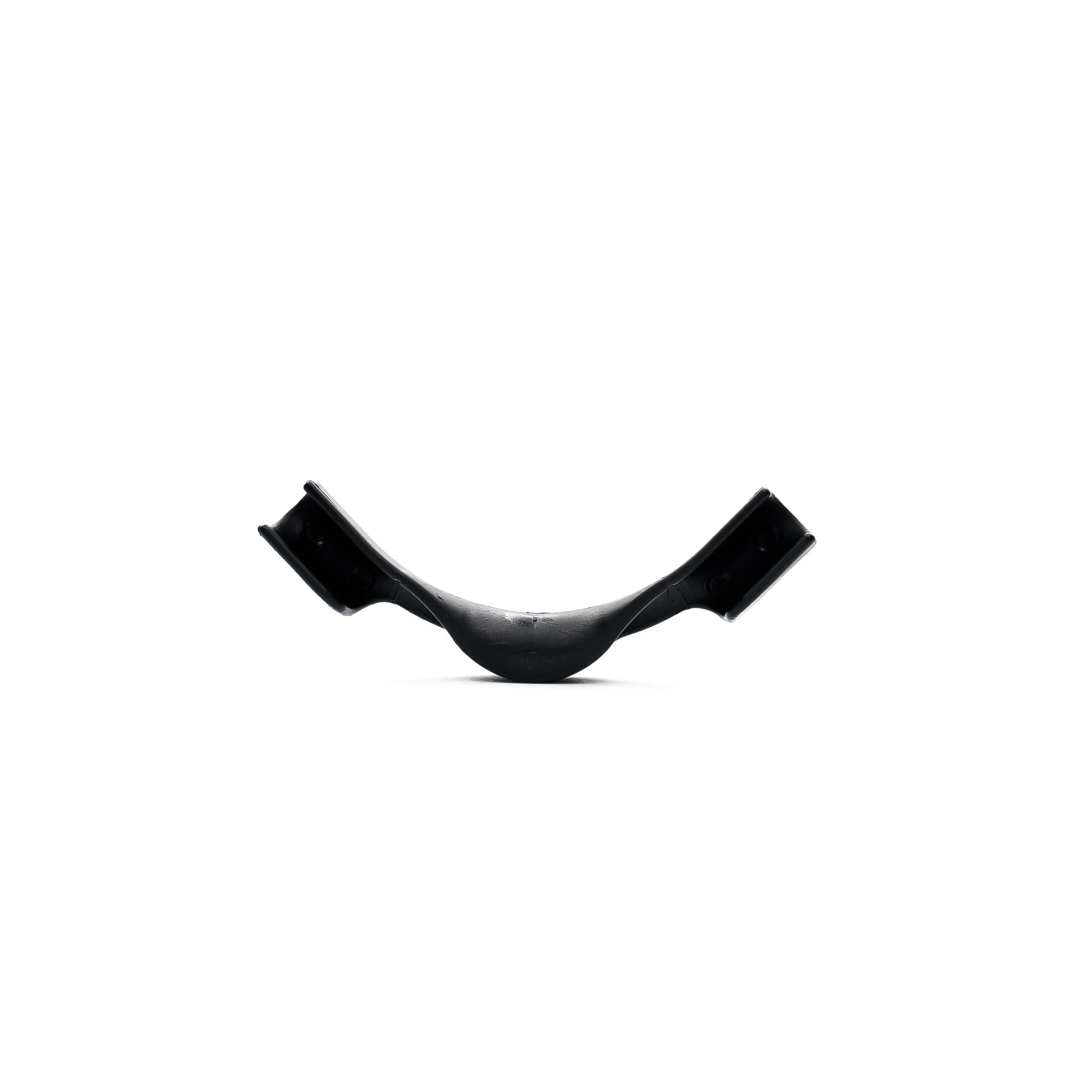

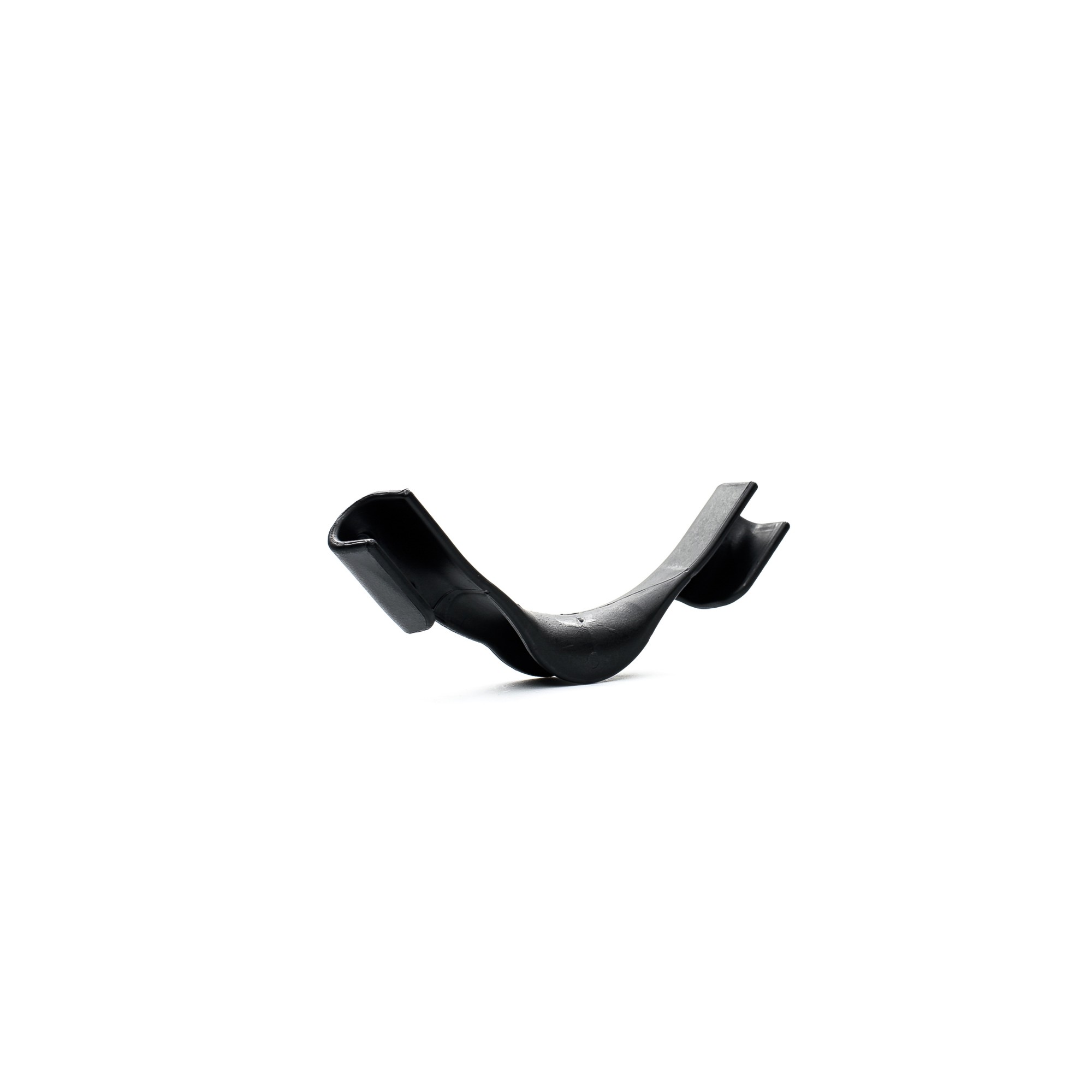

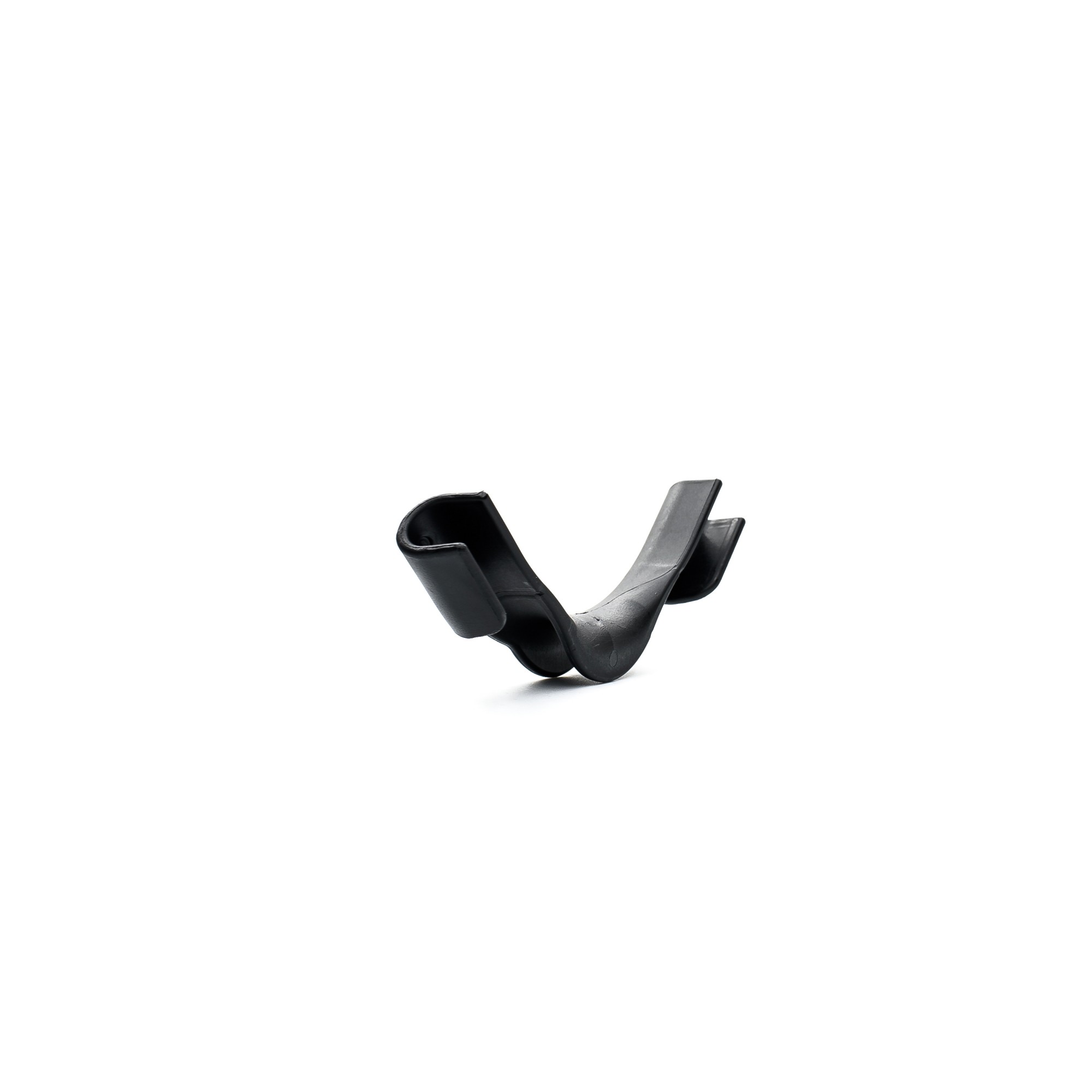

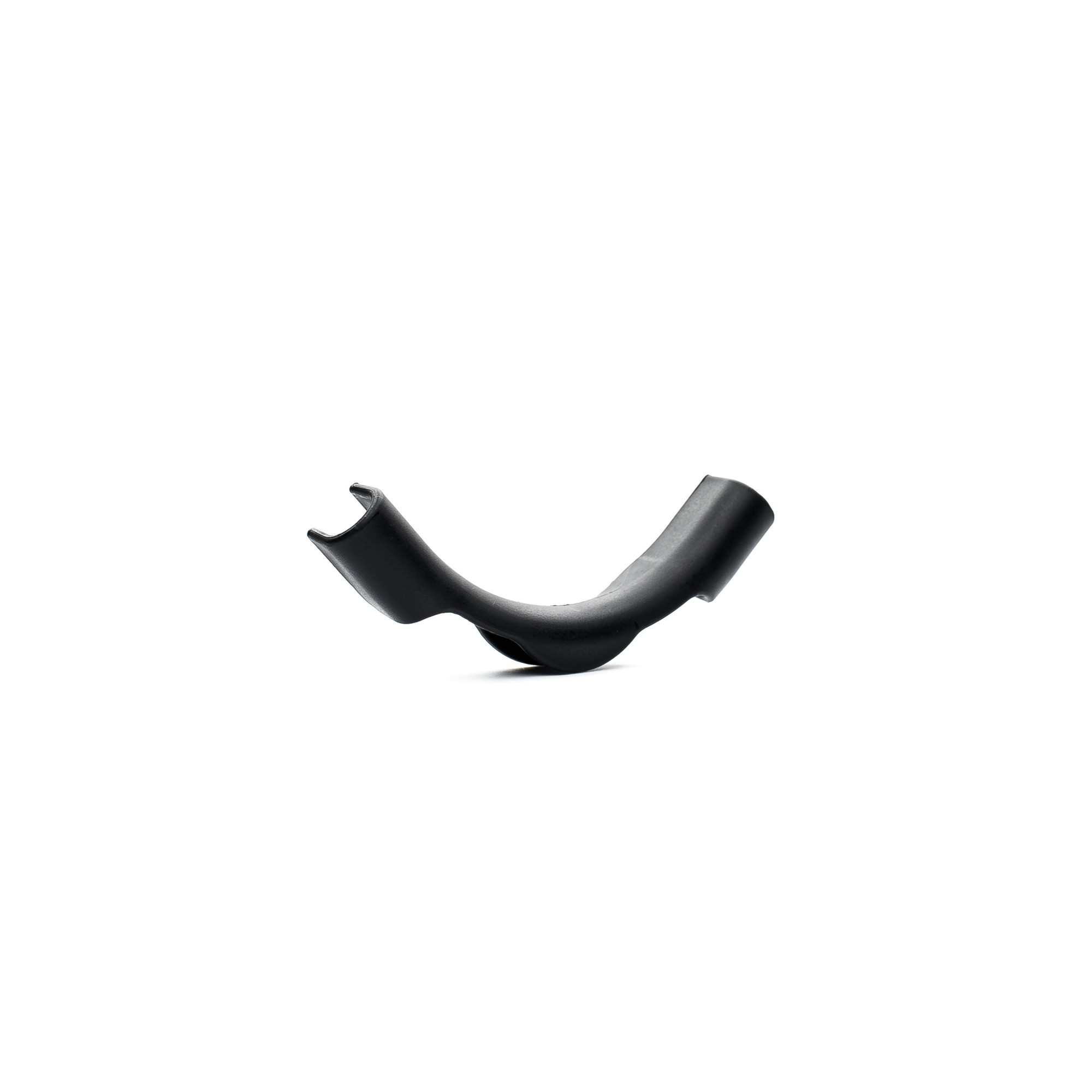

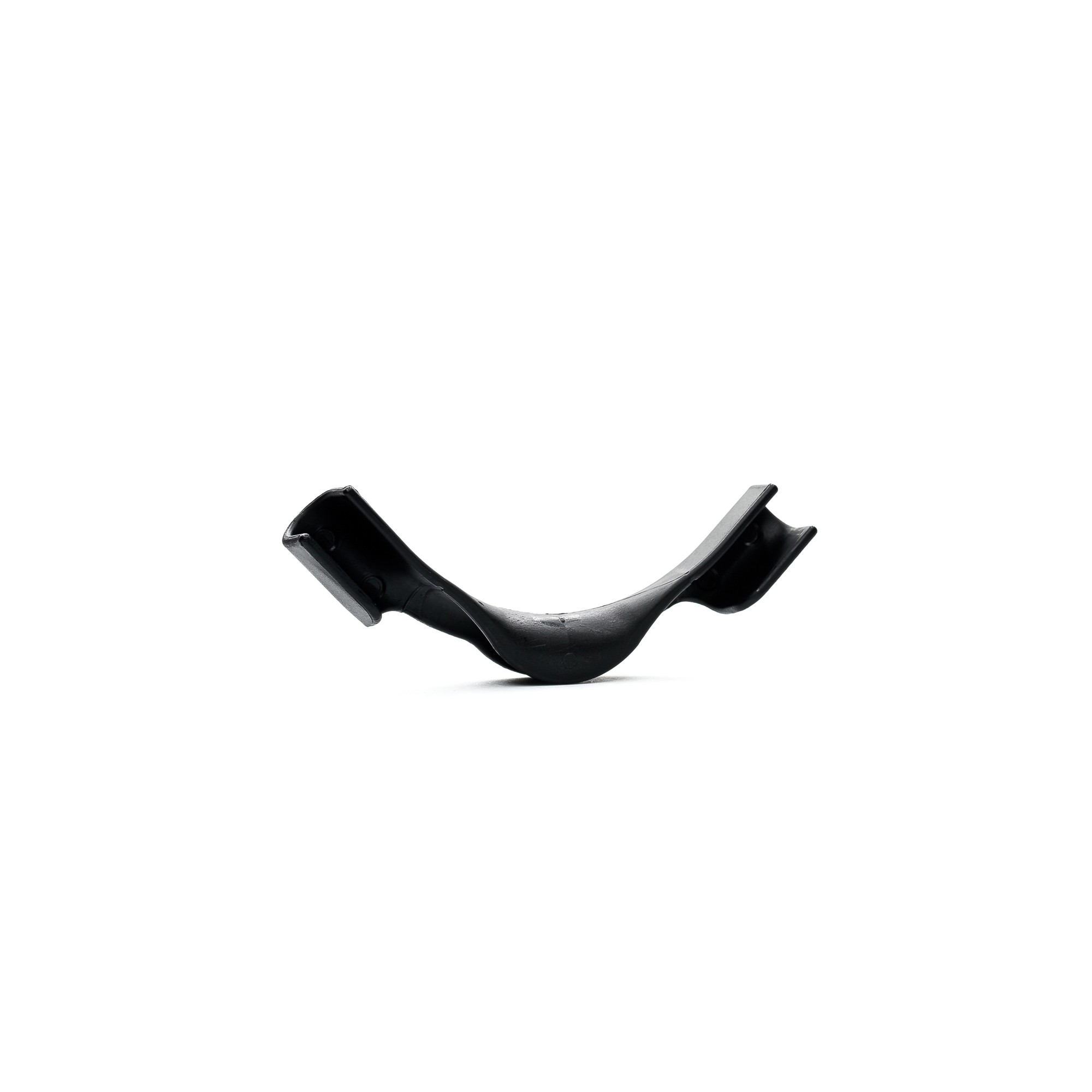

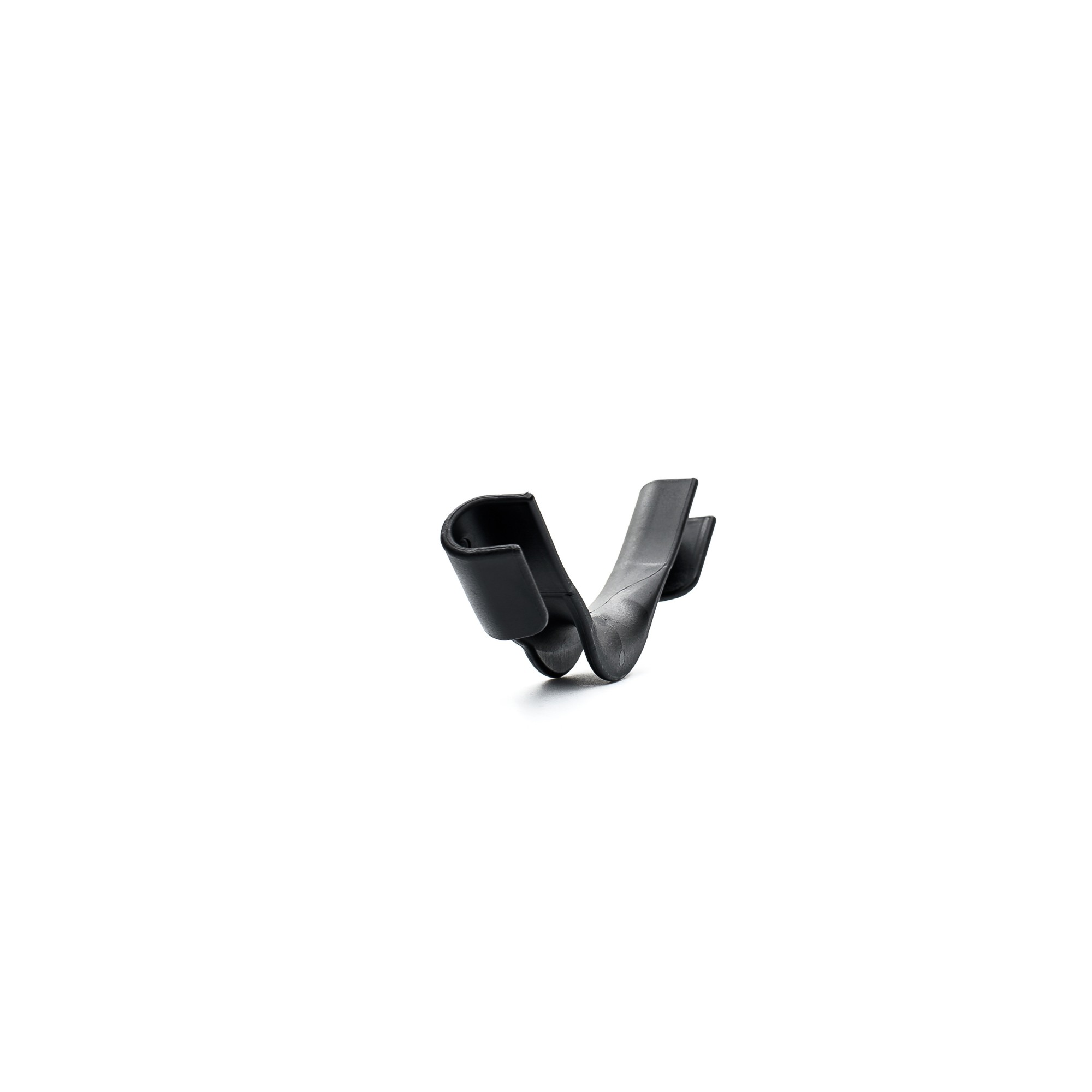

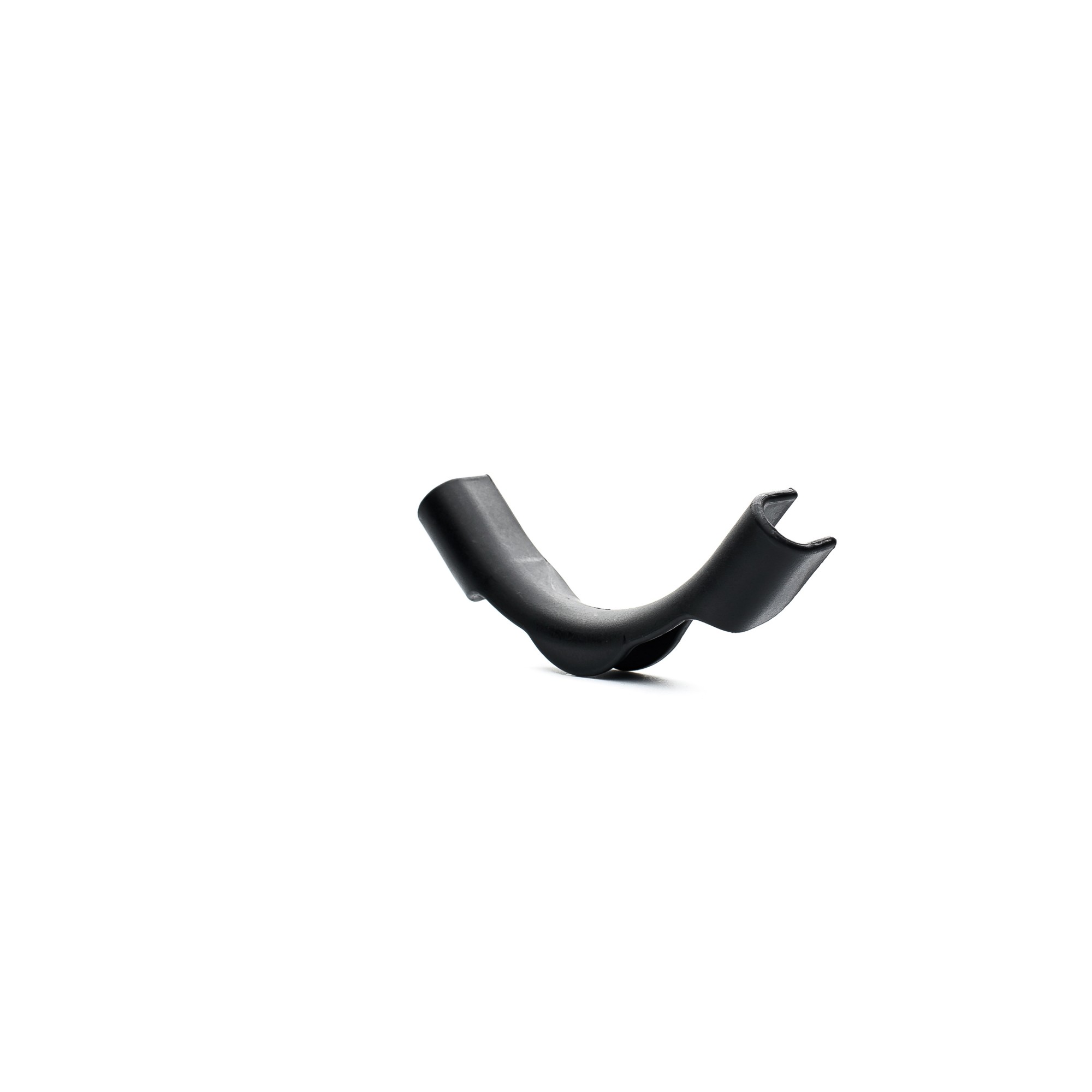

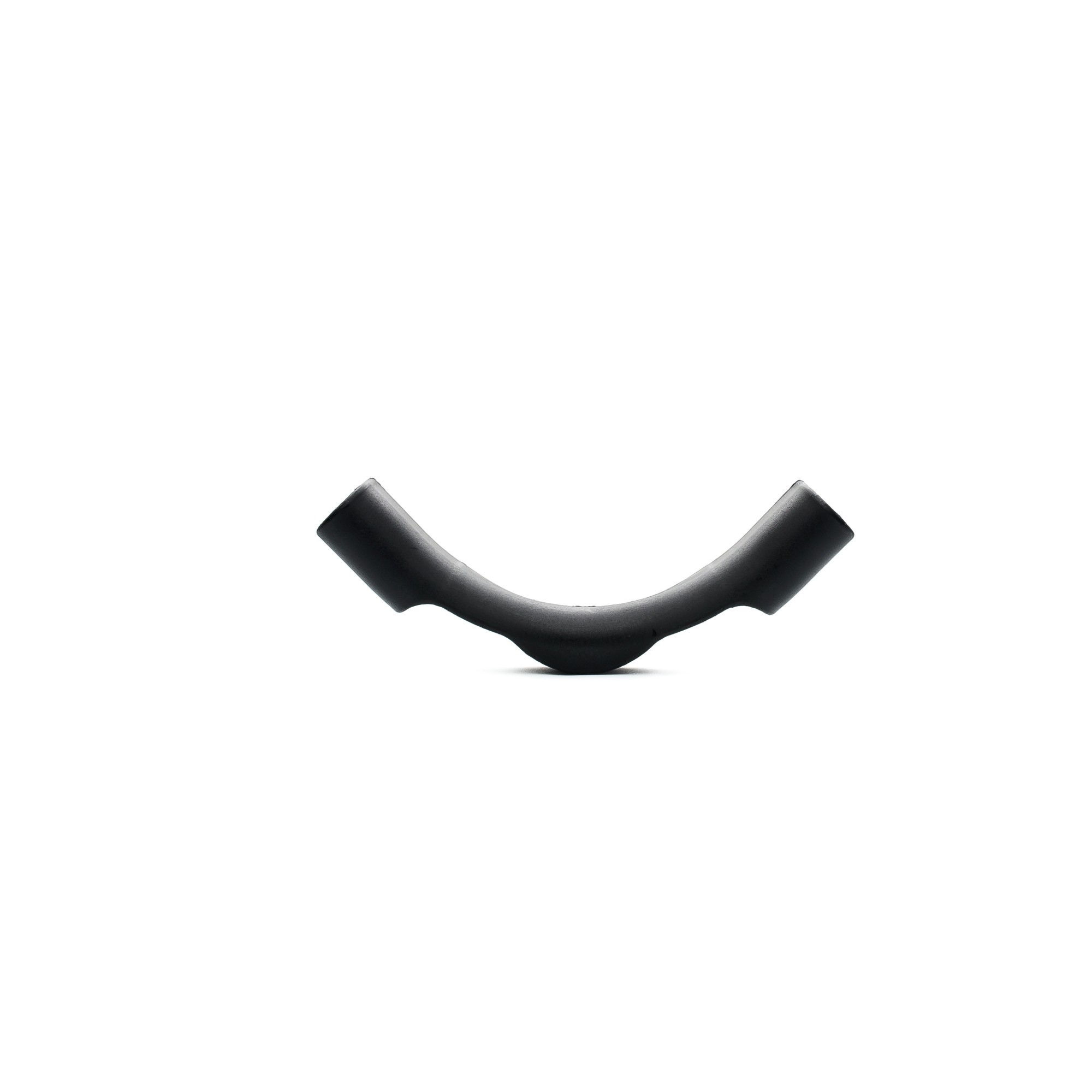

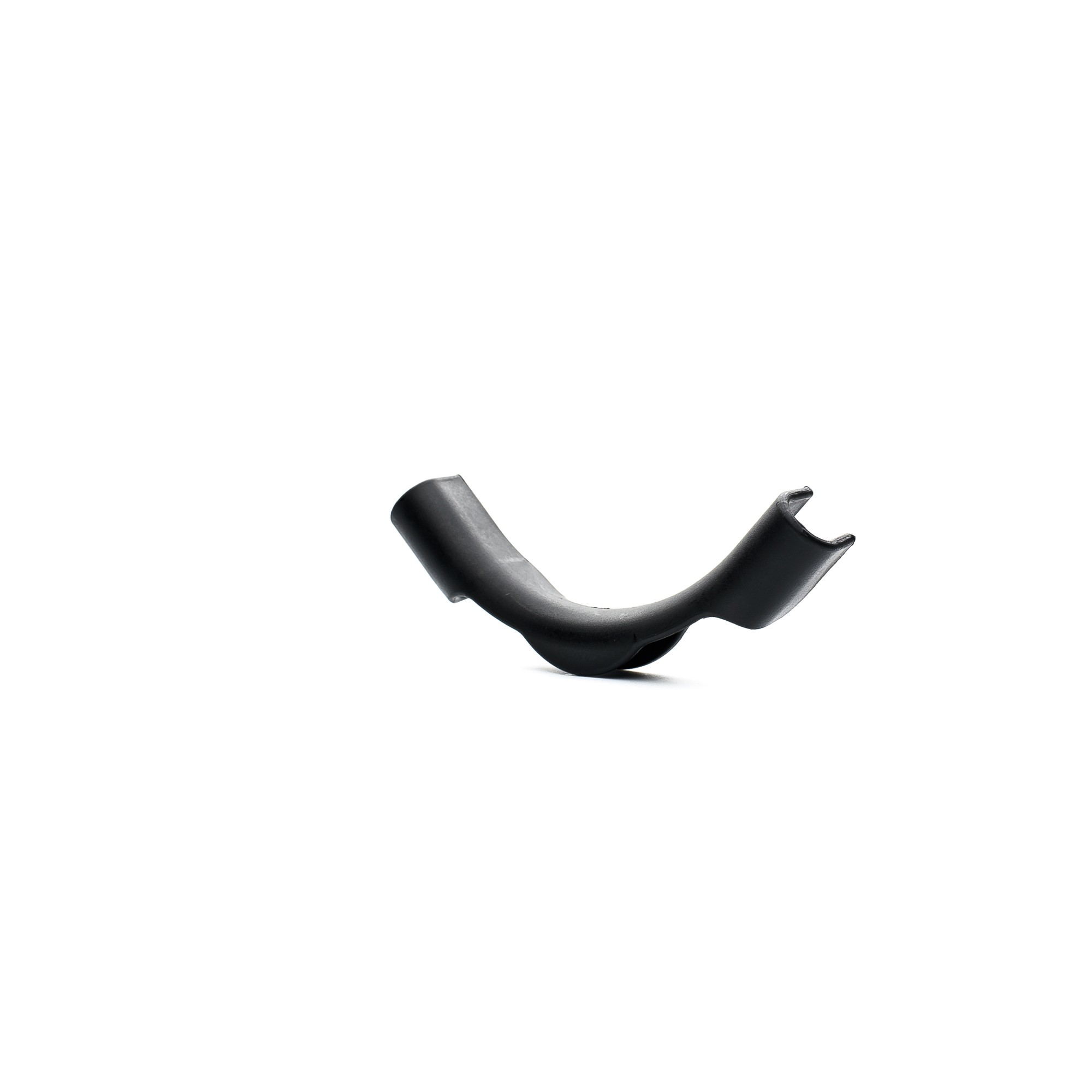

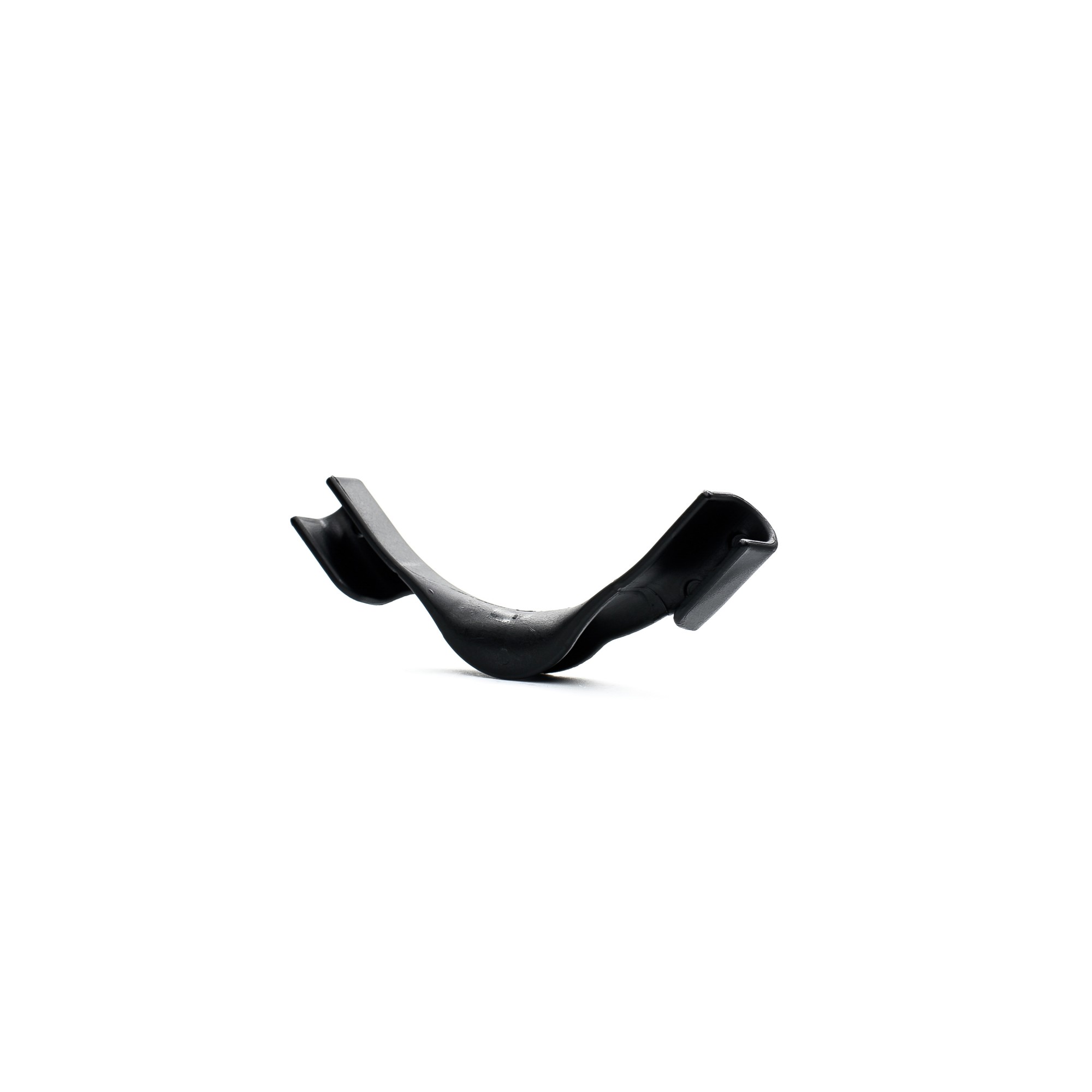

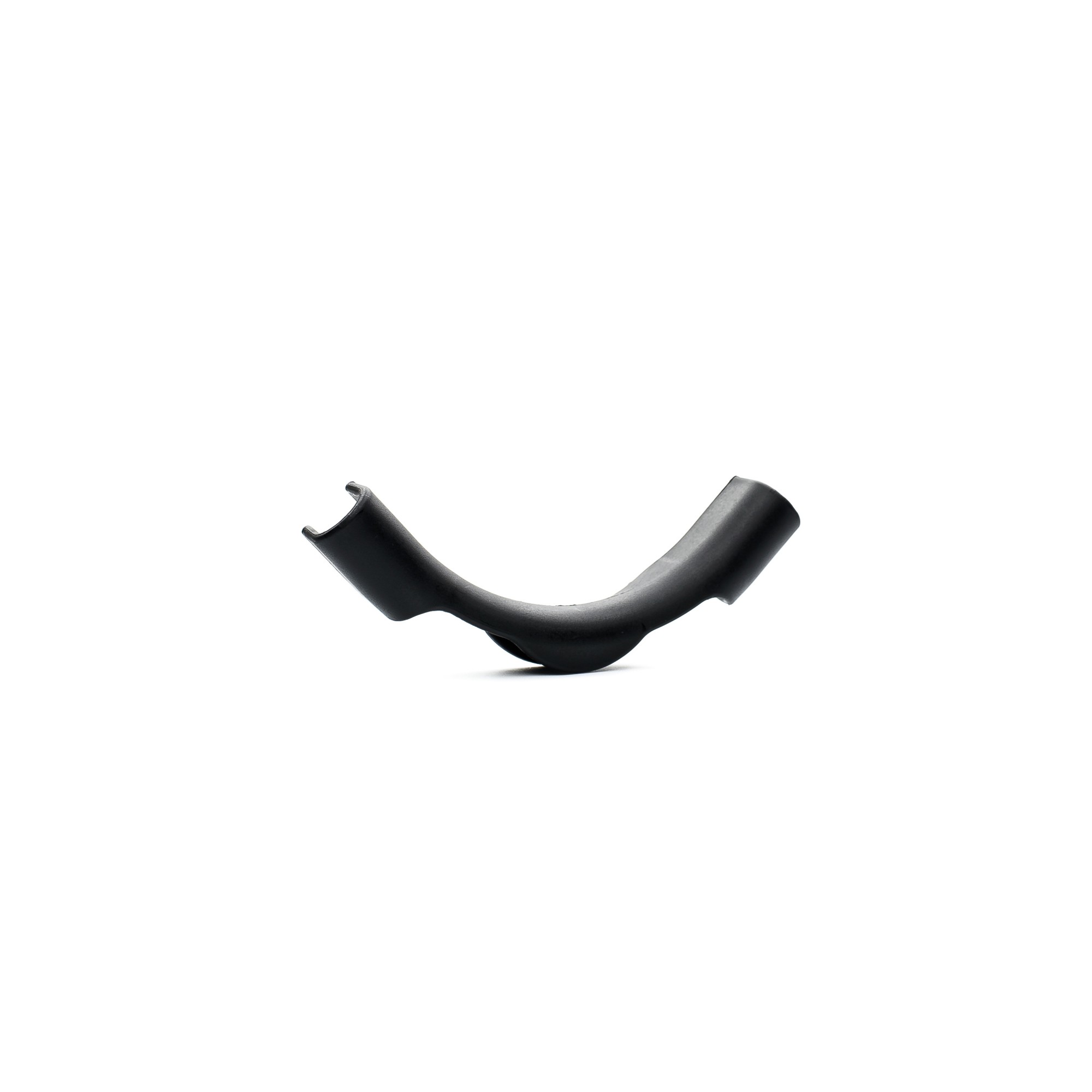

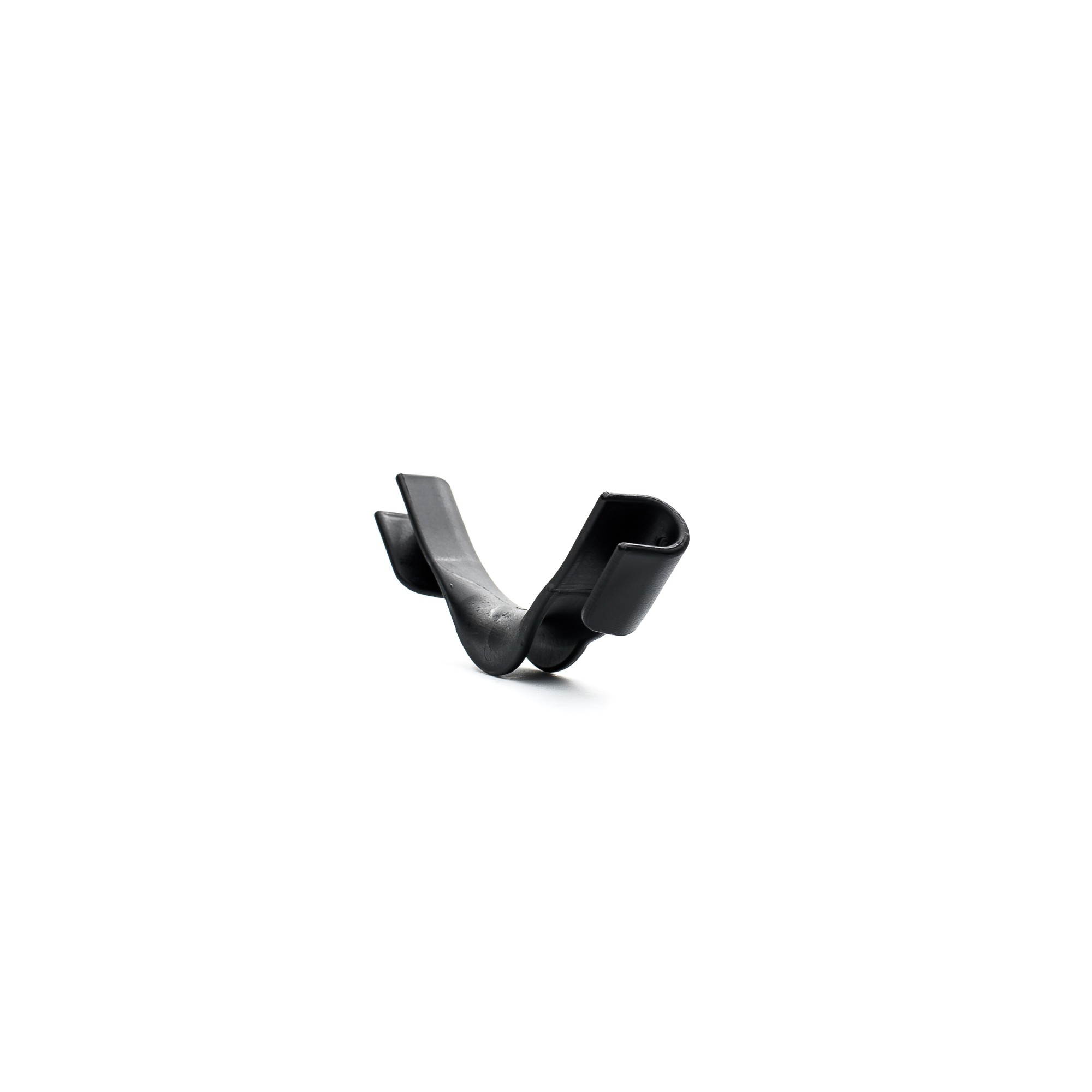

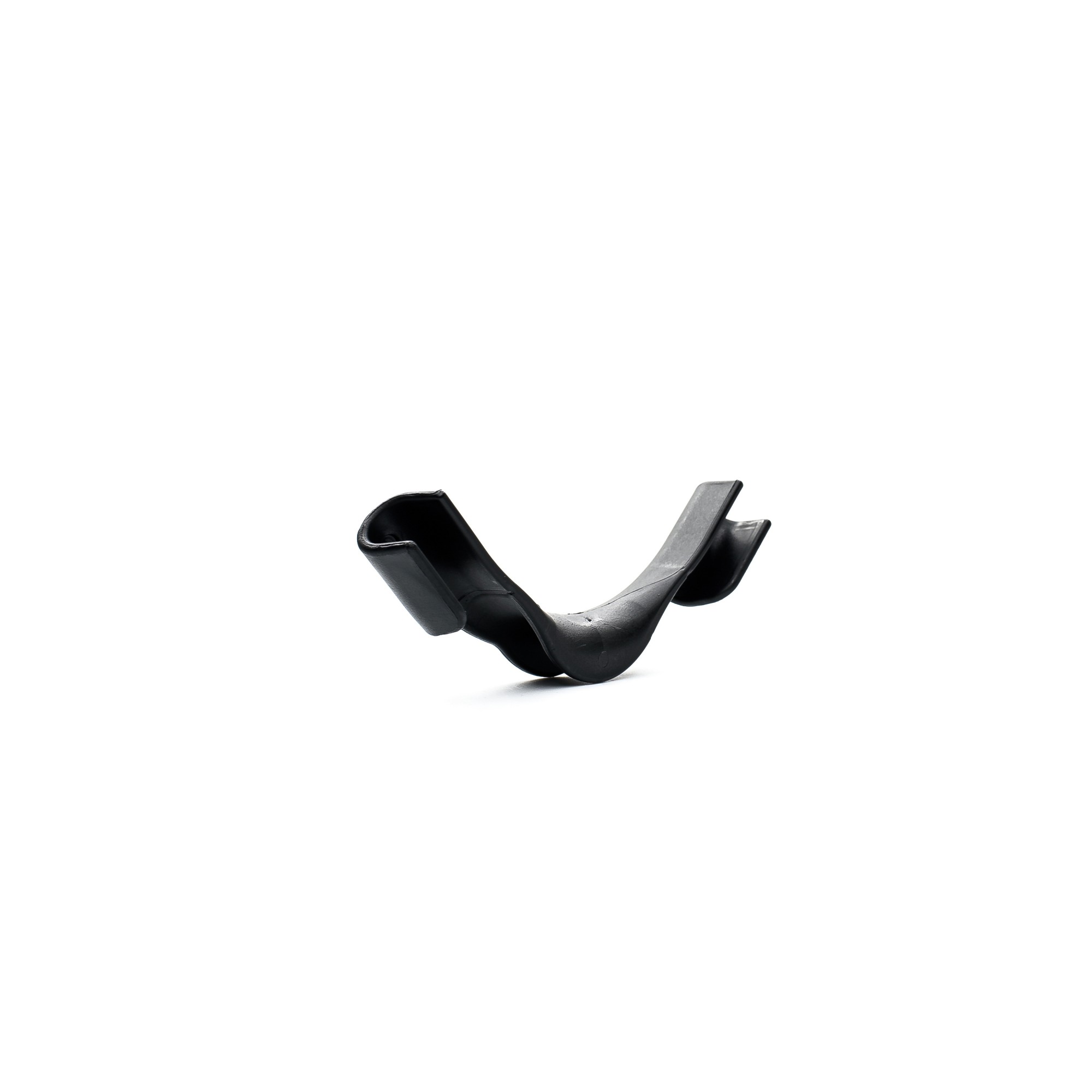

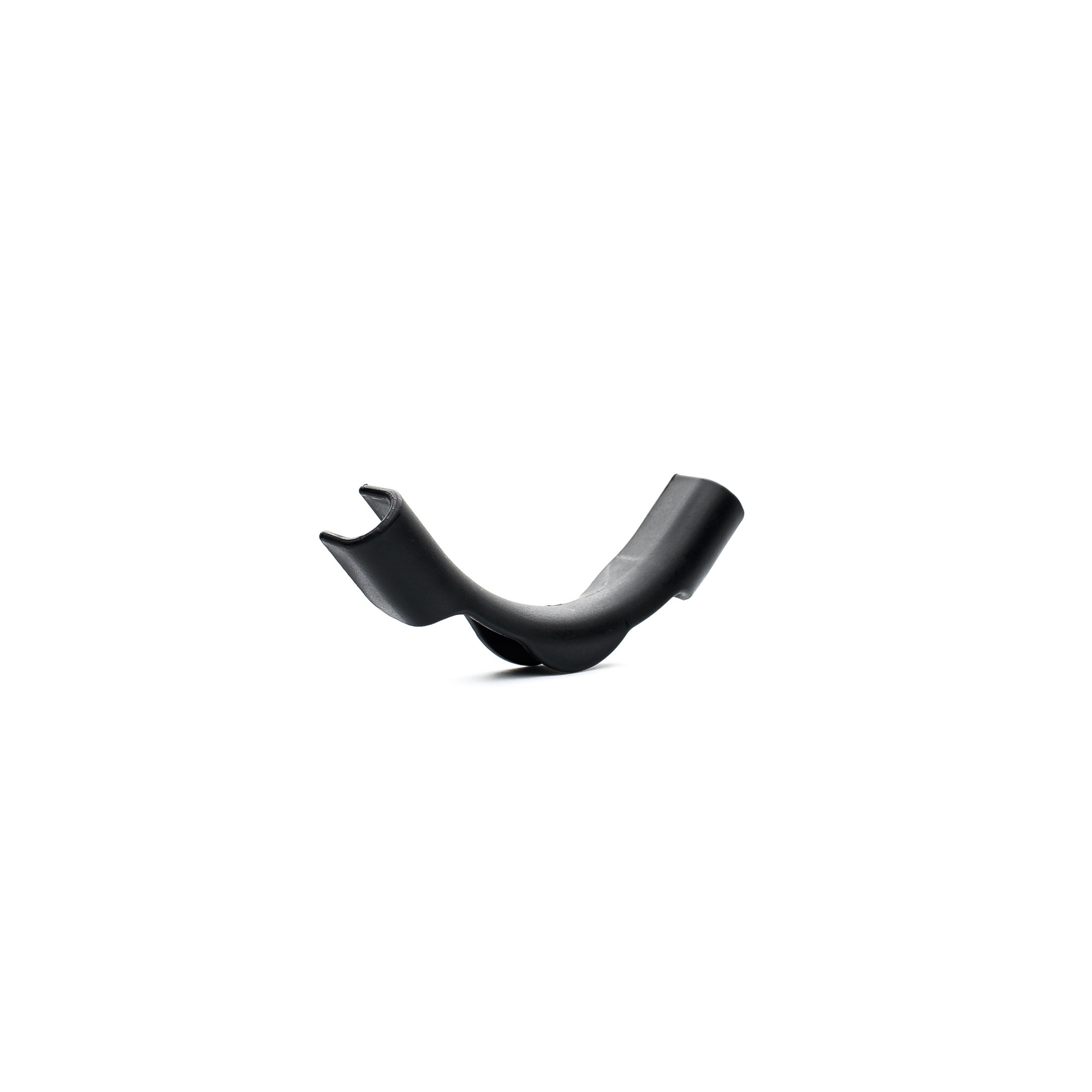

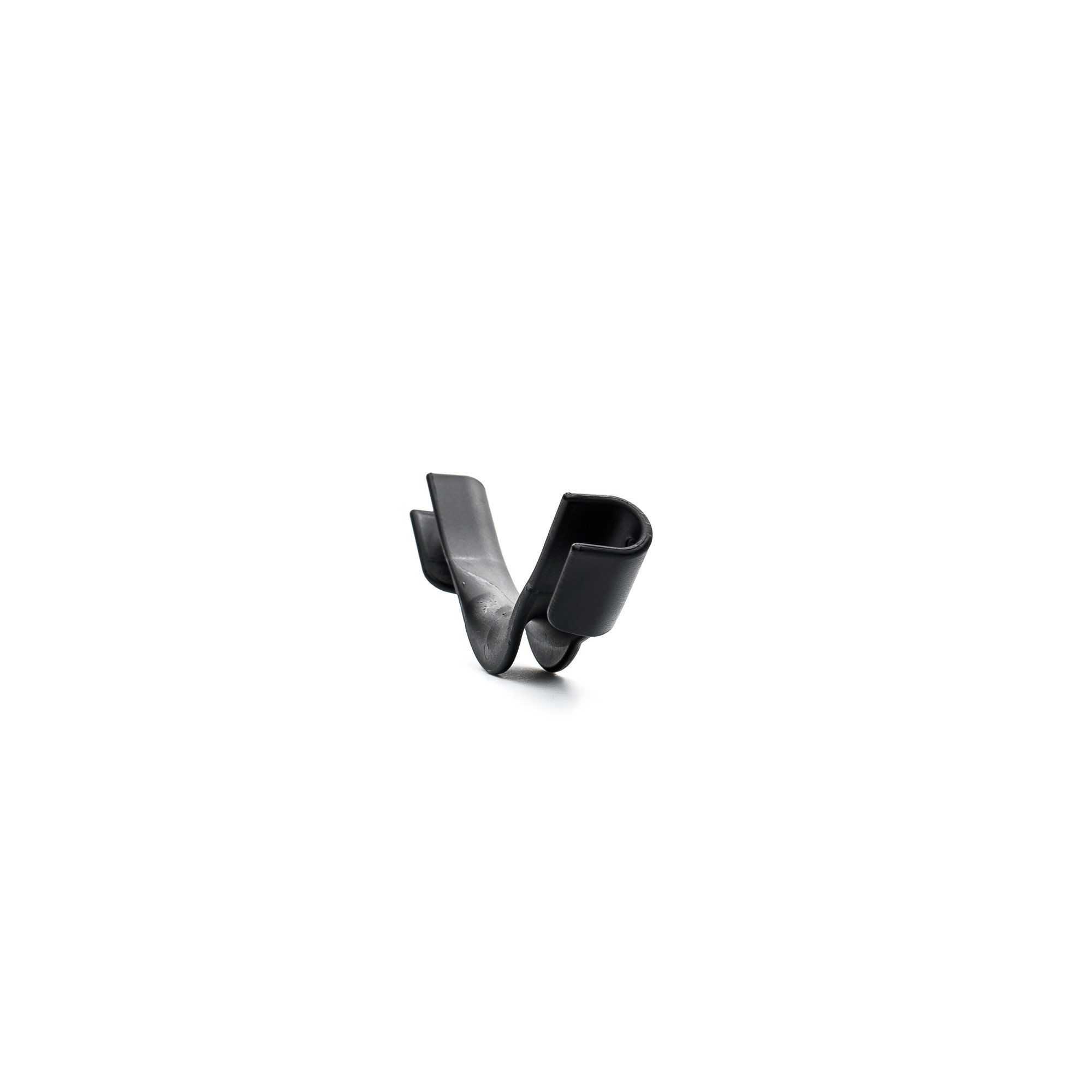

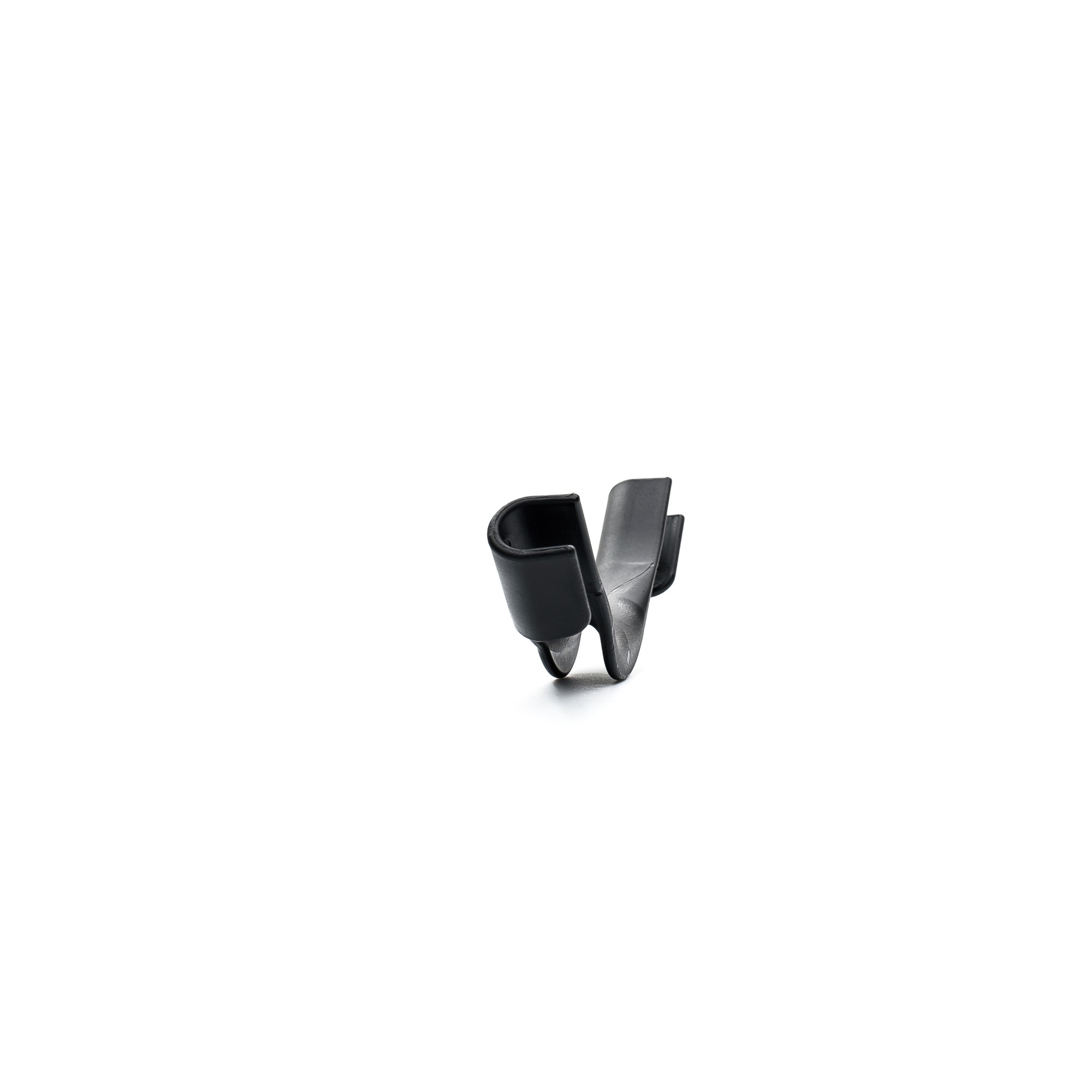

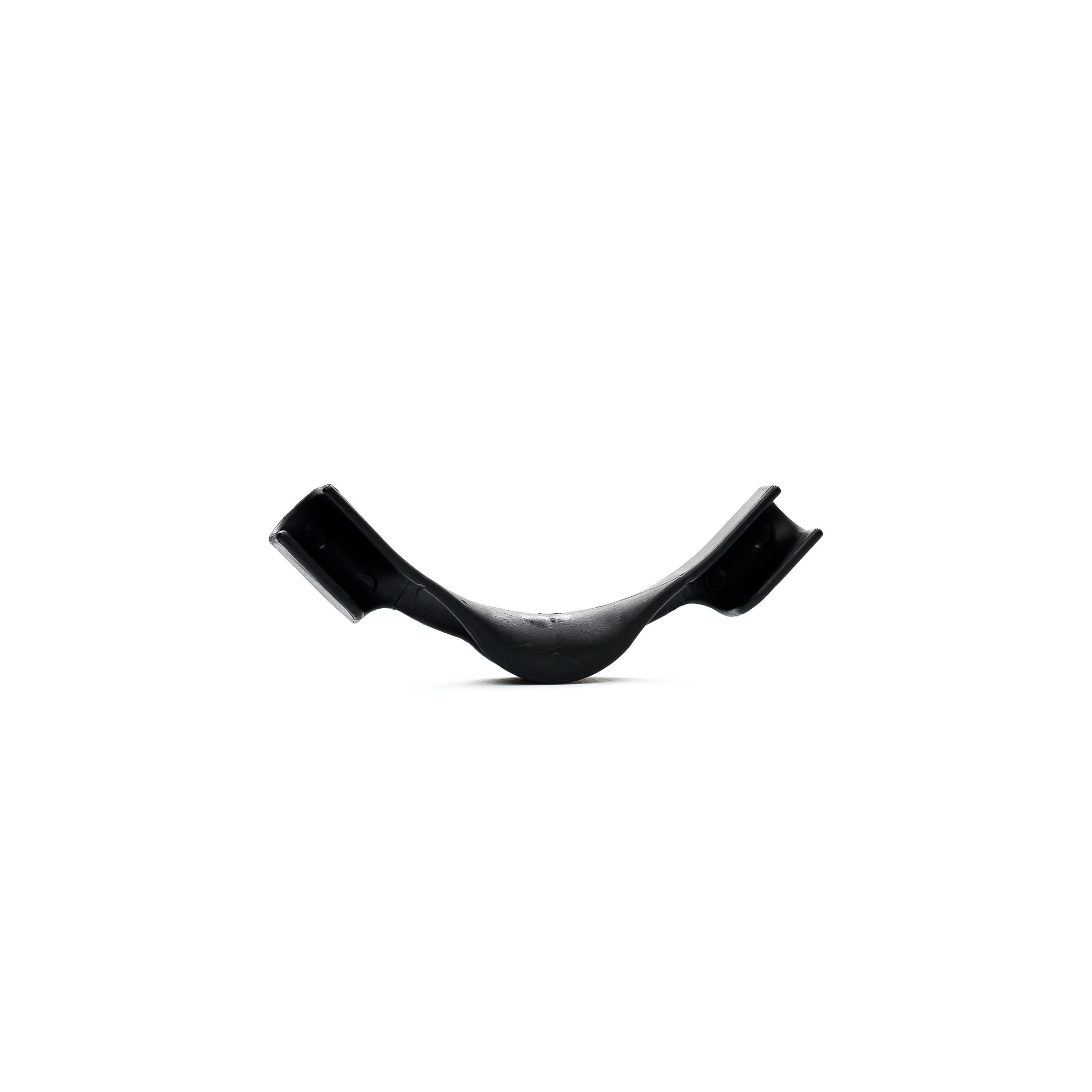

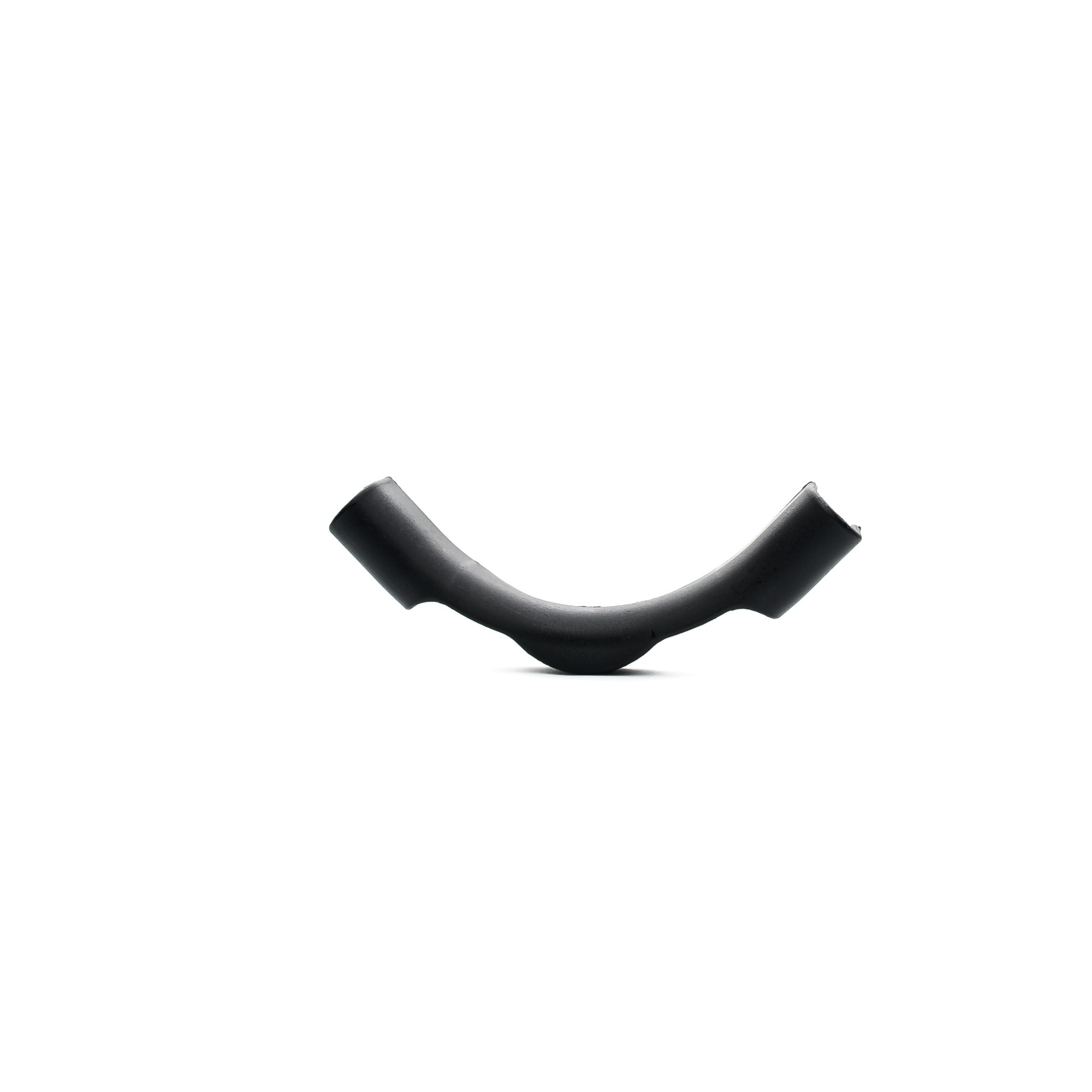

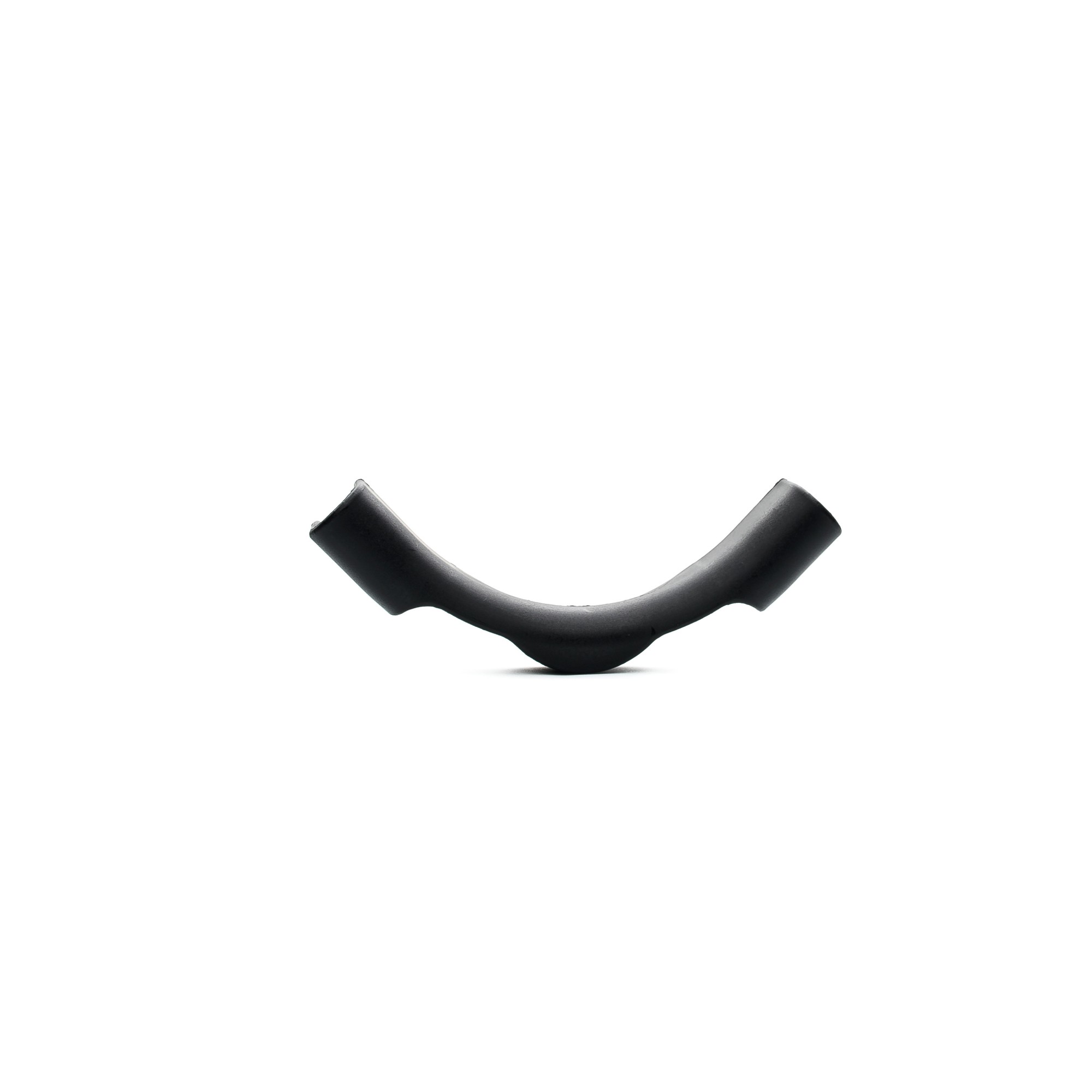

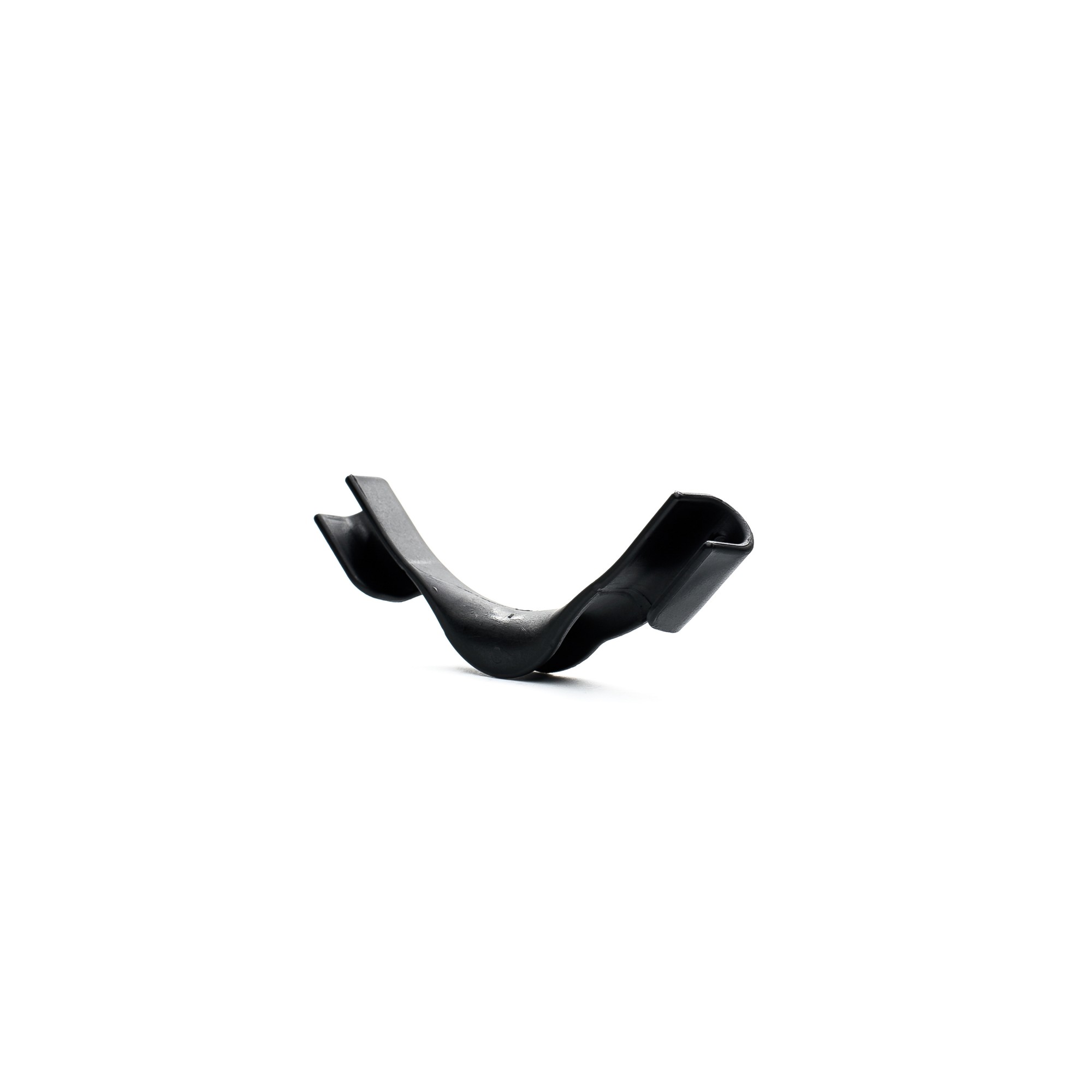

The pipe bend support allows plumber to bend heating pipes in a 90 degree bow. Its elbow can be used to guide pipes through floors, ceilings and to a manifold cabinet. It holds the pipe and directs it to the manifold cabinet. Pipe bend support is available in three dimensions: for the pipe with diameters: 14-18, 20-22, 25.
technical data
Working temperature: 0 °C - 65 °C
| Single pack | Multipack | Pallet | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Index | Diameter | Product dimensions X/Y/Z (mm) |
Net weight (g) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
Quantity | Dimensions (cm) |
Gross weight (kg) |
| F-697646 | 10-12 | 70 x 11 x 22 | 13 | 300 | 39.5 x 26 x 16.5 | 4.2 | - | - | - | 27 000 | 120 x 80 x 185 | 398 |
| F-062713 | 14-18 | 125 x 17 x 25 | 37 | 100 | 39.5 x 26 x 16.5 | 4 | 500 | 54.5 x 41.5 x 36.5 | 19.5 | 9 000 | 120 x 80 x 185 | 371 |
| F-698506 | 20-22 | 140 x 20 x 39 | 45 | 50 | 39.5 x 26 x 16.5 | 2.55 | 250 | 54.5 x 41.5 x 36.5 | 12.2 | 4 500 | 120 x 80 x 185 | 239 |
| F-061242 | 25 | 150 x 23 x 34 | 63 | 50 | 39.5 x 26 x 16.5 | 3.45 | 250 | 54.5 x 41.5 x 36.5 | 16.7 | 4 500 | 120 x 80 x 185 | 320 |
| F-695802 | 32-35 | 225 x 33.5 x 45 | 180 | 10 | 39.5 x 26 x 16.5 | 2.1 | - | - | - | 900 | 120 x 80 x 185 | 209 |
Technical drawing
