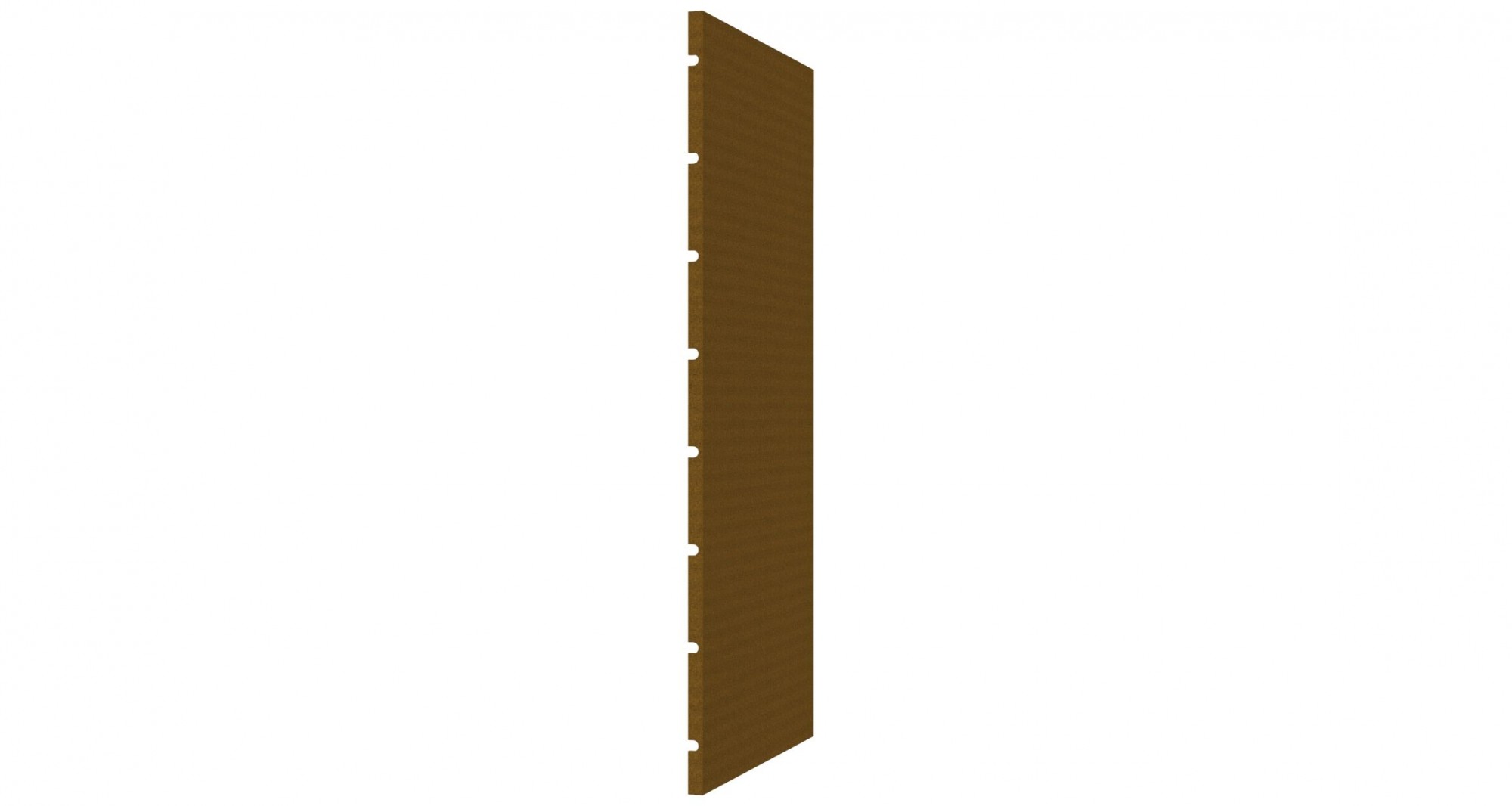

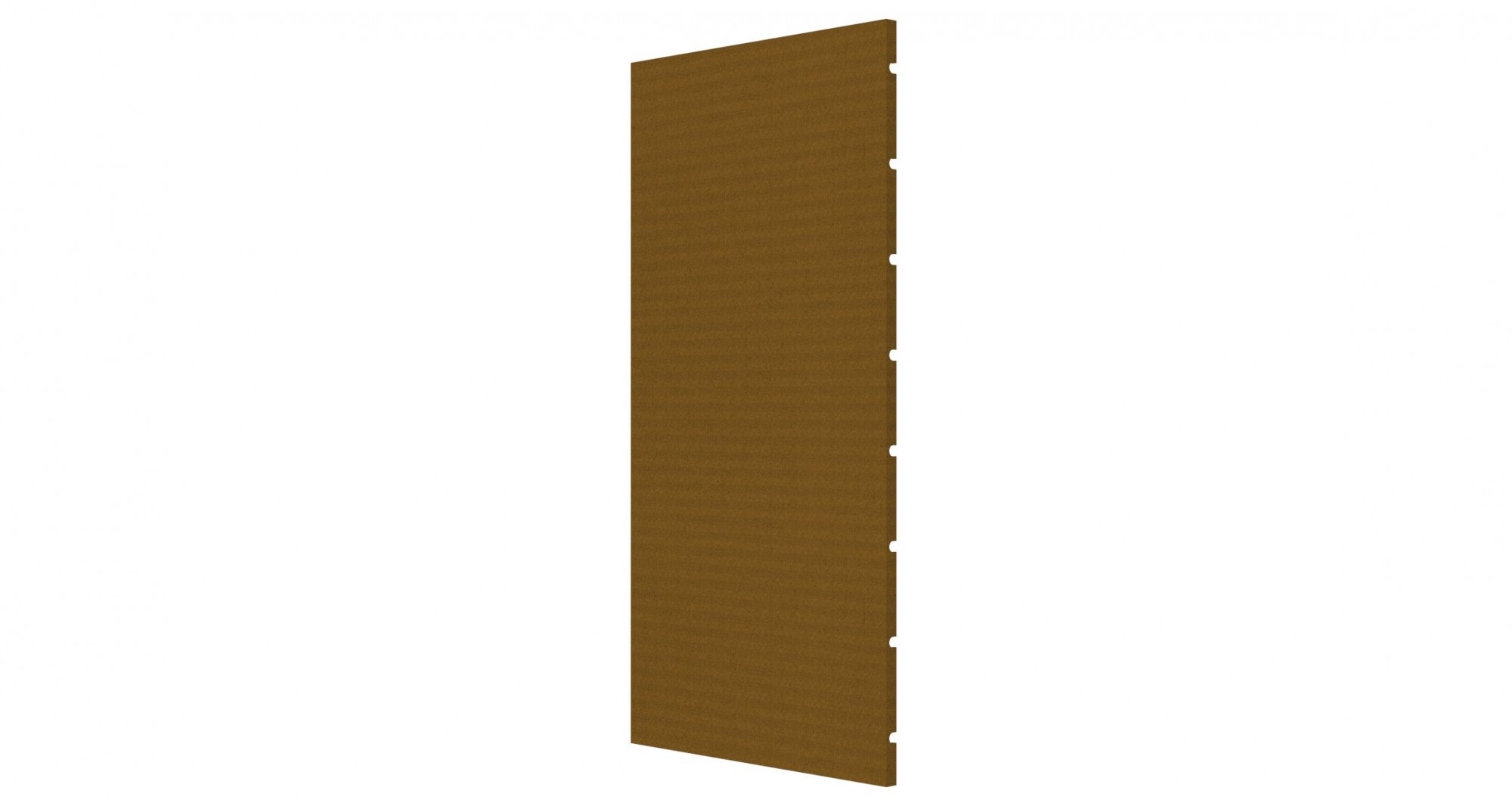

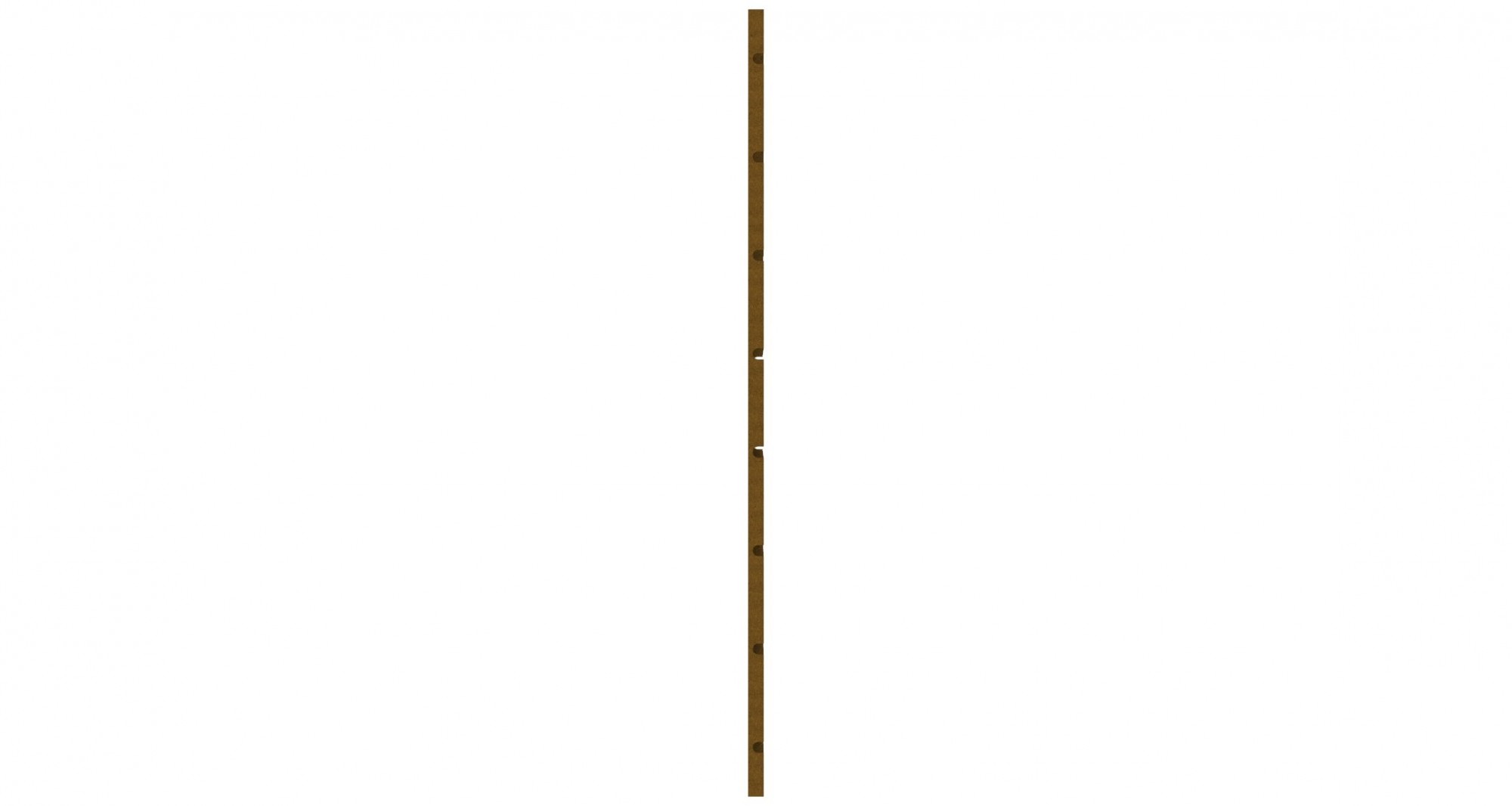

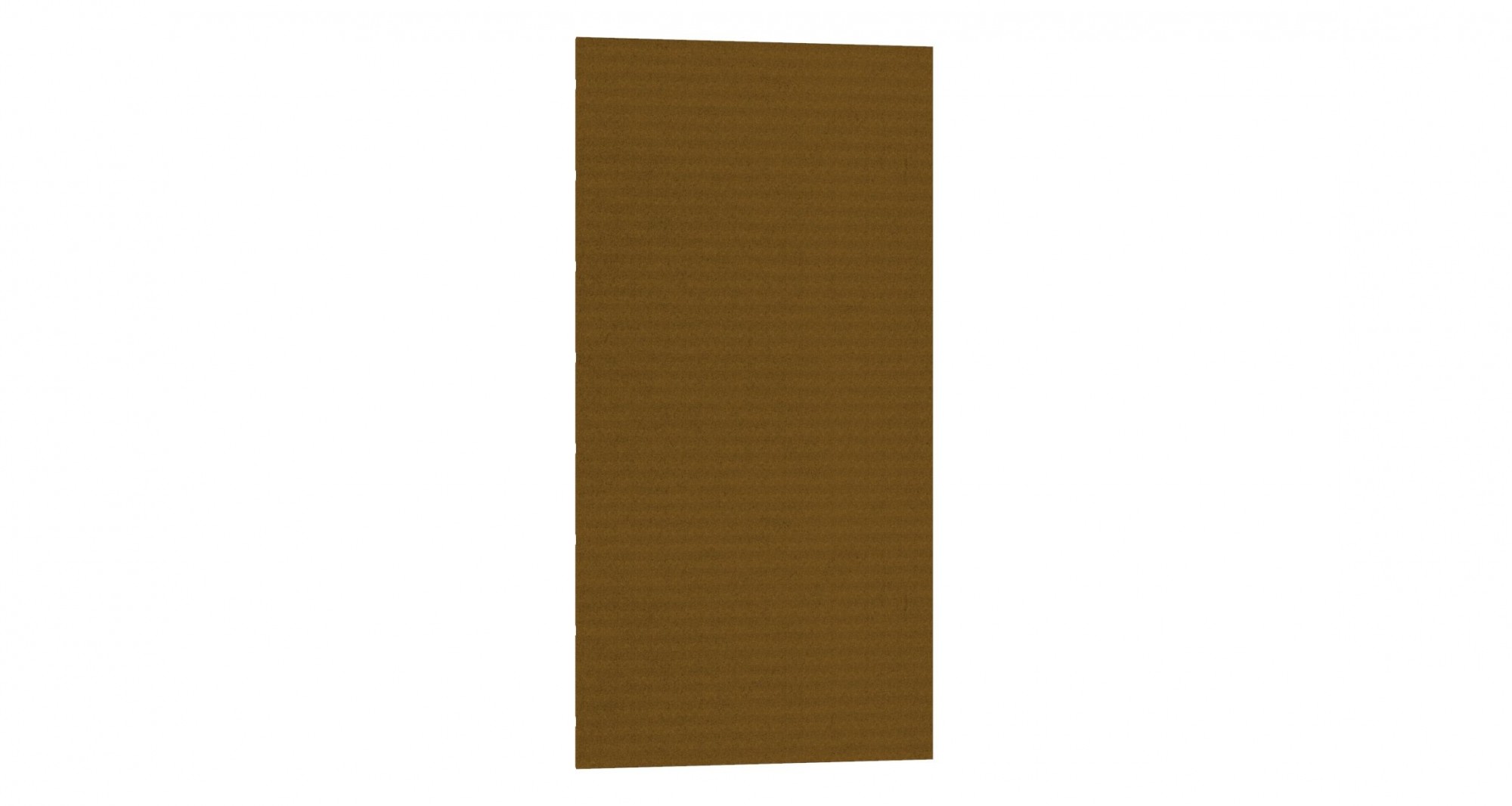

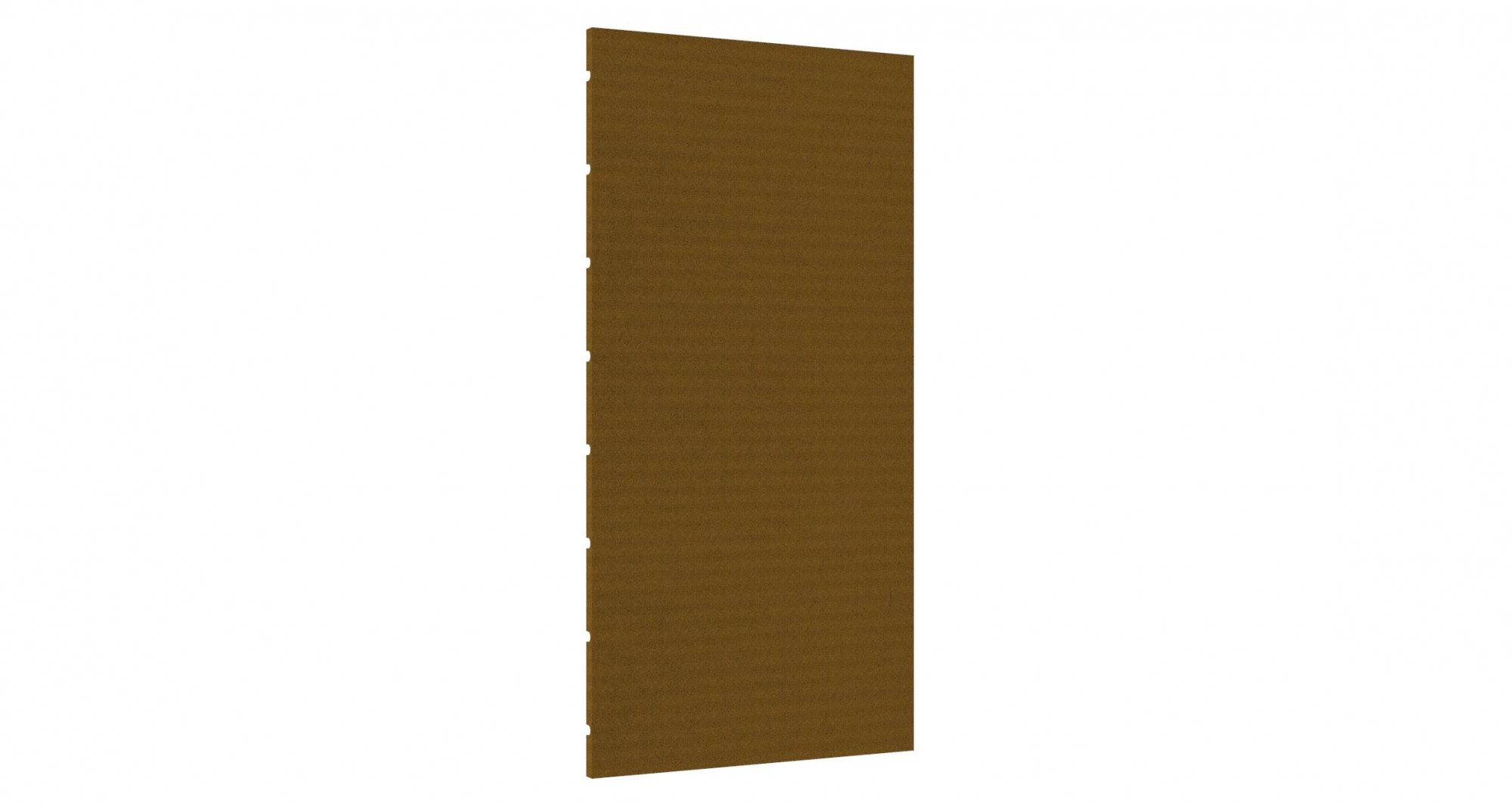

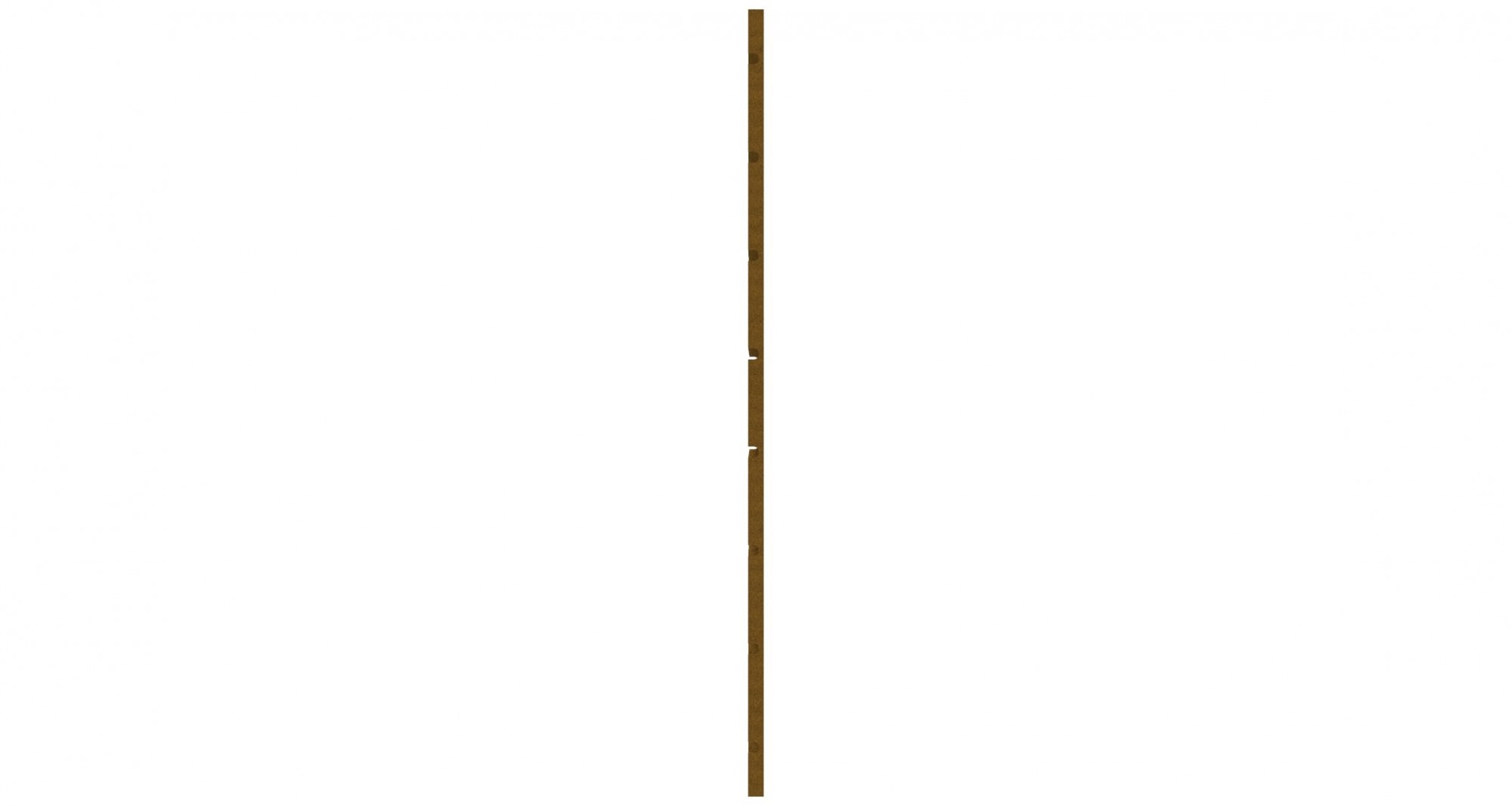

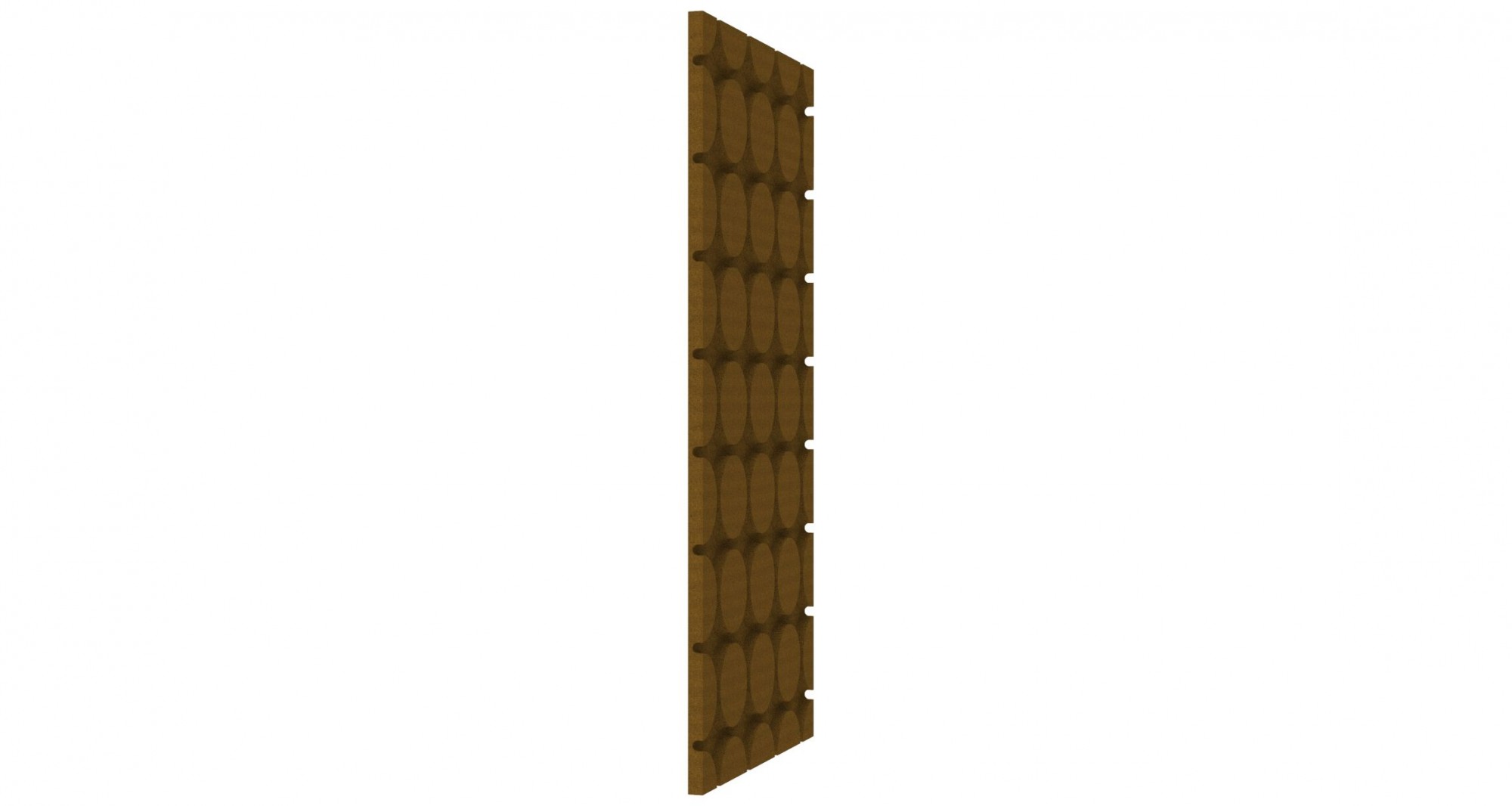

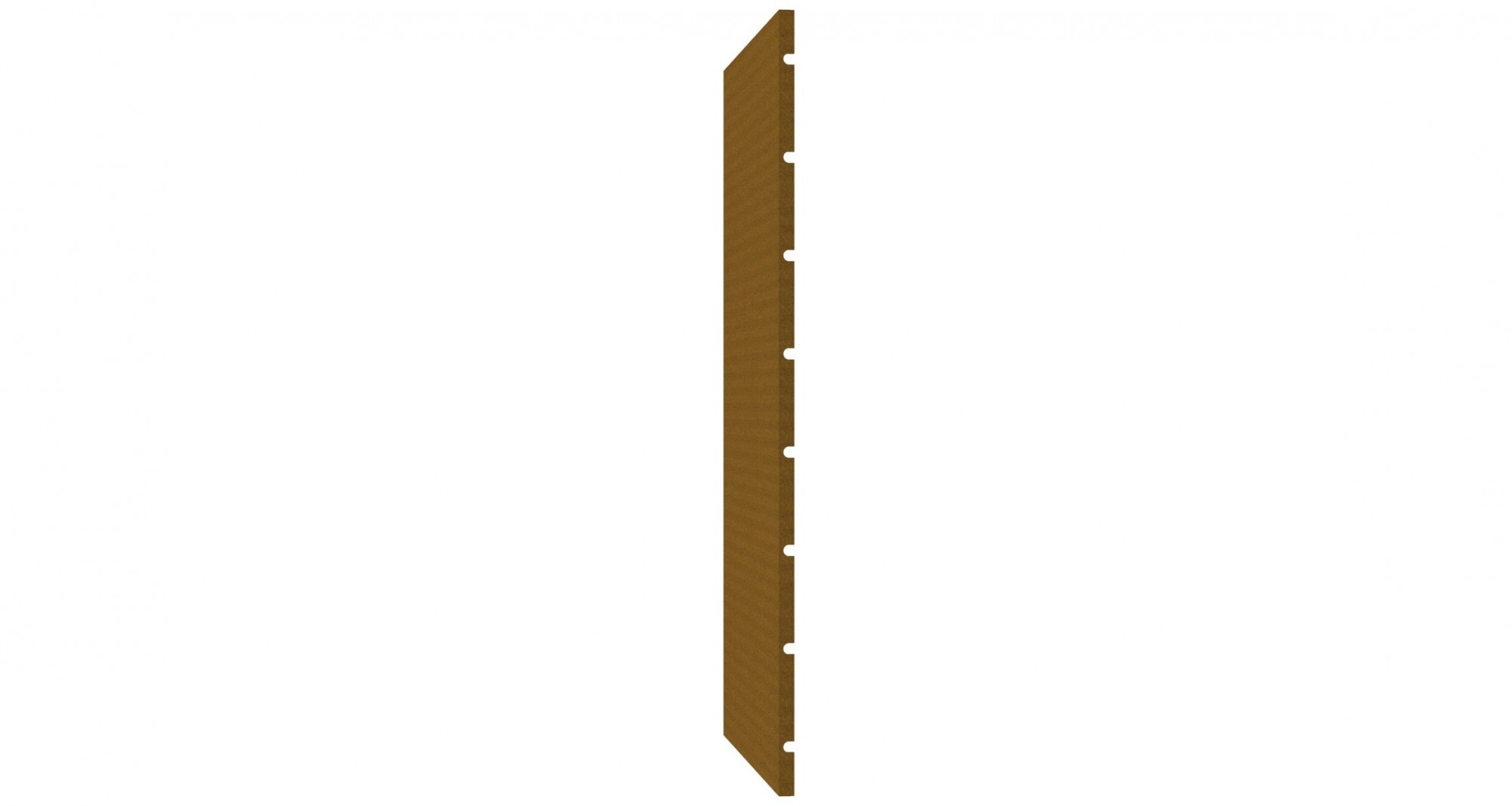

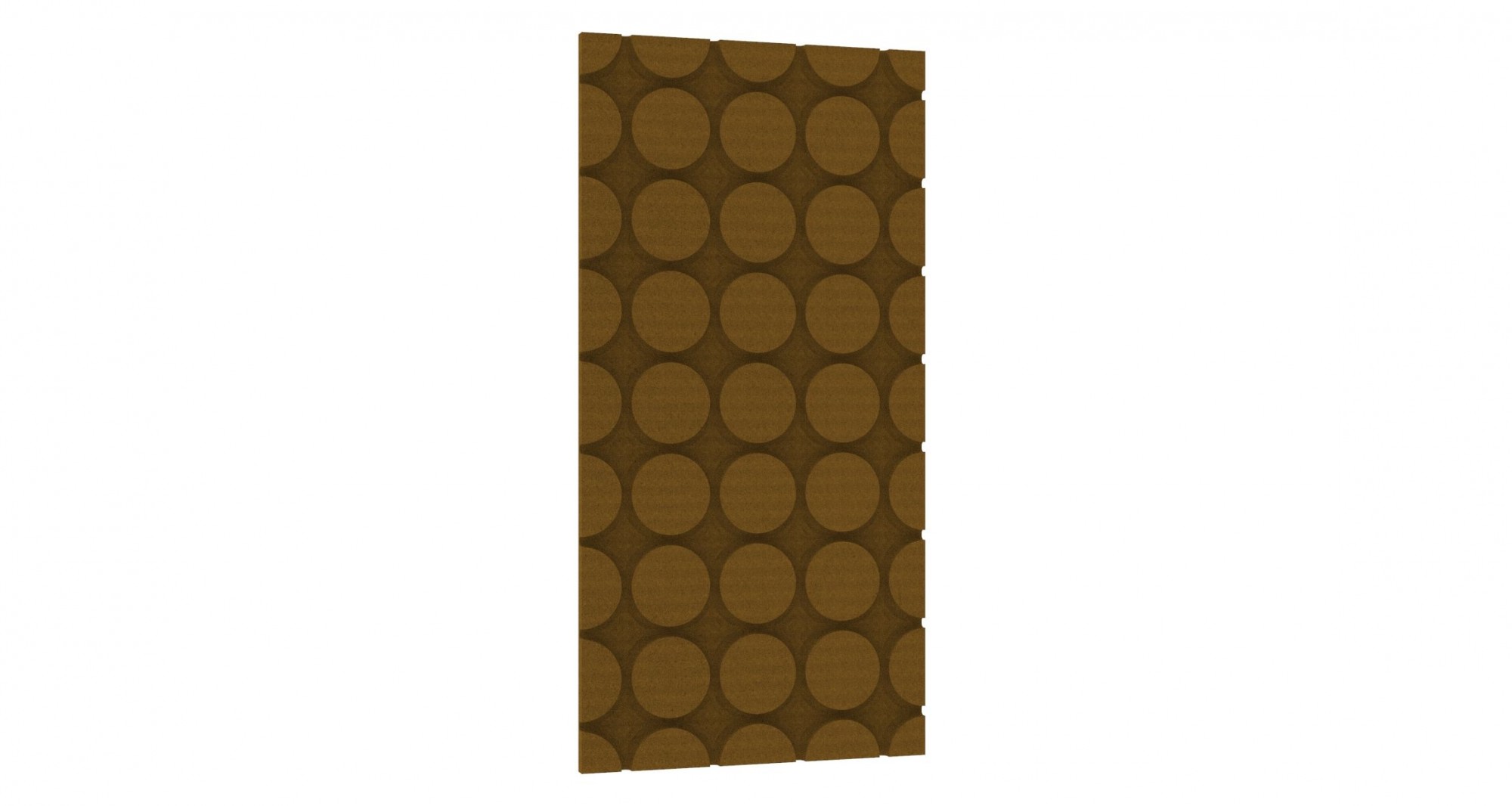

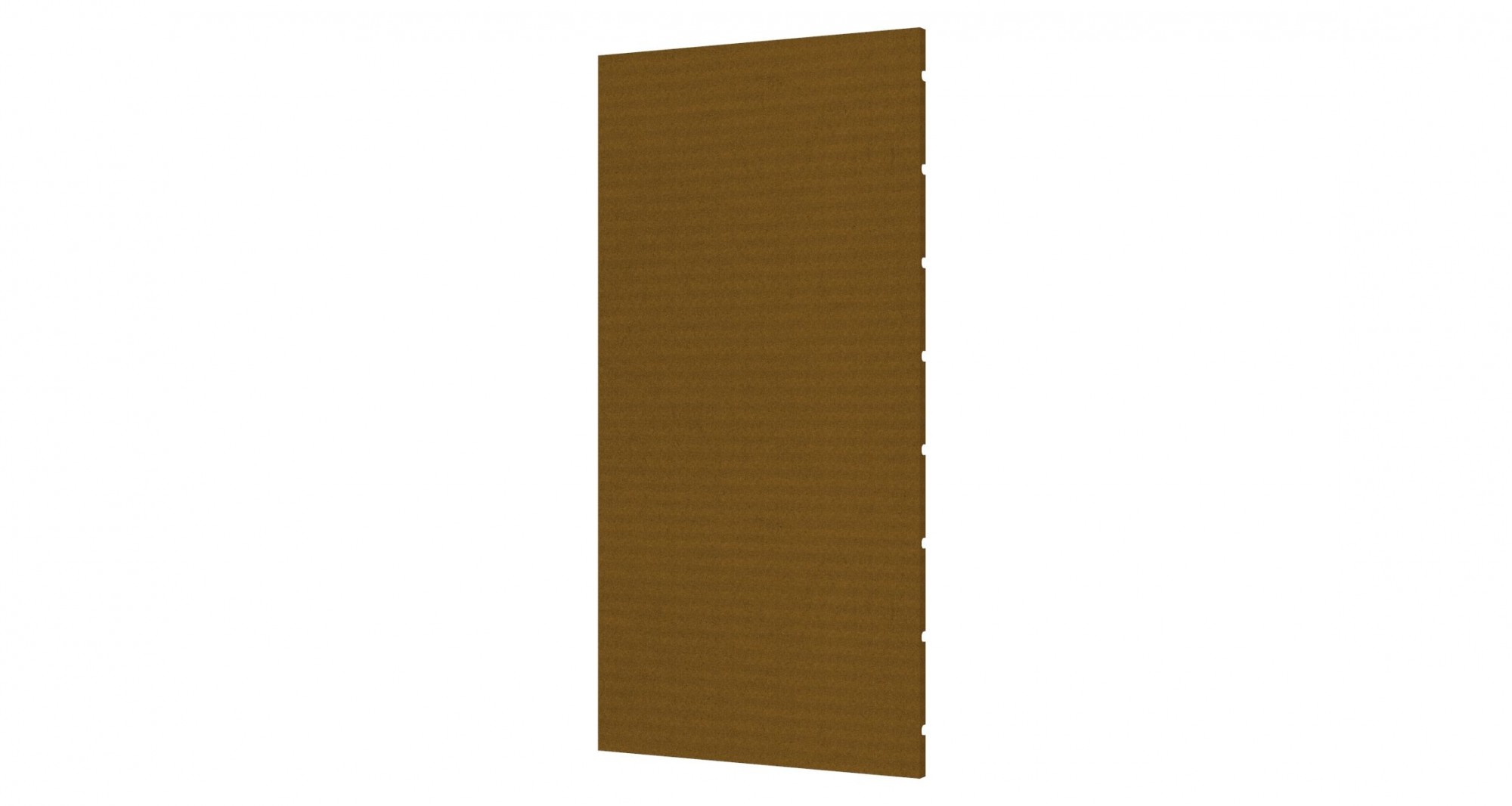

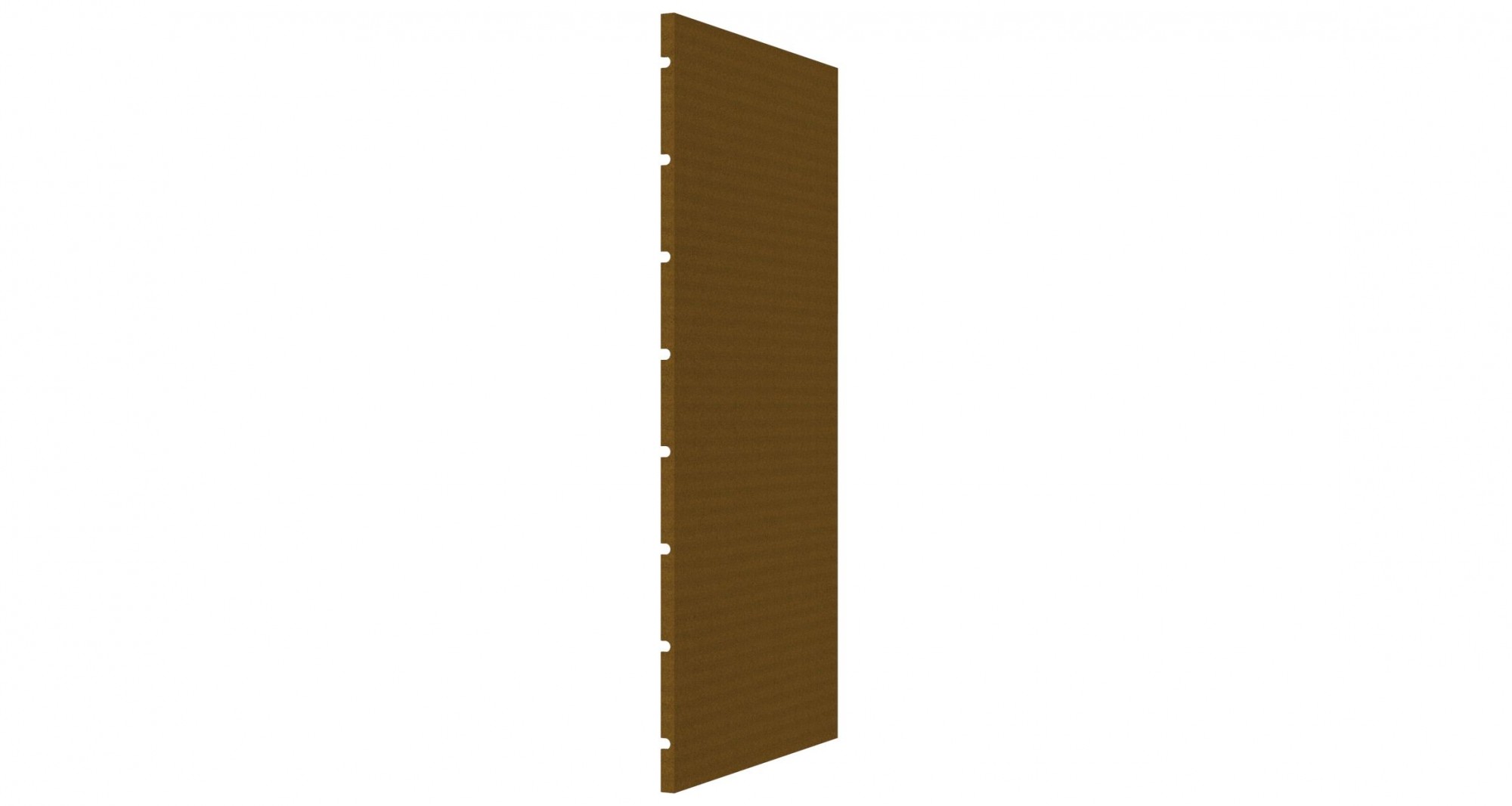

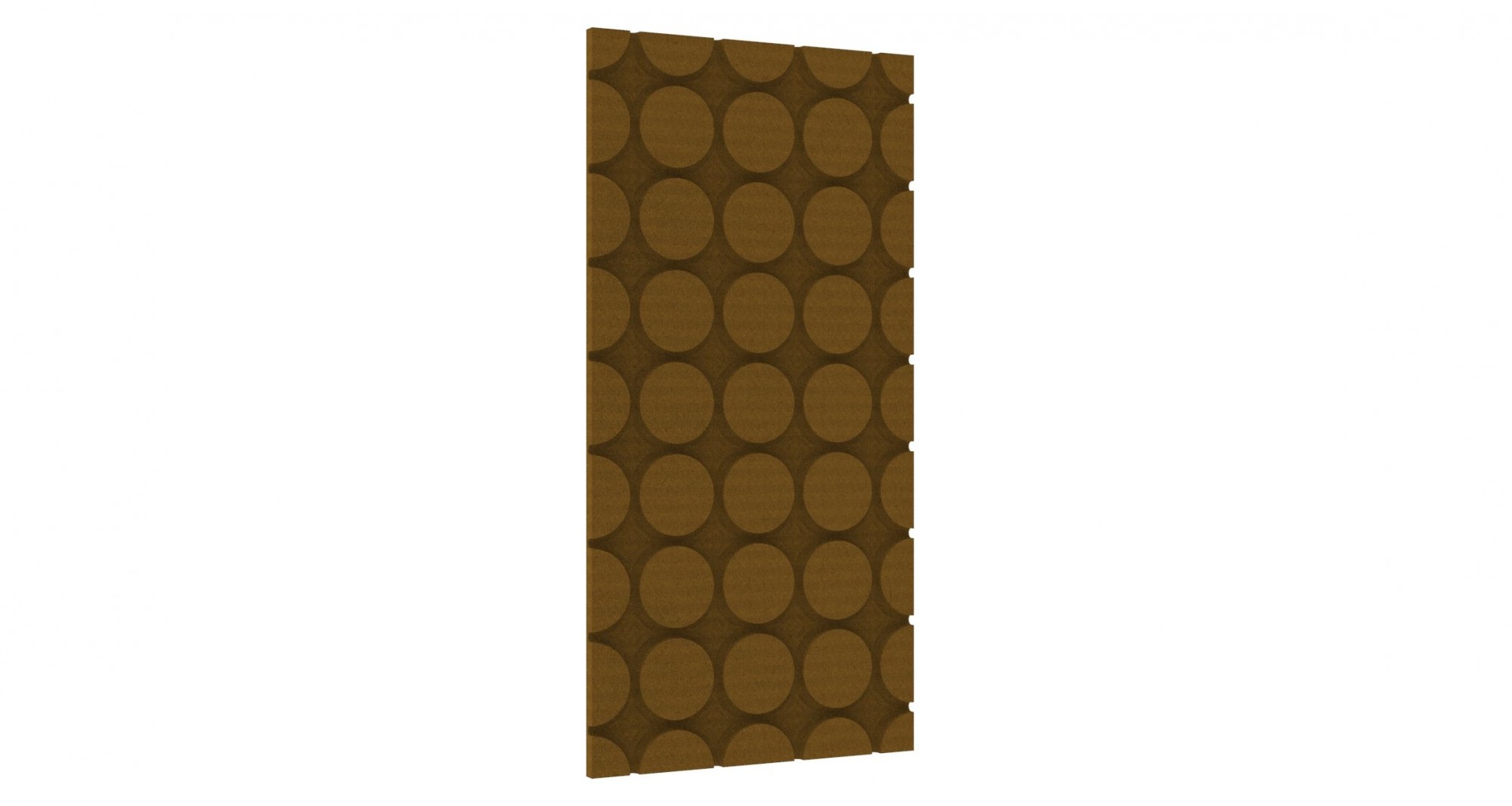

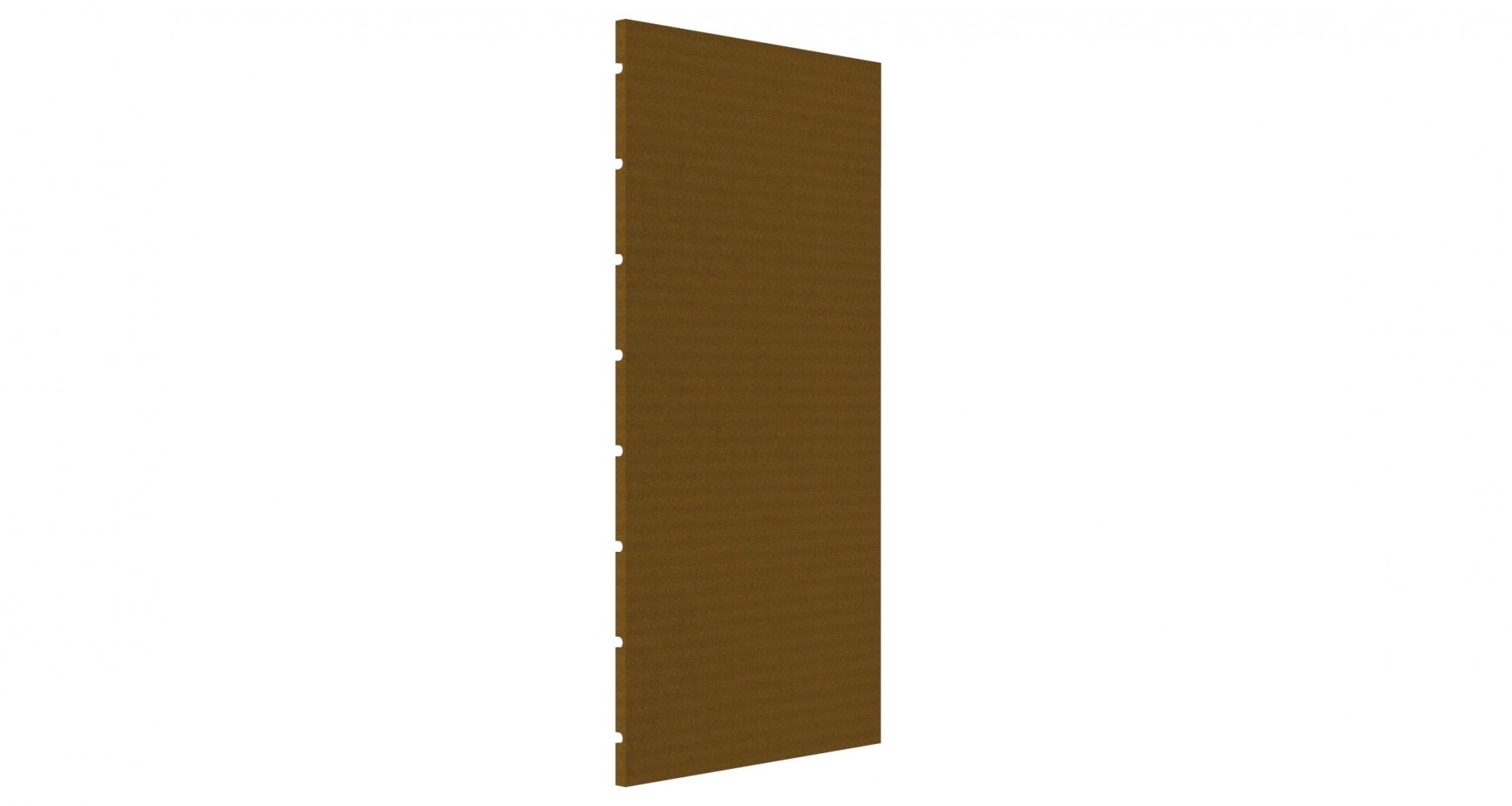

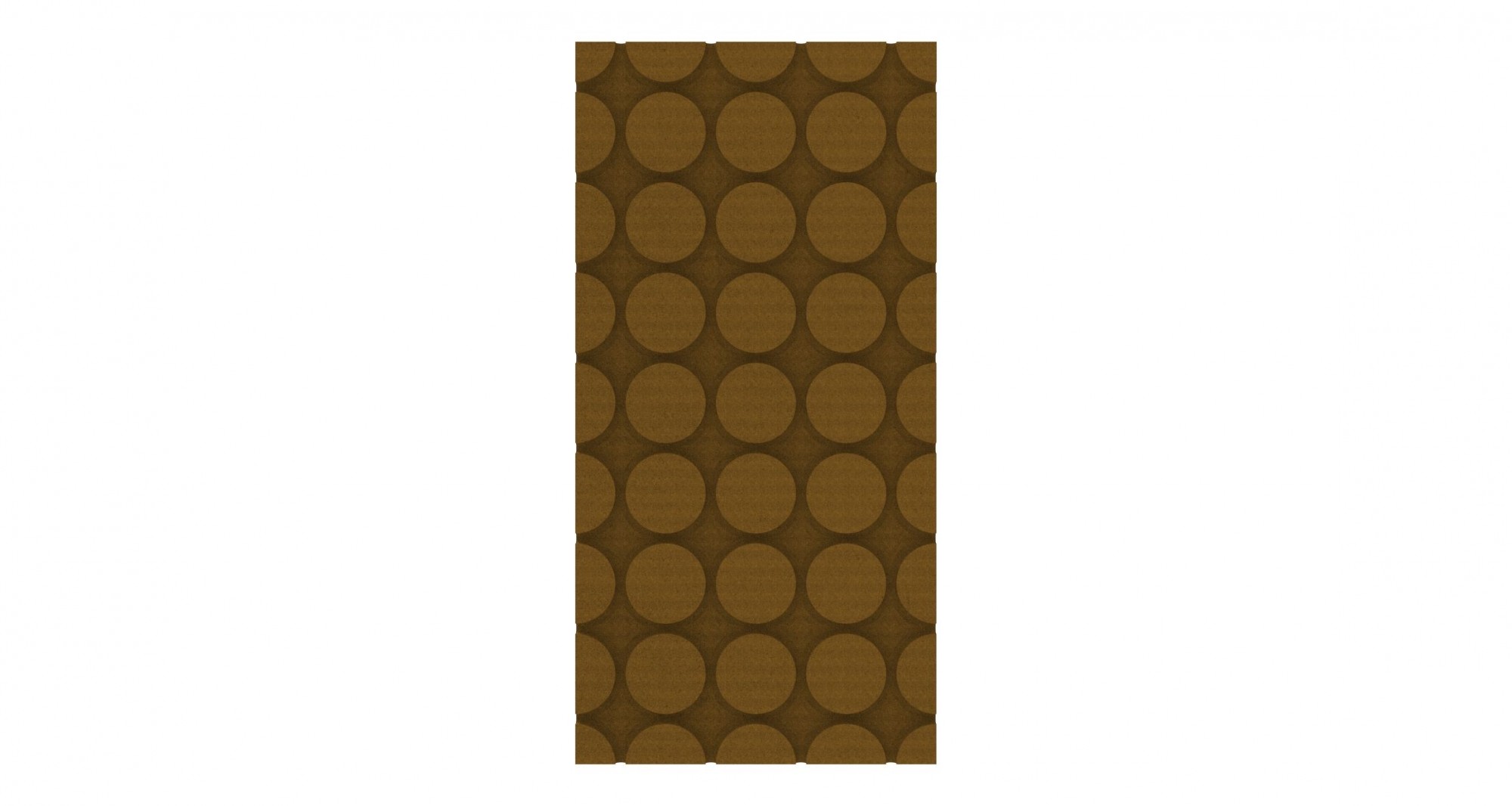

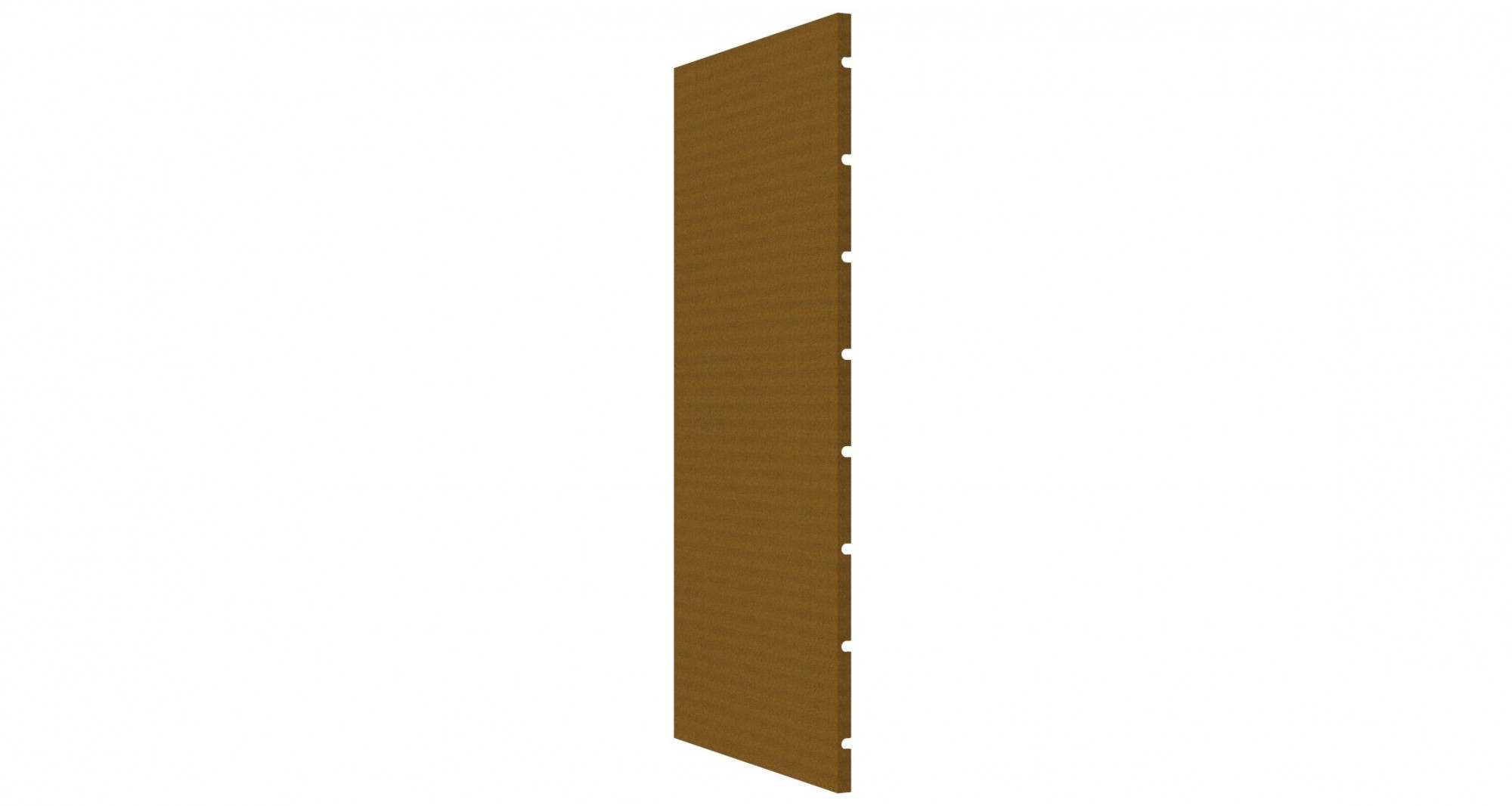

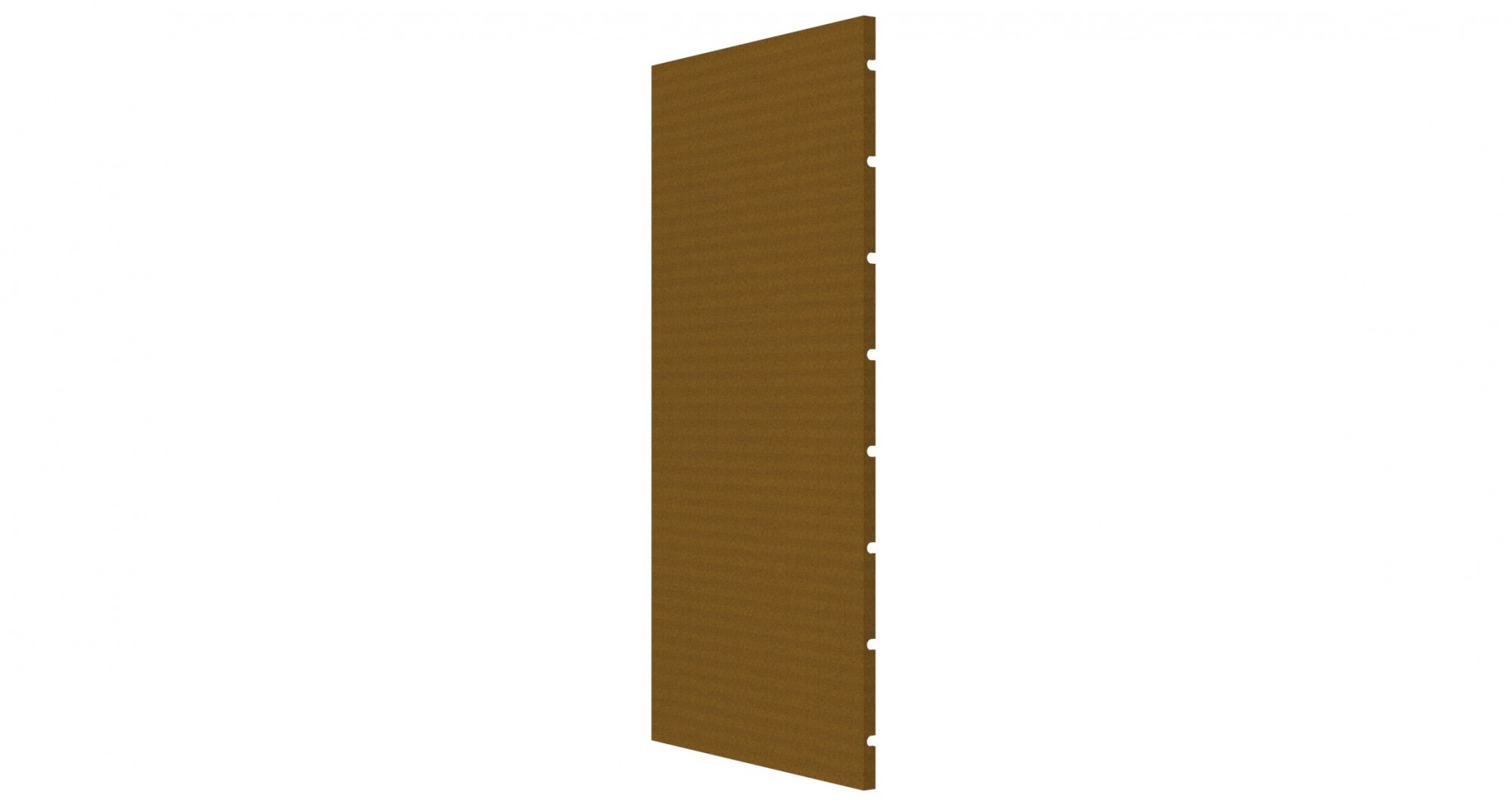

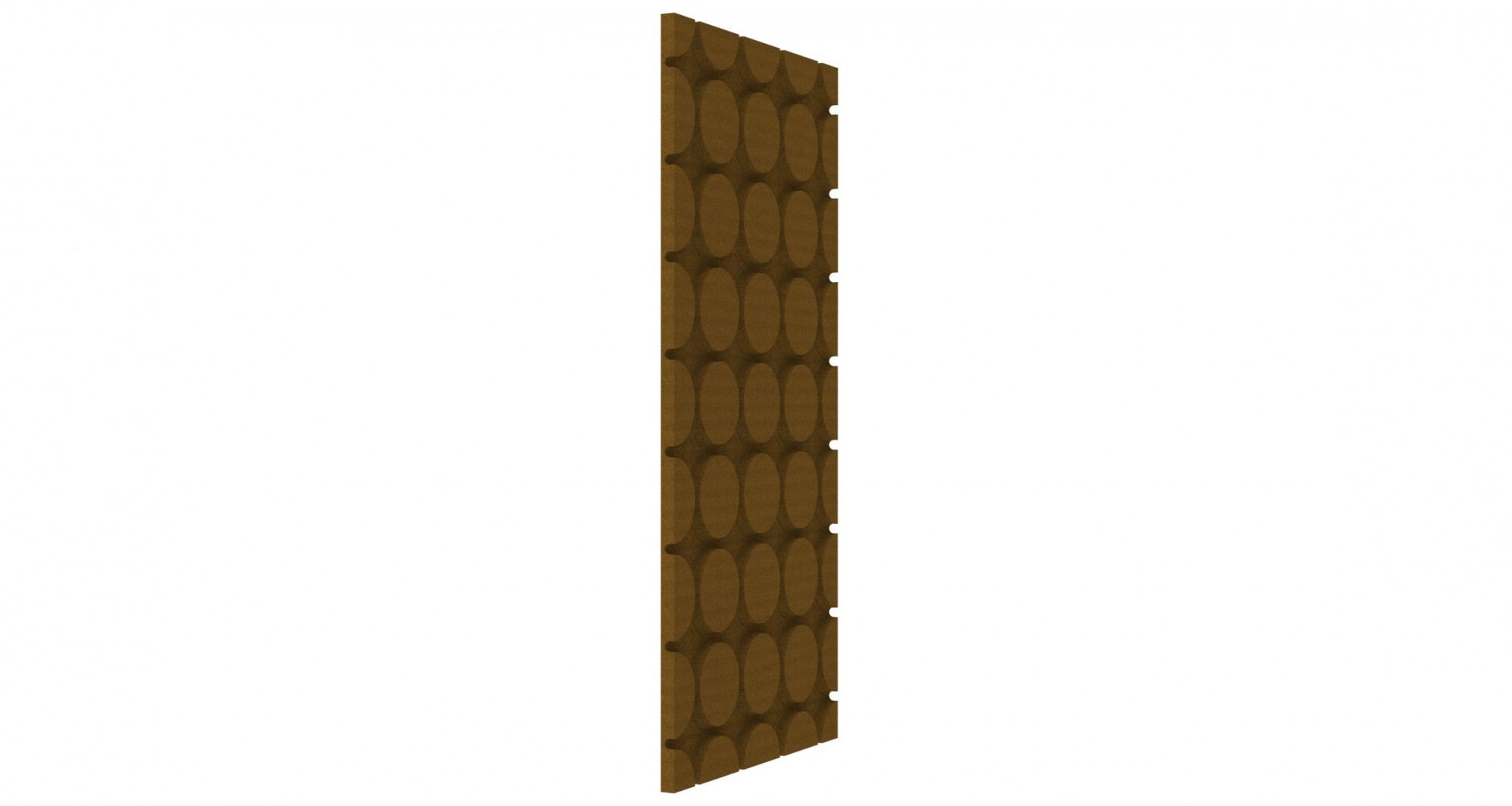

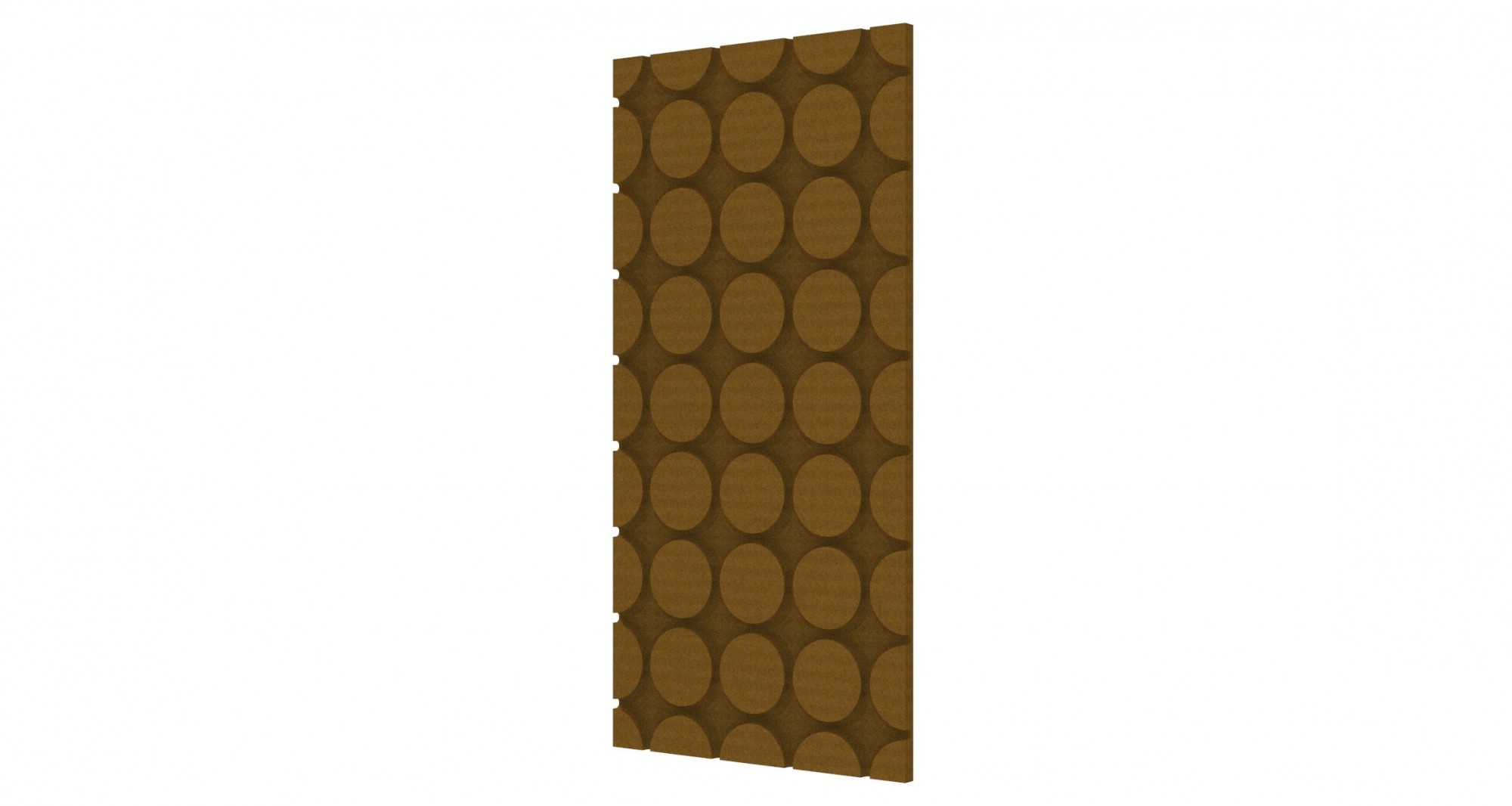

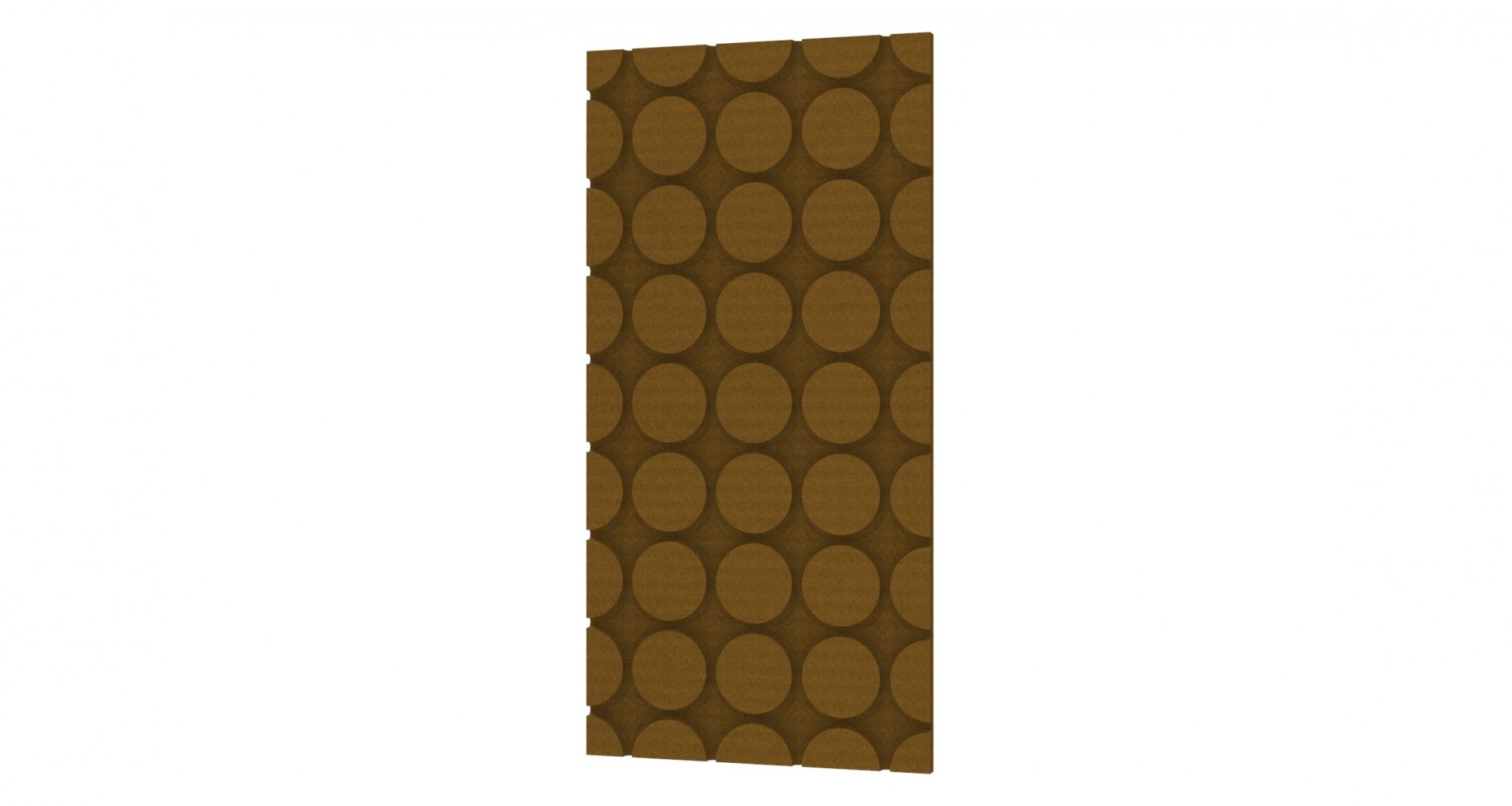

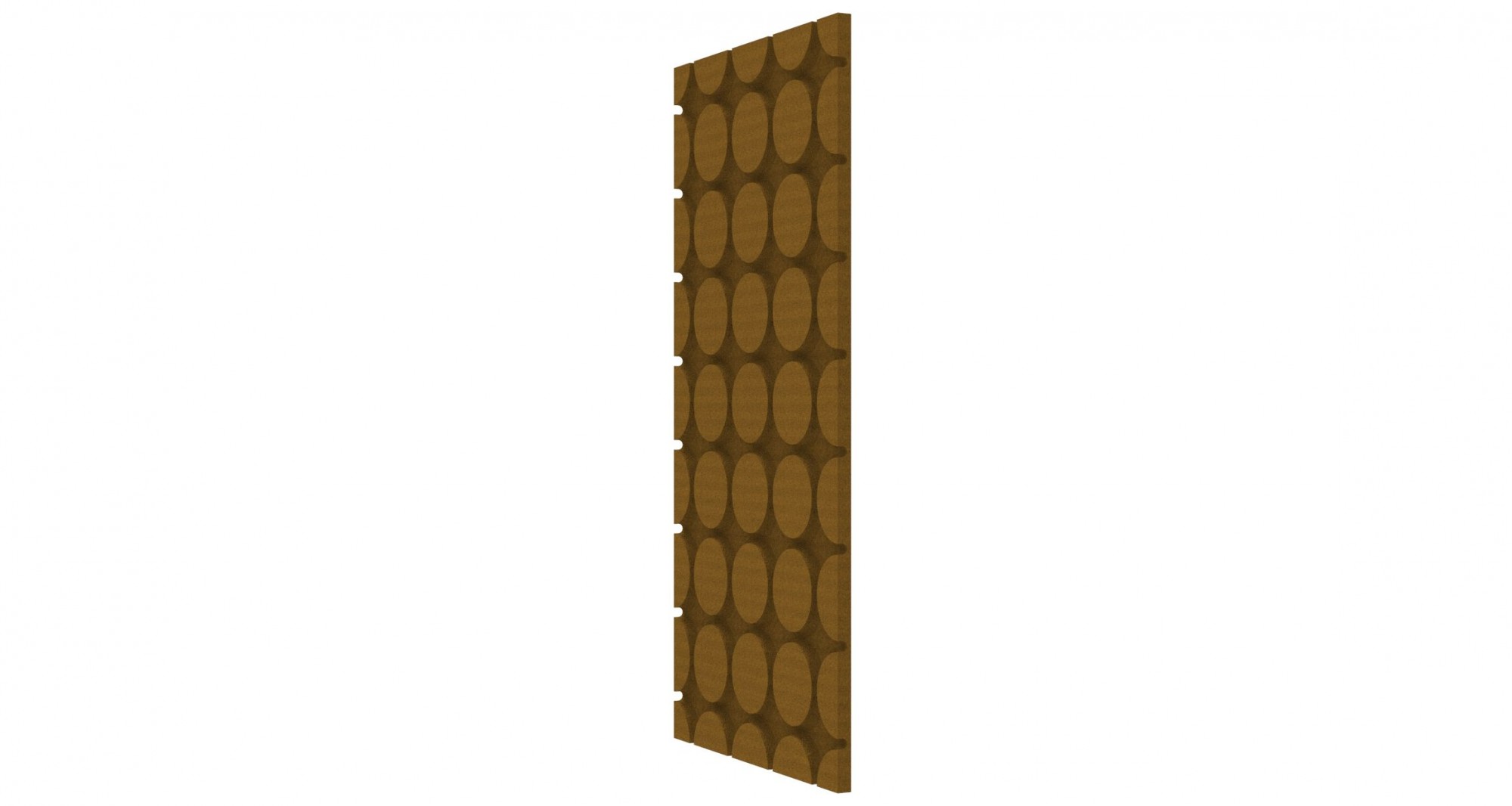

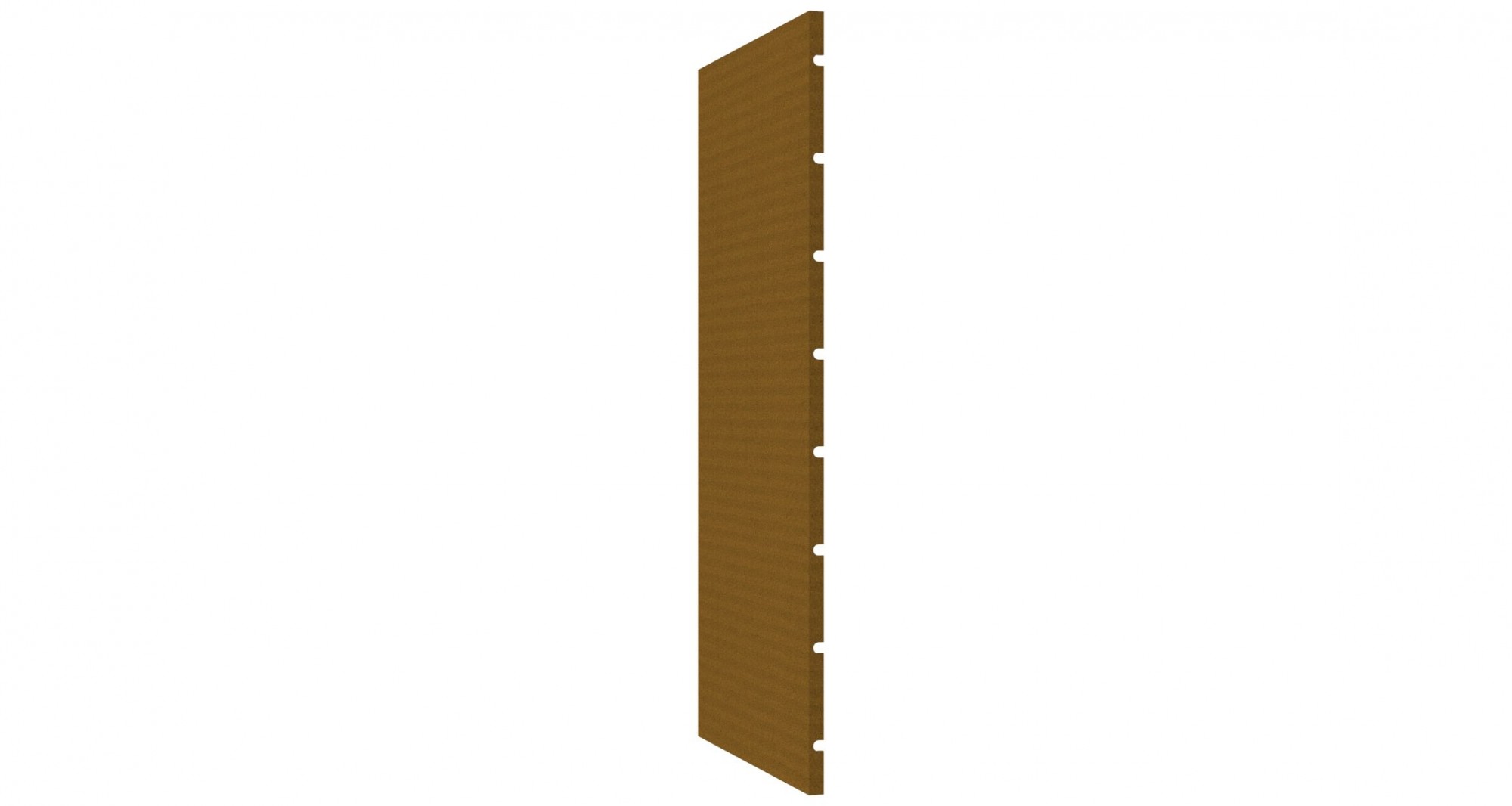

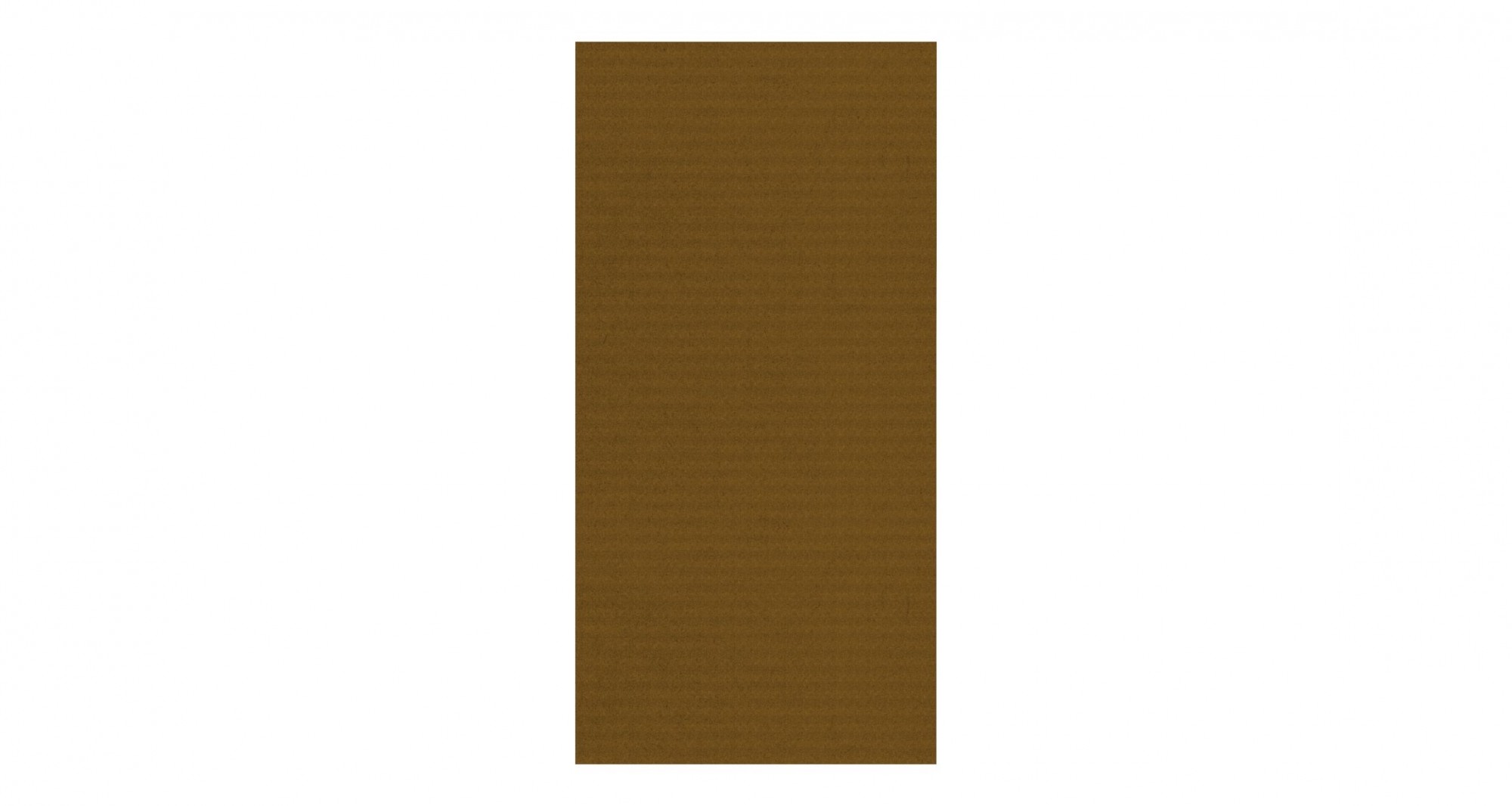

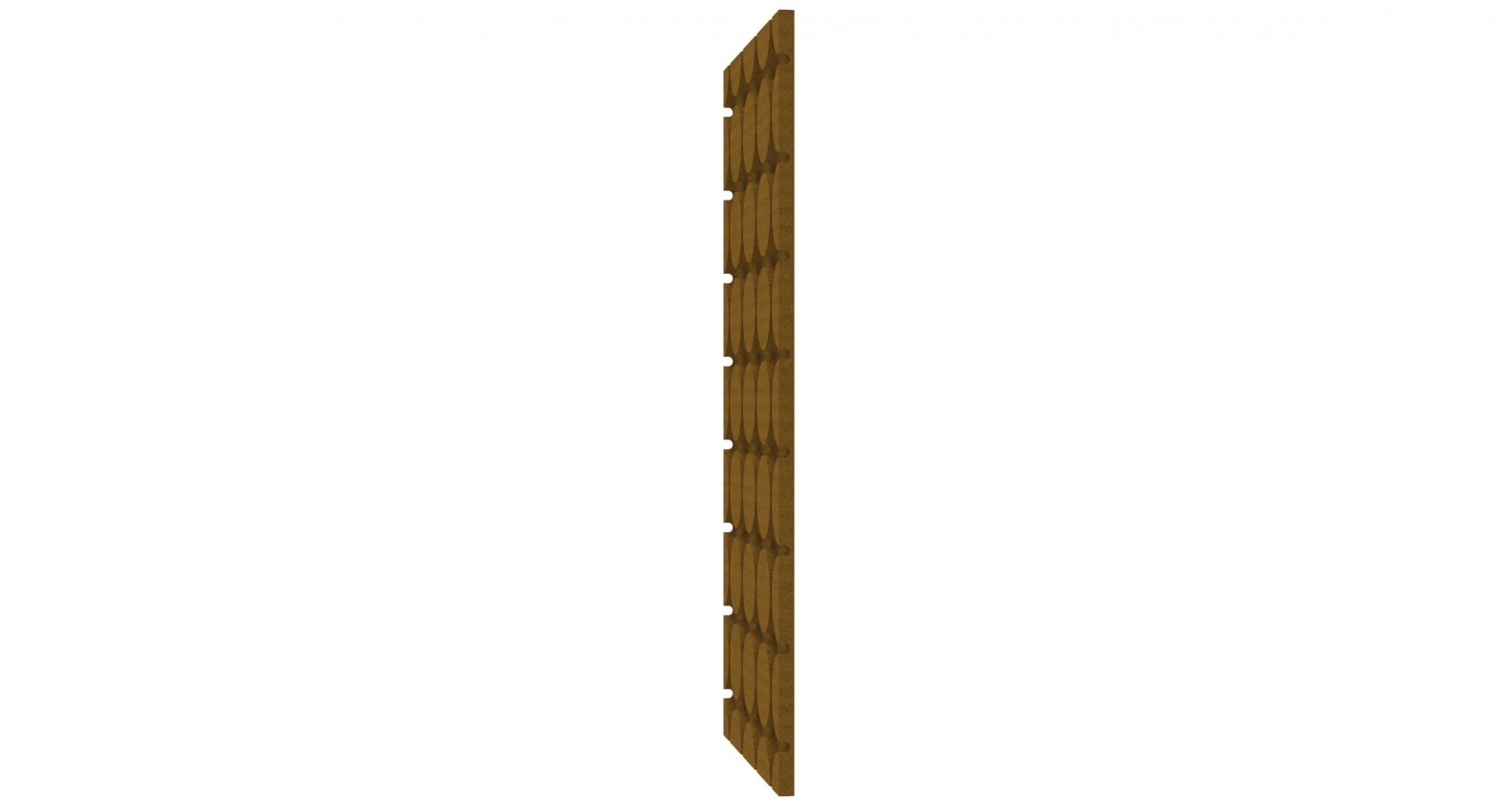

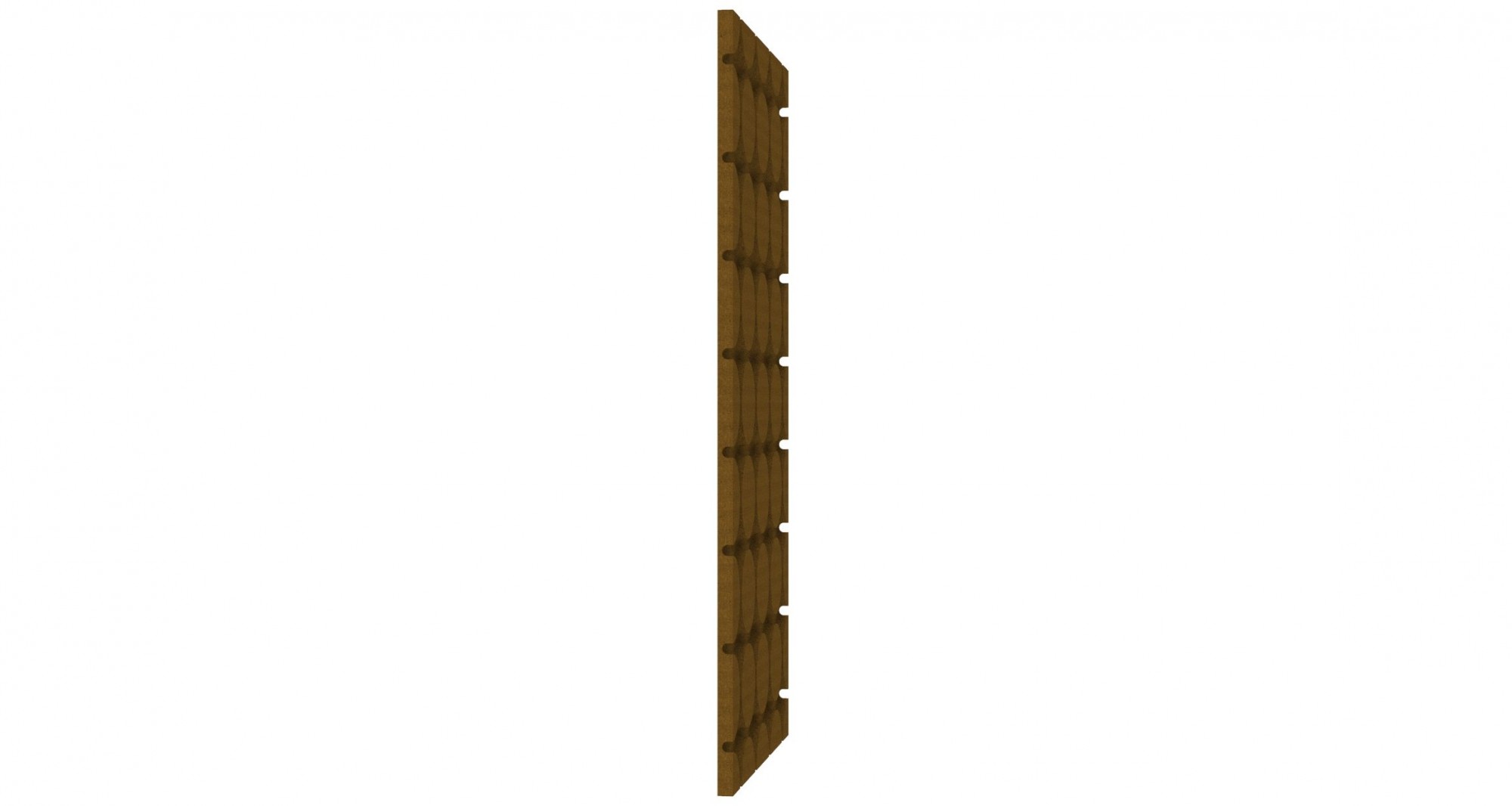

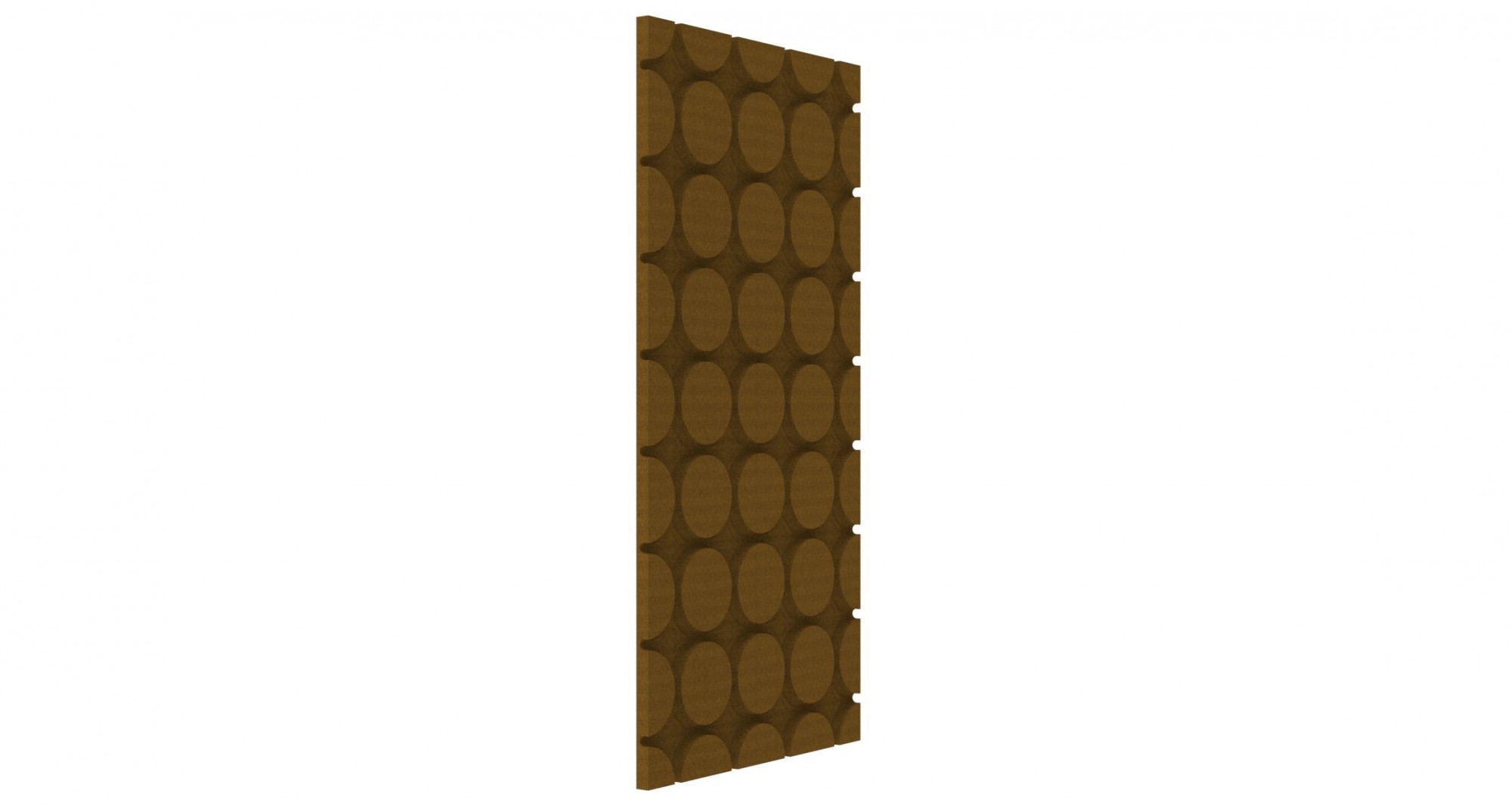

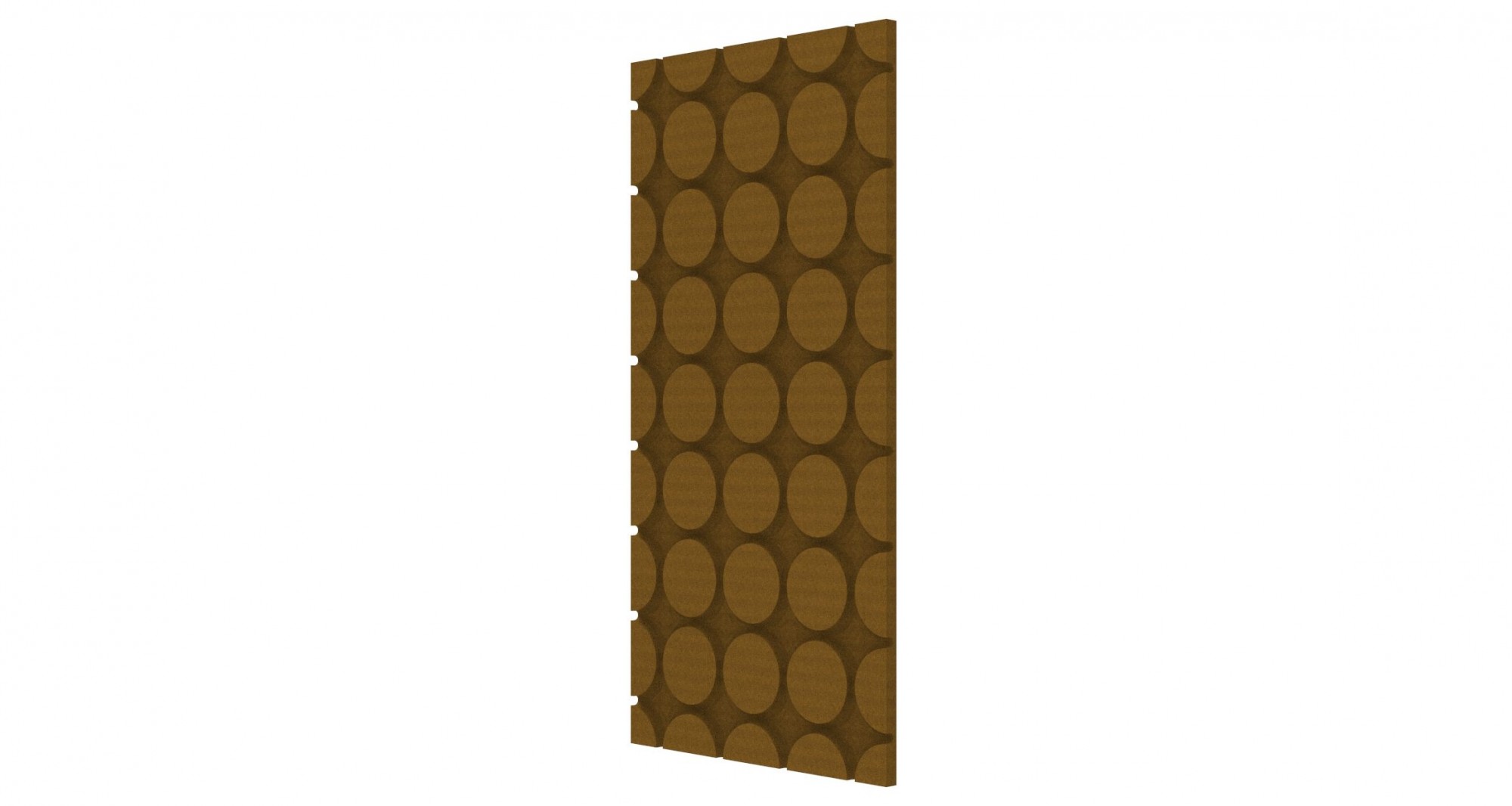

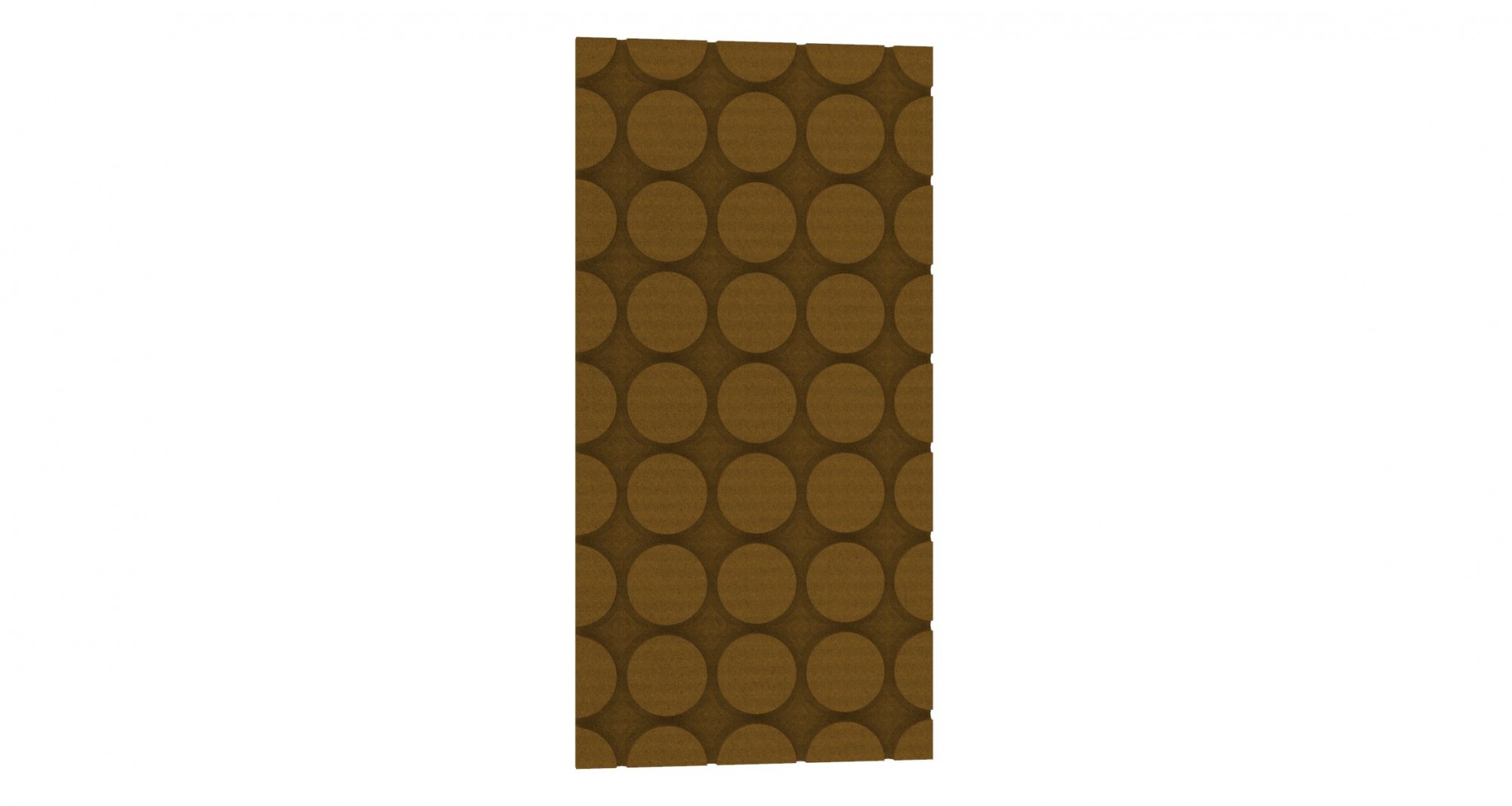

Acoustic board - element with round pattern

Acoustic board is used as a load-bearing element for pipes in dry underfloor heating. Fiber wood’s physical properties ensure optimal thermal insulation and prevent the vibrations’ transmission. In Acoustic System, a dedicated aluminium plates are used as a radiator. Plates are profiled so that their cross-sectional shape resembles the Greek letter Ω. This shape ensures a firm pipe installation.The boards are available in a various configurations based on the technical conditions of an investment. The element with a round pattern enables to avoid all obstacles, structural faults, pillars, etc. while running pipes.

Technical data

• Density (kg/m³): 250-270
• Declared thermal conductivity λ (W/mK): 0.050
• Compressive strength (kPa): >100 (according to norm PN EN 826 indicated value is 250-300 (kPa))
• Thermal capacity c (J/kgK): 2100
• Cross-breaking strength: > 1.0 (N/mm²)
• Sound absorption: 0.10 for frequency 250-500 Hz; 0.30 for frequency 1000-2000 Hz
• Water vapour transmission’s resistance μ: 10 dry conditions; 5 wet conditions
• Swelling after 24h of soaking in water: ≤ 10%
• Fire class according to EN 13501-1: E

MATERIAL: wood fiber

* Other shapes of milling are available on customer request.
